Int J Curr Pharm Res, Vol 15, Issue 3, 9-13Review Article


HIGH-RESOLUTION MASS SPECTROSCOPY (HRMS)-A REVIEW

K. BHAVYASRI1*, S. SAILEELA2, MOGILI SUMAKANTH3

*1,2Department of Pharmaceutical Analysis, RBVRR Women’s College of Pharmacy, Barkatpura, Hyderabad-500027, India, 3Department of Pharmaceutical Chemistry, RBVRR Women’s College of Pharmacy, Barkatpura, Hyderabad-500027, India
*Corresponding author: K. Bhavyasri; Email: bhavya.kagga@gmail.com

Received: 15 Mar 2023, Revised and Accepted: 12 Apr 2023

ABSTRACT

High-resolution mass spectroscopy (HRMS) is a valuable method for evaluating complex and time-consuming matrices, such as human breath, and it's employed to determine the structure's precise mass and chemical structure and elemental composition and identify unknowns and a powerful analytical separation technique. High-resolution mass spectrometry (HR-MS) detects sample matrix to within 0.001 unit of atomic mass. HRMS instrumentation's enhanced resolution allows it to produce fragmentation patterns, which enhances the precision of chemical formula prediction and database comparison for allows for the detection. TOF, Orbitrap, and FT-ICR mass detectors all seem to have a great mass high resolution which may be utilised to achieve maximum data. High-resolution mass spectrometry employs devices able to accurately detecting the density of substances towards the third or fourth significant digit. The Benefit of HR-MS the effectiveness of the approach in the evaluation of complicated mixtures to offer the high peak load required to deliver the accurate molecular weight of the subcomponents. The highest resolution is typically seen in FTICR mass spectrometers. HRMS has transformed how we approach the issue of identifying and monitoring pharmaceutical residues in sophisticated biological materials.

Keywords: TOF stands for time of flight, FTICR stands for fourier transform Ion cyclotron resonance, Orbitrap, HRMS

© 2023 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijcpr.2023v15i3.3008. Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr

INTRODUCTION

Mass spectroscopy is an analytical technique used to determine the identification of unknown compounds and weighing of molecule [1]. It is based upon the motion of a charged particles called an ion in an electric or magnetic field. It is used to measure mass to charge ratio (m/z) value [2]. Non all mass spectrometers simply measure molecular weights as whole numbers. High-resolution mass spectrometers can measure mass so accurately that they can detect the minute differences in mass between two compounds that, on a regular low-resolution instrument, would appear to be identical [3]. For example, a result on a high-resolution mass spectrometer, 2-octanone, C8H16O, has a molecular weight of 128.12018 instead of 128. Naphthalene, C10H8, has a molecular weight of 128.06264. Thus, a high-resolution mass spectrometer can supply an exact molecular formula for a compound because of the unique combination of masses that result [4].

Instrumentation

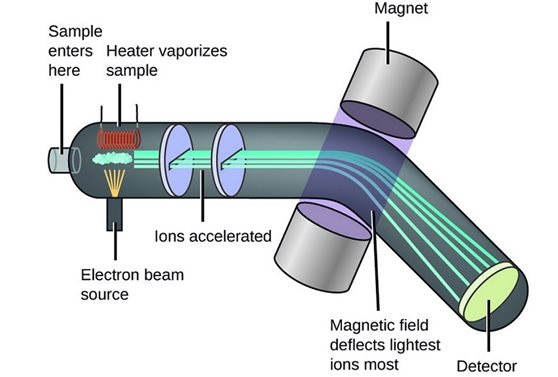

Fig. 1: Components and setup of HR-MS

Illustration of an introduction

The sampling inlet is chosen according to the specimen and the sample composition. The majority of electrospray are presented for vapor-phase particles. High-pressure gases and materials are given by injection through into the initial location. Steam is commonly used to enhance the partial pressure of liquids as well as solids [5].

Straight Vapor pressure Vents: This is a straightforward way to set up the Sample. Gaseous phase substance is delivered straight entering the transition zone through some kind of pressure regulator. Conveyor boundaries were typically incorporated to eliminate gas first from the test, which works well enough for higher vapor pressures gases, fluids, or particles. To raise partial pressure, samples with low pressures of vapor are burned [6].

Liquid chromatographic

Nozzles for HPLC analysis are utilized to add thermal liable chemicals that are difficult to separate using gas chromatography [6]. Since these injectors are utilized for sensitive to heat substances, they have undergone significant improvement and have grown to be rather common. The material is immediately ionized out from chromatographic column [7].

Methodology

In this Vaporization throughout this procedure, the specimen is inserted further into the intake, warmed by the heating element, and afterward changed to vaporization state [8]. In photoemission process, it passes the device, where the molecules are ionized by certain wavelengths and scattered into radicals. In the acceleration process electrons are accelerated with the aid of conductors because then they acquire the very same angular momentum [9].

Detector

As particles enter mass detectors, the mass of such atom must be determined. Reactants included inside mass analysers are because of magnetic particles or molecules with a higher molecular accelerate longer and those with a low specific change later. The sensor calculates the concentration for every ion by measuring the levels of an indicative value [10].

Methods of ionization

Electron Ionization

Chemical Ionization

Rapid Atom Bombardment

Electron Spray Ionization

MALDI Ionization

Electron ionization

One of most frequent ionization mechanism used during spectroscopy is electron ionization. A current flow through with a bridge rectifier to release the ions required in this ionization. The quantity of electrons emitted by the filaments regulates the current that flows. A magnetic charge accelerates these protons over the transition zone, leading to an extremely energetic electron stream [11]. Whenever an analyser’s compound travels through in these energetic electrons, a valence shell electron is extracted from the protein, resulting in the formation of an ion [12].

Chemical ionization

Is a surface-sensitive method that generates electrons using minimum additional energy. This method is a subfield of atmospheric electron chemistry. Electron ionization ionizes reagents gas atoms, which further interact to analytes in the gaseous state to create ionisation. Several typical versions of just this approach include negatives chemically ionisation (NCI), [13] exchange of charge chemical ionisation and high-pressure chemical ionisation (APCI), and atmospheric pressure photoionization (APPI). CI offers various essential uses in organic compound detection, molecular characterization, and quantization.

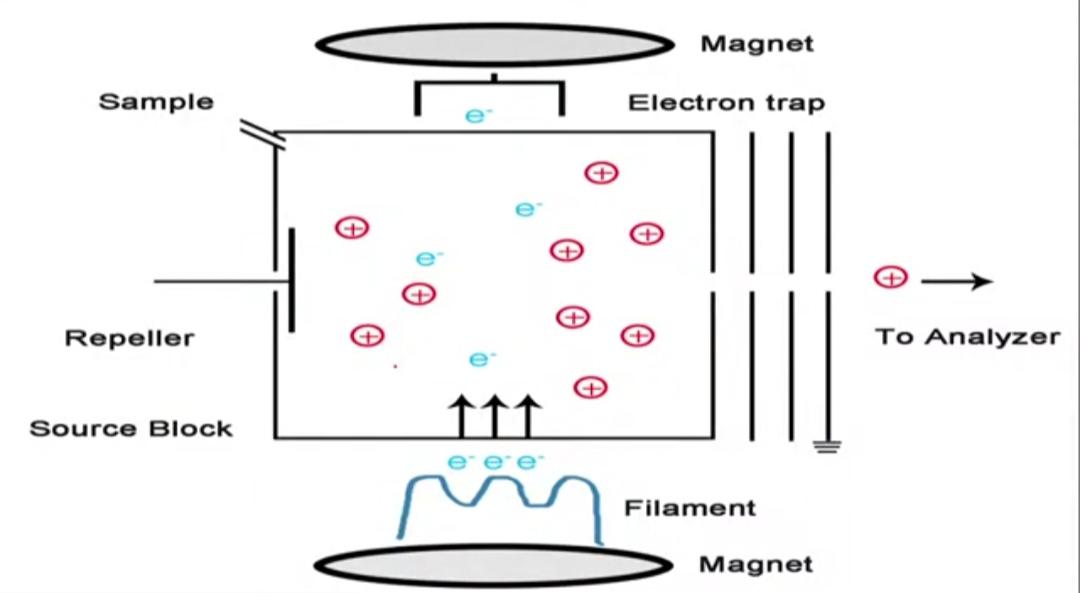

Fig. 2: The electron ionization in hr-Ms

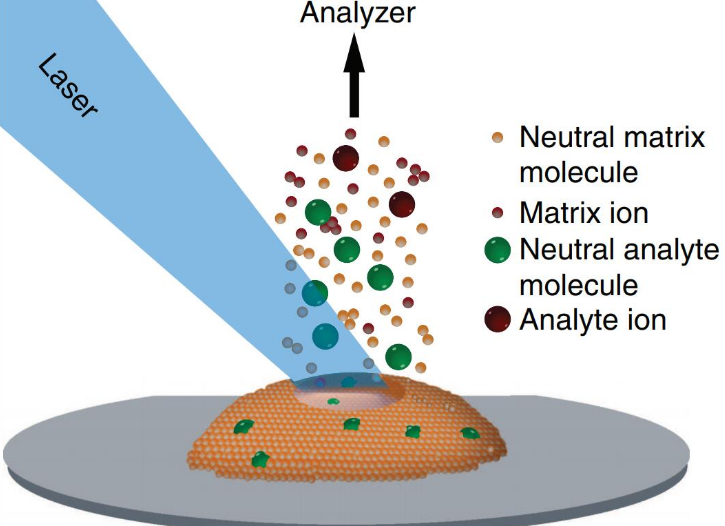

Fig. 3: The maldi ionization

Ionization with maldi

The Matrix Assisted Laser Desorption Ionization technique. It is really is used for the examination of larger molecules. An analyte from of the condensed phase is immediately ionised then vaporised to use this method. With MALDI, one laser pulse induces simultaneous desorption and ionisation. Matrix substance was selected to capture the laser source [14].

Bombardment fast atom

An beam of very energetic atoms are employed inside the fast atomic bombarding (FAB) method in ionization in mass spectrometry to impact material and produce ion. Liquid ion mass spectrometry is indeed the name of a technique where a stream of highly energetic particles is employed in place for atom LSIMS. A substance to be studied is combined with such a non-volatile chemicals protection environment, known as a matrices, and attacked with such a lots of energy (4000 to 10,000 electron volts) atom beams when under pressure for FAB or LSIMS. Usually, these particles come from such an inert carrier gas like argon and xenon. Glycerol, thioglycerol, and 3-nitrobenzyl alcohol [15].

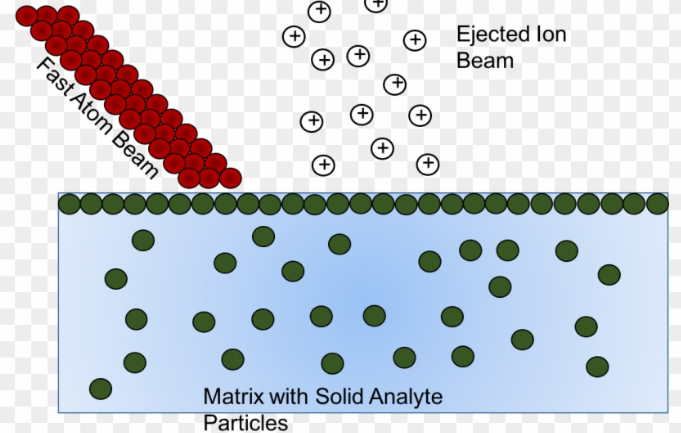

Fig. 4: The fast atom bombardment

Ionization of electron spray

Whenever a high voltage is given to a fluid to produce a spray, a technique called ESI, [16] is employed to generate ion. It's indeed especially helpful for manufacturing ionic species from macromolecules because it overcome that tendency of the these compounds to fragment while ionised. Because ESI has the potential to create multiple-charged ions, it is different from traditional ionisation techniques and, therefore, can handle the kDa-MDa order of magnitudes observed within the protein and the polypeptide segments that are linked with them, hence expanding the mass ranges of the analyzer [17].

Fig. 5: Electron spray ionization

Mass spectrometry types

1. Spectrometer with poor resolution in mass

2. High-resolution mass scanner

The molecular mass in LRMS was calculated to the closest atm pressure. Since it's less costly and simpler to operate, the kind of machinery employed in this instance is much more typical [17].

The molecular mass in atm pressure was calculated using HRMS to many decimal points. Because of its accuracy, the molar mass can be simplified to a limited number of potential values.

The high-resolution mass spectroscopy

A mass spectrometry that calculates M/Z ratio to 4 or maybe more decimal points is known as high-resolution mass Spectrometry. It’s indeed useful since, with the exception of C, All masses of other nuclei are indeed very near to yet not quite equal to which mass, which is specified as 12.0000 with an improved mass resolution, compounds could be distinguished from spontaneous backgrounds. Differentiating two formulas based on identical notional masses is very conceivable due to the development with Ms able to calculate M/Z, important to measure the amount to four digits. A maximum level of m/z precision and efficiency is provided by HR-MS. utilising various mass analyser, including Time of Flight, Orbit rap, and Fourier Ion Cyclotron Resonance. The Reduced level MS Systems often has a normal resolution that is at most twenty times greater. So, because the needed resolution is m/z dependant, HRMS has a limited capability to comprehensive definition compounds as according to summarized formulas [18]. This same ability of HR-MS methods to provide high average peak capacity and high quantification all through required to designate precise molecular mass as well as, thereby, molecular compounds of chemical components, without requiring prior detachment, is their most massive benefit inside the evaluation of complicated composites. The main benefit of this method is that it is extremely selective because it determines the precise mass of a compound, making it possible to discern even minute structural alterations. The situation is shown in the graph beneath, while a double-focusing HR-MS can tell immediately apart particles with these composition. Hence, Mass Spectrometry may already provide a specific molecular mass value [19].

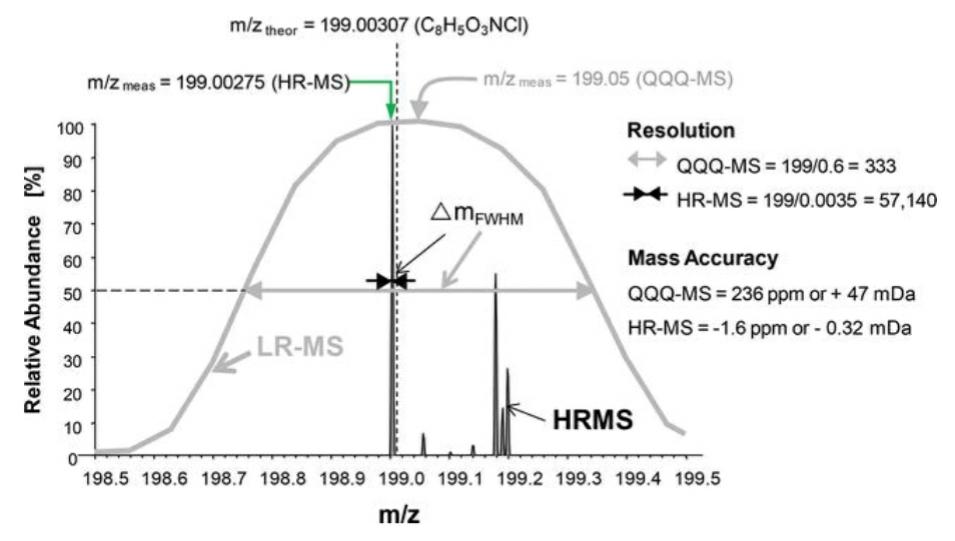

Fig. 6: Diffirence between HR-MS and LR-MS

The analyzers of mass spectroscopy

LTQ Orbitrap, Flight Time. FT-ICR

LTQ orbitrap

The mass sensitivity of the Orbitrap MS is 10,000–100,000. In spectroscopic methods, Orbitrap is indeed an anionic trap mass analyzer which captures ion inside an orbital motion all around the spindle. Really is made up of such an outside barrel-like electrode as well as an inside spindle-like electrodes that really are coaxial. Ions are confined inside the Orbitrap since their inertia balances out the electrical attractions to the inside electrode. Consequently, ion follow ellipse paths as they rotate all around inside electrode [20].

Flight of time

Time-of-flight (TOF) is the least complicated mass analysis system in aspects of its own concept; ions have been provided definite kinetic energy as well as enabled to drift through with a field-free geographical area (0.5 to several metres); this same duration required is for atoms to reach the sensor is assessed and linked to a m/z proportion; as well as the Time of flight MS offers mass negotiated settlement of 10,000–50,000 [21].

FTICR

FTICR, or Fourier Transforms of Ion Cyclotron Resonance, or FT-ICR MS, simultaneously examines the concentration and mass-charge ratio of any and all ions. Because it can amplify signals, FT-ICR allows for the identification of very low ion concentrations, enabling great resolution and sensitivity. Unfortunately, its adoption of such a technology is constrained by expensive purchase and maintenance prices, large equipment sizes, and challenging operational processes. FT-ICR MS interpretation of the data is additionally quite difficult, which reduces the usefulness of all this approach for structural protein identification [22].

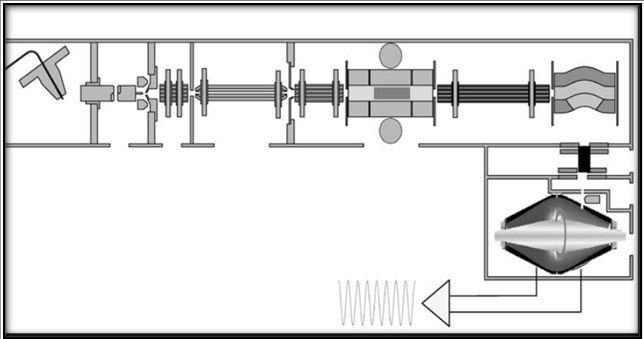

Fig. 7: LTQ orbitrap

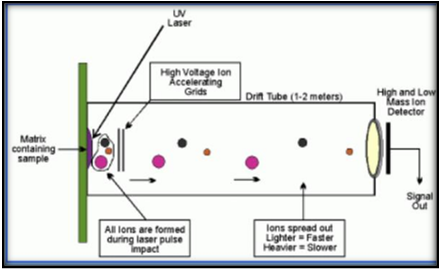

Fig. 8: Flight of time

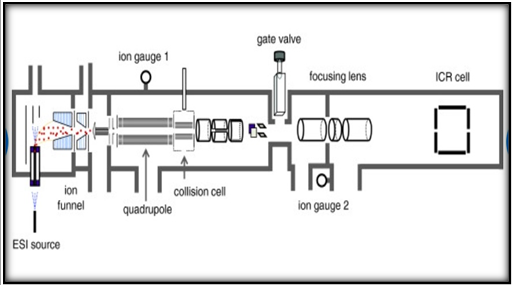

Fig. 9: FTICR

Study of food case reports with HRMS

Over recent years, high-resolution mass spectrometry (HRMS), which is used to analyse residues within food, have acquired more favour. Such improvement was attributable to a availability of equipment which is more robust, delicate, or discerning. HRMS has many benefits compared to conventional unit mass-resolution tandem mass spectrometry. Such advantages also include the gathering of filled spectrum that offers more knowledge about the make-up of such material. As just a result, the analyser is able to test compounds first without fine-tuning them, too undertake retrospective analysis of data, and also to perform structure elucidations of unidentified or suspicious compounds [23].

HRMS extract profile for various disposing hypodermic needles

Based on the discovery of such an unwanted contaminant leaching out of the rubber gaskets of a syringe throughout sample preparation again for the construction of either HPLC method, the present research was carried out to assess diagnostic and therapeutic disposal needles of different brands. For determine the needles' resistance to substances, both organic and aqueous solvents and related combinations was tested on them. In regards to the amount and concentration of analytes, this was discovered that various brands used needles had variable extracting propensities.

ACKNOWLEDGEMENT

I would like to thank our beloved principal, Prof. M. Sumakanthand, faculty of pharmaceutical Analysis for giving me this opportunity.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

Declared as none
