Int J Pharm Pharm Sci, Vol 8, Issue 5, 62-70 Original Article

AQUEOUS BARK EXTRACT OF TERMINALIA ARJUNA PROTECTS AGAINST PHENYLHYDRAZINE INDUCED OXIDATIVE DAMAGE IN GOAT RED BLOOD CELL MEMBRANE BOUND AND METABOLIC ENZYMES

SUDESHNA PAUL¹, DEBOSREE GHOSH^1,4, ARNAB KUMAR GHOSH¹, DEBAJIT BHOWMICK³, DEBASISH BANDYOPADHYAY², AINDRILA CHATTOPADHYAY^1*

¹Department of Physiology, Vidyasagar College, 39, Sankar Ghosh Lane, Kolkata 700006, India, ²Oxidative Stress and Free Radical Biology Laboratory, Department of Physiology, University of Calcutta, University College of Science and Technology, 92, APC Road, Kolkata 700009, India, ³Centre for Research in Nano Science and Nanotechnology, Acharya Prafulla Chandra Sikhsha Prangan, University of Calcutta, JD-2, Sector-III, Salt Lake City, Kolkata 700098, India, ⁴Department of Physiology [UG and PG], Hooghly Mohsin College, Chinsurah, Hooghly, West Bengal, India
Email: aindrila63@gmail.com

 Received: 12 Dec 2015 Revised and Accepted: 15 Mar 2016

ABSTRACT

Objective: The objective of the present study is to determine the phenylhydrazine (PHZ) induced oxidative stress mediated alteration in the metabolic status and morphology of the red blood cells (RBC) and amelioration of the same by aqueous bark extract of Terminalia arjuna (TA).

Methods: Fresh goat blood collected from local Kolkata Corporation approved slaughter house, was used for the present study. Packed cells were prepared from the freshly collected goat blood and were divided into four groups as follows for further studies i. e Group I: Control (CON), Group II: TA bark extract treated, named T5C (5 mg/ml, incubation mixture; positive control), Group III: PHZ treated (1 mM), Group IV: PHZ treated+TA bark extract at a dose of 5 mg/ml, named as P+T5. ROS, superoxide anion radical, and hydroxyl radical scavenging activity were determined. Intracellular iron and intracellular nitrate concentration were estimated. Activities of various membrane-bound enzymes like Na⁺/K⁺-ATPase, Mg²⁺-ATPase and Ca²⁺-ATPase and Ach-E were determined. Moreover, the activities of some metabolic enzymes like glucose 6-phosphate dehydrogenase (G6PDH), hexokinase, aldolase, lactase dehydrogenase were also studied. In addition, the morphological structure of RBCs was also determined.

Results: PHZ treatment caused significant alterations in RBC morphology as well as altered the activities of membrane-bound as well as metabolic enzymes. All these changes following oxidative stress were found to be ameliorated when the RBCs were co-treated with PHZ and aqueous bark extract of TA. However, aqueous bark extract of TA alone did not exhibit any such changes in RBC.

Conclusion: The aqueous bark extract of TA ameliorates PHZ-induced oxidative damages in goat RBC possibly by an antioxidant mechanism(s). The aqueous bark extract of TA may have future therapeutic relevance in oxidative stress-induced damages in RBCs.

Keywords: Antioxidant enzymes, Aqueous bark extract, Oxidative stress, Phenylhydrazine, Red blood cells, Terminalia arjuna

INTRODUCTION

Red blood cells (RBCs) are one of the most susceptible biological tissues to oxidative stress due to the presence of high concentration of polyunsaturated fatty acids (PUFA) in the membrane and the oxygen transport associated with redox active hemoglobin molecules, which are promoters of ROS. Due to their susceptibility to oxidation, RBC are often used as cellular models to investigate the oxidative damage.

Phenylhydrazine (PHZ), one of the most investigated intracellular free radical generating probes promotes oxidative damage in erythrocytes. It can penetrate to the 0₂-binding site of the haemoglobin molecule and react with it. PHZ oxidation results in the formation of superoxide anion free radicals and hydrogen peroxide [1-4]. These ROS and intermediates of PHZ form complexes with haemoglobin [5-7] which can denature the hemoglobin molecule [8]. Iron is probably released from the denatured hemoglobin, which may promote the conversion of superoxide anion free radicals and hydrogen peroxide into the very reactive hydroxyl radical through the Haber-Weiss reaction [9].

Since there are no mitochondria in erythrocytes, these cells depend on less efficient pathways for production of high-energy compounds, the anaerobic glycolytic (Embden-Meyerhof) pathway, which is also known as the hexose monophosphate shunt or the phospho-gluconate pathway. Under normal circumstances, about 90% of glucose entering the red cell is metabolized by the anaerobic pathway and 10% by the aerobic pathway [10]. It has been reported that G6PDH and other metabolic enzymes like hexokinase and aldolase activity is reduced, and LDH activity is increased following oxidative stress [10].

Membrane-bound enzymes are important in maintaining the normal physiology of erythrocytes [11, 12 ]. Free-radicals induced degenerative changes in erythrocytes which disturbed the structural integrity of the membrane that in turn affected the activities of membrane-bound enzymes like Na⁺/K⁺-ATPase, Mg²⁺-ATPase and Ca²⁺-ATPase [11] and AchE [12] activity. The level of nitric oxide (NO), another oxidative stress biomarker also increased during conditions of oxidative stress. NO is responsible for the conversion of oxyhemoglobin to methemoglobin (MHb) [13]. Increased NO status also indicates the increased nitric oxide synthase (NOS) activity in the cell.

Terminalia arjuna (TA) belonging to the family Combretaceae, is an important medicinal plant widely used in the preparation of Ayurvedic formulations for over three centuries in India. It is primarily used in the treatment of coronary artery diseases, heart failure and hypercholesterolemia [14-16]. It has also been found to have antibacterial and antimutagenic activities [17-19]. It has been earlier reported from this laboratory that aqueous bark extract of TA provides protection to RBCs against oxidative stress in vitro through antioxidant mechanisms [20].

The aim of our present study was to elucidate whether this aqueous bark extract of TA is capable of protecting the membrane-bound enzymes and the enzymes of the metabolic pathway of anaerobic oxidation in goat RBCs from phenylhydrazine-induced oxidative stress in vitro and whether antioxidant mechanisms are associated with such protection.

MATERIALS AND METHODS

Chemicals used

Powder of bark of Terminalia arjuna (TA) was purchased from Herby House, Kolkata India. All the other chemicals used including the solvents were of analytical grade obtained from Sisco Research Laboratories (SRL), Mumbai, India, Qualigens (India/Germany), SD fine chemicals (India), Merck Limited, Delhi, India.

Preparation of aqueous extract from TA bark powder

Five gm of TA bark powder was dissolved in 25 ml of double distilled water. After proper mixing it was kept with cotton plugging for overnight (approximately 16 h*). Then, it was centrifuged twice at 1300g for 10 min. The supernatant, thus obtained, was collected, frozen and lyophilized. The yield of the aqueous extract of TAfrom 5 gm of TA bark powder was 10%. The lyophilized material herein was termed as aqueous bark extract. Different concentrations of the extract dissolved in double distilled water were used for the present study, and any leftover extract was always discarded.

Processing of goat blood to obtain the whole RBCs

Goat blood was collected from local Kolkata Corporation approved slaughterhouse in Acid Citrate Dextrose buffer. Packed RBCs were obtained by centrifugation at 3000rpm for 10 min at 4 °C. The plasma and the buffy coat were removed by aspiration and the whole RBCs, thus obtained, were washed thrice with 0.9% NaCl solution.

In vitro incubation of whole RBCs with the PHZ and aqueous bark extract of TA

The following experiments were carried out with whole RBCs divided into four groups.

Group I: Control (CON)

Group II: TA treated, named T5C (5 mg/ml, incubation mixture; positive control)

Groups III: PHZ treated (PHZ)

Group IV: PHZ treated+TA at a dose of 5 mg/ml, named as P+T5

Five hundred µl of whole RBCs with 1 mM phenylhydrazine (PHZ), a concentration of 5 mg/ml of aqueous bark extract of TA and 50 mM sodium phosphate buffer (pH 7.4) in a final volume of 1.0 ml were incubated at 37 °C in a shaking water bath for 1 hour. The incubation was terminated by addition of 100μl of 16 mM EDTA and the treated red blood cells were washed thrice with 0.9% NaCl solution prior to lysis and preparation of membrane there from.

Preparation of hemolysate from incubated whole RBCs for the assay of antioxidant enzymes

For the assay of antioxidant enzymes, after lysis of the washed erythrocytes in deionized water, the suspension was centrifuged at 7000 rpm. for 25 min at 4 °C. The supernatants, thus obtained, were then stored at–20 °C to be used later for the assay.

Preparation of erythrocyte membrane

Haemoglobin-free erythrocyte membrane (either control or treated) was prepared according to a method of Arduini et al. [34]. The washed erythrocytes were subjected to hypotonic lysis in 40 volumes of 5 mM sodium phosphate buffer (pH 8.0) and centrifuged at 14,000 rpm for 20 min at 4 °C. The supernatant, thus obtained, was discarded and the pellet was washed at least five times in the same buffer until a colorless pellet was obtained. The erythrocyte ghosts were suspended in the same buffer and stored at–20 °C for future use.

Determination of ROS scavenging activity of aqueous TA bark extract in a chemically defined system

The RBCs were washed with phosphate-buffered saline (PBS) to remove traces of the original medium. Washed RBCs were incubated with 2´,7´–dichlorofluorescein diacetate (DCFDA) at a final concentration of 1μM and was kept 30 min in the dark, in a conventional incubator (37 °C, 5% CO2). The DCFDA containing medium was removed, and the RBCs were washed twice with PBS. The level of ROS was assessed immediately by flow cytometry [21].

Hydroethidine (HE) was used as a superoxide indicator. HE is oxidized selectively by superoxide to ethidium, whose fluorescence intensity within the cell is proportional to the total production of superoxide anion free radicals [22]. The oxidation of HE is not accomplished by hydroxyl radical, singlet O₂, H₂O₂ or nitrogen radicals.

The hydroxyl (·OH) radical was generated in sodium phosphate buffer (0.05 mM, pH 7.4) with 1 mM PHZ for 60 min in the presence and absence of dimethyl sulfoxide (DMSO) (500μM) and different concentrations of aqueousbark extract of TA in a volume of 1 ml to determine the ·OH scavenging activity of the aqueous bark extract of TAin an in vitro system. The reaction was terminated in each case by the addition of 16 mM EDTA. Methane sulfonic acid (MSA) formed during incubation was measured by the method of Babbs and Steiner [23] as modified by Bandyopadhyay et al. [24]

Estimation of iron content of RBCs by Atomic absorption spectrophotometry (AAS)

The iron content of the RBCs was determined by atomic absorption spectrophotometry as per the protocol mentioned in the cookbook of the Sophisticated Analytical Instrument Facilities’ (SAIF) and ‘‘Thermo Scientific mCE 3000 Series Atomic Absorption Spectrometer’’ available at the Chemical Engineering Department of University College of Science and Technology, University of Calcutta and at the Bose Institute, Kolkata. After in vitro incubation of whole RBCs, the cells were centrifuged at 3000rpm for 10 min. The supernatant, thus obtained, was collected ina conical flask. Concentrated nitric acid was then carefully added to itand the conical flask with its contents was placed on the hot plateand heated at 65–70 °C for digestion of the RBCs and heated until white fumes come out. The contents of theconical flasks were then carefully and quantitatively transferred into 25 ml volumetric flasks, and, finally, the volume made up to 25 ml with double distilled water. The iron content of the samples was then measured using an atomic absorption spectrophotometer [25].

Measurement of the activities of glucose-6-phosphate dehydrogenase (G6PDH), hexokinase, aldolase and lactate dehydrogenase (LDH) of RBCs

Glucose-6-phosphate dehydrogenase activity was determined in hemolysate by measuring the increase in absorbance spectrophotometrically at 340 nm. The reaction mixture containing 0.006 M NADP and 0.1 M glucose-6-phosphate in 2.7 ml of 0.055 M Tris HCl buffer, pH7.8 with 0.0033M MgCl₂were individually incubated for 7-8 min to reach temperature equilibrium and then hemolysate was added and the change in absorbance recorded at 340 nm for 5 min [26]. The enzyme activity was expressed as units/minute/mg of protein.

The activity of hexokinase was determined from RBC hemolysate by using 0.67 M glucose as the substrate, 0.05 M Tris Mgcl₂ buffer (pH 8), 16.5 mM ATP, 6.8 mM NAD and glucose 6 phosphate dehydrogenase (300 IU/ml of Tris MgCl₂ buffer). The change in absorbance was observed spectrophotometrically at 340 nm [27]. The enzyme activity was expressed as units/minute/mg of protein.

The activity of aldolase was measured in hemolysate based on the fact that 3-phosphoglyceraldehyde reacts with hydrazine to form a hydrazone which absorbs at 420 nm. The reagents used were 0.012 M fructose-bis-phosphate, 0.1 mM EDTA containing 0.0035 M hydrazine sulphate, pH 7.5 and hemolysate as the source of the enzyme. The change in absorbance was recorded spectrophotometrically at 240 nm for 10 min [28]. The enzyme activity was expressed as units/minute/mg of protein.

The activity of lactate dehydrogenase was determined spectrophotometrically by measuring the oxidation of NADH (0.1 mM) to NAD+at 340 nm using 1.0 mM sodium pyruvate as a substrate, according to the method Dhanesha et al. [29]. The enzyme activity was expressed as units/minute/mg of protein.

Determination of the activities of sodium-potassium ATPase (Na⁺/K⁺ATPase), magnesium-ATPase (Mg²⁺ATPase) and calcium ATPase (Ca²⁺ATPase) in RBCs

The activities of Na⁺/K⁺ATPase, Mg²⁺ATPase, and Ca²⁺ATPase, were determined simultaneously from the membrane fraction of RBCs. Na⁺/K⁺Mg²⁺ATPase activities were determined from the hemolysate in the presence of 180 µM EGTA; total ATPase activity was measured in the presence of calcium, and only Mg²⁺ATPase activity was determined in the presence of 180 µM EGTA and 0.5 mM ouabain. Mg²⁺ATPase activity was deducted from the combined activity of Na⁺/K⁺_, Mg²⁺ATPase activity to obtain only Na⁺/K⁺ATPase activity. ATPase activities were expressed as µg of inorganic phosphate (Pi)/mg of the protein [30].

Determination of the activities of acetylcholine esterase (AChE) and measurement of nitric oxide concentration in RBCs

The activity of AChE of RBCs of the different experimental groups was determined from the suspended membrane fractions of hemolyzed RBCs according to the method developed by Ellman et al., [31]. Acetylcholine iodide was used as the substrate which when acted on by AChE breaks down to thiocholine and acetate. Thiocholine is allowed to react with dithiobisnitrobenzoate (DTNB) which results in the development of a yellow colour. The changes in the intensity of yellow colour over a period were estimated using a UV/VIS spectrophotometer, which represents the activity of AChE. One tenth of acetylcholine iodide and 0.3 mM DTNB solution was prepared in phosphate buffer of pH 7.4 for the assay of the enzyme.  The concentration of nitric oxide (NO) was measured using Griess reagent. (1% sulfanilamide–0.1% N-1-naphthyl-ethylenediamine dihydrochloride in 2.5% phosphoric acid) (Sigma, St. Louis, MO, USA). Hemolysates were mixed with an equal amount of Griess reagent [32]. The generation of NO was determined by measuring the absorbance at 540 nm in a spectrophotometer of the purple azo compound formed from the reaction between nitrates formed in samples and Griess reagent i. e, sulfanilamide and N-1napthylethylenediamine dihydrochloride (NED). Potassium nitrate (Sigma) dilutions, ranging from 0 to 35 mM, were used to create a standard curve. Data are presented as the concentration of nitrite (mM) per mg protein amount (mg).

Determination of the activity of methaemoglobin reductase (MHbR), measurement of methaemoglobin concentration and Heinz body in RBCs

The activity of MHbR was determined from hemolysate by the method adopted by Board et al., [33]. Potassium ferricyanide is reduced to potassium ferrocyanide by MHbR and the change in absorbance corresponding to the formation of NAD⁺is measured spectrophotometrically at 340 nm. Tris HCl EDTA buffer (pH 8.0) was used for the assay.

Heinz body content was determined in RBCs directly from the turbidimetric measurement as adapted by Bates and Winterbourn, (1984) [34]. Whole RBCs were incubated with 5 mM sodium phosphate buffer, pH 7.4 for 15 min at room temperature, in dark and absorbance was recorded spectrophotometrically (Biorad) at 700 nm.

Morphological studies of erythrocytes by using Atomic force microscopy (AFM)

Control and the treated whole RBCs were fixed using 3 % glutaraldehyde for 30 min and rinsed with phosphate buffered saline. The samples were dehydrated with series of ethanol and sample was drawn on a glass coverslip to prepare a film. The film was then air dried and was ready for AFM analysis.

AFM imaging and measurement

AFM study was performed with model Veeco di Innova(Company name Bruker) Multimode system. All the images were taken using tapping mode in air (ambient temperature) with RTESPA tip silicon probes at resonant frequency 276-318 kHz. 100 µm L scanner was used. Scan area size is 5 µm X 5 µm. The images obtained were analyzed by Nanoscope Software version 1.40 in offline. The following parameters were measured:

The form and the size of RBCs were measured; these measurements included 3D image, diameter, radius, concave depth and roughness of the erythrocytes.

Statistical analysis

Data are presented as means±SEM Significance of mean values of different parameters between the treatment groups were analyzed using one-way analysis of variances (ANOVA) after ascertaining the homogeneity of variances between the treatments. Pairwise comparisons were done by calculating the least significance. Statistical tests were performed using Microcal Origin version 7.0 for Windows.

RESULTS

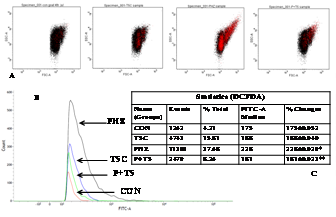

Flow cytometry analysis of RBCs exposed to PHZ (1 mM) for 1hour exhibited a significant increase by 30.29%;(*P≤ 0.001 vs. control) in the intracellular ROS level compared to the control (Fig. 1A, B and C). Such intracellular ROS levels were prevented from being increased by 20.61%; (**P≤ 0.001vs. PHZ-treated group) significantly on co-treatment with aqueous bark extract of TA (5 mg/ml) and PHZ (1 mM) (Fig. 1). TA itself was not involved in ROS generation, as was observed from DCF fluorescence intensity when the RBCs were treated only with aqueous bark extract of TA.

Fig. 1: A, B and C Protective effect of aqueous bark extract of Terminalia arjuna on the ROS scavenging activity in vitro against phenylhydrazine-induced oxidative stress in goat RBCs

CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA.

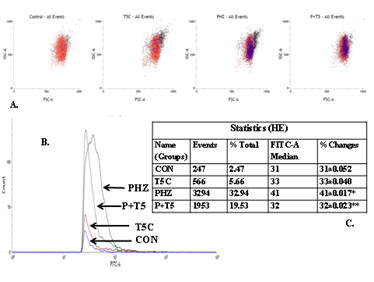

HE is selectively oxidized to ethidium by superoxide, anion free radical. The intensity of ethidium fluorescence reflects the level of O₂^·_produced in the cell since O₂^·_cannot easily transverse the cell membrane. As shown in fig. 2A, B and C, the fluorescence intensity of the PHZ (1 mM) treated RBCs were increased by 32.26% (*P≤ 0.001 vs. control), while in RBCs co-incubated with PHZ (1 mM) and aqueous bark extract of TA (5 mg/ml), the fluorescence intensity was prevented from being increased by 21.95 % (**P≤ 0.001vs. PHZ-treated group). However, TA aqueous bark extract alone was not involved in superoxide radical generation, as was observed from ethidium fluorescence intensity in the RBCs.

Fig. 2: A, B and C Protective effect of aqueous bark extract of Terminalia arjuna on the superoxide radical scavenging activity in vitro against phenylhydrazine-induced oxidative stress in goat RBCs
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

A

B

Fig. 3: Protective effect of aqueous bark extract of Terminalia arjuna on: A. Hydroxyl radical scavenging activity in vitro and B. intracellular iron concentration, against phenylhydrazine-induced oxidative stress in goat RBCs
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

The hydroxyl radical scavenging ability of aqueous TA bark extract was studied in an in vitro standard model system using PHZ where ·OH was generated. fig.  3A indicated that PHZ (1 mM) produced about 684 nmoles ·OH per ml incubation mixture in 1hr and aqueous bark extract of TA directly scavenged OH· by about 71% (**P≤ 0.001vs. PHZ-treated group) at a concentration of 5 mg/ml (fig. 3A).

Fig. 3B demonstrates decreased the intracellular iron concentration of RBCs treated with 1 mM PHZ (30.97%; *P≤0.001 vs. control). However, when the RBCs were co-incubated with aqueous bark extract of TA (5 mg/ml) and PHZ (1 mM), the intracellular iron content of RBCs was found to be protected from being decreased by1.21 folds; (**P≤0.001 vs. PHZ-treated group). Aqueous TA bark extract alone had no significant effect on the concentration of iron in the RBCs.

Fig. 4A reveals that on the treatment of the RBCs with PHZ, the activities of G6PDH, hexokinase and aldolase decreased respectively by 40.78 %, 63.79% and 63.31% (*P≤ 0.001 vs. control) and that of lactate dehydrogenase (LDH) increased 1.68 folds (*P≤ 0.001 vs. control). When the RBCs were co-treated with PHZ (1 mM) and aqueous bark extract of TA at a dose of 5 mg/ml, the activities of G6PDH, hexokinase and aldolase were found to be significantly protected from being decreased by 57.38 %, 1.75 folds, and 1.70 folds respectively (**P≤0.001 vs. PHZ-treated group) and in case of LDH the enzyme activity was significantly protected from being increased by 62.30% (**P≤0.001 vs. PHZ-treated group).

Fig. 4B reveals that treatment of RBCs with PHZ(1 mM) decreased the activities of Na⁺/K⁺ATPase, Mg²⁺ATPase, Ca²⁺ATPase by 42.83%, 26.15% and 32.64% respectively (*P≤ 0.001 vs. control). Co-treatment of RBCs with PHZ(1 mM) and aqueous bark extract of TA (5 mg/ml) were found to protect the activities of these three ATPases from being decreased by 69.55%, 34.19%, and 47.06% respectively (**P≤ 0.001 vs. PHZ-treated group). However, TA aqueous bark extract alone did not significantly alter the activity of any of the enzymes studied.

Treatment of RBCs with PHZ (1 mM) for 1 hour decreased the AchE enzyme activity by 1.55 folds and increased the NO concentration by 54.87% (*P≤ 0.001 vs. control). The enzyme activity of the AChE and intracellular NO concentration were found to be protected significantly from being altered, when the RBCs were co-treated with PHZ and 5 mg/ml of the aqueous bark extract of TA (50.29% increase in acetylcholine esterase enzyme activity and 1.21 folds decrease in intracellular NO concentration, **P≤ 0.001 vs. PHZ-treated group) (fig. 5A and B).

Fig. 4A: Protective effect of aqueous bark extract of Terminalia arjuna against PHZ induced changes in activities of glucose-6-phosphate dehydrogenase (G6PDH), hexokinase, aldolase and lactate dehydrogenase (LDH) of goat RBCs
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

Fig. 4B: Protective effect of aqueous bark extract of Terminalia arjuna against PHZ induced changes in activities of sodium-potassium ATPase (Na⁺/K⁺ATPase), magnesium-ATPase (Mg²⁺ATPase) and calcium ATPase (Ca²⁺ATPase) of goat RBCs
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

Fig. 6 A, B and C illustrates an increase in methaemoglobin concentration and turbidity index by 31.18%, 67.21% and a significant decrease in methaemoglobin reductase activity of RBCs by 58.33% respectively,* P≤ 0.001 vs. control) following exposure of RBCs to PHZ (1 mM). However, co-treatment of RBCs with PHZ (1 mM) and the present dose of aqueous bark extract of TA significantly decreased the methaemoglobin concentration as well as turbidity index and protected the methaemoglobin reductase activity (23.19 %, 36.27% decrease, and 1.42 folds increase respectively, **P≤ 0.001 vs. PHZ) from being altered. The results indicate that the aqueous bark extract of TA alone has no influence on the methaemoglobin concentration, turbidity index, and methaemoglobin reductase enzyme activity.

A

B

Fig. 5: Protective effect of aqueous bark extract of Terminalia arjuna against PHZ induced alterations on A. activity of acetylcholine esterase (AChE) and B. nitric oxide concentration in goat RBCs
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

A

B

C

Fig. 6: Protective effect of aqueous bark extract of Terminalia arjuna on A. methaemoglobin concentration, B. methaemoglobin reductase activity, and C. turbidity index, against phenylhydrazine induced oxidative stress in goat RBCs
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

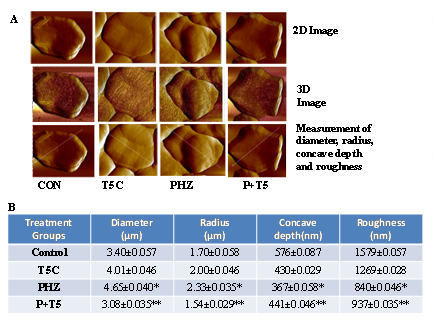

Measurement of morphological parameters of RBCs by AFM indicated that PHZ treatment altered the shape of RBCs due to an increase in the diameter and radius (by 36.76% and 36.06% respectively, *P ≤ 0.001 vs. control) and a reduced concave depth and roughness (by 36.28% and 46.80% respectively, *P ≤ 0.001 vs. control) (Fig.7A and B).

However, co-treatment with PHZ (1 mM) and aqueous bark extract of TA (5 mg/ml) protected the RBCs from these alterations in diameter, radius, depth, and roughness.

DISCUSSION

Phenylhydrazine (PHZ) in the presence of hemoglobin autoxidizes to form both superoxide anion free radical and hydrogen peroxide which ultimately give rise to hydroxyl radical. In our present study, there was a significant increase in the level of ROS production in the RBCs following treatment with PHZ (fig. 1A, B and C). It was previously reported that PHZ intoxication leads to hemolysis resulting in severe hemolytic anemia and generates ROS [37]. Our present studies, however, demonstrated that co-treatment of goat RBCs with PHZ and aqueous bark extract of TA at present does prevented the enhancement of ROS production in these cells (fig. 1A, B and C).

Fig. 7: A and B protective effect of aqueous bark extract of Terminalia arjuna against phenylhydrazine-induced oxidative stress on morphological changes of goat RBCs using atomic force microscopy. 1st panel (2D image) 2nd panel (3D image) 3rd-panel measurement of diameter, radius, concave depth and roughness (scan area size is 5 µm X 5 µm) of the RBC
CON = Control; T5C = Terminalia arjuna bark extract (5 mg/ml); PHZ=Phenylhydrazine; P+T5= Phenylhydrazine+Terminalia arjuna bark extract (5 mg/ml); the values are expressed as mean±SE, *P≤0.001 compared to control group; **P≤ 0.001 compared to PHZ treated group using ANOVA

An elevated level of ^·OH is indicative of an elevated level of oxidative stress following treatment of goat RBCs with PHZ (fig. 3A). Phenylhydrazine in the presence of haemoglobin oxidizes to form hydrogen peroxide that generates ^·OH through Haber–Weiss Reaction [38]. The latter initiates the peroxidation of unsaturated fatty acids in endogenous phospholipids [39]. Besides PHZ, other oxidants like iron with hydrogen peroxide and hydrogen peroxide alone, participates in oxidative reactions through the generation of highly reactive. OH this readily damages lipids, proteins and other components of the cell membrane. Our studies reveal (fig. 3A) that co-treatment of goat RBCs with PHZ and aqueous bark extract of TA reduces the amount of· OH formation in the RBCs, demonstrating the ability of the extract to reduce the level of oxidative stress. Additionally, it has already been reported from our laboratory that the aqueous bark extract of TAexhibited a strong hydroxyl radical scavenging potential [40]. However, the extract did not exhibit any H₂O₂ scavenging activity and metal ion chelating effect in vitro (40).

Damaging effects of PHZ like other oxidants have been reported by various workers [41]. It has also been demonstrated that normal RBCs treated with PHZ has a mimetic characteristic as those found in severe β-thalassemia [42]. Phenylhydrazine-induced peroxidation of oxyhemoglobin and MHb leads to the formation of both superoxide (O^-) and phenyl radicals [43]. These radicals can denature haemoglobin with the consequential release of iron from denatured haemoglobin which can induce lipid peroxidation of the cell membrane if the cell is depleted of GSH. This eventually causes RBC haemolysis [43]. Increased MHb concentration increased superoxide anion free radicals and decreased the intracellular iron concentration of RBCs and increased turbidity index following treatment with PHZ indicated elevated levels of oxidative stress (fig. 6A, fig. 2A, B and C and fig. 6C). The GSH concentrations were found to be depleted following PHZ treatment of RBCs in our earlier observation [20]. In the present study, co-treatment of RBCs with PHZ and aqueous bark extract of TA inhibited MHb formation, prevented superoxide anion free radical generation and protected the hemoglobin structure thereby reducing the turbidity index which prevented the hemolysis of RBCs.

The present study further reveals that MR activity is decreased following treatment of RBCs with PHZ. This results in accumulation of MHb in the RBCs (fig. 6A and B respectively.) Co-treatment of RBCs with PHZ and aqueous bark extract of TA prevents the rise in MHb level.

The RBCs depend solely on the anaerobic conversion of glucose by the Embden-Meyerhof pathway for the generation and storage of high energy phosphates, which is necessary for the maintenance of a number of vital functions. Fig. 4A shows that the activities of the metabolic enzymes G6PDH, hexokinase, aldolase and LDH are altered by the treatment of RBCs with PHZ. However, co-treatment of the RBCs with aqueous bark extract of TA and PHZ, protected the activities of these enzymes from being altered consequently protecting the metabolic status of the RBCs.

Erythrocytes are highly susceptible to oxidative damage due to the presence of heme iron. Polyunsaturated fatty acids (PUFA) and oxygen may initiate the reactions that induce oxidative changes in the red blood cells [44, 45]. Peroxidation of PUFA in membrane lipids has been suspected to be a major mechanism of oxidant injury leading to membrane dysfunction and subsequently to alterations in cellular functions [45,46]. Lipid peroxidation and perturbed lipid composition are known to disturb structural integrity of the membrane that might, in turn, affect the activity of membrane-bound enzymes like ATPases [47]. Membrane-bound enzymes are important in maintaining the normal physiology of erythrocytes. The decrease in the activities of the membrane ATPases in this study may be due to the elevation in free radical formation and decrease in the GSH content. Free radicals can induce degenerative changes in erythrocytes that can affect dynamic properties of the membranes such as fluidity and permeability and consequently the activities of the membrane-bound enzymes. It has been reported earlier that oxidative products inhibit Na⁺/K⁺-ATPase and Mg²⁺-ATPase activities [48]. Lipid peroxidation decreases the affinity of Na⁺/K⁺-ATPase for Na⁺and K⁺ions because the active sites of these enzymes are directly attacked by ROS. It may be suggested that inhibition of erythrocyte membrane Na⁺/K⁺-ATPase in PHZ treated goat RBCs lead to disturbance or impairment of Na⁺/K⁺-pump in membrane due to alterations in the composition of the erythrocyte membranes, which in turn results in decreased activities of other membrane-bound enzymes. Na⁺/K⁺-pump functions for the maintenance of the ionic milieu of normal blood cells and essential for the normal functioning of the cells. Co-treatment of the RBCs with aqueous bark extract of TA and PHZ restored the activities of ATPases to some extent. This might be due to the potential role of this aqueous bark extract of TA to scavenge the free radicals produced by PHZ-induced toxicity.

The present study demonstrated that in vitro administration of PHZ resulted in inhibition of AChE activity in erythrocytes and co-administration of aqueous bark extract of TA and PHZ helps in partial protection of AChE activity. In blood, normal erythrocyte function depends on the intactness of the erythrocyte membrane, which is the target for PHZ toxicity [43]. Inhibition of AChE activity by PHZ is well documented in the literature [49]. In addition to inhibition of AChE activity, PHZ has been shown to induce lipid peroxidation and oxidative stress in various tissues [50]. The cells have several ways to alleviate the effects of oxidative stress either by repairing the oxidative damage or by directly diminishing the occurrence of oxidative damage by means of enzymatic and non-enzymatic antioxidants which have been shown to scavenge free radicals and ROS [51]. Numerous reports have documented protective actions of aqueous bark extract of TA in various models of oxidative stress due to its high efficacy as a free radical scavenger and indirect antioxidant [20, 40, 52]. It has been reported that aqueous bark extract of TA also directly neutralizes the precursor of •OH, namely hydrogen peroxide [40]. The •OH is widely accepted as the most damaging molecule endogenously produced in aerobic organisms, and many studies have confirmed the TA’s ability to detoxify •OH [53, 54]. The •OH mutilates any molecule in the vicinity of where it is produced [55]. Exogenous administration of aqueous TA bark extract neutralized the formation of ROS, reducing thereby, the molecular and physiological damage. In addition, increased intracellular level of NO in PHZ treated RBCs were observed. Increased concentration of NO has been reported to cause accumulation of nitrite, an end product of nitric oxide metabolism, which reacts with superoxide radicals ultimately leading to nitrosative stress [56]. Co-treatment of RBCs with PHZ and aqueous bark extract of TA prevented this increase in NO concentration thereby indicating once again TA’s ability to provide protection against oxidative insult. The aqueous bark extract of TA also reduces the generation of NO by inhibiting the activity of its rate limiting enzyme, nitric oxide synthase (NOS) [57].

Atomic force microscopy (AFM) is an advanced tool to analyze the structure of the erythrocyte membrane and its membrane proteins [58]. In our previous studies, it was observed that PHZ altered the RBC membrane structure by causing an alteration in the membrane protein content [20]. In our current study, the diameter, radius, concave depth and roughness of the RBCs were measured with the help of AFM analysis. With PHZ treatment, the structure of RBCs was altered; concave depth and roughness were also decreased (fig. 7A and B). On the contrary, simultaneous treatment of RBCs with aqueous bark extract of TA and PHZ protected the RBCs from these morphological alterations (fig. 7A and B).

CONCLUSION

Thus, it can be concluded from the above findings that PHZ at the present dose triggered oxidative stress-induced morphologic and metabolic alterations and functional impairment in the goat red blood cells. The aqueous bark extract of TA is capable of providing protection against these PHZ induced oxidative stress mediated alterations in the RBCs possibly through its antioxidant mechanisms. The results of the present study hints at the possibility that the aqueous bark extract of TA with the promising antioxidant potential to combat oxidative stress-induced damages may have future therapeutic relevance in situations of hemolytic anemia and other diseases involving oxidative stress in general.

ACKNOWLEDGEMENT

Sudeshna Paul gratefully acknowledges the receipt of an UGC Non-NET JRF under the University of Calcutta. DG was a Senior Research Fellow (SRF) under INSPIRE program of Department of Science and Technology, Government of India, presently works as an Assistant Professor at Department of Physiology, Hooghly Mohsin College, Chinsurah, Hooghly. AKG is a CSIR RA. DB is supported by the funds available to him by his institute. Prof. DB also extends grateful thanks to UGC, Govt. of India, for the award of a research project under Centre with Potential for Excellence in a Particular Area (CPEPA) Scheme of UGC, Govt. of India, at University of Calcutta. Dr. AC is supported by funds available to her from UGC Minor Research Project, Govt. of India and Department of Science and Technology, Govt. of India (DST-WOS-A). We are grateful to Centre for Research in Nanoscience and Nanotechnology (CRNN), University of Calcutta and Department of Biotechnology-Interdisciplinary Program in Life Sciences (DBT-IPLS), the University of Calcutta for allowing us to use some of the facilities.

CONFLICT OF INTERESTS

Declared none

REFERENCES

1. Goldberg B, Stern A. The generation of O2-by the interaction of the hemolytic agent, phenylhydrazine, with human hemoglobin. J Biol Chem 1975;250:2401–03.
2. Goldberg B, Stern A, Peisach J. The mechanism of superoxide anion generation by the interaction of phenylhydrazine with hemoglobin. J Biol Chem 1976;251:3045–51.
3. Goldberg B, Stern A. The mechanism of oxidative hemolysis produced by phenylhydrazine. Mol Pharmacol 1977;13:832–9.
4. Jain SK, Hochstein P. Generation of superoxide radicals by hydrazine induced hemolytic anaemia. Biochem Biophys Acta 1979;586:128–36.
5. Maples KR, Jordan SJ, Mason RP. In vivo rat hemoglobin thiyl free radical formation following phenylhydrazine administration. Mol Pharmacol 1988;33:344–50.
6. Saito S, Itano HA. Beta-meso-phenyl biliverdin IX alpha and N-phenyl protoporphyrin IX, products of the reaction of phenylhydrazine with oxyhemoproteins. Proc Natl Acad Sci USA 1981;78:5508–12.
7. Hill HA, Thornalley PJ. Phenyl radical production during the oxidation of phenylhydrazine and in phenylhydrazine-induced haemolysis. FEBS Lett 1981;125:235–8.
8. Stern A. Drug-induced oxidative denaturation in red blood cells. Semin Hematol 1989;26:301-6.
9. Haber F, Weiss J. The catalytic decomposition of hydrogen peroxide by iron salts. Proc R Soc London Ser A 1934;147:332–51.
10. Wijk RV, Wouter W, Solinge V. The energy-less red blood cell is lost: erythrocyte enzyme abnormalities of glycolysis. Blood 2015;106:4034-42.
11. Chauhan VP, Tsiouris JA, Chauhan A, Sheikh AM, Brown WT, Vaughan M. Increased oxidative stress and decreased activities of Ca(2+)/Mg(2+)-ATPase and Na(+)/K(+)-ATPase in the red blood cells of the hibernating black bear. Life Sci 2002;71:153-61.
12. Banerjee M, Ray AK. The role of thyroid hormone on phenylhydrazine hydrochloride mediated inhibitory effects on blood acetylcholinesterase: an in vivo and in vitro study. J Biochem Mol Toxicol 2002;16:162-8.
13. Zavodnik IB, Lapshina EA, Rekawiecka K, Zavodnik LB, Bartosz G, Bryszewska M. Membrane effects of nitrite-induced oxidation of human red blood cells. Biochim Biophys Acta 1999;1421:306-16.
14. Dwivedi S, Jauhari R. Beneficial effects of Terminalia arjuna in coronary artery disease. Indian Heart J1997;49:507-10.
15. Bharani A, Ganguly A, Bhargava KD. The salutary effect of terminalia arjuna in patients with severe refractory heart failure. Int J Cardiol1995;49:191-9.
16. Ram A, Lauria P, Gupta R, Kumar P, Sharma VN. Hypocholesterolaemic effects of Terminalia arjuna tree bark. J Ethnopharmacol1997;55:165-9.
17. Manna P, Sinha M, Sil PC. Aqueous extract of Terminalia arjuna prevents carbon tetrachloride-induced hepatic and renal disorders. BMC Complementary Altern Med 2006;6:1-10.
18. Bone K. Clinical application of ayurvedic and chinese herbs. Warwick, Queensl, Australia, Phytotherapy Press; 1996. p. 131-3.
19. Kapoor LD. Handbook of ayurvedic medicinal plants. Boca Raton, FL. CRC Press; 1990. p. 319-20.
20. Paul S, Ghosh AK, Ghosh D, Dutta M, Mitra E, Bhowmick D, et al. Aqueous bark extract of Terminalia arjuna protects against phenylhydrazine-induced oxidative damage in goat red blood cell membrane protein,phospholipid asymmetry, and structural morphology: a flow cytometric and biochemical analysis. J Pharm Res2014;8:1790-804.
21. Rothe G, Valet G. Flow cytometric analysis of respiratory burst activity in phagocytes with hydroethidine and 2´,7´-dichlorofluorescein. J Leukoc Biol 1990;47:440-8.
22. Bindokas VP, Jordan J, Lee CC, Miller RJ. Superoxide production in rat hippocampal neurons: selective imaging with hydroethidine. J Neurosci 1996;16:1324-36.
23. Babbs CF, Steiner MG. Detection and quantitation of hydroxyl radical using dimethylsulfoxide as a molecular probe. Meth Enzymol 1990;186:137-47.
24. Bandyopadhyay D, Ghosh G, Bandyopadhyay A, Reiter RJ. Melatonin protects against piroxicam-induced gastric ulceration. J Pineal Res 2004;36:195-203.
25. Mitra E, Ghosh AK, Ghosh D. Protective effect of aqueous curry leaf (Murraya koenigii) extract against cadmium-induced oxidative stress in rat heart. Food Chem Toxicol 2012;50:1340-53.
26. Beutlet E. Glucose 6 phosphate dehydrogenase-new perspectives. Blood 1989;73:1397.
27. Haritos A, Rosenmeyer M. Purification and physical poperties of Hexokinase from human erythrocytes. Biochem Biophysics Acta 1986;873:335.
28. Castillo J, Calveras J, Casas J, Mitjans M. Fructose-6-phosphate aldolase in organic synthesis: preparation of d-fagomine, n-alkylated derivatives, and preliminary biological assays. Org Lett 2006;8:6067–70.
29. Dhanesha M, Singh K, Bhori M, Marar T. Impact of antioxidant supplementation on the toxicity of methotrexate: an in vitro study on erythrocytes using vitamin e. Asian J Pharm Clin Res 2015;8:339-43.
30. Luthra MG, David A. Increased Ca⁺, Mg, and Na+K ATPase activites in erythrocytes of sickle cell anemia. Blood 1982;60:1332-6.
31. Ellman GL, Courtney KD, Andres Jr. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem Pharmacol 1961;7:88–95.
32. Grisham MB, Johnson GG, Lancaster JR Jr. Quantitation of nitrate and nitrite in extracellular fluids. Methods Enzymol 1996;268:237–46.
33. Board P, Coggan M, Johnston P, Ross V, Suzuki T, Webb G. Genetic heterogeneity of the human glutathione transferases; a complex of gene families. Pharmacol Ther 1990;48:357-69.
34. Beutler E. Red cell metabolism: a manual of biochemical methods. 3^rd Edition. Orlando, FL, Grune and Stratton; 1984. p. 10, 12, 38, 79, 81.
35. Bates DA, Winterbourn CC. Haemoglobin denaturation, lipid peroxidation and haemolysis in phenylhydrazine-induced anaemia. Biochim Biophys Acta 1984;798:84-7.
36. Buys AV, Rooy MJV, Soma P, Papendorp DV, Lipinski B, Pretorius E. Changes in red blood cell membrane structure in type 2 diabetes: a scanning electron and atomic force microscopy study. Cardiovasc Diabetol 2013;12:1-6.
37. Berger J. Phenylhydrazine haematotoxicity. J Appl Biomed 2007;5:125–30.
38. Puppo A, Halliwell B. Formation of hydroxyl radicals from hydrogen peroxide in the presence of iron: Is hemoglobin a biological Fenton reagent? Biochem J 1988;249:185-90.
39. Halliwell B, Gutteridge JMC. Oxygen toxicity, oxygen radicals, transition metals, and disease. Biochem J 1984;218:1-14.
40. Ghosh AK, Mitra E, Dutta M, Mukherjee D, Basu A, Firdaus SB, et al. Protective effect of aqueous bark extract of Terminalia arjuna on Cu2+-ascorbate-induced oxidative stress in vitro:involvement of antioxidant mechanism(s). Asian J Pharma Clin Res 2013;6:196-200.
41. Das K, Bhattacharyya J. Effect of calcium and diltiazem on phenylhydrazine-induced oxidative injury in goat erythrocytes. Health 2010;2:1221-5.
42. Ramot Y, Koshkaryev A, Goldfarb A, Yedgar S, Barshtein G. Phenylhydrazine as a partial model for β-thalassaemia red blood cell hemodynamic properties. Br J Haematol 2008;140:692–700.
43. Shukla P, Yadav NK, Poonam Singh P, Bansode FW, Singh RK. Phenylhydrazine induced toxicity: a review on its haematotoxicity. Int J Basic Appl Med Sci 2012;2:86-91.
44. Kale M, Rathore N, John S, Bhatnagar D. Lipid peroxidative damage on pyrethroid exposure and alterations in antioxidant status in rat erythrocytes: a possible involvement of reactive oxygen species. Toxicol Lett 1999;105:197–205.
45. Halliwell B, Gutteridge JM. Oxygen free radicals and iron in relation to biology and medicine: some problems and concepts. Arch Biochem Biophys 1986;246:501–14.
46. Sharma B, Rai DK, Rai PK, Rizvi SI, Watal G. Determination of erythrocyte fragility as a marker of pesticide-induced membrane oxidative damage. Methods Mol Biol 2010;594:23–8.
47. Sandhir R, Julka D, Gill KD. Lipoperoxidative damage on lead exposure in rat brain and its implications on membrane-bound enzymes. Pharmacol Toxicol 1994;74:66–71.
48. Chauhan VP, Tsiouris JA, Chauhan A, Sheikh AM, Brown WT, Vaughan M. Increased oxidative stress and decreased activities of Ca(2+)/Mg(2+)-ATPase and Na(+)/K(+)-ATPase in the red blood cells of the hibernating black bear. Life Sci 2002;71:153-61.
49. Banerjee M, Ray AK. The role of thyroid hormone on phenylhydrazine hydrochloride mediated inhibitory effects on blood acetylcholinesterase: an in vivo and in vitro study. J Biochem Mol Toxicol 2002;16:162-8.
50. Luangaram S, Kukongviriyapan U, Pakdeechote P, Kukongviriyapan V, Patchareewan Pannangpetch. Protective effects of quercetin against phenylhydrazine-induced vascular dysfunction and oxidative stress in rats. Food Chem Toxicol 2007;45:448–55.
51. Rahman K. Studies on free radicals, antioxidants, and co-factors. Clin Interventions Aging 2007;2:219–36.
52. Dutta M, Ghosh AK, Basu A, Bandyopadhyay D, Chattopadhyay A. Protective effect of aqueous bark extract of Terminalia arjuna against copper ascorbate-induced oxidative stress in vitro in goat heart mitochondria. Int J Pharm Pharm Sci 2013;5:439-47.
53. Tilak JC, Devasagayam TPA, Adhikari S. Radioprotective and antioxidant properties of the indian medicinal plant, Terminalia arjuna. BARC Newsletter 2003;249:167-75.
54. Raghavan B, Krishna Kumari S. Effect of Terminalia arjuna stem bark on antioxidant status in liver and kidney of alloxan diabetic rats. Indian J Physiol Pharmacol 2006; 50:133–42.
55. Bandyopadhyay D, Biswas K, Bandyopadhyay U, Reiter RJ, Ranajit K. Banerjee melatonin protects against stress-induced gastric lesions by scavenging the hydroxyl radical. J Pineal Res 2000;29:143-51.
56. Rahman T, Hosen I, Islam MMT, Hossain Uddin Shekhar HU. Oxidative stress and human health. Adv Biosci Bioeng 2012;3:997-1019.
57. Perumal SR, Ignacimuthu S, Sen A. Screening of 34 Indian medicinal plants for antibacterial properties. J Ethnopharmacol 1998;62:173-82.
58. Takeuchi M, Miyamoto H, Sako Y, Komizu H, Kusumi A. Structure of the erythrocyte membrane skeleton as observed by atomic force microscopy. Biophys J 1998;74:2171–83.
