Int J Pharm Pharm Sci, Vol 8, Issue 11, 64-68Original Article


OPTIMIZATION OF EXTRACTION PARAMETERS FOR TOTAL FLAVONOIDS FROM GARDENIA GUMMIFERA GUM RESIN BY RESPONSE SURFACE METHODOLOGY

SNEHAL B. BHANDARE*, KIRTI S. LADDHA

Medicinal and Natural Product Research Laboratory, Department of Pharmaceutical Sciences and Technology, Institute of Chemical Technology, Matunga, Mumbai, India 400019
Email: snehalbhandare28@yahoo.com

Received: 07 Feb 2016 Revised and Accepted: 09 Sep 2016

ABSTRACT

Objective: To optimize the extraction parameters for determining the highest yield of Total Flavonoids from Gardenia gummifera gum resin.

Methods: In the present study, response surface methodology (RSM) with three level Box Behenken design (BBD) was performed to optimize extraction parameters for total flavonoids. Solvent concentration(A), extraction time (B) and extraction temperature(C) were considered for single factor experiment.

Results: The highest flavonoid concentration was obtained with acetone 45.00% v/v, time 101.46 min, temperature 41.57 °C. The average experimental TFC under optimal conditions was 161.14 mg/g which was in close agreement with the predicted value of 163.42 mg/g.

Conclusion: RSM-BBD is successfully applied in optimizing extraction conditions for extraction of total flavonoids from G. gummifera gum resin.

Keywords: G. gummifera, Response Surface Methodology, Box-Behnken design, Total Flavonoid Content

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons. org/licenses/by/4. 0/)
DOI: http://dx.doi.org/10.22159/ijpps.2016v8i11.11134

INTRODUCTION

The biologically active compounds from natural sources have gained interest as they are obtained from renewable sources, having low toxicity, biodegradability and low cost. A wide range of phytochemicals and polyphenolic compounds such as phenolic acids, flavonoids, tannins, etc are derived from plants [1]. Flavonoids are secondary plant phenolics consisting of the flavan nucleus. Flavonoids have gained a lot of attention by biochemical and nutritional researchers as they have various biological activities which include antibacterial, antiviral, antioxidant, antiradical, antiallergic, anti-inflammatory, anti-neuro toxic, anti-cancer effects, cardioprotective are used in health care, food or medicine [2, 3].

G. gummifera Linn. Belonging to the family Rubiaceae, is a shrub found in Deccan peninsula to Bundel khand and parts of Bihar. Gum resin secretions called Dikamali or Cumbi gum are greenish yellow in color, have a very pungent taste and an offensive odour [4]. It has antispasmodic, diaphoretic, expectorant, carminative, anthelmintic properties as well as used in veterinary practices. Commercial sample of Dikamali constituted resin, 89.9; volatile oil, 0.1; and other impurities, 10.0%. The resin is abundant in polymethoxylated flavonoids (PMF) accounting flavones such as gardenin A-E, nevadensin, isoscutellarein, apigenin and woganins (>50 % of total), hence is chosen for research purpose [4, 5].

In order to develop plant extract as a new active ingredient for functional food, nutraceuticals and cosmetics; the optimal extraction of flavonoid compound is an important step. For the commercial application of the process, determination of the optimal operating conditions is necessary. Several parameters that influence the extraction yield are the extraction method and technology, type and concentration of solvent, extraction temperature, extraction time, the solvent to solid ratio, extraction number, pH and particle size. RSM technique helps to evaluate the interactive effect of these parameters instead of evaluating each parameter individually. RSM is a collection of statistical and mathematical techniques that allow the user to identify optimal conditions for a selected response while minimizing the number of required experiments [6, 7]. As heat reflux is simple and commonly used method for extraction of compounds; in this research, BBD of RSM was applied to optimize significant variables like acetone concentration, extraction time and temperature that affect TFC of G. gummifera gum resin.

MATERIALS AND METHODS

Materials

G. gummifera gum resin was purchased from local market of Mumbai, India. The plant was identified and its voucher specimen was deposited at the herbarium of Department of Pharmaceutical Sciences and Technology, Institute of Chemical Technology, Mumbai. Rutin was purchased from Total Herb Solutions, Mumbai. Analytical grade Aluminium chloride was purchased from S D Fine Chemicals Ltd. Deionized water was purified by milli-Q academic water Purification system and solvents used for extraction were of analytical grade.

Extraction of flavonoids

Gum resin of G. gummifera was ground to fine powder using mortar and pestle. Five gram of sample was transferred into 100 ml round bottom flask and reflux extracted in a water bath with 50 ml of water, petroleum ether, methanol, ethanol, acetone, ethyl acetate, and chloroform separately for 3 h at their boiling points for solvent selection. Extracts of various solvents were filtered using filter paper and concentrated to obtain dry extracts. Further 1 mg/ml solution was made in methanol for determination of TFC expressed as mg of rutin equivalents/g of extract. As acetone extract gave high TFC, samples were prepared in different aqueous acetone concentrations (20%, 40%, 60% and 80% v/v) within given ranges of temperature (30 °C to 70 °C) and extraction time (30 to 150 min) to determine TFC. All extractions were carried out in triplicate.

Determination of TFC in the plant extracts

The TFC was determined spectrophotometrically [8, 9]. Briefly, 0.5 ml of 2% solution of AlCl3 (w/v) in methanol was mixed with the same volume of extract (1 mg/ml). Absorption readings at 430 nm were taken after 15 min, against a blank (methanol+0.5 ml of 2% solution of AlCl3 (w/v) using UV Spectrophotometer (JASCO V-530 UV-visible spectrophotometer).

The TFC was determined using rutin as calibration standard over the range of 0-40 µg/ml. All measurements were repeated three times. The calibration curve was y= 0.017x+0.089, where y=absorbance value and x=sample concentration of flavonoids; R2=0.997.

Experimental design and statistical analysis

The TFC depends on extraction process and parameters used. Parameters which had a major effect on TFC were selected based on preliminary experiments. It is reported that TFC is affected by solvent concentration, extraction temperature, extraction time and hence these parameters were screened by single factor experiment [10].

Given the preliminary result, a second order polynomial model corresponding to the BBD was fitted to correlate the relationship between the independent variables, namely acetone concentration (A), extraction time (B), extraction temperature (C) and response (TFC) to predict the optimized conditions that are listed in table 1. The complete design consisted of 17 experimental runs, including 5 replicates of the center points.

The response variable was fitted by second order polynomial model as follows:

Where Y is the predicted response; β0 is the intercept coefficient which corresponds to theoretical TFC at the center of experimental design; βi, βii, βij linear, quadratic and interaction coefficient; Xi and Xj are the coded independent variables; XiXj and Xi2are the interaction and quadratic terms respectively.

The Design-Expert software (trial version 9.0.3.1, Stat-Ease Inc., Minneapolis, USA) was utilized for the experimental design, multiple regression analysis (R2), ANOVA, and the numerical optimization of the Response Surface Regression (RSREG) procedure. These practical values were compared with those of the predicted values to check the validity of the model.

Table 1: Variables and their levels for Box Behenken design

Independent variables

Coded symbols

levels

-1

0

1

Acetone concentration (% v/v)

A

20

40

60

Extraction time (min)

B

60

90

120

Extraction Temperature ( °C)

C

40

50

60

RESULTS AND DISCUSSION

Effect of solvent types on extraction of total flavonoids

Solvent plays an important role in the extraction of flavonoids. So, various polar to non-polar solvents such as water, ethanol, methanol, acetone, ethyl acetate, chloroform and petroleum ether were taken for extraction of flavonoids.

The extracts obtained were screened for TFC. Fig. 1 indicates maximum flavonoid content in an acetone extract compared to any other solvent extract and hence selected for further extraction.

Effect of acetone concentration on extraction of TFC

It has been revealed that polar solvents when mixed with water, extracts phenolic compounds, more efficiently than single solvent due to increase in polarity [11]. A Higher proportion of water (>30%), improved the extraction of other polyphenolic compounds [12]. Acetone extract (80%v/v) provides the most complete extraction of phenolic compounds from lentil seeds, especially flavonols and condensed tannins. Wild blueberry leaves extracted with acetone (70 % v/v), showed a higher level of crude tannins compared with that extracted with ethanol (95 % v/v) [13].

Hence to study the effect of acetone and deionized water on TFC in various acetone concentration (20%, 40%, 60%, 80% v/v) were prepared for extraction. Fig. 2 indicates that various acetone concentrations affect the TFC of G. gummifera gum resin. At 20% v/v and 40% v/v of acetone concentration the TFC was found to be 34.92 mg/g and 128.16 mg/g respectively. But it decreased when the concentration of acetone is increased beyond 40%. Thus highest TFC (128.16 mg/g) was seen at 40% v/v acetone concentration. Hence, for determining the effect of extraction time and extraction temperature on TFC 40% (v/v) acetone was selected.

Effect of extraction time on extraction of TFC

Fig. 3 indicates the effect of time on the TFC. Extraction was carried out using 40% v/v acetone as the solvent for extraction, with extraction time (30, 60, 90, 120 and 150 min) to calculate TFC. In general increase in extraction time increases the extraction rate. As time was increased from 30 min to 90 min, there was an increase in TFC. At 90 min, TFC was found to be 132.84 mg/g which was highest. After 90 min, there was a slight decrease in TFC which may be due to degradation of active compound during prolonged extraction time [14]. Shorter extraction time led to maximum flavonoid extraction, making it more economical and practical method. Hence, 90 min extraction time was optimized for RSM as the center point.

Effect of extraction temperature on extraction of TFC

Under the above optimal conditions of acetone concentration 40% v/v and extraction time 90 min, effects of different extraction temperatures (30 °, 40 °, 50 °, 60 °, 70 °C) on the TFC were determined.

Fig. 4 indicates the effect of temperature on extraction of flavonoids. Extraction temperature also plays a pivotal role in the extraction of flavonoids [15]. Increase in the extraction temperature favors extraction by increasing the solubility of solute, but phenolic compounds undergo denaturation beyond a certain temperature due to internal redox reactions, hydrolysis and polymerization [16]. Hence an optimum temperature needs to be selected. There is an increase in flavonoid content with increase in temperature from 30 to 50 °Cbeyond which a decrease in TFC was found. Highest TFC found at 50 °C that 125.84 mg/g and hence 50 °C was selected as extraction temperature for RSM.

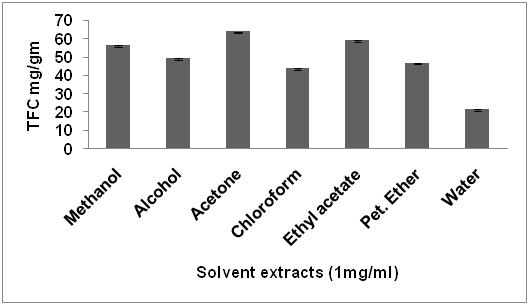

Fig. 1: Effect of various solvents on the total flavonoid content from G. gummifera gum resin. Error bars indicate SD for n=3

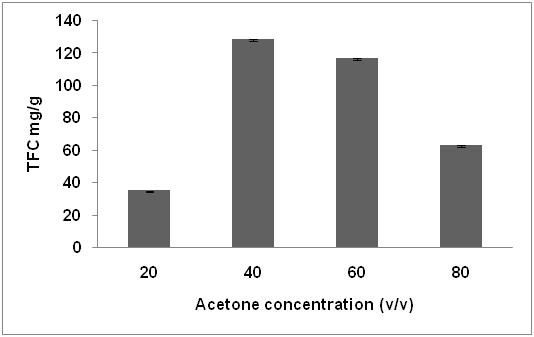

Fig. 2: Effect of acetone concentration on the extraction of total flavonoids from G. gummifera gum resin for 180 min. Error bar indicates SD for n=3

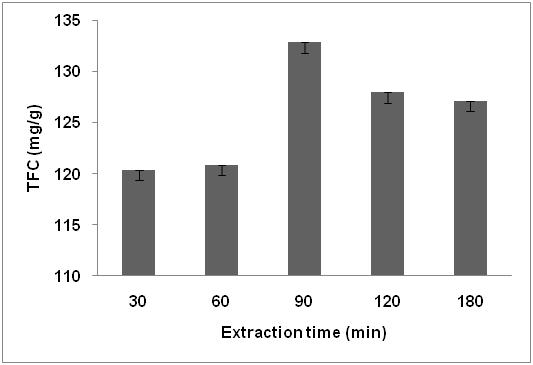

Fig. 3: Effect of extraction time on the extraction of total flavonoids from G. gummifera gum resin using 40% v/v acetone. Error bars indicate SD for n=3

Optimization of the procedure

1) The model fitting and statistical analysis

Results of single factor experiment i.e. acetone concentration, extraction time and extraction temperature on the TFC were taken into consideration for experimental design by RSM. A set of 17 experiments were carried out for optimizing TFC in G. gummifera gum resin in BBD. Table 2 shows the experimental conditions and TFC according to factorial design.

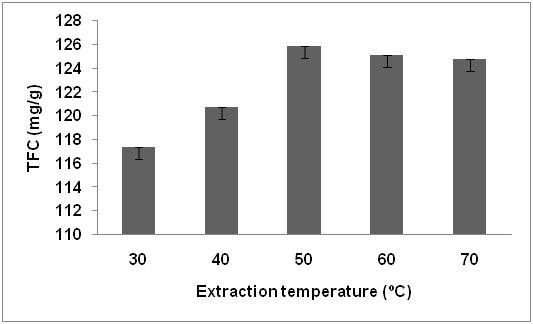

Fig. 4: Effect of extraction temperature on the extraction of total flavonoids from G. gummifera gum resin using 40% v/v acetone for 90 min. Error bars indicate SD for n=3


Table 2: Box Behenken experimental design and result

Run A (Concentration in % v/v) B (Time in min) C (Temperature in °C) TFC (mg/g)
1 60 90 60 78.4
2 40 120 40 152.72
3 20 120 50 26.92
4 40 90 50 144.4
5 40 60 60 143.08
6 20 90 40 67.78
7 60 90 40 130.22
8 20 90 60 29.42
9 60 120 50 99.8
10 60 60 50 96.34
11 20 60 50 44.98
12 40 90 50 141.66
13 40 90 50 147.2
14 40 120 60 116.86
15 40 60 40 146.28
16 40 90 50 156.46
17 40 90 50 128.22

By applying multiple regression analysis on the experimental data, the response variables and the test variables were related by the following second-order polynomial equation:

Final equation in terms of coded factors

Y = 143.59+29.46A–4.3B–16.16C+5.38AB–3.37AC–8.17BC–69.93A2–6.65B2+2.8C2 …. (2)

Where A is acetone concentration, B is time; C is the temperature in coded language respectively.

ANOVA analysis was conducted in order to determine the significance of the experimental model. The experimental result has been found to be well fitted when a model has a significant regression and an insignificant lack of fit. The lack of fit statistics detects the adequacy of the model which indicated that the P-value of 0.4417 was not significant as summarized in table 3 hence the model is significant.

The P-values were used as tools to check the significance of each coefficient and the interaction strength of each parameter. The smaller the P-values are, the bigger the significance of the corresponding coefficient. Here, the P-value of the model was smaller than 0.0001, which indicated that the model was suitable for use in this experiment. The determination coefficient (R2 = 0.9755) was close to 1 which indicates actual values and predicted values are satisfactorily correlated [17]. The adjusted determination coefficient (Adj. R2) value was 0.9440, which meant most variation (>94.4 %) of the TFC could be predicted by the model, while only 5.6% variation could not be explained by the model. The failure of the model to represent the data in the experimental domain at the points was measured by lack-of-fit which were not included in the regression. Adequate precision is used to compare the range of the predicted values at the design points to average prediction error. A ratio greater than 4 indicated adequate model discrimination. In the present study, the value of 16.4 indicated an adequate signal. This model could be used to navigate the design space.

Regression coefficients (R2, Adj. and Pred. R2) and corresponding P-values are also presented in table 3. From the P-values of each model term, it was concluded that the independent variables studied (A, C), quadratic terms A2 significantly affected the total flavonoid yield. The results of the study represent that acetone concentration and temperature are the most significant parameters which affect the TFC.

Table 3: ANOVA for regress equation

Source Sum of squares Degree of freedom Mean square F-value P-value (prob>F)
Model 30654.57 9 3406.06 30.97 0.000001
A 6941.95 1 6941.95 63.12 0.000004
B 147.75 1 147.75 1.34 0.2844
C 2087.87 1 2087.87 18.98 0.0033
AB 115.78 1 115.78 1.05 0.3390
AC 45.29 1 45.29 0.41 0.5415
BC 266.67 1 266.67 2.42 0.1634
A2 20589.75 1 20589.75 187.22 0.000001
B2 186.14 1 186.14 1.69 0.2344
C2 32.92 1 32.92 0.30 0.6013
Residual 769.84 7 109.98
Lack of fit 350.55 3 116.85 1.11 0.4417
Pure error 419.29 4 104.82
Cor total 31424.41 16
R2 0.9755
Adj. R2 0.9440
Pred. R2 0.8007
Adequate precision 16.397

2) Analysis of response surfaces

Interaction effects of the factors on the TFC can be predicted from the three-dimensional response surface plots. The three-dimensional response surfaces described the sensitivity of response value towards the change in variables. These plots showed effects of two factors at a time on the response, keeping another factor at zero level.

Fig. 5a represented the effects of acetone concentration and extraction time at a constant temperature of 50 °C on TFC. It showed that acetone concentration had a major effect on flavonoid yield. The TFC increased with an increase in acetone concentration up to 45 % v/v but it decreased when acetone concentration was kept at levels higher than 45 %. There is an increase in TFC when extraction time was raised to 102 min and a further increase in TFC thereafter. Thus an increase in time did not affect extraction process.

The effect of acetone concentration and extraction temperature at constant extraction time (90 min) could be seen from fig. 5b. The TFC mainly depended on acetone concentration than temperature. It resulted in a curvilinear increase till 45 % and extraction temperature up to 40 °C. TFC declined with increase in acetone concentration (>45 % v/v) at high temperature (>40 °C). Fig. indicated that response TFC changed by changing acetone concentration for a given value of either time or temperature but no change in TFC was found by varying time or temperature for a given value of acetone concentration.

3) Optimization of extraction parameters and validation of model

In this study, the aim was to optimize the extraction parameters using heat reflux method which could show highest TFC. The extraction experiment was carried out for testing the reliability of the experimental method, by adopting the program of the optimal analytical model. Predicted and adjusted extraction conditions are shown in table 4. From the result obtained, the experimental values were consistent with the predictive values and were better than single factor experiments. This confirms that the response model was adequate and reliable for the extraction process (table 4).

a


b

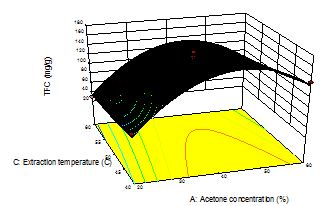

Fig. 5 a, b: Response surface (3D) showing the effect of different extraction parameters (A: Extraction Time; B: Acetone concentration; C: extraction temperature, added on the response)


Table 4: Predicted and experimental values of the responses at optimum conditions

Term Acetone concentration (%v/v) Extraction time (min) Extraction temperature ( °C) Response mg/g
Predict 45.00 101.46 41.57 163.42
Experiment 45 102 42 161.14

CONCLUSION

The best yield in extraction process can be achieved by using multivariate optimization, which selects the optimal operating conditions of interrelated variables. Highest flavonoid concentration (161.14 mg/g) was obtained with acetone concentration of 45.00% v/v, time 101.46 min, temperature 41.57 °C as optimal extracting conditions. RSM proved successful in optimizing the extraction conditions to determine TFC of G. gummifera gum resin, as the TFC under the optimized conditions was higher than that of non-optimized conditions. The regression coefficient and P-value indicated that acetone concentration (P<0.01) and temperature (P<0.01) were significant factors in extraction process affecting TFC.

ACKNOWLEDGEMENT

Authors are thankful to University Grant Commission for providing financial assistance.
