Int J Pharm Pharm Sci, Vol 8, Issue 5, 306-310Original Article

HPLC ASSAY OF MODEL TABLET FORMULATIONS CONTAINING METRONIDAZOLE AND CIPROFLOXACIN

VANIA MASLARSKA^a*, BOYKA TSVETKOVA^b, LILY PEIKOVA^b, BISTRA KOSTOVA^c, DIMITAR RACHEV^c, STANISLAV BOZHANOV^a, NELINA ZAREVA^a

^aDepartment of Chemistry, ^bDepartment of Pharmaceutical, ^cDepartment of Pharmaceutical Technology and Biopharmaceutics, Medical University of Sofia, Faculty of Pharmacy, 1000 Sofia, Bulgaria
Email: vmaslarska@mail.bg

 Received: 12 Feb 2016 Revised and Accepted: 30 Mar 2016

---

ABSTRACT

Objective: This paper describes development and validation of a high-performance liquid chromatographic analytical procedure for simultaneously determination of metronidazole and ciprofloxacin in a model tablet formulations.

Methods: The separation was achieved with a LiChrosorb^® RP-18 (250 x 4.6 mm) column, at 33 °C temperature with isocratic mode and a mobile phase containing triethylamine: o-phosphoric acid and аcetonitrile (0.02:80:20 v/v/v). The flow rate was 1.0 ml/min and the eluent was monitored at 290 nm.

Results: The selected chromatographic conditions were found to separate effectively metronidazole and ciprofloxacin with a retention time of 3.46 min and 6.68 min, respectively. The method was validated for analytical parameters specificity, linearity, precision, accuracy, LOD and LOQ. The calibration curves were linear in the concentration range of 12.5-100.0 µg/ml for metronidazole and ciprofloxacin. The recovery for metronidazole and ciprofloxacin was 100.1 % and 100.2 %, respectively.

Conclusion: The analytical procedure was applied to quality control of model tablet formulations. It was established that the developed analytical procedure was successfully used for routine analysis of metronidazole and ciprofloxacin in model tablet dosage forms without any interference from included excipients.

Keywords: Metronidazole, Ciprofloxacin, RP-HPLC, Validation, Model tablet formulations, Quality control

---

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

INTRODUCTION

Ciprofloxacin, (CIP) [1-cyclopropyl-6-fluoro-1,4-dihydro-4-oxo-7-(piperazinyl)-quinolone-3-carboxylic acid] is a second generation fluoroquinolone antibacterial agent. Its spectrum of activity includes most strains of Gram-positive and Gram-negative bacterial pathogens responsible for respiratory, urinary tract, gastrointestinal and abdominal infections [1]. Because of its low toxicity, very wide spectrum of antibacterial effect and low ability to cause bacterial resistance, CIP has been widely used in clinical practice [2]. Metronidazole (MET) [2-methyl-5-nitroimidazole-1-ethanol] is an antiprotozoal, antiamebic and antibacterial drug [3]. CIP has a reduced activity against anaerobic pathogens. Therefore, a combination of CIP with an antimicrobial agent active against anaerobes, such as MET, seems to be interesting for the treatment of mixed aerobic/anaerobic infections [4].

A survey of literature revealed several analytical methods for the simultaneous determination of CIP and MET in tablet forms and intravenous admixtures. The reported procedures included reversed-phase high-performance liquid chromatography, thin-layer chromatography, UV-spectrophotometry, nuclear magnetic resonance spectrometry [5-17].

Literature survey shows that the most HPLC methods for determination of CIP and MET in the mixture are based on a separation with mobile phases including phosphate buffer (variety of pH values and concentration) and organic diluents in different ratios [8-11]. The use of phosphate salts should be avoided to ensure correct and trouble-free exploitation of HPLC system. In our study, the separation was achieved without the usage of any phosphate buffer salts, which we appreciate as an advantage of the so presented analytical method.

In this article, a rapid, specific and accurate RP-HPLC method have been described for the simultaneous determination of both drugs in model tablet formulations.

MATERIALS AND METHODS

Materials and chemicals

MET and CIP reference standards were obtained from Sigma-Aldrich. HPLC grade acetonitrile was procured from Merck Ltd. Different model tablet formulations containing MET 250 mg and CIP 250 mg was prepared. Microcrystalline cellulose (type Vivapur 101®, JRS Pharma-Germany), maize starch (Roquette Pharma-France), lactose monohydrate (Meggle Pharma-Germany), carboxymethylcellulose sodium, cross-linked (Vivasol®, JRS Pharma-Germany), povidone (Kollidone® K30, BASF–Germany), magnesium stearate and silica colloidal anhydrous (Aerosil® 200, Evonik Ind.) were used as excipients. All other chemical reagents were of analytical grade.

Instrumentation and chromatographic conditions

HPLC analysis was performed by isocratic elution with a flow rate 1.0 ml/min. A high performance liquid chromatographic system (SHIMADZU Corporation, LC-20 AD quaternary pump) with an autosampler, Shimadzu DGU-20A5 vacuum degasser, and a Shimadzu SPD-20A UV/VIS detector was used for analysis.

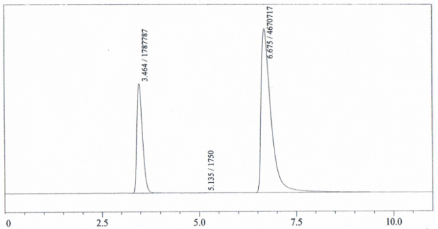

Fig. 1: Typical chromatogram of MET and CIP

The data was recorded using Lab Solutions Software. Separation was carried out at 33 °C, using LiChrosorb^®RP-18 (250 x 4.6 mm) column packed with octadecylsilyl silica gel 5 μm. The detector was set at 290 nm. The mobile phase was prepared by mixing of triethylamine: o-phosphoric acid and аcetonitrile (0.02:80:20 v/v/v). The mobile phase was sonicated for 10 min and then it was filtered through a 0.45 μm filter paper. The chromatographic conditions were found to yield good separation with a retention time of 3.46 min for MET and 6.68 min for CIP with sharp symmetrical peak. The chromatogram is shown in fig. 1.

Preparation of standard solution

50 mg of MET and 50 mg CIP working standards (accurately weighed) were transferred into a 100 ml volumetric flask. After addition of about 70 ml solvent A (prepared by mixing of 80 ml 0.3% o-phosphoric acid solution and 20 ml acetonitrile), the mixture was sonicated for about 2 min and after made up to the volume. The stock solution was suitably diluted to produce a concentration of 0.05 mg/ml of MET and 0.05 mg/ml of CIP respectively.

Sample preparation

Twenty tablets were weighed, finely powdered and the average weight was determined. A portion of powder equivalent to 250 mg MET and 250 mg CIP is transferred into 50 ml volumetric flask and 25 ml of solvent A was added and sonicated for 10 min to effect complete dissolution of both substances. The suspension was then made up to volume with solvent A and after filtered. The aliquot portion of the filtrate was further diluted to get a final concentration of 50 μg/ml of MET and 50 μg/ml of CIP. 20 μl of the test solution were injected, chromatogram was recorded, and the amounts of the drugs were calculated.

Preparation of model tablets

Model tablets containing 250 mg MET and 250 mg CIP were prepared by compression after wet granulation with a single punch tablet press (EK 0, Korsch, Berlin, Germany) with a set of 13 mm diameter standard concave tooling.

Determination of mechanical strength of the tablets

It was performed by the method of the progressive loading according to Eur. Ph. 8.0, apparatus-Erweka type TBH 30, Germany.

Determination of friability

It was performed according to Eur. Ph. 8.0 in friabilitor Erweka TAR 20, Germany.

Disintegration time

It was performed by the method described in Eur. Ph. 8.0 in water, using apparatus Erweka ZT 3, Germany.

In vitro drug dissolution studies

Drug release profiles were evaluated using a dissolution test apparatus (Еrweka DT 600, Hensenstmm, Germany). The test was carried out at a paddle rotation speed of 50 rpm, maintained at 37±0.5 °C, in 900 ml dissolution medium at 1.2 pH value. The dissolution progress was monitored by withdrawing 5 ml filtered samples (0.45 μm filter) at preselected intervals (up to 60 min). The quantity of MET and CIP in sample solutions was analyzed by described method. The cumulative percentage of drug release was calculated, and the average of six determinations was used in the data analysis.

RESULTS AND DISCUSSION

To optimize the RP-HPLC parameters, several mobile phase combinations were studied. Mobile phases containing acetonitrile and o-phosphoric acid solution (40:60; 30:70; 20:80; 10:90 v/v) were examined. In addition, the effects of the flow rate of the mobile phase (0.5–1.0 ml/min) and column temperature (25-40 °C) were checked. A satisfactory separation in suitable run time and good peak symmetry were found in a mixture of triethylamine: o-phosphoric acid and аcetonitrile (0.02:80:20 v/v/v) at flow rate 1 ml/min proved to be better than the other mixtures in terms of resolution and peak shape. The optimum wavelength for detection was set at 290 nm at which detector responses obtained were much better for both drugs. As shown in fig. 1, the retention times were 3.46 min for MET and 6.68 min for CIP. The developed method for determination of MET and CIP was further validated according to ICH guidelines as follows [18].

Selectivity

Selectivity of the current method was demonstrated by good separation of both active ingredients (MET and CIP). Furthermore, matrix components, e. g. excipients, do not interfere with the two analytes.

Linearity

Standard solutions containing MET (12.5-100 µg/ml) and CIP (12.5-100 µg/ml) were prepared in the solvent A. Triplicate 20 µl injections were made for each standard solution to estimate the reproducibility of the detector response at each concentration level and chromatographed under the conditions described above. The area of each peak was plotted against the concentration to obtain the calibration graphs (fig.2 and 3).

Fig. 2: Linearity graph of MET

Fig. 3: Linearity graph of CIP

The five concentrations of each compound were subjected to regression analysis to calculate the calibration equation and correlation coefficients. The results obtained are shown in the tables 1-2. The described method was linear for the two analytes in the range specified above with a correlation coefficients better than 0.999.

Limit of detection (LOD) and limit of quantitation (LOQ)

LOD and LOQ were experimentally verified by six injections of MET and CIP at the appropriate concentrations. The LOD was calculated to be 0.012 and 0.04 µg/ml and the LOQ was calculated to be 0.125 and 0.4 µg/ml for MET and CIP, respectively.

Precision

The system precision of this method was evaluated by calculating the %RSD of the peak areas of six replicate injections of the standard solution, which were found to be 0.39% for MET and 0.37% for CIP. For method precision evaluated with six sample replicate injections were found to be 0.41% and 0.39% for MET and CIP respectively and it was found to be less than 1.0% shown in the table 3.

Table 1: Linearity data for MET

Linearity level	Concentartion (µg/ml)	Average area (n=3)
1 2 3 4 5	12.5 25.0 50.0 75.0 100.0	433347 858222 1727487 2560635 3413392
Slope Y-intercept Correlation coefficient		34048.1 11089.4 0.9999

N=5

Table 2: Linearity data for CIP

Linearity level	Concentration (µg/ml)	Average area (n=3)
1 2 3 4 5	12.5 25.0 50.0 75.0 100.0	921318 1804911 3656745 5520841 7364964
Slope Y-intercept Correlation coefficient		73839.0 -22793.8 0.9997

N=5

Table 3: Results of precision for MET and CIP

	MET	CIP
System precision % RSD Method precision %RSD	0.39 0.41	0.37 0.39

Table 4: Results of % recovery studies for MET and CIP

Sample	Recovery	Amount present, mg	Amount recovered, mg	% recovered	SD*	%RSD
MET	50% 100% 150%	125 250 375	125.3 249.7 374.8	100.2 99.88 99.95	0.878 1.022 1.012	0.881 1.025 1.015
CIP	50% 100% 150%	125 250 375	124.8 251.3 375.6	99.84 100.5 100.2	1.628 0.643 0.541	1.631 0.645 0.543

*average value of three determinations

Table 5: Model tablet compositions

Composition	Model MC1 (g)	Model MC2 (g)
MET	0.250	0.250
CIP	0.250	0.250
Microcrystalline cellulose	0.050	0.050
Maize starch	0.100	-
Lactose monohydrate	-	0.070
Carboxymethylcellulose sodium, cross-linked	-	0.030
Magnesium stearate	0.007	0.007
Silica colloidal anhydrous	0.003	0.003
Povidone	0.006	0.005
Model tablet characteristics
Uniformity of mass of tablets, g	0.666±5%	0.665±5%
Mechanical strength, N	50-60	50-55
Friability, %	0.5	0.4
Disintegration time, min	1	3

Fig. 4: In vitro MET and CIPrelease profiles from developed model tablet formulations (n=6): a-model MC 1 and b-model MC 2

Accuracy

The accuracy of the method was calculated by recovery studies. It is carried out by preparing the samples of 50%, 100% and 150% of target concentration. The samples were prepared in triplicate in each level. The results of studies along with its evaluation are given in the table 4.

Obtaining of model tablet compositions

Model tablet formulations and characteristics of tablets are presented in table 5.

In vitro drug dissolution studies

Data from the MET and CIP release studies from models MC1 and MC2 at pH 1.2 are presented in fig. 4.As seen from the data presented in fig. 4 the rate of both drugs release is faster in model MC1 in comparison with Model MC2, especially in the beginning of the process. Model MC1 released 92% MET and 81% CIP for 30 min, while the model MC2 reaches 82% MET and 75% CIP for the same period. Over 80% CIP release from model MC2 is observed at 45 min.

CONCLUSION

An accurate, sensitive and precise HPLC method with UV detection for the simultaneous estimation of MET and CIP was developed and validated for quality control analysis in combined tablets. This method is also applicable for the determination of the above drugs separately in other formulations. The proposed method is rapid, where the total analytical run time for both drugs are less than 8 min and shows a high degree of accuracy and precision with less than 2 % RSD. It is convenient for laboratory quality control of tablet dosage forms containing both substances.

ACKNOWLEDGMENT

The present study was kindly supported by Medical University–Sofia, Medical Science Council–Grant № 34/2015.

CONFLICT OF INTERESTS

Declared none
