Int J Pharm Pharm Sci, Vol 8, Issue 12, 41-47Original Article


DEVELOPMENT AND EVALUATION OF MONOLITHIC OSMOTIC TABLET OF KETOPROFEN: USING SOLID DISPERSION TECHNIQUE

S. KAUSHIK*, KAMLA PATHAK

Department of Pharmaceutics, Pharmacy College Safai, U. P. RIMS and R, Safai (District Etawah) 206130 Uttar Pradesh, India
Email: sk.mathura20@gmail.com

Received: 27 Feb 2016 Revised and Accepted: 05 0ct 2016

ABSTRACT

Objective: The aim of the present study was to develop and evaluate the monolithic osmotic tablet (MOT) composed of the solid dispersion of ketoprofen (KETO), a poorly water-soluble drug. Solid dispersion technique is generally used for immediate release, as this maximizes the amount of drug absorbed. Sustained release may be obtained by combining solid dispersion technique with MOT so as to increase the therapy efficacy and patient compliance.

Methods: Solid dispersion of KETO was prepared by using solvent melt method with polyethylene glycol (PEG) 6000, a hydrophilic carrier. The ratio of KETO to PEG 6000 were 1:1, 1:3 and 1:5 (%w/w). These solid dispersions were characterized by differential scanning calorimetry (DSC), Thermogravimetric analysis (TGA) and powder X-ray diffraction (PXRD) to ascertain whether there were any physicochemical interactions between drug and carrier.

The tablet core was prepared by using Polyox N80 (a suspending agent), sodium chloride (an osmotic agent), a solid dispersion consisting of PEG 6000 and KETO followed by a coating of cellulose acetate to make the monolithic osmotic tablet.

Results: The results of DSC and PXRD indicated that the drug was in the amorphous state in solid dispersion when PEG 6000 was used as a carrier. The dissolution rate of the solid dispersion was much faster than those for the corresponding physical mixture and pure drug. The optimized MOT formulations were able to deliver KETO at the constant zero order release, above 95% in vitro, independent to environmental media and stirring rate. The release rate of KETO in the MOT is controlled by osmotic pressure, suspending agent and drug solubility in solid dispersion.

Conclusion: The monolithic osmotic tablet containing solid dispersion has great potential in the controlled delivery of ketoprofen, a water-insoluble drug.

Keywords: Ketoprofen, Monolithic osmotic tablet, Solid dispersion, Water insoluble

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4. 0/)
DOI: http://dx.doi.org/10.22159/ijpps.2016v8i12.11437

INTRODUCTION

The bioavailability of poorly water-soluble drugs is well known to be limited and profoundly affected by the rate of absorption in the gastrointestinal tract (GIT). As the low solubility of drugs is one of the most important factors affecting the drug release process, many methods have been proposed to enhance the drug solubility. Among the several strategies available for improving drug bioavailability, solid dispersions (SDs) have been used extensively [1-6]. The SD technique produces a significant increase in surface area and surface wettability as well as solid state modification from crystalline to amorphous form. Hence, SD is widely used to increase the solubility, dissolution rate, and bioavailability of water-insoluble drugs [7-8].

The monolithic osmotic tablet (MOT) system, which is composed of a monolithic tablet coated with cellulose acetate (CA) membrane drilled with an orifice on one or both surfaces, utilizing osmotic pressure for the delivery of drugs. The osmotic tablets have many advantages, such as reducing the risk of adverse reactions and improving patient compliance. Drug release from these systems is independent of pH and hydrodynamic conditions of the GIT to a large extent, and the release characteristics can be adjusted easily by formulation parameters [9-10]. The MOT system is simple to be prepared as exempting from push layer and simplifying in the orifice drilling compared with the push–pull osmotic tablet and used in the drug controlled delivery field, especially suitable for water-insoluble drugs [11].

However, solid dispersion is generally for immediate release, as this maximizes the amount of drug absorbed. Sustained release may be obtained by combining solid dispersion technique with MOT so as to increase the therapy efficacy and patient compliance. It is a new concept to combine the solid dispersion technique and osmotic pump technique for water-insoluble drugs in order to obtain much higher solubility and controlled release of water-insoluble drugs at the same time.

In the present study aimed to develop a MOT containing solid-dispersions of Ketoprofen (KETO). Ketoprofen [(RS)-2-(3-benzoylphenyl) propionic acid is an important nonsteroidal anti-inflammatory drug (NSAID), effectively used in the treatment of rheumatoid arthritis, osteoarthritis [12] and musculoskeletal disorders [13]. Because of its short elimination half-life (4.2 h) which requires multiple dosing to achieve and maintain therapeutic concentration and poor aqueous solubility (0.13 mg/ml at 25 °C) [14], hazards of adverse gastrointestinal (GI) reactions like gastric irritation, peptic ulceration and bleeding can occur. Development of oral sustained release formulations of this drug is highly desirable in order to achieve improved therapeutic efficacy and patient compliance [15].

Fig. 1: Chemical structure of Ketoprofen

The characteristic of the SDs of KETO was studied by in vitro dissolution, DSE, TGA and X-ray diffraction. The influences of formulation variables were also investigated. The optimized MOT of KETO solid dispersion was evaluated for effects of solid dispersion, the ratio of osmotic agent to suspending agent, the amount of plasticizer in the coating, membrane weight gain, and orifice size.

MATERIALS AND METHODS

Materials

KETO with a purity of 99.7% was taken from M/s Ranbaxy Laboratories Ltd. (Gurgaon, India), PEG 6000, sodium chloride (NaCl); polyethylene glycol 1500 (PEG 1500), and cellulose acetate (CA) with 39.7 wt % acetyl content (Mw, 50,000 g/mol) were procured from Thermo Fisher scientific (Mumbai, India); polyethylene oxides (polyox WSR N-80; Mw appro. 200,000) was procured from Colorcon (Goa, India). All other chemicals were of Analytical reagent grade and used without further purification.

Methodology

Preparation of solid dispersion (SD)

The solid dispersions of KETO with PEG 6000 were prepared by the solvent melt method [16] in drug: carrier at 1:1, 1:3 and 1:5 (%w/w) ratio. A sufficient amount of ethanol was used to dissolve KETO. The melted PEG 6000 was added into the KETO solution under stirring at 70 °C to maintain better dispersion of the drug and to evaporate the small amount of ethanol that was used as the solvent. The melt mass was solidified immediately in a freezing mixture of ice and sodium chloride under constant stirring. The mass was pulverized and sifted through 100 ASTM sieve and stored in a desiccator over fused calcium chloride for 24 h.

Preparation of physical mixtures (PM)

Physical mixtures (PM) of KETO and PEG 6000 were prepared at 1:1, 1:3, and 1:5 (%w/w) ratio by shifting the individual powders through a 60 ASTM sieve and mixing together by trituration in a mortar with a pestle. The mixture was stored in a desiccator containing calcium chloride for further use.

Characterization of physical mixtures (PM) and solid dispersion (SD)

Differential scanning calorimetry (DSC)

DSC thermograms were recorded on a differential scanning calorimeter (Perkin Elmer DSC Pyris 1). Samples were heated at a scanning rate of 10 °C/min.

Thermogravimetric analysis (TGA)

TGA (Perkin-Elmer TGA-7 Pyris 1) was performed to evaluate the thermostability of the KETO for the suitability of SD preparation by solvent melt method.

Powder X-ray diffraction (PXRD)

The scanning PXRD patterns of pure drug (KETO), carrier (PEG 6000) and their SDs with corresponding PMs were obtained on an X-ray diffractometer (X’PERT-PRO) under the following conditions:

Ni-filtered Cu-Kα radiation; 45 kV voltage: 40 mA current, scan speed 2 °/min in terms of 2θ angle.

These PXRD were used to characterize the physical state of the drug in the SDs and PMs. Samples were scanned over a range of 2θ values from 5 to 50 °, at a scan rate of 2.0 °/min.

Preparation of MOT

The powder sample of KETO solid dispersion was mixed with other excipients (all 40-ASTM sieved) to prepare granules by using water and wet granulation method. The resulting wet granules were dried at 60 °C for 1 h and after that, these dried granules were passed through 30 ASTM sieve. The final granules were blended with magnesium stearate and Talc (sieved through # 60 ASTM) for 10 min. The lubricated powder was compressed into tablets having an average weight of 1000 mg using a 16 station rotary tablet compression machine (Cadmach Ahmedabad, India) fitted with 12 mm round standard concave punches. The core formulations are listed in table 1.

The core tablets were coated using a coating pan (Ganson Thane, Mumbai) with a diameter of 25 inches. Acetone containing cellulose acetate (CA; 30 g/l, w/v) and a certain amount of plasticizer (PEG 1500) was used as the coating solution (table 2). Core tablets were placed in the coating pan along with 200 g dummy tablets (tablets made using 9-mm round deep concave punches, containing microcrystalline cellulose PH 102, lactose DCL 11, and magnesium stearate) with a pan rotating rate of 10 rpm. The outlet air temperature was maintained between 20 °C to 25 °C. The coating solution was sprayed at the rate of 3 to 5 ml/minute until desired weight gain was obtained on the active tablets. All the tablets were dried for 2 h at 50 °C and then an orifice was drilled manually by 0.25 mm drill on one side of the tablets.

Table 1: Quantitative composition of core tablets

S. No.

Ingredients

Formulation code ingredients (mg/tablet)

T1

T2

T3

T4

T5

1

SD1

200

-

-

-

-

2

SD2

-

400

-

-

-

3

SD3

-

-

600

600

600

4

Polyox WSR N80

140

140

140

185

95

5

Sodium chloride

140

140

140

95

185

6

Microcrystalline cellulose PH102

q. s.

q. s.

q. s.

q. s.

q. s.

7

Magnesium stearate

10

10

10

10

10

8

Talc

10

10

10

10

10

Total weight (mg)

1000

1000

1000

1000

1000

Table 2: Coating compositions

Ingredients

Code/coating compositions (gm)

C1

C2

C3

C4

C5

Cellulose acetate 398-10

5.0

5.0

5.0

5.0

5.0

PEG 1500

0.1

0.2

0.3

0.2

0.2

Purified water@10% w/w

10

10

10

10

10

Acetone@q. s.

100

100

100

100

100

Weight gain (% w/w)

3.0

3.0

3.0

4.0

5.0

@Evaporates during processing and is not a part of the final product.

In vitro dissolution studies

In vitro dissolution tests of the pure drug, powdered SDs, PMs and monolithic osmotic tablet (MOT) (equivalent to 100 mg KETO) were performed using the dissolution apparatus (Electrolab, Mumbai, India) type II paddle method at 37±0.5 °C for 60 min for pure drug, powdered SDs, PMs and for MOT 12 h, with a stirring rate of 100 rpm, in 900 ml of a dissolution medium phosphate buffer pH 6.8. Aliquots of dissolution samples were collected at 0.5, 1, 2, 4, 6, 8, 10 and 12 h time interval, with the replacement of an equal volume of temperature-equilibrated dissolution medium. The samples were filtered through a 0.45μm membrane filter, and the concentration of the drug was determined by UV spectrophotometry at 260 nm.

All samples were analyzed in triplicate, and release curves were plotted using calculated mean values of % cumulative drug release.

In order to estimate the effects of pH value of in vitro release mediums and paddle rotation rates on drug release behaviour, release tests were conducted with pH 1.2 buffer and pH 6.8 phosphate buffer at 100 rpm, and at a stirring rate of 75, 100 and 125 rpm with pH 6.8 phosphate buffer, respectively. All experiments were also carried out in triplicate.

RESULTS AND DISCUSSION

Characterization of solid dispersions

To increase the oral absorption of poorly water-soluble drugs, it is very important to improve the drug solubility and dissolution rate in the GIT. Fig. 2 shows the dissolution profile of KETO in a physical mixture and solid dispersion in comparison with pure KETO powder.

DSC curve of KETO, PEG 6000 and SD in 1:5 ratio shows that the thermogram of KETO exhibited an endothermic peak at about 99.24 °C (fig. 3 a) corresponding to its melting point. The endothermic peak corresponding to melting peak of KETO disappeared in the case of PM and SD with the PEG 6000 (fig. 3 c). The disappearance of drug melting in a lesser amount of drug is due to its dissolution in the melted carrier. Ketoprofen homogenizes with the carriers in an amorphous form.

The TGA shows, there is no degradation of KETO was observed up to 160 °C (M. P. of KETO is 99.24 °C) (fig. 4), this confirm that solvent melt method is suitable for KETO solid dispersion preparation.

Fig. 2: In vitro dissolution profile of ketoprofen, PM (1:5 ratio), SD (1:5 ratio) in phosphate buffer pH 6.8 (n=3)

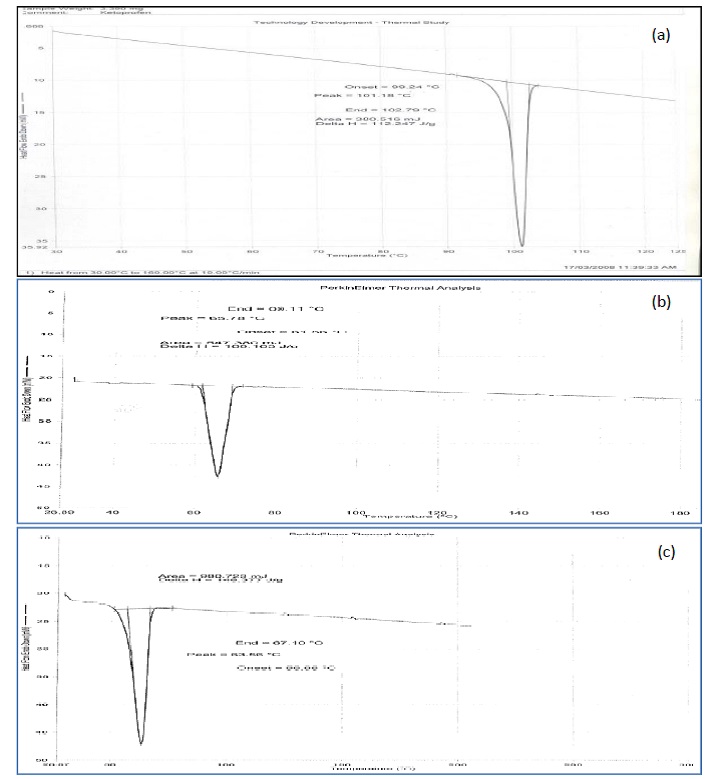

Fig. 3: DSC curve: (a) ketoprofen; (b) PEG6000; (c) ketoprofen and PEG 6000 SD (1:5)


Fig. 4: TGA thermogram of ketoprofen

The dissolution characteristic of KETO physical mixture with PEG 6000 was similar to pure KET, as KETO was still in the crystal form, but far away from the dispersed form in solid dispersion. It was reported that PEG 6000 was able to dissolve more drug in molecularly dispersed form while hindering precipitation of the drug following the dissolution of the carrier [17].

In order to confirm the differences in crystal form between the physical mixture and solid dispersion of KETO, crystal form of the physical mixture and of the solid dispersion were investigated by X-ray diffraction (fig. 5). The X-ray diffraction indicated that KETO might be maintained as molecular or amorphous dispersion, which resulted in the enhancement of dissolution. But the drug in the physical mixture did not show much difference in the dissolution profile as it was still in the crystal form [18]. This implied that it was the formation of solid dispersion that enhanced the drug dissolution, not only the solubilization and wetting effects of the physical mixture with PEG 6000.

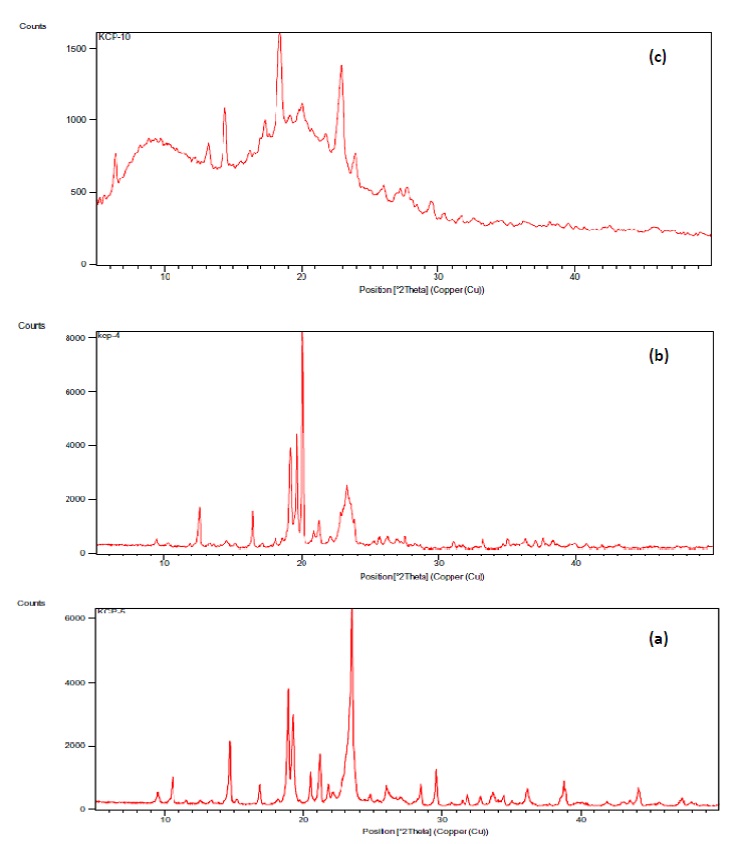

Fig. 5: X-ray diffraction of (a) ketoprofen; (b) ketoprofen and PEG 6000 PM (1:5); (c) Ketoprofen and PEG 6000 SD (1:5)

Evaluation of monolithic osmotic tablet

Effects of solid dispersion

Tablets with a solid dispersion of different formations were prepared and evaluated in vitro release profile. The data in fig. 6 demonstrated that the release profile varied with the change of carrier to drug ratio. The lower release rate was attributed to the drug to carrier ratio at 1:1 because the solubility of KETO was lower, which was crucial in the release of water insoluble drug from the osmotic tablet. The drug may be delivered by the extrusion, either in the form of a suspension of solids in water or, primarily, as a solution, depending on the dissolution dynamic of the core [19]. Also in drug to carrier ratio at 1:3 much bitter release was observed. In the drug carrier ratio at 1:5 constant release was observed up to 12 h.

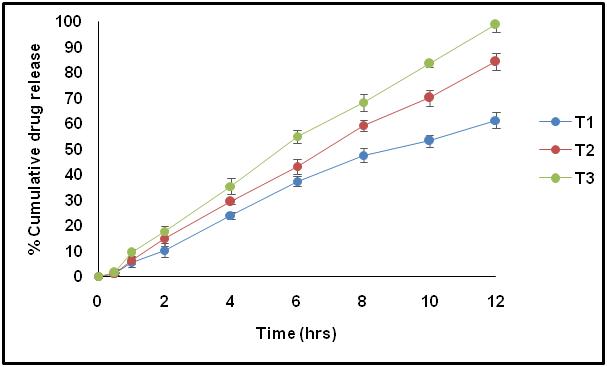

Fig. 6: In vitro drug dissolution profile of MOTs containing different solid dispersions in phosphate buffer pH 6.8 (n=3)

Effects of ratio of osmotic agent to suspending agent

The ratio of osmotic agent to suspending agent had some influence on the release profile as shown in fig. 7. The more NaCl incorporated into the tablet, the more components in the core would be dissolved so that the viscosity of the core decreased and thus more drug was released. However, a lower amount of Polyox N80, which played the role of suspending agent, would affect cumulative release. Lower amounts of Polyox N80 led to lower viscosity of the suspension and hardly prevented precipitation of KETO. This was consistent with reported results that osmotic and suspending agents in MOT had a coordinative important effect on the release profile [20]. As a consequence, a moderate NaCl/Polyox N80 rate approximate to 1 was selected.

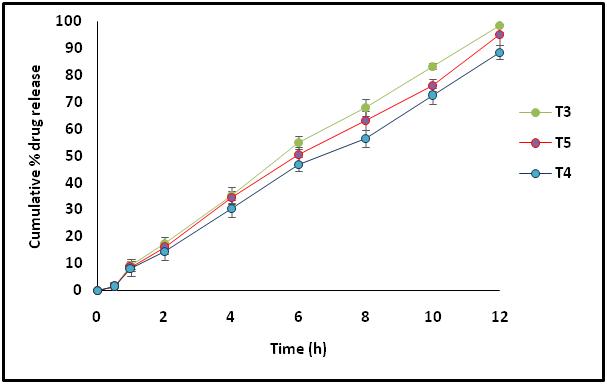

Fig. 7: In vitro drug dissolution profile of MOTs containing different ratio of osmogen to suspending agent in phosphate buffer pH 6.8 (n=3)

Effects of amount of plasticizer

Besides the formulation of the tablet, the membrane is also a key factor affecting the release profile of the monolithic osmotic tablet (MOT). As PEG 1500 is a hydrophilic plasticizer, it would be reached easily and left behind a wholly porous structure which increases membrane permeability and drug release rate [21]. The increase of PEG content led to an increase of drug release rate shown in fig. 8. As the amount of PEG 1500 increased into the membrane, the more void space formed and permeability of the membrane increased. Thus, a higher release rate occurred.

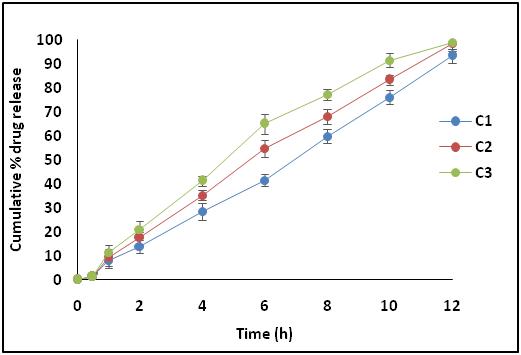

Fig. 8: In vitro drug dissolution profile of MOTs containing different amount of plasticizer in the coating of MOTs in phosphate buffer pH 6.8 (n=3)

Effects of membrane weight gain

To study the effects of membrane thickness on the drug release, tablets were coated with different weight gain. Fig. 9 shows that drug release decreased with the increased of the weight gain of the membrane. As the weight gain increased, the resistance of the membrane to water diffusion increased, and the rate of imbibing water decreased. As a consequence, the drug release rate was reciprocal to the weight gain. It was found that coating formulation C2 together with optimal tablet formulation T3 could attain approximate zero-order release pattern.

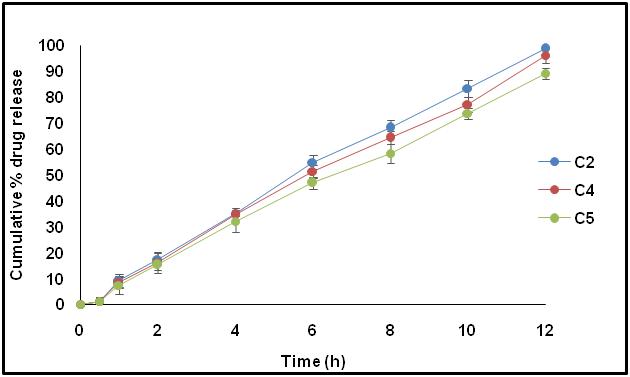

Fig. 9: In vitro drug dissolution profile of MOTs containing different coating membrane weight gain in phosphate buffer pH 6.8 (n=3)

Effects of orifice size

It was reported that orifice sizes should be kept in an appropriate range so as to maintain zero-order release. Orifice sizes must be smaller than the maximum limit, to avoid diffusion delivery through the orifice, and larger than the minimum limit, to minimize hydrostatic pressure inside the system [22]. The tablet core T3 was coated with formulation C2 and was subsequently drilled with a circular orifice of the same diameter on each side of the surface. Fig. 11 shows the effects of orifice size on release profile.

Orifice sizes between 200 µm to 300 µm could maintain steady release and high cumulative release percentage, while an orifice size of 100 µm resulted in lower release rate as drug suspension may occlude such a small orifice, therefore leading to a low release rate. An orifice diameter of 200 µm to 300 µm contributed to a similar release profile as it was within the optimal range. The orifice size was measured with stage micrometer and microscope. The MOT orifice is shown in fig. 10.

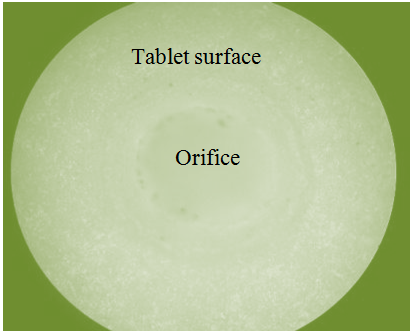

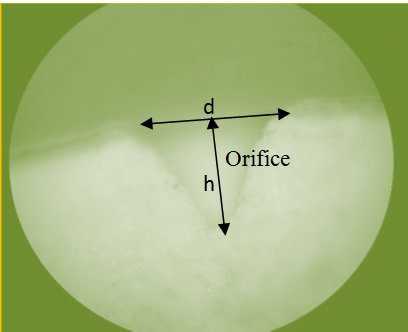

Fig. 10: MOT; Upper surface view, MOT; Vertical cross section view


Fig. 11: In vitro drug dissolution profile of MOTs containing different orifice size in phosphate buffer pH 6.8 (n=3)

Evaluation of the optimized formulation

To investigate the influence of release media on drug release, in vitro releases were tested in pH 1.2 buffers and pH 6.8 phosphate buffer at 100 rpm. Optimized formulation exhibits a linear release pattern up to 12 h, and no significant difference in release profile could be found in different release media (p>0.05). Therefore, it may be expected that the drug release from MOT in the GI fluid exhibited a media-independent characteristic. The influences of stirring rate on drug release profile (at 75, 100, and 125 rpm) were also examined, respectively. Increasing agitation rate did not influence the release profile significantly (p>0.05). Thus the mobility of the GIT may scarcely affect the drug release of the MOT. Drug release was independent on release media and agitation rate, and the monolithic osmotic tablet was reported to exhibit a comparable in vitro/in vivo release profile [21].

As for the water-insoluble drug, the solubility would be too low to form a homogeneous drug suspension and affect drug dissolution. Thus, solid dispersion formation was applied so as to enhance the solubility and the dissolution rate. NaCl as the osmotic agent played an indispensable role because the osmotic mechanism was the main energy source to imbibe water and the basis of all osmotic delivery systems. In addition, carrier PEG 6000 also has the osmotic effect to some extent [23]. Meanwhile, suspending agent polyox N80 was applied to increase the viscosity, stabilize the suspension, and swelling. In operation, water was imbibed owing to the osmotic pressure difference between the inside of the tablet membrane and the outside environment, which was contributed by NaCl. Then KET in solid dispersion form dissolved, and a viscous KETO suspension was created as polyox imbibed water and swelled. The solid dispersion facilitated rapid dissolution and higher drug concentration within the tablet, and the drug suspension was pumped out through the orifices. The drug release was controlled by osmotic and suspension mechanisms, while the solid dispersion form was utilized to increase drug solubility, dissolution rate, and dispersion degree. It was reported that Poiseuille’s law of laminar flow could be applied to describe drug release in MOT [24] as in Equation 1:

Where:

dM/dt = drug release rate,

C = concentration of drug in tablet suspension,

r = radius of the orifice,

η = viscosity of tablet suspension,

(P1–P2) = pressure difference between the inside and outside of the membrane

h = thickness of the membrane.

In this MOT containing KETO in solid dispersion form, C is largely dependent on the solubility of KETO in solid dispersion and dispersed degree in tablet core. Solid dispersion helped to improve drug dissolution rate and maintain a high and constant drug concentration in the core. This is because the drug in solid dispersion is in supersaturation form. (P1–P2) represents both osmotic pressure and swelling effect, and it was that force driving the drug release. The drug release rate is inversely proportional to η and. If η value is too high, the release rate will be decreased, as a swelling effect could not maintain well-proportioned suspension; if η value is too low, the solid drug dispersion may precipitate and be unable to maintain C high enough for constant release. In summary, drug release from MOT containing solid dispersion can be contributed to the osmotic, suspending, and solubility enhancement.

CONCLUSION

MOT containing a solid dispersion of KETO were prepared. Solid dispersion consisted of PEG 6000 and KETO could enhance the solubility, dissolution rate of water-insoluble drug KETO. Drug release was investigated in vitro. The optimal MOT was able to deliver KETO at a constant rate of 6.25 mg/hour for up to 12 h in phosphate buffer pH 6.8, and cumulative release at 12 h is above 95%, independent of environment media and stirring rate. The release is controlled by osmotic and suspending effect while integrating solid dispersion for solubility enhancement. MOT was simple to prepare and there is no need to differentiate the orifice drill surface. The MOT containing solid dispersion has great potential in the controlled delivery of water insoluble drugs.

ACKNOWLEDGEMENT

The authors would like to colorcon for supplying free gift sample of polyethylene oxides.

CONFLICT OF INTERESTS

Declared none
