Int J Pharm Pharm Sci, Vol 8, Issue 8, 142-145Original Article


OPTIMIZATION OF ELECTROPORATION MEDIATED TRANSFORMATION OF LACTOBACILLUS PLANTARUM FOR INDUSTRIAL EXPLOITATION

MAHESWARA REDDY MALLU*, SIVA REDDY GOLAMARI, SANDEEP VEMULA, SRINIVASA REDDY RONDA

Centre for Bioprocess Technology, Department of Biotechnology, K L University, Vaddeswaram, Guntur District, Andhra Pradesh, India
Email: mahesh_bt@kluniversity.in

Received: 01 Apr 2016 Revised and Accepted: 20 June 2016

ABSTRACT

Objective: The objective of our study was to evaluate different established electrotransformation protocols for their suitability on Lactobacillus plantarum.

Methods: We tested strategies of electrical parameters in addition to already published electroporation methods proven to be successful in other Lactobacillus strains.

Results: Our strain differed highly in transformation efficiencies and optimal growth conditions. Among the various methods performed, we observed high-efficiency protocol yielded 8X106 transformants, and the optimum electroporation parameter was found to be at 1500V.

Conclusion: Independent of electroporation method Lactobacillus plantarum strain remained reluctant to high-efficiency transformation protocol.

Keywords: Lactobacillus plantarum, Transformation, Electroporation, Lithium acetate

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

INTRODUCTION

Lactic acid bacteria belong basically to the order Lactobacillales; trustworthy classification has to be based on both genotypic and phenotypic methods [1]. Lactobacillus plantarum is a facultatively heterofermentative bacterium that produces DL-lactate and contains meso-diaminopimelic acid in its cell wall. It is closely related to L. paraplantarum, L. pentosus, and L. arizonensis and can be distinguished from these species by 16S rRNA sequencing only [2]. In addition, L. plantarum has a repertoire of osmoprotection, which enhances its ability to thrive in different environments [3]. Lactobacilli are used to produce metabolites, enzymes and proteins of therapeutic value including antigens, cytokines, and pro and prebiotics [4]. Metabolic processes like the production of GOS by L. plantarum can be enhanced by introducing strong constitutive promoters upstream of genes coding for the relevant enzymes [5].

The capacity to secrete heterologous proteins varies from species to species. Hols et al. [6] demonstrated the ability of L. plantarum to secrete up to 10 mg/l of a specific antigenic fusion protein. Efficient expression vectors [7] have already been developed for Lactococcus where expression of recombinant proteins is ensured by constitutive promoters or inducible systems. A crucial advantage of lactic acid bacteria and their applications is that most lactic acid bacteria have GRAS status (= generally regarded as safe), which means that they have no recorded toxic or pathogenic activity. Xie et al. [8] worked on E. coli and proposed that DNA is absorbed on the cell surface and transfers into the cell after formation of membrane pores by induction of an overcritical membrane potential during the electric pulse by electroporation. Similar reports were carried out by in lactic acid bacteria that usually require additional steps to transcend the rigid cell wall [9]. PEG is widely used as electroporation or storage solution and was also shown to increase electroporation of L. plantarum [10], and a different strain [11] described the loss of electrocompetence of some strains when kept too long on ice before electroporation. The milestones in establishing methods for electroporation of lactic acid bacteria include growth in glycine and sucrose [12], the use of PEG as electroporation or storage solution [13], and thorough testing of suitable electrical parameters [14] of pulse length and time shown increase electroporation of lactobacillus strains.

MATERIALS AND METHODS

Microorganism, chemicals and media

Lactobacillus plantarum was procured from MTCC, Chandigarh (No. 5422), media were prepared with deionized water and sterilized by autoclaving at 120 °C for 20 min. Sensitive reagents like glycine or antibiotics were sterile-filtered. MRS media (HiMedia) was used for the cultivation of Lactobacillus plantarum. MRS was supplemented with 5 µg/ml ampicillin, with 25µg/ml. All enzymes and vectors for transformation purpose were procured from Fermentas.

Optimization parameters of electroporation

Based on Axelsson and Ahrne [14] method, an overnight culture of L. plantarum 5422 was grown in MRS at 37 °C and diluted in 40 ml fresh MRS to an OD600 of 0.2. After growth at 37 °C cells were washed in ice-cold ddH2O and once in 30% PEG1500. The cells were suspended in 30 % PEG1500 leading to an OD600 of 10 to 20 and aliquoted into 50μL portions. The suspensions were electroporated without the addition of plasmids to determine survival rates. Different combinations of voltage and resistance were applied (table 1); capacity was set at 25 µF [15].

Table 1: Different combinations of voltage and resistance for electropration

V 1000 1000 1500 1500 2000 2000 2500 2500
Ω 800 400 800 400 800 400 800 400

The electrotransformation protocol was repeated, adding 1 µg of pUC plasmids, respectively, to the aliquoted cells. DNA and cells were mixed and held 10 min on ice prior to electroporation. After application of the electric pulse, cells were diluted in 500 µl MRS and incubated for 2 h at 37 °C, before plating them on MRS agar containing 5 µg/ml ampicillin.

Electroporation method with glycine as additive

Lactobacillus plantarum 5422 is incubated at 30 °C without aeration. The culture was diluted to an OD600 of 0.2 in MRS supplemented with 1% glycine [16]. The cells were harvested at an optical density of approximately OD600 0.6. Centrifugation was performed at 10, 000 rcf for 10 min to pellet the cells. They were washed three times with dH2O, once with 30 % PEG1500 and suspended in fresh 30 % PEG1500 (4 ml). Centrifugation were increased in speed and time when necessary. 40 µl aliquots of resuspended cells were stored at –80 °C or used immediately. OD600 of the aliquoted cells was between 11 and 19. Thawed or freshly prepared aliquots were held 10 min on ice after mixing 1 µg of plasmid [17] with each aliquot. The cell solution was transferred into precooled electroporation cuvettes; during pipetting trapping of air bubbles was avoided. A pulse of 12KV was applied before incubation in 500 µl MRS at 30 °C for 5 min. Undiluted and serial dilutions of recovered cell suspensions were spread and incubated on either MRS ampicillin agar or plain MRS agar. For evaluation of cell survival and transformations efficiency, it is further necessary to spread cell suspensions before the appliance of an electric pulse. Transformant colonies are visible after two days in general.

Lithium-acetate method

Overnight cultures were grown under strain-specific conditions as per MTCC instructions and diluted to an OD600 of 0.2. Cells were harvested after reaching an OD600 of 0.4–0.6. Cells were centrifuged for 15 min and resuspended in 30 ml lithium acetate solution [19] (0.6 M sucrose, 100 mM lithium acetate, 10 mM Tris-HCl, pH 7.5). 120 ml of lithium acetate-DTT (0.6 M sucrose, 100 mM lithium acetate, 10 mM Tris-HCl, pH 7.5, 10 mM DTT) solution were added, and the cell solution was incubated for 30 min at room temperature and 50 rpm. The cells were resuspended in 0.3 M sucrose. Electrical parameters were set as described for the initial protocol.

High-efficiency protocol for Lactococcus plantarum

High-efficiency protocol as described earlier by Papagianni et al. [20] for the transformation of Lactobacillus lactis was used to transform Lactobacillus plantarum, Overnight cultures of L. lactis were grown in M17 supplemented with 0.5 % glucose and 40 mM threonine and diluted 1:12.5 in 25 ml of M17 with glucose. Cells were harvested at OD600 ~ 0.3 and suspended at room temperature for 30 min in 8 ml of 100 mM LiAc, 10 mM DTT, 0.6 M sucrose, and 10 mM Tris-HCl, pH 7.5. Following pretreatment, cells were washed twice with ice-cold ddH2O, once with 50 mM EDTA, ddH2O and twice with 0.3 M sucrose. Cells were immediately electroporated by a single pulse at 2.5 kV, 200 Ω and 25 µF using 1 µg of DNA. The cell suspension was diluted in 5 ml M17 containing glucose and 1% sucrose and incubated for 2 h at 30 °C.

High salt protocol

The high salt protocol as described earlier by Palomino et al. [21] for the transformation of Lactobacillus lactis was used to transform Lactobacillus plantarum, Cells were cultured for 21 h at 37 °C without aeration. 1 ml of preculture was diluted in 49 ml MRS supplemented with 0.4 M–0.7 M NaCl and incubated for 22 h. 50 µl aliquots were electroporated with 2.5 kV and 200 Ω (25 µF) for 5 min.

Polymerase chain reaction

Primers were designed using Primer Express (Applied Biosystems), and oligonucleotides were synthesized by Bioserve, Hyderabad (100 pMol/μL). The following primers 5-TGTA-AAACGACGGCCAGT-3 for sense strand and 5-AACAG CTATGACCATG-3 for anti-sense strand were used in standard polymerase chain reactions (PCR) as to verify the presence of the bla gene [22] in the recombinant Lactobacillus DNA. PCRs were performed to confirm transformation of lactobacilli with pUC plasmids. Master mix was usually made to 50ul with PCR buffer 5ul, dNTPs (2 mM) 5ul, MgCl2 (25 mM) 3ul, DNA polymerase (2.5U/ul(0.4ul, sense and anti-sense primer (10pml/ul) 2ul, template DNA (~5ng) of 1ul. PCR cycling conditions for 35 cycles were set up with denaturation at 98C for 35s, annealing at 49C for 30s and extension at 72C for 45s.

Gel electrophoresis

Agarose gel electrophoresis was performed at 120 V for analytical gels (15–20 min) and with 80 V for preparative gels (30–40 min). Samples were mixed with 6x BX buffer (0.25 % bromphenol blue, 0.25 % xylen cyanol, 30 % glycerol). 6 µl of 2-log DNA ladder (0.1–10 kb; New England Biolabs, UK) were applied to a 1 % agarose gel (1% agarose in 1xTAE buffer) to determine DNA length of fragments. Gels were supplemented with ethidium bromide and run in TAE buffer (40 mM Tris-acetate, 100 mM EDTA).

RESULTS AND DISCUSSION

Optimization of electrical parameters

We determined survival rates after 4 washes and electroporation under various voltage and resistance combinations (table). The resulting disparity in survival depending on the different settings was only moderate. Thus we agreed to use 2000 V/400 Ω/25 µF and 2500 V/400 Ω/25 µF for further experiments as they displayed the lowest survival rates and should, therefore, have the highest impact on cell structure. Washed L. plantarum were treated with different combinations of voltages and resistances with a capacity of 25 µF and plated on MRS agar (surviving cells/aliquot containing 8 ~10 CFU) were reported.

Table 2: Cell survival at different voltage and resistance combinations

V Ω Surviving cells
1000 800 4*106
1000 400 5*106
1500 800 4*106
1500 400 8*106
2000 800 1*106
2000 400 2*106
2500 800 7*106
2500 400 3*106

Electroporation protocols

Although the efficiencies are highly dependent on the plasmids used. For instance, of the four different methods under electroporation carried, high-efficiency protocol as shown the optimum transformation efficiency for Lactobacillus plantarum. We repeated a slightly altered electrotransformation protocols for determination of electrical parameters and added 1 µg of pUC plasmids, respectively, to the aliquoted cells. Post-pulse incubation time was set at 2 h, which is assessed to give cells enough time to recover and resume bacterial protein synthesis is known to be rapidly expressed. pUC18 of 5ng was added to 50ul of a suspension of L. plantarum cells, and transformation frequency is calculated as transformants/survivors.

Transformation efficiencies of L. plantarum strains grown in 1 % glycine; lithium acetate-mediated, high efficiency and high salt method. Cells were aliquoted to an OD600 of 11-19. Survival = CFU/aliquot after electroporation, plated on MRS agar (fig. 1).

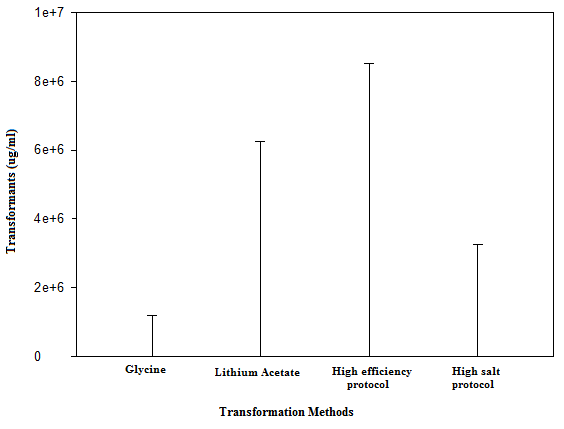

Fig. 1: Transformation efficiencies with different methods of L. plantarum strain

Amplification and analysis of recombinants

PCR amplification of bla gene fragments was carried out using the primer sense and antisense primers under standard conditions as previously described. The quality of pUC18 plasmid (fermentas) was evaluated by agarose gel electrophoresis, indicating relative purity. Samples of the PCR products of 10ul were analyzed on a 1.5% agarose gel and stained with ethidium bromide. Lane 1 shows size markers of a DNA ladder; lane 2 is the position of migration of the bla gene product (predicted size, 917 bp). Gels were photographed under UV light on a UVI-Tech BioImager (fig. 2).

Fig. 2: PCR Amplicon of bla gene of pUC18 analyzed on 1.5% agarose gel

CONCLUSION

In summary, the high-level transformation of bla gene in Lactobacillus plantarum have been achieved easily by high-efficiency method. Even if assigned to the same species, strains show huge variation in transformability and optimal growth conditions. A protocol working for one strain might not be suitable for the other one. Independent of electroporation protocol or plasmid choice L. plantarum remained reluctant to high-efficiency electroporation. It might, therefore, be more promising to conclude the effort on L. plantarum and to turn towards ideal strain for commercial exploitation. Our work provides the genetic tools which should be useful for the development of recombinant strains amenable to practical applications in the field of biotechnology.

ACKNOWLEDGMENT

The authors are grateful to the management of K L University for providing the consumables and apt environment for the research work.

COMPETING INTERESTS

The authors have declared that no competing interests exist.

REFERENCES

  1. Pot B, Tsakalido E. Lactobacillus molecular biology: from genomics to probiotics. Norfolk: Caister Academic Press; 2009.
  2. Hammes WP, Hertel C. The Genera Lactobacillus, and Carnobacterium. The Prokaryotes. New York: Springer; 2003.
  3. Tamime AY. Probiotic dairy products. Oxford: Blackwell Publishing; 2005.
  4. Vemuri PK, Velampaty RHP, Tipparaju SL. Probiotics: a novel approach in improving the values of human life. Int J Pharm Pharm Sci 2014;6:41-3.
  5. De Mey M, Maertens J, Boogmans S, Soetaert WK, Vandamme EJ, Cunin R, et al. Promoter knock-in: a novel rational method for the fine tuning of genes. BMC Biotechnol 2010;10:26.
  6. Hols P, Slos P, Dutot P, Reymund J, Chabot P, Delplace B. Efficient secretion of the model antigen M6-gp41E in Lactobacillus plantarum NCIMB 8826. Microbiology 1997;143:2733-41.
  7. Wells JM, Wilson PW, Norton PM, Gasson MJ, Le Page RW. Lactococcus lactis: high‐level expression of tetanus toxin fragment C and protection against lethal challenge. Mol Microbiol 1993;8:1155-62.
  8. Xie TD, Sun L, Tsong TY. Study of mechanisms of electric field-induced DNA transfection. I. DNA entry by surface binding and diffusion through membrane pores. Biophysical J 1990;58:13.
  9. Dunny GM, Lee LN, LeBlanc DJ. Improved electroporation and cloning vector system for gram-positive bacteria. Appl Environ Microbiol 1991;57:1194-201.
  10. Bringel F, Hubert JC. Optimized transformation by electroporation of Lactobacillus plantarum strains with plasmid vectors. Appl Microbiol Biotechnol 1990;33:664-70.
  11. Aukrust TW, Brurberg MB, Nes IF. Transformation of Lactobacillus by electroporation. Electroporation Protocols Microorganisms; 1995. p. 201-8.
  12. Holo H, Nes IF. High-frequency transformation, by electroporation, of Lactococcus lactis subsp. cremoris grown with glycine in osmotically stabilized media. Appl Environ Microbiol 1989;55:3119-23.
  13. Aukrust T, Blom H. Transformation of Lactobacillus strains used in meat and vegetable fermentations. Food Res Int 1992;25:253-61.
  14. Ahrné S, Molin G, Axelsson L. Transformation ofLactobacillus reuteri with electroporation: studies on the erythromycin resistance plasmid pLUL631. Curr Microbiol 1992;24:199-205.
  15. Kumar Vemuri P, Veeravalli S. Expression, purification and characterization of human recombinant galectin 3 in pichia pastoris. Iran J Biotechnol 2014;12:3-8.
  16. Wards BJ, Collins DM. Electroporation at elevated temperatures substantially improves transformation efficiency of slow-growing mycobacteria. FEMS Microbiol Lett 1996;145:101-5.
  17. Leenhouts KJ, Tolner B, Bron S, Kok J, Venema G, Seegers JF. Nucleotide sequence and characterization of the broad-host-range lactococcal plasmid pWVO1. Plasmid 1991;26:55-66.
  18. Spath K, Heinl S, Egger E, Grabherr R. Lactobacillus plantarum and Lactobacillus buchneri as expression systems: evaluation of different origins of replication for the design of suitable shuttle vectors. Mol Biotechnol 2012;52:40-8.
  19. Gietz RD, Woods RA. Transformation of yeast by lithium acetate/single-stranded carrier DNA/polyethylene glycol method. Methods Enzymol 2002;350:87-96.
  20. Papagianni M, Avramidis N, Filioussis G. High-efficiency electrotransformation of Lactococcus lactis spp. lactis cells pretreated with lithium acetate and dithiothreitol. BMC Biotechnol 2007;7:1.
  21. Palomino MM, Allievi MC, Prado-Acosta M, Sanchez-Rivas C, Ruzal SM. New method for electroporation of Lactobacillus species grown in high salt. J Microb Med 2010;83:164-7.
  22. Pérez-Pérez FJ, Hanson ND. Detection of plasmid-mediated AmpC β-lactamase genes in clinical isolates by using multiplex PCR. J Clin Microbiol 2002;40:2153-62.
