Int J Pharm Pharm Sci, Vol 8, Issue 10, 209-216Original Article


TRACE LEVEL DETERMINATION AND QUANTIFICATION OF POTENTIAL GENOTOXIC IMPURITIES IN DASATINIB DRUG SUBSTANCE BY UHPLC/INFINITY LC

N. BALAJI1*, SAYEEDA SULTANA2

1,2Department of Chemistry, St. Peter’s University, Avadi, Chennai 600054, Tamil Nadu, India
Email: priyabalan8380@gmail.com

Received: 11 Jul 2016 Revised and Accepted: 12 Aug 2016

ABSTRACT

Objective: A simple, cost-effective and mass compatible ultra-high fast performance liquid chromatographic (Agilent-Infinity LC 1290) method has been developed and validated for the determination of potentially genotoxic impurities in dasatinib active pharmaceutical ingredients.

Methods: This method comprises the determination of three possible genotoxic impurities in dasatinib. The mobile phase is trifluoroacetic acid, acetonitrile and water with linear gradient elution curve number 6. The column used for the development and validation is zorbax RRHD eclipse plus C18 with the length of 50 mm, the internal diameter of 2.1 mm and particle size of 1.8 microns.

Results: The limit of detection of the potential genotoxic impurities are less than 0.1 µg/ml with respect to dasatinib test concentration of 1000 µg/ml. The limit of quantification of the potential genotoxic impurities is less than 0.3 µg/ml with respect to dasatinib test concentration of 1000 µg/ml.

Conclusion: This method has been validated as per ICH guidelines Q2 (R1). These three potential mutagenic impurities are not degradant impurities of dasatinib and its only process related impurities. The method development has been approached using the QbD principle.

Keywords: Genotoxic impurities, Dasatinib, UPLC, UHPLC, QbD, Infinity-LC, Validation

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons. org/licenses/by/4. 0/)
DOI: http://dx.doi.org/10.22159/ijpps.2016v8i10.14020

INTRODUCTION

Sprycel (dasatinib) is indicated for the treatment of adults with newly diagnosed Philadelphia chromosome-positive (Ph+) chronic myeloid leukemia (CML) in chronic phase. The effectiveness is based on cytogenetic response and major molecular response rates. The trial is ongoing, and further data will be required to determine long-term outcome. Chronic, accelerated, or myeloid or lymphoid blast phase Ph+CML with resistance or intolerance to prior therapy including imatinib. Philadelphia chromosome-positive acute lymphoblastic leukemia (Ph+ALL) with resistance or intolerance to prior therapy. The recommended starting dosage of sprycel for chronic phase CML is 100 mg administered orally once daily.

The recommended starting dosage of Sprycel for accelerated phase CML, myeloid or lymphoid blast phase CML, or Ph+ALL is 140 mg administered orally once daily. Tablets should not be crushed or cut; they should be swallowed whole. Sprycel can be taken with or without a meal, either in the morning or in the evening. In clinical studies, treatment with Sprycel was continued until disease progression or until no longer tolerated by the patient.

The effect of stopping treatment after the achievement of a complete cytogenetic response (CCyR) has not been investigated. It is also being evaluated for use in numerous other cancers, including advanced prostate cancer. The dasatinib is chemically described as N-(2-chloro-6-methylphenyl)-2-[[6-[4-(2-hydroxyethyl)-l-piperazinyl]-2-methyl-4-pyrimidinyl] amino]-5-thiazole carboxamide. It is approved in USFDA as SPRYCEL and is chemically mentioned in the label as N-(2-chloro-6-methylphenyl)-2-[[6-[4-(2-hydroxyethyl)-1-piperazinyl]-2-methyl-4-pyrimidinyl] amino]-5-thiazolecarboxamide, monohydrate.

As per the literature of this product [3-17, 22-24], no one has reported the UHPLC method for the determination of potentially genotoxic impurities in dasatinib, and this is the novelty of the article.

Synthetic process

The dasatinib has been synthesized in three steps. The first step comprises the reaction of 2-tert-butoxycarbonylamino-thiazole-5-carboxylic acid (compound A) with that of 2-chloro-6-methyl-phenylamine in the presence of N, N-dimethylformamide, oxalyl chloride, dichloromethane, di-isopropylethylamine and tri-fluoroacetic acid forms N-(2-chloro-6-methyl-phenyl)-3-ethoxy-acrylamide (imp-2). The second step involves the reaction with the imp-2, in the presence of N-bromosuccinimide, 1, 4-dioxane, water and thiourea forms 2-amino-thiazole-5-carboxylic acid-(2-chloro-6-methyl-phenyl)-amide (imp-3). The third step includes; the formation of dasatinib from imp-3 reacts with 4, 6-dichloro-2-methyl-pyrimidine, sodium-t-butoxide, tetrahydrofuran followed by the addition of 2-piperazine-1-yl-ethanol, 1, 4-dioxane and diisopropylethylamine. The synthetic process for the preparation of dasatinib has been shown in fig. 1.

Genotoxicity and carcinogenicity study

From the evaluation study of genotoxic and carcinogenic impurities as per the above can be removed and replaced with Fig. 1 synthetic scheme of the dasatinib; imp-1 has been given an alert for potential carcinogen based on QSAR [19-20]. The imp-2 and imp-3 have been considered as a genotoxic carcinogen as per structural alert. These alerts have been taken from the software Toxtree (Estimation of toxic hazard–A decision tree approach) version 2.6.6. The maximum daily dosage of dasatinib is about 140 mg. The threshold of toxicological concern (TTC) limit could be 10 ppm as per the calculation provided in ICH guideline M7 and based acceptable intake of 1.5 μg/day was considered to be protective for a lifetime of daily exposure [25]. Remaining other compounds was not genotoxic or carcinogen because of the negative in structural alert/QSAR [19-20]. The structures of potential genotoxic impurities were shown in fig. 2.

MATERIALS AND METHODS

Materials

Dasatinib standard has gifted by Techno chemicals limited, India. The imp-1 was supplied by TCI chemicals India private limited. The imp-2 and imp-3 were synthesized in St. Peter’s university chemical laboratory. Trifluoroacetic acid and acetonitrile bought from fisher scientific. HPLC grade water was used, prepared from elga water purification system, metrohm. The 1290 Infinity binpump (G4220A) as a pump, 1290 Infinity ALS (G4226A) as an autosampler, 1290 Infinity TCC (G1316C) as column thermostat and 1290 Infinity DAD (G4212A) as a detector. The output signal was monitored and processed by agilent open lab CDS software on an intel core i3 computer (Dell). Water baths equipped with MV controller (amkette analytics, ANM alliance) were used for hydrolytic studies. Stability studies were carried out in a humidity chamber (MACK pharma tech, mumbai, India) and photolytic studies were carried out in a photostability chamber (Thermolab photostability chamber, India). Thermal stability studies were performed in a dry air oven (Amkette analytics, ANM alliance).

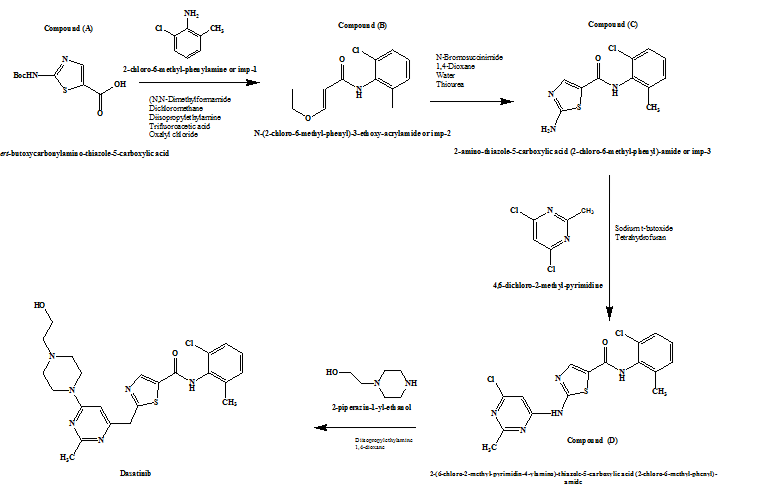

Fig. 1: Synthetic process for the preparation of dasatinib

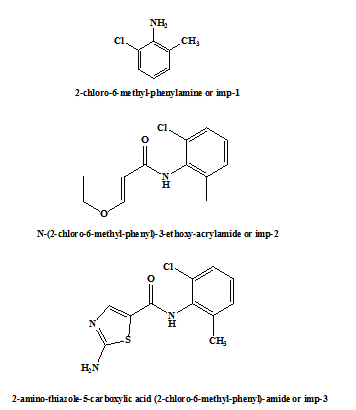

Fig. 2: The structures of potentially genotoxic impurities in synthetic dasatinib process

Methods

Chromatographic conditions for development screening (phase-1)

The UHPLC columns used for development were zorbax RRHD SB Aq, zorbax RRHD bonus-RP, zorbax RRHD eclipse plus C8, zorbax RRHD eclipse plus phenyl-hexyl, zorbax PLRP-S and zorbax RRHD eclipse plus C18. The column dimensions were 50 mm of length, 2.1 mm internal diameter with 1.8 µm particles. Acetonitrile was used as mobile phase-A, and methanol was used as mobile phase-B. Dilute 1 ml of trifluoroacetic acid in 1000 ml of HPLC grade water used as mobile phase-D1 (pH 1.5) and dilute 1 ml of ammonium hydroxide in 1000 ml of HPLC grade water used as mobile phase-D2 (pH 10.5). The total flow rate was 0.6 ml min-1. The column temperature was 30 °C. The gradient time was 5 min and the wavelength of detection was monitored at a wavelength of 258 nm. The injection volume was 2 µl. The variables were stationary phase, gradient endpoint % organic, mobile phase pH 1.5 to 10.5 and other parameters were kept constant.

Chromatographic conditions for development optimization (phase-2)

The UHPLC column used for development was zorbax RRHD eclipse plus C18. The column dimensions were 50 mm of length, 2.1 mm internal diameter with 1.8 µm particles. Acetonitrile was used as mobile phase-A; dilute 1 ml of trifluoroacetic acid in 1000 ml of HPLC grade water used as mobile phase-D1 (pH 1.5). The gradient point was 87.5% acetonitrile.

Chromatographic conditions for validation

The UHPLC column used for development and validation was a Zorbax RRHD eclipse plus C18, 50 mm of length, 2.1 mm internal diameter with 1.8 µm particles. Dilute 1 ml of trifluoroacetic acid in 1000 ml of HPLC grade water used as mobile phase-A and mobile phase-B as 100% acetonitrile. The total flow rate was 0.6 ml/min. The gradient program is given as time/%B of mobile phase-B viz., 0.00/10.0%, 0.20/10.0%, 2.00/30.0%, 4.00/40.0%, 5.00/75.0%, 6.50/75.0%, 7.00/10.0% and 8.00/10.0%. The column temperature was sustained at 30 °C and the wavelength of detection was monitored at a wavelength of 258 nm. The injection volume was 2 µl. Dilute 2 ml of trifluoroacetic acid in 1000 ml of HPLC grade methanol used as sample diluent. The standard solution was injected six times for %RSD purpose. The sample solution was injected twice for the trace level quantification purpose. The compound-A, B and dasatinib have been included with that of imp-1, imp-2 and imp-3 in the standard preparation to know the column efficiency and specificity of the method.

Preparation of solutions

The standard solution was prepared 10 mg of imp-1, imp-2, imp-3, and compound-A, B and dasatinib in 100 ml sample diluent and dissolved using ultrasonication. Further, this solution was diluted 10 ml to 100 ml with sample diluent (10 µg/ml with respect to the test concentration of 1000 µg/ml). The sample solution was prepared 10000 mg of dasatinib in 10 ml sample diluent and ultra-sonicated for 5 min and filtered, centrifuged at-20 °C for 15 min and the clear upper part of the solution was injected.

Analytical method development

Phase 1: screening

Method development was performed using an Agilent infinity LC II system, open lab CDS method development software. The equipment was equipped with a 6-position column manager and a select solvent valve to enable full method development capability in one system. The initial screening varied column chemistries having SB-Aq, bonus-RP, C8, phenyl-hexyl, PLRP-S and C18 base particles for maximum selectivity. Organic modifier (acetonitrile or methanol) was screened varying the gradient endpoint from 50% to 100% organic; over a mobile phase pH range from 1.5 to 10.5.

Using these parameters; an experimental design was generated, including randomization and replicate injections. The design generated encompassed the entire knowledge space defined by the constants and variables entered during the experimental setup. A partial factorial statistical design was selected by the software to obtain the maximum amount of information with the least number of experimental runs. The experimental design was transmitted to open lab CDS software where all methods, method sets, and sample sets were automatically generated and ready to run.

After initial integration and processing results from the screening analysis for dasatinib were imported back into open lab CDS software and processed to generate an initial method for subsequent optimization. For the standard solution, a trifluoroacetic acid in water/acetonitrile gradient at pH 1.5 with an 87.5% acetonitrile gradient endpoint on an eclipse plus C18 column was found to be optimal. The method developed was compatible with mass spectrometric detection and was directly transferred to UHPLCMS to identify and for the confirmation of potentially genotoxic impurities rapidly.

Phase 2: Method optimization

The initial method was further optimized in a second experiment where secondary effectors such as column temperature, injection volume, flow rate and gradient slope (modified using gradient time) were varied. A new experimental design was generated by open lab CDS software, new methods and sample sets were automatically created.

After processing data; the final optimized method was generated, demonstrating the method that best meets the success criteria defined. In the case of the standard solution separation, an improvement in the tailing of peaks was seen along with better resolution of baseline impurity peaks. Data can also be visualized in 3D plots given fig. 3.

Mobile phase-A selection

Dasatinib drug substance has three ionization constants 6.8, 3.1 and 10.8 [26] and experimental logP value of 1.8 [27] and water solubility of 0.0128 mg/ml. The aim of the chromatographic method was to achieve the separation of imp-1, imp-2, imp-3, compound-A, B and the main component dasatinib. Various experiments were performed with different buffers such as phosphate buffer, ammonium acetate and ammonium formate. The logP of the compound is 1.8. At higher pH of the mobile phase, early elution of the components are observed. Whereas at lower pH, baseline drift and disturbance and peak symmetry is good. Hence, trifluoroacetic acid used as mobile phase-A.

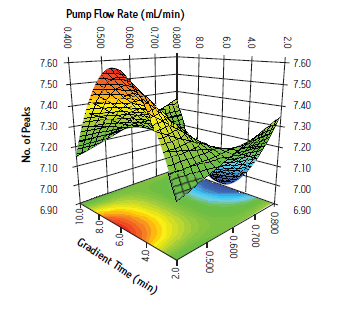

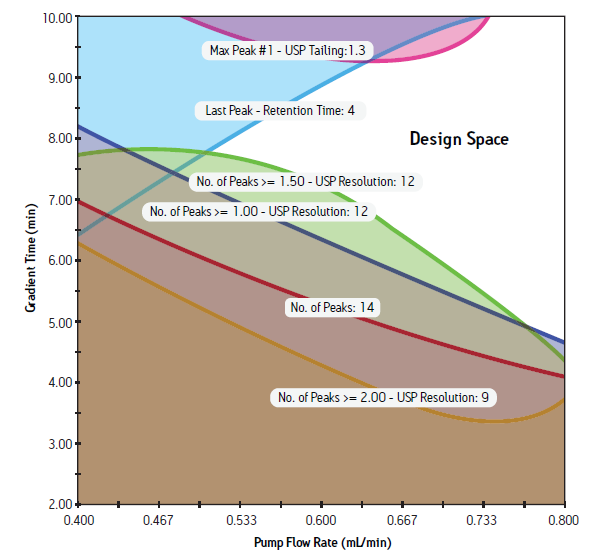

Fig. 3: The design space region showing the independent effects of gradient time and pump flow rate on method success. Data can also be visualized in 3D plots

Mobile phase-B selection

The compound was completely soluble in methanol. Upon the addition of small amount of mobile phase solution becomes hazy. Due to the haziness of the sample solution, it could precipitate inside the UHPLC column which was not suggestible. Moreover, various solvents, like acetonitrile, tetrahydrofuran and buffer combination has been used for selection of the organic modifier. This leads to a better selection as the miscibility and baseline issues were not observed in acetonitrile/methanol and buffer combination.

Wavelength selection

From the ultraviolet-visible spectra profiling, it was found that the suitable wavelength for dasatinib drug substance and its impurities were 258 nm. Though the overlaid spectrum of the standard solution shows peak maxima’s at 220 nm and 310 nm, 258 nm is selected based on the closeness of response of all impurities at this wavelength. At 220 nm, it was observed that lower detection and unstable baseline. Whereas, different responses were observed at 310 nm which leads to a difference in the quantified and controlled manner of outcomes. Selection of 258 nm gives the almost similar; reproducible results of quantified and regularized style of results were observed, moreover uniform responses and baseline stability was good at 258 nm.

Concluded method

Several UHPLC methods aiming for shorter runtime and high throughput were for the separation of five impurities (including potential genotoxic impurities and other process intermediates) and dasatinib from each other. These includes different stationary phase, column dimension, and buffers. Considering the logP values, 0.1% v/v trifluoroacetic acid was selected as the buffering reagent for the quantification of potential genotoxic impurities of dasatinib. From various trails, 0.1% v/v trifluoroacetic acid as mobile phase-A and acetonitrile as mobile phase-B was selected and the gradient was optimized so that all the impurities and dasatinib peak were well separated from each other. No blank interference at the retention time of the peak of interest. The UHPLC method developed for the determination of quantitation of potential genotoxic impurities of dasatinib was precise, accurate and specific.

The method has been validated and found satisfactory results were observed for all the tested validation parameters. The chromatograms of standard and sample solutions were given in fig. 4.

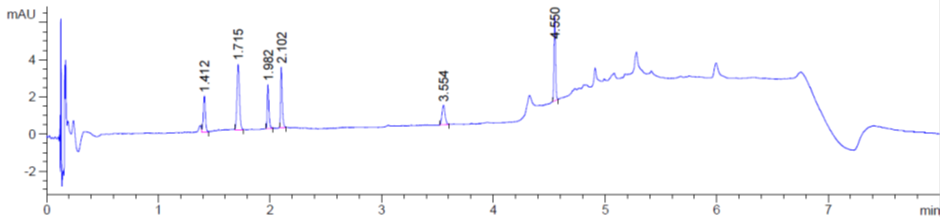

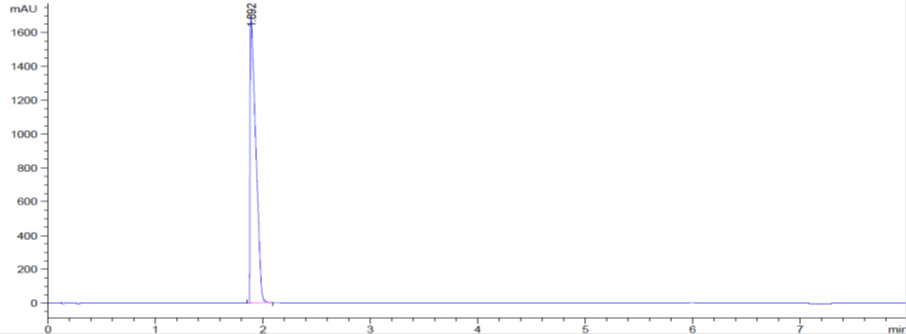

Fig. 4: Chromatograms of standard and sample solutions

RESULTS AND DISCUSSION

Analytical method validation

The method was validated for system suitability, system precision, method precision, detection limit, quantitation limit, linearity and range, recovery, intermediate precision, specificity/stress study, robustness and solution stability for standard, sample and mobile phase [18].

System suitability

System suitability of the method was assessed by the resolution between the peaks through injecting the standard solution which contains imp-1, imp-2, imp-3, dasatinib compound-A and compound-B. The resolution between the peaks was observed that more than resolution of 1.5 (acceptance criteria: resolution should be not less than 1.5). These results showed that the system was suitable and accepted for the determination of imp-1, imp-2 and imp-3 in dasatinib drug substance at the level of potentially genotoxic impurities. The resolution values have been given for all the peaks (from which it could also indicate the specificity of the method) in table 1. The chromatogram of standard solution was shown in fig. 4.

System precision

The precision of an analytical procedure: expresses the closeness of agreement between a series of measurements obtained from multiple sampling of the same homogeneous sample under the prescribed conditions [18]. The same solution was injected six times and calculated the % RSD for all peaks. %RSD for all peaks was observed less than 5% (acceptance criteria: %RSD for peak area response should be not more than 15.0%) shows that the system was precised for the determination of sample analysis and these results were accepted for imp-1, imp-2 and imp-3. The system precision results have been given in table 2.

Table 1: Resolution between the peaks

Peak name Retention time (min) Resolution
Imp-1 1.41 -
Imp-2 1.71 8.4
Dasatinib 1.98 8.0
Imp-3 2.10 4.7
Compound-A 3.55 39.4
Compound-B 4.54 27.2

Table 2: System precision results of imp-1, imp-2, imp-3 and dasatinib

Injection no.

Area response

Imp-1

Imp-2

Imp-3

Dasatinib

1

70260.3

60381.1

70134.4

55880.3

2

64828.7

60336.7

65672.2

54828.7

3

67799.0

61734.2

68181.1

57799.0

4

67601.0

65631.6

68077.3

57601.0

5

71472.1

60484.8

71417.7

52356.3

6

69757.6

61198.8

65806.8

59757.6

Mean

68619.8

61627.9

68214.9

56370.5

%RSD

3.5

3.3

3.4

4.6

Method precision

The precision of an analytical procedure: expresses the closeness of agreement between a series of measurements obtained from multiple sampling of the same homogeneous sample under the prescribed conditions [18]. The precision of the impurities was checked by injecting six individual preparations of impurities spiked at the concentration of 10 µg/ml level in the dasatinib drug substance sample. The % RSD for percentage/content of imp-1, imp-2, imp-3 and dasatinib was below 3% (acceptance criteria: %RSD for percentage/content should be not more than 5.0%). In the intermediate precision, the %RSD for percentage/content impurities was within 2.5%. These results indicated that the method was precise and accepted for the quantification of imp-1, imp-2 and imp-3 in dasatinib drug substance. The precision method results were given in table 2.

Table 3: Method precision results of imp-1, imp-2 and imp-3

Preparation no. Imp-1 content (µg/ml) Imp-2 content (µg/ml) Imp-3 content (µg/ml)
1 9.2 9.6 10.2
2 9.2 9.8 10.1
3 9.2 9.7 10.1
4 9.2 9.6 10.2
5 9.2 9.7 9.6
6 9.1 9.8 9.8
Mean 9.2 9.7 10.0
%RSD 0.6 1.1 2.4

Detection limit and quantitation limit

The DL and QL for imp-1, imp-2, imp-3 and dasatinib determined based on signal-to-noise ratio method as per the ICH guideline Q2 (R1). For DL S/N ratio is 3:1 and QL S/N ratio is 10:1, by injecting a series of dilute solutions with known concentration DL/QL has been determined. The limit of detection for imp-1, imp-2, imp-3 and dasatinib were 0.08, 0.09, 0.07 and 0.09 µg/ml for 2 µl injection volume respectively. The limit of quantification for imp-1, imp-2, imp-3 and dasatinib were 0.24, 0.27, 0.21 and 0.27 µg/ml for 2 µl injection volume respectively. The precision study at the LOQ level performed. The % RSD for the areas of each impurity was within 5.1%. The DL and QL values show that the method was highly sensitive for the determination of imp-1, imp-2 and imp-3 in dasatinib drug substance.

Linearity

The linearity of analytical procedure: is its ability to obtain test results which are directly proportional to the concentration of an analyte in the sample [18]. The linearity of the method was evaluated by determining six concentration levels from LOQ to 150% of 1000 µg/ml analyte concentration. The correlation coefficient obtained for dasatinib was 0.9979. The best-fit linear equation obtained for dasatinib was y = 6007.4x-520.38. The correlation coefficient obtained for imp-1, imp-2 and imp-3 were greater than 0.993. The best-fit linear equation obtained for imp-1 was y = 7342.5x-1562.4, for imp-2 was y = 7532.8x-958.01 and for imp-3 was y = 5704.3x-760.56. All the correlation coefficients were very close to one, so the developed and validated method was linear for the quantification of imp-1, imp-2 and imp-3 in dasatinib drug substance. The linearity graphs were shown in fig. 5-8. The data were given in table 4-7. The correlation coefficient square (r2) for imp-1, imp-2, imp-3 and dasatinib were more than 0.990. The linear regression data shows that the method was linear over the entire concentration, and it was adequate for its intended concentration range (QL to 150%).

Range

The range was demonstrated in the interval (0.3-14.7 µg/ml) for imp-1, (0.3-15.3 µg/ml) for imp-2, (0.3-15.2 µg/ml) for imp-3 and (0.3-15.4 µg/ml) for dasatinib.

Accuracy

The accuracy of an analytical procedure: expresses the closeness of agreement between the value which is accepted either as a conventional true value or an accepted reference value and the value found. For the quantitative approaches, at least nine determinations across the specified range should be obtained [18]. Recovery study was carried out in triplicate at LOQ, 100 and 150% of the test concentration (1000 µg/ml). The percentage of recovery for imp-1, imp-2 and imp-3 were 90-95%. Thus, the indicated method was suitable as the mean recovery value was well within the acceptance criteria (80-120%) for the determination of quantification potential genotoxic impurities in drug substances.

Table 4: Linearity data of imp-1

Sample No. % Level Concentration (µg/ml) Peak response
1 QL 0.3 1651.9
2 50 5.0 35246.5
3 80 8.0 56041.6
4 100 10.0 71556.9
5 120 12.0 83229.9
6 150 14.7 109685.6
Slope 7342.5
Y-intercept -1562.4
Correlation co-efficient square (r2) 0.9966

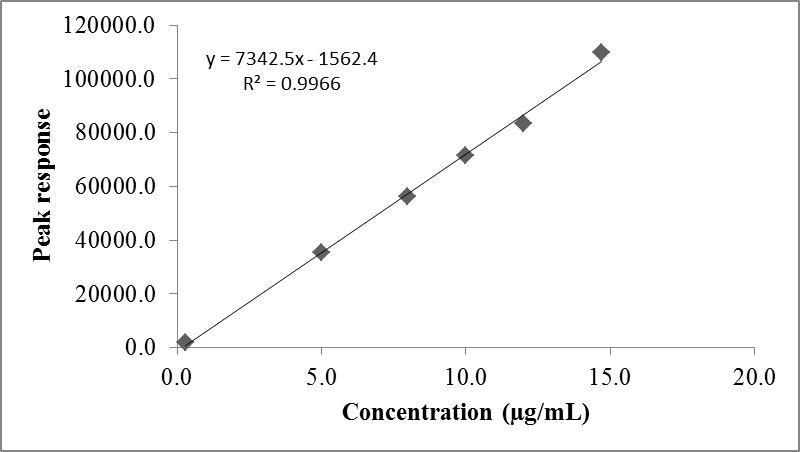

Fig. 5: Linearity graph for imp-1

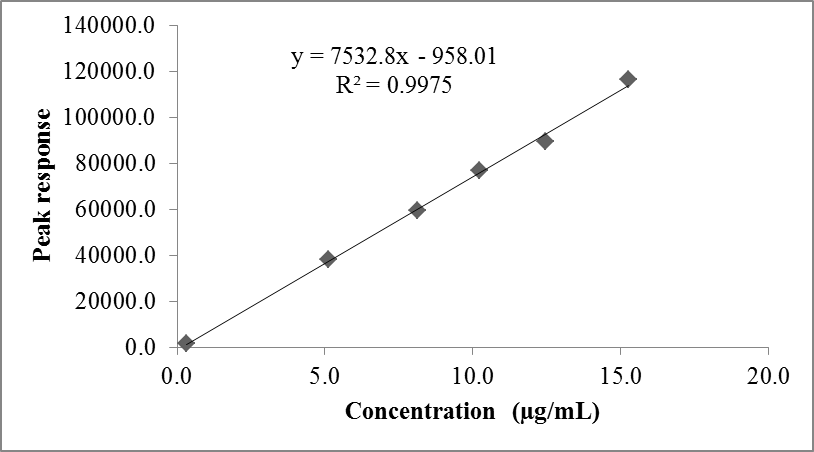

Fig. 6: Linearity graph for imp-2


Table 5: Linearity data of imp-2

Sample No. % Level Concentration (µg/ml) Peak response
1 QL 0.3 1677.8
2 50 5.1 38184.9
3 80 8.1 59600.3
4 100 10.2 76703.5
5 120 12.5 89364.1
6 150 15.3 116542.0
Slope 7532.8
Y-intercept -958.01
Correlation Co-efficient square (r2) 0.9975

Table 6: Linearity data of imp-3

Sample No. % Level Concentration (µg/ml) Peak response
1 QL 0.3 1324.9
2 50 5.1 29601.7
3 80 8.1 45700.6
4 100 10.1 53336.6
5 120 12.1 67249.8
6 150 15.2 88668.2
Slope 5704.3
Y-intercept -760.56
Correlation Co-efficient square (r2) 0.9945

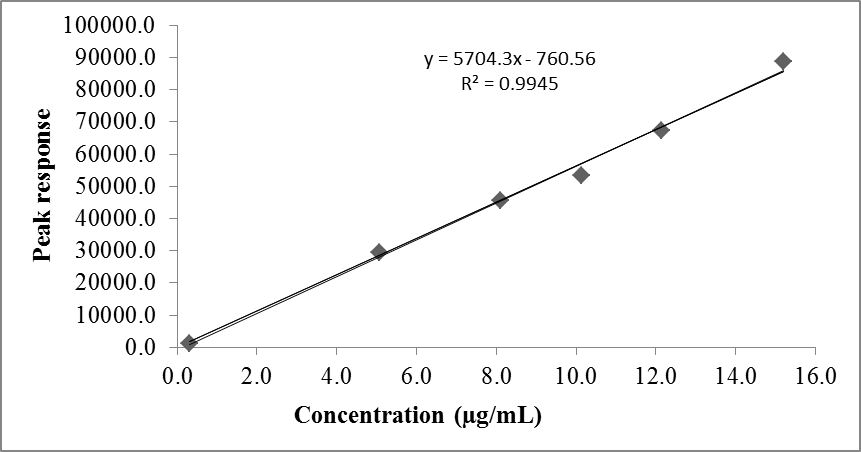

Fig. 7: Linearity graph for imp-3

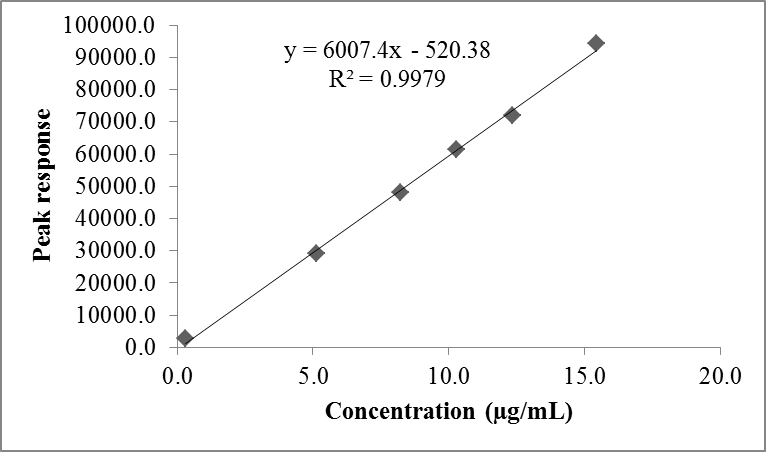

Fig. 8: Linearity graph for dasatinib


Table 7: Linearity data of dasatinib

Sample No. % Level Concentration (µg/ml) Peak response
1 QL 0.3 2890.5
2 50 5.1 29183.6
3 80 8.2 48165.6
4 100 10.3 61301.2
5 120 12.4 72133.0
6 150 15.4 94285.9
Slope 6007.4
Y-intercept -520.38
Correlation Co-efficient square (r2) 0.9979

Intermediate precision

The intermediate precision of the method was evaluated by the different analyst, column and by using different equipment, % RSD’s were within 5%, confirming the precision of the method.

These results indicated that the intermediate precision of this method was accepted for imp-1, imp-2, imp-3 and dasatinib.

Specificity

Specificity is the ability to assess the analyte unequivocally in the presence of components, which may be expected to be present. Typically, these might include impurities, degradants, matrix, etc. [18]. Diode array detection was used to show the specificity of the method which was assessed by performing forced degradation studies. The specificity of the developed UHPLC method for dasatinib was determined in the presence of potential genotoxic impurities namely imp-1, imp-2, imp-3. Also compound-A, B included to show the specificity of the method. Forced degradation studies were performed, and it shows the specificity and stability indicating a method for dasatinib. All stress decomposition studies were performed at a test concentration of 1000 µg/ml. The peak purity analysis using a photodiode array detector demonstrates that the imp-1, imp-2 and imp-3 peaks were homogenous (i.e., the purity angle is lesser than the purity threshold). No interference was observed from diluent and impurities; at the retention time of imp-1, imp-2 and imp-3 peaks. During the specificity/forced degradation, it was observed that no secondary peak arising from degraded samples interfered with the elution of imp-1, imp-2 and imp-3 peaks. As a result, this method was well specific for the determination of imp-1, imp-2 and imp-3 in the presence of their degradation products.

Results of stress studies

Stress studies on dasatinib under different stress conditions (carried out as per ICH Q1B [21]), suggested the following degradation behavior. The drug was exposed to acid, base hydrolysis under reflux conditions. The dasatinib was not sensitive towards the treatment of acid and base hydrolysis. The drug was exposed to 3% hydrogen peroxide at room temperature for 24 h. The dasatinib was not sensitive towards the treatment of hydrogen peroxide. No degradation observed. The drug was treated with water at 60 °C for 24 h. Not observed any degradation products were observed after 24 h. The drug was stable towards water hydrolysis. The drug was sensitive to the effect of photolysis. When the drug powder was exposed to light for a completed exposure of 1.2 x 106 lux hours and an integrated near the ultraviolet energy of 200-Watt hours/square meter (in a photostability chamber), 13% of degradation was observed. The drug was stable to the effect of temperature. When the compound was exposed to at 60 °C for 10 d in a hot air oven, no degradation was observed. There was no interference of stressed samples with dasatinib and its impurities. Peak purity results for stressed dasatinib samples, derived from DAD detector, (the purity angle should be less than that of purity threshold) confirm that dasatinib, imp-1, imp-2 and imp-3 peaks were unique and pure. No degradation product peaks were observed after 8 min in the extended run time of 80 min for all the dasatinib stressed samples. Assay studies were carried out for stress samples against a qualified reference standard. The mass balance (addition of assay of drug substance and total impurities in drug substance) of stressed samples was close to 99.5% confirm the stability indicating the power of the developed method. From the degradation studies, it has been concluded that these potential genotoxic impurities were the process related impurities only not as degradation impurities.

Robustness

By cautious change in chromatographic conditions, the resolution between dasatinib, imp-1, imp-2 and imp-3 was evaluated. The mobile phase flow rate was 0.6 ml/min. To check the effect of flow rate on the resolution, 0.1 units changed it from 0.5 to 0.7 ml/min. The effect of column temperature on the resolution was studied at 35 °C and 25 °C instead of 30 °C. In all the careful varied chromatographic conditions carried out (flow rate, column temperature), the resolution between impurities and dasatinib was greater than 1.8, illustrating the robustness of the method. The system suitability results were meeting the acceptance criteria after individually changing the conditions of flow rate of mobile phase and column temperature (acceptance criteria are the resolution between the impurity peaks>1.5 and the ratio between the content of each impurity obtained from normal condition analysis and varied condition analysis should be within 0.70 to 1.30). The ratio of the content from normal and modified conditions met the acceptance criteria. Hence, the method was considered robust.

Solution stability

The solution stability of dasatinib and its potential genotoxic impurities was carried out by leaving spiked sample solution in a firmly closed volumetric flask at room temperature for 24 h. The stability was carried out by freshly prepared sample solutions against freshly prepared reference standard solutions at 24 h. From this solution stability; standard and sample solution were stable up to 24 h.

CONCLUSION

A rapid, cost-effective infinity LC method was successfully developed for quantitative determination of potentially genotoxic impurities of dasatinib drug. The method was found to be precise and accurate with decent and constant recoveries. The authenticated method may be used for the regular analysis of the determination of potential genotoxic impurities of dasatinib drug substances in quality control laboratories.

ABBREVIATION

UHPLC: Ultra-High Performance Liquid Chromatograph, Imp: Impurity, NaOH: Sodium hydroxide, HCl: Hydrochloric acid, H2O2: Hydrogen peroxide, ICH: International Conference on Harmonization, RSD: Relative Standard Deviation, DL/lOD: Limit of Detection, QL/lOQ: Limit of Quantification

CONFLICT OF INTERESTS

Declared none
