Int J Pharm Pharm Sci, Vol 6, Issue 8, 20-25Review Article

PLANT BASED QUORUM SENSING INHIBITORS OF PSEUDOMONAS AERUGINOSA

VIRAJ GALA1, KRUTIKA DESAI2*

1School of Science, SVKM’s NMIMS, Mumbai, India, 2Department of Microbiology, Mithibai College, Mumbai, India.
Email: krutika.desai@mithibai.ac.in

Received: 25 Jun 2014 Revised and Accepted: 23 Jul 2014

ABSTRACT

Phytochemical research has gained a lot of momentum in the medical field for the discovery of new, safe, and effective remedies. In the context of antimicrobial research, various plant sources have been discovered with the potential to disrupt bacterial quorum sensing (QS), which plays a key role in the regulation of virulence in many Gram positive and Gram negative bacteria. Pseudomonas aeruginosa, a Gram negative bacterium, is known to produce multiple QS systems that control the expression of virulence determinants and biofilm development in this pathogen. Hence, the inhibition of QS has been pursued as a promising therapy for treatment of drug resistant Pseudomonas infections. A comprehensive review of the research data available for plant products as QS inhibitors of the organism has been presented here, while further suggesting the future prospects for these inhibitors.

Keywords: Pseudomonas aeruginosa, Phytochemicals, Quorum sensing, Anti-quorum sensing, Anti-virulence

INTRODUCTION

Quorum sensing (QS), the cell-to–cell signalling system in bacteria, has now been well recognized as an antimicrobial target. It is understood that inhibition of QS, also called as quorum quenching (QQ), results in the subsequent reduction of bacterial virulence, so that the infection is controlled and the host immune system can further clear out the bacteria. It also presents an advantage of lower risks for resistance development owing to the absence of selective pressure, since bacterial growth is not affected. The QS pathway monitors the population density of bacteria in a confined environment by the production of small signals called as autoinducers. At the sensing of a quorate population level, it induces expression of specific genes associated with secondary phenotypes in bacteria, such as bioluminescence, conjugation, antibiotic production, virulence, biofilm maturation, sporulation, pigment production, etc [1]. Different types of signal molecules are produced in Gram positive and Gram negative bacteria. The most common signalling molecules include acyl homoserine lactones (AHLs), auto inducing peptides (AIPs) and AI-2. Other less characterized signal molecules have been detected in some bacteria, such as the cyclic dipeptides, diffusible signal factor, AI-3, etc, which appear to regulate motility, virulence and biofilm formation [2].

AHL – LuxR/I system in Gram negative bacteria

AHLs are the autoinducers commonly produced in Gram negative bacteria and generally follow the LuxR/I mechanism of the bioluminescent bacterium, Vibrio fischeri. Each bacterial cell produces a small amount of AHL, which is catalyzed by the synthase protein, LuxI. The AHLs diffuse in and out of the cell. With increase in bacterial number, the AHL accumulates in the environment. At a threshold concentration of AHLs (quorate level), it binds and activates transcriptional regulator, LuxR. The AHL-LuxR complex further binds to specific promoter regions, regulating the expression of QS controlled genes, including the LuxI gene. The LuxR/I homologous proteins have been observed in many Gram negative bacteria, such as Aeromonas hydrophila, Acinetobacter baumannii, Agrobacterium tumefaciens, Chromobacterium violaceum, Pseudomonas aeruginosa, Serratia marcescens, etc [1]. An additional AHL system has been identified in V. harveyi, called as the LuxM/N system, which regulates the production of luminescence in this marine bacterium [3].

AIP system in Gram positive bacteria

The peptide pheromones or autoinducing peptides produced in Gram positive bacteria, are small peptides (5-34 aa long), that are produced from the post-translational modification of large precursor peptides (40-65 amino acids (aa) long). The AIPs produced by each cell are secreted into the environment by an ATP-binding cassette (ABC) exporter. At a threshold concentration, the AIPs bind to the external domain of a cognate membrane bound sensor (histidine kinase), resulting in the phosphorylation of its cytoplasmic domain. This activated sensor further phosphorylates and activates a second cytoplasmic response regulator protein, which is directly responsible for regulating the expression of QS controlled genes. The Gram positive bacteria known to produce AIPs, include Staphylococcus aureus, Staphylococcus epidermidis, Bacillus subtilis, Enterococcus faecalis, Streptococcus pneuomoniae, etc [1].

LuxS/AI-2 system in Gram positive and Gram negative bacteria

AI-2 forms the common autoinducer produced by both Gram negative and Gram positive bacteria. It was initially discovered in V. harveyi, where it regulates the production of bioluminescence. AI-2, in general, is a furanosyl borate diester and the regulating mechanism involves a two component signalling system. The specific AI-2 produced by V. harveyi is a boron diester of (2R,4S)-2-methyl-2,3,3,4-tetrahydroxytetrahydrofuran (S-THMF), which is synthesized by the enzyme, LuxS. At a low cell density, a small amount of AI-2 is produced, which accumulates in the environment with an increase in cell density. At a threshold concentration, it binds to the periplasmic receptor protein LuxP. This protein then activates the sensor kinase LuxQ which further regulates expression of luciferase genes in V. harveyi [2].

The LuxS/AI-2 system has been detected in many Gram negative bacteria such as Vibrio cholerae, Vibrio vulnifucus, Salmonella typhimurium, Escherichia coli, etc. and Gram positive bacteria such as Streptococcus pyogenes, Streptococcus mutans¸ Staphylococcus aureus, Staphylococcus epidermidis, etc [4]. Further, AI-2 has been implicated in interspecies communication in bacteria, wherein the AI-2 produced by one bacterium induces gene expression in another bacterium. When the resident oropharyneal bacteria of cystic fibrosis (CF) patients were isolated and introduced to the lungs of rat model, along with P. aeruginosa, the AI-2 produced by oropharyngeal bacteria was found to enhance the pathogenicity of P. aeruginosa [5]. Co-culturing the human oral commensal organisms, Actinomyces naeslundii and Streptococcus oralis, resulted in an abundant, mixed species biofilm; however, a luxS mutant of S. oralis failed to display such effects, suggesting the role of AI-2 in mixed species biofilm formation, via interspecies communication [6].

The human pathogen, Pseudomonas aeruginosa

The Gram negative bacterium, P. aeruginosa is an aerobic bacillus that is able to survive easily in minimal nutrient condition, and exists abundantly in the environment. The organism is able to cause infection in humans, animals, as well as plants. In humans, it acts as an opportunistic pathogen, commonly associated with immunocompromised patients, burn victims, ICU patients, and patients on longer antibiotic treatment. It is commonly detected in the sputum of CF individuals who are generally affected by the chronic pulmonary infection of P. aeruginosa. The decreased mucus clearance in the lungs of CF patients provides a suitable niche for the growth of many bacteria, and further the CF specific alteration in the receptor for the adhesins on pili of P. aeruginosa, facilitates Pseudomonas infection in CF lung [7]. It has been one of the most common nosocomial pathogens, prominently causing ventilator associated pneumonia, surgical site infections or wound infections, catheter associated urinary tract infections and bloodstream infections. Almost all the clinical strains of P. aeruginosa. have evolved as multidrug resistant, and have been commonly associated with low susceptibility to the fluoroquinolones, cephalosporins and carbapenems [8–10].

The capability to form biofilms (communities of cells encased in a slimy matrix) and its adaptive nature, allows the organism to thrive on the medical devices for longer periods, while being unharmed with the detergents and disinfectants, and such devices often forms the source of entry into the host. The organism establishes its infection by numerous virulence factors that are responsible for invading the host tissue, inducing inflammation, damaging host tissue, inactivating host defense components, consequently leading to tissue destruction and further dissemination to other tissues by invading the blood vessels. The cell associated virulence factors such as pili, flagella, lectins, etc. assist in bacterial adherence to the host tissue, facilitating bacterial colonization within the host. Then, colonization may proceed to acute infection or chronic infection, by the aid of its extracellular virulence factors. Chronic infection is characterized by a low production of virulence factors, biofilm formation and tissue damage, mainly caused by chronic inflammation. Acute infections involve extensive tissue damage, bloodstream invasion and dissemination, achieved by the production of several extracellular virulence factors such as elastases (LasA and LasB), exotoxin A, alkaline protease, exoenzyme S, rhamnolipids, phospholipase, pyocyanin, etc [11]. In the current scenario, very few treatment options are available for the management of Pseudomonas infections, and hence, there is an urgent need to develop new drugs with stronger efficacy and lower risks of resistance. Besides the development of new antibiotics or antibacterial drugs, medical research has been targeted towards the discovery of QQ compounds as anti-virulence drugs to fight the infections caused by P. aeruginosa.

QS in P. aeruginosa

The QS systems of P. aeruginosa are very well studied, and it is also considered a model system for AHL signalling [12]. The organism produces two types of AHL systems, LasR/I and RhlR/I, which follow the LuxR/I mechanism. The LasI produces N-3-oxo-dodecanoyl-L-homoserine lactone (3O-C12-HSL), which at the threshold concentration, binds to the LasR protein, further regulating the expression of LasI, virulence factors and biofilm maturation. Apart from virulence regulation, the 3O-C12-HSL molecule also contributes to the P. aeruginosa infection with its immunomodulating properties that assist the organism in protecting itself from the host immune reactions [13,14]. In the Rhl system, the RhlI synthase produces N-butyryl-L-homoserine lactone (C4-HSL), which binds to the RhlR protein and the activated C4-HSL-RhlR complex then stimulates the expression of RhlI, virulence genes and biofilm associated genes. A third QS system produced by the organism operates via quinolone signal molecule. 2-heptyl-3-hydroxy-4(1H)-quinoline, called as Pseudomonas quinolone signal (PQS). It is produced by the products of the pqs (pqsABCDE) operon and pqsH gene, wherein the pqsABCDE operon products synthesize 2-heptyl-4-hydroxyquinoline (HHQ), and the PqsH converts HHQ into PQS. PQS diffuses in and out of the cell, accumulates in the environment, and at a threshold concentration, binds to the regulator protein, PqsR, which then modulates gene expression. PQS system has been found to regulate genes encoding virulence factors and the synthesis of PQS itself, resulting in autoinduction [15]. In addition to the virulence and biofilm regulation, the QS systems have been associated with other functions, involved in cellular metabolism, stress responses, etc. Some of the important functions of the Las, Rhl and PQS systems are depicted in Figure 1a. These three main signalling systems of P. aeruginosa are interlinked with each other, wherein one system controls the functioning of the other system (Figure 1b), and further all the systems are embedded in a global complex regulatory network [12].

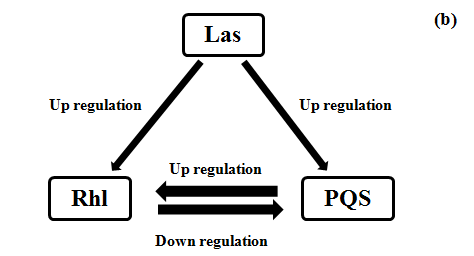

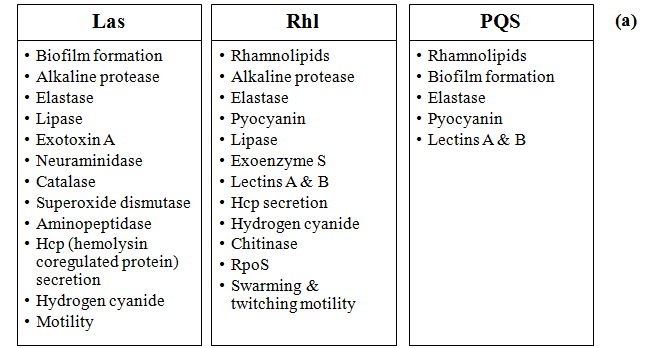

Fig. 1: The regulatory functions of Las, Rhl and PQS systems of P. aeruginosa (a) and the interlinked regulatory circuit of Las, Rhl, and PQS (b)

The diverse mechanisms for disruption of AHL systems

Among the QS autoinducers in bacteria, AHLs are the most well studied family. Structurally, they are made up of conserved homoserine lactone ring, which is fused to a variable acyl chain by an amide bond (Figure 2). The variability in the acyl chain, in terms of length, unsaturation and oxo- or hydroxy- substitutions provide AHL specificity to a particular bacterial species, and on the basis of its length, AHLs are classified as short (C4-C8) and long chain AHLs (C10-C18). The important role of AHL in the pathogenicity of many Gram negative bacteria has rendered it as a significant target for anti-pathogenic drugs. Thus, various natural and synthetic sources have been elucidated for the inhibition of AHLs, exhibiting varied mechanistic properties such as AHL inactivation, hindrance in AHL synthesis and interference in the AHL-LuxR binding or LuxR activity. AHL degrading enzymes such as AHL lactonases have been discovered in some bacteria, Bacillus spp. A. tumefaciens, etc. AHL lactonases act by hydrolyzing the ester bond in the lactone ring of the molecule, resulting in AHL inactivation. AHL acylases, that target the amide bond between the homoserine lactone and acyl side chain, have also been discovered in some bacterial species, such as Variovorax paradoxus, Rhodococcus erythropolis, etc., which use AHL degradation products as nutrient sources. Antibody disruption of AHLs is another mechanism of quorum quenching in bacteria, that has demonstrated effectiveness in infected mice, that were previously vaccinated with AHL-carrier protein conjugates [16].

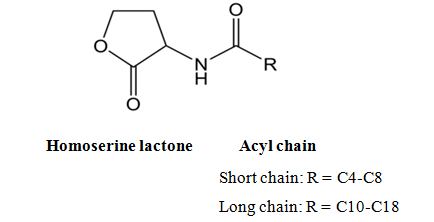

Fig. 2: General structure of AHL molecule

The second mechanism of AHL inhibition involves disrupting its synthesis, which can be achieved either by affecting the expression of LuxI (AHL synthase), or by interfering with the normal functioning of enzyme catalysis. In a study by Tateda et al. [17], the sub-MIC concentration of azithromycin was found to disrupt QS in P. aeruginosa, by affecting the expression of LasI, and it was further capable of attenuating the organism’s virulence in vitro as well as in vivo [18]. Moreover, azithromycin was also found to be effective in a randomized clinical trial as a preventive measure against ventilator associated pneumonia [19]. An AHL analog, called as J8-C8, exhibited inhibition of AHL synthesis by the LuxI homolog, TofI synthase of the bacterium, Burkholderia glumae. In silico studies were applied to understand the mode of action, wherein J8-C8 was found to bind strongly at the acyl chain binding site of TofI, suggesting a competitive inhibition of the enzyme [20].

Most of the QQ studies have focused on the inhibition of LuxR, as an effective means to disrupt the QS system in bacterial pathogens. LuxR is the transcriptional regulator protein, which gets activated by the binding of AHLs. It possesses separate binding sites for the AHL molecule, and the promoter sequences in the bacterial DNA [21]. Inhibition of LuxR can be achieved by preventing the binding of its cognate AHL, or by affecting gene expression. The halogenated furanone, the first natural QQ compound to be discovered, has been found to operate by the competitive inhibition of the LuxR protein [22]. Various synthetic furanones, AHL analogs or other dissimilar compounds such as triphenyl compounds, salicylic acid, nifuroxazide, etc. have been identified as identified as LuxR inhibitors, and have been found to attenuate QS and its regulated phenotypes in Gram negative bacteria such as A. tumefaciens, P. aeruginosa, V. fischeri, etc [23–27].

Plant products as anti-microbial and anti-QS agents

It is very well known that plants have been traditionally used in ancient civilization for the treatment of various human diseases, and they also form the major principle of current medicinal practices, such as Ayurveda, Homeopathy, Naturopathy, etc. Plant powders, decoctions, extracts are commercially available and have been effective not only for specific diseased states, but also for the general well being of human health. Furthermore, plants have firm stand in the pharmaceutical sector since many phytochemicals have guided the development of successful and effective drugs. The well-known examples of plant derived drugs include the pain killer, aspirin which is a simplified form of the compound, salicin (Salix alba), the anti-malarial quinine (Cinchona officinalis), anti-cancer drug paclitaxel (Taxus brevifolia) etc [28]. Plants are the sources of varied bioactive metabolites such as the non polar hydrocarbons and their derivatives, such as terpenes, aromatic compounds such as phenolics and nitrogen containing alkaloids. Many of these have been identified with potential anti-microbial properties, suggesting their prospective future in infection therapy. Common phenolic compounds such as catechol, eugenol, caffeic acid, catechin, phloretin, warfarin, etc. have been reported with antimicrobial potential. The essential oils (monoterpenoids) occurring in plant species such as S. alba, Valeriana officinalis, Rosmarinus officinalis, Cinnamomum verum, exhibited. exhibited potential antimicrobial activity [29]. It is not surprising that the capabilities of phytochemicals extend beyond the inhibition of microbial growth, that is, towards the bacterial quorum quenching. Various plants have demonstrated the ability to interfere with bacterial QS systems and further control the associated virulence and biofilm formation. The Gram negative bacterium C. violaceum is known to produce a short chain AHL, C6-HSL, which regulates the production of the purple pigment, violacein.

This organism has been commonly used as a biosensor to discover compounds that can inhibit short chain AHL system in bacteria, since decreased violacein production is indicative of AHL inhibition. Genetically engineered strains of A. tumefaciens are often used for the detection of both short and long chain AHLs, wherein decreased AHL production results in the reduced activity of the enzyme, β-galactosidase [30]. With the help of such biomonitor organisms, the AHL antagonistic activity has been discovered in various plants such as Zingiber officinale, Brassica oleracea, Ocimum basilicum, Acacia nilotica, Laurus nobilis, Mangifera indica, Punica granatum, Hemidesmus indicus, Vanilla planifolia, Tremella fuciformis, etc [31].

QS inhibition of P. aeruginosa by plants

The Las and Rhl systems of P. aeruginosa are well known to control the production of extracellular virulence factors; hence, interfering with any of these systems will hamper the organism’s virulence. With such opinion, many plants that have been able to affect short chain AHL regulated violacein in C. violaceum, were tested for inhibition of Rhl regulated swarming motility, pyocyanin and biofilm development in P. aeruginosa. Most of these plants were capable of affecting the above virulence factors in the organism; their inhibitory effects have been presented in Table 1.

Table 1: Plants capable of inhibiting short chain AHL regulated phenotypes in bacteria

PlantQS regulated phenotypes inhibitedReferences

Ocimum basilica,

Thymus spp.,

Brassica oleracea &

Zingiber officinale

 Violacein production in C. violaceum, swarming motility in P. aeruginosa [32]

Hemidesmus indicus,

Holarrhena antidysentrica,

Mangifera indica,

Punica granatum &

Psoralea corylifolia

 Violacein production in C. violaceum, swarming motility in P. aeruginosa [33]
Capparis spinosa Violacein production in C. violaceum, virulence, motility and biofilm formation in P. aeruginosa, S. marcescens [34]
Myristica cinnamomea Violacein production in C. violaceum, virulence and biofilm formation in P. aeruginosa [35]
Syzygium aromaticum Violacein production in C. violaceum, virulence and motility in P. aeruginosa [36]

Melicope

lunu-ankenda

 Violacein production in C. violaceum, virulence and motility in P. aeruginosa [37]
Phyllanthus amarus QS regulated violacein production in C. violaceum, virulence in P. aeruginosa [38]
Cecropia pachystachya QS regulated violacein production in C. violaceum [39]

As per the available knowledge, the Las system is responsible for inducing the expression of RhlI and RhlR. Thus, disruption of the Las system will prevent the activation of the Rhl system; and it can be thought to be more effective in controlling the organism’s virulence. In a study conducted by Delden et al. [40], lasR, lasIrhlI and lasRrhlR deletion mutants were subjected to starvation, and checked for the appearance of mutants with restored elastase and rhamnolipid production, which is generally directed by the functional las and rhl systems, respectively. The lasR mutant showed restoration of its elastolytic activity and rhamnolipid production, in spite of a lasR deletion, while the las rhl double mutants did not show the expression of either of the above virulence factors. This suggested that the Rhl system was responsible for the expression of virulence factors in the absence of the Las system. Hence, it becomes necessary to inhibit both the Las (long acyl-HSL) and Rhl (short acyl-HSL) systems of P. aeruginosa to develop a promising therapy against the pathogen.

Some of the QQ studies have discovered plant sources with the potential to inhibit both Las and Rhl systems, providing prospective candidates to control P. aeruginosa infections. One of the most cited study, conducted by Adonizio [41], reported significant inhibition of short and long chain AHLs by six plants of South Florida, Conocarpus erectus, Bucida buceras, Callistemon viminalis, Tetrazygia bicolor and Chamaesyce hypericifolia. The plants also inhibited multiple virulence factors (LasA & LasB elastase, pyoverdin) and biofilm formation in P. aeruginosa PA01. The extracts of C. erectus, B. buceras and T. bicolor were found to significantly reduce infection associated mortality in the nematode model, Caenorhabditis elegans and further, the anti-QS components in the aqueous extract of C. erectus were identified to be ellagitannins, such as vescalagin and castalagin. The toluene extract of garlic was found to be effective in controlling the QS genes, its regulated virulence and biofilm formation in P. aeruginosa in vitro as well as in vivo. By employing bioassay guided fractionation, the primary QS inhibitor in the crude extract of garlic was determined to be Ajoene, an unsaturated disulphide compound. This compound, in at lower than its bactericidal concentration (25 µg/ml), exhibited significant reduction of few virulence factors, including rhamnolipids. It further reduced the susceptibility of biofilms to tobramycin, and also prevented the biofilm killing of human polymorphonuclear leukocytes. Furthermore, it exhibited enhanced bacterial clearance in infected mouse model at 3 days post infection, when compared with the control group [42–44]. Song et al. [45] reported the QS inhibitory potential of Panax ginseng roots, which exhibited significant reduction of the virulence factors, LasA and LasB in P. aeruginosa PAO1 and alginate production in the mucoid variant PAOmucA22. Further, the concentration of C4-HSL and 3O-C12-HSL was significantly reduced in the presence of P. ginseng powder. In previous studies, P. ginseng was found to stimulate defense mechanisms of infected rat models, assisting bacterial clearance from the lungs infected with P. aeruginosa [46,47]. It is thought that the anti-QS and immunomodulatory properties of Ginseng might have contributed to its effectiveness in treating Pseudomonas infection in rats.

Flavonoids such as catechin isolated from the bark of Combretum albiflorum, was found to reduce the expression of QS genes, lasI, lasR, rhlI and rhlR, and further attenuate virulence factors such as pyocyanin, elastase and biofilm formation in P. aeruginosa [48]. Based on this research, further work was conducted to evaluate the effect of commercially available flavonoids on the QS systems and virulence of the organism. Out of these, three flavonones, viz. naringenin, eriodictyol, and taxifolin, exhibited significant reduction of pyocyanin and elastase, without affecting bacterial growth. Further, naringenin and taxifolin reduced the expression of QS-controlled genes in P. aeruginosa PAO1 and naringenin also dramatically reduced the production of C4-HSL and 3-oxo-C12-HSL [49]. Similarly, phenolic compounds in different species of the genus Terminalia, viz. T. catappa (tannins) and T. chebula (ellagic acid derivatives) have been attributed for the inhibition of AHL systems and the regulated phenotypes in P. aeruginosa [50,51].

In an interesting study presented by Jakobsen, Bragason, et al. [52], iberin, an isothiocyanate isolated from the plant, Armoracia rusticana, exhibited significant QSI activity by blocked the expression of QS genes in P. aeruginosa. However, the compound iberin, failed to affect bacterial clearance in infected mouse model. The plausible explanation for the results implied the reactive nature of the isothiocyanate group of the compound as being responsible for losing its activity in vivo. Natural isothiocyanates, sulforaphane and erucin, isolated from Brassica oleracea, were also shown to significantly inhibit AHL regulated virulence and biofilm formation in P. aeruginosa [53]. With respect to the results obtained for iberin by Jakobsen, Bragason, et al., it is recommended to determine the effects of sulforaphane and erucin on in vivo P. aeruginosa infection.

Additional studies on QQ in P. aeruginosa unveiled novel plant sources such as Lagerstroemia speciosa, Rhizophora spp., Dalbergia spp., Ananas comosus, Musa paradiciaca, Manilkara zapota, Ocimum sanctum, showing the capability to interfere with the organism's AHL systems and virulence [54–57]. Also, in an anti-QS screening study by Gala et al. [58]; the cold and hot ethyl acetate extracts of Tinospora cordifolia were found to be effective in disrupting both short and long chain AHL production.

Future scope

Several plant based inhibitors of the AHL systems of P. aeruginosa have been discovered in the last decade, and some of these (garlic, C. erectus, P. ginseng) have also exhibited significant in vivo potential in treating P. aeruginosa infections. Further investigation for these plant sources may focus on the evaluation of the synergistic effects of the QSI compounds or crude extracts along with the antibiotics. Alternatively, a combination of two or more QSI compounds on bacterial growth, QS signalling, and its virulence may also be tested. Some reports on the P. aeruginosa clinical isolates have implied clinical variations in terms of drug resistance, biofilm formation, QS genes, virulence factors, etc [59–61]. Hence, it is also important to study the effect of the QSI sources on the clinical isolates, before these can be considered for drug development. The isolated phytochemicals such as ellagitannins, ellagic acid derivatives, flavonones, must be evaluated further for their in vivo efficacy. Additionally, research investigations based on the isolation of active components from the anti-QS plant extracts and their effectiveness in vivo is recommended is recommended, as this will help to build a library of QSI phytochemicals for P. aeruginosa. This library can be then screened for the production of hits and leads in the process of drug discovery.

Apart from the AHL systems, disruption of the quinolone signalling in P. aeruginosa also presents an important anti-virulence target. Few studies have been directed towards quenching of the quinolone signalling system in P. aeruginosa. In a study by Pustelny et al. [62], the enzyme 1H-3-Hydroxy-4-oxoquinaldine 2,4-dioxygenase, abbreviated as Hod, produced by the bacterium, Arthrobacter nitroguajacolicus Rü61a, was found to convert PQS into N-octanoylanthranilic acid and carbon monoxide. Hod is a part of the quinaldine utilization pathway, wherein it acts on 3-hydroxy-2-methyl-4(1H)-quinolone and cleaves it into N-acetylanthranilic acid and carbon monoxide. Thus, when Hod was added externally to P. aeruginosa PAO1 culture, by the virtue of its catalysis, it was able to reduce the expression of the pqsA gene, and the PQS regulated virulence factors such as lectin A, rhamnolipids and pyocyanin. However, due to the cleavage of Hod protein by the extracellular proteases of P. aeruginosa, the enzyme was ultimately found to be ineffective as a QQ agent. In another study, first of its kind, HHQ analogs were synthesized and their agonistic and antagonistic effects on PqsR were evaluated using the reporter strain, Escherichia coli containing the plasmid pEAL08-2. The activation of PqsR by the HHQ analogs resulted in the induction of β-galactosidase activity in the reporter strain. Out of 30 HHQ analogs, three potent HHQ antagonists were obtained, which were also effective in reducing the PQS regulated pyocyanin production in P. aeruginosa PA14 cultures [63]. These studies have incited the opinion that PQS inhibitors may serve as important anti-virulence drugs for controlling Pseudomonas infections. Plants have been found to secrete AHL mimics that act as competitive inhibitors of Lux homologous proteins. These compounds constitute the plant defense system against the phytopathogenic bacteria [64]. This study also suggests the probability for the existence of quinolone inhibitors in plants as their protection from bacterial infection. Hence, exploring the plant resources to identify potent PQS inhibitors is greatly encouraged.

CONCLUSION

The organism, P. aeruginosa, is emerging as a dreadful nosocomial pathogen, with its evolving drug resistance and the amazing adaptability to diverse environments. Hence, it is indispensable to develop new drugs, not only to control the infections, but also to counteract the resistance phenomena. It can be observed that an enormous resource of active metabolites has been contained in the huge diversity of plants on earth and only a small portion has been discovered with the quorum quenching potential. Not only is it necessary to explore more plant sources for the anti-QS activity, it is also very important to promote the known phytochemical QS inhibitors as anti-pathogenic drugs, before the pathogen evolves to defeat all the available antibiotics.

CONFLICT OF INTERESTS

Declared None

REFERENCES

  1. González JE, Keshavan ND. Messing with bacterial quorum sensing. J Microbiol Mol Biol Rev 2006;70(4):859-75.
  2. Ryan RP, Dow JM. Diffusible signals and interspecies communication in bacteria. J Microbiology 2008;154:1845-58.
  3. Henke JM, Bassler BL. Three parallel quorum-sensing systems regulate gene expression in Vibrio harveyi. J Bacteriol 2004;186(20):6902-14.
  4. Federle MJ, Bassler BL. Interspecies communication in bacteria. J Clin Invest 2003;112(9):1291-9.
  5. Duan K, Dammel C, Stein J, Rabin H, Surette MG. Modulation of Pseudomonas aeruginosa gene expression by host microflora through interspecies communication. J Mol Microbiol 2003;50(5):1477-91.
  6. Rickard AH, Palmer Jr RJ, Blehert DS, Campagna SR, Semmelhack MF, Egland PG, et al. Autoinducer 2:a concentration-dependent signal for mutualistic bacterial biofilm growth. J Mol Microbiol 2006;60(6):1446-56.
  7. Moss RB. Cystic fibrosis:pathogenesis, pulmonary infection, and treatment. J Clin Infect Dis 2012;21(4):839-49.
  8. Gaynes R, Edwards JR, System NNIS. Overview of nosocomial infections caused by Gram-negative bacilli. J Clin Infect Dis 2005;41:848-54.
  9. Rosenthal VD, Maki DG, Salomao R, Alvarez C, Mehta Y, Higuera F, et al. Device-associated nosocomial infections in 55 intensive care units of 8 developing countries. J Ann Intern Med 2006;145(8):582-91.
  10. D’Agata E. Rapidly rising prevalence of nosocomial multidrug-resistant, Gram-negative bacilli:A 9-year surveillance study. J Infect Control Hosp Epidemiol 2004;25(10):842-6.
  11. Strateva T, Mitov I. Contribution of an arsenal of virulence factors to pathogenesis of Pseudomonas aeruginosa infections. J Ann Microbiol 2011;61:717-32.
  12. Lazdunski AM, Ventre I, Bleves S. Cell-cell communication:quorum sensing and regulatory circuits in Pseudomonas aeruginosa. In:Ramos J, Filloux A, editors. Pseudomonas. Volume 5. A model system in biology. Springer;2007;279-310.
  13. Telford G, Wheeler D, Williams P, Tomkins PT, Appleby P, Swell H, et al. The Pseudomonas aeruginosa quorum-sensing signal molecule N-(3-oxododecanoyl)-L-homoserine lactone has immunomodulatory activity. Infect Immun 1998;66(1):36-42.
  14. Smith RS, Harris SG, Phipps R, Iglewski B. The Pseudomonas aeruginosa quorum-sensing molecule N-(3-oxododecanoyl) homoserine lactone contributes to virulence and induces inflammation in vivo. J Bacteriol 2002;184(4):1132-9.
  15. Heeb S, Fletcher MP, Chhabra SR, Diggle SP, Williams P, Cámara M. Quinolones:from antibiotics to autoinducers. J FEMS Microbiol Rev 2011;35:247-74.
  16. Amara N, Krom BP, Kaufmann GF, Meijler MM. Macromolecular inhibition of quorum sensing:enzymes, antibodies, and beyond. J Chem Rev 2011;111:195-208.
  17. Tateda K, Comte R, Pechere J-C, Köhler T, Yamaguchi K, Van Delden C. Azithromycin inhibits quorum sensing in Pseudomonas aeruginosa. J Antimicrob Agents Chemother 2001;45(6):1930-3.
  18. Bala A, Kumar R, Harjai K. Inhibition of quorum sensing in Pseudomonas aeruginosa by azithromycin and its effectiveness in urinary tract infections. J Med Microbiol 2011;60:300-6.
  19. Delden C Van, Köhler T, Ferber FB, Franҫois B, Carlet J, Pechère J-C. Azithromycin to prevent Pseudomonas aeruginosa ventilator-associated pneumonia by inhibition of quorum sensing:a randomized controlled trial. J Intensive Care Med 2012;38(7):1118-25.
  20. Chung J, Goo E, Yu S, Choi O, Lee J, Kim J, et al. Small-molecule inhibitor binding to an N-acyl-homoserine lactone synthase. J Proc Natl Acad Sci USA 2011;108(29):12089-94.
  21. Churchill MEA, Chen L. Structural basis of acyl-homoserine lactone-dependent signaling. J Chem Rev 2011;111(1):68-85.
  22. Givskov M, Nys R De, Manefield M, Gram L, Maximilien R, Givskov M, et al. Eukaryotic interference with homoserine lactone-mediated prokaryotic signalling. J Bacteriol 1996;178(22):6618-22.
  23. Müh U, Hare BJ, Duerkop BA, Schuster M, Hanzelka BL, Heim R, et al. A structurally unrelated mimic of a Pseudomonas aeruginosa acyl-homoserine lactone quorum-sensing signal. Proc Natl Acad Sci USA 2006;103(45):16948-52.
  24. Kim C, Kim J, Park H-Y, Park H-J, Lee JH, Kim CK, et al. Furanone derivatives as quorum-sensing antagonists of Pseudomonas aeruginosa. J Appl Microbiol Biotechnol 2008;80:37-47.
  25. Cheoljin K, Kim J, Park H-Y, Mclean RJC, Kim CK, Jeon J, et al. Molecular modeling, synthesis, and screening of new bacterial quorum-sensing antagonists. J Microbiol Biotechnol 2007;17(10):1598-606.
  26. Yang L, Rybtke MT, Jakobsen TH, Hentzer M, Bjarnsholt T, Givskov M, et al. Computer-aided identification of recognized drugs as Pseudomonas aeruginosa quorum-sensing inhibitors. J Antimicrob Agents Chemother 2009;53(6):2432-43.
  27. Soulère L, Sabbah M, Fontaine F, Queneau Y, Doutheau A. LuxR-dependent quorum sensing:Computer aided discovery of new inhibitors structurally unrelated to N-acylhomoserine lactones. J Bioorg Med Chem Lett 2010;20:4355-8.
  28. McRae J, Yang Q, Crawford R, Palombo E. Review of the methods used for isolating pharmaceutical lead compounds from traditional medicinal plants. J Environmentalist 2007;27:165-74.
  29. Cowan MM. Plant products as antimicrobial agents. J Clin Microbiol Rev 1999;12(4):564-82.
  30. Steindler L, Venturi V. Detection of quorum-sensing N-acyl homoserine lactone signal molecules by bacterial biosensors. J FEMS Microbiol Lett 2007;266:1-9.
  31. Koh C-L, Sam C-K, Yin W-F, Tan LY, Krishnan T, Chong YM, et al. Plant-derived natural products as sources of anti-quorum sensing compounds. J Sensors 2013;13:6217-28.
  32. Vattem DA, Mihalik K, Crixell SH, McLean RJC. Dietary phytochemicals as quorum sensing inhibitors. J Fitoterapia 2007;78:302-10.
  33. Zahin M, Hasan S, Aqil F, Khan MSA, Husain FM, Ahmad I. Screening of certain medicinal plants from India for their anti-quorum sensing activity. Indian J Exp Biol 2010;48:1219-24.
  34. Issac Abraham SVP, Palani A, Ramaswamy BR, Shunmugiah KP, Arumugam VR. Antiquorum sensing and antibiofilm potential of Capparis spinosa. J Arch Med Res 2011;42:658-68.
  35. Chong YM, Yin WF, Ho CY, Mustafa MR, Hadi AH, Awang K, et al. Malabaricone C from Myristica cinnamomea exhibits anti-quorum sensing activity. J Nat Prod 2011;74(10):2261-4.
  36. Krishnan T, Yin W-F, Chan K-G. Inhibition of quorum sensing-controlled virulence factor production in Pseudomonas aeruginosa PAO1 by Ayurveda spice clove (Syzygium aromaticum) bud extract. J Sensors 2012;12:4016-30.
  37. Tan LY, Yin W-F, Chan K-G. Silencing quorum sensing through extracts of Melicope lunu-ankenda. J Sensors 2012;12:4339-51.
  38. Priya K, Yin W-F, Chan K-G. Anti-quorum sensing activity of the traditional Chinese herb, Phyllanthus amarus. J Sensors 2013;13:14558-69.
  39. Brango-Vanegas J, Costa GM, Ortmann CF, Schenkel EP, Reginatto FH, Ramos FA, et al. Glycosylflavonoids from Cecropia pachystachya Trécul are quorum sensing inhibitors. J Phytomedicine 2014;21(5):670-5.
  40. Delden C Van, Pesci EC, Pearson JP, Iglewski BH. Starvation selection restores elastase and rhamnolipid production in a Pseudomonas aeruginosa quorum-sensing mutant. J Infect Immun 1998;66(9):4499-502.
  41. Adonizio AL. Anti-quorum sensing agents from South Florida medicinal plants and their attenuation of Pseudomonas aeruginosa pathogenicity. FIU Electron Theses Diss 2008;Paper 13.
  42. Rasmussen TB, Bjarnsholt T, Skindersoe ME, Hentzer M, Kristoffersen P, Köte M, et al. Screening for quorum-sensing inhibitors (QSI) by use of a novel genetic system, the QSI selector. J Bacteriol 2005;187(5):1799-814.
  43. Bjarnsholt T, Jensen PØ, Rasmussen TB, Christophersen L, Calum H, Hentzer M, et al. Garlic blocks quorum sensing and promotes rapid clearing of pulmonary Pseudomonas aeruginosa infections. J Microbiology 2005;151:3873-80.
  44. Jakobsen TH, van Gennip M, Phipps RK, Shanmugham MS, Christensen LD, Alhede M, et al. Ajoene, a sulfur-rich molecule from garlic, inhibits genes controlled by quorum sensing. J Antimicrob Agents Chemother 2012;56(5):2314-25.
  45. Song Z, Kong KF, Wu H, Maricic N, Ramalingam B, Priestap H, et al. Panax ginseng has anti-infective activity against opportunistic pathogen Pseudomonas aeruginosa by inhibiting quorum sensing, a bacterial communication process critical for establishing infection. J Phytomedicine 2010;17:1040-6.
  46. Song Z, Johansen HK, Faber V, Moser C, Kharazmi A, Rygaard J, et al. Ginseng treatment reduces bacterial load and lung pathology in chronic Pseudomonas aeruginosa pneumonia in rats. J Antimicrob Agents Chemother 1997;41(5):961-4.
  47. Song Z, Kharazmi A, Wu H, Faber V, Moser C, Johansen HK, et al. Effects of Ginseng treatment on neutrophil chemiluminescence and immunoglobulin G subclasses in a rat model of chronic Pseudomonas aeruginosa pneumonia. J Clin Vaccine Immunol 1998;5(6):882-7.
  48. Vandeputte OM, Kiendrebeogo M, Rajaonson S, Diallo B, Mol A, El Jaziri M, et al. Identification of catechin as one of the flavonoids from Combretum albiflorum bark extract that reduces the production of quorum-sensing-controlled virulence factors in Pseudomonas aeruginosa PAO1. J Appl Environ Microbiol 2010;76(1):243-53.
  49. Vandeputte OM, Kiendrebeogo M, Rasamiravaka T, Stévigny C, Duez P, Rajaonson S, et al. The flavanone naringenin reduces the production of quorum sensing-controlled virulence factors in Pseudomonas aeruginosa PAO1. J Microbiology 2011;157:2120-32.
  50. Sarabhai S, Sharma P, Capalash N. Ellagic acid derivatives from Terminalia chebula Retz. downregulate the expression of quorum sensing genes to attenuate Pseudomonas aeruginosa PAO1 virulence. J PLoS One 2013;8(1):e53441.
  51. Taganna JC, Quanico JP, Perono RMG, Amor EC, Rivera WL. Tannin-rich fraction from Terminalia catappa inhibits quorum sensing (QS) in Chromobacterium violaceum and the QS-controlled biofilm maturation and LasA staphylolytic activity in Pseudomonas aeruginosa. J Ethnopharmacol 2011;134(3):865-71.
  52. Jakobsen TH, Bragason SK, Phipps RK, Christensen LD, van Gennip M, Alhede M, et al. Food as a source for quorum sensing inhibitors:iberin from horseradish revealed as a quorum sensing inhibitor of Pseudomonas aeruginosa. J Appl Environ Microbiol 2012;78(7):2410-21.
  53. Ganin H, Rayo J, Amara N, Levy N, Krief P, Meijler MM. Sulforaphane and erucin, natural isothiocyanates from broccoli, inhibit bacterial quorum sensing. J Med Chem Commun 2013;4:175-9.
  54. Rasamiravaka T, Jedrzejowski A, Kiendrebeogo M, Rajaonson S, Randriamampionona D, Rabemanantsoa C, et al. Endemic malagasy Dalbergia species inhibit quorum sensing in Pseudomonas aeruginosa PAO1. J Microbiology 2013;159:924-38.
  55. Singh BN, Singh HB, Singh A, Singh BR, Mishra A, Nautiyal CS. Lagerstroemia speciosa fruit extract modulates quorum sensing-controlled virulence factor production and biofilm formation in Pseudomonas aeruginosa. J Microbiology 2012;158:529-38.
  56. Annapoorani A, Kalpana B, Musthafa KS, Pandian SK, Veera Ravi A. Antipathogenic potential of Rhizophora spp. against the quorum sensing mediated virulence factors production in drug resistant Pseudomonas aeruginosa. J Phytomedicine 2013;20(11):956-63.
  57. Musthafa KS, Ravi AV, Annapoorani A, Packiavathy ISV, Pandian SK. Evaluation of anti-quorum-sensing activity of edible plants and fruits through inhibition of the N-acyl-homoserine lactone system in Chromobacterium violaceum and Pseudomonas aeruginosa. J Chemotherapy 2010;56(4):333-9.
  58. Gala V, John N, Desai K. Evaluation of the potential of five medicinal plants to inhibit acyl homoserine lactone based quorum sensing in Pseudomonas aeruginosa and Acinetobacter baumannii. Int J Pharm Bio Sci 2013;4(2):(B) 445-53.
  59. Deptuła A, Gospodarek E. Reduced expression of virulence factors in multidrug-resistant Pseudomonas aeruginosa strains. J Arch Microbiol 2010;192(1):79-84.
  60. Karatuna O, Yagci A. Analysis of quorum sensing-dependent virulence factor production and its relationship with antimicrobial susceptibility in Pseudomonas aeruginosa respiratory isolates. J Clin Microbiol Infect 2010;16(12):1770-5.
  61. Schaber JA, Hammond A, Carty NL, Williams SC, Colmer-hamood JA, Burrowes BH, et al. Diversity of biofilms produced by quorum-sensing-deficient clinical isolates of Pseudomonas aeruginosa. J Med Microbiol 2007;56:738-48.
  62. Pustelny C, Albers A, Büldt-Karentzopoulos K, Parschat K, Chhabra SR, Cámara M, et al. Dioxygenase-mediated quenching of quinolone-dependent quorum sensing in Pseudomonas aeruginosa. J Chem Biol 2009;16:1259-67.
  63. Lu C, Kirsch B, Zimmer C, de Jong JC, Henn C, Maurer CK, et al. Discovery of antagonists of PqsR, a key player in 2-alkyl-4-quinolone-dependent quorum sensing in Pseudomonas aeruginosa. J Chem Biol 2012;19:381-90.
  64. Teplitski M, Robinson JB, Bauer WD. Plants secrete substances that mimic bacterial N-acyl homoserine lactone signal activities and affect population density-dependent behaviors in associated bacteria. J Mol Plant-Microbe Interact 2000;13(6):637-48.
