Int J Pharm Pharm Sci, Vol 9, Issue 2, 217-221Original Article


EFFECTS OF SOLVENT POLARITY ON SOLVATION FREE ENERGY, DIPOLE MOMENT, POLARIZABILITY, HYPERPOLARIZABILITY AND MOLECULAR REACTIVITY OF ASPIRIN

MOHAMMAD FIROZ KHAN1, RIDWAN BIN RASHID1, MUHAMMED MAHFUZUR RAHMAN1, MD. AL FARUK2, MD. MUSTAFEZUR RAHMAN2, MOHAMMAD A. RASHID3*

1Department of Pharmacy, State University of Bangladesh, Dhaka-1205, Bangladesh, 2Department of Pharmacy, Daffodil International University, Dhaka, Bangladesh, 3Department of Pharmaceutical Chemistry, University of Dhaka, Dhaka 1000, Bangladesh
Email: ridwan@sub.edu.bd

Received: 24 Oct 2016 Revised and Accepted: 21 Dec 2016

ABSTRACT

Objective: The aim of the study is to explore the effects of solvent polarity on solvation free energy, dipole moment, polarizability, first order hyperpolarizability and different molecular properties like chemical hardness and softness, chemical potential, electronegativity, electrophilicity index of aspirin which may lead to better understand the reactivity and stability of aspirin in different solvent systems.

Methods: Becke, 3-parameter, Lee-Yang-Parr (B3LYP) level of theory with 6-31G(d,p) basis set was employed to conduct all type of calculations for both in the gas phase and in solution. The solvation free energy, dipole moment and molecular properties were calculated by applying the Solvation Model on Density (SMD) in four solvent systems namely water, methanol, ethanol and n-octanol.

Results: The solvation energies steadily increased as the dielectric constant was decreased i.e. free energy increases with decreasing polarity of the solvent. The dipole moment of aspirin was found to be increased when going from non-polar to polar solvents. The dipole moment of aspirin was higher in different solvents than that of the gas phase. The polarizability and first order hyperpolarizability were also increased with the increasing dielectric constant of the solvent. Moreover, ongoing from non-polar to polar solvent the chemical potential, electronegativity and electrophilicity index were increased except in n-octanol. The chemical potential, electronegativity and electrophilicity index of aspirin in n-octanol was higher than that of ethanol. On the other hand, chemical hardness was increased with decreasing polarity of the solvent and the inverse relation was found in the case of softness.

Conclusion: The calculated solvation free energy, dipole moment, polarizability, first order hyperpolarizability and molecular properties found in this study may lead to the understanding of stability and reactivity of aspirin in different solvent systems.

Keywords: Aspirin, Solvation free energy, Dipole moment, Solvation model, Polarizibility

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4. 0/)
DOI: http://dx.doi.org/10.22159/ijpps.2017v9i2.15853

INTRODUCTION

Non-steroidal anti-inflammatory drugs (NSAIDs) are a class of compounds that block cyclooxygenase (COX) enzyme involved in the first step of the arachidonic acid cascade. COX exists in two isoforms namely COX-1 and COX-2. The first is constitutively expressed in stomach, kidneys and platelets and is considered important in mucosal protection and platelet function. COX-2 is inducible and plays a major role in prostaglandin biosynthesis in inflammatory cells [1].

Aspirin (fig. 1) is a prototype NSAID and is used to treat pain, fever, and inflammation. Aspirin also inhibits the platelets aggregation. It is a non-selective COX-2 inhibitor and inhibits both the isoforms of COX enzyme. The therapeutic effects of aspirin are obtained due to the inhibition of COX-2; on the other hand, inhibition of COX-1 leads to undesirable side effects on the gastrointestinal tract such as ulceration, bleeding and perforation of the gastrointestinal tract.

Low dose of aspirin is effective in preventing heart attacks, strokes and blood coagulation [2]. Besides, low doses of aspirin are also administered to a patient having a heart attack to reduce the risk of another heart attack or death of cardiac tissue [3, 4]. Aspirin is also used to prevent certain types of cancer, particularly colorectal cancer [5].

Several attempts were made to synthesise aspirin derivatives in order to get compounds having desired biological activities with reduced toxicities. Zhen et al. 2014 [6] prepared aspirin derivatives having anti-thrombotic and gastric mucosal protection properties. Aspirin derivatives having antioxidant, anticoagulant and anti-platelet activities were also reported [7].

Few computational and theoretical studies of aspirin have been reported earlier. El-Shahawy, 2014 reported the theoretical spectral studies of aspirin [8]. Datt et al., 2012 investigated experimental and computational study of the loading and release of aspirin from zeolite HY [9]. Besides, Marjan et al., 2014 conducted a computational study to find the prospect of aspirin side effects [10]. Khan et al., 2015 reported a theoretical study of geometry, molecular properties and molecular docking study of aspirin [11].

The variation in solvent polarity and the type of solute-solvent interaction(s) can affect the geometry, dipole moment, polarizability, hyperpolarizability and other molecular properties [12-14] due to variable interactions with the highest occupied and lowest unoccupied molecular orbitals (HOMO-LUMO) [12, 14, 15]; and hence, can influence the stability and reactivity of the molecule. A detail of the molecular characteristics and interactions can be obtained from the Density Functional Theory (DFT) calculations which eventually lead to a good understanding of molecular properties [14, 16].

Hence, as part of our ongoing research [11, 17] the present study was undertaken to report the medium effect on solvation free energy, dipole moment, polarizability, first order hyperpolarizability and chemical reactivity of aspirin which would be potentially helpful to better understand the stability of aspirin in different solvent system and for the development of new pharmaceutical and (bio) chemical products derived from aspirin.

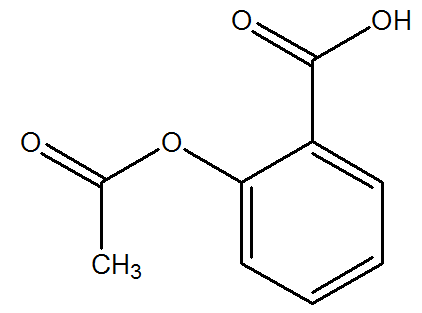

Fig. 1: Structure of aspirin

MATERIALS AND METHODS

Computational methods

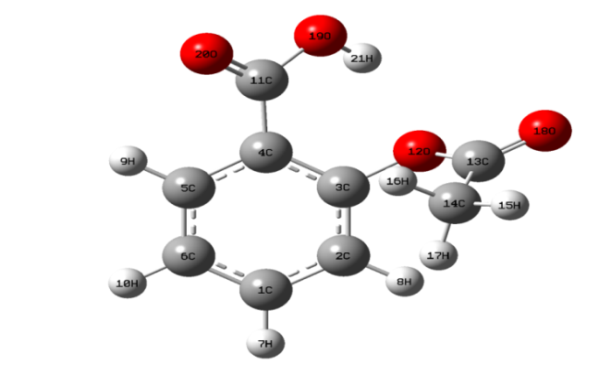

Gaussian 09 software package [18] was used to perform all type of calculations. From our previous work [11], it was found that geometries of aspirin obtained using the Becke, 3-parameter, Lee-Yang-Parr (B3LYP) with 6-31G(d,p) level of theory showed better agreement with experiments. Therefore, the geometries of aspirin were optimised at the B3LYP level of theory with 6-31G (d,p) basis set. The optimised geometry was confirmed by the absence of negative frequency in the lowest energy state of the molecule. The solvation free energies, dipole moment and molecular properties were calculated using Solvation Model on Density (SMD) [19] in four solvents such as water, methanol, ethanol and n-octanol. All calculations involving solvation were performed using the optimised solution-phase structures.

RESULTS AND DISCUSSION

Solvation free energy

The suggested SMD model was used to calculate the solvation free energy in four solvent systems namely water, methanol, ethanol and n-octanol. The free energy of solvation (∆G) is calculated according to the following equation.

∆G = G(sol)-G(gas)

Where,

G(gas) = Sum of electronic and thermal free energy in gas phase

G(sol) = Sum of electronic and thermal free energy insolvent

The solvation energies steadily increased in going from higher to lower dielectric constant i.e. free energy increases with decreasing polarity of the solvent (table 1 and fig. 2).

This is due to the different degree of interactions and hence, stabilisation of HOMO-LUMO orbital by the different solvents. From table 4 and fig. 6, it is clear that HOMO-LUMO gap increases with decreasing polarity of the solvents suggesting a higher degree of interactions of aspiring with decreasing polarity of the medium.

However, the differences between computed and experimental free energies [20] in four solvents ranged from 17.41 to 21.90 kJ/mol.

Table 1: Solvation free energy (kJ/mol) of aspirin in different solvents with SMD

Medium (dielectric constant) B3LYP/6-31G(d,p) Experimental [20]
Water (78.3) -46.01 -24.2
Methanol (32.6) -54.02 -37.1
Ethanol (24.9) -54.89 -37.5
n-Octanol (9.9) -49.24 -35.5

Fig. 2: Effect of solvent polarity on salvation free energy (kJ/mol) of aspirin

Dipole moment

The dipole moment is expected to be greater in solution than the corresponding dipole moment in the gas phase. Table 2 presents the dipole moments computed in the gas phase and in different solvents (water, methanol, ethanol and n-octanol) at the B3LYP level of theory with 6-31G(d, p) as a basis set using SMD solvation model. The dipole moment was gradually increased when going from lower to higher dielectric constant i.e. the dipole moment increases with increasing polarity of the solvent (fig. 3).

Table 2: Dipole moment (Debye, (D)) of aspirin in gas phase and in different solvents using SMD

Medium (dielectric constant) Dipole moment (D)
Gas 3.8
Water (78.3) 5.6
Methanol (32.6) 5.5
Ethanol (24.9) 5.4
n-Octanol (9.9) 5.2

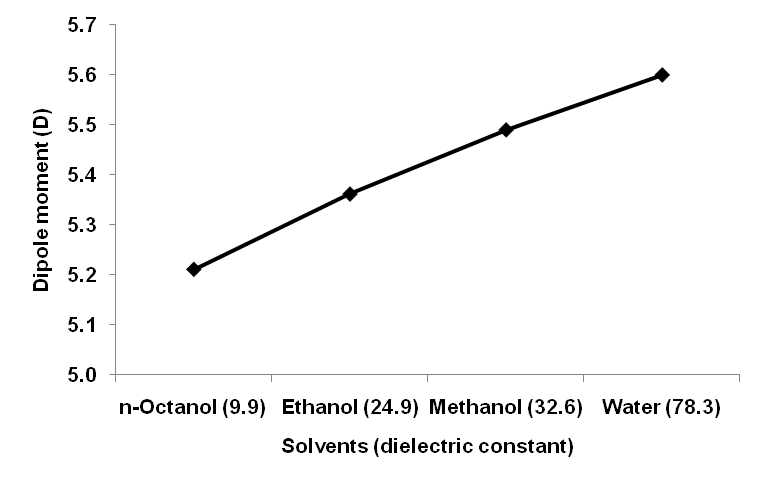

Fig. 3: Effect of solvent polarity on dipole moment (D) of aspirin

Polarizability and first order hyperpolarizability

Polarizability is the measure of distortion of a molecule in an electric field. The polarizability (α) was calculated using the following equation:

The polarizability is used to determine the strength of molecular interactions and optical properties of a system [21]. A molecule with a low HOMO-LUMO gap is more polarizable and possesses high chemical reactivity, low kinetic stability, and high electro-optic response and is known as soft molecule [21]. The calculated polarizability of aspirin is presented in table 3 and fig. 4 which indicates that the polarizability gradually increases when going from lower higher dielectric constant i.e. the reactivity increases with increasing the polarity of the solvent. This is attributed due to a different degree of interactions of solvents with the HOMO and LUMO orbital of aspirin. Table 4 and fig. 6 indicate that the HOMO-LUMO energy gap decreases with increasing dielectric constant of the solvent, thereby the molecule becomes more reactive with increasing polarity of the solvent. However, the polarizability of aspirin in different solvent ranged from 134.90 to 142.91 a. u.

The first order hyperpolarizability (β) is the measure of the nonlinear optical activity which can be of different types such as βvec (β vector), β|| (β parallel) and βtot (β total). It is a third rank tensor that can be described by a 3 × 3 × 3 matrix. The 27 components of the 3D matrix can be reduced to 10 components due to the Kleinman symmetry [22]. GAUSSIAN provides 10 components of this matrix as βxxx, βyxx, βxyy, βyyy, βxxz, βxyz, βyyz, βxxz, βyzz, βzzz, respectively, from which all x, y and z components of β can be calculated.

In this investigation, we report βtot for all the solvent systems listed in table 3. The component of βtot can be calculated using the following equation.

Where,

βx = βxxx+βxyy+βxzz

βy = βyyy+βxxy+βyzz

βz = βzzz+βxxz+βyyz

The first order hyperpolarizability was increased when going from lower to higher dielectric constant i.e. the first order hyperpolarizability increases with increasing polarity of the solvent (fig. 5). The difference in hyperpolarizability in different solvents was ranged from 35.95 to 40.06 a. u.

Table 3: Medium effect on polarizability (a. u.) and first order hyperpolarizability (a. u.)

Medium (dielectric constant) αxx αyy αzz αtot βx βy βz βtot
Gas Phase 133.03 115.95 54.74 101.24 11.00 7.25 16.83 21.37
Water (78.3) 184.98 170.17 73.59 142.91 31.95 -9.16 22.37 40.06
Methanol (32.6) 183.39 167.88 72.66 141.31 30.93 -8.30 22.50 39.14
Ethanol (24.9) 181.16 165.64 71.67 139.49 29.11 -7.10 22.64 37.55
n-Octanol (9.9) 175.98 159.48 69.25 134.90 27.03 -5.67 23.01 35.95

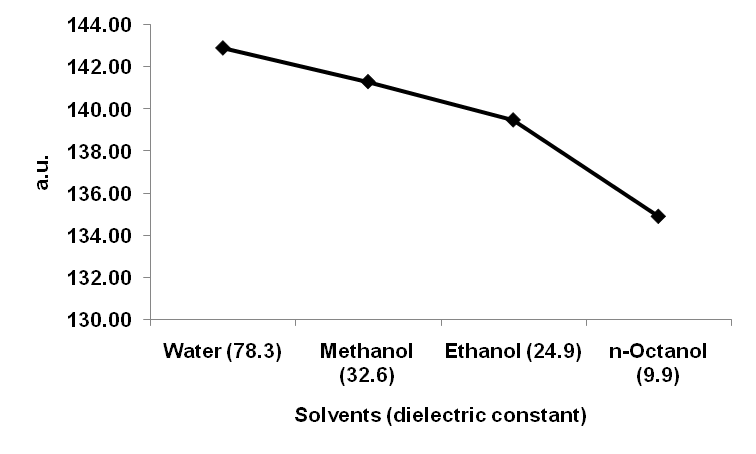

Fig. 4: Effect of solvent polarity on polarizability

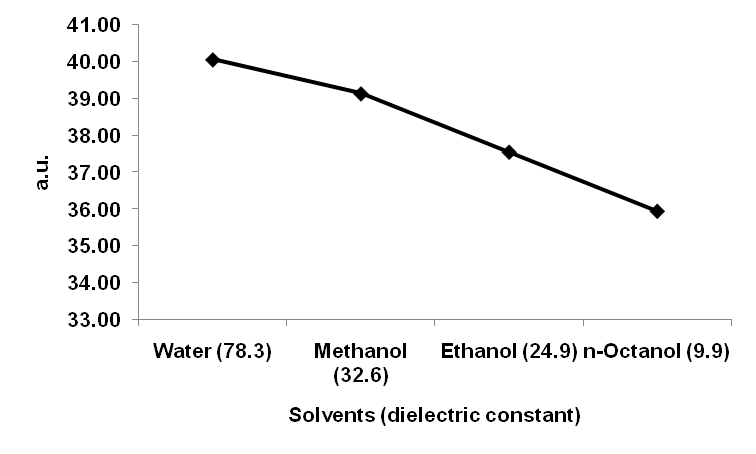

Fig. 5: Effect of solvent polarity on first order hyperpolarizability

Global reactivity descriptors

The energy gap of HOMO and LUMO determines the molecular electrical transport properties. The HOMO-LUMO energy gap can be used to calculate the global chemical reactivity descriptors of molecules like hardness, chemical potential, softness, electronegativity and electrophilicity index [23-27]. The HOMO-LUMO gap of aspirin is presented in table 4 and fig. 6.

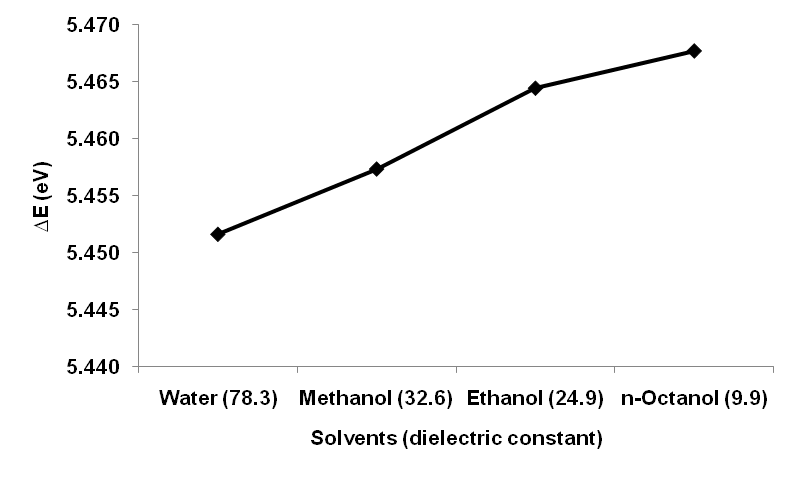

Fig. 6: Effect of solvent polarity on HOMO-LUMO energy gap of aspirin

Koopman’s theorem for closed-shell molecules can be applied to calculate the hardness (η), chemical potential (µ) and electro-negativity (𝝌) and softness (S) by using following formula:

Where I and A are the ionisation potential and electron affinity of the molecules, respectively and I =-EHOMO, A =-ELUMO.

Molecules with large HOMO-LUMO gaps are known as hard molecule whereas molecules with small HOMO-LUMO gaps are termed as a soft molecule. The stability of the molecule to hardness and softness can be correlated. A molecule with least HOMO–LUMO gap is more reactive and vice versa. Parr et al. 1999 [26] defined the global electrophilic power of a molecule as electrophilicity index (𝜔) which can be denoted by the formula as follows:

The above equations are used to calculate chemical potential, hardness and electrophilicity index.

This reactivity quantity has been used to understand the toxicity of various pollutants in terms of their reactivity and site selectivity [28-30]. The molecular properties of aspirin in the gas phase and in the different medium are presented in table 5. Ongoing from non-polar to polar solvent the chemical potential, electronegativity and electrophilicity index were increased except in n-octanol (fig. 7 and 8).

The chemical potential, electronegativity and electrophilicity index of aspirin in n-octanol was higher than that of ethanol. On the other hand, chemical hardness was increased with decreasing polarity of the solvent and opposite relation was found in the case of softness.

Table 4: Molecular orbital energy (eV) (HOMO and LUMO) of aspirin in different solvents with SMD

Medium (dielectric constant) Molecular orbital energy (eV)
HOMO LUMO ∆E
Gas Phase -7.055 -1.658 5.398
Water (78.3) -6.986 -1.535 5.452
Methanol (32.6) -6.983 -1.525 5.457
Ethanol (24.9) -6.956 -1.492 5.464
n-Octanol (9.9) -6.963 -1.495 5.468

Table 5: Medium effect on molecular properties of aspirin

Medium (dielectric constant) Chemical hardness (η) Softness (S) Chemical potential (µ) Electronegativity (𝝌) Electrophilicity index (𝜔)
Gas Phase 2.6988 0.3705 -4.36 4.36 9.49
Water (78.3) 2.7258 0.3669 -4.26 4.26 9.08
Methanol (32.6) 2.7287 0.3665 -4.25 4.25 9.05
Ethanol (24.9) 2.7322 0.3660 -4.22 4.22 8.92
n-Octanol (9.9) 2.7339 0.3658 -4.23 4.23 8.94

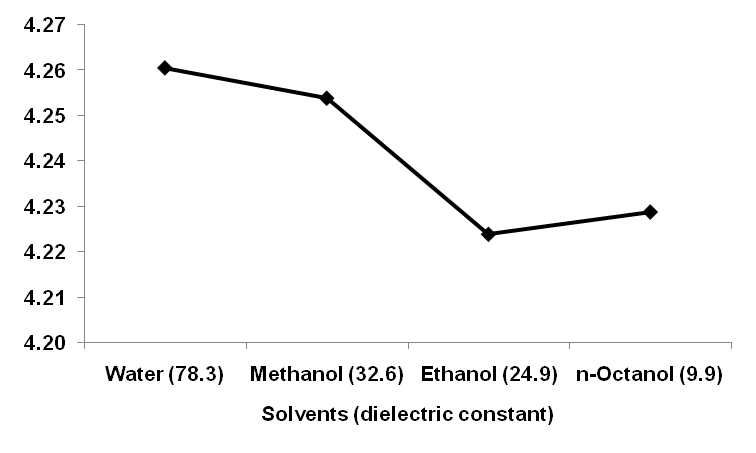

Fig. 7: Effect of solvent polarity on electronegativity of aspirin

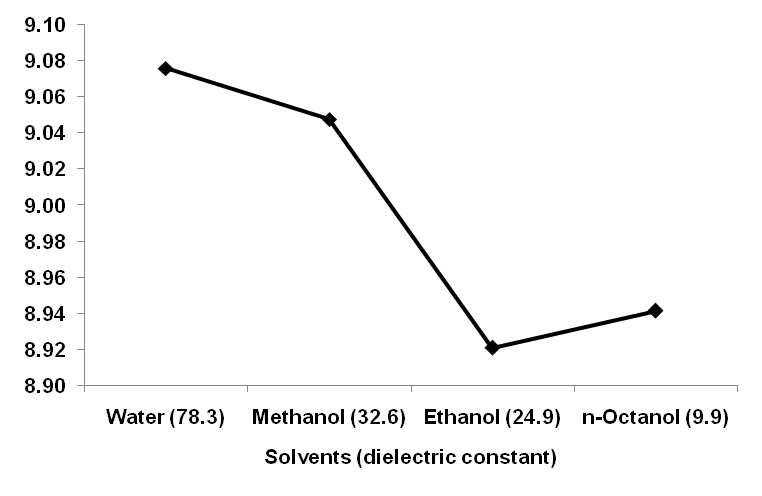

Fig. 8: Effect of solvent polarity on electrophilicity index of aspirin

CONCLUSION

In the present work, the medium effect on solvation free energies, dipole moment and molecular properties have been determined from B3LYP theory with 6-31G (d, p) basis set. The solvation energies were steadily increased as the dielectric constant was decreased and a similar trend of solvation energy between computational and experimental was found. The dipole moment, polarizability and first order hyperpolarizability of aspirin were gradually increased with the increasing polarity of the solvent. Ongoing from non-polar to polar solvent the chemical potential, electronegativity and electrophilicity index were increased except in n-octanol. The chemical potential, electronegativity and electro-philicity index of aspirin in n-octanol was higher than that of ethanol. On the other hand, chemical hardness was increased with decreasing polarity of the solvent and the inverse relation was found in the case of softness.

Therefore, it can be concluded that aspirin is more reactive and hence, unstable in a polar solvent which is evident from the polarizability and chemical softness in different solvents. The results obtained in this study may be of assistance in the quest of theoretical evidence for aspirin in reaction intermediates and pharmaceuticals.
