Int J Pharm Pharm Sci, Vol 6, Issue 8, 462-465Original Article
DEVELOPMENT AND METHOD VALIDATION OF RP-HPLC METHOD FOR SIMULTANEOUS ESTIMATION OF CEFOPERAZONE AND TAZOBACTAM IN MARKETED FORMULATION
AMOL R. RANJALE1, HEMANT KUMAR JAIN*1
1Department of Quality Assurance Techniques, Sinhgad College of Pharmacy, Vadgaon (Bk.), Pune 411041, Maharashtra, India.
Email: hemantkjain2001@yahoo.co.in
Received: 05 Jul 2014 Revised and Accepted: 04 Aug 2014
ABSTRACT
Objective: A new precise, accurate, sensitive and robust RP-HPLC method was developed for third generation cephalosporin and β lactamase inhibitor i.e. cefoperazone and tazobactam in marketed preparation.
Methods: The Chromatographic separation was achieved on Thermo BDS Hypersil C18 column (250 × 4.6 mm i.d.5 µm) at ambient temperature. A Binary mobile phase consisting of 0.02 mM potassium dihydrogen phosphate buffer, pH 4.0 and Methanol (80:20, v/v) was delivered through a column at a flow rate of 1 ml/min. Measurement was performed at a desired wavelength of 250 nm.
Result: The method was linear over the concentration range of 20-60 µg/mL (r2 = 0.9987) for cefoperazone (CEFO) and 2.5-7.5 µg/mL (r2 = 0.9998) for tazobactam (TAZO). The percentage content for cefoperazone 97.64±1.0 and of tazobactam was 97.13±0.96 in the marketed formulation. The low value of % Relative Standard Deviation (%RSD) was 0.78 and 0.43 for CEFO and TAZO, respectively, indicates the reproducibility of this method. Tailing Factors for CEFO and TAZO were less than 2. A LOD and LOQ low value suggests the sensitiveness of method. The method was validated for linearity, precision, accuracy, and robustness as per ICH guideline.
Conclusion: It can be concluded from the results that the proposed RP-HPLC method was found to be simple, accurate, robust and precise for the analysis of cefoperazone and tazobactam in bulk and sterile dried injection dosage forms. This method was validated as per ICH guidelines. Thus, it can be used for routine quality control studies for assay of cefoperazone and tazobactam simultaneously.
Keywords: Cefoperazone, Tazobactam, Simultaneous estimation, Validation, RP- HPLC.
INTRODUCTION
Infectious diseases have always been created the threat to human being and animals[1]. Therefore, the treatment is necessary using suitable antimicrobial agents. Although various antibiotics have been developed but cephalosporin group of antibiotics are widely used[2]. Cefoperazone is a third generation cephalosporin antibiotic indicated for the treatment of patients infected with susceptible strains of microorganisms like respiratory tract, skin and soft tissue, bone and joint infections, septicemia, meningitis[3]. Cefoperazone (CEFO) is chemically [6R-[6alpha,7beta(R)]]-7-[[[[(4-Ethyl-2,3-dioxo-1-piperazinyl)carbonyl]amino](4-hydroxy phenyl) acetyl]amino]-3-[[(1-methyl-1H-tetrazol-5-yl)thio]methyl]-8-oxo-5-thia-1-azabicyclo [4.2.0]oct-2-ene-2-carboxylic acid. The chemical structure of CEFO is presented in figure 1. It is official drug in Indian Pharmacopoeia [4], British Pharmacopoeia [5].
Tazobactam (TAZO) is a compound that inhibits the action of bacterial ß-lactamase. TAZO is semi-synthetic parenteral penicillin with a broad spectrum of antibacterial activity [6-7]. Tazobactam (TAZO) chemically known as (2S,3S,5R)-3-Methyl-7-oxo-3-(1H-1,2,3-triazol-1-ylmethyl)-4-thia-1-azabicyclo[3.2.0]heptane-2-carboxylic acid 4,4-dioxide (Figure 2). TAZO is not official drug in any Pharmacopoeia.
The combination of CEFO and TAZO is more effective for the treatment of moderate to severe infections than single drug therapy alone. CEFO and TAZO combination are used for the treatment of urinary tract infections and skin infections. A literature survey revealed that a liquid chromatography method has been reported for determination of CEFO in formulation [8]. CEFO in combination with other drugs also have been estimated by various liquid chromatography methods [9-11]. TAZO was also successfully determined by HPLC, HPTLC [12, 13]. Till date no HPLC method is available for simultaneous estimation of CEFO and TAZO in combined dosage form. Therefore present work involves the development of a simple RP-HPLC method for simultaneous estimation of CEFO and TAZO in bulk as well as in pharmaceutical formulation.
Fig. 1: Chemical structure of Cefoperazone
Fig. 2: Chemical structure of Tazobactam
MATERIALS AND METHODS
The reference standard (RS) of CEFO and TAZO were obtained from Molecule Laboratory Pvt. Ltd, Ahmedabad, India. The fixed dose combination of CEFO and TAZO (Lupitam) was purchased from the local pharmacy. Each unit of Lupitam contains 1000 mg of Cefoperazone and 125 mg of Tazobactam. The Methanol (HPLC grade) and potassium dihydrogen phosphate ( of AR grade) were obtained from Merck, Mumbai, India.
Instrumentation and Chromatographic Conditions:
Chromatographic separation was performed using chromatography (LC2010CHT, Shimadzu, Japan) system equipped with the Agilent SPD-20AT prominence diode array detector. Spin Chrome software was employed for data collecting and processing Chromatographic separation was performed on BDS Hypersil C-18 stainless steel column with dimensions of 250×4.6 mm, 5 µm particle size.
A binary mobile phase consisting 0.02M potassium dihydrogen phosphate buffer, pH 4.0 and Methanol (80:20 v/v) was delivered through a column at a flow rate of 1 mL/min. The phosphate buffer, pH 4.0 and Methanol was filtered separately through a 0.45 µm membrane filter paper. The mobile phase was degassed before use. HPLC analysis[14,15] was performed at ambient temperature with detection at 250 nm. The injection volume was 20 µL.
Preparation of standard stock solution
Standard stock solution of CEFO (400µg/mL): An accurately weighed quantity of powder equivalent to 40.0 mg of CEFO was transferred to 100 mL volumetric flask. The drug was dissolved and diluted up to the mark with methanol.
Standard stock solution of TAZO (50µg/mL): An accurately weighed quantity of powder equivalent to 5.0 mg of TAZO was transferred to 100 mL volumetric flask. The drug was dissolved and diluted up to the mark with methanol.
Assay of marketed formulation:
To determine the content, 10 vial units (Lupitam) were individually weighed and average weight was recorded. Dry powder from all vials was mixed together to make a pooled sample. A quantity of vial powder (≡ 40.0 mg of CEFO and 5.0 mg of TAZO) was weighed and transferred into 100 mL of volumetric flask.
The mixture was dissolved in methanol, sonicated for 10 min and diluted to the up to mark with methanol to obtain a concentration of 400 µg/mL of CEFO and 50 µg/mL of TAZO. The solution was filtered using Whatmann filter paper No. 41. This solution was further diluted with mobile phase to obtain final concentration of CEFO (40 µg/ml) and TAZO (5µg/ml). The final sample solution was filtered (Whatmann filter paper No. 41) and injected. Run time of analysis was kept 15 min and detection is carried out at 250 nm. All the determinations were carried out in triplicate.
METHOD VALIDATION
Validation of an analytical procedure is the process by which it is established by laboratory studies that the performance characteristics of the procedure meet the requirements for the intended analytical application. The developed chromatographic method was validated for system suitability, linearity and range, accuracy, precision, and robustness, as per ICH guidelines [16].
System suitability test
The system suitability test was performed by five replicate analyses of working standard solution. Results of %RSD, retention time, theoretical plates and tailing factor (peak symmetry) are presented in Table 1.
Analysis of marketed formulation
Results of assay were in good agreement with the label claim. The drug content in the unit was found to be 97.64±1.00 % and 97.13±0.963% for Cefoperazone and Tazobactam, respectively, are shown in Table 2.
Linearity and range
Working solutions were injected under the operating chromatographic conditions and peak areas for each drug were calculated at 250 nm. The calibration curve was plotted between areas against corresponding concentrations of each drug. Linear regression data for calibration curves were shown in Table 3. The range of solution has been decided according to correlation coefficient of regression equation.
Accuracy (% recovery)
The accuracy of the method was determined by calculating % recovery of each drug by standard addition method. Percent recovery of CEFO and TAZO was determined at three different level 80%, 100% and 120% of the target concentration in triplicate, the results obtained were compared with expected results and statistically validated, are shown in Table 4.
Precision
Inter-day and Intraday precision were carried out in following concentration range 20, 40, 60μg/ml of CEFO and 2.5, 5, 7.5μg/ml of TAZO, respectively. At different time intervals in the same day and at the same time on different days. The variation in the results was analysed and statistically validated. The % relative standard deviation (%RSD) values for inter-day and intra-day precision for CEFO and TAZO are shown in Table 5.
Robustness
Robustness evaluation showed the reliability of analysis respect to deliberate variations in method parameters. The method was studied by changing flow rate (±0.2 ml/min), change in pH (±0.2), and change in mobile phase (±2%v/v) during analysis. Sample solution of 100% concentration is prepared and injected in triplicate for every condition and % Assay was calculated for each condition are shown in Table 6.
LOD and LOQ
The standard deviation of the Y-intercept and average slope of the calibration curve was used to calculate LOD and LOQ using following formulae.
LOD - Limit of detection,
LOQ – Limit of quantitation
Where, S is average value of slopes of calibration plots and SD is calculated using values of y intercepts of regression equations are shown in Table 7.
RESULTS AND DISCUSSION
Initially various mobile phases were tried in attempt to obtain the better separation and good resolution between CEFO and TAZO combined dosage form. Finally potassium dihydrogen phosphate (0.02M KH2PO4) Buffer: Methanol (80:20) at pH 4.0) was found to be an appropriate mobile phase allowing good separation of both the compounds using, Hypersil BDS C18 column at 40±5°C at 1 mL/min. flow rate. As the CEFO and TAZO exhibit significant absorbance at wavelength 250 nm, therefore it was selected as detection wavelength for simultaneous estimation of CEFO and TAZO in marketed formulation. These optimized conditions had acceptable system suitability parameters indicate good resolution for both the peaks (Table 1). The value of % Relative Standard Deviation (%RSD) was 0.78 and 0.43 for CEFO and TAZO, respectively, indicates reproducibility of the method. The Number of theoretical plates for CEFO and TAZO were 3523 and 4253, respectively, in acceptance limit. Tailing Factors for CEFO and TAZO were 1.54 and 1.56, respectively, not more than 2. LOD and LOQ for CEFO was 5.22, 16.02 that for TAZO was 0.4245, 14.15, respectively (Table 7) and these values were acceptable and therefore the optimized conditions were used for further analysis. The retention time for CEFO and TAZO were 3.86 and 7.57 min., respectively. The values of correlation coefficient for CEFO and TAZO (Table 3) demonstrated the good relationship between peak area and concentration. Therefore, the developed method was linear in concentration range of 20-60 µg/mL for CEFO and 2.5 -7.5µg/mL for TAZO. The percentage assay of CEFO and TAZO in sterile dried powder samples were 97.64% and 97.13%, respectively (Table 2). Percent recovery was 99.51±0.70% for CEFO and 98.42±0.51% for TAZO demonstrated accuracy. The high recovery obtained indicates that the proposed method is highly accurate. The low value of % RSD in intra-day and inter-day precision (Table 5) indicated reproducibility of this method.
Finally, deliberate variations were made to check the significant variations in experimental conditions (Table 6) suggested robustness of developed method.

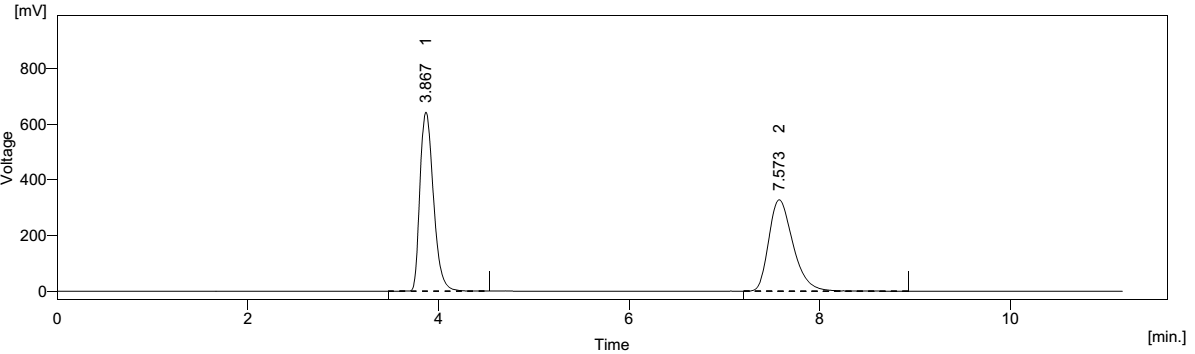

Fig. 3: Standard Solution of CEFO and TAZO

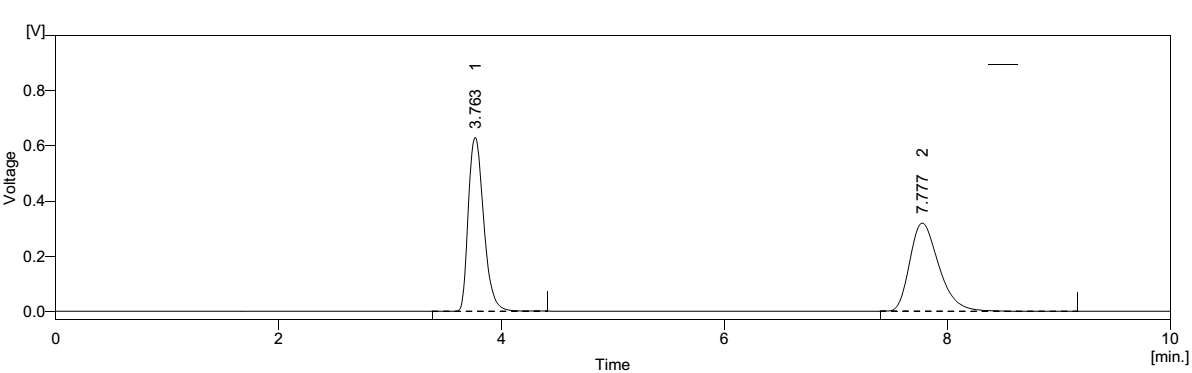

Fig. 4: Sample solution of CEFO and TAZO
Table 1: Results of system suitability test
| Parameter | Cefoperazone | Tazobactam |
| SD* | 2490.83 | 2071.57 |
| %RSD* | 0.783 | 0.435 |
| RT(min) | 3.86 | 7.57 |
| Theoretical Plate | 3523 | 4253 |
| Tailing Factor | 1.54 | 1.56 |
*n=5
Table 2: Results of Assay of Marketed formulation
| Parameters | Cefoperazone | Tazobactam |
| Label Claim (mg) | 1000 | 125 |
| Actual content found (mg) | 974.68 | 122.73 |
| % Avg Assay(n=3) | 97.64 | 97.13 |

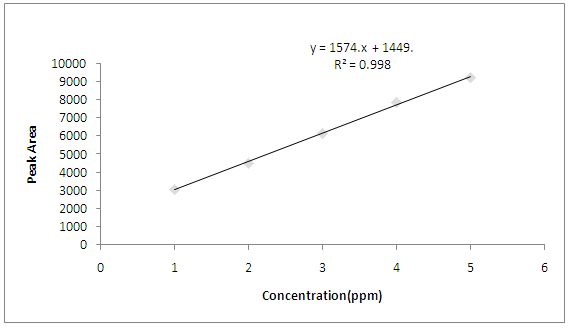

Fig. 5: Calibration curve of Cefoperazone

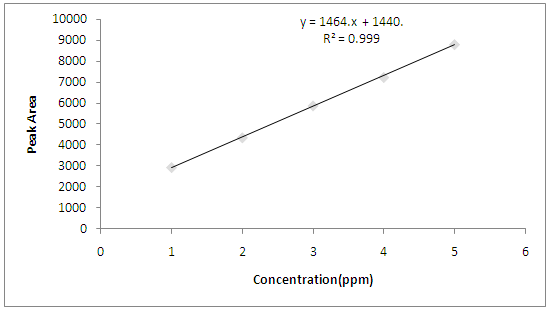

Fig. 6: Calibration curve of Tazobactam
Table 3: Linear regression data for calibration curves of Cefoperazone and Tazobactam
| Parameters | Cefoperazone | Tazobactam |
| Linearity range (µg/ml) | 20 – 60 | 2.5 –7.5 |
| Coefficient of correlation | 0.9987 | 0.9998 |
| Slope | 1574.00 | 1464.00 |
| Intercept | 1449.00 | 1440.00 |
Table 4: Accuracy data of CEFO and TAZO
| Drug | Amount Added (µg/ml) | Amount recovered (µg/ml) | Mean % Recovery ± SD* | % RSD* |
| CEFO | 80% (16 µg/ml) | 15.90 | 99.84% ± 0.5575 | 0.558 |
| 100% (20 µg/ml) | 19.90 | 99.51% ± 0.7084 | 0.711 | |
| 150% (24 µg/ml) | 23.87 | 99.49% ± 0.1756 | 0.176 | |
| TAZO | 80% (2 µg/ml) | 1.96 | 99.17% ± 0.8605 | 0.867 |
| 100% (2.5 µg/ml) | 2.48 | 98.92% ± 0.5112 | 0.516 | |
| 120% (3.5 µg/ml) | 2.95 | 98.94% ± 0.4056 | 0.409 |
*n=3
Table 5: Precision data of Cefoperazone and Tazobactam
| Parameter | Cefoperazone | Tazobactam |
| Inter-day(%RSD)* | 0.4606 | 0.6179 |
| Intra-day(%RSD)* | 0.7839 | 0.4352 |
(*n=6)
Table 6: Robustness studies of CEFO and TAZO
| Change in flow rate(1 ml/min) | Flow rate(ml/min) | Average* | Std Dev | %RSD |
| Cefoperazone | 1.2 ml/min | 6011.004 | 69.80938 | 1.16136 |
| 0.8 ml/min | 6385.375 | 38.39933 | 0.60136 | |
| Tazobactam | 1.2 ml/min | 5707.367 | 62.59649 | 1.09676 |
| 0.8 ml/min | 6066.191 | 63.03829 | 1.03917 | |
| Change in mobile phase composition Buffer:Methanol(80:20)v/v | Mobile phase(80:20)v/v | Average* | Std Dev | %RSD |
| Cefoperazone | (78:22)v/v | 6003.18 | 68.59503 | 1.142645 |
| (82:18)v/v | 6307.907 | 58.89389 | 0.933652 | |
| Tazobactam | (78:22)v/v | 5703.431 | 57.92355 | 1.015591 |
| (82:18)v/v | 5998.32 | 52.38804 | 0.873379 | |
| Change in pH(4.0) ±0.2 | Change in pH | Average* | Std Dev | %RSD |
| Cefoperazone | 4.2 | 5890.12 | 64.815 | 65.997 |
| 3.8 | 6322.73 | 1.1004 | 1.0438 | |
| Tazobactam | 4.2 | 5598.82 | 54.336 | 50.325 |
| 3.8 | 6013.94 | 0.9704 | 0.8368 |
*n=3
Table 7: LOD and LOQ
| Parameter | Cefoperazone | Tazobactam |
| LOD | 5.22 | 0.4245 |
| LOQ | 16.02 | 14.15 |
CONCLUSION
The present work represents the first report that deals with simultaneous analysis of cefoperazone and tazobactam in bulk and sterile dried injection dosage forms using RP-HPLC. It can be concluded from the results that the proposed method is simple, accurate, robust and precise. This method was validated as per ICH guidelines. Thus, it can be used for routine quality control studies for assay of cefoperazone and tazobactam.
CONFLICT OF INTERESTS
Declared None
ACKNOWLEDGEMENT
The authors wish to express their gratitude to Molecule laboratory, Ahmedabad, India for providing drug samples of Cefoperazone and Tazobactam and necessary facilities to carry out this study.
REFERENCES
- Fauci AS, Touchette NA, Folkers GK. Emerging Infectious Diseases:a 10-Year Perspective from. National Institute of Allergy and Infectious Diseases 2005;11(4):2-13.
- Kumar SA, Shetty YR., Ahmed M, Sridhar BK, Vijaya Kumar ML. Development and Validation of RP-HPLC Method for Quantitative Estimation of Cefoperazone in Bulk and Pharmaceutical dosage forms. Int J of Chem Tech Res 2011;3(3):1075-844.
- Dhandapani B, Thirumoorthy N, Shaik HR, Rama KM. RP-HPLC Method Development and Validation for the Simultaneous Estimation of Cefoperazone and Salbactam in Parenteral Preparation. Int J of Chem Tech Res 2010;2(1):752-5.
- Indian Pharmacopoeia published by Ministry of Health and Family Welfare, Government of India;Volume I & II;2010,1014. p.
- British Pharmacopoeia Commission office, London UK:Volume I;2009,1144. p.
- Bhavana M, Reddy RT, Sandhya M, Umea V, Rao M. RP-HPLC Method Development and Validation for Simultaneous Estimation of Cefepime and Tazobactam in Marketed Formulation. Int J of Pharmacy 2013;3(4):837-42.
- Tamboli SR, Patil DD. RP-HPLC Method for Simultaneous Estimation of Cefepime Hydrochloride and Tazobactam Sodium in Bulk and Pharmaceuticals. J of Chemistry 2013;1-6.
- Lalitha N, Pawar V, Puranik SB, Pai PN, Rao GK. Estimation of Cefoperazone in Marketed formulation By RP-HPLC. Oriental J of Chemistry 2008;24(2):737-40.
- Lalitha N, Puranik SB, Pai PN. A Stability-Indicating HPLC Method for Cefoperazone. Eur J Anaytical Chemistry 2009;4(1):110-8.
- Kumar Vinod K, Dharuman J, Karuna A. RP-HPLC Method Development and Validation for Simultaneous Estimation of Sulbactam and Cefoperazone in Dosage form and in Plasma. Int J of Pharm and Bio Sci 2010;4(1):87-92.
- Abdullah NA, Ayad MF, El-Kosasy AM. HPLC and Densitometric TLC Methods for Simultaneous Determination of Pazufloxacin with Some Co-administered Drugs in human Plasma. J Chromatography Séparation Techniques 2012;3(8):1-8.
- Rao LA, Sai KK, Kiran Kumar CH, Raja T. Simultaneous determination of Piperacillin and Tazobactum in bulk and Pharmaceutical dosage forms by RPHPLC. Int J of Pharmacy and Pharm Sci 2011;3(2):134-6.
- Malgundkar SS, Mulla S, Validated HPTLC Method for Simultaneous Determination of Ceftriaxone Sodium and Tazobactam Sodium in Combined Dosage Form. J of Pharmacy and Biological Sci 2014;9(2):60-5.
- Jadhav JS, Vassa SP, Jain HK. Development and validation of a RP-HPLC method for simultaneous determination of Pantoprazole and Cinitapride in antiulcer formulation. Int J of Pharmacy and Pharm Sci 2012;4(4):657-9.
- Devkare PN, Jain HK. Development and Validation of RP-HPLC Method for Simultaneous Estimation of S (-) Amlodipine Besylate and Clopidogrel Bisulphate in Tablet Dosage Form. Int J of Pharmacy and Pharm Sci 2013;5(3):770-5.
- H. IC. Guideline, Validation of Analytical Procedures:Text and Methodology Q2 (R1). 2005.
