Int J Pharm Pharm Sci, Vol 9, Issue 6, 180-188Original Article



DESIGN, SYNTHESIS AND ANTICONVULSANT PROFILE OF 5-(BENZO [D][1,3]DIOXOL-5-YL)-3-TERT-BUTYL-4, 5-DIHYDROPYRAZOLE DERIVATIVES

MOHAMMED FARRAG EL-BEHAIRY^a*, HANAN NAEIM HAFEZ ATTIA^b

^aMedicinal and Pharmaceutical Chemistry Department, Pharmaceutical and Drug Industries Research Division, National Research Centre (ID 60014618), 12622 Dokki, Giza, Egypt, ^bMedicinal and Pharmaceutical Chemistry Department (Pharmacology Group), Pharmaceutical and Drug Industries Research Division, National Research Centre (ID 60014618), 12622 Dokki, Giza, Egypt
Email: mohabeha@gmail.com

Received: 11 Jul 2016 Revised and Accepted: 09 May 2017

---

ABSTRACT

Objective: Utilisation of the ligand-based design and molecular hybridization to design promising candidates with prospective efficacy and safety. Synthesis of the designed candidates using different synthetic methods. Biological evaluation of the newly synthesised candidates as anticonvulsant agents.

Methods: Three novel series of 5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydropyrazoles have been designed via ligand-based drug discovery and molecular hybridization. Proper synthetic routes have been followed in the preparation of compounds (2-23) which have been characterised by different spectral techniques. Antiepileptic potential was assessed by biological evaluation using ‘classical’ animal models of epilepsy, in addition to rotarod test for toxicity.

Results: 4-Nitrophenyl derivatives (5, 13, and19) displayed the highest potency. Compound 5was the most active substituent in series A (N'-aroyl-3-tert-butyl-4,5-dihydro-1H-pyrazole-1-carbohydrazide). It was 2.7 and 1.3 times more active than reference drug Stiripentol (I) and lead compound III, respectively. Compound13 was the best candidate in series B (N'-arylidene-3-tert-butyl-4,5-dihydro-1H-pyrazole-1-carbohydrazide). It was 3.3, 1.5, and 1.2 times more potent than Stiripentol, lead compound III and new compound 5, respectively. Two members (19 and 21) of series C (1,3,4-oxadiazole derivatives) achieved 100 % protection at lower doses than I and III, being 2.6 and 2.4 times more active than Stiripentol. In scPTZ screen, the most active congeners (5, 13, 19) exhibited ED₅₀ values of 45, 48, and 81 mg/kg, respectively, which are highly superior as compared to that of reference drug Stiripentol(I) and lead compound III (ED₅₀ 115 and 110 mg/kg, respectively).

Conclusion: Ligand-based design together with molecular hybridization in drug design succeeded to produce potent and wide spectrum candidates.

Keywords: Stiripentol, Anticonvulsant, Ligand-based drug design, Molecular hybridization, 2-pyrazoline

---

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2017v9i6.17520

INTRODUCTION

Epilepsy is the most common neurological disorder after stroke, debilitating around 50 million people worldwide. It is worth noting that 80% of epileptic patients were diagnosed in developing countries, such as Egypt [1, 2]. In the past two decades, many antiepileptic drugs have been launched, such as carbazepine, levetiracetam, stiripentol, fluoro felbamate, pregabalin, lamotrigine, gabapentin, and topiramate. Unfortunately, these treatments are not prescribed to three out of four patients in developing countries [1]. Moreover, therapy-resistant epilepsy still affects about 1.8 million people worldwide [3]. Convulsions in 30% of epileptics remain inadequately controlled by available drug therapy [4]. Furthermore, CNS related adverse side effects such as executive function, diminished attention, language skills, memory and processing speed are frequently reported [5]. Accordingly, new generation antiepileptic drugs (AEDs) fail to exhibit ample advantage over the formerly recognised agents. Hence, further search for safer and more effective AEDs is mandatory.

Rational drug design procedures are frequently used for drug discovery of biological targets (with well-known three-dimensional structure). But for new AEDs, ligand-based drug design is the dominant technique, due to the lack of human epilepsy pathogenic data [6]. This technique is based on utilizing present structure-activity relationship (SAR) data of old and new generation AEDs, besides other potent anticonvulsant candidates, followed by structural modifications.

Following the ligand-based design, our group has developed a series of derivatives from stiripentol (I) (an orphan antiepileptic drug with unique activity against severe myoclonic epilepsy in infants (SMEI)/or Dravet’s syndrome [7]). Compounds II and III were the most active congeners showing potent activity in MES and scPTZ screens, respectively. At 350 μmol, compound III was 2.13 times more active than stiripentol in scPTZ test, while compound II displayed 100% protection against MES screen at the same dose level, which was unachievable by lead compound (stiripentol I), even at 747 μmol [8].

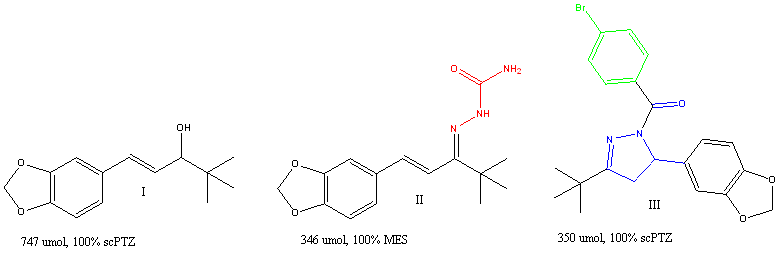

Fig. 1: Structures of stiripentol (I) and its active anticonvulsant derivatives II and III [8]

Compounds II and III represent very good progress in stiripentol activity. However, the spectrum of such compounds was narrow, since compound II which showed 100% protection in MES test, displayed 50 % protection in scPTZ screen. Meanwhile, compound III exhibited only 16 % protection in MES but achieved 100 % in scPTZ test. These results justify the need for further structural optimisations in order to broaden their spectrum of activity. The systematic SAR study of compounds II and III concluded that the presence of the semicarbazone moiety (red color) as non-substituted open chain form (compound II) was very beneficial for the MES activity while its cyclization to aroyl substituted 2-pyrazoline (blue and green color) was enough to favor the activity against scPTZ-induced seizures (compound III). Thus, it was very compelling to design a molecule which contains both semicarbazone moiety (red color) and the 2-pyrazoline structure (blue color). This design leads to series A, 5-(benzo [d] [1, 3] dioxol-5-yl)-N'-aroyl-3-tert-butyl-4, 5-dihydro-1H-pyrazole-1-carbohydrazide, derivatives (3-10) (fig. 2).

Converting the amide group in series A to imine moiety in series B, 5-(benzo[d][1,3]dioxol-5-yl)-N'-arylidene-3-tert-butyl-4,5-dihydro-1H-pyrazole-1-carbohydrazide derivatives (11-16), is satisfactory as well, since it produces typical semicarbazone structure and permits studying the effect of H-bond donors/acceptors on the activity.

Additionally, the influence of cyclizing the aroyl carbohydrazide moiety of series A to 1,3,4-oxadiazole, which is a native anticonvulsant scaffold[9-11]in series C, 2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(4-bromo phenyl)-1,3,4-oxadiazole derivatives (17-22), is very intriguing, since it will completely omit the H-bond donors and consequently elaborate its impact on anticonvulsant activity. These designs have followed the pharmacophoric model that has been put forward for antiepileptic activity owing to conformational investigations on prevailing anticonvulsant drugs such as phenytoin, carbamazepine, lamotrigine and phenobarbitone [12, 13].

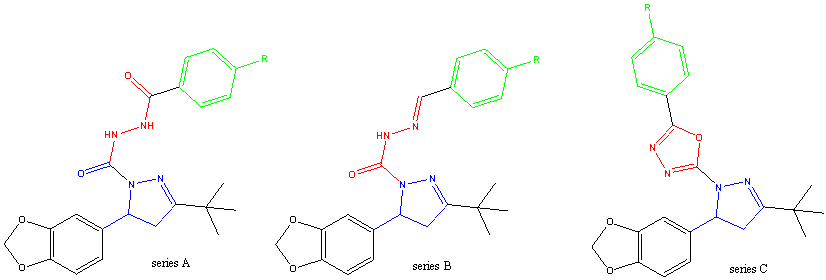

Fig. 2: Structures of the anticipated series A, B, and C showing different pharmacophoric moieties

In view of the aforementioned findings, the aim of the present study was to adopt the ligand-based design and molecular hybridization process in order to obtain promising candidates, with prospective efficacy and safety profile, as compared to reference AEDs (Stiripentol (I), lead compounds II and III). Biological assessment of antiepileptic potential was performed using ‘classical’ animal models of epilepsy (MES and scPTZ seizure tests), in addition to the neurotoxicity test.

MATERIALS AND METHODS

Materials

Drugs and chemicals

All chemicals utilized in the chemical preparation were of analytical grade

Chemistry

All melting points were determined using electrothermal capillary melting point apparatus and are uncorrected. Infrared (IR) spectra were recorded as a thin film (for oils) in NaCl discs or as KBr pellets (for solids) with JASCO FT/IR-6100 spectrometer and values are represented in cm^-1. ¹H NMR (300 and 500 MHz) and ¹³C NMR (75 and 125 MHz) spectra were carried out on Jeol ECA 500 MHz spectrometer and Avance II NMR 300 MHz spectrometers (Bruker Biospin) using TMS as internal standard and chemical shift values were recorded in ppm on δ scale.

The ¹H NMR data were represented as follows: chemical shifts, multiplicity (s. singlet, d. doublet, dd. doublet of the doublet, t. triplet, m. multiplet, br. Broad, AR. aromatic), a number of protons. The ¹³C NMR data were represented as chemical shifts. Mass spectral data were obtained with electron impact (EI) ionisation technique at 70 eV from a Finnigan Mat SSQ-7000 Spectrophotometer. Silica gel TLC (thin layer chromatography) cards from Merck (silica gel precoated aluminium cards with a fluorescent indicator at 245 nm) were used for thin layer chromatography. Visualization was performed by illumination with UV light source (254 nm). Column chromate-graphy was carried out on silica gel 60 (0.063-0.200 mm) obtained from Merck.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazole (1)

Compound 1 has been synthesised according to the reported procedures by Aboul-Enein et al. [8].

Synthesis of 5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazole-1-carbohydrazide (2)

To a stirred solution of 1 (2.0 g, 8.1 mmol) in 20 ml CHCl₃, phosgene (12.5% w/v solution in toluene, 0.8 g, 6.4 ml, 8.1 mmol) was added. The mixture was stirred at room temperature for10 min followed by the addition of hydrazine hydrate (2.0 g., 2.0 ml, 40.5 mmol, 5 mol equivalents). The reaction mixture was stirred at room temperature for 30 min then washed with NaHCO₃ (10%, 20 ml). Water and organic layer were separated, dried (Na₂SO₄) and evaporated under vacuum to afford 2.4 g of 2 as white powder (mp 164-166 ^◦C). IR (KBr, cm^-1): 3451 (NH₂), 3354 (NH), 1736 (C=O), 1690 (C=N).¹H NMR (CDCl₃,500 MHz): δ =7.01 (s, 1H, NHCO), 6.79–6.66 (m, 3H, AR-H), 5.88 (s, 2H, OCH₂O), 5.30 (dd, J = 11.45, 5.35 Hz, 1H, pyrazoline-H), 3.66 (s, 2H, NH₂), 3.30 (dd, J = 17.6, 12.2 Hz, 1H, Pyrazoline-H), 2.68 (dd, J = 17.6, 5.35 Hz, 1H, pyrazoline-H), 1.21 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃,125 MHz) δ 163.8(C=N),156.9 (C=O), 148.1 (AR-C), 146.9 (AR-C), 136.9 (AR-C), 118.9 (AR-C), 108.5 (AR-C), 105.8 (AR-C), 101.1 (OCH₂O), 60.4 (pyrazoline-CH), 41.7 (pyrazoline-CH₂), 34.0 (t-Butyl-C), 28.0 (CH₃).

General procedure for synthesis of 5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-aroyl-4,5-dihydro-1H-pyrazole-1-carbohydrazide (3-10)

To a stirred solution of 2 (2.0 g, 6.5 mmol) in chloroform, appropriate acid chloride (6.5 mmol) was added followed by triethylamine (0.66 g., 0.92 ml, 6.5 mmol). The reaction mixture was stirred at room temperature for 18h, washed with NaHCO₃ (10%, 20 ml). Water and organic layer were separated, dried (Na₂SO₄) and evaporated under vacuum to afford crude products, which were further purified by crystallization from ethanol.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-benzoyl-4,5-dihydro-1H-pyrazole-1-carbohydrazide (3)

White solid, yield 63%, mp 176 ^◦C, IR (KBr, cm^-1): 3419 (NH), 3231 (NH), 1641(broad, C=O, C=N).¹H NMR (CDCl₃, 300 MHz) δ 8.41 (s, 1H, NHCO), 8.01 (s, 1H, NHCO), 7.81 (d, J = 7.07 Hz, 2H, AR-H), 7.57–7.34 (m, 3H, AR-H), 6.79–6.66 (m, 3H, AR-H), 5.94 (s, 2H, OCH₂O), 5.30 (dd, J = 11.7, 5.1 Hz, 1H, pyrazoline-H), 3.40 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.80 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 1.26 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 168.1 (C=N), 166.3 (C=O), 156.7 (C=O),148.0 (AR-C), 147.1(AR-C), 138.9 (AR-C), 133.8 (AR-C), 132.9 (AR-C), 129.2 (AR-C), 128.8(AR-C), 119.1 (AR-C), 109.4 (AR-C), 106.5 (AR-C), 100.4 (OCH₂O), 60.8 (pyrazoline-CH), 41.1 (pyrazoline-CH₂), 35.1 (t-butyl-C), 27.9 (CH₃). MS: for C₂₂H₂₄N₄O₄, calculated. 408.18 (M⁺), found 408.21.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-bromobenzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide(4)

White solid, yield 58%, mp184 ^◦C, IR (KBr, cm^-1): 3284 (NH), 1651(broad, C=O, C=N).¹H NMR (CDCl₃, 300 MHz) δ 8.13 (d, J = 4.4 Hz, 1H, NHCO), 8.0 (d, J = 4.41 Hz, 1H, NHCO), 7.68 (d, J = 8.6 Hz, 2H, AR-H), 7.58 (d, J = 8.54 Hz, 2H, AR-H), 6.82–6.67 (m, 3H, AR-H), 5.96 (s, 2H, OCH₂O), 5.31 (dd, J = 11.7, 5.1 Hz, 1H, pyrazoline-H), 3.42 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.81 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 1.26 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 165.6 (C=N), 165.1 (C=O), 153.5 (C=O), 148.0 (AR-C), 147.0 (AR-C), 136.1 (AR-C), 131.5 (AR-C), 130.5 (AR-C), 128.9 (AR-C), 126.6 (AR-C), 118.1 (AR-C), 108.4 (AR-C), 105.8 (AR-C), 101.1 (OCH₂O), 60.2 (pyrazoline-CH), 41.9 (pyrazoline-CH₂), 34.1 (t-butyl-C), 28.0 (CH₃). MS: for C₂₂H₂₃BrN₄O₄, calculated486.09 (M⁺), found 486.22 and (M⁺+2) 488.20.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-nitrobenzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (5)

Yellow solid, yield 84 %, 228 ^◦C, IR (KBr, cm^-1): 3386 (NH), 3192 (NH), 1645(broad, C=O, C=N). ¹H NMR (CDCl₃, 300 MHz) δ 8.75 (s, 1H, NHCO), 8.28 (d, J = 8.5 Hz, 2H, AR-H), 8.19 (d, J = 8.5 Hz, 2H, AR-H), 6.71 (d, J = 7.9 Hz, 1H, AR-H), 6.60 (dd, J = 7.9, 1.8 Hz, 1H, AR-H), 6.04 (s, 1H, AR-H), 5.99 (dd, J = 13.77, 1.4 Hz, 2H, OCH₂O), 5.32 (dd, J = 11.3, 4.7 Hz, 1H, yrazoline-H), 3.36 (dd, J = 18.3, 11.4 Hz, 1H, pyrazoline-H), 2.75 (dd, J = 18.4, 4.7 Hz, 1H, pyrazoline-H), 1.20 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 165.93 (C=N), 164.39 (C=O), 154.79 (C=O), 148.04 (AR-C), 147.0 (AR-C), 136.98 (AR-C), 135.89 (AR-C), 129.21 (AR-C), 128.81 (AR-C), 123.34 (AR-C), 118.76 (AR-C), 108.41 (AR-C), 105.51 (AR-C), 101.25 (OCH₂O), 60.81 (pyrazoline-CH), 41.62 (pyrazoline-CH₂), 34.14 (t-Butyl-C), 27.93 (CH₃). MS: for C₂₂H₂₃N₅O₆, calculated. 453.16 (M⁺+H), found 454.15.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(3,4,5-trimethoxy-benzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (6)

White solid, yield 73 %, mp 146 ^◦C, IR (KBr, cm^-1): 3335 (NH), 3253 (NH), 1657 (broad, C=O, C=N).¹H NMR (CDCl₃, 300 MHz) δ 9.31 (s, 1H, NHCO), 7.90 (d, J = 3.5 Hz, 1H, NHCO), 7.06 (s, 2H, AR-H), 6.83–6.68 (m, 3H, AR-H), 5.99 (dd, J = 4.68, 1.4 Hz, 2H, OCH₂O), 5.34 (dd, J = 11.6, 4.7 Hz, 1H, pyrazoline-H), 3.83 (s, 3H, OCH₃), 3.71 (s, 6H, OCH₃), 3.43 (dd, J = 17.9, 11.7 Hz, 1H, Pyrazoline-H), 2.80 (dd, J = 17.8, 4.8 Hz, 1H, pyrazoline-H), 1.25 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 166.2 (C=N), 164.6 (C=O), 155.4 (C=O), 152.3 (AR-C), 147.7 (AR-C), 146.2 (AR-C), 140.0 (AR-C), 131.5 (AR-C), 126.5 (AR-C), 121.5 (AR-C), 107.7 (AR-C), 105.4 (AR-C), 103.8 (AR-C), 100.4 (OCH₂O), 60.8 (OCH₃), 60.5 (OCH₃), 60.0 (pyrazoline-CH₂), 56.2 (OCH₃), 42.1 (pyrazoline-CH), 34.2(t-Butyl-C), 28.1 (CH₃). MS: for C₂₅H₃₀N₄O₇, calculated calcd. 498.21 (M⁺), found 498.54.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-aminobenzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (7)

White solid, yield 86 %, 188 ^◦C, IR (KBr, cm^-1): 3464 (NH₂), 3343 (NH), 3235 (NH), 1633(broad, C=O, C=N). ¹H NMR (CDCl₃, 300 MHz) δ 8.33 (s, 1H, NHCO), 7.96 (s, 1H, NHCO), 7.60 (d, J = 8.6 Hz, 2H, AR-H), 6.79–6.60 (m, 3H, AR-H), 6.57 (d, J = 8.61 Hz, 2H, AR-H), 5.92 (s, 2H, OCH₂O), 5.27 (dd, J = 11.7, 5.0 Hz, 1H, pyrazoline-H), 3.48 (s, 2H, NH₂), 3.36 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.75 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 1.23 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 166.3(C=N), 164.1(C=O), 154.5(C=O), 150.0 (AR-C), 148.0 (AR-C), 147.1 (AR-C), 137.3 (AR-C), 129.2 (AR-C), 121.5 (AR-C), 119.1 (AR-C), 113.4 (AR-C), 109.4 (AR-C), 107.5 (AR-C), 100.5 (OCH₂O), 60.5(pyrazoline-CH₂), 42.2(pyrazoline-CH), 33.8(t-Butyl-C), 28.5(CH₃). MS: for C₂₂H₂₅N₅O₄, calculated. 423.19 (M⁺), found 423.20.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-chlorobenzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (8)

White solid, yield 75%, mp 152 ^◦C, IR (KBr, cm^-1): 3449 (NH), 3235 (NH), 1643(broad, C=O, C=N).¹H NMR (CDCl₃, 300 MHz) δ 8.20 (d, J = 4.3 Hz, 1H, NHCO), 7.99 (d, J = 4.3 Hz, 1H, NHCO), 7.75 (d, J = 8.66 Hz, 2H, AR-H), 7.40 (d, J = 8.62 Hz, 2H, AR-H), 6.82–6.67 (m, 3H, AR-H), 5.96 (s, 2H, OCH₂O), 5.31 (dd, J = 11.6, 5.1 Hz, 1H, pyrazoline-H), 3.44 (dd, J = 17.93, 11.6 Hz, 1H, pyrazoline-H), 2.81 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 1.26 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 166.2(C=N), 165.1(C=O), 155.0(C=O), 148.1 (AR-C), 147.2 (AR-C), 138.0 (AR-C), 136.5 (AR-C), 129.8 (AR-C), 128.8 (AR-C), 128.0 (AR-C), 118.5 (AR-C), 108.2(AR-C), 105.0 (AR-C), 100.4(OCH₂O), 59.1(pyrazoline-CH₂), 40.5 (pyrazoline-CH), 32.5(t-butyl-C), 26.5(CH₃). MS: for C₂₂H₂₃ClN₄O₄, calcd. 442.14 (M⁺), found 442.15.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-methylbenzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (9)

White solid, yield 52%, mp 148 ^◦C, IR (KBr, cm^-1): 3437 (NH), 3245 (NH), 1644(broad, C=O, C=N).¹H NMR (CDCl₃, 300 MHz) δ 8.43 (d, J = 4.2 Hz, 1H, NHCO), 7.99 (d, J = 4.1 Hz, 1H, NHCO), 7.70 (d, J = 8.25 Hz, 2H, AR-H), 7.19 (d, J = 8.0 Hz, 2H, AR-H), 6.79–6.66 (m, 3H, AR-H), 5.94 (q, J = 1.5 Hz, 2H, OCH₂O), 5.29 (dd, J = 11.7, 5.1 Hz, 1H, pyrazoline-H), 3.39 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.79 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 2.39 (s, 3H, CH₃), 1.25 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 167.4 (C=N),165.0 (C=O),154.5 (C=O), 148.5 (AR-C), 147.3 (AR-C), 142.5(AR-C), 136.3 (AR-C), 129.0 (AR-C), 127.5 (AR-C), 119.1 (AR-C), 108.4 (AR-C), 106.0 (AR-C), 101.0(OCH₂O), 60.5 (pyrazoline-CH₂), 41.5 (pyrazoline-CH), 33.8 (t-butyl-C), 27.5(CH₃), 21.7(CH₃). MS: for C₂₃H₂₆N₄O₄, calculated. 422.20 (M⁺), found 422.35.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-methoxy-benzoyl)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (10)

White solid, yield 56%, mp 188 ^◦C, IR (KBr, cm^-1): 3247 (NH), 1644(broad, C=O, C=N).¹H NMR (CDCl₃, 300 MHz) δ 8.01 (d, J = 4.5 Hz, 1H, NHCO), 7.86 (d, J = 4.4 Hz, 1H, NHCO), 7.80 (d, J = 8.54 Hz, 2H, AR-H), 6.94 (d, J = 8.7 Hz, 2H, AR-H), 6.83–6.68 (m, 3H, AR-H), 5.95 (s, 2H, OCH₂O), 5.31 (dd, J = 11.6, 5.1 Hz, 1H, pyrazoline-H), 3.87 (s, 3H, OCH₃), 3.57–3.34 (dd, J = 11.87, 17.86 Hz, 1H, pyrazoline-H), 2.81 (dd, J = 17.9, 5.2 Hz, 1H, pyrazoline-H), 1.26 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 166.3 (C=N), 164.7 (C=O), 162.4 (C=O), 154.6 (AR-C), 148.0 (AR-C), 147.0 (AR-C), 136.4 (AR-C),129.3 (AR-C), 124.3 (AR-C), 118.9 (AR-C), 113.7 (AR-C), 108.4 (AR-C), 106.0 (AR-C), 101.1 (OCH₂O), 60.3 (pyrazoline-CH₂), 55.4 (OCH₃), 41.9 (pyrazoline-CH), 34.1(t-butyl-C),28.0(CH₃). MS: for C₂₃H₂₆N₄O₅, calculated. 438.19 (M⁺), found 438.24.

General procedure for synthesis of 5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-arylidene-4,5-dihydro-1H-pyrazole-1-carbohydrazide (11-16)

Glacial acetic acid (1 ml) was added to a solution of 2 (0.5 g, 0.0016 mol) and the appropriate aldehyde (0.0016 mol) in absolute ethanol (30 ml). The reaction mixture was stirred under reflux for the appropriate time (TLC controlled). The solvent was evaporated under reduced pressure to afford the respective crude products 11-16. The crude products were purified by column chromatography using silica gel and CHCl₃/ethyl acetate 5/1 v/v as mobile phase.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-benzylidene-4,5-dihydro-1H-pyrazole-1-carbohydrazide (11)

White solid, yield 62 %, 162 ^◦C. IR (KBr, cm^-1): 3304 (NH), 1691 (C=O), 1520 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 9.23 (s, 1H, CH=N), 8.15 (s, 1H, NHCO), 7.72 (dd, J = 7.3, 2.5 Hz, 2H, AR-H), 7.43–7.33 (m, 3H, AR-H), 6.81–6.68 (m, 3H, AR-H), 5.95 (q, J = 1.4 Hz, 2H, OCH₂O), 5.39 (dd, J = 11.7, 5.1 Hz, 1H, pyrazoline-H), 3.43 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.83 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 1.27 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 164.4(C=N, pyrazoline), 151.1(C=O), 148.1 (AR-C), 147.1 (AR-C), 144.2(C=N), 136.5 (AR-C), 134.4 (AR-C), 129.5 (AR-C), 128.2 (AR-C), 127.3 (AR-C), 119.6 (AR-C), 108.4 (AR-C), 106.5 (AR-C),101.3 (OCH₂O), 59.9 (pyrazoline-CH₂), 42.1 (pyrazoline-CH), 33.8(t-butyl-C), 28.2(CH₃). MS: for C₂₂H₂₄N₄O₃, calculated calcd. 392.18 (M⁺), found 392.64.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-bromo-benzylidene)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (12)

White solid, yield 90 %, mp 136-138 ^◦C. IR (KBr, cm^-1): 3340 (NH), 1689 (C=O), 1515 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 9.25 (s, 1H, CH=N), 8.12 (s, 1H, NHCO), 7.59 (d, J = 8.47 Hz, 2H, AR-H), 7.51 (d, J = 8.55 Hz, 2H, AR-H), 6.74 (m, 3H, AR-H), 5.95 (q, J = 1.5 Hz, 2H, OCH₂O), 5.38 (dd, J = 11.7, 5.1 Hz, 1H, pyrazoline-H), 3.57–3.35 (dd, J = 11.7, 18.0 Hz, 1H, pyrazoline-H), 2.83 (dd, J = 18.0, 5.1 Hz, 1H, pyrazoline-H), 1.26 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 164.5(C=N, pyrazoline), 151.4(C=O), 148.0 (AR-C), 147.1 (AR-C), 143.5(C=N), 136.4 (AR-C), 134.4 (AR-C), 132.3 (AR-C), 128.5 (AR-C), 123.2 (AR-C), 118.5 (AR-C), 108.4 (AR-C), 105.5 (AR-C), 100.5 (OCH₂O), 60.2 (pyrazoline-CH₂), 42.4 (pyrazoline-CH), 34.1(t-butyl-C), 29.0(CH₃). MS: for C₂₂H₂₃BrN₄O₃, calculated. 470.1 (M⁺), found 470.34, 472.35 (M⁺+2).

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-nitrobenzylidene)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (13)

Yellow solid, yield 70 %, mp 196-198 ^◦C. IR (KBr, cm^-1): 3341 (NH), 1683 (C=O), 1515 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 9.44 (s, 1H, CH=N), 8.30 (s, 1H, NHCO), 8.25 (d, J = 8.7 Hz, 2H, AR-H), 7.87 (d, J = 8.5 Hz, 2H, AR-H), 6.82–6.66 (m, 3H, AR-H), 5.96 (d, J = 2.1 Hz, 2H, OCH₂O), 5.39 (dd, J = 11.7, 5.0 Hz, 1H, pyrazoline-H), 3.45 (dd, J = 18.0, 11.7 Hz, 1H, pyrazoline-H), 2.86 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 1.28 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 165.1(C=N, pyrazoline), 151.5(C=O), 148.0 (AR-C), 147.2 (AR-C), 142.0(C=N), 141.3 (AR-C), 136.5 (AR-C), 128.5 (AR-C), 124.9 (AR-C), 119.1 (AR-C), 108.9 (AR-C), 107.1 (AR-C), 101.5 (OCH₂O), 60.1 (pyrazoline-CH₂), 41.8 (pyrazoline-CH), 33.8(t-butyl-C), 28.2(CH₃). MS: for C₂₂H₂₃N₅O₅, calculated. 437.17 (M⁺), found 437.39.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(3,4,5-trimethoxybenzylidene)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (14)

White solid, yield 53 %, mp 230-232 ^◦C. IR (KBr, cm^-1): 3241 (NH), 1662 (C=O), 1577 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 9.20 (s, 1H, CH=N), 8.10 (s, 1H, NHCO), 6.96 (s, 2H, AR-H), 6.82–6.67 (m, 3H, AR-H), 5.94 (q, J = 1.5 Hz, 2H, OCH₂O), 5.36 (dd, J = 11.7, 5.1 Hz, 1H, Pyrazoline-H), 3.89 (s, 9H, OCH₃), 3.43 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.83 (dd, J= 17.9, 5.2 Hz, 1H, pyrazoline-H), 1.26 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 164.9(C=N, pyrazoline), 152.5(C=O), 150.8 (AR-C), 148.1 (AR-C), 147.1 (AR-C), 144.3(C=N), 139.1 (AR-C), 136.5 (AR-C), 129.9 (AR-C), 118.9 (AR-C), 108.9 (AR-C), 107.2 (AR-C), 104.9 (AR-C), 101.3 (OCH₂O), 61.1 (pyrazoline-CH), 60.0 (OCH₃), 56.9 (OCH₃), 41.9 (pyrazoline-CH₂), 33.5(t-butyl-C), 28.1(CH₃). MS: for C₂₅H₃₀N₄O₆, calculated. 482.22 (M⁺+1), found 483.41.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-methyl-benzylidene)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (15)

White solid, yield 75 %, mp 186 ^◦C. IR (KBr, cm^-1): 3343(NH), 1702 (C=O), 1501 (C=N). ¹H NMR (CDCl₃, 300 MHz) δ 9.17 (s, 1H, CH=N), 8.11 (s, 1H, NHCO), 7.62 (d, J = 8.1 Hz, 2H, AR-H), 7.19 (d, J = 7.9 Hz, 2H, AR-H), 6.82–6.67 (m, 3H, AR-H), 5.95 (d, J = 1.5 Hz, 2H, OCH₂O), 5.38 (dd, J = 11.8, 5.1 Hz, 1H, pyrazoline-H), 3.42 (dd, J = 17.9, 11.7 Hz, 1H, pyrazoline-H), 2.82 (dd, J = 17.9, 5.1 Hz, 1H, pyrazoline-H), 2.38 (s, 3H, CH₃), 1.26 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 164.1(C=N, pyrazoline), 151.2(C=O), 148.2 (AR-C), 147.1 (AR-C), 144.3(C=N), 139.8 (AR-C), 137.4 (AR-C), 132.3 (AR-C), 129.1 (AR-C), 126.9 (AR-C), 119.1 (AR-C), 109.1 (AR-C), 106.5 (AR-C), 101.5 (OCH₂O), 60.5 (pyrazoline-CH), 40.8 (pyrazoline-CH₂), 34.1(t-butyl-C), 28.5(CH₃), 21.9(CH₃). MS: for C₂₃H₂₆N₄O₃, calculated. 406.2 (M⁺), found 406.39.

5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-N'-(4-methoxy-benzylidene)-4,5-dihydro-1H-pyrazole-1-carbohydrazide (16)

White solid, yield 50 %, mp 106-108 ^◦C. IR (KBr, cm^-1): 3428 (NH), 1689 (C=O), 1506 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 9.17 (s, 1H, CH=N), 8.06 (s, 1H, NHCO), 7.64 (d, J = 8.1 Hz, 2H, AR-H), 6.88 (d, J = 7.9 Hz, 2H, AR-H), 6.74–6.70 (m, 3H, AR-H), 5.95 (t, J = 1.86 Hz, 2H, OCH₂O), 5.37 (dd, J = 11.73, 5.07 Hz, 1H, pyrazoline-H), 3.83 (s, 3H, OCH₃), 3.41 (dd, J = 15.21, 11.79 Hz, 1H, pyrazoline-H), 2.80 (dd, J = 13.89, 5.01 Hz, 1H, pyrazoline-H), 1.20 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 164.9(C=N, pyrazoline), 161.2(C=O), 151.3 (AR-C), 148.1 (AR-C), 146.9 (AR-C), 144.4(C=N), 136.5 (AR-C), 128.6 (AR-C) 127.2 (AR-C), 119.0 (AR-C), 113.9 (AR-C), 108.4 (AR-C), 106.0 (AR-C), 101.0 (OCH₂O), 59.8 (pyrazoline-CH), 55.3 (OCH₃), 41.8 (pyrazoline-CH₂), 34.0(t-butyl-C), 27.9(CH₃). MS: for C₂₃H₂₆N₄O₄, calculated. 422.2 (M⁺), found 422.37.

General procedure for synthesis of 2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(aryl)-1,3,4-oxadiazole17-22

A solution of an appropriate derivative 3-9in phosphorus oxychloride (POCl₃, 5.0 ml) was refluxed for 3 h, diluted carefully with water then NaHCO₃ was added till being alkaline. The precipitate was filtered and recrystallized from ethanol to afford compounds 17-23.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-phenyl-1,3,4-oxadiazole (17)

White solid, yield 81 %, mp 180 ^◦C. IR (KBr, cm^-1): 1606 (broad, C=N).

¹H NMR (CDCl₃, 300 MHz) δ 8.01–7.92 (m, 2H, AR-H), 7.48 (d, J = 2.7 Hz, 1H, AR-H), 7.46 (s, 2H, AR-H), 6.94–6.76 (m, 3H, AR-H), 5.97 (d, J = 3.2 Hz, 2H, OCH₂O), 5.35 (dd, J = 11.5, 7.4 Hz, 1H, Pyrazoline-H), 3.52 (dd, J = 18.04, 11.99 Hz, 1H, Pyrazoline-H), 2.96 (dd, J = 17.6, 7.5 Hz, 1H, Pyrazoline-H), 1.31 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 166.0(C=N), 161.3(C=N), 160.4(C=N), 148.2 (AR-C), 147.5 (AR-C), 134.6 (AR-C), 130.7 (AR-C), 128.8(AR-C), 126.1 (AR-C), 124.4 (AR-C), 120.1 (AR-C), 108.5 (AR-C), 106.4 (AR-C), 101.2 (OCH₂O), 63.8 (Pyrazoline-CH), 43.0 (Pyrazoline-CH₂), 34.2(t-Butyl-C), 28.1(CH₃). MS: for C₂₂H₂₂N₄O₃, calculated. 390.17 (M⁺), found 390.19.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(4-bromophenyl)-1,3,4-oxadiazole (18)

White solid, yield 89 %, 208 ^◦C. IR (KBr, cm^-1): 1720 (C=N), 1621 (C=N). ¹H NMR (CDCl₃, 300 MHz) δ 7.83 (d, J = 8.3 Hz, 2H, AR-H), 7.60 (d, J = 8.3 Hz, 2H, AR-H), 6.93–6.75 (m, 3H, AR-H), 5.97 (d, J = 1.5 Hz, 2H, OCH₂O), 5.34 (dd, J = 11.5, 7.4 Hz, 1H, Pyrazoline-H), 3.54 (dd, J = 17.7, 11.5 Hz, 1H, Pyrazoline-H), 2.96 (dd, J = 17.8, 7.4 Hz, 1H, Pyrazoline-H), 1.32 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 164.1 (C=N), 160.0 (C=N), 158.1 (C=N), 148.0(AR-C), 147.1(AR-C), 134.3 (AR-C), 132.0(AR-C), 127.5(AR-C),125.2(AR-C), 123.5 (AR-C), 120.0(AR-C), 109.0(AR-C), 106.5 (AR-C), 101.5 (OCH₂O), 63.3 (Pyrazoline-CH), 43.1 (Pyrazoline-CH₂), 33.8 (t-Butyl-C), 28.2(CH₃). MS: for C₂₂H₂₁BrN₄O₃, calculated. 468.08 (M⁺), found 468.14.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(4-nitrophenyl)-1,3,4-oxadiazole (19)

Greenish yellow solid, yield 97 %, mp 234 ^◦C. IR (KBr, cm^-1): 1620 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 8.34 (d, J = 8.96 Hz, 2H,AR-H), 8.14 (d, J = 8.96 Hz, 2H,AR-H), 6.93–6.76 (m, 3H,AR-H), 5.98 (dd, J = 1.49, 3.88 Hz, 2H, OCH₂O), 5.38 (dd, J = 11.4, 7.0 Hz, 1H, Pyrazoline-H), 3.57 (dd, J = 17.9, 11.5 Hz, 1H, Pyrazoline-H), 3.00 (dd, J = 17.9, 7.0 Hz, 1H, Pyrazoline-H), 1.33 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 167.1 (C=N), 161.5 (C=N), 158.5 (C=N),148.8 (AR-C), 148.1 (AR-C), 147.5 (AR-C), 134.3 (AR-C), 129.9 (AR-C), 127.2 (AR-C), 124.1 (AR-C), 120.0 (AR-C), 108.5 (AR-C), 106.3 (AR-C), 101.4 (OCH₂O), 63.5 (Pyrazoline-CH), 43.5 (Pyrazoline-CH₂), 34.0 (t-Butyl-C), 28.1(CH₃). MS: for C₂₂H₂₁N₅O₅, calculated. 435.15 (M⁺), found 435.38.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(3,4,5-trimethoxyphenyl)-1,3,4-oxadiazole (20)

White solid, yield 75 %, IR (KBr, cm^-1): 1715 (C=N), 1617 (C=N). ¹H NMR (CDCl₃,300 MHz) δ 7.12 (s, 2H,AR-H), 6.75–6.87 (m, 3H,AR-H), 5.93 (s, 2H, OCH₂O), 5.35 (m, 1H, Pyrazoline-H), 3.89 (s, 9H, (OCH₃)₃), 3.48–3.54 (m, 1H, Pyrazoline-H), 2.93 (d, J = 13.16 Hz, 1H, Pyrazoline-H), 1.29 (s, 9H, C(CH₃)₃). MS: for C₂₅H₂₈N₄O₆, calcd. 480.20 (M⁺), found 480.28.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(4-aminophenyl)-1,3,4-oxadiazole (21)

White solid, yield 81 %, mp 180 ^◦C. IR (KBr, cm^-1): 3355 (NH), 3218 (NH), 1700 (C=N), 1607 (broad, C=N). ¹H NMR (CDCl₃, 300 MHz) δ 7.74 (d, J = 8.65 Hz, 2H,AR-H), 6.93–6.73 (m, 3H,AR-H), 6.70 (d, J = 8.65 Hz, 2H,AR-H), 5.96 (q, J = 1.42 Hz, 2H, OCH₂O), 5.39–5.24 (m, 1H, Pyrazoline-H), 3.58–3.42 (m, 3H,, Pyrazoline-H and NH₂), 2.93 (dd, J = 17.7, 7.8 Hz, 1H, Pyrazoline-H), 1.30 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 165.49 (C=N), 160.91 (C=N), 160.78 (C=N), 148.73 (AR-C), 148.11 (AR-C), 147.36 (AR-C), 134.64 (AR-C), 127.83 (AR-C), 120.11 (AR-C), 114.64 (AR-C), 114.42 (AR-C), 108.42 (AR-C), 106.50 (AR-C), 101.15 (OCH₂O), 63.91 (Pyrazoline-CH), 42.96 (Pyrazoline-CH₂), 34.18 (t-Butyl-C), 28.12(CH₃). MS: for C₂₂H₂₃N₅O₃, calculated. 405.18 (M⁺), found 405.34.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-(4-chlorophenyl)-1,3,4-oxadiazole (22)

Yellow solid, yield 86 %, mp 200 ^◦C. IR (KBr, cm^-1): 1718 (C=N), 1619 (C=N).¹H NMR (CDCl₃, 300 MHz) δ 7.80 (s, 2H,AR-H), 7.32-7.43 (s, 2H,AR-H), 6.70–6.87 (m, 3H,AR-H), 5.95 (s, 2H, OCH₂O), 5.37 (brs, 1H, Pyrazoline-H), 3.56 (m, 1H, Pyrazoline-H), 2.95 (m, 1H, Pyrazoline-H), 1.30 (s, 9H, C(CH₃)₃).¹³C NMR (CDCl₃, 75 MHz) δ 167.63(C=N), 160.11(C=N), 159.17(C=N), 148.24 (AR-C), 147.61 (AR-C), 137.09 (AR-C), 133.88 (AR-C), 129.55 (AR-C), 127.49 (AR-C), 122.34 (AR-C), 120.25 (AR-C), 108.53 (AR-C), 106.29 (AR-C), 101.25 (OCH₂O), 63.68 (Pyrazoline-CH), 43.23 (Pyrazoline-CH₂), 34.34(t-Butyl-C), 28.09(CH₃). MS: for C₂₂H₂₁ClN₄O₃, calculated. 424.13 (M⁺), found 424.18.

2-(5-(benzo[d][1,3]dioxol-5-yl)-3-tert-butyl-4,5-dihydro-1H-pyrazol-1-yl)-5-p-tolyl-1,3,4-oxadiazole (23)

White solid, yield 65 %, mp 120 ^◦C. IR (KBr, cm^-1): 1713 (C=N), 1617 (C=N). ¹H NMR (CDCl₃, 300 MHz) δ 7.85 (d, J = 8.15 Hz, 2H,AR-H), 7.27 (d, J = 8.0 Hz, 2H,AR-H), 6.94–6.75 (m, 3H,AR-H), 5.97 (dd, J = 1.51, 3.79 Hz, 2H, OCH₂O), 5.33 (dd, J = 7.8, 11.3 Hz, 1H, Pyrazoline-H), 3.52 (dd, J = 17.7, 11.4 Hz, 1H, Pyrazoline-H), 2.95 (dd, J = 17.7, 7.6 Hz, 1H, Pyrazoline-H), 2.42 (s, 3H, CH₃), 1.32 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃, 75 MHz) δ 165.81(C=N), 161.09(C=N), 160.55(C=N), 148.16(AR-C), 147.42(AR-C), 140.95(AR-C), 134.53(AR-C), 129.45(AR-C), 126.11(AR-C), 121.63(AR-C), 120.08(AR-C), 108.44 (AR-C), 106.43(AR-C), 101.18(OCH₂O), 63.83(Pyrazoline-CH), 43.01(Pyrazoline-CH₂), 34.21(t-Butyl-C), 28.12(CH₃), 21.32(CH₃). MS: for C₂₃H₂₄N₄O₃, calculated. 404.18 (M⁺), found 404.31.

Biological studies

Animals

Adult male Swiss albino mice (weighing 18-25 g) used in this study were purchased from the Animal House Colony of the National Research Centre, Cairo, Egypt. Animals were housed under standardized conditions (room temperature 23+2 °C; relative humidity 55+5%;12 h-light/dark cycle) and had free access to tap water and standard rat chow throughout the whole experimental period. All animal procedures were performed after receiving approval from the Ethics Committee of the National Research Center Reg no 15-190, in accordance with the recommendations for the proper care and use of laboratory animals “Canadian Council on Animal Care Guidelines, . After seven days of adaptation to laboratory conditions, the animals were randomly assigned to control and experimental groups consisting of 6 mice each.

Drugs and chemicals

All test compounds were suspended in 7% tween-80 and administered intraperitoneally at a volume of 0.1 ml/10 g body weight. Tween-80 and pentylenetetrazole were purchased from Sigma, St. Louis, HO, USA. Meanwhile, stiripentol (STP) was synthesized according to the reported procedure [8].

Methods

Subcutaneous pentylenetetrazole (scPTZ) screen

This test produces threshold or minimal (clonic) seizures. An aqueous solution of PTZ at a dose of 85 mg/kg was administered subcutaneously (sc) in the loose fold of skin at the back of the mice neck. This dose, denoted convulsive dose 97 (CD₉₇), causes seizures in more than 97% of animals. The test is carried out by giving scPTZ, half an hour post-injection of the test compounds (i. p.). The tested animals were closely monitored for the occurrence of seizuresfor30 min. A threshold convulsion was defined as one episode of clonic convulsions which persisted for at least a 5 seconds period. The absence of a single 5-second episode of clonic spasms during the period of observation is taken as the end point in this test [14, 15].

Maximal electroshock seizure (MES) screen

Electroconvulsions were induced, half an hour after the intraperitoneal injection of the test compounds, by a current (fixed current intensity of 25 mA, 0.2 s stimulus duration) delivered via ear clip electrodes using a Rodent Shocker generator (constant-current stimulator Type 221, Hugo Sachs Elektronik, Freiburg, Germany). The criterion for the occurrence of seizure activity was the tonic hind limb extension (i.e., the hind limbs of animals outstretched 180 ° to the plane of the body axis) [16].

Neurotoxicity

The neurotoxicity of the animals was evaluated by adopting the rotarod test [17]. In this test, the animals were trained to maintain equilibrium on a rotating 1-inch diameter knurled plastic rod (rotarod, UGO Basile, 47600, Varese, Italy) at a speed of 10 rpm for 60 seconds (sec) in each of three trials. Only animals that fulfil this criterion were included in the experiment. The animals in the experimental groups (n = 6) were given an i. p. injection of one of the test compound. Thirty minutes later, the mice were placed again on the rotating rod and the motor performance time was recorded up to 60 sec. The neurotoxicity was indicated by the inability of the animal to maintain equilibrium on the rod for at least 60 sec.

RESULTS AND DISCUSSION

Chemistry

Synthesis of compounds 3-22 and their starts 1 and 2 are shown in scheme 1.

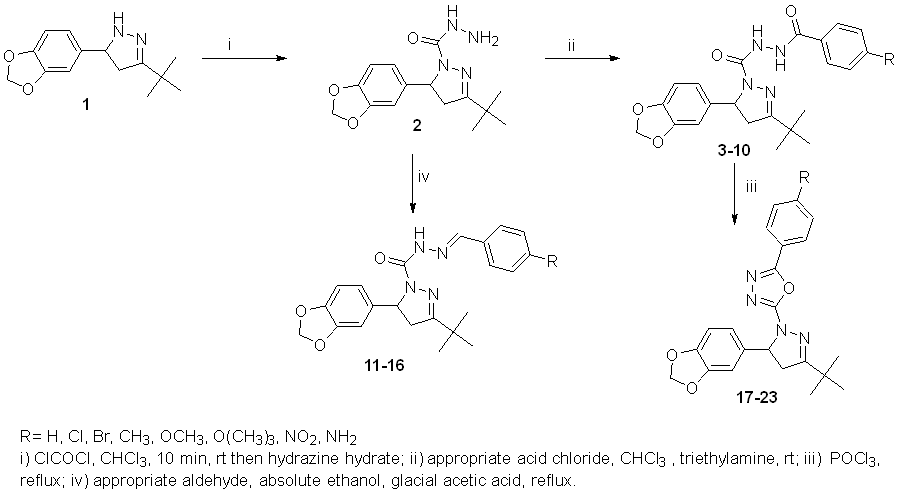

Scheme 1: General method for the synthesis of compounds 2-22

Initially, 3,5-disubstituted 2-pyrazoline (compound 1) has been prepared as previously reported [8]. Then, the free base 1 has been converted, while fresh, to the main carbohydrazide derivative 2. Indeed, compound 2 could be obtained from 1via diverse chemical pathways like hydrazinolysis of the carbamoyl ester of compound 1, resulting from the reaction of 1 with alkyl chloroformates. Moreover, the reaction of 1 with phosgene, followed by addition of hydrazine to the produced carbamoyl chloride will afford compound 2 in two-step one-pot reaction instead of two isolated reactions in the former method. In addition, the reaction of the carbazide with stiripentol starting chalcone (1-(benzo[d][1,3]dioxol-5-yl)-4,4-dimethylpent-1-en-3-one) will provide compound 2,however,it is not preferred due to the possibility of dimerization (scheme 2).

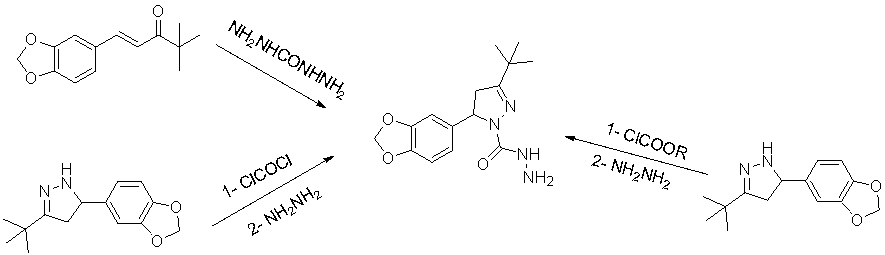

Scheme 2: Different synthetic pathways towards key compound 2

In the present study, it was preferred to apply phosgene method due to the availability of starting materials, in addition to being a short and non-drastic reaction. Compound 2 has been confirmed by IR and NMR. The IR displayed amidic C=O band at 1736 cm^-1and the C=N at 1690 cm^-1beside the well-defined bands for NHs at 3451 and 3354 cm^-1. For NMR, ¹³C showed the carbonyl signal at δ 156.9 ppm, while the C=N of 2-pyrazoline appeared at 163.8 ppm. Further reaction of 2 with different acid chlorides at room temperature in chloroform and in presence of triethylamine generated series A.

Compounds 3-10 have been characterized by IR, NMR, and mass spectroscopy as shown in the experimental section and supporting information. No major change was observed in the IR except the broadband at 1650 cm^-1for both carbonyl groups. In ¹³C-NMR, a new carbonyl signal has been observed at δ 160-164 ppm beside the old one at δ 153-157 ppm. The ¹H-NMR showed more aromatic protons due to the aroyl moiety and the characteristic two doublet of doublet signals at 2.8 and 3.4 ppm corresponding to the prochiral CH₂ protons of 2-pyrazoline while CH proton showed triplet signal at 5.3 ppm. In addition, two singlet signals were found at 1.2 and 5.9 ppm for t-butyl and the ethereal methylene bridge protons, respectively. The most characteristic signals of this series are the two singlet signals of the amidic NHs at δ 8.0-9.0 ppm. The mass spectra for such series showed the molecular ion signal as the minor peak but the free 2-pyrazoline (1) signal ((M⁺) 246 or (M⁺+1) 247) was present in all spectra as the base peak. The signal for the carbohydrazide intermediate (2) was rarely reported.

Series B has been prepared by the well-documented semicarbazone synthesis via reacting appropriate aldehyde with the key carbohydrazide (2) in ethanol in the presence of acetic acid. Compounds 11-16 have been identified by spectral analysis, where IR disclosed only one NH band at 3200-3450 cm^-1,while the amidic C=O and the imine (C=N) bands were displayed at 1650-1710 and 1500-1570 cm^-1, respectively. In ¹H-NMR, only one amidic NH has been demonstrated at δ 8.0-8.30 ppm, whereas the most distinguishing signal of the semicarbazono-imine proton (CH=N) was displayed at δ 9.0-9.50 ppm. ¹³C-NMR for this series exhibited only one amidic C=O signal at δ 151-155 ppm, while the semicarbazono-imine carbon has been observed at δ 141-145 ppm. In the mass analysis, the 2-pyrazoline (1) still denotes intense signals, while the molecular ions exposed minor signals. 1,3,4-Oxadiazole derivatives 17-22 (series C) have been achieved by means of intramolecular cyclodehydration of series A. Cyclodehydration is attainable under several conditions, for instance, heating in solvents such as pyridine, DMF, or in the presence of additives such as 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDC). SOCl₂, P₂O₅, H₂SO₄, POCl₃, Burgess reagent, triphenylphospine, and triflic anhydride are used for the cyclization [18]. In this study, POCl₃ was used as a solvent and cyclodehydrating agent. Breaking down of POCl₃ by the addition of water (very carefully and slowly) without cooling was a crucial step in order to get filterable powder. Spectral confirmation of compounds 17-22 has been performed, where the NH bands have fully disappeared in IR. In ¹H-NMR, no amidic NH has been reported, however, three imine signals at δ 158-166 ppm were revealedin¹³C-NMR. Compounds 17-22 showed very high stability in the mass analysis, since in most of the compounds, such asand22, the molecular ion signal was the base peak.

Table 1: Anticonvulsant activity and neurotoxicity of compounds 3-22

Compound number	R	dose		% protection		neurotoxicityc
		mg/kg	μmol/kg	scPTZa	MESb
3	H	125	306	83	50	0/6
4	Br	125	257	33	66	0/6
5	NO2	125	275	100	83	0/6
6	3,4,5-OCH3	125	251	66	0	0/6
7	NH2	125	295	66	33	0/6
8	Cl	125	282	50	83	0/6
9	CH3	125	296	50	66	0/6
10	OCH3	125	285	50	0	0/6
11	H	100	255	50	X	X
12	Br	100	212	83	66	1/6
13	NO2	100	228	100	33	1/6
14	3,4,5-OCH3	100	207	83	17	0/6
15	CH3	100	246	83	0	1/6
16	OCH3	100	236	83	17	0/6
17	H	125	320	50	17	0/6
18	Br	125	267	83	0	0/6
19	NO2	125	287	100	33	0/6
20	3,4,5-OCH3	125	260	50	0	0/6
21	NH2	125	308	100	17	0/6
22	Cl	125	294	66	0	0/6
23	CH3	-	-	X	X	X
Stiripentol (I)d	-	175	747	100	X	X
Stiripentol (I)d	-	150	640	83	66	X
Stiripentol (I)d	-	125	534	66	X	X
Stiripentol (I)d	-	115	491	50	X	X
Stiripentol (I)d	-	100	427	33	X	X
Stiripentol (I)d	-	90	384	17	X	X
IId	-	100	346	50	100	8/8
IIId	-	150	350	100	17	0/8

Doses were administered i. p. Animals (n = 6) were examined at 0.5 h after administration of the test compounds. X indicates the compound not tested. ^aSubcutaneous pentylenetetrazole test. ^bMaximal electroshock test. ^cNeurotoxicity screening by rotorod test (number of animals exhibiting neurotoxicity/number of animals tested). ^ddata from [8].

Pharmacology

The predictable animal seizure models are the most widely used techniques for the preclinical discovery of novel bioactive chemical agents for the treatment of epilepsy. These animal seizure models cover diverse classes of epilepsy with different categories [3]. The acute seizure model, induced by either electric (MES) or chemical (scPTZ) stimulus in normal animals, also known as the “gold standards”, is a mechanism-independent most potent model for early stages of anticonvulsant testing. The anticonvulsant drug development (ADD) program protocol of National Institute of Health, provided by the epilepsy section of National Institute of Neurological Disorders and Stroke (NINIDS), has been followed in the current investigation.

The MES test uses electrical stimulus to produce generalized tonic-clonic seizures (grand mal epilepsy) and identifies compounds that prevent seizure spreading. This experimental model simulates human tonic-clonic epilepsy and partial convulsions, with or without secondary generalization. The scPTZ screening test utilizes chemical stimuli to induce myoclonic seizures, simulating human generalized absence seizures (petit mal epilepsy) [14, 19, 20]. Target compounds 3-22 have been screened in the MES and scPTZ tests where candidates that elevated seizure threshold have been identified and selected. Furthermore, acute neurological toxicity was determined by the rotarod test.

New candidates 3-22 were administered intraperitoneally (ip) to male albino mice at a fixed dose of 125 mg/kg for series A and C and 100 mg/kg for series Bto evaluate anticonvulsant activity. These doses were selected according to a pilot study performed prior to the main study. The results of the primary (phase-I) screening are summarized in table 1.

All candidates were active in both models of epilepsy except compounds 6, 10, 15, 18, 20 and 22, which have shown activity solely in scPTZ model. All compounds 3-22 were active against generalized absence seizures (petit mal epilepsy) related screen and have effectively increased the seizures threshold in scPTZ test. Compounds 5, 13, 19, and 21 were the most active congeners displaying 100 % protection at 275, 228, 287, and 308 μmol/kg, respectively and were 2.7, 3.3, 2.6, and 2.8 folds more active than the reference compound stiripentol (I). On the other hand, Compounds 3, 12, 14, 15, 16 and 18 exhibited pronounced anticonvulsant activity as seizure threshold rises by protecting 83 % of tested animals at a dose ranging from 207-308 μmol/kg and were 2-3 times more active than Stiripentol (640 μmol/kg, 83% protection). Other compounds disclosed moderate activity showing 33-66 % protection.

These candidates were less effective against seizure spreading of generalized tonic-clonic seizures (grand mal) screen. Thus in MES test, compounds 5 and 8 were the most effective surrogates showing 83 % protection at 275 and 282 μmol/kg, respectively. Interestingly, compounds 5 and 8 were more potent than stiripentol, which showed 66 % maximal protection at 640 μmol/kg. Compounds 4, 9, and 12 were 2.5, 2.1 and 3.0 times stronger than the reference drug (I) showing 66 % protection at 257, 296, and 212 μmol/kg, respectively. Regarding neurotoxicity, the new candidates showed greater safety profile, since all compounds caused no motor impairment in the rotarod test. The only exceptions were compounds 12, 13, and 15, which produced slight motor impairment in only 1 out of 6 mice.

In comparison to lead compounds II and III, which have been used in the rational ligand based design of this study, compounds 3-22 have exhibited more potent and broader spectrum anticonvulsant profile. Compounds 5, 13, 19, and 21 were 1.27, 1.5, 1.2, and 1.13 folds more active than lead compound III in scPTZ screen, respectively. Noteworthy, they displayed superior activity to compound III against MES screen at a lower dose level.

None of the newly synthesized candidates was able to achieve 100 % protection in MES screen at the tested dose level in comparison with compound II. However, compound 5 offered two advantages over compound II; it induced 100 % protection in scPTZ and 83 % protection in MES, while compound II revealed only 50 % protection in scPTZ. Moreover, compound 5 was completely safe showing 0 % motor impairment in the rotarod test as compared to compound II, which produced 100 % neurotoxicity.

Quantification study (estimation of ED₅₀) of the most active candidates (5, 13, and 19) in scPTZ screen has been performed accordingly. Compounds 5 (ED₅₀ 45 mg/kg, 99 μmol/kg), 13 (ED₅₀ 48 mg/kg, 109 μmol/kg) and 19 (ED₅₀ 81 mg/kg, 185 μmol/kg) with confidence limits (30.09-67.28), (35.69-64.55) and (56.68-115.75), respectively, exhibited higher potency with respect to the reference drug stiripentol (I) (ED₅₀ 115 mg/kg, 490 μmol/kg) and lead compound III (ED₅₀ 110 mg/kg, 256 μmol/kg).

Table 2: ED₅₀ of compounds 5, 13, and 19 in scPTZ screen

Compound	ED50 a(mg/kg) b
5	45 (30.09-67.28)
13	48 (35.69-64.55)
19	81 (56.68-115.75)
Stiripentol c	115 (99.14-133.39)
III c	110 (93.19-129.85)

^aED₅₀ median effective dose required to assure anticonvulsant protection in 50% animals, ^bData in parentheses are the confidence limits, ^cadopted data from [8].

Structure-activity relationships (SAR)

The ligand-based design of candidates 3-22 mainly depends on three leads (stiripentol (I), compounds II and III). The idea was to hybridize stiripentol backbone with both semicarbazone moiety of compound II (responsible for MES activity) and the pyrazoline-N-aroyl scaffold of compound III (responsible for scPTZ activity) in order to achieve wide spectrum anticonvulsant candidates.

Thus, in series A (compounds 3-10), the carbohydrazide moiety has been used as a linker between the 2-pyrazoline ring and the aroyl group of compound III. This design offered the presence of both semicarbazone-like scaffold (carbohydrazide) and pyrazoline-N-aroyl structure in one compound with a maximum number of free NH due to its impact on MES activity as proven by compound II (fig. 3). The invivo screens revealed that significant improvement against MES-induced seizures has been achieved successfully with slight enhancement against scPTZ-induced convulsions. The 4-nitro derivative, compound 5, is the most active substituent in this series. It was 2.7 and 1.3 times more active than reference drug stiripentol and lead compound III, respectively.

This outcome directly correlates the semicarbazone-like pharmacophore (carbohydrazide) to the MES activity and postulate that the distance between 2-pyrazoline moiety and the aroyl group is not a crucial factor to achieve 100 % protection in scPTZ test.

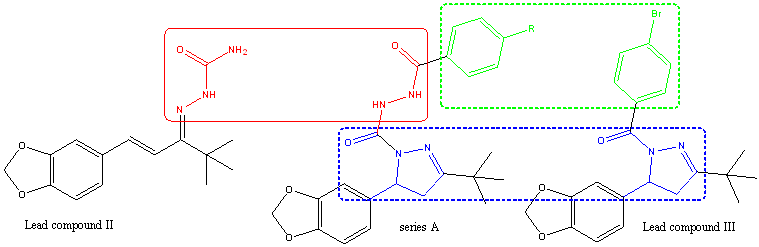

Fig. 3 Ligands based design of series A

Semicarbazone is a well-documented pharmacophore in the design of novel anticonvulsant agents [21-23]. Thus, it was of great interest to synthesize the semicarbazone analogues of series A. Series B showed outstanding anticonvulsant activity against scPTZ at lower doses when compared to series A. Series B members, compounds 12-16, were very effective in scPTZ screen revealing over 83 %protection. The most potent congener was the nitro derivative, compound 13, which showed 100 % protection in scPTZ at 228 μmol/kg. It is 3.3, 1.5, and 1.2 times more active than reference drug stiripentol, lead compound III and the new compound 5, respectively. However, the MES profile of series B was not satisfactory, which could be explained by the absence of “NHCO” moiety due to the formation of semicarbazone. Noteworthy, compound 12 (212 μmol/kg) revealed a comparable protective ability as stiripentol (I, 640 μmol/kg) in both MES and scPTZ screens. Therefore, it was3 times more active than compound I. These biological findings emphasized the significance of semicarbazone moiety as an anticonvulsant pharmacophore. Also, the inferior MES profile of series B clearly stressed on the relation between free NH and MES activity.

Studying the impact of cyclization of series A is very striking. The great change of semicarbazone-like moiety (carbohydrazide) from open-chain hydrogen donor and acceptor to electron-rich aromatic ring is expected to have a profound influence on anticonvulsant activity and will add further knowledge to the SAR of such compounds. Series C was very effective in the scPTZ screen. All members exhibited over 50 % protection. Two members (19 and 21) achieved 100 % protection at dose levels lower than the reference drug (I) and lead compound III, being 2.6 and 2.4 times more active than stiripentol in scPTZ, respectively. The nitro group was proposed to be the highest active substitute but in this series, the amino derivative has also displayed maximum protection in the scPTZ screen. The MES activity of series C was the weakest among the novel series. MES outcomes of series C added further clue to the importance of amidic NH in the MES activity of anticonvulsants. Slight dose differences between compounds 5 and its cyclic analogue 19, to achieve 100 % protection in the scPTZ test, highlighting the insignificance of amidic hydrogen and the impact of electron rich atoms and aryl group in such screen. The 100 % protection attained by the amino-derivative (21) stressed the fact that the electron-rich aryl linker between 2-pyrazoline and aryl group was very valuable for the scPTZ screen. Moreover, the distance between 2-pyrazoline and aryl group is of less importance as proven by series A. Existence of 1,3,4-oxadiazole ring potentiated the anticonvulsant activity of compound 7 from 66 % to 100 % in its cyclic analogue (21).

CONCLUSION

Ligand-based design, together with molecular hybridization in drug design, succeeded to generate potent and wide spectrum candidates. Compounds 3-10, its semicarbazone analogues 12-16, and its cyclic congeners 17-23 are proposed as potential anticonvulsant agents. Many derivatives have shown better activity than reference drug (stiripentol I) and lead compound III. Compound 5wasthe most active surrogate having highest efficacy and widest spectrum. It could act as a prospective lead for future development of broad spectrum anticonvulsants and further modification of the semicarbazone-based pharmacophoric model. Many SAR-related findings have been discovered and confirmed, such as the significance of free NH on the MES activity and the impact of cyclizing aroyl-carbohydrazides to 1,3,4-oxadiazoles on scPTZ screen.

AUTHOR CONTRIBUTION

M. F. El-Behairy performed the chemistry part, writing and proof-reading the manuscript.

Hanan Naeim Attia conducted the pharmacological evaluation, writing and proof-reading the manuscript.

CONFLICT OF INTERESTS

Declared none

REFERENCES

1. WHO, Epilepsy Fact sheet N °999; Available from 2015. http://www.who.int/mediacentre/factsheets/fs999/en/. [Last accessed on 06 Feb 2017]

2. Chang BS, Lowenstein DH. Epilepsy. N Engl J Med 2003;349:1257-66.

3. Kamiński K, Rapacz A, Łuszczki JJ, Latacz G, Obniska J, Kieć-Kononowicz K, et al. Design, synthesis and biological evaluation of new hybrid anticonvulsants derived from N-benzyl-2-(2,5-dioxopyrrolidin-1-yl)propanamide and 2-(2,5-dioxopyrrolidin-1-yl)butanamide derivatives. Bioorg Med Chem 2015;23:2548-61.

4. Perucca E, French J, Bialer M. Development of new antiepileptic drugs: challenges, incentives, and recent advances. Lancet Neurol 2007;6:793-804.

5. Cramer JA, Mintzer S, Wheless J, Mattson RH. Adverse effects of antiepileptic drugs: a brief overview of important issues. Expert Rev Neurother 2010;10:885-91.

6. Khan HN, Kulsoom S, Rashid H. Ligand-based pharmacophore model development for the identification of a novel antiepileptic compound. Epilepsy Res 2012;98:62-71.

7. Stiripentol. BCX 2600. Drugs RD 2002;3:220-2.

8. Aboul-Enein MN, El-Azzouny AA, Attia MI, Maklad YA, Amin KM, Abdel-Rehim M, et al. Design and synthesis of novel stiripentol analogues as potential anticonvulsants. Eur J Med Chem 2012;47:360-9.

9. Rajak H, Deshmukh R, Veerasamy R, Sharma AK, Mishra P, Kharya MD. Novel semicarbazones based 2,5-disubstituted-1,3,4-oxadiazoles: one more step towards establishing four binding sites pharmacophoric model hypothesis for anticonvulsant activity. Bioorg Med Chem Lett 2010;20:4168-72.

10. Harish KP, Mohana KN, Mallesha L, Prasanna k, Basavapatna N. Synthesis of novel 1-[5-(4-methoxy-phenyl)-[1,3,4]oxadiazol-2-yl]-piperazine derivatives and evaluation of their in vivo anticonvulsant activity. Eur J Med Chem 2013;65:276-83.

11. Rajak H, Singh T, Bhupendra S, Avineesh R, Kamlesh S, Anil K, et al. Novel limonene and citral-based 2,5-disubstituted-1,3,4-oxadiazoles: a natural product coupled approach to semicarbazones for antiepileptic activity. Bioorg Med Chem Lett 2013;23:8648.

12. Pandeya SN, Ponnilavarasan I, Pandey A, Lakhan R, Stables JP. Evaluation of p-nitrophenyl substituted semicarbazones for anticonvulsant properties. Pharmazie 1999;54:923-5.

13. Dimmock JR, Vashishtha SC, Stables JP. Anticonvulsant properties of various phenylhydrazones, oxamoylhydrazones and semicarbazones derived from aromatic and unsaturated carbonyl compounds. Eur J Med Chem 2000;35:241-8.

14. Krall RL, Penry JK, White BG, Kupferberg HJ, Swinyard EA. Antiepileptic drug development: II. Anticonvulsant drug screening. Epilepsia 1978;19:409-28.

15. Alam O, Mullick P, Verma SP, Gilani SJ, Khan SA, Siddiqui N, et al. Synthesis, anticonvulsant and toxicity screening of newer pyrimidine semicarbazone derivatives. Eur J Med Chem 2010;45:2467-72.

16. Luszczki JJ, Czuczwar M, Gawlik P, Sawiniec-Pozniak G, Czuczwar K, Czuczwar SJ. 7-Nitroindazole potentiates the anticonvulsant action of some second-generation antiepileptic drugs in the mouse maximal electroshock-induced seizure model. J Neural Transm 2006;113:1157-68.

17. Dunham NW, Miya TS. A note on a simple apparatus for detecting neurological deficit in rats and mice. J Am Pharm Assoc 2006;46:208-9.

18. Augustine JK, Vairaperumal V, Narasimhan S, Alagarsamy P, Radhakrishnan A. Propylphosphonic anhydride (T3P®): an efficient reagent for the one-pot synthesis of 1,2,4-oxadiazoles, 1,3,4-oxadiazoles, and 1,3,4-thiadiazoles. Tetrahedron 2009; 65:9989-96.

19. Löscher W. Critical review of current animal models of seizures and epilepsy used in the discovery and development of new antiepileptic drugs. Seizure 2011;20:359-68.

20. White HS. Preclinical development of antiepileptic drugs: past, present, and future directions. Epilepsia 2003;44:2-8.

21. Pandeya SN, Raja AS, Stables JP. Synthesis of isatin semicarbazones as novel anticonvulsants- the role of hydrogen bonding. J Pharm Pharm Sci 2002;5:266-71.

22. Yogeeswari P, Ragavendran JV, Thirumurugan R, Induja S, Sriram D, Stables JP. Synthesis and structure-activity relationship on anticonvulsant aryl semicarbazones. Med Chem 2006;2:55-62.

23. Dimmock JR, Puthucode RN, Smith JM, Hetherington M, Quail JW, Pugazhenthi U, et al. (Aryloxy)aryl semicarbazones and related compounds: a novel class of anticonvulsant agents possessing high activity in the maximal electroshock screen. J Med Chem 1996;39:3984-97.
