Int J Pharm Pharm Sci, Vol 6, Issue 8, 518-521Original Article

SYNTHESIS AND BIOLOGICAL EVALUATION OF SOME NOVEL SCHIFF BASES OF 2-QUINOLONES

ABHISHEK KUMAR*, JENNIFER FERNANDES, PANKAJ KUMAR

Department of Pharmaceutical Chemistry, NGSM Institute of Pharmaceutical Sciences, Nitte University, Paneer, Deralakatte 575018, Mangalore, Karnataka.
Email: abhi12bunty@gmail.com

Received: 07 Jul 2014 Revised and Accepted: 06 Aug 2014

ABSTRACT

A series of novel substituted 3-acetyl-1-(benzylideneamino) quinolin-2(1H)-one (1-12) have been synthesized by condensing different substituted 3-acetyl-1-amino-quinolin-2-one and aromatic aldehydes in alcohol medium. 3-acetyl-1-amino-quinolin-2-one were synthesized from substituted 3-acetyl coumarin upon refluxing with hydrazine hydrate and ethanol. The structures of the final synthesized compounds were confirmed by IR, 1H NMR and mass spectra.The synthesized compounds were screened for their antimicrobial, antioxidant and cytotoxicity activities. The test compounds were screened for their antibacterial and antifungal activity against Bacillus subtilis, Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa and Candida albicans, Aspergillus niger respectively by cup plate method. Compounds 2, 3, 5, 6, 7, 11 and 12 showed good antibacterial activity compared to the standard drug amoxicillin. Compounds 1, 2, 4, 5, 6, 8, 9, 10 and 12 showed moderate antifungal activity compared to the standard drug fluconazole.The antioxidant activity of the synthesised test compounds was done using DPPH radical scavenging method. Compounds 2 and 6 showed values at 85.78 and 13.41 respectively when compared to that of ascorbic acid at IC50 value of 3.69µg/ml and showed inhibitory concentration for 50% inhibition below 100 µg/ml. The final synthesized compounds were screened for their in vitro cytotoxicity activity against Ehrlich Ascites Carcinoma cells (EAC) by Trypan blue exclusion method. Compounds 2, 6 and 7 induced the greatest effect on EAC cells with an activity more than 60% at a concentration of 250µg/ml. Hence novel schiff bases synthesized from 2-quinolones are found to be interesting lead molecules as antimicrobial, antioxidant and cytotoxicity agents.

Keywords: 2-Quinolones, Schiff base, Antibacterial activity, Antifungal activity, Antioxidant activity, Cytotoxicity activity.

INTRODUCTION

2-Quinolones (carbostyrils or 1-aza coumarins) are isosteric with coumarins and isomeric to 4-quinolones could become the probable potential candidate for antibacterial activity [1]. 2-Quinolone derivatives were found to be associated with various biological activities such as antitumor [2], anti-inflammatoryl [3], antiplatelet, antiulcer [4], antioxidant[5] and antidepressant activity. Many substituted quinolin-2-one derivatives have recently craned great interest in chemotherapy as antitumor drugs [6]. Compounds containing an azomethine group (-CH=N-) known as Schiff bases are formed by the condensation of a primary amine with a carbonyl compound. Schiff bases of aliphatic aldehydes are relatively unstable and are readily polymerized while those of aromatic aldehydes having an effective conjugation system are more stable. Schiff bases and their complexes are largely studied because they interested and important properties such as their ability to bind reversibly oxygen [7] redox systems in biological systems and oxidation of DNA. Many biological important Schiff bases ligands have been reported which possess antibacterial, antifungal [8], antimicrobial [9], anticonvulsant, antioxidant [10], anti-inflammatory [11] and antitumor activity [12].

By considering the above facts and their increasing importance in pharmaceutical and biological field, it was considered of interest to synthesize some new chemical entities incorporating the two active pharmacophores in a single molecular frame work and to evaluate their biological activities. Hence an attempt was made towards the incorporation of Schiff bases with substituted 3-acetyl-1-amino-quinolin-2-one and to probe how this combination could influence the biological activity. Hence all the synthesized compounds were evaluated for their antimicrobial, antioxidant and cytotoxicity activities and compared with standard drugs.

MATERIALS AND METHODS

All the chemicals were of analytical grade: substituted salicylaldehyde, ethylacetoacetate, absolute ethanol, piperidine, glacial acetic acid, hydrazine hydrate and substituted benzaldehyde.

Melting points were determined by open capillary method and are uncorrected. The purity of the compounds was monitored by thin layer chromatography (TLC) using silica gel G plates. The spots were visualized under UV light and by the exposure to iodine vapors. The homogeneity of the compounds were checked on silica gel-G coated plate by using Chloroform: Methanol (8:2) as solvent. All IR spectra were recorded in Alpha Bruker using ATR method. 1H NMR spectra were recorded on Bruker spectrophotometer (400 MHz) in DMSO-d6 solvent using tetra methyl silane (TMS) as an internal standard. Mass spectra was recorded by LCMS method.

General Procedure

Synthesis of substituted 3-acetyl-1-amino-quinolin-2-one (1a-12a) [13]

Substituted 3-acetyl coumarin (0.01 mol) with excess hydrazine hydrate 99% (0.1 mol) in 25 ml ethanol was refluxed for 12 hours. It was then cooled and poured into crushed ice with stirring. The solid product formed was filtered and recrystallised from ethanol.

Synthesis of Substituted 3-acetyl-1-(benzylideneamino) quinolin-2(1H)-one (1-12) [14]

A mixture of substituted 3-acetyl-1-amino-quinolin-2-one (0.01 mol) and substituted benzaldehyde (0.01 mol) was refluxed for 4-5 hours with continuous stirring in presence of few drops of glacial acetic acid as catalyst. The reaction mixture was monitored by TLC. It was then cooled and added to ice cold water. The precipitated solid was filtered and recrystallised from ethanol.

Spectral data

3-acetyl-1-aminoquinolin-2(1H)-one (1a)

IR (cm-1): 1506(Ar C=C str), 829 (Ar C-H bend), 2950(C-H aliphatic str), 1701 (C=O str), 3362, 3398 (N-H str).

1H NMR (400 MHz, DMSO-d6): δ 7.25-8.27 (m, 5H, Ar-H), 3.73(s, 2H, NH2), 2.59 (s, 3H, COCH3).

Mass (m/z): 202 (M+)

3-acetyl-1-(3-nitrobenzylideneamino)quinolin-2(1H)-one (1)

IR (cm-1): 1511(Ar C=C str), 816 (Ar C-H bend), 3083 (Ar C-H str), 1360 (Ar-NO2), 1701 (C=O str), 1618 (C=N).

1H NMR (400 MHz, DMSO-d6): δ 7.14-8.52 (m, 9H, Ar-H), 2.57 (s, 3H, COCH3).

Mass (m/z): 335 (M+)

3-acetyl-1-(3,4,5-trimethoxybenzylideneamino)quinolin-2(1H)-one (2)

IR (cm-1): 1504(Ar C=C str), 830 (Ar C-H bend), 3036 (Ar C-H str), 1223 (C-O str), 1698 (C=O str), 1611(C=N).

1H NMR (400 MHz, DMSO-d6): δ 7.28-8.25 (m, 8H, Ar-H), 2.56 (s, 3H, COCH3), 3.32 (s, 3H, OCH3)

Mass (m/z): 380 (M+)

3-acetyl-6-chloro-1-(4-methylbenzylideneamino)quinolin-2(1H)-one (9)

IR (cm-1): 1506(Ar C=C str), 832 (Ar C-H bend), 3030 (Ar C-H str), 1695 (C=O str), 776(C-Cl str), 1379(Ar-CH3 C-H str), 1614(C=N).

1H NMR (400 MHz, DMSO-d6): δ 7.14-8.27 (m, 7H, Ar-H), 2.57 (s, 3H, COCH3), 2.27 (s, 3H, CH3)

Mass (m/z): 339 (M+1)

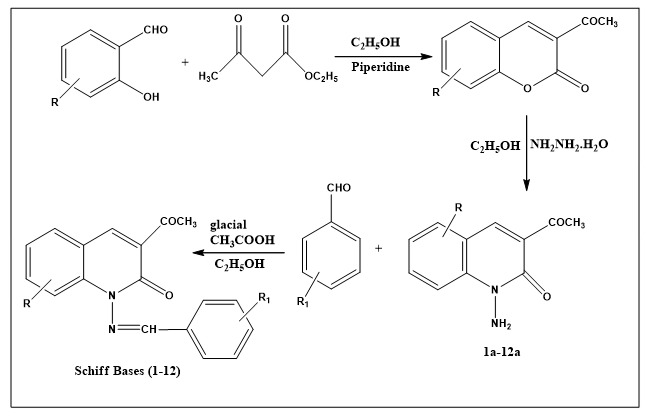

Fig. 1: General Scheme of Synthesis, R: H, 6-NO2, 6-Cl, R1: 3-NO2, 3,4,5-OCH3, 4-CH3, 4-OH, 2-Cl, 2-NO2

RESULTS

Antimicrobial Activity

All the synthesized compounds were evaluated for their antibacterial activity against Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa, Bacillus subtilis and antifungal activity against Candida albicans and Aspergillus niger using cup plate method [15]. The synthesized test compounds were tested at a concentration of 100 µg/50 µl and the standard compound i.e. Ciprofloxacin and Fluconazole were tested at 25 µg/50 µl. Dimethyl formamide (DMF) was used as control. In this technique, melted agar inoculated with microorganisms is poured into petridishes. Wells are made in the agar plate and a specific volume of the antimicrobial substances are placed in them, plates were incubated at a temperature of 37oC for 24 hrs and 250C for 48 hrs, in case antibacterial and antifungal activity. The antimicrobial substance diffuses through agar around its well and produces a clear zone of inhibition. The diameter of this zone (mm) gives an estimation of the degree of activity of the antimicrobial substance.

Antioxidant activity

Antioxidant activity is a prerequisite for performing many related biological activities, including anticancer, antiallergic, anti inflammatory, antidiabetic etc. The antioxidant activity of the synthesised test compounds was done using DPPH (1, 1-diphenyl-2-picryl hydrazyl) radical scavenging method [16]. The sample size that can lower the initial absorbance of DPPH solution by 50% has been chosen as the endpoint for measuring the antioxidant activity. The assay was carried out in a 96 well microtitre plate. To 100 µl of methanol solution, 100 µl of each of the test sample or the standard ascorbic acid solution was added separately in wells of the microtitre plate in triplicate. Control was prepared by adding 100 µl methanol in 100 µl DPPH solution. The plates were incubated at 37˚C for 20 minutes and the absorbance of each solution was measured at 540 nm using ELISA reader against the corresponding test and standard blanks and the remaining DPPH was calculated.IC50 is the concentration of the sample required to scavenge 50 % of DPPH free radicals.

Cytotoxicity Activity

All the test compounds were studied for short term in vitro cytotoxicity against Ehrlich Ascites Carcinoma cells (EAC) cells. The tumor cells aspirated from peritoneal cavity of tumor bearing mice was washed thrice with normal saline and checked for viability using Tryphan blue exclusion method [17]. The cell suspension (1 million cells in 0.1 ml) was added to tubes containing various concentrations of the test compounds and volume was made upto 1 ml using phosphate buffered saline. Control tubes contained only cell suspension. The assay mixtures were incubated for 3 h, at 37οC and then percent of dead cells were evaluated by tryphan blue exclusion method.

Table 1: Physicochemical data of the compounds 1-12

Comp.

code

RR1

Mol.

formula

Mol. wtM.P oCRf Value% Yield
1 H 3-NO2 C18H13N3O4 335 260-262 0.62 72
2 H 3,4,5-OCH3 C21H20N2O5 380 226-228 0.72 68
3 H 4-CH3 C19H16N2O2 304 240-242 0.52 70
4 H 4-OH C18H14N2O3 306 272-274 0.68 75
5 H 2-Cl C18H13ClN2O2 324 290-292 0.56 78
6 H 2-NO2 C18H13N3O4 335 256-258 0.60 70
7 6-NO2 3-NO2 C18H12N4O6 380 268-270 0.74 60
8 6-NO2 3,4,5-OCH3 C21H19N3O7 425 236-238 0.68 58
9 6-Cl 4-CH3 C19H15ClN2O2 338 222-224 0.58 62
10 6-Cl 3,4,5-OCH3 C21H19ClN2O5 414 210-212 0.70 56
11 6-Cl 4-OH C18H13ClN2O3 340 254-256 0.64 65
12 6-Cl 2-NO2 C18H12ClN3O4 369 236-238 0.64 66

Table 2: Antimicrobial Activity of the compounds (1-12) by cup plate method

Compound Diameter of zone of inhibition (mm)
S.aureus B.subtilis E.coli P.aureginosa C.albicans A.niger
1 08 07 - - 12 10
2 18 16 11 13 08 15
3 13 11 17 21 05 06
4 06 - 08 07 13 10
5 20 17 10 14 14 16
6 18 15 17 23 12 15
7 17 15 12 16 - -
8 - - 07 08 13 14
9 07 06 - - 14 10
10 06 - - 09 09 13
11 18 16 13 16 - 06
12 12 10 18 22 11 14
Amoxicillin 26 23 25 30 - -
Fluconazole - - - - 23 26
Control - - - - - -

Table 3: Antioxidant activity of the compounds (1-8) by DPPH radical scavenging method

Conc

µg/ml

 % DPPH Radical Scavenging
AJS 1 AJS 2 AJS 3 AJS 4 AJS 5 AJS 6 AJS 7 AJS 8
3.9 19.44 47.32 15.46 8.32 14.80 30.88 10.90 47.16
7.8 27.41 49.61 19.90 21.75 15.13 48.62 16.51 46.70
15.6 37.67 48.85 24.65 17.72 24.03 53.54 37.42 48.54
31.25 43.64 46.40 38.13 54.88 18.93 54.64 65.79 51.45
62.5 56.96 46.70 47.16 31.41 23.73 56.89 72.67 48.08
125 42.41 56.50 49.31 34.10 23.93 64.16 78.41 55.89
250 45.36 59.28 53.56 49.88 26.75 68.93 81.87 57.32
500 49.12 60.92 57.18 60.45 63.30 69.57 81.93 60.48
IC50 183 85.78 169 640 815 13.41 147 175

Table 4: Cytotoxicity activity of compounds (1-12) by Trypan Blue exclusion method

Compounds

No. of dead cells (%)

at different concentrations (µg/ml)
50 100 200 250
Control -
1 14 25 34 48
2 22 35 43 68
3 15 26 37 51
4 09 15 20 30
5 07 14 19 27
6 23 35 56 66
7 21 32 51 62
8 14 22 35 46
9 08 15 25 34
10 15 24 36 52
11 06 11 16 23
12 13 21 33 45
5-Fluorouracil 36 51 88 96

DISCUSSION

Antimicrobial activity

The in vitro antibacterial and antifungal activity of the synthesized compounds were determined by using cup-plate method. The results of antibacterial and antifungal activity of newly synthesized compounds are reported against Bacillus subtilis, Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa and two fungi Candida albicans and Aspergillus niger. Compounds 2, 5, 6, 7 and 11 showed good antibacterial activity against gram +ve bacteria and compounds 3, 6, 11 and 12 showed good antibacterial activity against gram -ve bacteria respectively compared to the standard drug ciprofloxacin. Compounds 1, 4, 5, 6, 8, 9 and 12 showed moderate antifungal activity against Candida albicans and compounds 2, 5, 6, 8, 10 and 12 showed moderate antifungal activity against Aspergillus niger compared to the standard drug fluconazole. The results of the antimicrobial activity are summarized in Table 2. The presence of 2-quinolone moiety with electron withdrawing groups like nitro, chloro and electron donating groups like methyl, methoxy and hydroxy has accounted for their antimicrobial activity.

Antioxidant activity

The antioxidant activity of the synthesised test compounds was done using DPPH (1, 1-diphenyl-2-picryl hydrazyl) radical scavenging method. Out of the 8 synthesised isoxazoline derivatives, the test compounds such as, 2 and 6 showed values at 85.78 and 13.41 respectively when compared to that of standard ascorbic acid at IC50 value of 3.69µg/ml and showed inhibitory concentration for 50% inhibition below 100 µg/ml. The results of the antioxidant activity is presented in Table 3. The presence of 2-quinolone moiety with electron withdrawing group like nitro has accounted for their antioxidant activity.

Cytotoxicity Activity

The test compounds were subjected to in vitro cytotoxicity against Ehrlich Ascites Carcinoma (EAC) cells using Tryphan Blue exclusion method. The damaged cells are stained blue by Tryphan blue stain and can be distinguished from viable cells. Compound 2, 6 and 7 induced the greatest effect on EAC cells with an activity more than 60% at a concentration of 250µg/ml. The results of the cytotoxicity activity is presented in Table 4. The presence of 2-quinolone moiety with electron withdrawing group like nitro has accounted for their cytotoxic activity.

CONCLUSION

The above results proved that novel schiff bases synthesized from 2-quinolones are found to be interesting lead molecules as antimicrobial, antioxidant and cytotoxicity agents. The study reports the successful synthesis of schiff bases derivatives with moderate yields. Most of the synthesized compounds showed good antimicrobial activity and few compounds showed good antioxidant and cytotoxicity activity. It can be concluded that schiff bases containing 2-quinolone moiety certainly holds great promise towards the good activity leads in medicinal chemistry.

ACKNOWLEDGEMENTS

The authors are thankful to Nitte University for providing the necessary facilities to carry out this research. The authors are grateful to Sequent Research Ltd, Mangalore and Central Instrumentation Facility, MIT Manipal for providing spectroscopic data, Amala Cancer Research Centre, Thrissur.

REFERENCES

  1. Milecki J, Baker SP, Standifer KM, Ishizu T, Chida Y, Kusiak JW. Carbostyril derivatives having potent β-adrenergic agonist properties. J Med Chem 1987;30:1563-66.
  2. Joseph B, Darro F, Behard A, Lesur B, Frydman A, Kiss R. 3-aryl-2-quinolone derivatives:Synthesis and characterization of in vitro and in vivo antitumor effects with emphasis on a new therapeutical target connected with cell migration. J Med Chem 2002;45:2534-55.
  3. Ukrainets IV, Mospanova EV, Davidenko AA, Tkach AA, Gorokhova OV. 4-hydroxy-2-quinolones. Synthesis, structure and anti-inflammatory activity of 4-hydroxy-1-methyl-2-oxo-1,2-dihydroquinolin-3-yl acetic acid and its derivatives. J Chem Heterocycl Compd 2012;46(8):974-86.
  4. Uchida M, Tabusa F, Komatsu M, Morita S, Kanbe T, Nakagawa K. Studies on 2(1H)-quinolinone derivatives as gastric antiulcer active agents. Synthesis and antiulcer activities of optically active alpha-amino acid derivatives of 2(1H)-quinolinone and oxindole. J Chem Pharm Bull (Tokyo) 1987;35(2):853-56.
  5. AL-Omar MA, EL-Azab AS, EL-Obeid HA, Abdel H. Synthesis of some new 4(3H)-quinazolinone analogues. J Sandi Chem Soc 2006;10:113.
  6. Jin Y, Li HY, Lin LP, Tan JZ, Ding J, Luo XM. Synthesis and antitumor evaluation of novel-5-substituted-4-hydroxy-8-nitroquinazolines as EGFR signaling-targeted inhibitors. J Bioorg Med Chem 2005;13:5613.
  7. Yang DP, Ji HF, Tang GY, Siddiqi HM. How many drugs are catecholics. J Molecules 2008;12:878-84.
  8. Sridhar SK, Saravan M, Ramesh A. Synthesis and antibacterial screening of hydrazones Schiff and Mannich bases of isatin derivatives. Eur J Med Chem 2001;36:615-23.
  9. Raman N, Kulandaisamy A, Thangaraja C. Redox and antimicrobial studies of transition metal (II) tetradendate Schiff base complexes. J Trans Met Chem 2003;28:29-36.
  10. Al-Amiery AA, Al-Majedy YK, Ibrahim HH, Al-Tamimi AA. Antioxidant, antimicrobial and theoretical studies of the thiosemicarbazone derivative Schiff base 2-(2-imino-1-methylimidazolidin-4-ylidene) hydrazinecarbothiamide (IMMC). J Organic and Medicinal Chemistry Letters 2012;2(4):1-7.
  11. Janos G, Tamas L. Macrophage Migration Inhibitory Factor (MIF) tautomerase inhibitors as potential novel anti-inflammatory agents:Current Developments. J Curr Med Chem 2009;16:1091-114.
  12. Billman JH, Schmidgall RL. Preparation and antitumor activity of some Schiff bases of 2-amino-4, 5-dichlorobenzene sulfonanilide and 2-amino-p-toulene sulfonamide. J Pharm Sci 2006;59:1191-94.
  13. Al-Bayati RIH, Radi MF. Synthesis of novel 2-quinolone derivatives. Afr J Pure Appl Chem 2010;4(10):228-32.
  14. Mobinikhaledi A, Foroughifar N, Khanpour M, Ebrahimi S. Synthesis of some novel schiff bases containing 1,2,4-triazole ring. Eur J Chem 2010;1(1):33-6.
  15. Ojala T, Remes S, Vuorela HH, Hiltunen R, Haahtela Keilo, Vuorela P. Antimicrobialactivity of some coumarin containing herbal plantsgrowing in Finland. J Ethnopharmacol 2000;73(1-2):299-305.
  16. Khan KM et al. Synthesis and DPPH radical scavenging activity of 5-arylidene-N,N-dimethylbarbiturates. J Med Chem 2011;7(3):231-36.
  17. Molyneux P. The use of the stable free radical diphenylpicryl-hydrazyl (DPPH) for estimating antioxidant activity. Songklanakarin J Sci Technol 2004;26(2):211-219.
