Int J Pharm Pharm Sci, Vol 6, Issue 9, 394-397Original Article
A STABILITY INDICATING UV SPECROPHOTOMETRIC METHOD FOR DETERMINATION OF METOCLOPRAMIDE HYRDROCHLORIDE
U A DEOKATE, ANJALI MACCHINDRA GORDE*
Department of Pharmaceutical Chemistry, Government College of Pharmacy, Aurangabad, Maharashtra, India 431005
Email: gordeanjali@gmail.com
Received: 07 Jul 2014 Revised and Accepted: 27 Aug 2014
ABSTRACT
A stability indicating method has been developed for specific determination of Metoclopramide HCl in bulk by UV spectrophotometry in presence of its degradation products. The method is simple, accurate, precise, and robust. Linearity range for the method is 10-50µg/ml at detection wavelength of 272 nm. The LOD and LOQ values were found to be 3.26µg/ml and 9.89µg/ml respectively.
Keywords: Metoclopramide hydrochloride, Stability indicating, UV Bulk, Forced degradation.
INTRODUCTION
Metoclopramide HCl, 4-amino-5-chloro-N-[2-(diethylamino)ethyl]-2-methoxybenzamide hydrochloride, is an antiemetic drug. It inhibits gastric smooth muscle relaxation produced by dopamine and therefore increases cholinergic response of gastrointestinal tract. [1,2]
Knowledge of the stability of the molecule helps in selecting proper formulation and package as well as providing proper storage conditions and shelf life, which is essential for regulatory documentation. Forced degradation is a process that involves degradation of drug products and drug substances at conditions more severe than accelerated conditions and thus generates degradation products that can be studied to determine the stability of the molecule [3]. The presently available literature reveals few analytical methods for determination of Metoclopramide HCl by HPLC [4,5], UV spectrophotometry [6,7], LC-MS [8], in plasma [9].
The objective of this work was to develop a validated Stability indicating assay method for the determination of Metoclopramide hydrochloride in presence of its degradation products generated by subjecting the drug to forced degradation conditions under acid, alkali, thermal and oxidative stress as per the guidelines[10] and to establish the inherent stability of Metoclopramide hydrochloride.
MATERIALS AND METHODS
Metoclopramide hydrochloride was supplied by IPCA Laboratories, Aurangabad as the gift sample. Its identity and purity were confirmed by recording the FTIR spectra. Solvent used was Deionized water from the water treatment plant (SG) of the Institute. The reagents used were Hydrochloric acid (Qualigens), Sodium hydroxide & Hydrogen Peroxide 50% solution.
Apparatus
UV Spectrophotometer- Shimadzu Japan UV 1700, FT-IR- Thermo electron co.(IR 200) Prestige 21 and analytical balance (Schimadzu AUX 220).
Method
Spectrophotometric conditions
Spectrophotometric analysis was carried out at ambient temperature. Solvent used was deionized water; standard solution of 50µg/ml was analyzed at 272 nm.
Preparation of stock and standard solution
Accurately weighed 100mg of standard Metoclopramide HCl was transferred to 100 ml volumetric flask to make a stock solution of 1000µg/ml. Suitable aliquots were taken into 100 ml volumetric flask to make standard solutions in the range of 10-50 µg/ml.
Preparation of calibration curve
The calibration curve was prepared in the concentration range 10-50μg/ml by analyzing each solution in triplicate and plotting the concentration (μg/ml) against absorbance. The correlation coefficient and equation of the line were determined. The spectrum of fresh drug solution (50µg/ml) is shown in fig1 and the calibration curve in fig 2. The data is shown in table 2.
Forced degradation studies
The forced degradation of MTD was done in each of the stress condition at a concentration of 1 mg/ml. The degradation was confirmed in each case by recording the changes in the ultraviolet spectra of each stressed sample comparing it with that of fresh drug solution.
A. Acidic stress
100 mg of MTD was refluxed in 1 N Hydrochloric acid for 4 hours in a water bath at 70oC.
B. Alkaline stress
100 mg of MTD was refluxed in 1 N sodium hydroxide for 4 hours in a water bath at 70oC.
C. Thermal stress
100 mg of MTD was kept in solid state at 70oC for 4 hours in an oven equipped with temperature control probe.
D. Oxidative stress
100 mg of MTD was dissolved in 3% and 6% Hydrogen peroxide separately and kept at room temperature for 24 hours in amber colored stoppered vials.
RESULTS AND DISCUSSION
Recording of spectrum of standard solution
The spectrum of standard drug was recorded with 50µg/ml solution, and scanned in the range of 400-200 nm. 272 nm was found to be the suitable wavelength for analysis.
Degradation behavior of MTD
The amount (percent) of MTD remaining undegraded under each stress condition was determined from the absorbance of the fresh drug sample relative to that of stressed drug sample. The results are shown in table 7.
Method validation
A. Accuracy
Accuracy of the method was evaluated by spiking the drug at three concentration levels (8, 10 & 12µg/ml) to the original 10 µg/ml solution. The percent recovery of the added drug was calculated from the linearity plots. The results are shown in table 1.
B. Linearity and range
The linearity of the method was established by preparing a calibration curve in water in the range 10-50μg/ml. Triplicates of each of the solution were analyzed and calibration curve recorded. The mean (n=3) absorbance was plotted against concentration (μg/ml). The correlation coefficient and equation of line were determined. The results are shown in fig2 and table 2.
C. Precision
The Interday and intraday precision was determined by calculation of the % RSD values on triplicates of each concentration. The mean (n=3) absorbance of each concentration was compared with that of the second run on the same day (intraday) and with that on the next day (interday) and the percent relative deviation calculated. The results are shown in table 3.
D. Specificity
The Specificity of the method was established through the determination of the drug in the presence of its degradation products with high degree of precision. The spectrum homogeneity was confirmed by analyzing the ratio chromatograms at the wavelengths 271 nm and 273 nm.
E. Ruggedness [16]
Mean absorbance (n=3) was measured for the 10μg/ml solution analyzed by two different analysts on different days and the percent relative deviation between two trials was calculated. The results are shown in table 4.

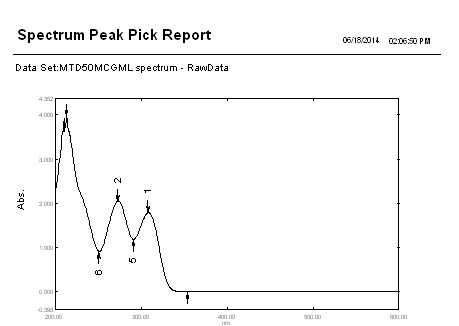

Fig. 1: Spectrum of fresh standard solution of Metoclopramide HCl (50µg/ml)

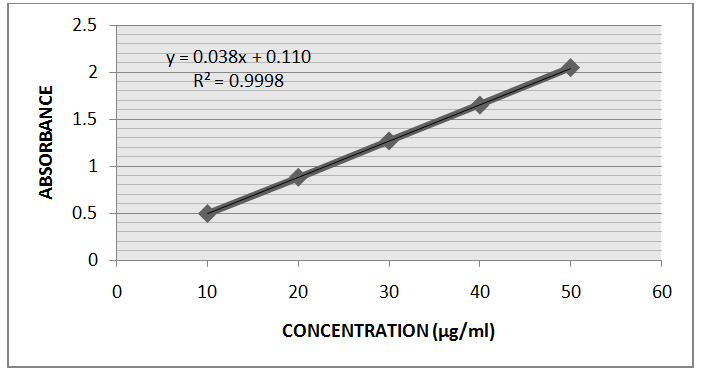

Fig. 2: Calibration curve of Std MTD
F. Robustness
Deliberate changes in the detection wavelength were made. Three replicates of each deviation were analyzed and the %RSD between the mean (n=3) absorbance and that obtained under optimized spectrophotometric conditions were determined. The results are shown in table 5.
G. Limit of detection and limit of quantitation
The limit of detection and limit of Quantitation was calculated based on standard deviation (σ) and the slope (S) of the calibration plot, using the formulae LOD= 3.3σ/s and LOQ=10σ/S as defined by ICH. The LOD was found to be 3.26µg/ml and LOQ 9.89µg/ml.

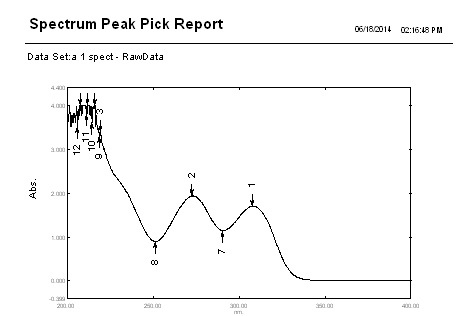

Fig. 3: Spectrum of Acid degraded MTD

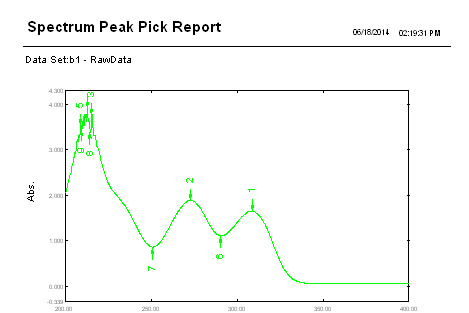

Fig. 4: Spectrum of base degraded MTD

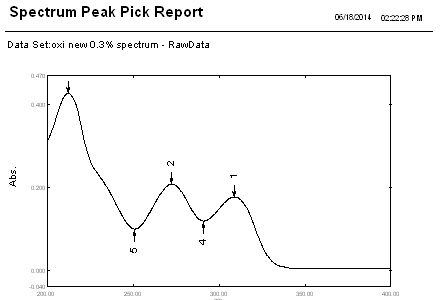

Fig. 5: Spectrum of oxidatively (0.3%) degraded MTD

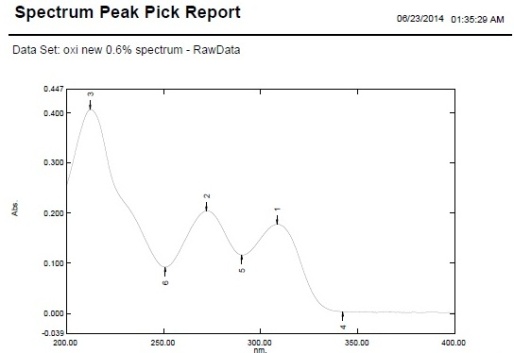

Fig. 6: Spectrum of Oxidatively (0.6%) degraded MTD
Fig. 7: Spectrum of thermally Degraded MTD
H. System suitability
The system suitability parameters Linearity and range, accuracy, precision and specificity were determined and are shown in table 6.
Table 1: Results of recovery studies
| Preanalyzed
Sample Solution (µg/ml) |
Level of
Addition |
Drug recovered
(µg/ml) |
% Recovery | %RSD |
| MTD10 | 80 | 17.92 | 99.55 | 0.435 |
| 100 | 20.02 | 100.1 | 0.698 | |
| 120 | 22.03 | 100.13 | 0.333 | |
| Average %RSD | 0.488 |
Table 2: Linearity Study of MTD at 272 nm
| S.
No. |
Conc. | Absorbance
Mean±S. D. |
%RSD |
| 1 | 10 | 0.498±0.0032 | 0.642 |
| 2 | 20 | 0.883±0.001 | 0.113 |
| 3 | 30 | 1.269±0.0015 | 0.118 |
| 4 | 40 | 1.648±0.0005 | 0.030 |
| 5 | 50 | 2.045±0.0005 | 0.024 |
Table 3: Results of Intra-day and Inter-day precision studies
| Drug | Intra-day Precision | Inter-day Precision | |||
| Conc. | Mean±S. D. | %RSD | Mean±S. D. | %RSD | |
| MTD | 10 | 9.99±0.036 | 0.360 | 10.005±0.028 | 0.279 |
| 20 | 19.91±0.035 | 0.175 | 19.98±0.077 | 0.385 | |
| 30 | 30.02±0.015 | 0.050 | 29.97±0.063 | 0.210 | |
| 40 | 40.07±0.056 | 0.139 | 39.96±0.148 | 0.370 | |
| 50 | 49.70±0.045 | 0.092 | 49.84±0.197 | 0.395 | |
| Average %RSD | 0.163 | Average %RSD | 0.327 | ||
Table 4: Results of ruggedness studies
| Drug | Amount Taken (µg/ml) |
Analyst I | Analyst II | ||
| Amount Found | %RSD | Amount Found | %RSD | ||
| MTD | 10 | 9.96±0.025 | 0.25 | 9.99±0.0152 | 0.152 |
| MTD | 10 | Instrument I | Instrument II | ||
| 10.01±0.047 | 0.47 | 9.80±0.045 | 0.459 | ||
Table 5: Results of Robustness studies
| Drug Amount Taken (µg/ml) |
WL-1 (271 nm) Amount %RSD Found |
WL-2 (272 nm) Amount %RSD Found |
WL-3 (273 nm) Amount %RSD Found |
| MTD 10 | 9.88±0.02 0.202 | 9.96±0.025 0.25 | 9.99±0.045 0.45 |
Table 6: System suitability parameters
| Validation Parameter | Values |
| Range | 10-50µg/ml |
| Linearity- | |
| Regression equation (y=mx+C) | y = 0.038x + 0.110 |
| and Correlation coefficient r2 | r² = 0.9998 |
| LOD | 3.26µg/ml |
| LOQ | 9.89µg/ml |
| Recovery (% RSD) | 0.488 |
| Intra-Day Precision | 0.163 |
| Inter-Day Precision | 0.327 |
| Inter-Analyst | 0.201 |
| Inter-Instrument | 0.464 |
Table 7: % Drug Degraded under each stress condition
| S. No. | Stress Condition | Absorbance | % Drug degraded | % Drug Remain |
| 1 | Fresh Solution | 2.045 | 0 | 100 |
| 2 | Acidic | 1.927 | 5.78 | 94.22 |
| 3 | Basic | 1.859 | 9.10 | 90.90 |
| 4 | Oxidative (0.3%) | 0.290 | 85.82 | 14.18 |
| 5 | Oxidative (0.6%) | 0.262 | 87.19 | 12.81 |
| 6 | Thermal | 1.639 | 19.86 | 80.14 |
CONCLUSION
A validated stability indicating assay method has been developed for the determination of Metoclopramide hydrochloride in bulk. The results show that the developed method was accurate, precise, simple, economic, fast and specific. Metoclopramide HCl is most prone to degradation under oxidative (6%) stress, followed in order by the stress oxidative (3%), thermal, basic, and acidic.
ABBREVIATIONS
MTD: Metoclopramide HCl.
CONFLICT OF INTERESTS
Declared None
ACKNOWLEDGEMENT
The authors are grateful to IPCA laboratories Ltd. (Aurangabad, India) for kindly providing gift sample of Metoclopramide HCl. Further, we extend our thanks to Dr. R. B. Nawale for valuable suggestions and providing facilities for research work.
REFERENCES
- British Pharmacopoeia 2009.
- www. drugbank. ca
- Blessy M, Patel RD, Prajapati PN, Agrawal YK. Development of forced degradation and stability indicating studies of drugs: a review. J Pharm Anal 2013;9:3-6.
- Gaikwad S, Kondawar M, Nazarkar S, Phase S, Narkhede H. RP-HPLC method for the simultaneous determination of metoclopramide hydrochloride and paracetamol in tablet dosage form. Int J Pharm Life Sci 2010;1(3):127-32.
- Nabeel SO, Hana SM, Nada AK. Spectrophotometric and High Performance Liquid Chromatographic Methods for Determination of Metoclopramide in Pharmaceutical Preparations. Rafidian J Sci 2011;22(3):39-56.
- Dudhane NP, Vidhate SS, Borkar BH, Lohiya RT, Umekar MJ. Simultaneous UV Spectrophotometric estimation of Metoaclopramide hydrochloride and Paracetamol in solid dosage form. Int J Pharm Sci Res 2010;2(1):48-52.
- Wamorkar V, Manjunath SY, Varma MM. Development and Validation of UV Spectroscopic Method for Determination of Metoclopramide Hydrochloride in Bulk and Tablet Formulation. Int J Pharm Pharm Sci 2011;3(3):171-4.
- Aubert M, Jean-Louis HJ. LC–MS characterization of Metoclopramide photolysis products. J Photochemistry Photobiology A: Chemistry 2009;205:197–202.
- Miao Y, Huen DL, Ben MC, Xiao LL, Yun GZ. Determination of Metoclopramide in human plasma by LC-ESI-MS and its application to bioequivalence study. J Chromatography B 2010;878:884-7.
- Singh S, Bakshi M. Development of validated stability indicating assay methods-critical review. J Pharm Biol Anal 2002;28:1011-40.
- FDA. Guidance for Industry: impurities in drug product, Draft Guidance. Center for Drug Evaluation Res 2003.
- International Conference on Harmonization (ICH), Guidance for Industry, Q1A (R2): Stability Testing of New Drugs and Products. IFPMA Geneva 2003.
- Singh S, Bakshi M. Guidance on conduct of stress tests to determine inherent stability of drugs. Pharm Technology 2000;24:1-14.
- International Conference on Harmonization (ICH), Validation of Analytical Procedures: Text and Methodology. Q2 (R1), Nov 2005.
- Kudige NP, Kanakapura B, Cijo MX, Madihalli SR. Development and validation of stability-indicating uv spectrophotometric methods for the determination of zolmitriptan in pharmaceuticals. Int J Pharm Chem Sci 2013;2(1):236-45.
