Int J Pharm Pharm Sci, Vol 9, Issue 9, 51-58,Original Article


PHYSICOCHEMICAL CHARACTERIZATION AND EVALUATION OF TELMISARTAN: HYDROXYPROPYL-β-CYCLODEXTRIN: TWEEN 80 INCLUSION COMPLEX

POONAM ARORA1*, JASPREET SINGH1, RENU CHADHA2

1GHG Khalsa College of Pharmacy, Gurusar Sadhar, Ludhiana, Punjab, 2University Institute of Pharmaceutical Sciences, Panjab University, Chandigarh, Punjab India
Email: poonam803@yahoo.com

Received: 10 Apr 2017 Revised and Accepted: 13 Jul 2017

ABSTRACT

Objective: The present work was aimed to study the effect of the ternary component on complexation efficiency of cyclodextrins towards telmisartan which is a poorly soluble anti-hypertensive agent.

Methods: The elucidation of inclusion complexation of telmisartan (TEL) with hydroxypropyl-β-cyclodextrin (HP-β-CD) in the presence and absence of tween 80 was done by investigating their interactions in solid and solution state. The solid state characterization was performed using differential scanning calorimetry (DSC), powder X-ray diffraction studies (PXRD) fourier transform infra-red spectroscopy (FTIR) studies. The host guest stoichiometry was confirmed in solution state by proton nuclear magnetic resonance (1HNMR) and solution calorimetry studies. The improvement in solubility was evaluated through dissolution studies, which was further confirmed by in vivo studies.

Results: In solution state, the phase solubility studies indicated 1:1 stoichiometry between TEL and HP-β-CD both in presence and absence of tween 80. The NMR and molecular modelling studies indicated the insertion of N-methyl benzimidazole and biphenyl carboxylate regions of TEL into HP-β-CD cavity suggesting the coexistence of two 1:1 complexes in equilibrium with each other. The stability constants, K1 (imidazole region of TEL-CD) and K2 (biphenyl acetic acid region of TEL-CD), were enhanced in the presence of tween 80 as evident by the higher value of stability constants. Efficacy of ternary complex was established by a significant decrease in the systolic blood pressure of deoxycorticosterone acetate (DOCA) induced hypertensive rats.

Conclusion: It can be concluded that solubility of TEL was increased by encapsulation with HP-β-CD. Tween 80 further increased the complexation efficiency and decreased the bulk of cyclodextrin.

Keywords: Cyclodextrin, Telmisartan, Ternary complex, Stability, Tween 80, Calorimetry, DOCA

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2017v9i9.19058

INTRODUCTION

The supramolecular chemistry deals with supramolecular architectures which are based on molecular recognition between complementary host-guest and self-assembly into purely hydrogen bonded networks without establishing covalent bonds between interacting species [1]. Over the past few decades, among the majority of hosts, the cyclodextrins due to various desirable attributes like absorbability, biodegradability and encapsulation ability of a wide variety of guest molecules with suitable polarity and dimensions, seems to be the most important host to form inclusion complexes [2-4].

Cyclodextrins are cyclic oligosaccharides in which several D-glucose units are linked by α-1, 4 glycosidic bonds providing hydrophobic cavities to accommodate appropriately sized guest molecules [5, 6]. The molecular encapsulation of lipophilic drugs with appropriate cyclodextrin lead to improved physicochemical properties of drug and consequently facilitating safe and efficient delivery of drugs which makes cyclodextrins to be widely used in pharmaceutical industry with the aim of enhancing drug aqueous solubility [7-13]. However, an increase in formulation volume represents a limiting factor in the applicability of cyclodextrin due to the inherent toxicity as well as the cost associated with cyclodextrin [14].

The use of small amounts of water soluble polymer increases the complexation efficiency leading to decreased formulation bulk and cost. Although the mechanism involved in increasing the complexation efficiency is not fully understood, however, it is believed that the addition of a ternary component to the binary complex leads to improved macromolecular self-assembly [15-22].

TEL is a poorly soluble angiotensin II receptor antagonist which is used as an anti-hypertensive agent. This drug belongs to BCS class II category and thus is poorly water soluble. It is necessary to improve the solubility of such agents in order to increase the bioavailability.

The truncated shape of cyclodextrins makes them attractive alternatives for complexation of the drug molecule. Although the complementary effect of cyclodextrins complexation on TEL solubility and dissolution rate has also been demonstrated previously [23-26], however, the effect of the third component on inclusion complexation, binding parameters, as well as pharmacodynamic evaluation, has not been reported.

Therefore the present study investigates the interaction of telmisartan (TEL) with hydroxyl-propyl-β-cyclodextrin (HP-β-CD) in the absence and presence of tween 80 as third component in both solution (phase solubility, proton nuclear magnetic resonance (1HNMR), solution calorimetry) and solid (differential scanning calorimetry (DSC), powder X-ray diffraction studies (PXRD), fourier transform infrared spectroscopy (FTIR)) phases and is also focused on determining the thermodynamic parameters of binary and ternary complexes, exact stoichiometry as well as the geometry of the complexation using molecular modeling.

MATERIALS AND METHODS

Materials

TEL was obtained as a gift sample from Ind-swift Laboratories Ltd. (Panchkula, India). β-cyclodextrin (β-CD) and hydroxyl-propyl-β-cyclodextrin (HP-β-CD) were purchased from Hi-media Lab. Pvt Ltd. (Mumbai, India), and methyl--β-cyclodextrin (M-β-CD) was purchased from Sigma-Aldrich, Co. (St. Louis, USA). All other chemicals were of analytical grade.

Preparation of complexes

Binary complexes of TEL with HP-β-CD were prepared in molar ratio of 1:1 by (a) physical mixing (PM) mixing both (TEL and HP-β-CD) with a spatula for 25 min and then sieved through 120 # and packed in airtight container; (b) kneading(KN) the CD in a mortar with small quantity of water to obtain a homogeneous paste, TEL was then added slowly while grinding and to facilitate the dissolution of TEL into CD paste, a small quantity of methanol was added. The mixture was then grounded for 6 h. During this process, an appropriate quantity of water was added to the mixture to maintain the desired consistency. The pastes were dried in oven at 45-50 ° C for 24 h. The dried complexes were pulverized and then sieved through 120 #.

Ternary complexes were prepared by adding tween 80 (0.1% v/v) to a solution of drug and selected cyclodextrin in water. This solution was autoclaved at 120 ° C for half an hour to activate water soluble polymer through heating for enhanced drug solubilization [27, 28] and then grounded for 6 h. An appropriate quantity of water was added to the mixture to maintain the desired consistency. The pastes were dried in an oven at 45-50 ° C for 24 h. The dried complexes were pulverized and then sieved through 120 #.

Equilibrium phase solubility analysis of TEL in presence and absence of tween 80

Equilibrium phase solubility studies were carried out according to the method described by Higuchi and Connors [29]. TEL, in constant amounts (5 mg) exceeding its solubility, was transferred to conical flasks containing 10 ml of aqueous solution of HP-β-CD at various molar concentrations (0-10 mmoles) both in absence and presence of 0.1% v/v Tween 80. The mixtures were firstly dispersed by vortex shaker for 2 min, and then oscillated by rotary shaker (MSW-275 Macro scientific works, Delhi) at 37 °C for 24 h. The time duration was fixed based on pilot experiment and found to be sufficient to achieve equilibrium of mixture. After reaching equilibrium, the samples were withdrawn, filtered through 0.45 μm membrane filter and analyzed spectrophotometrically (Perkin Elmer precisely, Lambda 25, UV/VIS spectrophotometer) at λmax (297 nm).

Characterization in solid state

Differential scanning calorimetry (DSC)

DSC measurements were carried out on DSC (Q20, TA Instruments Waters LLC, USA) which was calibrated using pure indium. The samples were weighed (3 mg) in aluminium pans and scanned at a heating rate of 10 °C in the temperature range from 50 to 350 °C. Dry nitrogen with a flow rate of 50 ml/min was used as purge gas.

Fourier transform infrared spectroscopy (FT-IR)

The FT-IR spectra of TEL, its physical mixture, binary and ternary complexes over the range 4000 cm-1-450 cm-1 were obtained on FT-IR spectrometer (Mode spectrum RXI, Perkin Elmer, England). A manual press was used to make the pellets of the samples.

X-Ray powder diffraction (XRPD)

Powder diffraction patterns were recorded on an X-ray diffractometer (XPERT-PRO, PAN alytical, Netherlands) with Cu as tube anode. The diffractograms were recorded under the following conditions: voltage 40 kV, 35 mA, angular range five and fixed divergence slit.

Characterization in solution state

Nuclear magnetic resonance (NMR) spectroscopy

Bruker Advance II 400 NMR spectrometer operating at 400 Hz was used for studying proton NMR spectra of inclusion complexes and pure drug in deuterated dimethyl sulfoxide.

Solution calorimetry

Isoperibol solution calorimeter (ISC) model 4300 (Calorimetry Science Corporation, Utah, USA) was used for thermal measurements. It is a semi-adiabatic calorimeter with temperature resolution after noise reduction, close to 1 K, which corresponds to a heat resolution of 1–4 mJ in a 25 ml buffer (pH 7) reaction vessel. The details are given in our previous papers [31, 31]. The performance of the system was tested by measuring the enthalpy of solution of potassium chloride (17.301 kJ/mol) in triple distilled water, which is in good agreement with a known enthalpy of solution of 17.322 kJ/mol. The precision of any individual measurement was better than±0.03 kJ/mol for three consecutive experiments.

Dissolution study

The dissolution profiles of the TEL, its binary and ternary complexes were obtained using USP dissolution rate type II apparatus at 37±0.5 °C. Dissolution media consisted of 900 ml of phosphate buffer (pH 7.4), previously filtered, degassed, and maintained at 37±0.5 °C. The stirring speed was set at 50 rpm. The amount of inclusion complexes added was equivalent to 40 mg of TEL. The aliquots of 5 ml were withdrawn at regular time intervals and analyzed till the absorbance of the solution attains a constant value. At each sampling time, an equal volume of fresh medium was added and the correction for the cumulative dilution was calculated. Each dissolution study was performed on duplicate batches.

In vivo studies-pharmacodynamic activity

Evaluation of the antihypertensive activity of TEL and its binary and ternary complexes was performed in DOCA salt induced hypertensive rats.

4–5 w old albino rats (200–300 g) were procured and were housed at a relative humidity of 65±2%, temperature of 23±0.5 °C with a 12 h light/dark cycle. They were provided with standard pellet diet and water ad libtum. Experiments were performed as per guidelines of the committee for the purpose of the Control and Supervision on Experiments on Animals (CPCSEA). The experimental protocol was approved by Institutional Animal Ethics Committee (Approval No IAEC/477 dated 19/11/2013).

Animals were divided into 6 groups and each group comprised of 6 animals (n=6).

Group I and II (Control group): These rats were vehicle treated. They were orally fed with distilled water daily and cotton seed oil (0.1 ml/100 g) was injected subcutaneously twice a week for 6 w. After 6 w HP-β-CD and HP-β-CD: tween 80 (0.1% v/v) (blank for complexes) suspended in 0.5% (w/v) sodium carboxymethyl cellulose (CMC) suspension was administered orally by gavage to group I and II rats.

Group III (DOCA þlus 1% (w/v) NaCl treated rats: This group received DOCA and 1% (w/v) NaCl solution for 6 w. After the induction of hypertension (6 w) this group received a single oral dose therapy of HP β-CD: tween 80 (0.1% v/v) suspension in CMC.

Group IV: This group received DOCA and 1% (w/v) NaCl solution for 6 w. After the induction of hypertension (6 w) this group received a single oral dose therapy of 10 mg/kg of TEL in 0.5% (w/v) CMC suspension.

Group V (DOCA þlus 1% (w/v) NaCl followed by TEL: HP β-CD complex: Similar to group IV, this group received DOCA and 1% (w/v) NaCl solution for 6 w followed by a single oral dose therapy of TEL: HP-β-CD complex equivalent to 10 mg/kg TEL.

Group VI (DOCA þlus 1% (w/v) NaCl followed by TEL: HP-β-CD: tween 80 (0.1% v/v) complex: Similar to group IV and V, group VI received DOCA and 1% (w/v) NaCl solution for 6 w followed by a single oral dose therapy of TEL-HP-β-CD-tween 80 (0.1% v/v) complex equivalent to 10 mg/kg TEL.

Changes in systolic blood pressure of all the groups were recorded at different time intervals (0, 1, 2, 6, 8, 12 and 24 h), by the indirect tail cuff method using the blood pressure recorder Cat. 8006, UgO (Basile, Biological Research Apparatus, Italy) to monitor the efficacy and potency of prepared complexes in comparison to the control groups I and II.

Statistical analysis

Data were expressed as mean±SD. One way analysis of variance (ANOVA) was used for each parameter, followed by Tukey’s test. P<0.01 is considered statistically significant.

RESULTS AND DISCUSSION

Phase solubility studies

Effect of cyclodextrins on aqueous solubility of TEL

The elucidation of phase solubility profile is the fundamental technique to explain the host-guest interaction because it gives not only the solubilizing ability of the host molecules but also the stochiometric ratio of the components of the complex in which they are associated [30]. The phase solubility studies of TEL were carried out with β-CD, HP-β-CD and M-β-CD in triple distilled water at 37 °C for 24 h and their respective phase solubility profiles for the complex formation are shown in fig. 1. It was observed from the phase solubility diagram results that the type of CD used influences greatly the TEL solubility.

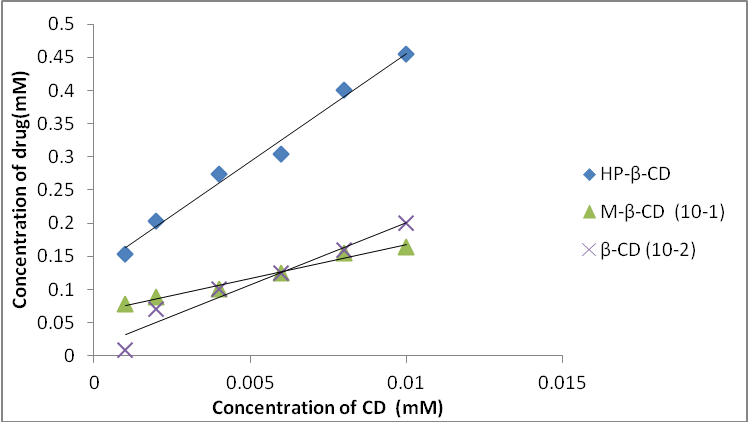

Fig. 1: Phase solubility profiles of telmisartan with β-cyclodextrin, hydroxyl-propyl-β-cyclodextrin and methyl-β-cyclodextrin in triple distilled water

The aqueous solubility of TEL increased linearly as a function of cyclodextrin concentration over range under study, indicating the formation of soluble inclusion complexes with 1:1 stoichiometry. Given the CD used for the binary complexes formation, HP-β-CD showed superior solubilizing and complexing ability toward TEL and therefore this derivative of β-CD was selected for further studies.

Screening of the third component

The use of the third component as a strategy for significant reduction in the amount of cyclodextrin in desired formulations is well established, however, a few reports are also available showing the adverse effect of the added polymer on solubility [33]. Therefore, cautious screening of the third component is very important. Various solubilizing agents were tried to access their efficiency in increasing the solubilizing effect of cyclodextrin. The best performance was shown by tween 80 (0.1 % v/v) out of the various additives (polyvinylpyrrolidone (PVP), hydroxypropyl methyl cellulose (HPMC), polyethylene glycol (PEG) and poloxamer) for increasing the solubilizing efficacy of cyclodextrin (fig. 2). Therefore, it was adjudged to use tween 80 as the hydrophilic additive in the ternary complex of TEL. Although the exact mechanism of interaction of the polymers with binary complexes is not clear, however, it is believed that the hydropillic polymer forms supramolceular aggregate with both drug and binary complex. These polymers aid in the wetability of particles, resulting in an accelerated dissolution and increased the amount of drug delivered in vitro.

Fig. 2: Effect of different additives on solubility of telmisartan in the presence of hydroxyl-propyl-β-cyclodextrin, significant increase in solubility of ternary system as compared to binary system (P ≤ 0.005)

Solubility of TEL in binary and ternary systems

Many workers have shown that complexation with CDs particularly 2-HP-β-CD leads to improved solubility of TEL [23, 26]. However, the effect of the ternary component has not been studied. In the present study, it was found that the solubility of TEL was 2.86 and 0.46 mmoles L-1 at a concentration of 10 mmoles L-1 2-HP-β-CD with and without 0.1% v/v tween 80 respectively (fig. 3). This leads to ~6.2 fold increase in solubility of TEL on switching over from binary system to ternary system. However, the solubility of TEL in unbuffered triple distilled water was 0.009 mmoles L-1 and overall there is several times increase in solubility of TEL in drug: HP-β-CD (10 mmoles L-1):tween 80 (0.1 % v/v) system in comparison to solubility in unbuffered water. Such a synergistic effect can be explained assuming a tween 80 induced higher complexation efficiency of HP-β-CD towards TEL as compared to without tween 80. The linear phase solubility curve in the presence of 0.1% v/v of tween 80 was also found to be AL type. The addition of tween 80 does not seem to change the stoichiometry in the complexes (1:1) as the slope still continues to be less than one. This led to the preparation of ternary inclusion complexes containing the drug and cyclodextrin in the presence of 0.1% (v/v) tween 80.

Molecular modelling studies

The molecular modelling studies predicted the existence of two types of complexes with 1:1 stoichiometry and equal stability which can coexist in solution phase (fig. 4). Therefore, the solid binary and ternary complexes were prepared and characterized keeping in mind the 1:1 stoichiometry.

Differential scanning calorimetry (DSC)

The DSC thermograms of TEL, HP-β-CD and both binary and ternary complexes along with the physical mixture are given in fig. 5. The endothermic peak can be detected at 270 °C in the DSC thermogram of TEL while a broad endotherm corresponding to desolvation was observed in HP-β-CD thermogram. The thermograms of both binary and ternary complexes lacked the endothermic peaks arising from individual components and showed a broad transition extending from 60 to 120 °C in a binary system and 80 to 160 °C for the ternary complex. The disappearance of the endothermic peaks suggests insertion of the guest molecule into the CD cavity. The thermograms of physical mixture resembled the combination of curves of individual components.

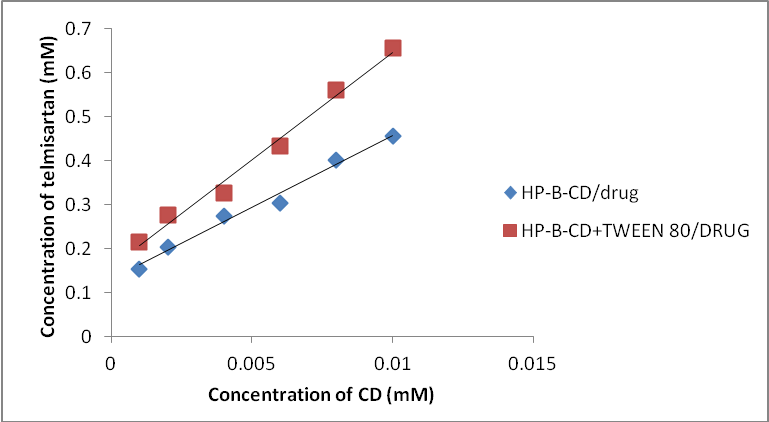

Fig. 3: Phase solubility diagram of telmisartan with hydroxyl-propyl-β-cyclodextrin in the absence and presence of tween 80

Fig. 4: Orientation of complex on inclusion of telmisartan into hydroxyl-propyl-β-cyclodextrin cavity

Fig. 5: DSC curves of telmisartan, its physical mixture and binary and ternary complex

X-ray powder diffraction (XRPD)

The characteristic diffraction peaks relevant to crystalline TEL appear at 2θ = 6.84, 14.28 and 22.38 (fig. 6). The diffraction pattern of the investigated PM of TEL and HP-β-CD at 1:1 molar ratios is apparently superposition of diffraction pattern of individual components, indicating that drug maintained its crystallinity in its respective physical mixture. The binary system presented a diffraction pattern with fewer peaks of lower intensity and the results are comparable with the XRPD pattern shown by Lofftson et al. [26]. Whereas it was no longer possible to distinguish the characteristic peaks of the drug in the ternary system (TEL: HP-β-CD: tween 80) which showed a modified and almost halo pattern suggesting the formation of amorphous inclusion complex (fig. 6).

Fig. 6: X-ray diffraction pattern of telmisartan, its physical mixture and binary and ternary complex

Fourier transform infrared spectroscopy (FT-IR)

In the FT-IR spectra of TEL distinct changes were observed in characteristic IR peaks which occurred at 1696 cm-1for the carbonyl group C=O and 3416 cm-1for-OH stretch of the carboxylic acid group when complexed with HP-β-CD in the absence as well as the presence of tween 80. The carbonyl peak shifted to a higher frequency of 1700 cm-1and-OH stretch to a lower frequency of 3390 cm-1. This phenomenon was accompanied by peak broadening of both these peaks. The shift in the peak position was more prominent in the ternary complex as compared to binary system (1736 cm-1, 3383 cm-1), which confirms that polymer enhances the complexation efficiency of cyclodextrin with the drug.

Nuclear magnetic resonance spectroscopy (NMR)

The chemical shift variations of host or guest provide evidence for the formation of inclusion complexes in solution. The variations in the chemical shift were observed in the spectra of TEL upon complexation with CD and are reported in table 1. Upfield shifts were detected in the aromatic region of the spectra of TEL after complexation. The variations are more pronounced in this region owing to the interaction with CD protons suggesting that the biphenyl carboxylic acid moiety, as well as imidazole moiety, can be involved in the complex formation with CD.

Table 1: Variation of 1H chemical shifts before and after inclusion

Protons Shift
H-7 Upfield
H-8 Downfield
H-9 Downfield
H-10 Downfield
H-13 and H-17 Upfield
H-14 and H-16 Upfield
H-19 and H-22 Downfield
H-20 and H-21 Downfield

Besides this, the upfield shift was also observed in the H-3′ and H-5′ protons of HP-β-CD. The magnetic anisotropic shielding induced by the ‘ring-current’ effect of aromatic protons results in the upfield shift of CD protons. Shifts to the higher fields of the protons located within the CD cavity suggest that a hydrophobic interaction is predominant between the drug and the CD.

Thus 1D NMR suggests that interaction prevails between the aromatic protons and CD cavity, however, this does not confirm the formation of any complexes.

The 1D NMR results are supplemented by 2D COESY NMR which shows intermolecular dipolar cross-correlations providing important information about the evident spatial proximities between protons of TEL and HP-β-CD molecule (fig. 7). Two intermolecular cross peaks were found to be of interest between H-3′ and H-5′ protons of HP-β-CD with aromatic protons of TEL. These correlations indicate the spatial contacts between the wider side of the cyclodextrin cavity and the aromatic ring of TEL. The 1D and 2D NMR demonstrate the formation of inclusion complexes in a solution state.

Fig. 7: COESY spectrum of (a) telmisartan with hydroxyl-propyl-β-cyclodextrin (b) telmisartan with hydroxyl-propyl-β-cyclodextrin: tween 80

The NMR studies revealed that there are two distinct regions of TEL (biphenyl carboxylic acid moiety and imidazole ring) which could be included in HP-β-CD; however, the stoichiometry of 1:1 has been established by phase solubility studies. To unravel the incongruity in the results of phase solubility and NMR and molecular modelling studies, the solution calorimetric analysis has been performed to confirm the stoichiometry and as well as to calculate the stability constant.

Solution calorimetry

By determining the enthalpy of solution, solution calorimetry was used to determine the magnitude of stability constant and enthalpy associated with binding [27]. The enthalpy of solution of TEL (ΔsolH) determined in buffered aqueous solution was found to be-4.53 kJ/mol indicating an exothermic reaction. The enthalpy of solution of TEL (ΔsolH (CD)) in the presence of cyclodextrins (ΔsolH(M)(CD)) was found to be more exothermic which is attributed to the interaction between drug and cyclodextrin (table 2). The enthalpies of interaction per mole as well as per liter have been calculated by using Eq. 2 and 3 as discussed by Chadha et al. [32]. The stoichiometry was ascertained utilizing continuous variation method (Job’s plot) by plotting (ΔHint (M)) against (x2) for both binary and ternary systems (fig. 8). It is clearly indicated that the minima occur at x2=0.5 confirming the1:1stoichiometry as indicated by phase solubility.

Fig. 8: Plot of molar enthalpy of interaction (∆solHint(M)) of telmisartan with hydroxyl-propyl-β-cyclodextrin in the presence and absence of tween 80 (0.1%v/v)

As discussed above NMR as well as molecular modelling data indicate two potential regions in TEL (imidazole ring and biphenyl carboxylic acid moiety), therefore, a two class binding model was utilized to determine the concentration of drug: CD complex which suggested that two types of 1:1 complexes co-exist in the solution. Now the binding constants are calculated assuming an equilibria between the cyclodextrin and the complex where imidazole ring enters the cyclodextrin cavity and between cyclodextrin and the complex where the biphenyl acetic acid moiety enters the host cavity. K1 and K2 are the equilibrium constants for both types of complexes, respectively.

Table 2: Enthalpy of solution under different initial concentration of telmisartan and hydroxyl-propyl-β-cyclodextrin and the derived quantities in binary and ternary systems

X2 MVAL MM-β-CD For binary system For ternary system
∆Hint(exp) (J/l) ∆Hint(M) (kJ mol-1) ∆Hint(exp) (J/l) ∆Hint(M) (kJ mol-1)
0.09999 0.0004 0.0036 -0.5314 -132.837 -0.30884 -77.2023
0.200184 0.0008 0.003196 -0.9892 -247.528 -0.46912 -117.388
0.299898 0.0012 0.002801 -1.37468 -343.553 -0.90452 -226.053
0.400276 0.0016 0.002397 -1.64352 -411.164 -0.97898 -258.592
0.489922 0.002 0.002082 -1.81892 -445.565 -1.09832 -274.77
0.600276 0.0024 0.001598 -1.64352 -411.069 -1.20236 -294.531
0.69944 0.0028 0.001203 -1.37496 -343.465 -1.2758 -298.304
0.800184 0.0032 0.000799 -0.97478 -243.751 -1.09832 -274.706
0.899074 0.0036 0.000404 -0.52952 -132.243 -0.90656 -226.459
0.09999 0.0004 0.0036 -0.5314 -132.837 -0.75662 -190.252
0.200184 0.0008 0.003196 -0.9892 -247.528 -0.62912 -157.316
0.299898 0.0012 0.002801 -1.37468 -343.553 -0.3119 -77.8948

The experimentally calculated enthalpy of interaction (ΔH int(exp)) is proportional to the sum of the product of molar concentration of TEL: HP-β-CD complex in the solution at equilibrium and associated molar enthalpy of binding.

ΔH int (calc) =[ΔH1xK1(C)(D)]+[ΔH2xK2(C)(D)]………. (4)

Where, ΔH1 and ΔH2 are molar enthalpy of binding of complex1 and complex 2, respectively.

C= free concentration of 2-HP-β-CD, D = free concentration of TEL.

Successive iteration was used to compute the interaction parameters (K(i) and ΔH(i)) for the drug-CD system.

The values of K1 and K2, ΔH1 and ΔH2 were evaluated by using a self-consistent iterative nonlinear least square regression programme after successive iteration to minimize the values of ∑{ΔH int (exp)-ΔH int L(calc)}2].

Further, the values of C and D were calculated by iteration until their values within selected limits were obtained by putting any reasonable initial values of K1 and K2. The details are given in our previous paper [32]. The values of free energy of inclusion (ΔG °1 and ΔG °2) and entropy of inclusion (ΔS °1and ∆S °2) for TEL have been calculated from the following equations 5-8 in the work by chadha et al., and are given in table 3.

Table 3: Thermodynamic parameters associated with the inclusion of telmisartan and hydroxyl-propyl-β-cyclodextrin in the absence and presence of tween 80 at 310 K

K1
(M-1)		 K2
(M-1)		 ΔH1 ° (kJ/mol) ΔH2 ° (kJ/mol) ΔG1 ° (kJ/mol) ΔG2 ° (kJ/mol) ΔS1 ° (J/mol) ΔS2 ° (J/mol)
TEL-HP-β-CD complex 1215±5 1716±4 -7.80±0.07 -9.45±0.05 -18.30±0.24 -19.19±0.08 33.89±1.26 31.45±0.94
TEL-HP-β-CD-tween 80 complex 1699±6 2088±6 -12.45±0.08 -13.07±0.02 -19.17±0.15 -19.70±0.09 21.76±1.10 19.35±1.02

The same method was utilized to determine the stability constant and other thermodynamic parameters in the presence of tween 80 (0.1% v/v). The enthalpy of solution of TEL in the presence of Tween80 and HP-β-CD was found to be more exothermic. This is attributed to positive interaction among all the three components (TEL: HP-β-CD: tween 80) in the complex.

The above mentioned thermodynamic parameters, K, ΔH, ΔG and ΔS, of the binding process are essential for determining the driving forces of interaction of TEL with HP-β-CD. The values of the binding constants thus determined for both binary and ternary systems are given in table 4. The higher value of K (K1: 1888M-1 and K2: 1699M-1) for ternary system reflects the higher efficiency of TEL to be included into the cyclodextrin cavity. This synergistic effect shows that tween 80 facilitates the inclusion of TEL into HP-β-CD cavity. The negative values for free energy for both binary and ternary complexes means that the binding process is a spontaneous process and thermodynamically favored. The entropic terms, ΔS˃0, for the complexation are also found to be favourable for complexation. The standard enthalpy of formation of both binary and ternary complexes was found to be negative indicating that the formation of the inclusion complex is an exothermic process.

This exothermic energy may be the outcome of the release of water molecules into the aqueous phase from the completely hydrated cavity of the CD and the hydrophobic interactions between the host and the guest.

The negative standard Gibb’s free energy indicates the complexation is a spontaneous process and the value is more negative in ternary complex indicating that the process is thermodynamically favoured.

The entropy of both the systems is positive and thus it makes a larger contribution to the negative Gibbs free energy instead of enthalpy. This suggests that the binding process is entropically driven.

Dissolution studies

The percent release of TEL from the physical mixture, TEL complexes with HP-β-CD in the presence and absence of tween 80 was compared by using two relative parameters. At time t=2 min the two relative parameters of the dissolution process, i.e. the percentage of TEL dissolved (DP) and the relative dissolution rate (RDR) for pure drug, TEL: HP-β-CD (physical mixture), binary and ternary system, respectively, were calculated and followed the order as TEL: HP-β-CD: tween 80 (0.1% v/v)>TEL: HP-β-CD>physical mixture>TEL (fig. 9). There is 6 folds increase in TEL dissolution rate from the ternary complex as compared to that from the pure drug.

Fig. 9: Dissolution profiles of telmisartan, physical mixture, binary system and ternary system (n=3), significant increase in % release of telmisartan-HP-βCD physical mixture, telmisartan-HP-βCD complex, telmisartan-HP-βCD-Tween 80 complex compared to telmisartan (P ≤ 0.005)

Pharmacological studies

On contrary to control rats (group I and II) a gradual noticeable increase of approximately 50-90 mm Hg in mean systolic blood pressure over a period of six weeks was observed in DOCA treated rats (group III, IV, V and VI).

After the oral administration of HP-β-CD, HP-β-CD: tween 80 and CMC suspension to groups I and II, changes in the systolic blood pressure were recorded and expressed as the percentage decrease in the systolic blood pressure. No noteworthy change in the blood pressure levels of rats during the experimental period was observed (fig. 10).

Fig. 10: Effect of telmisartan on blood pressure in DOCA induced hypertension (n=6), (Significant decrease in blood pressure as compared to control, DOCA control, binary and ternary system groups (P ≤ 0.001)

During the experimental period after six weeks the variation in systolic blood pressure caused by oral administration of TEL, TEL: HP-β-CD, TEL: HP-β-CD: tween 80 to groups III, IV and V has been depicted in fig. 10. All they had significantly lowered the elevated systolic blood pressure in hypertensive rats as compared to vehicle treated DOCA control rats. TEL has reduced the systolic blood pressure but was not able to normalize whereas the TEL: HP-β-CD, TEL: HP-β-CD: tween 80 had normalized the increased blood pressure values in hypertensive rats. After seven day’s treatment with TEL: HP-β-CD: tween 80, the percentage decrease of 37.28% in the elevated systolic blood pressure values was observed while TEL: HP-β-CD and TEL showed 31.25 and 19.39%, respectively. From these data, it was also indicated that inclusion complexation of TEL with HP-β-CD in the presence as well as the absence of tween 80 has increased the drug performance as shown by the higher percentage decrease in blood pressure values than TEL alone due to increase in the solubility of TEL in presence of cyclodextrin.

The experimental data depicted in fig. 10 was statistically analysed by ANOVA and a significant decrease in systolic blood pressure as compared to the control, DOCA control and the pure drug was observed (P ≤ 0.001).

In the above work, the phase solubility studies suggest a 1:1 stoichiometry between TEL and HP-β-CD which is not affected by the presence of tween 80. The disappearance of characteristic drug peaks in both DSC and PXRD studies suggest the complete inclusion of drug into cyclodextrin. The molecular modelling and NMR studies support the hypothesis of 1:1 stoichiometry between drug and cyclodextrin which is confirmed by solution calorimetric technique. Kane et al. have also used cyclodextrins as the means to improve solubility of telmisartan, however, the authors have not confirmed the stoichiometry of complex formed as is done in the present work [34]. The high binding and thermodynamic parameters illustrate that presence of tween 80 facilitates the inclusion. A synergistic effect has been observed in the presence of tween 80. The enhancement in bioavailability of TEL was the result of increased solubility and dissolution profile of TEL complexed with HP-β-CD in the absence and presence of tween 80. Muankaew et al. have prepared a cyclodextrin based formulation of telmisartan using γ-cyclodextrin as binary component and hydroxyl propyl methyl cellulose as the ternary component. The authors have also found that there is an increase in solubility and dissolution of telmisartan in the complexed form [35].

CONCLUSION

The complexation efficiency of HP-β-CD with TEL was found to increase on the addition of 0.1% v/v tween 80. Solution calorimetry established the NMR and molecular modelling results which showed the simultaneous existence of two types of complexes. In the presence of third component [tween 80 (0.1% v/v)] higher values of stability constants were obtained and also the negative enthalpy and positive entropy of binding, determined by solution calorimetry, indicated the formation of the stable system. The dissolution rate for ternary was found to be higher than the binary system and pure drug. The maximum decrease in systolic blood pressure in DOCA induced rats were observed for this system, indicating the improvement of the pharmaceutical potential of TEL in the form of TEL: HP-β-CD: tween 80 (0.1% v/v) complex.

AUTHOR CONTRIBUTION

All the authors have contributed in the completion of this research work.

ACKNOWLEDGEMENT

The authors would like to appreciate the financial assistance provided by University Grant Commission, New Delhi, India and the computational facilities supported by the Department of Biotechnology (DBT; BT/TF-8/BRB/2009) and CSIR (01/2399/10/EMRII 576and 02(0047)/12/ EMR-II), New Delhi, India.

CONFLICTS OF INTERESTS

The authors report no conflicts of interest. The authors alone are responsible for the content and writing of the article.
