Int J Pharm Pharm Sci, Vol 9, Issue 8, 105-109Original Article


QUANTIFICATION OF EXEMESTANE ACCUMULATION DURING MICROBIAL BIOCONVERSION BY TLC IMAGE ANALYSIS

PRACHI PATIL1*, RAJESH SHARMA1, TUSHAR BANERJEE2, SHRIDHAR PATIL2

1School of Pharmacy, Devi Ahilya University, Indore, India, 2School of Life Sciences, Devi Ahilya University, Indore 452001, India
Email: prachipatil.2607@gmail.com

Received: 19 Apr 2017 Revised and Accepted: 19 Jun 2017

ABSTRACT

Objective: The present study was aimed at developing a rapid, cost effective and accurate method for quantification of exemestane using thin layer chromatography (TLC) separation followed by image analysis and to test it for monitoring the accumulation of exemestane during microbial bioconversion.

Methods: After microbial bioconversion and TLC separation of products formed, exemestane was quantified using ImageQuant TL v2003 image analysis software and the results were compared with high performance liquid chromatography (HPLC) analysis.

Results: The percentage error between TLC and HPLC analyses was ranged from (-) 5.18 to (+) 5.51. Bacterial strains Arthrobacter simplex IAM 1660, Nocardia sp. MTCC 1534, Pseudomonas putida MTCC 1194 and Rhodococcus rhodochorus MTCC 291 respectively yielded 79.7 (72 h), 63.9 (72 h), 69.8 (96 h) and 83.2 (96 h) mole percent bioconversion of 6-methylene androstenedione to exemestane.

Conclusion: Rhodococcus rhodochorus MTCC 291 was found to be the most suitable organism for the bioconversion and may be used to develop an eco-friendly route to replace chemical synthesis that eliminates the use of toxic chemicals and side products.

Keywords: TLC image analysis, 6-Methylene androstenedione, C-1(2)-Dehydrogenation, Exemestane, Rhodococcus rhodochorus MTCC 291

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2017v9i8.19201

INTRODUCTION

Exemestane, a third generation steroidal aromatase inhibitor, is a widely used drug for the treatment of breast cancer in postmenopausal patients [1-3]. The synthesis of exemestane is based on chemical conversion of a variety of steroid substrates [4-9]. However, the chemical synthesis involves multiple steps and use of hazardous chemicals during the final step of C-1(2)-dehydrogenation, making it undesirable. Alternative route of microbial C-1(2)-dehydrogenation of 6-methylene androstenedione (6-MeAD) to yield exemestane has been developed and patented [10, 11]. The later is an eco-friendly route that eliminates the use of toxic chemicals and side products formed during chemical synthesis. Recently, Patil et al. [12, 13] have reported C-1(2)-dehydrogenation of 6-MeAD to exemestane by of several bacterial strains.

Number of methods have been employed for quantification of exemestane in samples of human urine by gas chromatography/mass spectrometry [14-15] and liquid chromatography/tandem mass spectrometry [16], in human plasma by LC-MSMS [17], in various pharmaceutical dosage forms and stability testing by HPTLC, HPLC and RP-HPLC [18-22]. All these methods are time-consuming and involve sophisticated instrumentation.

Thin-layer chromatography (TLC) is an important tool for qualitative analysis of various analytes because of its inherent advantages. Many samples can be analyzed simultaneously and quickly by TLC. It does not require UV activity, paramagnetic properties or volatility as mandatory for LC, NMR and GC quantification respectively, making TLC one of the most powerful and general analytical tool. Detection limits of TLC are often low and quantitative densitometric methods are accurate.

Common office scanners are frequently used as densitometers for scanning stained TLC plates followed by processing the digital image by image analysis software [23-27]. Quantification of α-tocopherol and ergocalciferol by TLC, scanning and processing of the chromatogram with video densitometry software has also been reported [28].

C-1(2)-dehydrogenation of steroids is an important bioconversion reaction catalyzed by microorganisms. A number of bacterial genera have been reported to dehydrogenate various steroidal precursors to their C-1(2)-dehydrogenated products [29-32]. During laboratory, pilot and industrial fermentations; timely analysis of bioconversion product formed in the medium is crucial for terminating the fermentation for maximum yield of the product and requires a suitable method for qualitative and quantitative analysis of exemestane accumulated in the medium. Few reports based on quantification of steroid drug intermediates formed during bioconversion of soysterols are available [33-35]. However, quantification of exemestane during C-1(2)-dehydrogenation of 6-MeAD has not been reported so far. The aim of present work was to develop a simple, accurate, cost effective and rapid method for monitoring this bioconversion using TLC separation followed by quantification of exemestane using image analysis software.

MATERIALS AND METHODS

Thin layer chromatography

TLC analysis was carried out in triplicate on a pre-coated silica gel plate (silica gel 60 F Merck, Darmstadt). The plate was activated at 100 °C for 10 min, cooled and spotted with chloroform solutions containing 2, 3 and 4 µg of authentic 6-MeAD synthesized in the laboratory as described earlier [12] and exemestane procured from Cipla Ltd., Mumbai, India. Similarly, the spots of known amount in different proportions of both compounds (3+1, 2+2 and 1+3 µg of exemestane and 6-MeAD respectively) were spotted in the centre of the same plate. The plate was developed in benzene: ethyl acetate (5:2). The spots were visualized by spraying the plate with 50 % sulphuric acid followed by heating at 110 °C for 5 min.

Scanning, calibration and quantification by image analysis software

After cooling, the plate was scanned using HP Laser Jet (model M1005 MFP) office scanner. The compounds were quantified by using Image Quant TL v2003 image analysis software (Amersham Biosciences). This software converts the scanned digital image in grey scale, enables selection of the desired spot, determines the area and intensity of spots and averages the pixel values using area and profile-based tools. The calibration plots were prepared by loading three known concentrations of authentic samples and their mixtures in different proportions on the plate and quantities of individual compounds were calculated by referring the calibration plots and compared with concentrations obtained by HPLC analysis.

Detection range and scanning error

Chloroform solution containing 0.5, 2 and 3 µg of each of 6-MeAD and exemestane were spotted on TLC plate to determine the lower detection range. Similarly, 10, 20 and 30 µg of each of these compounds were spotted on another plate to determine higher range of detection. Three plates of both ranges were developed and processed as described above to determine detection range and linearity. To determine the scanning error, each plate was scanned three times on an office scanner at 300, 600 and 1,200 dpi resolution and the results were analyzed by image analysis software.

HPLC quantification

HPLC method described earlier [19] was used for quantification of exemestane simultaneously to assess validity of quantification by image analysis software. The specifications of JASCO (Model 1580) equipment were-column: ODS HYPERSIL C18 (250 X 4.6 mm), column temperature 45 °C, detection wavelength-245 nm, mobile phase acetonitrile: water (60:40), flow rate 0.45 ml/min and total run time 20 min. Chloroform solutions of 6-MeAD and exemestane prepared for spotting on the TLC plate were injected with a fixed loop of 20 µl Rheodyne injector.

Microorganisms

Bacterial strains used in this study were procured from Microbial Type Culture Collection and Gene Bank (MTCC), Institute of Microbial Technology, India; Institute of Applied Microbiology (IAM), University of Tokyo, Japan and Northern Regional Research laboratory (NRRL), Agricultural Research Service, USA. All organisms were grown on nutrient agar slants and preserved at 4 °C.

Bioconversion, extraction and quantification of exemestane

Bioconversion with each organism was carried out in triplicate flasks of 150 ml capacity Erlenmeyer flasks. Pre-weighed 30 mg of 6-MeAD was transferred in a flask, dissolved in 0.5 ml soybean oil and 30 ml nutrient broth (pH 7.2) was added to it with continuous stirring on a magnetic stirrer. After sterilization at 121 °C for 15 min, the flasks were inoculated aseptically with 1 ml overnight cultures of bacterial strains grown in nutrient broth and the flasks were incubated at 32±2 °C on a gyratory incubator shaker (200 rpm, 1.5 cm eccentric throw). Samples of the incubation medium were aseptically drawn for quantification after regular intervals of 24 h, centrifuged and upper oil phase (100 µl) was transferred in an eppendroff tube, thoroughly mixed with 1 ml methanol on a cyclomixer and centrifuged at 10,000 rpm for 10 min. The upper methanolic phase was dried over sodium sulphate and 10 µl extract was spotted on TLC plate along with 1, 2 and 3 µg exemestane for analysis as described above.

RESULTS AND DISCUSSION

Detection range and scanning error

The detection range of spots of exemestane was better than that of 6-MeAD at lower concentrations (0.5–3.0 µg) used for image analysis. At higher concentrations (10–30 µg), both compounds exhibited a linear relationship between the amounts and spot area with r2 values greater than+0.99. The resolution used for scanning the plates (300-1,200 dpi) did not affect the relative intensities of spots and r2 values obtained for linear relationship between spot area and concentration.

Calibration, quantification and validation

Depicts TLC chromatogram of standard concentrations of 6-MeAD, exemestane and mixtures of both in different proportions [A]. The spot area on the plate and concentrations of 6-MeAD and exemestane determined by image analysis software yielded a linear response for three point calibration. For both the compounds, r2 values were greater than+0.99 (fig. 1, [B and C], indicating the validity straight line equation obtained by software. Although the visual chromogenecity of spots of 6-MeAD was less than exemestane, both these compound could be quantified at concentrations as low as 1µg. Using the image analysis, the amounts of 6-MeAD and exemestane separated on TLC plate were in good agreement with the results obtained with HPLC (table 1). When compared with HPLC, the quantification by TLC image analysis showed percentage error within an acceptable limits of (-) 5.18 to (+) 5.51 for 6-MeAD and (–) 4.04 to (+) 3.04 for exemestane.

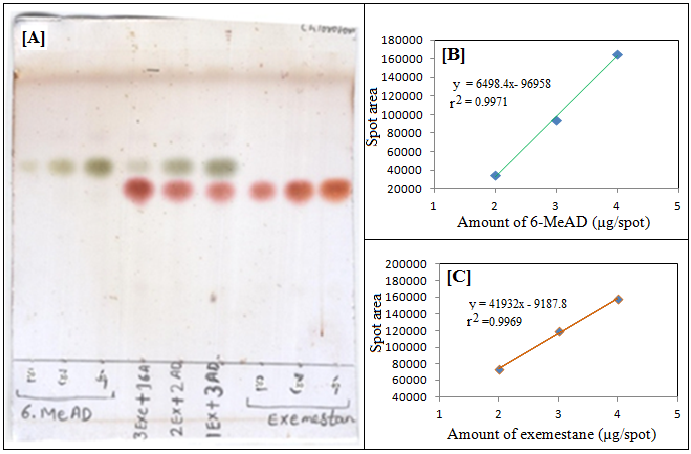

Fig. 1: TLC chromatogram of standard concentrations (2, 3 and 4 µg) of 6-MeAD (left), exemestane (right) and mixtures (1+3, 2+2 and 3+1 ug) of these compounds respectively (center) [A] and response curves between spot area and concentration of 6-MeAD [B] and exemestane [C] obtained by image analysis software

Table 1: Amounts of 6-MeAD and exemestane quantified by image analysis software and HPLC

6-MeAD Exemestane
TLC (µg) HPLC (µg) Error (%) TLC (µg) HPLC (µg) Error (%)
98.39±6.67 103.76±8.69 -5.18 298.97±31.29 311.56±23.87 -4.04
197.46±10.62 206.46±6.87 -4.36 205.33±23.74 197.12±18.25 4.16
315.13±19.55 298.67±23.22 5.51 102.76±6.56 99.73±5.62 3.04

Data are Mean of triplicates±Standard deviation.

After confirmation of essential criteria for quantification including selectivity, linearity, limit of detection and repeatability, the validity of image analysis method was tested using some bacterial strains reported in the literature to dehydrogenate various steroidal precursors to their C-1(2)-dehydrogenated products. Exemestane accumulated in the fermentation broth during the bioconversion of 6-MeAD were estimated by HPLC as well as image analysis after separation of these compounds on TLC plate (fig. 2). It was observed that out of five strains selected for the study, three organisms accumulated exemestane at 48 h incubation period. At 48 h, Arthrobacter simplex IAM 1660, Nocardia sp. MTCC 1534 and Rhodococcus rhodochorus MTCC 291 yielded about 73.4, 55.9 and 16.4 mole percentage bioconversions respectively. Comamonas testosteroni NRRL 2611 failed to accumulate exemestane in the incubation medium throughout the course of fermentation. Except Comamonas testosteroni NRRL 2611, the bioconversion by other bacterial strains increased at 96 h incubation period and a maximum mol % bioconversion was recorded in case of Rhodococcus rhodochorus MTCC 291. The percentage error between all estimations by image analysis and HPLC of 6-MeAD and exemestane was found to range between an acceptable experimental error of (-) 5.38 to (+) 4.71 (table 2).

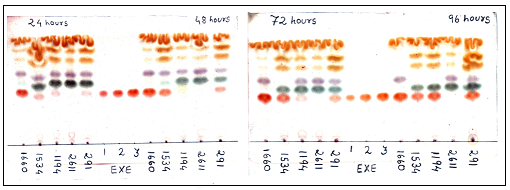

Fig. 2: TLC chromatogram of exemestane (red spot) accumulated in the fermentation broth during the bioconversion of 6-MeAD (grey-green spot) by microorganisms

Table 2: Mole percentage bioconversion of 6-MeAD to exemestane accumulated in fermentation broth by some bacterial strains and quantified by TLC using image analysis software and HPLC

Organism Mol % bioconversion after incubation period±SD (h)
24 48 72 96
TLC HPLC Error (%) TLC HPLC Error (%) TLC HPLC Error (%) TLC HPLC Error (%)
Arthrobacter simplexIAM 1660 58. 56±5.23 56.98±4.18 2.77 73.39±7.76 75.44±3.57 -2.72 79.67±5.97 82.25±4.92 -3.14 78.04±8.98 78.67±5.57 -0.80
Nocardia sp.MTCC 1534 11.23±1.93 10.95±2.04 2.56 55.89±6.33 56.73±3.05 -1.48 63.93±4.88 61.27±0.97 4.34 61.67±4.54 60.45±4.38 2.02
Pseudomonas putidaMTCC 1194 5.09±0.32 4.87±0.49 4.52 4.02±0.70 3.92±0.12 2.55 7.81±0.56 8.23±0.41 -5.10 69.82±3.90 68.23±5.49 2.33
Comamonas testosteroniNRRL 2611 0.04
±0.02		 0.00 ----- 0.23±0.08 0.00 ----- 0.13±0.04 0.00 ---- 0.09±0.06 0.00 ----
Rhodococcus rhodochorusMTCC 291 6.68±0.23 7.06±0.22 -5.38 16.45±2.12 15.71±0.92 4.71 21.79±1.37 22.82±1.67 -4.51 83.16±13.39 81.09±6.90 2.55

Data are mean of triplicates±Standard deviation

For better understanding and timely termination, a rapid method for monitoring the progress of fermentation is a prerequisite. TLC image analysis based methods for quantification of steroid drug intermediates formed during bioconversion of soysterols and phytosterols have been described for monitoring the fermentation processes [34-36]. The TLC separation followed by image analysis software presented here enabled fairly accurate and rapid quantification of exemestane in a short time. Moreover, this method is superior to other available methods based on spectrophotometry, LC, and GC as the cost of solvents and instrumentation is minimum. It also enables simultaneous processing of multiple samples on single TLC plate along with standards, leading to better analytical precision. No prior treatment of solvents like filtration or degassing is required. There is no possibility of interference from the previous analysis, as fresh stationary and mobile phases can be prepared for each analysis. The method proved fairly accurate when applied to authentic compounds and to samples of fermentation medium.

The present work revealed the capacity of C-1(2)-dehydrogenation of Nocardia sp. MTCC 1534, Pseudomonas putida MTCC 1194, and Rhodococcus rhodochorus MTCC 291 for the bioconversion of 6-MeD to exemestane, which has not been reported so far. Besides developing a rapid, cost effective and accurate method to quantify exemestane, it reports the suitability of Rhodococcus rhodochorus MTCC 291 for this bioconversion to develop an eco-friendly route that eliminates the use of toxic chemicals and side products formed during chemical synthesis of this widely used drug. Also the TLC image analysis method presented in this study may be standardized and adopted to quantify exemestane in various body fluids like human urine and plasma.

CONCLUSION

A rapid, sensitive and cost effective method for quantification of exemestane was developed and tested to follow the progress of C-1(2)-dehydrogenation of 6-MeAD to exemestane by microorganisms. This is the first report on quantitation of exemestane using image analysis software. The method may be used to quantify exemestane in blood/urine samples of breast cancer patients without the requirement of sophisticated instrumentation. Furthermore, three unreported bacterial strains were identified to catalyze C-1(2)-dehydrogenation of 6-MeAD to yield exemestane.

ACKNOWLEDGEMENT

One of the authors (SP) thanks the University Grants Commission, New Delhi for financial assistance.

AUTHORS CONTRIBUTION

1. PP-Planned the experimental setup and performed wet lab work.

2. RS–Suggested modifications in the experimental setup and monitored the progress of work.

3. TB-Image analysis of TLC plates was carried out with software.

4. SP–Correlated the experimental findings with results of other workers.

CONFLICT OF INTERESTS

Declared none
