Int J Pharm Pharm Sci, Vol 6, Issue 7, 437-442Original Article

SYNTHESIS OF PRODRUGS OF MEFENAMIC ACID AND THEIR IN VIVO EVALUATION

DURGA PRASAD KEMISETTI*1, SARANGAPANI MANDA2, JITHAN AUKUNURU3, KRISHNA MOHAN CHINNALA4, NAGA KISHORE RAPAKA5

1Department of Pharmaceutical Chemistry, Mother Teresa College of Pharmacy, N.F.C Nagar, Ghatkesar, R.R Dist, Andhra Pradesh India, 2Department of Pharmaceutical Chemistry, University College of Pharmaceutical Sciences, Kakatiya University, Warangal, Andhra Pradesh, India, 3Department of Pharmaceutics, Mother Teresa College of Pharmacy, N.F.C Nagar, Ghatkesar, R.R Dist, Andhra Pradesh, India, 4Department of Pharmacology, Nalla Narsimha Reddy School of Pharmacy, Chowdariguda, Ghatkesar, R.R Dist, Andhra Pradesh, India,5Department of Pharmacology, Geethanjali College of Pharmacy, Keesara, Ghatkesar, R.R Dist, Andhra Pradesh, India.
Email: kdp251999@gmail.com

Received: 06 May 2014 Revised and Accepted: 15 June 2014

ABSTRACT

Objective: The purpose of the study was to synthesize prodrugs of mefenamic acid, to be used as Anti inflammatory drug with fewer adverse effects.

Methods: The drug was covalently bonded to PEG 1500 (polyethylene glycol) and PEG 6000 as such and with a linker glycine. The prodrugs were characterized by FT-I.R and N.M.R. For the drug release studies, all the prodrugs were subjected to pH 1.2 and pH 7.2. For the anti inflammatory activity, Carrageenan induced rat paw edema method was followed and for Ulcer protecting activity, Pylorus ligation method was used, the prodrugs were administered to male Sprague-Dawley rats.

Results: The results suggested that the prodrugs of mefenamic acid, the drug release was higher at pH 7.2 than at pH 1.2. The result obtained for anti inflammatory activity was comparable to the standard drug of mefenamic acid. For ulcers, the prodrugs were found to possess Ulcer curing property higher than the standard drug.

Conclusion: The prodrugs thus synthesized possess anti inflammatory activity as well as good ulcer protecting activity, can be used instead of standard drug.

Keywords: Polyethylene glycol, Mefenamic acid, Ulcer protecting, Anti inflammatory, Prodrugs.

INTRODUCTION

Mefenamic acid is an NSAID, derivative of N-aryl anthranilic acid belonging to class of fenamic acids. It is chemically N-(2,3-xylyl) anthranilic acid [1, 2, 3]. The drug is used for its analgesic, anti inflammatory activity [4], and primary dysmenorrhea. The dose of the drug used is 500 mg as initial dose followed by 250 mg every 6 hrs and not to continue more than a week. The mechanism of action [5, 6, 7] of mefenamic acid is inhibition of cyclooxygenase (COX) enzymes which are required for production of prostaglandins. The adverse effects of the drug include ulcer formation in the upper GI tract [2, 3].

Prodrugs

Polymeric prodrug approach is one of the method where in a drug is covalently bonded to a polymer [8]. The requirements of prodrug are it should be chemically or enzymatically cleavable, non toxic and no pharmacological activity as such [9, 10]. Prodrugs are classified as Carrier linked prodrugs, Tripartite prodrugs, Mutual prodrugs, Polymeric prodrugs and Bioprecursor [10]. The use of polymers was first introduced by Prof. H. Ringsdorf [11]. Polymers have been used as carriers and backbone for many drugs which are biodegradable [12]. The commonly used polymers are polyethylene glycol, polyvinyl pyrrolidone (PVP). Polyethylene glycol is a non biodegradable polymer but, excreted easily [13]. Many drugs are conjugated to polyethylene glycol of varying molecular weights [14, 15]. Polyethylene glycol-acyclovir prodrugs [16] were synthesized and prodrugs of aspirin were synthesized using HEMA (Hydroxy ethyl methacrylate) as polymers [17]. PEG 6000 was used as polymer for preparation of solid dispersions of aceclofenac and was evaluated for particle size and dissolution rate [18]. Polymer-drug conjugates are synthesized covalently by ester, anhydride, amide linkages [19, 20]. Use of polyethylene glycol as polymeric backbone to drugs for drug delivery is known as PEGylation [21]. Mefenamic acid sustained release tablets have been formulated using sodium alginate to form water insoluble gel [22]. Mefenamic acid solubility was increased using HPMC (Hydroxy propyl methyl cellulose) by spherical agglomeration technique [23]. Mefenamic acid mutual prodrug was synthesized using glucosamine [24]. Based on the facts, the thought for synthesizing prodrugs of mefenamic acid using polyethylene glycol 1500 and 6000 as polymeric backbone has turned up.

MATERIALS AND METHODS

Mefenamic acid drug was obtained from Hetero Drugs, Hyderabad. PEG 1500, PEG 6000, DMF (di methyl formamide), DCC (dicyclohexyl carbodiimide), DMAP (dimethyl amino pyridine), Glycine and other solvents of reagent grade were purchased from SD Fine chemicals. Animal studies were done in department of Pharmacology, Geethanjali College of Pharmacy, Keesara, Ghatkesar and it was approved by Institutional Animal Ethics Committee, Regd no: 1648/PO/a/12/CPCSEA-GCOP-IAEC-03/2013 for anti inflammatory and ulcer protecting activity.

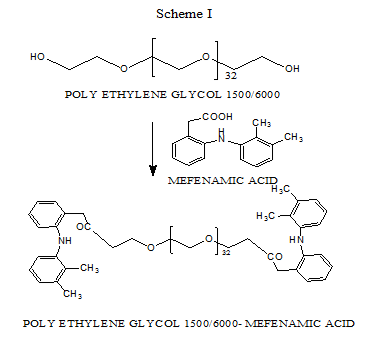

Synthesis of PEG 1500/6000-Mefenamic acid

PEG 1500/6000 1.5 gms and 1.6 ml of pyridine were taken in a round bottomed flask, to it a solution of DCC 1gm and 0.6 gms of DMAP in 10 ml DMF was added. The flask was kept in an ice bath and temperature was maintained 0o C, to this mefenamic acid was added for 10 mints. The flask was then placed on a magnetic stirrer, attached with a condenser and was allowed for coupling reaction for 7 days at room temperature. The residue obtained was dissolved in DCM (dichloro methane) and reprecipitated by excess of cold diethyl ether [25]. The product obtained was subjected to TLC (thin layer chromatography) using mobile phase DCM: methanol 3:2. Finally structure was confirmed (Scheme I) by FT-I.R and N.M.R.

Synthesis of PEG 1500/6000 glycine

PEG 1500/6000 1.5 gms and 1.6 ml of pyridine were taken in a two necked round bottomed flask and 20 ml DMF was added and placed on a magnetic stirrer. To this 0.18 gms of glycine was added in small portions for 3 hrs maintaining room temperature. Then the contents were refluxed by attaching a condenser, maintaining a temperature of 130o C for 21 hrs. The residue obtained was dissolved in DCM and reprecipitated by excess of cold diethyl ether. The formation of the product was subjected to TLC, mobile phase DCM: methanol 3:2 and structures (Scheme II) were confirmed by FT-I.R and N.M.R


Synthesis of PEG 1500/6000-glycine-Mefenamic acid

A solution of DCC 1 gm in 10 ml of DMF and 0.6 gms of DMAP in 10 ml of DMF were taken in a beaker. The mixture was added drop by drop to another beaker containing a solution of 0.4 gms of PEG 1500/6000-glycine in 20 ml of DMF. Mefenamic acid 1 gm was added in portions to the above mixture at 0o C for 10 mints. The contents were transferred to a round bottomed flask fitted with a condenser and placed on magnetic stirrer.

The coupling reaction was carried out for 7 days at room temperature. The residue obtained was dissolved in DCM and reprecipitated by excess of cold diethyl ether. The product was subjected to TLC, mobile phase DCM: methanol 3:2 and structures (Scheme II) were confirmed by FT-I.R and N.M.R.

In vitro Drug Release Studies

The synthesized prodrugs were checked for the drug release at pH 1.2 and 7.2, temperature was maintained at 37o C. The λmax was determined for mefenamic acid and found to be 285 nm, aliquots of 5 ml were collected at intervals of 0, 5, 10, 15, 30, 45, 60 mints, sink conditions were maintained. A standard graph was plotted and % drug release was found. A graph of time v/s cumulative drug release was plotted at pH 1.2 and 7.2.

Anti inflammatory activity

Male Sprague-Dawley rats weighing 100-150 gms were divided into 6 groups. The method for this activity followed was Carrageenan induced rat paw edema. Ist group control, IInd group standard drug, IIIrd, IVth, Vth, VIth groups received mefenamic acid prodrugs, injected into the subplantar region in the left and right hind paws and the swelled volume was measured by Dolphin, India Plethysmometer. The measurements were taken at intervals of 1, 3, 6 hrs [26]. The % inhibition was calculated by

Ulcer protecting activity

For this activity, the method followed was Pylorus-ligation. The animals weighing 100-150 gms were fastened overnight, anaesthetized, incised 1 cm long in abdomen below the sternum. The stomach was exposed and a thread was passed round pyloric sphincter, a knot was tied. Abdomen was closed with sutures and animals were kept in separate cage, allowed to recover.

Ist group received control, IInd group received standard drug mefenamic acid 10 mg/kg, IIIrd, IVth, Vth, VIth groups were injected mefenamic acid prodrugs and after performing pylorus ligation kept in separate cages, after 4 hrs the animals were sacrificed and abdomen was cut open, stomach was removed and washed under running tap water, then placed on glass slide and observed on microscope at 10 X magnification for ulcers [27].

Ulcer Index was calculated by

RESULTS

Table 1: Physical properties of Mefenamic acid prodrugs

S. No. Compound Solubility Colour Melting Pint I.R Spectra N.M.R Spectra
1 Mefenamic acid Methanol White 220-229o C OH of COOH-2569, 20 NH-3348, C=O-1647. 2.1δ-2.4 δ (t, 6H) 2.5δ-(d, 2H) 6.7-7.5 δ (m, 7H) 7.9 δ (s, 1H), 9.5 δ (s, 1H).
2 PEG 1500-Mefenamic acid Dichloro methane White 200-208o C 20 NH-3327, C-O-C-1157, CH str-2850, C=O-1627. 1.1-1.5δ-(m, 12H), 1.6-4.5δ (m, 44H), 5.6-7.7δ (m, 14H), 7.9δ (d, 2H).
3 PEG 1500-Glycine-Mefenamic acid Dichloro methane White 225-234o C 20 NH-3327, 3124, C-O-C-1157, CH-str-2850, C=O-1629. 1.1-1.5δ (m, 12H) 1.6-4.5δ (m, 44H) 5.6-7.5δ (m, 14H) 7.9δ(d, 2H).
4 PEG 6000-Mefenamic acid Dichloro methane White 224-233o C 20 NH-3327, C-O-C-1157, CH-str-2850, C=O-1626. 1.1-1.5δ-(m, 12H), 1.6-4.5δ (m, 44H), 5.6-7.7δ (m, 14H), 7.9δ (d, 2H).
5 PEG 6000-Glycine-Mefenamic acid Dichloro methane White 221-230o C 20 NH-3321, 2937, C-O-C-1161, CH-str-2852, C=O-1693. 1.1-1.5δ (m, 12H) 1.6-4.5δ (m, 44H) 5.6-7.5δ (m, 14H) 7.9δ(d, 2H).

Fig. 1: I.R Spectra of Mefenamic acid


Fig. 2: I.R Spectra of PEG 1500/6000-mefenamic acid


Fig. 3: I.R Spectra of PEG 1500/6000-Glycine-Mefenamic acid


Fig. 4: N.M.R Spectra of Mefenamic acid


Fig. 5: N.M.R Spectra of PEG 1500/6000-mefenamic acid


Fig. 6: N.M.R Spectra of PEG 1500/6000-Glycine-mefenamic acid

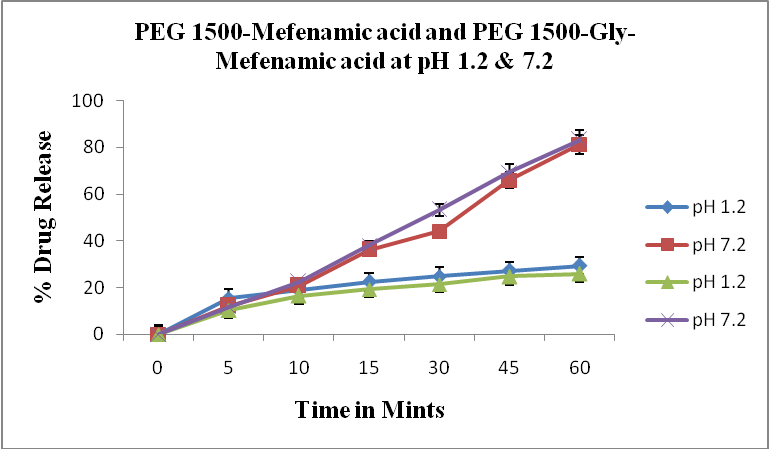

Fig. 7: In vitro drug release profile of PEG 1500 prodrugs at pH 1.2 and 7.2.

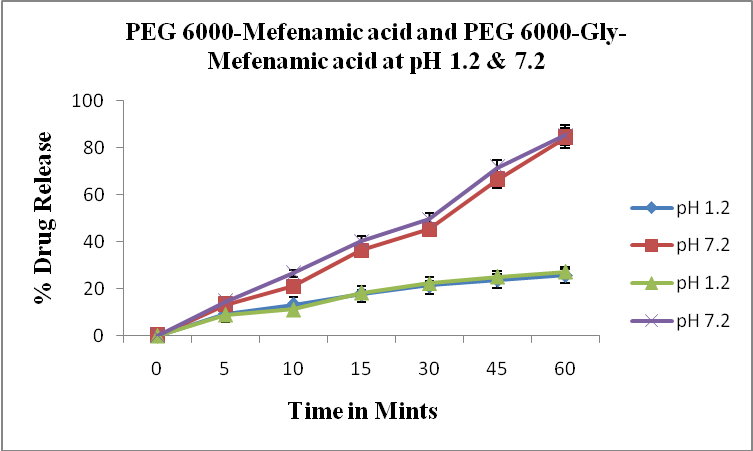

Fig. 8: In vitro drug release profile of PEG 6000 prodrugs at pH 1.2 and 7.2.


Table 2: Anti inflammatory Activity

Groups Change in Paw volume (ml) mean±SEM & % Inhibition
1 hr 3 hr 6 hr
Control 0.52±0.02 0.61±0.02 0.65±0.03
Mefenamic acid 0.19±0.01 (63.46) 0.29±0.02 (52.46) 0.20±0.02 (69.23)
PEG1500-Mefenamic acid 0.27±0.02 (48.08) 0.41±0.01 (32.79) 0.22±0.01 (66.15)
PEG 1500-Gly-Mefenamic acid 0.21±0.03 (59.62) 0.42±0.01 (31.15) 0.23±0.01 (63.16)
PEG6000-Mefenamic acid 0.20±0.01 (61.54) 0.32±0.02 (47.54) 0.21±0.01 (67.69)
PEG6000-Gly-Mefenamic acid 0.24±0.02 (43.08) 0.36±0.02 (40.98) 0.24±0.02 (63.08)

Values are mean±SEM, n=6, one way ANOVA p<0.05 vs control

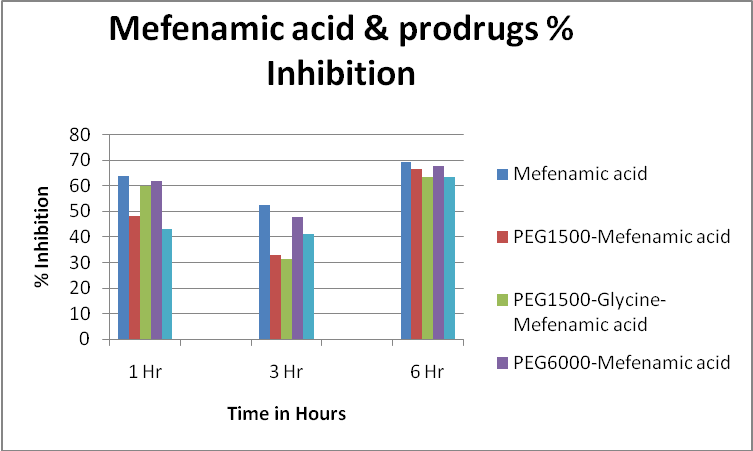

Fig. 9: Anti inflammatory activity of mefenamic acid prodrugs


Table 3: Gross Ulcer Index of Mefenamic acid prodrugs

S. No. Treatment Ulcer Index
1 Control 10
2 Mefenamic acid 18
3 PEG1500-Mefenamic acid 16
4 PEG1500-Gly-Mefenamic acid 16
5 PEG6000-Mefenamic acid 19
6 PEG6000-Gly-Mefenamic acid 17

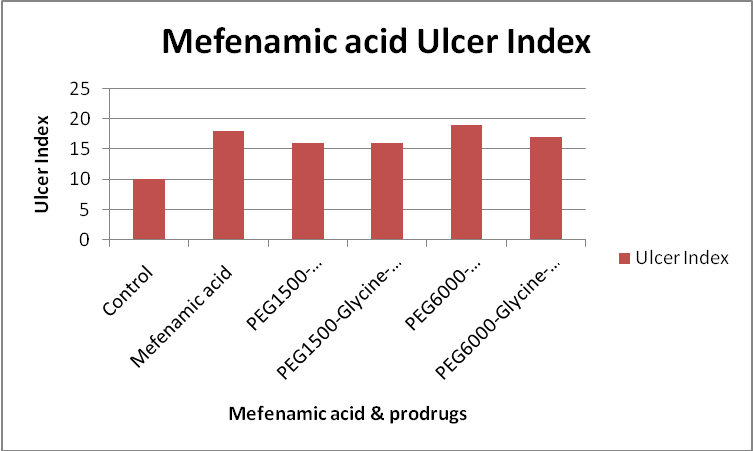

Fig. 10: Ulcer Index of mefenamic acid prodrugs

DISUSSION

Prodrug approach is currently one of the popular approaches in the development of new drugs [28-35]. In this study, prodrugs of mefenamic acid were developed and investigated. The prodrugs were successfully synthesized. Upon synthesis, these were characterized for various parameters. The result obtained from spectral data (Sl.no 1 of table 1) indicated the standard drug had a COOH group by I.R and N.M.R. The structures of PEG 1500/6000-mefenamic acid (Sl.No 2 and 4) were confirmed by I.R and N.M.R, that COOH group of mefenamic acid had formed an ester, the structures were given in scheme I.The structures for PEG 1500/6000-glycine-mefenamic acid (Sl.No 3 and 5) by I.R and N.M.R, the carboxylic acid group of mefenamic acid had formed an amide linkage with the amino terminal of glycine, the structures were given in scheme II. Fig.1 and Fig.4 I.R and N.M.R spectras of standard drug mefenamic acid, Fig.2 and Fig.5 I.R and N.M.R spectras of PEG 1500/6000-mefenamic acid, Fig.3 and Fig.6 I.R and N.M.R spectras of PEG 1500/6000-glycine-mefenamic acid.

The drug release studies for the synthesized prodrugs were given in Fig.7 and Fig.8, the study revealed that drug release for PEG 1500-mefenamic acid, PEG 1500-glycine-mefenamic acid, PEG 6000-mefenamic acid and PEG 6000-glycine-mefenamic acid was more at pH 7.2 than at pH 1.2. Also the comparision study indicated that there is a role of spacer (glycine) in the drug release.

Table 2 and Fig.9 were the results obtained for anti inflammatory activity of the prodrugs synthesized. The results were taken for 1 hr, 3 hrs and 6 hrs for change in paw volume, out of the 4 prodrugs, 1 of the compound had better anti inflammatory activity than standard drug.

Table 3 and Fig.10 indicated ulcer protecting activity for the synthesized prodrugs. The ulcer index was measured and out of 4 prodrugs synthesized 3 of them were found to be more protecting towards ulcers than standard drug. The prodrugs which had more ulcer protecting activity are PEG 1500-mefenamic acid, PEG 1500-glycine-mefenamic acid and PEG 6000-glycine-mefenamic acid.

CONCLUSION

The prodrugs of Mefenamic acid synthesized have retained their anti inflammatory activity similar to standard drug Mefenamic acid. An important finding of the result regarding ulcer protection that prodrugs of mefenamic acid have shown good ulcer protection than standard drug.

CONFLICT OF INTERESTS

Declared None

ACKNOWLEDGEMENTS

The authors thank Mother Teresa College of Pharmacy and Geethanjali College of Pharmacy for providing the facilities for this work.

REFERENCES

  1. Wilson & Gisvolds:Text book of organic medicinal and pharmaceutical chemistry 2004.P;757
  2. Swarnalata Saraf: NSAIDS-An overview. 1st ed. Hyderabad:Pharmabook syndicate;2008. P.86-89
  3. Martindale:The complete drug refence2005.P; 55-6
  4. Gupta SK. Drug screening methods2009.P;162-3
  5. D. Francesco Guiliano, Timothy Ex vivo assay to determine the cyclooxygenase selectivity of non-steroidal anti-inflammatory drugs. Br J Pharmacol. 1999;126:1824-30.
  6. Swarnalata Saraf:NSAIDS-An overview2008.P; 86-9
  7. Derle D, Gujar K, Sagar BSH. V, N, Adverse effects associated with the use of nonsteroidal antiinflammatory drugs:An overview. IJPS. 2006;68(4):409-14.
  8. Giovanni M, Teruna J, Valentino J, Binghe P, Ronald T. Sanjeev Gangwar, Siahaan, Stella, Borchardt. Prodrug strategies to enhance the intestinal absorption of peptides. DDT. 1997;2(4):148-55.
  9. Vyas SP, Khar RK:Targeted and controlled drug delivery. 1st ed. New Delhi:CBS publishers;2011. P.122-3.
  10. Jain NK. Introduction to novel drug delivery systems 2010. P; 282-9.
  11. Hoste K, De Winne K, Schacht E. Polymeric prodrugs. Int J Pharm 2004;277:119-31.
  12. Jain NK. Introduction to novel drug delivery systems. 1st ed. New Delhi:Vallabh prakashan;2010. P.300-3.
  13. Vyas SP, Khar RK:Targeted and controlled drug delivery. 1st ed. New Delhi:CBS publishers;2011. P.148-51.
  14. Kristian K-L. Povl Ulf Madsen:Text book of Drug design and discovery2011. P.136-46
  15. Vyas SP, Khar RK. Targeted and controlled drug delivery2011. p;115-9.
  16. Zacchigna M, Di Luca G, Maurich V, Boccù E. Syntheses, chemical and enzymatic stability of new poly(ethylene glycol)-acyclovir prodrugs. Farmaco (Societa chimica italiana:1989). 2002;57(3):207-14.
  17. Chandrasekar MJN, Duraiswamy B, Polwalkar Nitin, Nanjan MJ. A novel pro-drug approach to the problem associated with the use of aspirin. J Indian Drugs 2001;38(7):351-354.
  18. Vanisagar S, Srinivas C, Subhashini N.J.P, Kurakula Mallesh. Solid dispersion-A comparative study on the dissolution rate of aceclofenac. Int J Pharm Pharm Scie 2012;4(3):274-8.
  19. Dinesh T, Makhija, Rakesh R, Somani. Improvement of GI telerance of NSAIDS using oral prodrug approach. J Der Pharmacia Lettre 2010;2(2):300-9.
  20. Carlos Elvira, Alberto Gallardo, Julio San Roman, Alejandro Cifuentes. Covalent polymer-drug conjugates. J Molecules 2005;10:114-25.
  21. Francesco M, Gianfranco V. PEGylation, successful approach to drug delivery. DDT. 2005;10(21):1451-8.
  22. Gungur S, Yildiz A, Ozsoy Y, Cevher E, Arman A. Investigations on mefenamic acid sustained release tablets with water-insoluble gel. J Farmaco 2003;58:397-401.
  23. Viswanathan CL, Kulkarni SK, Kolwankar DR. Spherical agglomeration of mefenamic acid and nabumetone to improve micromeritics and solubility:a technical note. J AAPS Pharm Sci Tech 2006;7(2):E48.
  24. Amardeep singh Hunjra, Dharmendra K, Neha Gairola, Mushtaq Bhojani, Dhaneshwar Suneela S. Indian J Pharm Educ Res 2006;40(1):40-44.
  25. Anurekha N. Anjali In vitro and in vivo study of poly (ethylene glycol) conjugated ibuprofen to extend the duration of action. J Scipharm 2011;79:359-74.
  26. Kulkarni SK. Hand book of Experimental Pharmacology1999. P;128-30.
  27. Kulkarni SK. Hand book of Experimental Pharmacology1999. P.128-30
  28. Ganaie JA, Gautam V, Shrivastava VK. Effects of Kamdhenu Ark and Active Immunization by Gonadotropin Releasing Hormone Conjugate (GnRH-BSA) on Gonadosomatic Indices (GSI) and Sperm Parameters in Male Mus musculus. J of Reproduction and Infertility 2011;12(1):3-7.
  29. Yang Y, Zhang Y-M, Chen Y, Chen J-T, Liu Y. Targeted polysaccharide nanoparticle for adamplatin prodrug delivery. J Med Chem 2013;56(23):9725-36.
  30. Vooturi SK, Kadam RS, Kompella UB. Transporter targeted gatifloxacin prodrugs:synthesis, permeability, and topical ocular delivery. J Mol Pharm 2012;9(11):3136-46.
  31. Malik DK, Baboota S, Ahuja A, Hasan S, Ali J. Recent advances in protein and peptide drug delivery systems. J Current drug delivery 2007;4(2):141-51.
  32. Wohl AR, Michel AR, Kalscheuer S, Macosko CW, Panyam J, Hoye TR. Silicate esters of paclitaxel and docetaxel:synthesis, hydrophobicity, hydrolytic stability, cytotoxicity, and prodrug potential. J Med Chem 2014;57(6):2368-79.
  33. Jia F, Figueroa SD, Gallazzi F, Balaji BS, Hannink M, Lever SZ, et al. Molecular imaging of bcl-2 expression in small lymphocytic lymphoma using 111In-labeled PNA-peptide conjugates. J of Nuclear Medicine:Official Publication, Society of Nuclear Medicine 2008;49(3):430-8.
  34. Kaushik D, Rathi S, Jain A. Ceftaroline:a comprehensive update. Int J Antimicrob Agents 2011;37(5):389-95.
  35. Konatham S, Kumar P, Aukunuru J, J. Synthesis and screening of antidiabetic activity of some novel curcumin analogues. J Int Biosciences 2010;1(2):1-6.
