Int J Pharm Pharm Sci, Vol 9, Issue 9, 9-11,Original Article


HOMOLOGY MODELLING AND MOLECULAR DOCKING STUDY OF ORGANOPHOSPHATES AND PYRETHROIDS IN TERMS OF POTENTIAL TOXICITY

RAVI S. PANDEY*1, RISHIKESH K. TIWARI1, SHIKHA SINGH1, SOMENATH GHOSH1, SUNIL K. RAI2, PRIYA SHREE3

1Biochemistry Laboratory, Department of Zoology, University of Allahabad, Allahabad 211002, India, Departments of 2Anatomy and 3Medicinal Chemistry, Institute of Medical Sciences, Banaras Hindu University, Varanasi 221005, India
Email: rspandey2004@yahoo.com

Received: 26 May 2017 Revised and Accepted: 12 Jul 2017

ABSTRACT

Objective: Though the adverse effects of pesticides used in agriculture may not immediately be visible in the human population however its long term exposure may cause detrimental effects by biomagnifications and bioaccumulation. Nowadays bioinformatics serves as an in silico tool not only for homology alignment but also for prediction of quaternary structures of biochemicals. The present study was aimed to compare the potential toxicities of triazophos and chlorpyrifos (organophosphates; OPs) and cypermethrin and deltamethrin (pyrethroids) and their interactions with cytochrome P450 functioning.

Methods: The authors performed the BLAST for homology alignment for cytochrome P450 of human and Zebra fish and further proceeded for docking analysis of all the pesticides with cytochrome P450.

Results: It was noted that 99% of query cover with 32% of homology in the sequences of cytochrome P450 between human and Zebra fish. Upon docking, the pesticide deltamethrin showed the highest interaction with cytochrome P450 with highest binding energy and least dissociation constant for Deltamethrin which was found to be 8.233 [kcal/mol] and 922849.687 [pM].

Conclusion: Our preliminary results thus encompass/indicate that the deltamethrin is not only having detrimental effect on enzyme kinetics in general but also such similar effects be apprehended for human also.

Keywords: Cytochrome P450, Homology modelling, Molecular docking, Organophosphate, Pyrethroids

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2017v9i9.20285

INTRODUCTION

Synthetic pesticides of any origin can exert varied effects on different target as well as non-target organisms which further may also affect humans by biomagnification [1]. The organophosphate group of pesticides (like triazophos and chlorpyrifos) can directly affect the synapses present between neuronal and neuro-motor junctions by affecting acetylcholinesterase (AChE) activity [2]. The pyrethroids (like deltamethrin and cypermethrin) can also exert a similar effect by altering the voltage gated Na+ion channels present on neurolemma [3]. Thus, under both acute and chronic exposures, these pesticides are harmful and toxic to the aquatic biota particularly fishes [4] and further the human population as well due to the inability of detoxification of these pesticides [1].

The main detoxifying enzyme which is present in almost all cells ubiquitously as well as evolutionarily conserved one is cytochrome P450 (CYP) family proteins which use Haem as a cofactor for their functions [5]. Among a number of cytochrome P450 proteins, the mitochondrial cytochrome P450 is of the highest importance as it is primarily responsible for detoxifying drugs, drug metabolites, alcohol and others [6]. In human, there are about 57 genes reported for coding cytochrome P450 [7]. There are few reports, delineating the interactions of chlorpyrifos with cytochrome P450 in human, rat and mouse [8] but, till date reports are lacking in the field of homology alignment of cytochrome P450 in human and fishes and further the comparative interactions of cytochrome P450 with different pesticides.

The previous studies lacked the information on the structural homology of cytochrome P450 in human and a key representative of fish (Zebra fish; Danio rerio), therefore the present study was undertaken to note their similarities in functional activities. Further, the study was elaborated to note the interactions of pesticides (organophosphates and pyrethroids) with cytochrome P450 to get a speculative analogy of effects as exerted by these pesticides in fish are similar in human or not.

MATERIALS AND METHODS

Homology alignment of cytochrome P450 between human and zebra fish

We compared the sequence of cytochrome P450 of Zebra fish and Homo sapiens using Basic Local Alignment Search Tool (BLAST).

Molecular docking

For in silico study, the protein structure of Cytochrome P450 with PDB ID: 4R21 were retrieved from RCSB protein databank [9]. Further, the geometry optimisation and active site prediction of this compound were done by using Discovery studio 3.0 [10]. The 2D structure of selected pesticides namely triazophos, deltamethrin, chlorpyrifos and cypermethrin were retrieved from Pubchem compound database [11] and converted into 3D format using Discovery studio 3.0. Then the best-docked compound was taken for interactive 2D-3D visualization using Discovery studio 3.0. Further molecular docking calculation was done by using YASARA software [12]. Using YASARA, receptors and ligands files were set and macro was run. The result log files were prepared for all the ligands. Binding energy and dissociation constant were used for sorting the docking result. The compound with more positive binding energy shows more interaction with the receptor.

RESULTS

Homology alignment of cytochrome P450 between human and zebra fish

We found 99% query cover with 32% identity showing homology between human and zebra fish upon BLAST (fig. 1).

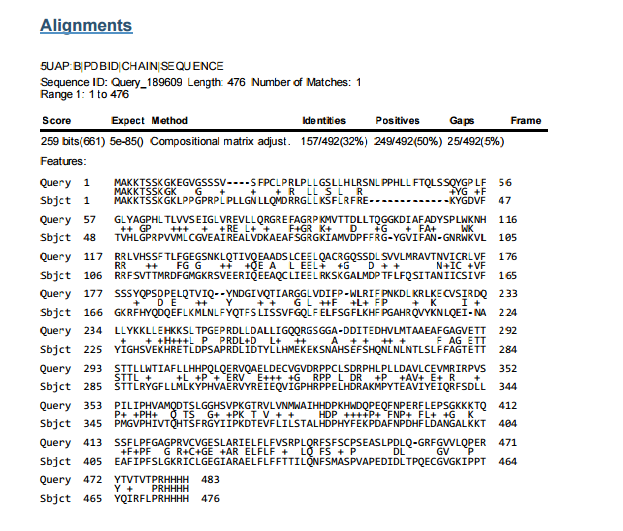

Fig. 1: Showing sequence homology alignment between human and zebra fish

Molecular docking

Molecular docking result showed that pesticide, deltamethrin exerted the best interaction with cytochrome P450. All other pesticides namely triazophos, chlorpyrifos and cypermethrin also shows interaction but lesser than deltamethrin (table 1). The binding energy and dissociation constant for deltamethrin were found to be 8.233 [kcal/mol] and 922849.687 [pM] respectively. Further, the best-docked compound deltamethrin was taken for interactive 2D-3D visualization using Discovery studio 3.0. The active site amino acid residues, ArgA103 IleA119 AlaA120 TrpA128 ArgA132 AlaA302 ThrA306 ThrA310 MetA361 ValA366 SerA367 LeuA370 IleA371 HisA373 ProA432 PheA433 GlyA434 ArgA438 ValA439 CysA440 ValA441 GlyA442 and AlaA446 of cytochrome P450 were involved in interaction with deltamethrin.

The pink colour residues show electrostatic interaction while green colour residues show Vander Waals interactions. The residue ArgA103 shows direct interaction as well as Pi-Pi interaction with deltamethrin which shows its inhibition activity (fig. 2A and fig. 2B).

Table 1: Binding energy and dissociation constant for all selected pesticides with cytochrome P450

Pesticides Cytochrome P450
Binding energy [kcal/mol] Dissociation constant [pM]
Deltamethrin 8.233 922849.687
Cypermethrin 7.533 3007722.75
Triazophos 6.497 17283666
Chlorpyrifos 5.433 104125760

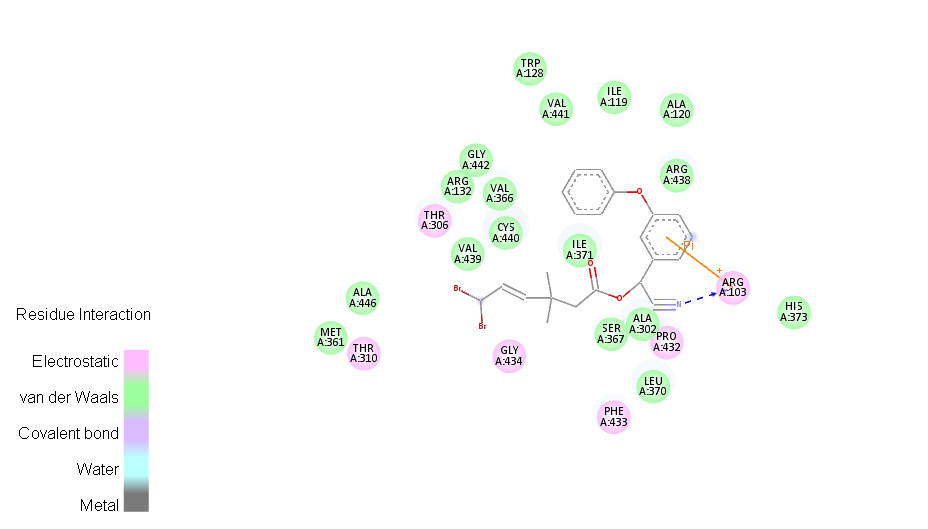

Fig. 2A: 2D interaction of deltamethrin with cytochrome P450. The pink colour residues show electrostatic interaction while green colour residues show Vander Waals interactions. The residues ArgA103 shows direct interaction with deltamethrin

Fig. 2B: 3D interaction of deltamethrin with cytochrome P450

DISCUSSION

Fishes are the most economically important aquatic animals which are affected highly by pesticide contamination though being non-target organisms [4]. The detrimental effect of pesticides can be ameliorated/detoxified by a key enzyme cytochrome P450. The interactions of cytochrome P450 with the pesticides like chlorpyrifos, triazophos, cypermethrin and deltamethrin individually and in combination has been analysed. It was noted that among four pesticides, the deltamethrin presented the highest binding with cytochrome P450 with highest binding energy and least dissociation constant. Thus, it may be speculated that, upon pesticide intoxication, deltamethrin can show the highest level of toxicity as it can directly bind with the active site of the enzyme with amino acid residues particularly with ArgA[10]3 by direct as well as Pi-Pi interactions. Further, the toxicity effects would be more detrimental as these pesticides can also degenerate the basic histo-architecture of a number of tissues like gills, kidney and liver. The degeneration of these tissues in fishes can, in turn, affect severely other haematological and cell mediated immune parameters in fishes [13].

In the next step of the present study, the structural homology of cytochrome P450 of fishes with have been human was executed. For this, the known sequences of cytochrome P450 of fish (Zebra fish) and human from literature data base [14] was retrieved on 15. 05.2017 and the BLAST tool was run. Out of 99% of sequences, 32% of sequence homology between human and zebra fish was found. However similar studies of molecular docking of antidiabetic activity of cinnamon compounds have been reported earlier [15] but probably, these results for the first time have suggested that the structural homology of cytochrome P450 of human and zebra fish might have the same structure at the amino acid level and based on this structural homology it may be speculated that this enzyme might be performing the same function both in fishes and human.

CONCLUSION

From the present in silico study, it may be concluded that the potential toxicity in the terms of reaction kinetics and binding efficiency of two groups of pesticides namely organophosphates and pyrethroids are variable being higher in deltamethrin followed by cypermethrin, triazophos and chlorpyrifos respectively. Further, we can also speculate that the mode of action of these pesticides are almost similar even in human and fishes due to the structural homology of cytochrome P450 in both of the organisms.

AUTHORS CONTRIBUTION

Conceptualization of the study was suggested by RSP. The relevant literature survey and structural analysis of pesticides were done by RKT and SS (contributed equally). The analysis of results, writing of paper was done by SG. The docking analysis was done by SKR and PS.

CONFLICT OF INTERESTS

All the authors declare that they do not have any conflict of interest.

REFERENCES

  1. Nelson JS. Fishes of the world. 4th Ed. John Wiley and Sons; 2006.

  2. Sanchez-Bayo FP. Insecticides mode of action in relation to their toxicity to non-target organisms. J Environ Anal Toxicol 2012;S4:1–11.

  3. Narahashi T. Mode of action of pyrethroids. Bull World Health Org 1971;44:337–45.

  4. Kumar A, Sharma B, Pandey RS. Preliminary evaluation of the acute toxicity of cypermethrin and lambda-cyhalothrin to Channa Punctatus. Bull Environ Contamin Toxicol 2007;79:613-6.

  5. Sigel R, Sigel A, Sigel H. The ubiquitous roles of cytochrome P450 proteins: metal Ions in life sciences. Wiley and Sons; 2007.

  6. Guengerich FP. Cytochrome P450 and chemical toxicology. Chem Res Toxicol 2008;21:70–3.

  7. Human Genome Information Archive. "About the Human Genome Project". U. S. Department of Energy and Human Genome Project program; 2013.

  8. Tang J, Cao Y, Rose RL, Brimfield AA, Dai D, Joyce A, et al. Metabolism of chlorpyrifos by human cytochrome P450 isoforms and human, mouse, and rat liver microsomes. Drug Metabol Dispos 2001;29:1201-4.

  9. http://www.rcsb.org. [Last accessed on 15 May 2017]

  10. Arora N, Singh VK, Shah K, Pandey-Rai S. Qualitative and quantitative analysis of 3D predicted arachidonate 15-lipoxygenase-B (15-LOX-2) from Homo sapiens. Bioinformation 2012;8:555-61.

  11. http://pubchem.ncbi.nlm.nih.gov. [Last accessed on 15 May 2017]

  12. Krieger E, Vriend G. YASARA view-molecular graphics for all devices–from smart phones to workstations. Bioinfo 2014;30:2981-2.

  13. Singh S, Tiwari RK, Ghosh S, Pandey RS. Impact of triazophos on Channa punctatus: hematological and histopathological studies. Int J Curr Res 2017;9:48246-52.

  14. Hasemann CA, Kurumbail RG, Boddupalli SS, Peterson JA, Deisenhofer J. Structure and function of cytochromes P450:a comparative analysis of three crystal structures. Structure 1995;2:41-2.

  15. Ganugapati J, Swarna S. Molecular docking studies of antidiabetic activity of cinnamon compounds. Asian J Pharm Clin Res 2014;7 Suppl 2:31-4.
