Int J Pharm Pharm Sci, Vol 9, Issue 10, 318-320Short Communication


PREPARATION ANDEVALUATION OF CO-CRYSTALS OFCARBAMAZEPINE WITHGLUCOMANNAN

SHARWAREEHARDIKAR*, ASHOK BHOSALE,SWATI VANAVE, BHAGYASHREE KAMATHE

Department of Pharmaceutics, Pune District Education Association’s Seth GovindRaghunath Sable College of Pharmacy, Saswad, District–Pune,Maharashtra412301 India
Email: sharwareehardikar@gmail.com

Received: 11 Jun 2017 Revised and Accepted: 31 Aug 2017

ABSTRACT

Objective:The objective of the present work was to inhibit transformation of carbamazepine anhydrous to its dihydrate form in aqueous medium by adopting theco-crystal approach.

Methods:Co-crystallizationof carbamazepine and glucomannan as co-former was carried out by solution mediated phase transformation. The solution of carbamazepine and glucomannan in ethanol (95%) was agitated for 2 h and the co-crystals obtained were recovered after 24 h.

Results:Co-crystal formation due to hydrogen bonding between carbamazepine and glucomannan as a co-former was confirmed by FTIR study.Inhibition of transformation of co-crystal of carbamazepine to carbamazepine dihydrate in aqueous medium was confirmed by SEM.

Conclusion:Inhibition of transformation of carbamazepineco-crystal to its dihydrate formresulted in its improved dissolution. Dissolution efficiency of carbamazepine in its co-crystal was increased up to 79.26% within 30 min.

Keywords:Carbamazepine, Co-crystals, Glucomannan, Ocimum basilicum

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2017v9i10.20656

Carbamazepine transforms to its dihydrate form when it comes in contact with theaqueous medium. Since dihydrate form of carbamazepine is three times lesser soluble (0.12 mg/ml) as compared to its anhydrous (0.38 mg/ml) form;such transformation is a critical parameter that affects its dissolution and bioavailability [1]. It is reported in the literature that co-crystal formation of carbamazepine is asuitable approach to increase its rate of dissolution. Transformation of carbamazepine to dihydrate form is prevented when carbamazepine is in its co-crystal form. This is so, as in the co-crystal structure the hydrogen bonding occurs between the appropriate functional groups of drug and co-former. There are two possible hydrogen bonding sites in carbamazepine structure–‘N’-of amine and ‘C’ of carbonyl;and hencecarbamazepine transforms to dihydrate in anaqueous medium. These sites are expected to undergo hydrogen bonding with co-former during co-crystallization processes[2-4].

In crystal engineering, hydrogen bonding is the strongest and key interaction in the co-crystal formation. Glucomannan is polyoxygenated compound and contains hydroxyl groups in abundance. Hydroxyl group is highly polar and capable of forming hydrogen bonds with other polar molecules.Therefore glucomannan isolated from the seeds of Ocimum basilicum was selected as a co-former in the present study[5]. At present study co-crystallization of carbamazepine was carried out by adopting solution-mediated phase transformation (SMPT)[6]. The hydrogel was isolated from the seeds of Ocimum bacilicumby the method reported earlier. Glucomannan present in the hydrogel was precipitated with 95% ethanol at 4 °Cby following the procedure reported by Chua Met al.; 2012[7,8]. FT-IR spectrum of Glucomannan was obtained on IR spectrophotometer (Shimadzu, FTIR-8400S, Japan) using KBr powder. The scan was evaluated for thepresence of principle peaks of glucomannan to confirm its purity.In FTIR spectrum of the glucomannan (fig. 1) the broad peak at 3217 cm-1 resulted from the stretching vibration of O-H group which is moderately strong hydrogen bonding group [9]. The peaks at 2808 cm-1, 1604 cm-1and 1381 cm-1 are assigned to–CH2 stretching vibration and two C-H bending modes respectively[8].

Carbamazepine and glucomannan in 1:1 stoichiometric ratio were dissolved in ethanol (95%) to prepare their saturated solution. The solution was continuously agitated for 2 h by adding more amount of ethanol (95%) as required to keep both the components in solution. The solution was kept aside or 24 h to obtain co-crystals of carbamazepine. Co-crystals equivalent to 0.1gm of carbamazepinewas weighted accurately and evaluated for content uniformity by the method reported in Indian Pharmacopoeia.It was found to be 97.91%±0.81[10].

FTIR of carbamazepine co-crystals showed distinct shifts in the absorption peaks of carbamazepine drug. The characteristic peak for–NH vibration at 3464.27 cm-1 was found to be shifted to 3402.5 cm-1. The peak at 1674.27 cm-1 due to C =O stretching was found to be shifted to 1620.26 cm-1. The absorption band at 1597.11 cm-1characteristics for–NH deformation observed in carbamazepine drugwas found to be absent in the spectrum of co-crystal (fig. 2 and 3). These frequency shifts were due to hydrogen bonding between carbamazepine and glucomannan in the co-crystal form [5].

Inhibition of transformation of carbamazepine co crystalto carbamazepine dihydrate was expected due to its co-crystallization and was confirmed from scanning electron microscope (SEM) imaging. SEM images were taken of plain carbamazepine and its co-crystal;both recovered after immersing them in 0.1N HCl for 30 min. Samples were sputter coated with a thin layer of gold-palladium under argon vacuum prior to analysis. SEM was performed using a KV beam acceleration voltage. The SEM images are shown in (fig. 4).Plain carbamazepine was converted to the dihydrate form;as evident from the formation of distinct needles on the surface of carbamazepine particles. The SEM images of co-crystal of carbamazepine clearly exhibited inhibition of transformation to less soluble dihydrate form of carbamazepine. This was the major cause of dissolution improvement of the carbamazepine in its co-crystal form [11].

Dissolution efficiency of plain carbamazepine and its co-crystal equivalent to 100 mg was determined by the procedure reported by Khan K. A.; 1975 [12]. The dissolution rate was determined by using USP dissolution apparatus II. The medium used was 0.1N HCl (900 ml) and the rotational speed of the paddle was kept at 100 rpm. The temperature of the dissolution medium was maintained at 37±0.5 °C throughout the study. The 5 ml aliquotswerewithdrawn, at predetermined time intervals, sufficiently diluted and absorbances were measured at 284 nm. There was increase in dissolution efficiency of carbamazepine in its co-crystal form when compared to that with plain carbamazepine.Dissolution efficiency was increased from 30.84%±1.9 to 79.26%±2.32 in first 30 min and was statistically significant.

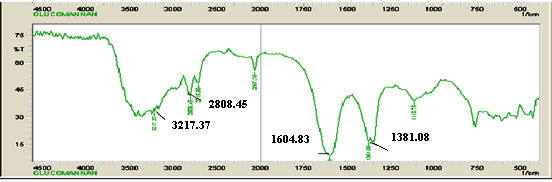

Fig.1: FTIR spectrum of glucomannan

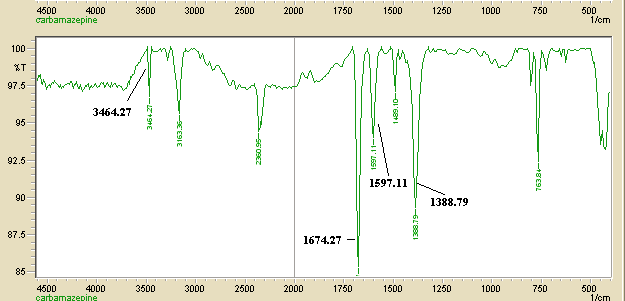

Fig.2: FTIR spectrum of carbamazepine

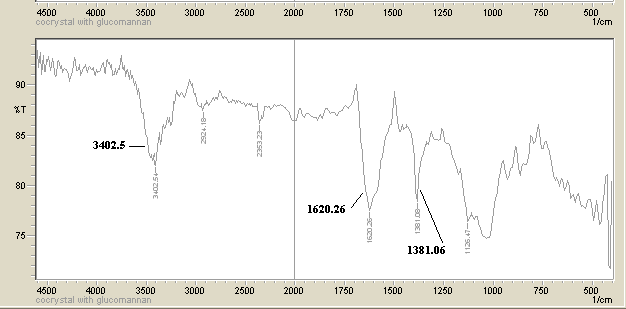

Fig.3: FTIR spectrum of co-crystal of carbamazepine and glucomannan

Fig.4:SEM imagesof carbamazepine (A) and it’sco-crystal with glucomannan (B)

AUTHOR CONTRIBUTION

SHARWAREE HARDIKAR:Data analysis and interpretation and Critical revision of the article.

ASHOK BHOSALE:Design of the work

SWATI VANAVE:Data collection and drafting the article.

BHAGYASHREE KAMATHE:Data collection and writing the manuscript.

CONFLICTS OF INTERESTS

There is no any conflict of interest

REFERENCES

  1. Khoo V. Process induced phase transformation of carbamazepine dihydrate to its polymorphic anhydrates. Powder Technol 2013;236:114-21.

  2. Ali S, Karim Z, Aholghasem J. Solubility and dissolution rate of carbamazepine-cinnamic acid co-crystal. JMol Liq 2013;187:171-6.

  3. Fukte SR, Wagh MP, Shilpi R. Coformerselection:an important tool in co-crystal formation.IntJ Pharm Pharm Sci 2014;6:9-14.

  4. Harris RK, Ghi PY, Puschmann H, Apperley DC, Grisser UJ, Hammond RB,et al. Structural studies of the polymorphs of carbamazepine;its dihydrate and two solvates.Org Proc Res Dev 2005;9:902-10.

  5. Rao CNR. Basic concepts, Instrumentation and techniques: chemical applications of infrared spectroscopy. Academic Press: New York and London; 1963.

  6. Zhang GG, Henry RF, Borchardt TB, Lou X. Efficient co-crystal screening using solution mediated phasetransformation. J Pharm Sci 2007;96:990-5.

  7. Hardikar SR, Bhosale AV, Chaundkar D, Saindane A. Dissolution and bioavailibityenhancement of carbamazepine. Int J Pharm Pharm Sci 2013;5:395-400.

  8. Chua M, Chan K, Hocking TJ, Williams PA, Perry CJ. Methodologies for the extraction and analysis of konjac glucomannan from corms of A. konjac K. Koch. Carbohyd Polym 2012;87:2202-10.

  9. Szakonyi G, Zelko R. Water content determination of super disintegrants by means of ATR-FTIR spectroscopy. J Pharmaceut Biomed 2012;63:106-11.

  10. Indian Pharmacopoeia.Government of India, Ministry of Health and Family Welfare, I:Controller of Publications, Delhi;1996.

  11. Sandler N, Gordan KC. Visualizing the conversion of Carbamazepine in aqueous suspension with and without the presence of excipient:asingle crystal study using SEM and raman spectroscopy. Eur J Pharm Biopharm 2006;64:326-35.

  12. Khan KA. The concept of dissolution efficiency. J Pharm Pharmacol 1975;27:48-9.
