Int J Pharm Pharm Sci, Vol 7, Issue 4, 3-4Original Article


ESTABLISHMENT OF CALLUS AND SUSPENSION CULTURE IN SESAMUM INDICUM L

MARYAM HEIDARIFAR1, FATEMEH DEHGHAN NAYERI2*

1MSc in Agricultural Biotechnology, 2Assistance Professor in Agricultural Biotechnology, Faculty of Engineering and Technology, Imam Khomeini International University, Qazvin, Iran
Email: nayeri@eng.ikiu.ac.ir

Received: 19 Jul 2014 Revised and Accepted: 25 Sep 2014

ABSTRACT

Objective: Sesame (Sesamum indicum L.) is one of the most important oilseed crops in the world. We intended to evaluate the effects of different explants, carbon sources and growth regulators on callus induction and cell suspension culture of two Iranian sesame cultivars (Yekta and Karaj 1).

Methods: The explants (hypocotyl and cotyledon) were cultured on Murashige and Skoog (MS) basal medium supplemented with 30 g/l sucrose, 8 g/l agar, different concentrations and combinations of NAA, 2, 4-D, BAP and Kin hormones. To produce cell suspension culture, callus was excised and transferred to liquid MS medium supplemented with different concentrations of carbon source (glucose and sucrose) and growth regulators of auxins and cytokinins. The cultures were maintained under both dark and light conditions at different rotation speeds of the gyratory shaker.

Results: Callus produced from hypocotyl explants grew faster during 7 to 30 days of culture and after that stabilized at a lower growth rate. Maximum growth rate of suspension culture was achieved from friable green callus in MS liquid medium supplemented with 3 mg/l NAA and 0.6 mg/l BAP using hypocotyl callus.

Conclusion: The optimized cell suspension culture can be used to elicit the production of secondary metabolites, scale-up mass production in bioreactors and gene transformation.

Keywords: Sesame, Callus induction, Cell suspension culture, Hypocotyl, Plant growth regulators.

INTRODUCTION

Sesamum indicum L. is commonly known as sesame and queen of oil seeds belongs to the family of Pedaliaceae. This family consists of 40 species that 7 species have been cultivated in both tropical and temperate climates since ancient times [9].

There are numerous varieties and ecotypes of sesame adapted to various ecological conditions. However, the cultivation of modern varieties is limited due to insufficient genetic information and then many farmers continue to grow local sesame [14].

Beneficial health effects of sesame on human health have recently renewed the interest in this ancient crop [8]. Sesame has long been regarded in the orient as a health food for energy increasing and aging prevention. Sesame seeds contain rich nutrients such as oils, proteins, sugars, fiber, minerals and vitamins. Sesame oil, which occupies 50 to 60% of the seed mass, includes a large amount of unsaturated fatty acids [4]. In sesame seed, α-tocopherol and sesamol are known to be antioxidative compounds. Several lignin and phenolic compounds have potent antioxidative properties. It is considered that these antioxidative compounds play an important role in preventing oxidative damage in sesame seeds [15].

Among the explants, were used in sesame tissue culture, cotyledon and hypocotyl have proven to be an excellent source of explants for callus induction and subsequent regeneration [2, 9, 11]. Based on Were et al (2006) sesame shoots were only obtained from cotyledons whereas both cotyledons and hypocotyls produced roots. Modified MS medium with N6 macronutrients resulted in twice the shoot regeneration frequency obtained with ½MS macronutrients in the presence of thidiazuron (TDZ) [16]. Sesame hypocotyl was defined better than cotyledon for shoot formation in an Iranian sesame cultivar (Naztaksakhe). In addition, the best response to shoot induction was observed in medium supplemented with NAA and BAP hormones [6]. Callus formation of sesame was induced from hypocotyl and cotyledon explants in MS medium supplemented with NAA and BAP. High concentration of BAP in combination with casein hydrolysate increased multiple shoots formation while low concentration of BAP induced the formation of a single shoot [7]. Since there was no detailed protocol for obtaining sesame cell suspension culture, the aim of present study was to achieve and report high concentration of sesame suspension cells for the first time.

MATERIALS AND METHODS

Plant material and callus induction

Seeds of two Iranian sesame genotypes Yekta and Karaj1 were obtained from Seed and Plant Improvement Research Institute in Karaj, Iran. Yekta and Karaj1 are high-yielding varieties that cultivated more in Iran. Seeds were surface sterilized with 70% ethanol for 2 min followed by 3 times rinses by autoclaved distilled water. Then seeds disinfected with 2% sodium hypochlorite for 30 min and rinsed again three times with sterile distilled water. After surface sterilization, seeds were cultured on solid MS with 30 g/l sucrose, 8 g/l agar and incubated for 7 days in a growth chamber at 25±2 °C with a 16 h photoperiod. Explants were detached from 5-7 days plantlets and cultured on MS basal medium supplemented with 30 g/l sucrose, 8 g/l agar and different levels of plant growth regulators (2, 4-D, NAA, Kin and BAP). Hypocotyl explants placed vertically and horizontally in the agar. Cultures were maintained with sub-culturing every 2 weeks. This experiment was done in the factorial experiment based on completely randomized design in 3 replications. The statistical analysis of ANOVA was performed using the SPSS software and the comparisons among means were calculated using Duncan's multiple range test at 0.1 % probability.

Cell suspension, initiation and maintenance

The green friable callus was used for an establishment of homogenous suspension culture. Maximum growth rate of suspension culture was achieved in MS liquid medium supplemented with 3 mg/l NAA and 0.6 mg/l BAP using hypocotyl callus. One gram of friable green callus was excised in petri dish containing No.1 filter paper. Calli were carefully transferred with sterilized forceps to 250 ml narrow-necked Erlenmeyer flasks containing 100 ml liquid MS medium and different levels of growth regulators, sucrose and glucose.

The flasks were covered with aluminum foil and parafilm. The pH of medium was adjusted to 5.8 using 1N KOH before autoclaving the medium at 120 °C for 20 minutes. The flasks rotated at 110, 120 and 130 rpm on a gyratory shaker and incubated at 25 and 27 °C under light and dark conditions. For growth analysis, samples were taken in the first day after sub-culturing at 48h intervals until 30th day of sub-culturing.

Cultures were maintained routinely by transferring 10 ml of culture into 250 ml narrow-necked Erlenmeyer flasks containing 100 ml fresh MS medium as mentioned above every 2 weeks.

Fresh and dry weight

For this purpose, contents of the flasks were aseptically passed through pre-weighed Whatman No.1 filter paper to collect the cells and measure fresh weight. Collected cells were dried for 6 h at 65 °C and their dry weight was recorded every two days during a month.

Fig. 1: Callus induction in hypocotyl (left) and cotyledon (right) explants


Fig. 2: Condensed cell suspension culture of Karaj1 (right) and hypocotyl callus was used (left)

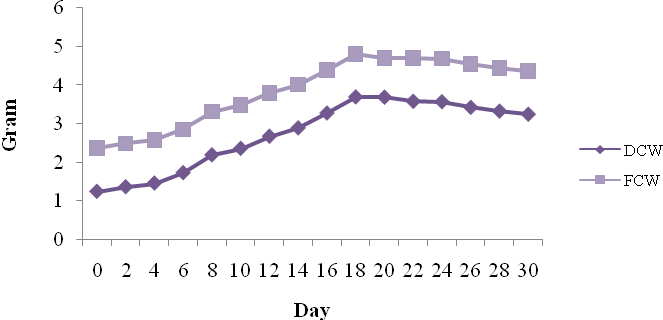

Fig. 3: Growth pattern of sesame cells and early stationary phase (D18). Cells were sub-cultured and cell growth monitored by determination of dry (DCW) and fresh (FCW) cell weight

Table 1: Variance analysis of Kin, NAA and explants effects on callus induction in Sesamum indicum

S. O. V Df MS F
Cultvar 1 7.841 **19.179
Kin 3 0.232 0.568ns
NAA 3 35.359 **86.482
Explant 2 4.518 **11.049
Cultivar × NAA 3 9.981 **24.412
Cultivar × Kin 3 10.573 **26.3
Cultivar × Explant 2 3.676 **8.992
Kin × NAA 9 3.793 **9.277
Explant × Kin 6 5.19 **12.694
NAA×Explant 6 1 *2.446
Cultivar × Kin × NAA 9 5.113 **12.505
Cultivar× Kin ×Explant 6 2.159 **5.281
Kin × NAA×Explant 18 3.6F68 **8.97
Cultivar × NAA × Explant 6 5.322 **13.016
Cultivar × Kin × NAA × Explant 18 1.943 **7.752
Error 192 0.409
Total 288

Table 2: Variance analysis of the effects of Kin, 2, 4-D and explants on callus induction in Sesamum indicum

S. O. V Df MS F
Cultivar 1 36.417 **79.261
Kin 3 8.77 **19.087
2, 4-D 3 42.808 **93.173
Explant 2 118.145 **257.144
Cultivar ×Kin 3 8.325 **18.119
Cultivar×2, 4-D 3 6.637 **14.446
Cultivar× Explant 2 0.773 1.682ns
Kin × 2, 4-D 9 2.994 **6.517
Kin ×Cultivar 6 1.191 *2.592
2, 4-D× Explant 6 13.745 **29.915
Cultivar ×Kin×2, 4-D 9 2.398 **5.219
Cultivar×Kin× Explant 6 3.266 **7.109
Explant× Kin × 2, 4-D 18 1.577 **3.432
Cultivar ×2, 4-D× Explant 6 0.737 1.604ns
Cultivar ×Kin×2, 4-D× Explant 18 1.874 .**4.079
Error 88.215
Total 1300.632

Table 3: The best concentrations of hormones for callus induction in Sesamum indicum±

Source

Concentration of hormones (mg/l)

BAP+NAA

Kin+NAA

Kin+2, 4-D

BAP+2, 4-D

Karaj1

hypocotyls laid horizontally

0.6+3.0

1.0+0.5

1.5+1.0

1.5+1.0

hypocotyls laid vertically

1.0+3.0

0.0+3.0

1.5+1.0

1.5+2.0

cotyledons

0.6+3.0

1.0+0.5

-

0.0+3.0

Yekta

hypocotyls laid horizontally

0.6+3.0

0.0+2.0

2.0+2.0

0.6+1.0

hypocotyls laid vertically

1.0+2.0

2.0+0.5

2.0+1.0

1.5+2.0

cotyledons

0.6+3.0

0.0+2.0

1.0+2.0

0.0+2.0

RESULTS AND DISCUSSION

Callus culture induction

Establishment of a reproducible tissue culture system is useful to obtain sufficient amounts of material for basic molecular analyses and for Agrobacterium-mediated transformation for foreign gene introduction into sesame. The efficiency in genetic transformation depends on the establishment of a robust and reproducible plant tissue culture system. Also cell suspension culture provides a useful material for further regulation of secondary metabolites biosynthesis and for enhanced production of valuable metabolites in sesame.

In the present study different explants were cultured on MS medium supplemented with various auxin and cytokinin concentrations and different combinations of them to assess the morphogenetic potential of the explants. Among Iranian sesame varieties Karaj1 and Yekta are the best due to seed yield and protein and oil contents [3]. Based on our data callus induction can be obtained from both cotyledon and hypocotyl explants because both explants showed an excellent response to callus induction media. However, hypocotyls were found to be superior over cotyledons (fig 1). Callus induction occurred within 15-20 days on MS medium containing different concentrations of auxins (2, 4-D and NAA) and cytokinins (Kin and BAP). Variance analysis results showed that callus induction was significantly affected by the type of explants, cultivars, different concentrations of NAA and reciprocal effects but different concentrations of Kin did not cause significant effect (table 1). Most of the induced calli were friable and suitable for the suspension culture but the best results of callogenesis (the highest fresh weight) were obtained using hypocotyls laid horizontally. The best media containing various hormonal treatments tested for callus induction in this study was reported in table 3.

Establishment of cell suspension culture

Cell suspension cultures were established from 4-week-old callus (hypocotyl and cotyledon derived) as inoculums. One gram of actively growing friable lush green color callus was excised and transferred to liquid MS medium supplemented with different concentrations of carbon source (glucose and sucrose) and growth regulators of auxins and cytokinins. The cultures were maintained under both dark and light conditions. In this study glucose and sucrose with concentrations of 20, 30 and 50 g/l were used. Our results showed that the liquid medium containing 30 g/l sucrose, dark condition and agitation speed of 130 rpm was more efficient than other conditions. In addition, NAA plus BAP combination yielded better results when compared to the other media including 2, 4-D and Kin, 2, 4-D and BAP, NAA and Kin or NAA and BAP. The good suspension culture was obtained by hepocotyl and cotyledon of both cultivars Yekta and Karaj1, but hypocotyl cleaved suspension cultures was grown faster and resulted in greater biomass accumulation in a medium containing 0.6 mg/l BAP and 3 mg/l NAA during 30 days (fig 2). In supplementation of media with other hormones much lower rates of cell division occurred.

After 3 weeks, a finely dispersed homogeneous and regenerable cell suspension culture obtained. The initial growth rate of the cells was slow during first 3 days (lag phase) but after around one week cells density increased significantly and large amount of the cells accumulated in a period of 18 days (log phase). The growth of sesame cell cultures followed standard growth kinetics in which the number of cells increased exponentially due to high rate of cell division followed by slow rate of cell increase during stationary phase. Cells number reached a peak at day 18 and then declined slowly (fig 3). Subculture was performed every 2 weeks. For maintenance of cell suspension culture it is necessary to subculture it regularly because the culture tends to form cell clusters in which cells aggregate and grow in clumps. As mentioned before large amounts of the cells were obtained in dark condition and agitation speed of 130 rpm. Interestingly, when the flasks rotated at 110 and 120 rpm cells showed root formation.

Contrast analysis indicated that there was a statistically significant increase in cell proliferation in treatments containing both auxins and cytokinins. These hormones are necessary for cell division at the G1-S and G2-M transitions in cultured plant cells and in planta as well. Auxin stimulates the acidification of the cell wall resulting in increasing extensibility, and also induces the transcription of specific mRNAs that code for proteins involved in the formation and operation of the miotic spindle. Cytokinins regulate cell division by induction of specific cell cycle genes like CDK and CYCD genes [10, 12, 13].

Hossain et al. (2007) reported that MS medium supplemented with 2 mg/L NAA, 0.05 mg/L BAP, and MS medium containing 2 mg/L 2, 4-D and 0.05 mg/L BAP showed the best growth of suspension culture of Solanum melongera [5]. Daud and Keng (2006) also found that MS medium containing 2 mg/L NAA was the most efficient medium in suspension culture of Cyperus armaticus [1].

Variance analysis results showed that callus induction was significantly affected by the type of explant, cultivar and different concentrations of Kin and 2, 4-D as well. Means comparison of interaction between cultivar, 2, 4-D and explant and interaction between cultivar and explant was not significant (table 2).

CONCLUSION

Suspension cultures, in which plant cells grow uniformly in liquid medium, provide an ideal tool for functional genomics approaches particularly for gaining the information of metabolite production pathway. In the present study, an establishment of fast growing callus and cell suspension culture of Sesamum indicum and their long term maintenance for a period of more than one year without apparent changes in the growth rate was achieved. MS medium supplemented with 3 mg/l NAA and 0.6 mg/l BAP showed the maximum cell growth and proliferation and cell culture at 18 days after sub-culture represented early stationary phase. Therefore, in order to elicit the production of secondary metabolites, scale-up mass production in bioreactors and gene transformation these results can be used.

CONFLICT OF INTERESTS

Declared None

REFERENCES

  1. Daud Z, Keng CL Effects of plant growth regulators on the biomass of embryogenic cell of Cyperus armaticus (Ridly) Mattf and Kukenth. Biotechnol 2006;5:75-8.
  2. George L, Bapat V, Rao P. In vitro multiplication of sesame (Sesamum indicum L.) through tissue culture. Ann Bot 1987;60:17-21.
  3. Hassanzadeh M, Ebadi A, Panahyane-Kivi M, Jamaati-e-Somarin SH, Saeidi M, Gholipouri A. Investigation of water stress on yield components of sesame (Sesamum indicum L.) in Moghan region. Res J Environ Sci 2009;3(2):239-44.
  4. Hata N, Hayashi Y, Okazawa A, Ono E, Satake H, Kobayashi A. Comparison of sesamin contents and CYP81Q1 gene expressions in aboveground vegetative organs between two Japanese sesame (Sesamum indicum L.) varieties differing in seed sesamin contents. Plant Sci 2010;178:510-6.
  5. Hossain MJ, Raman M, Bari MA. Establishment of cell suspension culture and plantlet regeneration of brinjal (Solanum melongena L.). J Plant Sci 2007;2:407-15.
  6. Karimi M, Soleymani Monfared P, Kazemitabar SA. Assessment of in vitro shoot formation in Iranian sesame (Seasmum indicum L.) CV. Naztaksakhe from cotyledon and hypocotyl explants. Int J Agric Crop Sci 2013;5(16):1827-18.
  7. Kwon TH, Abe T, Sasahara T. Efficient callus induction and plant regeneration in Sesamum species. Plant Tissue Cult Lett 1993;10(3):260-6.
  8. Laurentin H, Karlovsky P. Genetic relationship and diversity in sesame (Sesamum indicum L.) germplasm collection using amplified fragments length polymorphisms (AFLP). BMC Genetics 2006;7:10-20.
  9. Rao S, Honnale HN. Callus induction and organogenesis in Sesamum indicum L. CV. E 8. Curr Trends Biotechnol Pharm 2011;5:1462-8.
  10. Richard D, Lescot M, Inze D, De Veylder L. Effect of auxin, cytokinin and sucrose on cell cycle gene expression in Arabidopsis thaliana cell suspension cultures. Plant Cell Tiss Org 2002;69:167-76.
  11. Seo H, Kim Y, Park T, Kim H, Yun S, Park K, et al. High-frequency plant regeneration via adventitious shoot formation from deembryonated cotyledon explants of Sesamum indicum L. In Vitro Cell Dev Biol-Plant 2007;43:209-14.
  12. Silveira V, Floh EIS, Handro W, Guerra MP. Effect of plant growth regulators on the cellular growth and levels of intracellular protein, starch and polyamines in embryogenic suspension cultures of Pinus taeda. Plant Cell Tissue Org 2004;76:53-6.
  13. Stals H, Inze D. When plant cells decide to divide. Trends Plant Sci 2001;8:359-64.
  14. Souza EM, Sorrels E. Relationships among 70 north American oat germplasm: I. cluster analysis using quantitative characters. Crop Sci 1991;31:599-605.
  15. Takebayashi K, Mimura A, Ichikawa A, Niwano M, Takahara Y, Osawa T. Cultivation of Sesamum indicum L. callus cells at 35º C. Plant Tissue Cult Lett 1994;11:129-33.
  16. Were BA, Gudu S, Onkware AO, Carlsson AS, Welander M. In vitro regeneration of sesame (Sesamum indicum L.) from seedling cotyledon and hypocotyl explants. Plant Cell, Tissue Organ Culture 2006;85(2):235-9.
