Int J Pharm Pharm Sci, Vol 6, Issue 7, 423-427Original Article

SYNTHESIS, ANTICANCER AND ANTITUBERCULOSIS STUDIES FOR [1-(4-CHLOROPHENYL) CYCLOPROPYL] (PIPERAZINE-YL) METHANONE DERIVATES

S.M. MALLIKARJUNAa, BASAVARAJ PADMASHALIa,b *, C. SANDEEPa

a Department of Chemistry, Sahyadri Science College (Autonomous), Shimoga 577203, Karnataka, India, bDepartment of Studies and Research in Chemistry, School of Basic Sciences, Rani Channamma University, Belagavi 591156, Karnataka, India.
Email: basavarajpadmashali@yahoo.com

Received: 05 May 2014 Revised and Accepted: 12 June 2014

ABSTRACT

Objective: Synthesis, anticancer and antituberculosis studies for 1-(4-Chlorophenyl) cyclopropyl] (piperazin-1-yl) methanone derivates 3a-j

Methods: A series of new [1-(4-Chlorophenyl) cyclopropyl] (piperazin-1-yl) methanone derivates were synthesized using reductive amination method in presence of sodium triacetoxyborohydride to yield piperzine derivatives 3a-j. The structures of all newly synthesized compounds have been characterised by elemental analysis and spectral studies.

Results: Five selected compounds have been screened for invitro anticancer activity against human breast cancer cell line MDA-MB-435 at 10, 20, 40 and 80 µG/mL concentration using sulforhodamine B assay method. and Two compounds 3a and 3c have shown in vitro anticancer activity.

Five selected compounds have been screened for anti-tuberculosis activity using Middlebrook 7H-9 broth and standard strain of M. tb h37Rv. Three compounds 3a, 3b and 3c have shown significant antituberculosis

Conclusion: Synthesis of [1-(4-Chlorophenyl) cyclopropyl] (piperazin-1-yl) methanone derivates 3a-j simple and convenient method. Some of the tested compounds have exhibited significant antituberculosis and anticancer activity. Compound 3c showed both antituberculosis and anticancer activity.

Keywords: Piperazine, Aldehydes, Cyclopropane, Antituberculosis, Anticancer.

INTRODUCTION

Disubstituted piperazines exhibit wide range of biological properties as reported in the literature. In the last decade, a number of piperazine derivatives have been synthesized and evaluated for their cytotoxic activity [1-6]. Additional clinical drug development studies of the piperazine compounds in small-animal models by the US National Cancer Institute (NCI) demonstrated that these targets had the ability to suppress experimental tumours.

As a result of the study for the lead compounds, It has been reported that inhibitory action was observed against colon, prostate, breast, lung and immune cell tumours in many indole carrying small anti cancer molecules [7]. In addition, piperazines have been found to posses several biological activities [8-11] including antituberculosis activity [12]. The polarity of nitrogen atoms of piperazine ring enhances favourable interaction with bio macromolecules and thus confers the biological activity [13-14]. Thus, based on these observations in the literature, the present study was initiated with aim of identifying the structural requirements of piperazines in terms of anticancer and antitubercular activity.

MATERIALS AND METHODS

Chemistry

All the chemicals and solvents used in this work were of analytical reagent grade (anhydrous) and purchased from Sigma-Aldrich. All the IR spectra were recorded on Bruker alpha FTIR spectrophotometer, 1H NMR spectra were measured on Bruker AV 400MHZ using CDCl3 and DMSO as solvent. Chemical shifts are expressed in δ ppm.

Elemental Analysis was performed on an Elementar Vario EL elemental analyzer. Satisfactory C, H, N analyses were obtained for all the compounds. All the reactions were followed and checked by TLC (silica coated on alumina) using ethylacetate-pet ether (3:7) and further purification was done by column chromatography using 60-120 mesh silica gel.

Synthesis of 1-(4-Chlorophenyl) cyclopropyl] (piperazin-1-yl) methanone derivatives (3a-j)

1-(4-Chlorophenyl) cyclopropyl] (piperazin-1-yl) methanone (1.0 eq) was dissolved in dry THF (10 mL). The solution was stirred for 10 min at ambient temperature. Then added substituted aldehydes (1.1 eq), followed by sodium triacetoxyborohydride (1.4 eq) and glacial acetic acid (1.5 eq). The reaction mixture was heated at 65-700C for 12-14 hr. The completion of reaction was monitored by TLC. The reaction mixture was diluted with ethyl acetate, the organic layer was washed with 10% sodium bicarbonate, followed by water, and brine solution and dried over anhydrous sodium sulphate. The organic layer was evaporated under reduced pressure and the crude reaction mixture was purified by column chromatography using 60-120 mesh silica gel and 20% ethyl acetate in hexane. The series of reactions carried out have been depicted in scheme 1.

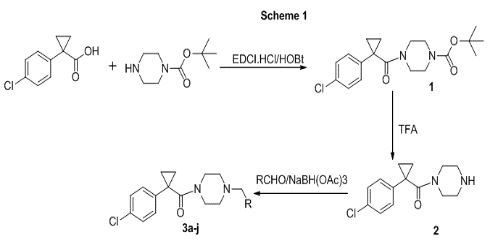

Scheme 1: Synthesis of piperazine methanone derivatives 3a-j.

1. t-Butyl 4-(1-(4-Chlorophenyl) cyclopropanecarbonyl) piperazine-1-carboxylate (1)

1-(4-Chlorophenyl) cyclopropanecarboxylic acid (2.00 g, 0.0102 mol) was dissolved in dry tetrahydrofuran (20 mL). The solution was stirred for 10 min at ambient temperature. 1-Ethyl-3-(3-dimethyllaminopropyl)carbodiimide hydrochloride (2.15 g, 0.01122 mol) was added, followed by 1-hydroxybenzotriazole (1.718 g, 0.01122 mol) and N,N-diisopropylethylamine (3.955 g,0.0305 mol). The reaction mixture was stirred for 20 min at ambient temperature, and then it was cooled to 0°C. Boc-piperazine (tert-butyl piperazine-1-carboxylate) (1.894 g, 0.0102 mol) was added portion-wise to the reaction mixture and stirring was continued for 6 h at ambient temperature.

The completion of the reaction was monitored by TLC. The reaction mixture was diluted with ethyl acetate (25 mL) and washed with sodium bicarbonate (10%, 25 mL) followed by water (15 mL) and brine (15 mL) and dried over sodium sulphate (5.0 g) and evaporate under reduced pressure. The crude reaction mixture was purified by column chromatography using silica gel and 10% ethyl acetate in hexane to get 3.4 g of t-butyl 4-(1-(4-chlorophenyl) cyclopropanecarbonyl) piperazine-1-carboxylate (1).

LC-MS (ESI, Positive): m/z: [M+H]+: 365.2; 1H NMR: (400 MHz, DMSO-d6): δ 7.40 (d, J = 2.0 Hz, 2H), 7.17 (d, J = 3.0 Hz, 2H), 3.63 (m, 2H), 2.96 (m, 2H), 1.37 (q, 2H), 1.18 (q, 2H); 1.2 (s, 9H), IR (KBr) ν (cm-1):1646 (C=O); Elemental analysis: Calculated (%) for C14H17ClN2O:C 62.54, H 6.91, N 7.68; Found: C 62.55, H 6.94, N 7.62

2. [1-(4-Chlorophenyl)cyclopropyl](piperazin-1-yl)methanone (2)

Compound 1 (3.4 g, 0.00934 mol) was dissolved in dry Dichloromethane (20 mL) and the reaction mixture was cooled to o to 50C. Trifluoroacetic acid (3.19 g, 0.028 mol,3.0 eq) was added slowly to the cooled reaction mixture and stirred for 6 h at ambient temperature. The completion of the reaction was monitoring by TLC.

The reaction mixture was evaporated under reduced pressure and it was dissolved in Dichloromethane (30 mL). Organic layer was washed with water (15 mL), brine (15 mL) and dried over sodium sulphate (6 g).

The crude reaction mixture obtained was purified by column chromatography using silica gel and 3% methanol in Dichloromethane to get 1.8 g of purified [1-(4-chlorophenyl) cyclopropyl] (piperazin-1-yl)methanone (2). LC-MS (ESI, Positive): m/z: [M+H]+: 265.2; 1H NMR: (400 MHz, DMSO-d6): δ 9.32 (s, 1H, NH), 7.40 (d, J = 2.0 Hz, 2H), 7.17 (d, J = 3.0 Hz, 2H), 3.63 (m, 2H), 2.96 (m, 2H), 1.37 (q, 2H), 1.18 (q, 2H); 13C NMR (100 MHz, DMSO-d6): 169.9, 139.9, 131.3, 129.1 127.5 42.6, 28.89 15.7 (2C); IR (KBr) ν (cm-1): 2970 (N-H), 1646 (C=O); IR (KBr) ν (cm-1): 1646 (C=O); Elemental analysis: Calculated for C14H17ClN2O:C 63.51,H 6.47 N, 10.58; Found: C, 63.53 H 6.46, N 10.57.

3. General procedure preparation of methanone derivates (3a-j).

Compound 2 (0.5 g, 0.00188 mol) was dissolved in dry THF solvent (10mL). The solution was stirred for 10 min at ambient temperature. Substituted aldehydes(0.0020 mol) was added, followed by sodium triacetoxyborohydride (0.557g,0.002632 mol) and Glacial acetic acid (0.169 g,0.00282 mol).

The reaction mixture was heated at 65-700C for 12-14 hr. The completion of reaction was monitored by TLC. The reaction mixture was diluted with ethyl acetate, the organic layer was washed with 10% sodium bicarbonate solution followed by water, brine and dried over anhydrous sodium sulphate. The organic layer was evaporated under reduced pressure and the crude reaction mixture was purified by column chromatography using 60-120 mesh silica gel and 3% methanol in dichloromethane.

3.1. 4-((1H-indol-3-yl) methyl) piperazin-1-yl)(1-(4Chlorophenyl) cyclopropyl)methanone (3a)

LC-MS (ESI, Positive): m/z: [M+H]+: 394.9; 1H NMR (400 MHz, DMSO-d6): δ 10.92 (bs, 1H, NH), 7.59-7.58 (d, J = 6.4 Hz, 1H), 7.35-7.33 (m, 3H), 7.19-7.13(m, 3H),7.08-6.96(m, 1H) 3.60-3.33 (m, 6H), 2.31-1.91(m, 4H), 1.27-1.25 (m, 2H), 1.16-1.14 (m, 2H), 1.18 (q, J = 5.0 Hz, 2H); IR (KBr) ν(cm-1): 3266 (N-H),817 (C-Cl); Elemental analysis: Calculated (%) for C23H24ClN3O:C 70.13, H 6.14, N 10.64; Found: C 70.15, H 6.12, N 10.50.

3.2. 1-(4-Chlorophenyl) cyclopropyl) (4-(pyridin-3-ylmethyl) piperazin-1-yl)methanone (3b)

LC-MS (ESI, Positive): m/z: [M+H]+: 356.8; 1H NMR (400 MHz, DMSO-d6): δ 8.50-8.48 (dd, J = 4.4 Hz, 2H), 7.38-7.35 (m, 2H), 7.30-7.28 (d, J = 6.0 Hz, 2H), 7.18-7.15(m, 2H) 3.47 (s, 2H), 3.45-3.38 (m, 4H), 3.34-2.30 (m, 4H)1.31-1.28 (m, 2H), 1.18-1.15 (m, 2H). IR (KBr) ν(cm-1): 1718 (C=O), 760 (C-Cl) Elemental analysis: Calculated (%) for C20H22ClN3O: C 67.50, H 6.23, N 11.81; Found: C 67.52, H 6.22, N 11.78.

3.3. 1-(4-Chlorophenyl) cyclopropyl) (4-(quinolin-6-ylmethyl) piperazin-1-yl)methanone (3c)

LC-MS (ESI, Positive): m/z: [M+H]+: 406.9; 1H NMR (400 MHz, DMSO-d6): δ 8.95-8.93(m,1H) 8.86-8.85 (m, 1H), 8.49-8.47 (m,1H) 7.77-7.4 (m, 2H), 7.35-7.30 (m, 2H), 7.29-7.27(m, 1H) 7.21-7.15(m, 2H), 3.62 (s, 2H), 3.45-3.38 (m, 4H), 3.34-2.30(m, 4H)1.30-1.27 (m, 2H), 1.17-1.14 (m, 2H). Elemental analysis: Calculated (%) for C24H24ClN3O: C 71.01, H 5.96, N 10.35; Found: C 71.10, H 6.01,N 10.41.

3.4. 4-((1H-imidazol-2-yl) methyl) piperazin-1-yl) (1-(4-chlorophenyl) cyclopropyl) methanone (3d)

LC-MS (ESI, Positive): m/z: [M+H]+: 345.8; 1H NMR (400 MHz, DMSO-d6): δ 13.5 (bs, 1H), 7.55 (s,1H),7.38-7.31(m, 2H) 7.19-7.15 (m, 2H), 6.92(s, 1H)3.46(s, 2H)3.45-3.38(m, 4H) 2.40-2.24 (m, 4H), 1.31-1.28 (m, 2H), 1.18-1.15 (m, 2H). IR (KBr) ν(cm-1): 1699 (C=O),773 (C-Cl); 3338 (N-H); Elemental analysis: Calculated (%) for C18H21ClN4O: C 62.69, H 6.14, N 16.25; Found: C 62.71, H 6.16, N 16.31.

3.5. 1-(4-Chlorophenyl) cyclopropyl) (4- ((5-nitrothiazol-2-yl) methyl) piperazin-1-yl)methanone (3e)

LC-MS (ESI, Positive): m/z: [M+H]+: 406.1; 1H NMR (400 MHz, DMSO-d6): δ 8.01-8.00 (d, J = 4.4 Hz, 1H), 7.38-7.35 (d, J = 8.8 Hz, 2H), 7.18-7.16 (d, J =8.8 Hz, 2H), 7.09-7.08 (d, J =4.0 Hz, 1H),3.74 (s, 2H), 3.45-3.38(m, 4H) 2.40-2.24 (m, 4H), 1.32-1.29 (m, 2H), 1.18-1.15 (m, 2H). 13C NMR (400 MHz,CDCl3): δ 169.30, 153.65, 147.72, 139.97, 130.75, 130.15, 128.64, 127.11,125.68, 56.08, 51.99, 28.68, 15.8, Elemental analysis: Calculated (%) for C19H20ClN3O3S: C 53.13, H 4.71, N 13.77; Found: C 53.18, H 4.70, N 13.73.

3.6. 1-(4-Chlorophenyl)cyclopropyl) (4-((6-methylpyridin-2-yl) methyl) piperazin-1-yl)methanone (3f)

LC-MS (ESI, Positive): m/z: [M+H]+: 370.8; 1H NMR (400 MHz, DMSO-d6): δ 7.63-7.59 (m, 1H), 7.37-7.34 (d, J = 8.4 Hz, 2H), 7.19-7.14 (m, 3H), 7.10-7.08 (m, 1H), 3.74 (s, 2H), 3.49-3.40(m, 4H), 2.36 (s, 3H) 2.33-2.19 (m, 4H), 1.30-1.27 (m, 2H), 1.17-1.14 (m, 2H). 13C NMR (400 MHz,DMSO-d6): δ 169.65, 157.52, 140.44, 137.18, 131.12, 129.03, 127.51, 212.84, 120.12, 63.94, 52.70, 29.10, 24.43, 15.75.IR (KBr) ν(cm-1): 1698 (C=O),779 (C-Cl); Elemental analysis: Calculated (%) for C21H24ClN3O: C 68.19, H 6.54, N 11.36; Found: C, 68.21, H 6.50, N 11.31.

3.7. 1-(4-Chlorophenyl)cyclopropyl)(4-((1-methyl-1H-pyrrol-2-yl) methyl) piperazin-1-yl)methanone (3g)

LC-MS (ESI, Positive): m/z: [M+H]+: 358.8; 1H NMR (400 MHz, DMSO-d6): δ 7.38-7.35 (m, 2H), 7.20-7.14 (m, 2H), 6.64-6.63 (m, 1H), 5.84-5.83 (m, 2H), 3.54 (s, 2H), 3.46-3.39 (m, 4H), 3.34 (s, 3H) 2.23-2.11 (m, 4H), 1.29-1.26 (m, 2H), 1.18-1.14 (m, 2H). IR (KBr) ν(cm-1): 1714 (C=O),779 (C-Cl); Elemental analysis: Calculated (%) for C20H24ClN3O: C 67.12, H 6.76, N 11.74; Found: C 67.11, H 6.72, N 11.71.

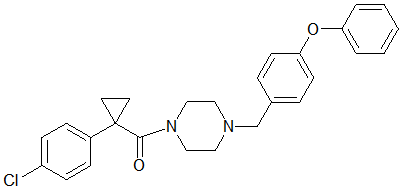

3.8. 4-(4-Phenoxybenzyl) piperazin-1-yl)(1-(4-Chlorophenyl) cyclopropyl)methanone (3h)

LC-MS (ESI, Positive): m/z: [M+H]+: 447.1; 1H NMR (400 MHz, DMSO-d6): δ 8.50-8.48 (dd, J = 4.4 Hz,1.4Hz 2H), 7.38-7.35 (m, 2H), 7.30-7.28 (d, J = 6.0 Hz, 6H), 7.18-7.15(m, 5H), 7.00-6.95 (2m, H) 3.49 (s, 2H), 3.47-3.40 (m, 4H), 3.36-2.32 (m, 4H)1.32-1.29 (m, 2H), 1.19-1.16 (m, 2H).Elemental analysis: Calculated (%) for C27H27ClN2O2: C 72.55, H 6.09, N 6.27; Found: C 72.61, H 6.29, N 6.12.

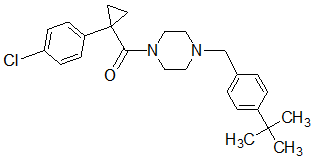

Table 1: Synthesis of piperazine methanone derivatives 3a-j

Compound No. piperazine scaffold aromatic aldehydes piperazine derivatives % Yield
3a 80
3b 65
3c 74
3d 63
3e 75
3f 81
3g 75
3h 80
3i 75
3j 79

3.9. 1-(4-Chlorophenyl) cyclopropyl) (4-((4,5-dimethylfuran-2-yl) methyl)piperazin-1-yl)methanone (3i):

LC-MS (ESI, Positive): m/z: [M+H]+: 373.8; 1H NMR (400 MHz, DMSO-d6): δ 7.39-7.34 (m, 2H), 7.19-7.14 (m, 2H), 5.59 (s, 1H), 3.6 (s, 2H), 3.46-3.39 (m, 4H), 2.23-2.11 (m, 4H), 2.10 (s, 3H)1.92 (s, 3H), 1.19-1.15 (m, 2H).

13C NMR (400 MHz, DMSO-d6): δ 169.62, 148.62, 146.59, 140.44, 131.13, 129.01, 127.54, 114.39, 112.51, 54.30, 52.06, 29.10, 15.68, IR (KBr) ν(cm-1): 1710 (C=O); Elemental analysis: Calculated (%) for C21H25ClN2O2: C 67.64, H 6.76, N 7.51; Found: C 67.68, H 6.72 N 7.52.

3.10. 1-(4-Chlorophenyl) cyclopropyl) (4-((1,3-dimethyl-1H-pyrazol-4 yl) methyl)piperazin-1-yl)methanone (3j)

LC-MS (ESI, Positive): m/z: [M+H]+: 373.8; 1H NMR (400 MHz, DMSO-d6): δ = 8.31 (s, 1H ),7.39-7.35 (m,2H ) 7.20-7.14 (m, 2H), 3.69 (s, 2H), 3.46-3.39 (m, 4H),3.18 (s, 3H), 2.35 (s,3H), 2.23-2.11 (m, 4H), 1.19-1.15 (m, 2H).

IR (KBr) ν(cm-1):779 (C-Cl) Elemental analysis: Calculated (%) for C20H25ClN4O: C 64.42, H 6.76, N 15.02; Found: C 64.48, H 6.78, N 15.08.

Anticancer activity

Five selected compounds have been screened for invitro anticancer activity against human breast cancer cell line MDA-MB-435 at 10, 20, 40 and 80 µG/mL concentration using sulforhodamine B assay method. The activity was carried out by Advanced Centre for Treatment, Research and Education in Cancer (ACTREC) Mumbai. Adriamycin (Doxorubicin) was used as positive control drug for comparing anticancer efficiency and DMSO as vehicle. Two compounds have been found to show dose dependent activity against breast cancer. The parameters GI50, TGI and LC50 have been reported. The results have been incorporated in Table 1 and diagram. Compounds 3a and 3c were found to show dose dependent activity.

Table 2: Anticancer activity against Human Brest Cancer Cell Line MDA-MD-435

Drug Concentration (µg/ml)
Experiment 1 Experiment 2 Experiment 3 aAverage Values
Comp 10 20 40 80 10 20 40 80 10 20 40 80 10 20 40 80
3a 45.3 5.4 -4.4 -90.8 60.7 9.1 -35.6 -63.7 60.5 13.9 -45.7 -81.8 55.5 9.5 -28.6 -78.8
3b 92.7 65.6 46.7 25.8 108.3 81.6 60.7 30.1 87.2 94.6 59.3 11.4 96.1 80.6 55.6 22.4
3c 15.8 -28.1 -69.8 -91.6 60.9 39.6 7.5 -69.8 59.2 27.9 -14.3 -87.6 43.2 13.1 -25.5 -83.0
3d 79.1 99.2 71.9 38.2 82.1 95.0 86.4 35.8 90.9 99.9 84.1 23.0 84.0 98.0 80.8 32.4
3e 86.8 83.4 55.0 4.6 90.8 84.6 61.8 11.4 86.2 84.7 42.2 -18.7 87.9 84.2 53.0 -0.9
ADR -34.2 -50.3 -55.1 -25.2 7.8 10.5 5.4 0.3 -36.9 -64.9 -43.0 -42.3 -21.1 -34.7 -30.9 -22.4

a Average values of tested compounds

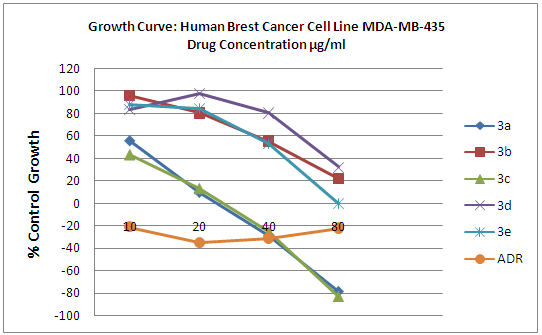

Fig. 1: Graphical representation of anticancer activity


Table 3: Parameter study table (LC50, TGI, and GI50)

Compound LC50 TGI GI50
3a 60.2 36.5 12.7
3b >80 >80 51.7
3c 59.4 35.5 11.7
3d >80 >80 66.9
3e >80 >80 42.6
ADR >80 29 <10

Anti tuberculosis activity

Procedure for Anti Tb

The procedure we have followed for anti-Tb activity mainly involves the use of Middlebrook 7H-9 broth and standard strain of M. tb h37Rv. The basal medium was prepared according to manufacture's instructions (Hi-Media) and sterilized by autoclaving. 4.5 ml of broth was poured into each one of the sterile bottles. To this, 0.5ml of ADC supplement was added. This supplement contains catalase, dextrose and bovine serum albumin fraction v. Then a stock solution of the compound was prepared (10mg / ml). From this appropriate amount of solution was transferred to media bottles to achieve final concentrations of 25, 50, 100µg/ml. Finally, 10 ul suspension of M. tb strain (100000 organisms / ml, adjusted by McFarland's turbidity standard) was transferred to each of the tubes and incubated at 370c. Along with this, one growth control without compound and drug controls was also set up. The bottles were inspected for growth twice a week for a period of three weeks. The appearance of turbidity was considered as growth and indicates resistance to the compound. The growth was confirmed by making a smear from each bottle and performing a ZN stain. Antibiotic standards used include streptomycin 7.5µg/ml and Pyrazinamide 7.5µg/ml.

Table 4: Anti tuberculosis studies of synthesised compounds

S. No. Compound 5 µg/ml 10 µg/ml 25 µg/ml
1 3a S S S
2 3b S S S
3 3c S S S
4 3d R R R
5 3e R R R

RESULTS AND DISCUSSION

All the synthesized compounds have been purified by column chromatography and recrystalized with ethyl acetate. The structures have been confirmed by elemental analysis and spectroscopic techniques like IR, 1H-NMR, LC-MS. Some of the selected compounds have been tested for invitro anticancer and antituberculosis activity. Two compounds have been found to show dose dependent activity against cervical cancer. The parameters GI50, TGI and LC50 have been reported. The results have been incorporated in Table 1 and diagram. Compounds 3a and 3c were found to show dose dependent activity Out of these tested compounds 3a, 3b and 3c have been found active against tuberculosis. In the above table 3, R indicates resistivity and S indicates sensitivity of the tested compounds against the standard.

CONCLUSION

The research work is focused on the efficient synthesis of cyclopropyl piperazine derivatives. The reactions performed are eco-friendly. In addition, some of the tested compounds have exhibited significant antituberculosis and anticancer activity. The publication of these facts would be of significant use for the scientific community. Some selected cyclopropyl piperazine derivatives have been tested for antituberculosis and invitro anticancer activity. Three compounds 3a, 3b and 3c have shown significant antituberculosis and two compounds 3a and 3c have shown in vitro anticancer activity. Recommended compounds have been under screen for invivo anticancer activity. Compound 3c showed both antituberculosis and anticancer activity.

CONFLICT OF INTERESTS

Declared None

ACKNOWLEDGEMENT

We are thankful to the Principal, Sahyadri Science College, Shimoga, for providing laboratory facilities. We also acknowledge Marathamandal NGS Institute of Dental Science, Belgaum, India and Advanced Centre for Treatment, Research and Education in Cancer, Mumbai, India for carrying out antituberculosis and anticancer activities.

REFERENCES

  1. Shchekotikhim AE, Shtil AA, Luzikov YN, Bobrysheva TV, Buyanov VN, Preobrazhenskaya MN. 3-Aminomethyl derivatives of 11-dihydroxynaphtho[2,3-f]indole-5,10-dione for circumvention of anticancer drug resistance Bioorg. J Med Chem 2005;4:2285-91.
  2. Hou X., Ge, T. Wang Z., Guo, J. Cui W., Cheng, C. Lai T., Li R., Dithiocarbamic acid esters as anticancer agent. Part 1:4-Substituted-piperazine-1-carbodithioic acid 3-cyano-3,3-diphenyl-propyl esters Bioorg. J Med Chem Letters 2006;16:4214-19.
  3. A. Kumar C. S., Swamy S. N, Thimmegowda N. R., Prasad S. B. B., Yip G.W., Rangappa K. S., Synthesis and evaluation of 1-benzhydryl-sulfonyl-piperazine derivatives as inhibitors of MDA-MB-231 human breast cancer cell proliferation. J Med Chem Res 2007;16:179-87.
  4. Kamal A, Rajender D, Reddy DR, Reddy MK, Balakishan G, Shaik TB, et al. Remarkable enhancement in the DNA-binding ability of C2-fluoro substituted pyrrolo[1-c][1,4]benzodiazepines and their anticancer potential. J Bioorg Med Chem 2009;2(17):1557-72.
  5. Kamal A, Vijaya Bharathi E, Janaki Ramaiah M, Surendranadha Reddy J, Dastagiri D, Viswanath A, et al. Synthesis, anticancer activity and apoptosis inducing ability of anthranilamide-PBD conjugates. J Bioorg Med Chem Lett 2010;20(11):3310-3.
  6. Chetan B, Bunha M, Jagrat M, Sinha BN, Saiko P, Graser G, et al. Design, synthesis and anticancer activity of piperazine hydroxamates and their histone deacetylase (HDAC) inhibitory activity. J Bioorg Med Chem Lett 2010;20(13):3906-10.
  7. http://www.prnewswire.com/news-releases/imquest-pharma ceuticals-licenses-piperazine-series-of-anti-cancer-therapeutic-compounds-from-samjin-pharmaceutical-co.
  8. Foroumadi A, Emami S, Mansouri S, Javidnia A, Saeid-Adeli N, Shirazi FH, et al. Synthesis and antibacterial activity of levofloxacin derivatives with certain bulky residues on piperazine ring. Eur J Med Chem 2007;42(7):985-92.
  9. Cai M, Li Z, Fan F, Huang Q, Shao X, Song G, et al. Design and Synthesis of Novel Insecticides Based on the Serotonergic Ligand 1-[(4-Aminophenyl) ethyl]-4-[3-(trifluoromethyl) phenyl] piperazine (PAPP). J Food Chem 2008;58(5):58-62.
  10. (a) K. K Singh, C. S. Joshi, C. S. Mathela, Synthesis and in vitro antibacterial activityof N-alkyl and N-aryl piperazine derivatives. Ind J Chem 50(2)B, 2011, 196-200.
    (b) A. Shafiee, Z. M. Haddad, N. Mohammadosseini, J. Khalafy, S. Emami, M.H Moshafi, M. Sorkhi, A. Foroumadi, Mannich bases of 7-piperazinylquinolones and kojic acid derivatives: Synthesis, in vitro antibacterial activity and in silicostudy. Daru J Pharm Sci 2008;16(3):189-95.
  11. Bali A, Sharma K, Bhalla A, Bala S, Reddy D, Singh A, et al. Synthesis, evaluation and computational studies on a series of acetophenone based 1-(aryloxypropyl)-4-(chloroaryl) piperazines as potential atypical antipsychotics. Eur J Med Chem 2010;45(6):2656-62.
  12. Todorovic A, Haskell-Luevano C. A review of melanocortin receptor small molecule ligands. J Peptides 2005;26(10):2026-36.
  13. Kundu B. Solid-phase strategies for the design and synthesis of heterocyclic molecules of medicinal interest. J Current Opinion in Drug Discovery and Development 2003;6(6):815-26.
  14. Raval JP, Desai KR. synthesis and antimicrobial activity of new triazolo pyridinyl phenothiazines. J ARKIVOC 2005;13:21-8.
