Int J Pharm Pharm Sci, Vol 10, Issue 5, 77-84Original Article


GENETIC IMPROVEMENT OF ANTIDIABETIC ALPHA-GLUCOSIDASE INHIBITOR PRODUCING STREPTOMYCES SP

WALEED MOHAMED ABDULKHAIR1*, WALAA SAID ABDEL-ALL2, REHAB HASAN BAHY3

1*Researcher, General Department of Basic Medical Sciences, Microbiology Department, National Organization for Drug Control and Research,2Associate Professor, General Department of Basic Medical Sciences, Microbiology Department, National Organization for Drug Control and Research, 3Researcher, General Department of Basic Medical Sciences, Microbiology Department, National Organization for Drug Control and Research
Email: waleed_hamada@yahoo.com

Received: 16 Feb 2018 Revised and Accepted: 29 Mar 2018

ABSTRACT

Objective: This study aims to control type 2 of diabetes mellitus by a hypoglycemic substance that extensively produced by Streptomyces bacteria. The antidiabetic action of this substance depends on prevention of starch hydrolysis and then the liberation of glucose monomers via an inhibition of α-glucosidase as one of starch hydrolyzing enzymes.

Methods: The strains of marine actinomycetes were isolated on starch nitrate agar, and then qualitatively and quantitatively screened to prevent starch hydrolysis. The most potent strain was identified by classical and genetical methods. The genetic improvement of the most potent strain was carried out by using UV radiations at different exposure periods per second. The optimization of environmental conditions was studied to obtain the maximum activity of the α-glucosidase inhibitory protein, which purified and electrically separated to determine its molecular weight.

Results: Among 55 marine actinomycetes, only 7 strains were found have antidiabetic activity. This activity was assayed spectrophotometrically at 400 nm, where p-nitrophenyl-α-d-glucopyranoside and acarbose were used as a substrate and a positive control respectively. The most potent strain which marked as AD-7 was identified as Streptomyces coelicolor, which exposed to the genetic improvement using UV radiations to obtain a highly activity of an inhibitory protein at 10 s of the exposure period. The activity and stability continued for 5 d at 37 °C. The maximum activity and stability of an improved inhibitory protein were obtained with optimization of environmental conditions included inoculum size (106 cfu/ml/300 µl), incubation period (14 d), agitation speed (160 rpm), incubation temperature (30 °C), and pH (8.5). An inhibitor was purified and separated at 34 KDa.

Conclusion: Alpha-glucosidase inhibitory protein as a powerful hypoglycemic agent was extracted from the filtrate of S. coelicolor. The mutant strain of the latter had been produced most active and stable inhibitory protein, which prevents the starch hydrolysis via an inhibition of α-glucosidase enzyme for 5 d at 37 °C.

Keywords: Antidiabetic agents, Diabetes mellitus, Enzyme inhibitors, Physical mutagenesis, Starch hydrolysis

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2018v10i5.25338

INTRODUCTION

Diabetes mellitus (DM) is a chronic disease arises from metabolic disorders, especially in the pancreatic gland. Simply, DM is an elevation of blood glucose level all the time (hyperglycemia) due to either deficient pancreatic insulin secretion or failed blood-insulin absorption [1]. So, the blood glucose level must be under full control to avoid the serious complications. There are two types of medical complications resulted from uncontrolled DM; acute complications such as diabetic ketoacidosis, hyperosmolar hyperglycemic state, or death, and chronic complications such as stroke, foot ulcers (diabetic foot), kidney failure, blindness, impotence, cardiovascular disease and gangrene. Uncontrolled DM has some symptoms such as frequent urination, increased thirst, increased hunger, and body weight loss [2]. Norman [3] stated that, according to the last report of WHO, number of diabetes up to 2010 was 285 million and will be 438 million at 2030 worldwide. Bailey and Day [4] reported that, there are three main types of DM; type 1 is called insulin-dependent diabetes mellitus (IDDM) or juvenile diabetes, in which the insulin secretion is completely stopped due to unknown reasons; type 2 is called non-insulin-dependent diabetes mellitus (NIDDM) or adult-onset diabetes, in which the sufficient amount of insulin does not deliver to the blood due to failure of cell receptors-insulin contact. The main reason of type 2 is excessive obesity; and the last type is called gestational diabetes that associated with pregnancy without previous history of diabetes. Moreover, there are other uncommon types of DM; prediabetes in which the blood glucose level is increased but did not reach to type 2 level. Nevertheless, prediabetes may be developed to type 2. Another uncommon type of DM called latent autoimmune diabetes of adults (LADA), which be latent in the adult and then developed to type 1. Sometimes LADA is misdiagnosed as having type 2 of DM. Type 3 of diabetes is called Alzheimer's disease in which insulin resistance by the brain is present [5]. A non-diabetic person has a normal level of blood glucose ranged from 80 to 120 mg/dl. On the other hand, the normal level of blood glucose with a diabetic person is up to 180 mg/dl [6].

One of the antidiabetic approaches related to DM type 2 is an inhibition of starch hydrolyzing enzymes like α-amylase and α-glucosidase [7], which responsible for the liberation of disaccharides and glucose monomers respectively [8]. Alpha-glucosidase (EC3.2.1.20) is a starch hydrolyzing enzyme that catalyzes splitting of disaccharides and oligosaccharides and liberation of glucose monomers in the small intestine [9]. Therefore, all inhibitors of this enzyme are antidiabetic agents which aid in the control of the blood glucose level. Among of α-glucosidase inhibitors, acarbose, voglibose, and miglitol. Acarbose and voglibose are not absorbed from the intestine and excreted through the faecal route, so they have poor bioavailability; however, miglitol is completely absorbed from the upper part of the intestine and excreted by the kidneys [10]. Although poor bioavailability of acarbose, it has many benefits including body weight loss, blood pressure adjustment, protection against heart diseases, and reduction of hypertriglyceridemia [11].

Acarbose is oral antidiabetic pharmaceutical product constituted of α-glucosidase and α-amylase inhibitors produced by Actinoplanes utahensis [12, 13]. Voglibose is similar to acarbose, but it has only α-glucosidase inhibitor as a single active ingredient that produced by Streptomyces hygroscopicus-limoneus [14, 15]. Valienamine is a precursor of voglibose produced by Streptomyces calvus [16, 17], and adiposin-1, and trestatin-B produced by Streptomyces dimorphogenes [18, 19]. Although the high antidiabetic effect of these products, some adverse effects are found such as a headache, insomnia, vomiting, flatulence, and diarrhea [20]. Fortunately, the genetic exchange between the endophytic microbes and their antidiabetic hosts of medicinal plants plays an important role in the microbial production of antidiabetic agents; hence, the α-glucosidase inhibitor can be produced by endophytic microbes of antidiabetic medicinal plants [21-23]. This study aims to improve the activity and stability of α-glucosidase inhibitor that produced by marine actinomycetes.

MATERIALS AND METHODS

Chemicals and reagents

The sigma company was the single source of the following chemicals:

Methodology

Isolation of marine actinomycetes

The sediment samples of the Red Sea were collected in sterile plastic bags which preserved at 4 °C, and then transported to the laboratory. All samples were dried in the air at room temperature for overnight. Isolation of marine actinomycetes was carried out on starch nitrate agar contained 10% NaCl by serial dilution method [24]. All strains were purified, subcultured, and maintained on the slants of the same medium and preserved at 4 °C.

Screening test

All strains of marine actinomycetes were qualitatively screened to inhibit the starch hydrolyzing enzymes included α-glucosidase. All of them were grown on starch nitrate broth contained 10% NaCl, and then incubated with shaking at 30 °C and 160 rpm for 14 d. The suspension of each strain was centrifuged at 5000 xg for 10 min. The pellet was discarded, but the supernatant was pooled and filtered twice through the filter paper (Whatman No.1) to obtain the cell-free extract. The procedure was conducted as the following: There 3 clear glass test tubes were used with each cell-free extract; each tube contained 5 ml of starch solution. The first tube (a) was supplemented with 1 u/ml of α-glucosidase enzyme as a negative control, while the second tube (b) was supplemented with 1u/ml of α-glucosidase and 1 mg/ml of acarbose (α-glucosidase inhibitor) (Sigma http://www, chemicalinfo. com/DWCP) as a positive control, and the third tube (c) was supplemented with 1 u/ml of α-glucosidase and 1 ml of cell-free extract. All tubes were left at room temperature for 10 min, and then incubated at 37 °C for 3 h. Starch hydrolysis was detected in all tubes by using iodine solution. The blue color was absent in the tube (a) due to complete starch hydrolysis via α-glucosidase activity; while, the dark blue color was present in the tube (b) due to complete inhibition of α-glucosidase activity via acarbose (α-glucosidase inhibitor). The ability of test organism to inhibit α-glucosidase or not was clearly determined according to the observation in tube (c); where, absence of blue color is a negative result; while, presence of dark blue color is a positive result. All tubes (c) of positive results were further incubated at 37 °C and examined each 24 h. The most potent strain was selected according to the dark blue color which remained a longest period at 37 °C [25].

Assay of α-glucosidase inhibition

The screening test was further conducted by quantitative method. The activity of α-glucosidase inhibitor was measured according to Anam et al. [25]; where α-glucosidase (0.75 u/ml) was dissolved in 0.1 M phosphate buffer pH 7.0. Also, p-nitrophenyl-α-d-glucopyranoside (20 mmol) was dissolved in 0.1 M phosphate buffer pH 7.0. The reaction mixture was prepared by adding 125 µl of p-nitrophenyl-α-d-glucopyranoside, 240 µl of 0.1 M phosphate buffer pH 7.0 and 10 µl sample, and then incubated at 37 °C for 5 min, and then 125 µl of α-glucosidase were added and incubated for 15 min at 37 °C. The reaction was stopped by addition of 500 µl sodium carbonate. The reaction product is p-nitrofenol which was measured colourimetrically at 400 nm. As a comparison, we used 1 mg/ml solution of acarbose. This experiment has been repeated at different incubation periods of cell-free extract of each strain to exact determine the stability of each inhibitor. The activity of α-glucosidase inhibitory protein was determined by the following equation:

(Ac: absorbance of control, Ab: absorbance of background, As: absorbance of the sample).

Identification of actinomycete isolate

Classical techniques

The most potent actinomycete strain AD-7 was identified by determination of morphological, physiological, and cultural characteristics according to Shirling and Gottlieb [26]. Inorganic salt starch agar (ISP-4) was used for cultivation and characterization of actinomycete strain by scanning electron microscopy.

DNA extraction

Actinomycete isolate was inoculated aseptically in 250 ml Erlenmeyer flask contained 30 ml of starch nitrate broth, and then incubated with shaking at 30 °C and 160 rpm for 14 d. The bacterial suspension was centrifuged at 10 000 xg for 10 min. The supernatant was discarded, and only 0.1 g of precipitated mycelia were transferred to sterile porcelain dish and crushed with liquid nitrogen. The crushed mycelia were transferred to clear tube containing 500 μl of TE buffer supplemented with lysozyme (20 mg/ml). The tube was incubated at 37 °C for 30 min, and then supplemented with 20 μl of 10% SDS (w/v) and 20 μl of proteinase K, and then incubated at 55 °C for 30 min. The lysate was cooled down and extracted once with an equal volume of phenol: chloroform solution (v/v 1:1) at 10 000 xg for 5 min. The aqueous phase was transferred carefully to clear tube and DNA was precipitated by adding 70-90% ethanol and keeping at-20 °C for 30 min. The pellet was formed by centrifuging at 10 000 xg for 10 min. The pellet was washed twice with 90% ethanol and dissolved the pellet in TE buffer [27].

PCR technique

Polymerase chain reaction (PCR) technique was used to amplify 16S rRNA gene in a thermocycler (Perkin Elmer Cetus Model 480) by using the universal primer; the forward primer 5’-AGAGTTTGAT-CCTGGCTCAG-3’ and the reverse primer 5’-AAGGAGGTGATCCAGCC-3’ [28]. PCR reaction was performed in a total volume of 25 μl containing: 2.5 μl PCR buffer, 1.5 mmol MgCl2, 200 μM dNTPs, 1 u Taq DNA polymerase (Ampli Taq, Perkin-Elmer), 2.5 μl of 10 p-mol each primer and 2.5 μl of the extracted bacterial DNA and the volume was completed to 25 μl using sterile distilled H2O. PCR reaction conditions were approached as; one cycle of 94 °C for 5 min followed by 35 cycles; each cycle consists of 94 °C for 1 min, 55 °C for 1 min, 72 °C for 90 s. and a final extension step at 72 °C for 5 min. The PCR product (1500 bp) was directly sequenced by a BigDye terminator cycle sequencing kit (PE Applied Biosystems, Foster City, CA, USA) on an ABI 310 automated DNA sequencer using both the reverse and forward primers (Applied Biosystems, Foster City, CA, USA).

Optimization study

Effect of incubation period

There ten Erlenmeyer flasks (250 ml) contained 100 ml of starch nitrate broth at pH 7.2 were inoculated by equal inoculum of mutant actinomycete isolate AD-7, and then incubated with shaking at 30 °C and 160 rpm for different incubation periods (2, 4, 6, 8, 10, 12, 14, 16, 18, and 20 d). The antidiabetic activity was measured as mentioned above.

Effect of incubation temperature

There ten Erlenmeyer flasks (250 ml) contained 100 ml of starch nitrate broth at pH 7.2 were inoculated by equal inoculum of mutant actinomycete isolate AD-7, and then incubated with shaking at 160 rpm for different incubation temperature (22, 24, 26, 28, 30, 32, 34, 36, 38, and 40 °C) for 14 d. The antidiabetic activity was measured as mentioned above.

Effect of initial pH values

There ten Erlenmeyer flasks (250 ml) contained 100 ml of starch nitrate broth. Each medium was adjusted at definite pH (5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, and 9.5). All flasks were inoculated by an equal inoculum of mutant actinomycete isolate AD-7, and then incubated with shaking at 160 rpm and 30 °C for 14 d. The antidiabetic activity was measured as mentioned above.

Effect of agitation speed

There six Erlenmeyer flasks (250 ml) contained 100 ml of starch nitrate broth at pH 7.2 were inoculated by equal inoculum of mutant actinomycete isolate AD-7, and then incubated with shaking at 30 °C and at different agitation speeds (120, 140, 160, 180, 200, and 220 rpm) for 14 d. The antidiabetic activity was measured as mentioned above.

Effect of inoculum size

There ten Erlenmeyer flasks (250 ml) contained 100 ml of starch nitrate broth at pH 7.2 were inoculated by different inocula of mutant actinomycete isolate AD-7 (50, 100, 150, 200, 250, 300, 350, 400, 450, and 500 µl), and then incubated with shaking at 30 °C and 160 rpm for 14 d. The antidiabetic activity was measured as mentioned above.

Purification of α-glucosidase inhibitory protein

The batch of starch nitrate broth (2 l) at pH 8.5 was inoculated by 300 µl (106 cfu/ml) of the mutant actinomycete isolate AD-7, and then incubated with shaking at 30 °C and 160 rpm for 14 d. After the incubation period, the bacterial suspension was centrifuged at 5000 xg for 10 min. The pellet was discarded and supernatant contained α-glucosidase inhibitory protein was filtered through filter paper (Whatman No.1) to obtain clear cell-free extract. The cell-free extract was sequentially supplemented with different concentrations of saturated ammonium sulfate (10 to 90%). At each concentration, the mixture was preserved at 4 °C for 2 h. The mixture was centrifuged at 5000 xg for 20 min at 4 °C. The supernatant was discarded; while the precipitate was dissolved in 10 ml phosphate buffer (pH 8.5). The total protein content of the cell-free extract (control) and of each fraction contained precipitated proteins was estimated according to Lowery et al. [29]. Ion-exchange column chromatography using di-ethyl-amino-ethyl cellulose as a resin was conducted according to Dale and Smith [30]. The active fractions were pooled and passed through sephadex G 200 to obtain purified protein according to Andrews [31].

Separation of α-glucosidase inhibitory protein

The molecular weight of α-glucosidase inhibitory protein was determined by using sodium dodecyl sulphate-polyacrylamide gel electrophoresis (SDS-PAGE) according to Blackshear [32].

RESULTS AND DISCUSSION

Isolation of marine actinomycetes

There 55 marine actinomycete strains were isolated from the sediment samples of the Red Sea. The isolation was carried out on starch nitrate agar contained 10% NaCl. All strains were picked up, purified, subcultured, and then preserved at 4 °C. Many therapeutic compounds including antidiabetics are highly producing by marine microorganisms [33], especially marine actinomycetes that usually isolated from soils or sediments of the sea [34]. Although marine actinomycetes are economic medical bacteria due to their highly production for medical substances particularly antimicrobial agents [35], they are not widely used as antidiabetic producers [36].

Screening test

These strains were screened qualitatively to inhibit starch hydrolysis via inactivation of the α-glucosidase enzyme. Both of p-nitrophenyl-α-d-glucopyranoside and acarbose were used as a substrate and an enzyme inhibitor respectively. The screening test resulted in only 7 antidiabetic strains are present; however, the highest activity and stability of an inhibitor were observed in the cell-free extract of the strain AD-7 (fig. 1a). Iodine solution was used as a reagent to detect the starch hydrolysis. So, the dark blue color that clearly appeared in the tube (a) referred to retarded starch hydrolysis by the action of the cell-free extract contained an α-glucosidase inhibitor. On the other hand, the white color in the tube (b) referred to complete starch hydrolysis by the action of the α-glucosidase enzyme. The dark blue color in the tube (a) remained at fifth day of incubation at 37 °C, and then disappeared gradually (fig. 1b). Ganesan et al. [37] reported that there 4 strains among 30 ones were found have the ability to produce α-glucosidase inhibitor.

a

b

Fig. 1: (a) Tube (a) inhibition of α-glucosidase activity by cell free extract of strain AD-7 up to fifth day of incubation at 37 °C; tube (b) hydrolyzed starch by α-glucosidase activity. (b) tube (a) disappearance of dark blue color after fifth day of incubation at 37 °C due to degradation of α-glucosidase inhibitor in the cell free extract of strain AD-7; tube (b) hydrolyzed starch by α-glucosidase activity, n = 1

Assay of α-glucosidase inhibition

The quantitative screening test was carried out for all strains, where the activity of an inhibitor was measured colourimetrically at 400 nm (table 1). Furthermore, the stability of α-glucosidase inhibitor was determined, where the more stable inhibitor was being active at the longest incubation period at 37 °C. The results of qualitative and quantitative tests were conformed with each other, where the same 7 antidiabetic strains were present; AD-4, AD-7, AD-16, AD-24, AD-31, AD-33, and AD-40 strains were found has 2.3% at 3rd d, 4.2% at 5th d, 1.8% at 7th d, 1.0% at 4th d, 3.2% at 5th d, 3.0% at 5th d, and 2.7% at 6th d respectively. Accordingly, the strain AD-7 was considered the most potent due to the highest activity and more stability of α-glucosidase inhibitor, followed by AD-31, AD-33, AD-40, AD-4, AD-16, and AD-24 strains. Imada and Simidu [38] stated that, out of 30 strains of actinomycetes, there only 7 strains were found have the ability to decrease the blood glucose level in the rats by inhibition of α-glycosidase, while the others did not exhibit any activity. The most potent strain was symbolized as PSG-22, which had a highest in vitro and in vivo α-glucosidase inhibition activity. In vitro α-glucosidase inhibition activity was showed with only 6 strains.

Table 1: Assay the activity of the α-glucosidase inhibitor

Strain No. Inhibition activity (%)/d
1st 2nd 3rd 4th 5th 6th 7th 8th 9th
AD (1-3) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-4 1.2±0.10 1.8±0.15 2.3±0.15 2.0±0.12 1.6±0.11 1.2±0.10 0.7±0.08 0.5±0.05 0.3±0.02
AD (5-6) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-7 1.7±0.11 2.4±0.15 3.1±0.18 3.7±0.21 4.2±0.25 3.4±0.20 2.8±0.17 2.1±0.15 1.5±0.12
AD (8-15) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-16 0.1±0.01 0.3±0.01 0.5±0.02 0.8±0.03 1.4±0.11 1.6±0.11 1.8±0.12 1.2±0.10 0.6±0.02
AD (17-23) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-24 0.1±0.01 0.4±0.01 0.7±0.03 1.0±0.08 0.5±0.05 0.2±0.02 0.0 0.0 0.0
AD (25-30) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-31 0.3±0.01 0.7±0.03 1.5±0.11 2.8±0.15 3.2±0.20 2.1±0.15 1.4±0.11 0.8±0.07 0.3±0.02
AD-32 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-33 0.7±0.03 1.3±0.15 1.9±0.18 2.6±0.19 3.0±0.23 2.1±0.18 1.6±0.15 1.1±0.11 0.4±0.01
AD (34-39) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
AD-40 0.3±0.01 0.5±0.02 0.8±0.04 1.7±0.11 2.3±0.19 2.7±0.22 2.0±0.18 1.2±0.10 0.5±0.02
AD (41-55) 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

n = 2;±SD

Identification of actinomycete isolate

The actinomycete strain AD-7 as a most potent antidiabetic one was identified classically according to Shirling and Gottlieb [26], where cultural characteristics were determined as shown in table 2. The cultural characteristics were determined by using seven growth media; tryptone-yeast extract agar, yeast-malt extract agar, oatmeal extract agar, inorganic salts starch agar, glycerol asparagine agar, peptone yeast extract iron agar and tyrosine agar media. The good growth with the light gray color of aerial mycelia and light gray yellowish-brown color of substrate mycelia and diffusible pigments were observed on tryptone-yeast extract agar, yeast-malt extract agar, and inorganic salts starch agar media. The oat-meal extract agar medium was found has a moderate growth with the light gray color of aerial mycelia, the light yellowish-brown color of substrate mycelia and light gray yellowish-brown color of diffusible pigments. The peptone yeast extracts iron agar medium was found has a moderate growth with the light gray color of aerial mycelia and light gray yellowish-brown color of both substrate mycelia and diffusible pigments. The poor growth with the light gray color of aerial mycelia and light gray yellowish-brown color of both substrate mycelia and diffusible pigments were observed on glycerol asparagine agar medium. The poor growth with the light gray color of aerial mycelia, the light yellowish-brown color of substrate mycelia and light gray yellowish-brown color of diffusible pigments were observed on tyrosine agar medium.

The morphological, biochemical, and physiological characteristics were determined as shown in table 3. There 2 growth media were used in the illustration of light microphotograph (fig. 2a) and electron micrograph (fig. 2b); glycerol asparagine agar [39] and starch nitrate agar [24] respectively. The spore chain was found has an open hook shape that constructed from ellipsoidal spores which have a smooth surface. The motility of strain AD-7 had not been observed. The cell wall hydrolyses proved that LL-Diaminopimelic acid (LL-DAP) was present; however, the sugar pattern was not detected.

Table 2: Cultural characteristics of AD-7 strain

Media Growth rate Aerial mycelia Substrate mycelia Diffusible pigment
Tryptone yeast extract agar Good 264 lg 79 lgyYBr 79 lgyYBr
Yeast-malt extract agar Good 263 lg 79 lgyYBr 79 lgyYBr
Oat-meal extract agar Moderate 264 lg 76 lYBr 79 lgyYBr
Inorganic salts starch agar Good 264 lg 79 lgyYBr 79 lgyYBr
Glycerol asparagine Poor 264 lg 79 lgyYBr 79 lgyYBr
Peptone yeast extract iron agar Moderate 264 lg 79 lgyYBr 79 lgyYBr
Tyrosine agar Poor 264 lg 76 lYBr 79 lgyYBr

n = 3

Fig. 2: (a) Microphotograph (x 1500) of actinomycete strain AD-7. (b) transmission electron micrograph (x 21 000) of actinomycete strain AD-7, n = 4

The strain AD-7 does not have the ability to produce the melanoid pigment, complete or partial reduction of nitrate, production of H2S, and degradation of xanthin and esculin. Due to the nature of the strain habitat, it had been well grown on starch nitrate agar medium contained a high concentration of sodium chloride (5-15%). The strain AD-7 was found has a poor growth on Czapek's agar medium and high sensitivity to both of streptomycin and amoxicillin antibiotics (50 µg/ml). There different degrees of enzymatic activity were recorded, where cellulase and pectinase were highly produced, protease and coagulase were moderately produced; however, lipase was poorly produced and catalase was never secreted. D-glucose, D-galactose, D-fructose, D-mannitol, Sucrose, L-arabinose, and L-rhamnose were highly utilized; while, D-xylose and raffinose were moderately utilized and meso-inositol was poorly utilized. On the other hand, L-proline and L-tyrosine were highly utilized, L-histidine, L-phenylalanine, and L-lysine were moderately utilized; however, L-alanine, L-valine, L-leucine, and L-cystiene were poorly utilized.

On the other hand, the strain AD-7 was identified by detection of the encoded 16S rRNA gene of Streptomyces bacteria using PCR technique. The DNA was extracted according to Pitcher et al. [27], and then isolated and amplified according to Weisburg et al. [28].

The gene was separated as a single band at 1500 bp by agarose gel electrophoresis (fig. 3). According to the results of classical and molecular techniques, the actinomycete strain AD-7 was identified as Streptomyces coelicolor. Bentley et al. [40] reported that the complete sequencing for the full genome of Streptomyces coelicolor proved that this bacterium is considered a powerful producer for several secondary metabolites included α-glucosidase inhibitor.

Table 3: Morphological, biochemical and physiological characteristics of AD-7 strain

Characteristics Parameter Result
Morphological Shape of spore chain Open hook
Shape of spore Ellipsoidal
Feel of spore surface Smooth
Motility Non-motile
Biochemical Type of DAP in the cell wall LL-DAP
Sugar pattern in the cell wall Not detected
Physiological Melanoid, nitrate, and H2S production -ve
Degradation of xanthin and esculin -ve
NaCl tolerance (5-15%) +++
Growth on Czapek's agar +
Streptomycin resistance (50 µg/ml) Sensitive
Amoxicillin resistance (50 µg/ml) Sensitive
Protease and coagulase production ++
Lipase production +
Cellulase and pectinase production +++
Catalase production -ve
D-glucose, D-galactose, D-fructose, D-mannitol, Sucrose, L-arabinose, and L-rhamnose +++
D-xylose and Raffinose ++
meso-Inositol +
L-valine, L-alanine, L-leucine, and L-cysteine +
L-histidine, L-phenylalanine, and L-lysine ++
L-proline and L-tyrosine +++

n = 5; lg is light gray; lgyYBr is light gray yellowish brown; lYBr is light yellowish brown; -ve is not produced; +is poor; ++is moderate; +++is good

Table 4: Assay the activity of an α-glucosidase inhibitor of mutant AD-7 strain

Fc Ep (s) Inhibition activity (%)/d
1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th
1 5.0 2.3±0.18 3.0±0.24 3.7±0.26 4.5±0.31 3.8±0.26 3.1±0.24 2.3±0.18 1.6±0.15 1.0±0.11 0.7±0.06
2 10 2.5±0.15 3.4±0.26 4.1±0.31 4.7±0.31 5.1±0.36 4.5±0.31 3.7±0.26 3.1±0.23 2.4±0.15 1.8±0.18
3 15 2.1±0.18 2.8±0.15 3.5±0.26 4.1±0.31 4.7±0.31 3.9±0.29 3.2±0.26 2.4±0.15 1.8±0.18 1.1±0.11
4 30 1.8±0.18 2.7±0.15 3.6±0.26 4.2±0.31 4.8±0.31 4.3±0.31 3.2±0.26 2.6±0.15 1.7±0.18 1.2±0.11

n = 7; Fc is the fraction; Ep is the exposure period; ±SD

Fig. 3: Agarose gel electrophoresis of amplified 16S rRNA gene of AD-7 strain, n = 6

The genetic improvement was carried out by using UV rays (260 nm) that have dominated the strain AD-7 for different time periods (5, 10, 15, and 30 s). The physical mutation showed promising results, where the improved α-glucosidase inhibitor was gotten especially at 10 s of the exposure period (table 4).

However, there clear morphological changes were observed, where the number of colonies was inversely proportional with the exposure time, as well as, the color of aerial mycelia, substrate mycelia, and diffusible pigments was changed (fig. 4). Adepu [41] reported that, UV radiation was used to make a physical mutation for the Streptomyces gresioaurantiacus to increase β-glucosidase production. The maximum yield of an enzyme from the mutant strain was obtained within 94 h compared to the wild strain within 120 h. Nevertheless, we have observed that S. gresioaurantiacus has a high resistance to the physical mutagenesis even at 60 min. Although a physical treatment was usually followed by a chemical one to avoid the reversible mutation [42], the mutant S. gresioaurantiacus was found has an irreversible physical mutation.

Fig. 4: Morphological changes of mutant strain on agar medium due to exposure to UV rays at different time periods: (a) 5 s (b) 10 s (c) 15 s (d) 30 s, n = 8

Optimization study

All optimum environmental factors were determined to obtain a maximum activity and stability of α-glucosidase inhibitor that produced by a mutant strain. The best incubation periods (fig. 5A), incubation temperature (fig. 5B), pH value (fig. 5C), inoculum size (fig. 5D), and agitation speed (fig. 5E) were determined at 14 d, 30 °C, 8.5, 106 cfu/ml (300 µl), and 160 rpm respectively. Fei Ren et al. [43] stated that, the effect of pH on Streptomyces M37 growth and α-glucosidase inhibitor production was determined, where the initial pH ranged from 6.5 to 8.5. The highest dry cell weight (DCW) (21.58 g/l) was achieved at an initial pH of 7.0, and then decreased at pH up to 8.0. The maximum yield of α-glucosidase inhibitor (173.7 mg/l DCW) was obtained at an initial pH of 8.0. At 3345 mg/l, α-glucosidase inhibitor production was higher at an initial pH of 8.0, than at other initial pH values. At the same time, specific α-glucosidase inhibitor production (Cmax mg/l DCW) increased along with initial pH (in the 6.5 to 8.0 range). Accordingly, the high growth was correlated with a low initial pH, but on the other hand, the highest activity and productivity of α-glucosidase inhibitor were associated with a high initial pH value. These results were found closely related with those of Zhuge et al. [44].

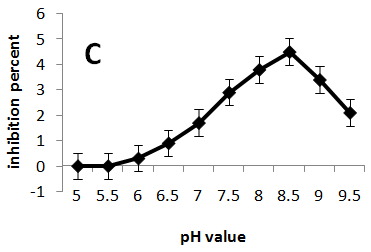

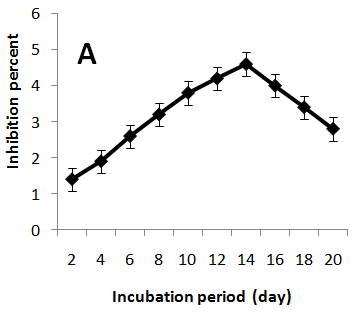

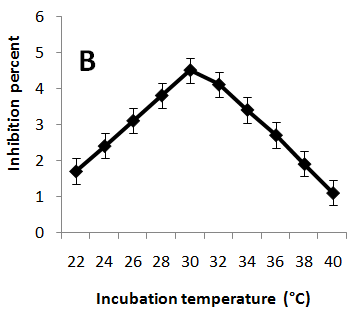

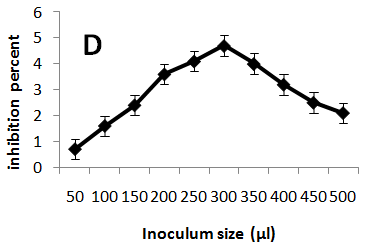

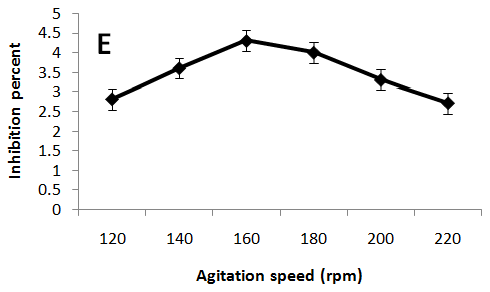

Fig. 5: Effect of different optimum environmental factors on mutant AD-7 strain, n = 9

Purification and separation of α-glucosidase inhibitory protein

Many studies which have been conducted in this field isolated and purified an intracellular α-glucosidase inhibitor. However, the concerned α-glucosidase inhibitor in this study is an extracellular secondary metabolite that has a peptide nature. The stepwise purification process was carried out by using diethyl-aminoethyl-cellulose and sephadex G 200 in an ion exchange and gel filtration column chromatography respectively. The purified protein was separated as a single band at 34 KDa by using sodium-dodecyl-sulphate-polyacrylamide gel electrophoresis (fig. 6). Therefore, there is a new fact has been recorded, where there are two types of α-glucosidase inhibitor according to the secretion site; intracellular and extracellular α-glucosidase inhibitor.

Fig. 6: Separation of α-glucosidase inhibitory protein by SDS-PAGE, n = 10

CONCLUSION

Among 55 marine actinomycete strains which isolated from the sediment samples of the Red Sea, only 7 antidiabetic strains were present included a most potent strain that symbolized AD-7, which identified by using classical and molecular techniques as S. coelicolor. The genetic improvement of the latter had been carried out by using UV radiations, where the more active and more stable α-glucosidase inhibitor was obtained. All optimum environmental conditions were determined to increase the productivity of an inhibitor. Eventually, an inhibitor was purified and separated as a single band at 34 KDa.

ACKNOWLEDGEMENT

The authors thank the Chairman of National Organization for Drug Control and Research (NODCAR) for his support to this work, and also they are grateful to Head and members of Microbiology Department.

AUTHORS CONTRIBUTIONS

All the authors have contributed equally

CONFLICT OF INTERESTS

Declared none
