Int J Pharm Pharm Sci, Vol 7, Issue 1, 247-251Original Article

RP-HPLC METHOD DEVELOPMENT AND VALIDATION FOR THE SIMULTANEOUS ESTIMATION OF CLINDAMYCIN PHOSPHATE AND CLOTRIMAZOLE IN PHARMACEUTICAL DOSAGE FORMS

M. SUDHAKAR, K. VIJAYASRI, SRIDHAR SIDDIRAJU¹, MATURI NIRUPAMA^2,*

Department of Pharmaceutical Analysis and Quality Assurance²; Department of Pharmaceutical Chemistry¹, Malla Reddy College of Pharmacy, Hyderabad, Telangana, India.
Email: maturi.nirupama@gmail.com

Received: 16 Aug 2014 Revised and Accepted: 15 Sep 2014

---

ABSTRACT

Objective: The aim of this work was to develop and validate a simple Reverse Phase-High Performance Liquid Chromatography method for the simultaneous estimation of Clindamycin and Clotrimazole in pharmaceutical dosage forms.

Methods: The mobile phase consists of phosphate buffer and Acetonitrile in the ratio of (48:52) with gradient programming, Hypersil BDS (250×4.6 mm,5µ) column used as stationary phase with a flow rate of 1 ml/min, injection volume 10 µl and the run time was 10 min. Detection wavelength was at 220 nm by using Photo Diode Array detector.

Results: The retention times of Clindamycin and Clotrimazole were found to be 2.2 min and 5.7 min respectively. The method was validated according to ICH guidelines. Validation parameters like accuracy, precision, linearity, range, limit of detection, limit of quantification and robustness all were within the limits. The linearity responses of Clindamycin and Clotrimazole were found to be in the concentration ranges of 25-150 µg/ml and 50-300 µg/ml. The percentage recovery for both drugs was found in the range of 99-100%. The LOD & LOQ values for were found to be 1.29µg/ml and 3.93µg/ml and Clotrimazole were found to be 1.31µg/ml and 3.96 µg/ml, respectively.

Conclusion: The results obtained are accurate and within the limits. Hence this method can be applicable for the estimation of Clindamycin and Clotrimazole in pharmaceutical dosage forms.

Keywords: Clindamycin and Clotrimazole, RP-HPLC, Validation.

---

INTRODUCTION

Clindamycin is an antibacterial, broad-spectrum antibiotic derived from lincomycin. Clindamycin is used for the topical and systemic treatment. And it is effective as an anti-aerobic and anti-protozoal. May be useful in respiratory tract infections, and also to treat gynecological infection. Chemically Clindamycin is methyl 7-chloro-6,7,8-trideoxy-6-(1-methyl-trans-4-propyl-L-2-pyrrolidine carboxamido) 1-thio-L-threo-α-D-galacto-octopyranoside 2-(dihydrogen phosphate)[3] and the structure shown in fig. 1.

Clotrimazole is an imidazole derivative with a broad spectrum of antimycotic activity. It is used for the local treatment of oropharyngeal candidiasis and vaginal yeast infections, and also used in fungal infections of the skin such as ringworm, athlete’s foot, and jock itch. Chemically Clotrimazole is 1-[(2-chlorophenyl) diphenylmethyl]-1H-imidazole[4] and the structure shown in figure-2.

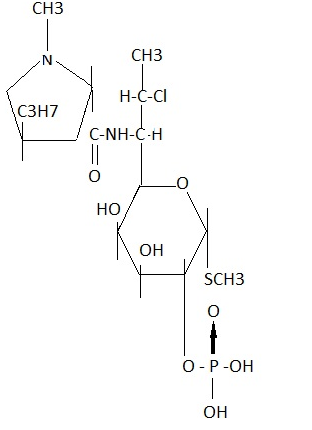

Fig. 1: Structure of Clindamycin phosphate

The literature survey reveals that the few HPLC methods are developed and validated for the estimation of Clindamycin and Clotrimazole combination with other drugs. The reported methods available for the estimation of Clindamycin individually are new validated bio-analytical high performance liquid chromatography method[5], spectrophotometric method[6], HPLC-UV[7,8], derivative spectrophotometric method[9], RP-HPLC[10-16], liquid chromatography/electro spray ionization mass spectrometry[17], capillary electrophoresis with an end-column electro chemiluminescence[18], gas liquid chromatography[19] and ultra high performance liquid chromatography-electro spray ionization tandem mass spectrometry [20].

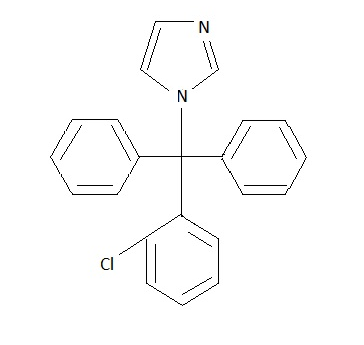

Fig. 2: Structure of Clotrimazole

Clotrimazole has been determined in different pharmaceutical preparations by stability-indicating high performance liquid chromatography method[21], high performance thin layer chromatography[22] and spcetrophotometric method[23,24], simultaneous estimation of Clotrimazole combination with other drugs[25-27]. Since there is no reported method on simultaneous estimation of Clindamycin and Clotrimazole in combined tablet dosage forms. The main objective of this study was to develop and validate the assay method of Clindamycin and Clotrimazole in tablet dosage forms.

MATERIALS AND METHODS

Materials

All standard purified materials were used for this study. The solvents which are used in the preparation of solutions should be HPLC grade and obtained from Merck Specialties Private Limited, Mumbai. Active pharmaceutical ingredients Clindamycin Phosphate and Clotrimazole were supplied by Spectrum Pharma Research Solutions, Hyderabad. The formulation was purchased in a local market.

Instrumentation

The High performance liquid chromatography system consists of water’s 2695 with 2996 module Photo Diode Array detectors equipped with a quaternary solvent delivery pump, automatic sample injector and column thermostat. The system was controlled by Empower 2 software and it is used for the analysis.

Chromatographic conditions

The chromatographic separation was performed on Hypersil BDS (250×4.6 mm,5 µm). The column temperature was maintained at 30⁰c. The mobile phase consisting of buffer and acetonitrile in the ratio of 48:52 with a flow rate of 1.0 ml/min. The detection wavelength was set at 220 nm and had given acceptable retention time and good resolution in between Clindamycin and Clotrimazole. The run time was taken as 10 min.

Standard solution preparation

Accurately weighed and transferred 10mg of Clindamycin and 20mg of Clotrimazole working standards into a 10 ml clean dry volumetric flask, add 7 ml of diluents, Sonicated for 5 minutes and make up to the final volume with diluents. 1 ml from the above two stock solutions was taken into a 10 ml volumetric flask and made up to 10 ml. The standard solution consists of 100 µg/ml of Clindamycin and 200µg/ml of Clotrimazole, respectively.

Sample preparation

25 tablets were weighed and calculate the average weight of each tablet than the weight equivalent to 25 tablets was transferred into a 100 ml volumetric flask, 70 ml of diluent added and sonicated for 25 min, further the volume made up with diluents and filtered. From the filtered solution 0.2 ml was pipette out into a 10 ml volumetric flask and made up to 10 ml with diluents.

Preparation of buffer: 0.01N (KH₂PO₄)

Accurately weighed 1.36 gm of Potassium dihydrogen Ortho phosphate in a 1000 ml of volumetric flask add about 900 ml of milli-Q water added and degas to sonicate and finally make up the volume with water and pH adjusted to 3 with dil. OPA.

Method validation

The optimized chromatographic method was validated according to the ICH guidelines for the validation of parameters like linearity, precision, accuracy, limit of detection (LOD), limit of quantification (LOQ) and robustness. Validation of different types of analytical procedures, as defined in the ICH Q2A guideline ‘Text on validation of analytical procedure.

System suitability parameters

System suitability parameters are validated by injecting five times of 100µg/ml and 200µg/ml concentrations of standard solutions of Clindamycin phosphate and Clotrimazole in to the system. The parameters like resolution factor, theoretical plate and tailing factor were calculated.

Linearity

The range of linearity was evaluated by injecting the standard solution of Clindamycin and Clotrimazole in five different concentrations into the HPLC system. The linearity concentrations of Clindamycin and Clotrimazole were prepared in the ranges of 25-150 µg/ml and 50-300 µg/ml. Plot a graph in between the peak area versus concentration (on X-axis and Y-axis). The linear regression coefficient, correlation coefficient was calculated. The correlation coefficient (r²) should be 0.999.

Precision

Repeatability

Repeatability of Clindamycin and Clotrimazole was validated by injecting the six times of standard solution and sample solutions in to the system. The areas of all the injections were taken and their corresponding values for mean, standard deviation and %RSD are calculated.

Reproducibility

Reproducibility of the method evaluated by injecting six times of 100mg/ml, 200mg/ml concentrations of standard solutions and sample solution of Clindamycin and Clotrimazole on different days and different analysts or by different instruments. The areas of all injections were taken and their corresponding values for mean, standard deviation and % RSD of reproducibility are calculated.

Accuracy

The accuracy was validated by using a minimum of three different concentrations of standards, Clindamycin and Clotrimazole, 50%, 100% and 150%. The percentage recoveries are analyzed of the obtained amount of Clindamycin and Clotrimazole in pharmaceutical formulations.

Method robustness

The robustness can be determined by varying the following parameters

1) Flow rate: It can be determined by altering the flow rate from 1 ml/min to 1.2 ml/min. The standard solution of Clindamycin and Clotrimazole was prepared and was injected by varying the flow rate along with the optimized method.

2) Column temperature: It can be determined by varying the column temperature ±5%. The standard solution of Clindamycin and Clotrimazole was prepared and was injected by changing organic mobile phase composition along with the optimized method.

3) Mobile phase: It can be determined by changing the organic mobile phase composition by ±10%. The standard solution of Clindamycin and Clotrimazole was prepared and was injected by changing an organic mobile phase composition along with the optimized method.

LOD and LOQ

Limit of detection (LOD) and limit of quantification (LOQ) of Clindamycin and Clotrimazole was calculated from the calibration curve method. The linearity solutions of Clindamycin and Clotrimazole were prepared and injected. LOD and LOQ were calculated by using following equations. LOD= (3.3σ/S), LOQ= (10σ/S).

Where σ = standard deviation of the response; S =slope of the calibration curve of the analyze.

RESULTS AND DISCUSSION

Method development and optimization

A simple RP-HPLC method for the simultaneous estimation of Clindamycin and Clotrimazole in pharmaceutical dosage forms. In method development the solubility of the active pharmaceutical ingredient was checked in different solvents like methanol and water. The Clindamycin was completely soluble in water and Clotrimazole is methanol soluble. Finally the standards are diluted by methanol and water in the ratio of 80:20.

The different mobile phases like acetonitrile and potassium dihydrogen ortho phosphate buffer were used in different compositions with a flow rate of 1 ml/min but the peak resolution, retention time and tailing factor were not satisfactory. Finally by changing the composition ratio (48:52) of the mobile phase was selected at a flow rate of 1 ml/min.

The chromatographic separation was tested by using different columns like Hybersil, ultima, kromosil (150×4.6 mm; 5 µm) columns maintained at different temperatures like 25,30,35 were used, but the retention time_, peak resolution and tailing were not in the desired limits. Actual chromatographic separation was achieved on BDS Hybersil (250×4.6 mm; 5 µm) using mobile phase composition of (48:52) buffer and acetonitrile.

Table 1: System suitability parameters of standard solution

S. No.			Clindamycin			Clotrimazole
­­­­­­		Rt	Area	USP Plate count	USP tailing	Rt	Area	USP Plate count		USP tailing
1		2.215	751380	2852	1.31	5.638	7168163	4470		1.26
2		2.277	745868	3143	1.27	5.957	7228132	4859		1.25
3		2.286	749940	3099	1.27	6.004	7233293	6242		1.24
4		2.293	758163	3428	1.29	6.004	7233293	6242		1.24
5		2.293	758163	3428	1.29	6.123	7248529	4875		1.22
Mean			752702.8				7222282
SD			5378.77				31202.8
%RSD			0.71				0.43

SD=Standard deviation; RSD= Relative Standard deviation; Rt= Retention Time

System suitability parameters

The system suitability tests were conducted before performing the validation and the parameters were within the acceptance criteria like retention times of Clindamycin and Clotrimazole were 2.2 minutes and 5.7 minutes, respectively. The plate count was >2000, peak tailing was <2 and the %RSD of peak areas of standard were ≤ 2.(Table 1), (fig. 3). Hence the proposed method was successfully applied to routine analysis without any problems.

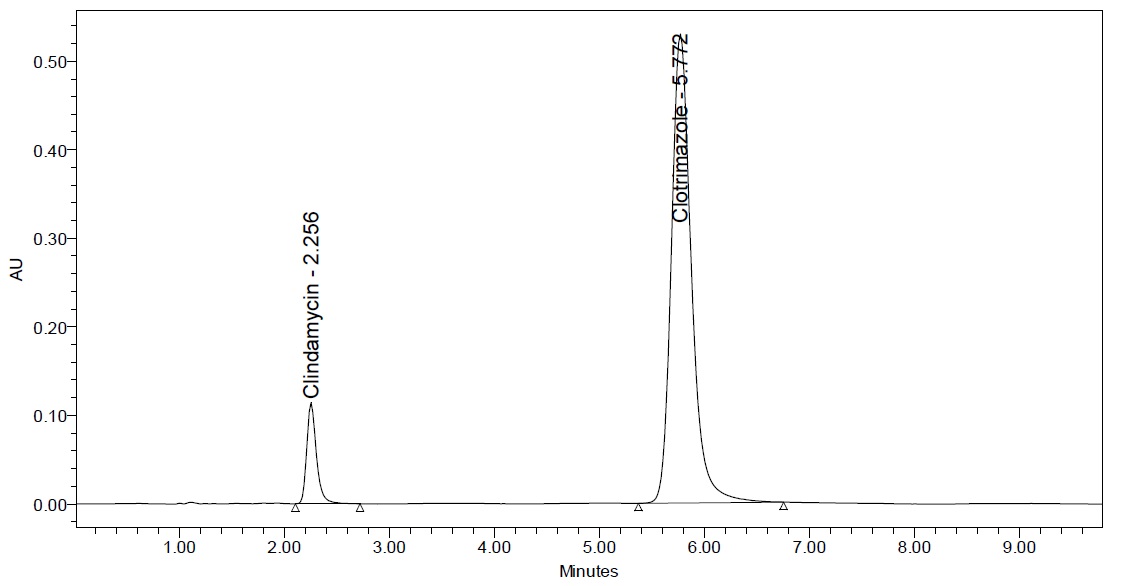

Fig. 3: HPLC chromatograph of standard solution (i. e. Clindamycin and Clotrimazole)

Linearity

The linearity of Clindamycin and Clotrimazole was prepared in the range of 25-150 µg/ml and 50-300µg/ml. These were represented by linear regression equation y (Clindamycin) =7319. x+2881 (r²=0.999), y (Clotrimazole)=34358. x+13610 (r²=0.999). From the calibration curve the regression line for both drugs was linear. (Table 2), (fig. 4,5).

Table 2: Linearity of Clindamycin and Clotrimazole

Clindamycin Clotrimazole
Concentration (ppm)	Area	Concentration (ppm)	Area
0	0	0	0
25	180013	50	1890194
50	374437	100	3699949
75	557979	150	5280411
100	744271	200	7108478
125	904671	250	8675551
150	1101466	300	10373947

Precision

Injected standard preparation six times in same concentration in to the system. The precision of analytical method expresses closeness of agreement between a series of measurements obtained from multiple sampling of the homogenous under the prescribed conditions. Reproducibility and Repeatability for Clindamycin and Clotrimazole were shown in table 3. This indicated the method was highly precise.

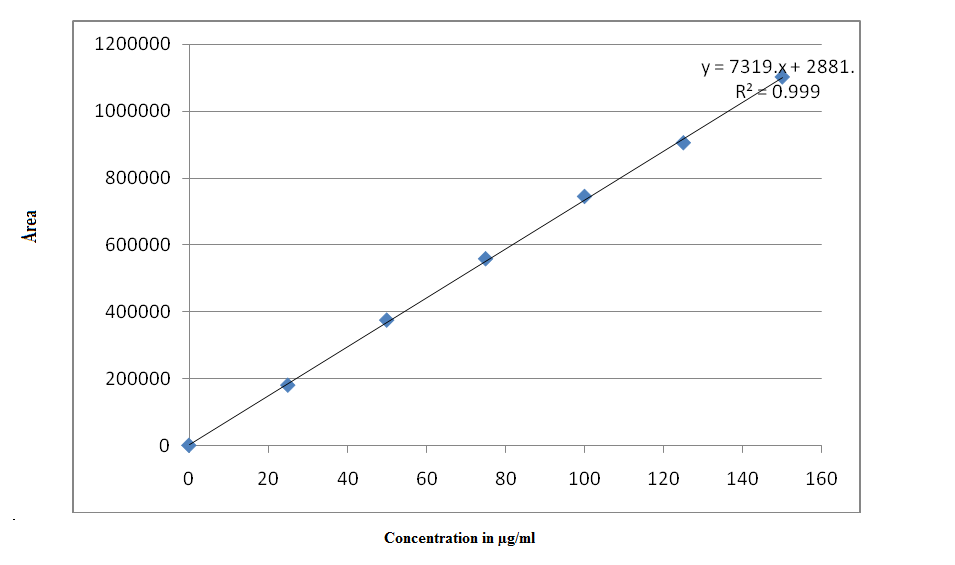

Fig. 4: Linearity graph of Clindamycin

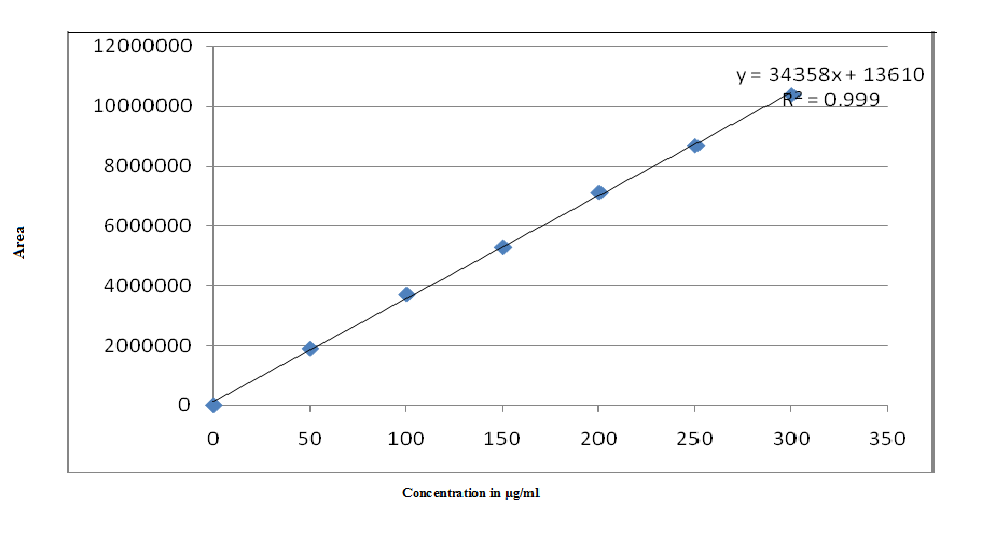

Fig. 5: Linearity graph of Clotrimazole

Accuracy

The percentage recoveries for Clindamycin and Clotrimazole were found to be 99-100% and the %RSD for Clindamycin and Clotrimazole were found to be 0.37 and 0.67. The results of recovery studies were shown in table 4.

Robustness

Robustness data for Clindamycin and Clotrimazole by changing the parameters like flow rate, temperature and mobile phase ratio. It was shown in table 5.

Table 3: Determination of repeatability and intermediate precision for Clindamycin and Clotrimazole

Drug	Repeatability			Intermediate precision
	Peak area	Std. Dev	%RSD	Peak area	Std. Dev	%RSD
Clindamycin	753768	2130.09	0.28	750846	8073.8	1.1
Clotrimazole	7246639	32443.1	0.44	7174052	75631.9	1.1

Table 4: Accuracy for standard solution

Clindamycin						Clotrimazole
Standard concentration (µg/ml)	Amount added (µg/ml)		Amount recovered (µg/ml)		%Recovery	Standard concentration (µg/ml)	Amount added (µg/ml)		Amount recovered (µg/ml)		%Recovery
100	50		49.79		100.49	200	100		100.02		98.83
100	50		50.15		100.25	200	100		100.25		99.90
100	50		50.23		100.15	200	100		100.50		100.23
100	100		99.83		99.83	200	200		199.90		100.12
100	100		100.55		100.55	200	200		199.47		98.85
100	100		99.75		99.75	200	200		199.98		99.92
100	150		150.10		100.68	200	250		249.90		100.46
100	150		150.54		100.81	200	250		249.47		100.48
100	150		150.33		100.07	200	250		249.98		100.67
Mean					100.28						99.94
SD					0.371						0.673
% RSD				0.37						0.67

Table 5: Robustness: Flow rate

Parameters		Clilndamycin			Clotrimazole
		Mean Area	Std. Deviation	%RSD	Mean Area	Std. Deviation	%RSD
Flow rate	1 ml/min	868401	19025.2	1.9	8499057	17994.8	1.8
	1.2 ml/mn	638079	9864.3	0.1	6322925	9967.9	0.2
Temperature	250C	285762	4211.0	1.5	6831608	174864.2	1.6
	350C	703537	266104	1.8	6745830	194296.5	1.2
Mobile phase	-10%	645494	2780.3	0.4	6334026	5732.0	0.1
	+10%	861098	13188.1	1.5	8465523	125860.6	1.5

Table 6: Limit of quantification and Limit of detection

S. No.	Parameters	Clindamycin	Clotrimazole
1	LOD	1.29	1.31
2	LOQ	3.93	3.96

Table 7: Assay of Clindamycin and Clotrimazole

Brand Name	Label Claim	Amount found	% Assay
CANDID-CL (glenmark)	Clindamycin(100mg)	100.04± 0.28	100.04
	Clotrimazole(200mg)	200.26± 0.44	100.13

Limit of detection (LOD) and limit of quantification (LOQ)

The values of LOD and LOQ were calculated by using the slope and y-intercept. The LOD and LOQ values for Clindamycin were found to be 1.29 µg/ml and 3.93µg/ml and Clotrimazole were found to be 1.31 µg/ml and 3.96µg/ml, respectively (Table 6).

Assay

The content of Clindamycin and Clotrimazole in the pharmaceutical dosage forms by using the developed method. The percentage purity of Clindamycin and Clotrimazole were found to be 100.04 % and 100.13% and %RSD values for both Clindamycin and Clotrimazole were within limit of ≤2. (Table 7).

CONCLUSION

The proposed analytical technique of RP-HPLC is simple, accurate and precise method for the simultaneous estimation of Clindamycin and Clotrimazole in pharmaceutical dosage forms has been developed. The method was validated as per ICH guidelines. Statistical analysis proves that method is repeatable, sensitive for the analysis of Clindamycin and Clotrimazole in pharmceutical dosage forms.

ACKNOWLEDGEMENT

The authors express their attitude to Spectrum Pharma research solutions, Hyderabad. For providing best samples of pure Clindamycin and Clotrimazole.

CONFLICT OF INTERESTS

Declared None
