Int J Pharm Pharm Sci, Vol 11, Issue 4, 26-32Original Article


GCMS ANALYSIS OF ENDOPHYTIC FUNGI CURVULARIA AERIA MTCC-12847 ISOLATED FROM TRIBULUS TERRESTRIS L.

KAMANA SAHANI1*, DEEPENDRA THAKUR2

1Department of Microbiology, Andhra University, Visakhapatnam, India, 2Department of Microbiology, Banglore University, Banglore, India
Email: kmnsahani@gmail.com

Received: 12 Jul 2018 Revised and Accepted: 15 Feb 2019

ABSTRACT

Objective: The objective of the present investigation was to perform the Gas Chromatography-mass spectrometry (GCMS) analysis of endophytic fungi Curvularia aeria MTCC-12847 isolated from Tribulus terrestris L. to find out the active compound present in the extract.

Methods: The endophytic fungi were isolated from the plant Tribulus Terrestris L., leaf which was cultivated in optimized media for the production of secondary metabolites and was extracted using ethyl acetate. Ethyl acetate extract was used for the Gas Chromatography-mass spectrometry (GCMS) analysis.

Results: GC-MS analysis of ethyl acetate extract of endophytic fungi revealed the presence of various secondary metabolites, the highest amount present was Palmitic acid (24.54%) and Lowest was Dimethyl 1-phenyl-7-methyl-1-hydroxy-1,4-dihydronaphthalene-2,3-dicarboxylate (5.76%).

Conclusion: The endophytic fungal Curvularia aeria MTCC-12847 extract isolated from the Tribulus terrestris L. shows the presence of various bioactive compounds.

Keywords: Endophytic fungi, Tribulus terrestris L., GCMS analysis

© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2019v11i4.28440

INTRODUCTION

Tribulus terrestris L., belonging to the family Zygophyllaceae is a well-known shrubby plant in various traditional systems of medicine including Ayurveda, Siddha, and Unani. The plant is commonly known as “Caltrops” and found all over India up to 11,000 ft. height and widely grown in Kashmir, Rajasthan and all warm regions of both hemispheres [1]. According to Traditional Chinese Medicine (TCM), the plant is considered as an aphrodisiac and reported to stimulate sexual behavior of men, strengthen the heart muscle and reduce the level of cholesterin [2]. The fruit is commonly used to treat vitiligo, eye and abdominal diseases [3]. T. terrestris is commonly used in folklore medicine as tonic, analgesic, astringent, stomachic, antihypertensive, diuretic and urinary anti-infective. Sapogenins like diosgenin, gitogenin, chlorogenin were reported in the plant and the flavonoids contained in the fruit are said to be used for the treatment of gout [1].

Recently, various studies were conducted to evaluate the pharmacological properties of T. terrestris. The anti-arthritic activity of T. terrestris was analyzed using Freund’s complete adjuvant (FCA) induced arthritis in rats [4]. The plant extract inhibited the carrageenan-induced inflammation in rats [5] by suppressing the expression of various inflammatory cytokines [6]. The anticariogenic activity of this plant against Streptococcus mutans was reported [7]. The protective effect of tribulosin isolated from T. terrestris against cardiac ischemia/reperfusion injury and its underlying mechanism was also studied [8]. There is evidence for the antiproliferative effect of T. terrestris saponins on mouse carcinoma [9] and breast cancer [10]. The saponin fraction from T. terrestris was found less toxic to normal human fibroblasts [11]. The anti-carcinogenic effect of T. terrestris on DMBA induced papilloma in mice [12] was also reported.

Endophytes are the group of microorganisms that reside in plants within their intercellular spaces without causing any negative symptoms to their host plant [13]. Endophytes are extremely diverse fungi [14] bacteria [15] or actinomycetes [16]. Endophytic strains have potential to secret secondary metabolites that protect plants against insects, pests and other pathogenic organisms [17] thus endophytes represent a promising source of novel bioactive compounds for pharmacological and agricultural applications [18]. Different investigators have reported that a wide variety of secondary metabolites have been obtained from the endophytic microbes [19]. Considering the medicinal activity, traditional information and various experimental evidence, the present study evaluated the phytochemical constituents of endophytic fungi isolated from T. terrestris by Gas Chromatography-mass spectrometry (GCMS) analysis.

MATERIALS AND METHODS

Collection of plant material

Visakhapatnam (Location 17 °40'48.32''N, 83 °12'5.8''E.) is situated between the Eastern Ghats and the Bay of Bengal. The annual mean temperature ranges between 24.7-30.6 °C (76-87 °F), with the maximum in the month of May and the minimum in January; the minimum temperatures range between 20-27 °C (68-81 °F) and the average annual rainfall recorded is 1,118.8 mm. The plant was located in the Campus of Andhra University. Healthy and mature plant of Tribulus terrestris L. was collected from the Campus, Andhra University. Samples were tagged and placed in separate sterile polythene bags, brought to the laboratory and processed within 24 h of collection [20, 21]. Fresh plant material was used for the isolation work to reduce the chance of contamination. Sample collection was done in January 2016 and the plant used in the study was authenticated by Prof. S. B. Padal (Botanist), Department of Botany, Andhra University, Visakhapatnam and the plant material was also deposited in Botany Department herbarium (AUV), Andhra University, Visakhapatnam with Voucher specimen numbers–22294.

Isolation of endophytic fungi

The sample was washed thoroughly in running tap water before processing. Leaf samples were surface sterilized by dipping in 70% ethanol (v/v) for 1 min and 3.5% NaOCl (v/v) for 3 min, rinsed thrice with sterile water and dried. Bits of 1.0 X 1.0 cm size were excised with the help of a sterile blade. Two hundred segments of Tribulus terrestris L. leaf segments were placed on the water agar (16%) (WA) medium supplemented with Streptomycin (100 mg/l; Sigma, St. Louis, MO, USA) were used for the isolation of endophytic fungi. The Petri dishes were sealed using parafilm and The Petri dishes were incubated at 25-27 °C till the mycelia start growing from the samples [22].

Secondary metabolite production of endophytic fungal isolate

The endophytic fungus EF1 i.e. Curvularia aeria MTCC-12847 was cultured in 1-l Erlenmeyer flasks containing 500 ml of optimized culture media (PDB) under optimized parameters (pH: 5.5-6.5, Temperature: 25 °C-30 °C, Incubation days: 9 d) under static conditions. The culture broth was then filtered to separate the culture filtrate and mycelium. Culture filtrate was blended thoroughly and centrifuged at 4,000 rpm for 5 min. Liquid supernatant was extracted with an equal volume of solvent thrice (Ethyl acetate) separately and was evaporated to dryness under reduced pressure at 50 °C using rotary flash evaporator [23].

Gas chromatography-mass spectrometry (GCMS) analysis of the crude extract

The Gas Chromatography-mass spectrometry (GC-MS) analysis of the endophytic fungal extract was made using JEOL GC MATE || instrument under computer control at 70 eV. About 1 μl of the ethyl acetate extract was injected into the Gas Chromatography-mass spectrometry (GC-MS) using a microsyringe and the scanning was done for 45 min [24-25]. As the compounds were separated, they eluted from the column and entered a detector which was capable of creating an electronic signal whenever a compound was detected. The greater the concentration in the sample, the bigger the signal obtained which was then processed by a computer. The time from when the injection was made (Initial time) to when elution occurred was referred to as the retention time (RT). While the instrument was run, the computer generated a graph from the signal called chromatogram. Each of the peaks in the chromatogram represented the signal created when a compound eluted from the gas chromatography column into the detector [26]. The X-axis showed the RT and the Y-axis measured the intensity of the signal to quantify the component in the sample injected. As individual compounds eluted from the Gas chromatographic column, they entered the electron ionization (mass spectroscopy) detector, where they were bombarded with a stream of electrons causing them to break apart into fragments. The fragments obtained were actually charged ions with a certain mass [27]. The mass/charge (M/Z) ratio obtained was calibrated from the graph obtained, which was called the mass spectrum graph which is the fingerprint of a molecule. Before analyzing the extract using GC-MS, the temperature of the oven, ion chamber temperature and GC interface temperature, mass analyzer, the flow rate of the gas used and the electron gun were programmed initially. The temperature of the oven was maintained at 50 to 250 °C @ 10 °C/min. While the ion chamber temperature and GC interface temperature were maintained at 250 °C. The mass analyzer used was quadruple double focusing mass analyzer. High pure Helium gas was used as a carrier as well as an eluent. The flow rate of helium was set to 1 ml/min. The electron gun of mass detector liberated electrons having an energy of about 70 eV, Photon multiplier tube was used as the detector. The column employed here for the separation of components was HP-5ms. The identity of the components in the extracts was assigned by the comparison of their retention indices and mass spectra fragmentation patterns with those stored on the computer library and also with published literature. Compounds were identified by comparing their spectra to those of the Wiley and NIST/EPA/NIH mass spectral libraries [28, 29].

RESULTS

The studies on the active compounds of the endophytic fungi isolated from Tribulus terrestris L. and their ethyl acetate extract by Gas Chromatography-mass spectrometry (GC-MS) analysis clearly showed the presence of eleven compounds. The active compounds with their retention time (RT), Molecular formula, Molecular weight, and concentration (peak area %) are presented in table 1. The GC-MS chromatogram of the different peak of the compounds detected was shown in fig. 12 and different compound present (fig. 1-11).

Table 1: GCMS analysis of EF1 (Curvularia aeria MTCC-12847)

S. No. Name of compound

Molecular

formula

 Structure

Molecular

weight (g/mol)

 Area Retention time (RT) Peak area (%)
1. Palmitic acid C16H32O2 256.43 2683164 17.85 24.54
2. Hexadecanoic acid, Z-11- C16H30O2 254.414 1156013 19.83 10.57
3. E,E-6,8-Tridecadien-2-ol, acetate - - 952163 21.42 8.71
4. Tetradecanoic acid, 12-methyl-, methyl ester C16H32O2 256.43 930079 17.2 8.50
5. 1-Eicosene C20H40 280.54 867832 22.25 7.93
6. Spirostan-9-ol, 3-amino-, (3á,5à,25R)- - - 760041 30.4 6.95
7. 9-Amino-6-fluoro-lepidine C10H9FN2 176.194  780936 14.17 7.14
8. Z-13-Octadecen-1-yl acetate C20H38O2 310.5145 742505 23.83 6.79
9. ç-Thionodecalactone C10H18OS 186.313 739956 16.2 6.76
10. 9-oxabicyclo (3.3.1) nonan-2-one, 6-hydroxy- C8H12O3 156.179 687809 13.62 6.29
11. Dimethyl 1-phenyl-7-methyl-1-hydroxy-1,4-dihydronaphthalene-2,3-dicarboxylate - - 630650 28.55 5.76

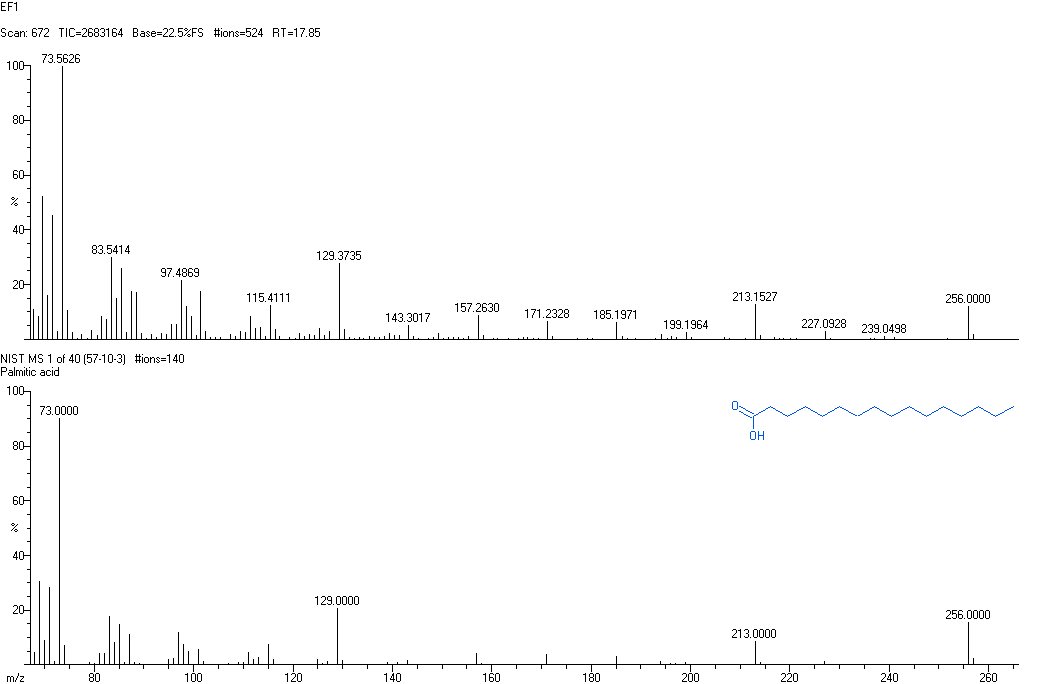

Fig. 1: Structure of palmitic acid present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

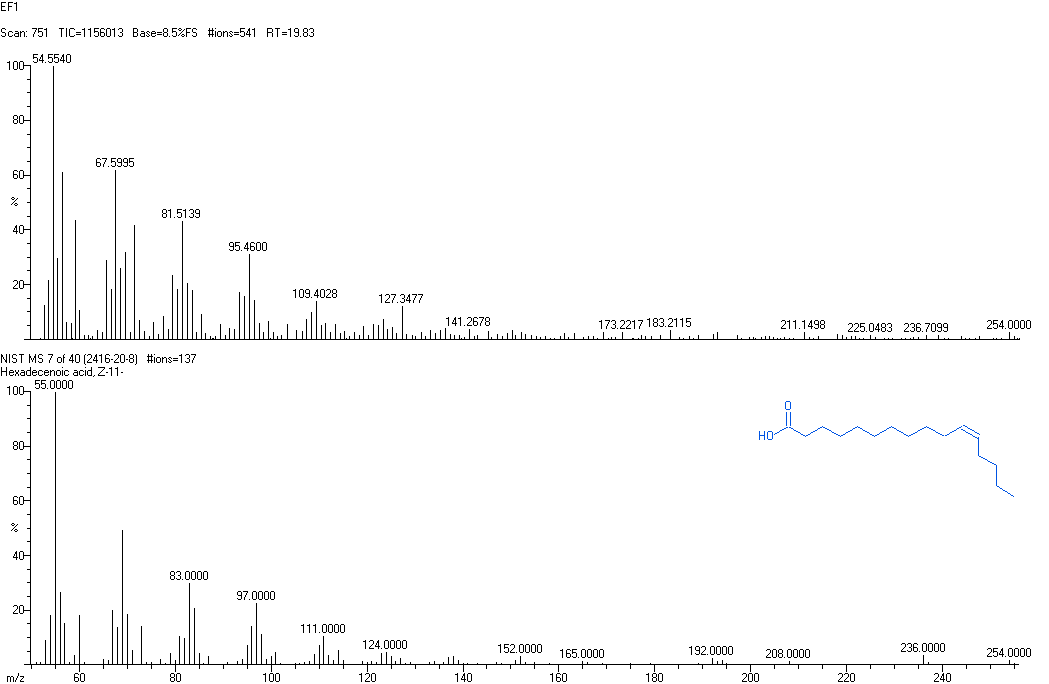

Fig. 2: Structure of Hexadecanoic acid, Z-11-present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

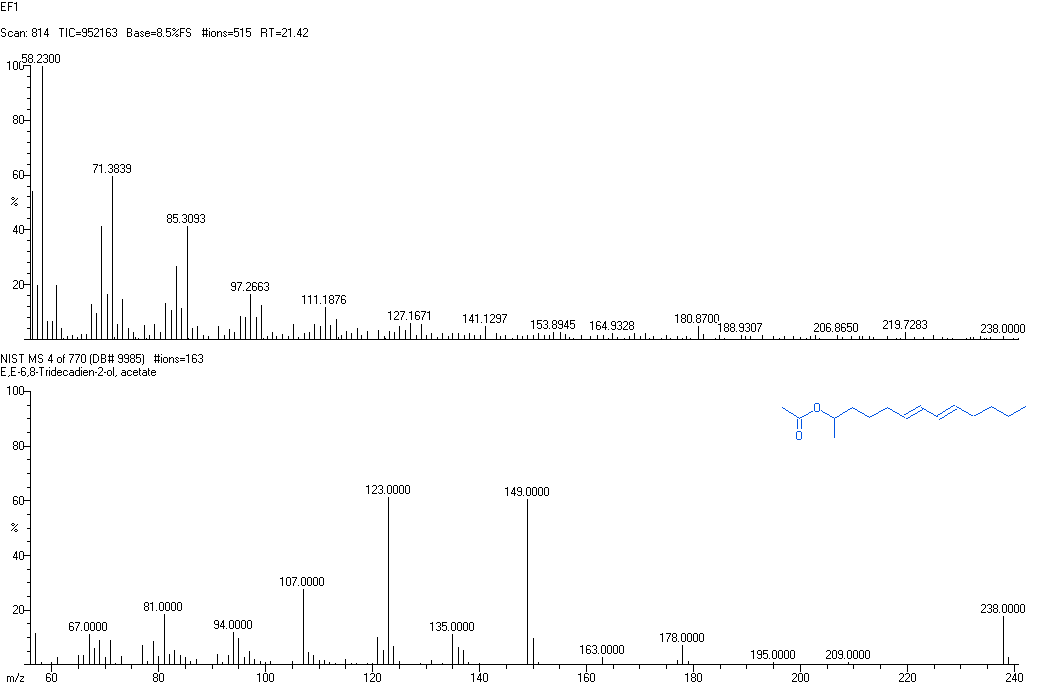

Fig. 3: Structure of E, E-6, 8-Tridecadien-2-ol, acetate present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

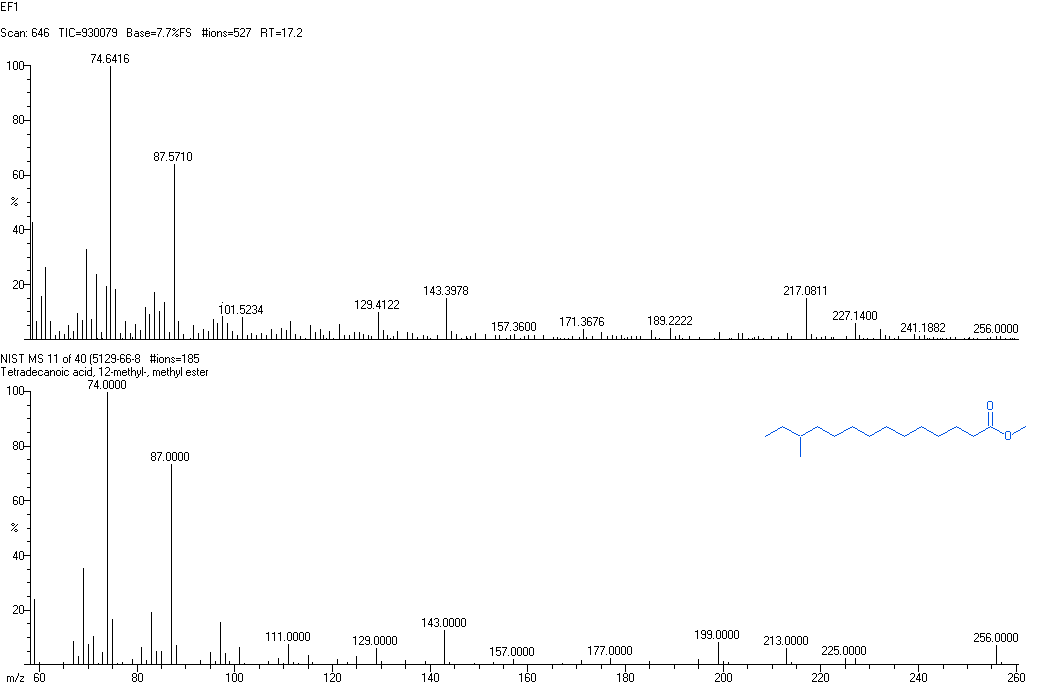

Fig. 4: Structure of tetradecanoic acid, 12-methyl-, methyl ester present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

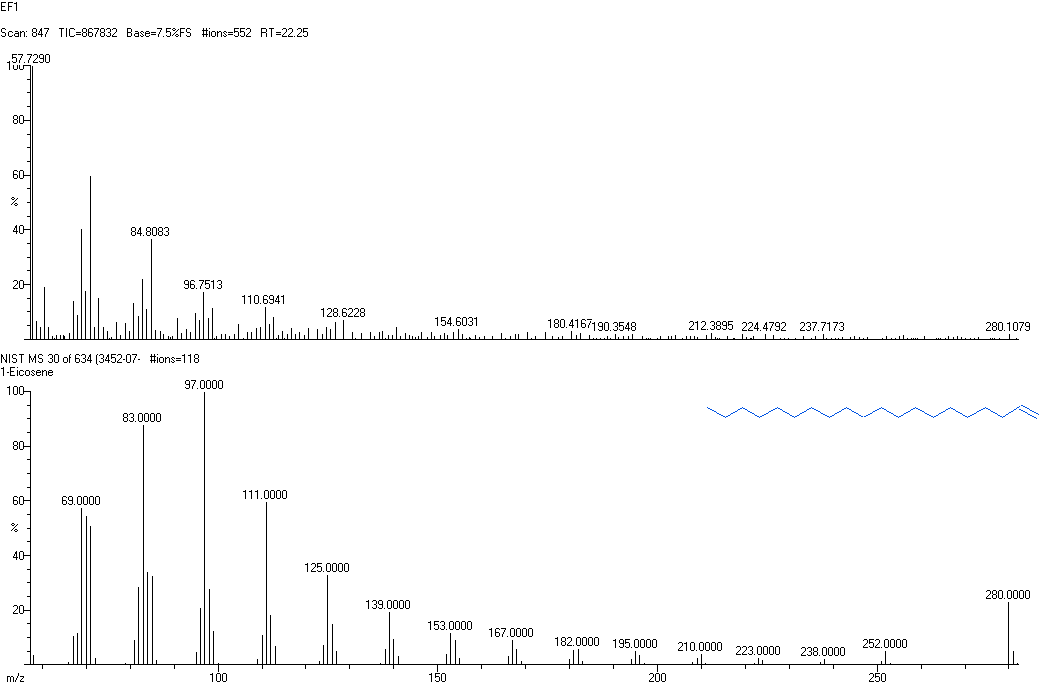

Fig. 5: Structure of 1-eicosene present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

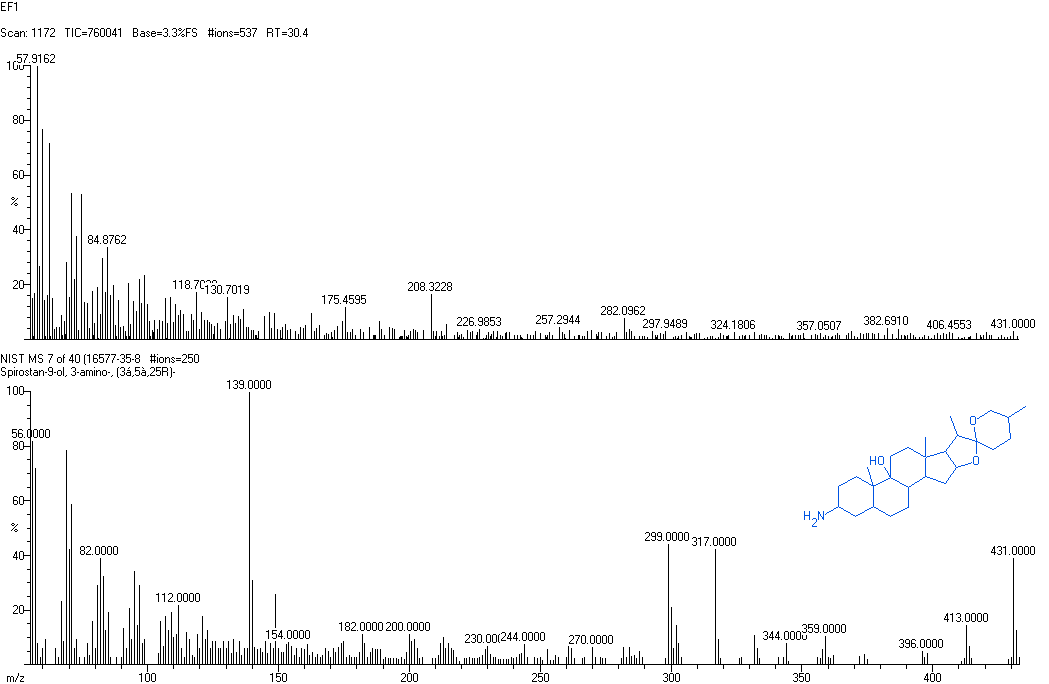

Fig. 6: Structure of spirostan-9-ol, 3-amino-, (3á, 5à, 25R)-present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

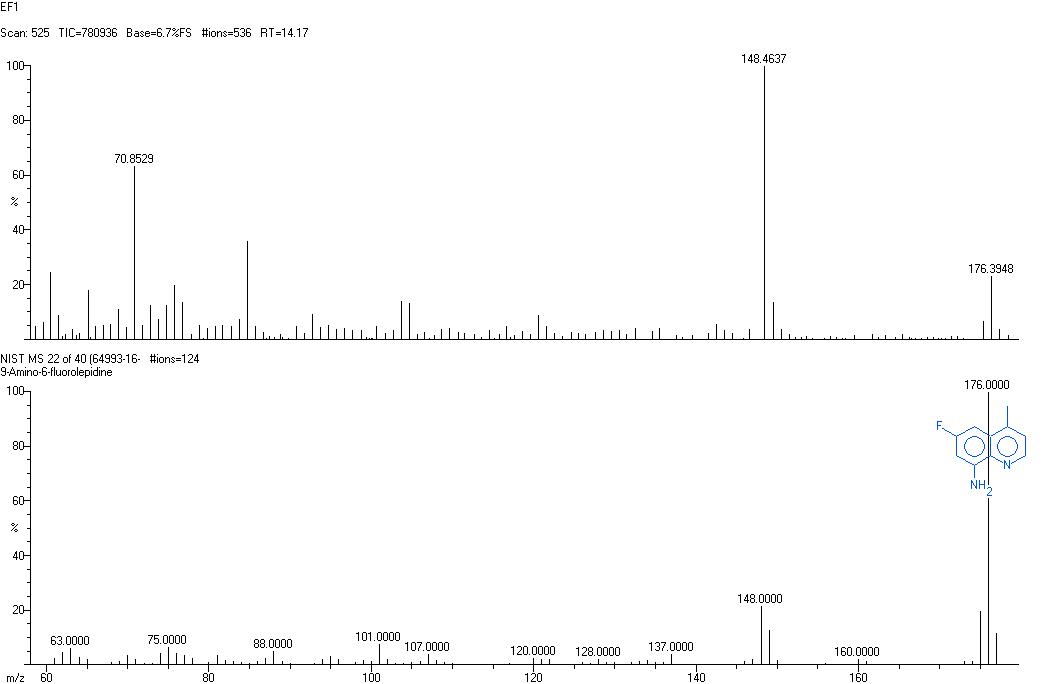

Fig. 7: Structure of 9-Amino-6-fluorolepidine present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

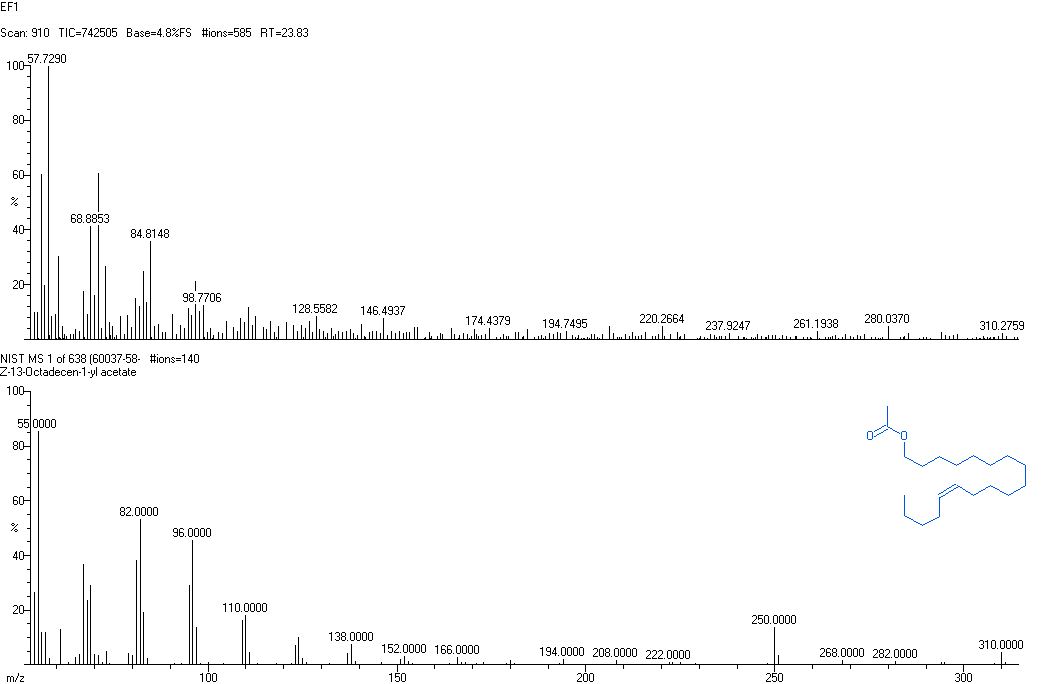

Fig. 8: Structure of Z-13-octadecen-1-yl acetate present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

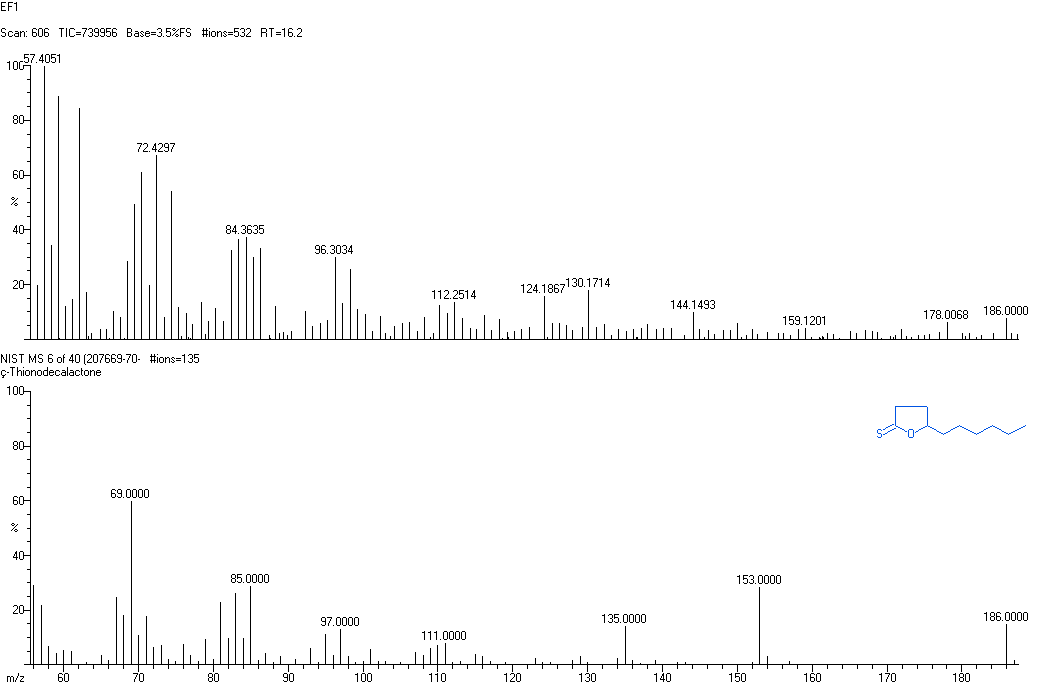

Fig. 9: Structure of ç-thionodecalactone present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

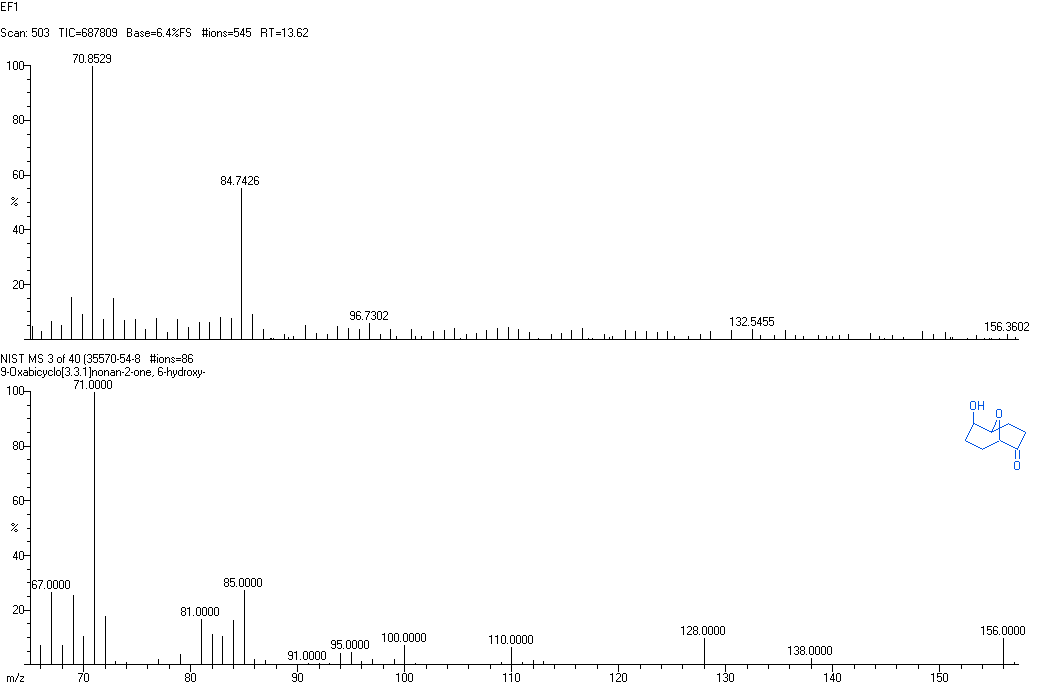

Fig. 10: Structure of 9-oxabicyclo (3.3.1) nonan-2-one, 6-hydroxy-present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

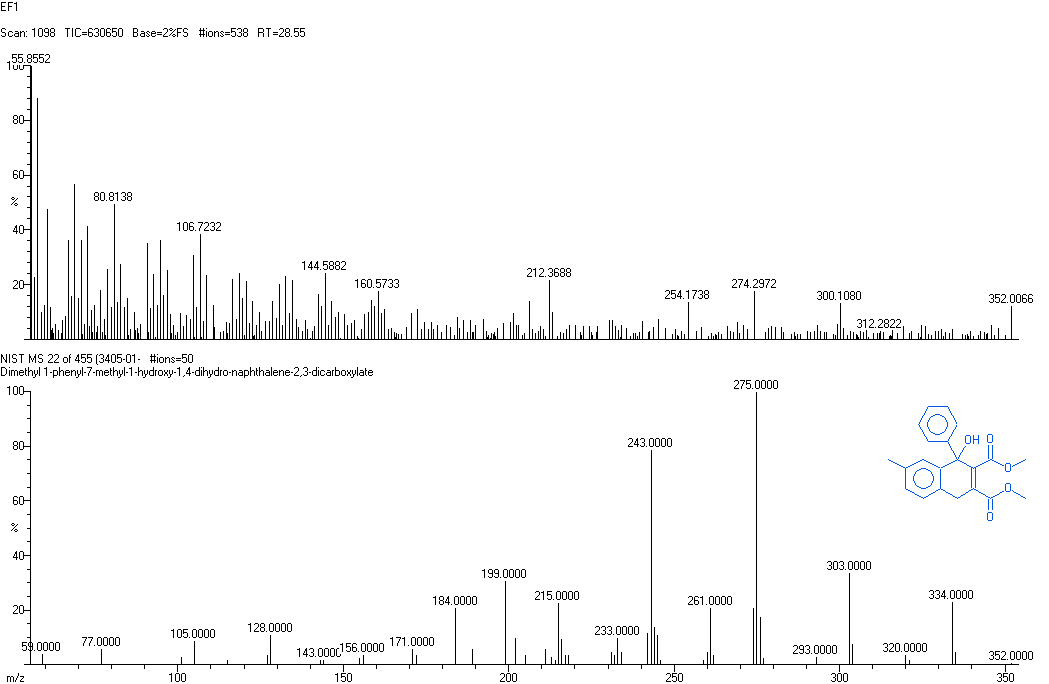

Fig. 11: Structure of dimethyl 1-phenyl-7-methyl-1-hydroxy-1, 4-dihydronaphthalene-2, 3-dicarboxylate present in EF1 (Curvularia aeria MTCC-12847) by using GCMS analysis

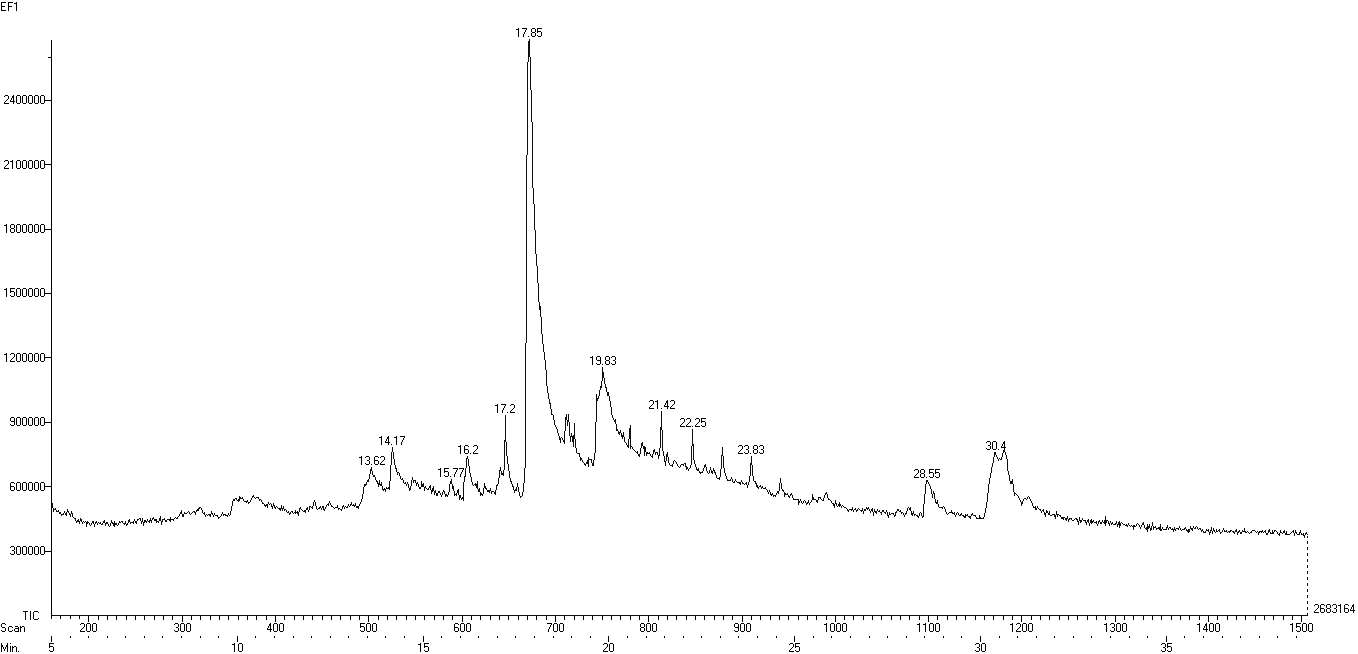

Fig. 12: GCMS chromatogram of EF1 (Curvularia aeria MTCC-12847)

DISCUSSION

Endophytic fungi, EF1 (Curvularia aeria MTCC-12847) ethyl acetate crude extract showed the presence of major peaks and the components corresponding to the peak. Eleven compounds were detected from the ethyl acetate crude extract of endophytic fungi isolated from the Tribulus terrestris L. The result revealed the presence of Palmitic acid (24.54%), Hexadecanoic acid, Z-11-(10.57%), E,E-6,8-Tridecadien-2-ol, acetate (8.71%), Tetradecanoic acid, 12-methyl-, methyl ester (8.50%), 1-Eicosene (7.93%), Spirostan-9-ol, 3-amino-, (3á,5à,25R)-(6.95%), 9-Amino-6-fluoro-lepidine (7.14%), Z-13-Octadecen-1-yl acetate (6.79%), ç-Thionodecalactone (6.76%), 9-oxabicyclo (3.3.1) nonan-2-one, 6-hydroxy-(6.29%), Dimethyl 1-phenyl-7-methyl-1-hydroxy-1,4-dihydronaphthalene-2,3-dicarboxylate (5.76%).

The Gas Chromatography-mass spectrometry (GC-MS) spectrum shows the presence of more long chains hydrocarbons. When the number of carbon atoms increases in the molecule, hydrophilicity is reduced and the lipophilicity is increased. Increased lipophilicity of a drug decreases its transport across intestinal epithelial cells. Furthermore, the presence of compound E, E-6, 8-Tridecadien-2-ol, acetate justify the anticancer potential of endophytic fungi.

CONCLUSION

The presence of various bioactive compounds justifies the use of endophytic fungi isolated from the Tribulus terrestris L. in various ailments by traditional practitioners.

AUTHORS CONTRIBUTIONS

All the authors contributed equally to the paper

CONFLICT OF INTERESTS

Declared none
