Int J Pharm Pharm Sci, Vol 6, Issue 11, 171-176Original Article

**FORMULATION AND STABILITY TESTING OF GENTAMICIN-N. SATIVA FUSION EMULSIONS FOR OSTEO-HEALING APPLICATION**

FATHIN ATHIRAH YUSOF¹, MOHD AFFENDI MOHD SHAFRI^1,5_,KHAIRUL IKHWAN YAAKOB¹, NAZRI MOHD YUSOF², FARAHIDAH MOHAMED^3,4,5

¹Department of Biomedical Science, Faculty of Allied Health Sciences, International Islamic University Malaysia (IIUM), 25200 Kuantan, Malaysia, ²Department of Orthopaedic, Faculty of Medicine, International Islamic University Malaysia (IIUM), 25200 Kuantan, Malaysia, ³Department of Pharmaceutical Technology, Faculty of Pharmacy, International Islamic University Malaysia (IIUM), 25200 Kuantan, Malaysia, ⁴IKOP Sdn. Bhd., Pilot Plant Pharmaceutical Manufacturing, Faculty of Pharmacy, IIUM, 25200 Kuantan, Malaysia, ⁵International Institute of Halal Research & Training (INHART), Ground Floor, Block E0, Kulliyyah of Engineering, IIUM, P. O. Box 10, 50728, Kuala Lumpur, Malaysia.
Email: affendishafri@iium.edu.my

Received: 08 Sep 2014 Revised and Accepted: 10 Oct 2014

ABSTRACT

An alternative osteo-healing formulation with osteo-healing properties was formulated by combining gentamicin and Nigella sativa (N. sativa) oil in an emulsion to reduce gentamicin toxicity effect over prolonged use in osteo-infection treatment. This work aims to test the aqueous solubility and physicochemical properties of the emulsion. Four emulsions (emulsion A, B, C and D) had been formulated, with final concentration of gentamicin was made constant at 0.1% (w/v) whereas N. sativa oil concentration was varied between 32.5% (v/v) to 46.4% (v/v) in all formulations. Then, stability studies of all emulsion were performed by centrifugation at (5000rpm, 5 minutes), at different storage conditions (8^oC, 25^oC and 50^oC), organoleptic characteristics, freeze-thawcycle, pH determination, particle size measurement, zeta-potential analysis, and pH titration analysis. Results showed no phase separation after centrifugation for freshly prepared emulsions. Storage at 8^oC, all emulsions also showed no phase separation at all-time points. At 25^oC storage condition, three formulations were stable at day 7 but phase separation was formed in all emulsions by day 14showed good stability at day 7 and all emulsions formed phase separation at day 14. No emulsions were stable in storage temperature of 50^oC. The particle size of the emulsions increased with an increment ofN. sativa oil concentration. Zeta-potential analysis showed a range of -32.2 ± 0.15 mV to -48.0 ± 0.45 mV. When pH titration analysis was performed, the zeta potential indicated that the emulsion stability was affected by acidic conditions. We concluded that the use of gentamicin-N. Sativaemulsions must take into account the storage condition with preference of low temperature and fresh preparation at higher alkalinity and the lowest possibility of N. sativa oil.

Keywords: Gentamicin, Nigellasativa, Emulsion, Stability, Osteo-healing.

INTRODUCTION

The usage of gentamicin as a treatment for musculoskeletal infection locally or systemically has become increasingly popular. Local antibiotic delivery system has been used in the treatment of bone and tissue infection, either to supplement or to replace the use of systemic antibiotics [1]. However, antibiotic treatment in patients with poor vascularise infected tissues and osteonecrosis may be inadequate or ineffective. A long-term course of antibiotic therapy is a must but there is the side effect or toxicity over these prolonged therapies [1,2]. Therefore, gentamicin and Nigella sativa (N. sativa) oil was fused together to lower the toxic effect of gentamicin. N. sativa is known as black seed or black cumin and had been used in herbal medicine all over the world for the treatment and prevention of diseases and conditions [3,4,5] such as, decreases DNA damage, prevents initiation of carcinogenesis in colonic tissue [4] and effect against osteoporosis [6]. N. sativa has an active compound named thymoquinone, which has antioxidant activity and was derived from the fatty acid constituents present in the seeds. It is believed that the wound healing process due to thymoquinone may be effective in accelerating new bone formation due to their cytoprotective and antioxidant actions, and effect on some mediator of inflammation [7,8,9,10]. In the case of osteoporosis, it was reported that the active compounds of N. sativa would improve the well-being of the patients[11].

In pharmaceutical practice, product stability is defined as maintenance of its key features and function through time. Many product property parameters, like its manufacturing process, material bottle packaging, transport and environmental conditions, conditions, and all can influence in its stability[12]. In product development, studies performed to achieve a stable, secure and effective product. Changes can occur in pharmaceutical products can be caused by external factors or related to the nature of the formulation (intrinsic). Time, oxygen, temperature, microorganisms, light, and vibration, and the reactions caused by these factors are categorized as extrinsic factors. On the other hand, intrinsic factors are related to ingredients interactions or to the conditioning material, such as redox reactions, hydrolysis, pH changes, particle size and many more[12,13]. The emulsion stability analysis provides information that indicates the relative product stability in different conditions. However, stability assessments are always relative, because product properties vary with time and depend on various factors. Thus, throughout this study, organoleptic characteristic observation, centrifugation test, freeze-thaw cycle, pH determination, particle size measurement, zeta-potential analysis and pH titration analysis were done to determine stability of emulsions.

MATERIALS AND METHODS

Materials

All the chemicals used in this study were of analytical grade; gentamicin sulphate powder purchased from local pharmacy, N. sativa oil purchased from Hemani Trading, Pakistan, sorbitan monolaurate (Span^®20) purchased from Sigma (Sigma-Aldrich Co., USA),and PEG-20 sorbitan monolaurate (Tween^®20). Distilled water was used for the preparation of emulsions.

Methods

Emulsification process

Gentamicin-N. sativa emulsions were formulated (Emulsion A, B, C &D) (Figure 1). Tween^®20 and Span^®20 were used as surfactant and co-surfactant respectively. Concentration of gentamicin was made constant at 0.1% (w/v) whereas the final concentration of N. sativa was varied between 32.5% (v/v) to 46.4% (v/v) in all formulations (Table 1). During the preparation of the emulsions, the solution was agitated slowly using a magnetic stirrer (Daihan Labtech, India) at a speed of 1500rpm. Gentamicin sulphate powder was diluted in distilled water, followed by adding Tween^®20and Span^®20, as surfactant and co-surfactant. N. sativa oil, then added and stirred thoroughly for 5 minutes (1500rpm). The emulsions were homogenised using T10 basic Ultra-Turrax^® (Germany) homogeniser for 5 minutes at 10 000rpm.

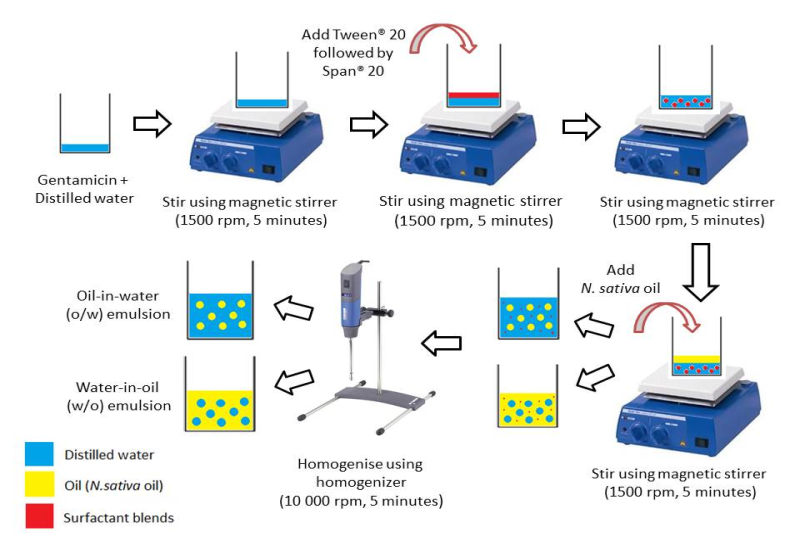

Fig. 1: Schematic diagram of gentamicin-N. sativa emulsion formulation (Emulsion A, B, C and D).

Stability tests

The stability tests were performed at different storage conditions for gentamicin-N. sativa emulsions. The samples were kept at 8 ± 0.2°C (in refrigerator), 25 ± 0.3°C (in temperature-controlled room) and 50 ± 0.2°C (in oven) under different durations; day 0, 7, 14 and 30 respectively. The samples were then examined for their stability by properties of their organoleptic characteristics, centrifugation tests, particle size measurements, and pH readings.

Organoleptic characteristics

Stable formulation of gentamicin-N. sativa emulsions were prepared freshly and investigated organoleptically through the properties of colour, odour, texture and phase separation of the samples. The organoleptic characteristics of the emulsions kept in distinct storage conditions were observed and recorded at various intervals of day 0, 7, 14 and 30.

Centrifugation test

Centrifugation tests were performed for the gentamicin-N. sativa emulsions immediately after preparation. The same test was repeated after 7, 14 and 30 days of preparation. Centrifugation conditions were 25^oC and 5000 rpm (5 minutes).

Freeze-thaw cycle

Three test samples and a control sample of gentamicin-N. Sativa emulsions were prepared in four separate micro-centrifuge tubes. Initial observations were made for all samples. The test samples were placed in a freezer (-20°C) for 24hours and then removed to be allowed to thaw at room temperature for 24 hours. The test samples were then put into an oven with temperature 50°C and left for 24hours.

The test samples were then removed and equilibrated to room temperature for 24 hours. End observations were recorded based on the notability for any signs of phase separation in the test samples. This completes one cycle for the freeze-thaw cycle test. Another two cycles were repeated on the test samples to attain a good degree of confidence in the stability of the emulsions[19].

pH determination

Initial pH values of freshly prepared gentamicin-N. sativa emulsions were measured with a calibrated digital pH meter. The pH values of the emulsions kept at different storage conditions were also measured after each interval of day 0, 7, 14 and 30. Electrode of the digital pH meter was immersed directly into the emulsion during measurement. Triplicates were done in all pH measurements and the mean readings were recorded.

Particle size measurement

ZEN1600 Nano Particle Size Analyzer (Malvern Instruments, UK) was used to measure particle size of gentamicin-N. sativa emulsions. Ratio 1:1000 of the sample diluted with distilled water. The measurements of the particle size were done in triplicates and the mean results were recorded.

Zeta-potential analysis

The measurement of zeta-potential was measured at 25^oC by using Malvern Zetasizer 4 (Malvern Instruments, UK) following 1:1000dilutions in distilled water. The measurements of zeta-potential were done in triplicates and the mean results were recorded.

pH titration analysis

The measurement of pH titration was measured at 25^oC by using Malvern Zetasizer 4 (Malvern Instruments, UK) following 1:1000dilutions in distilled water. Measurements of pH titration were done in triplicates and the mean results were recorded.

Table 1: Gentamicin-N. sativa emulsion formulations (A, B, C & D denotes different concentration of N. sativa oil).

Formulation	Composition (% v/v)				Gentamicin (% w/v)	Observable Phase Separation
Formulation	Distilled Water	N. sativa Oil	Tween 20	Span 20	Gentamicin (% w/v)	Observable Phase Separation
A	38.9	32.5	23.4	5.2	0.1	-
B	37.5	35.0	22.5	5.0	0.1	-
C	34.5	40.2	20.7	4.6	0.1	-
D	30.9	46.4	18.6	4.1	0.1	-

Table 2: Effect of centrifugation of gentamicin-N. sativa emulsions (Emulsion A, B, C & D) stored at different storage conditions, observed at day 0, 7, 14 and 30.

Emulsion A

Emulsion B

Emulsion C

Emulsion D

Time

Day 0

Day7

Day 14

Day 30

Day 0

Day 7

Day 14

Day 30

Day 0

Day 7

Day 14

Day 30

Day 0

Day 7

Day 14

Day 30

8°C

25°C

50°C

-= No Change, +=Slight change, ++= More change

Table 3: Organoleptic characteristic observation of gentamicin-N. sativa emulsions (Emulsion A, B, C and D) stored at different storage conditions, observed at day 0, 7, 14 and 30.

Duration (Day)

Color

Phase Separation

8°C

25°C

50°C

8°C

25°C

50°C

Day 0

Day 7

Day 14

Day 30

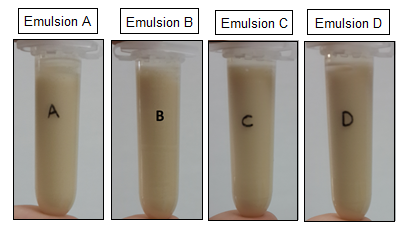

Fig. 2: Gentamicin-N. sativa emulsions observed as milky white in colour. Emulsion A, B, C, and D showed ranging in N. sativa oil between 32.5 to 46.4% (v/v) while gentamicin concentration is constant at 0.1% (w/v).

RESULTS AND DISCUSSION

Formulation gentamicin-N. sativa emulsions

Gentamicin-N. sativa emulsion A, B, C and D were formulated with a constant concentration of gentamicin sulphate (0.1% (w/v)) whereas N. sativa oil concentration was ranging from 32.5% to 46.4% (v/v) (Table 1). Further investigations regarding stability of the emulsions were tested in stability tests.

Stability tests

Centrifugation test

Centrifugation test is done to determine the behaviour of an emulsion at the end of storage conditions (Table 2). The result at 8°C, emulsion A, B, C and D showed no phase separation formed at day 0, 7, 14 and 30. At 25°C, all emulsions started to form phase separation at day 14 and onwards. At 50°C, all emulsions formed phase separation at day 7 and onwards. Gravitational force acts in the emulsions generate sample stress and thus increase the particle mobility and started to produce instabilities. Therefore, phase separation was formed after stored in certain storage conditions and durations [14].

Organoleptic characteristics

Organoleptic characteristics are defined as an observation of the appearance of emulsions by its colour, odour, formation of phase separation, precipitation, turbidity and many more[13]. The observation results as in Table 3. The colour of all stable emulsions was milky white (Figure 2). The emulsion smells like N. sativaoil and the texture emulsions were sticky. No phase separation was seen at temp 8°C and the colour of emulsions remains milky white. At 25°C phase separations formed at day 7 for emulsion A and at day 14 for emulsion B, C & D. At temperature 50°C, all emulsions changed colour to golden brown and phase separation formed from day 7 onwards. Colour, odour and texture of the emulsion should be unaltered over time [13]. Thus, emulsion must be stored at 8°C to its colour, odour and texture.

Freeze-thaw cycle

Freeze-thaw cycles, evaluate the stability of emulsions by challenging temperature shock that the product could suffer, which cause problems such as phase separation, crystal formation, rheological properties damaged and etc. [14]. Results (Table 4) showed that all emulsions became unstable when challenged with extreme temperature. This may be influenced by polymorphism, degree of lipid crystallinity and phase behaviour of water. When emulsion freeze, lipid droplets become concentrated into freeze-concentratesphase. Thereby coming into close contact with one another in the unfrozen aqueous channel between crystals. The concentration of the lipid droplets in these narrow channels could promote aggregation, flocculation or coalescence during the freeze-thaw process [15,16]. Hence, emulsion must be kept away from extreme conditions and huge fluctuations of temperature.

Table 4: Freeze-thaw cycle results of freshly prepared gentamicin-N. sativa emulsions (Emulsion A, B, C & D) for three cycles.

	Phase separation
Cycle	Emulsion A	Emulsion B	Emulsion C	Emulsion D
Control	-	-	-	-
Cycle 1	+	+	+	+
Cycle 2	++	++	+	+
Cycle 3	++	++	+	+

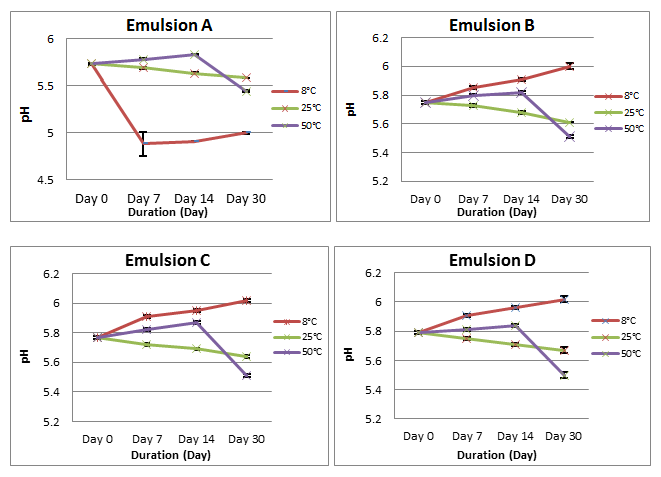

Fig. 3: Measurement of pH-changes in the gentamicin-N. sativa emulsions (Emulsion A, B, C & D) stored at different storage conditions, measured at day 0,7, 14 and 30 (n=3).

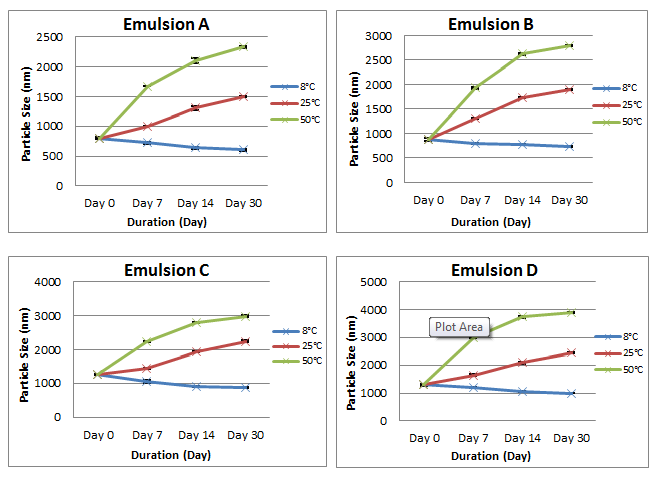

Fig. 4: Measurement of particle sizes of gentamicin-N. sativa emulsions (Emulsion A, B, C and D) stored at different storage conditions, measured at day 0, 7,14, and 30 (n=3).

pH determination

pH value for all freshly prepared emulsions were between pH 5.73 to 5.79 (Figure 3). When stored at 8°C, the pH increased in all emulsions while at a25°C storage temperature, pH decreased in all emulsions. Emulsions stored in 50°C showed a fluctuation of pH values. This is because, at high temperature, physicochemical parameters were altered since the temperature elevation possesses direct influence on stability of pharmaceutical dosage forms and the active substance in N. sativa oil. Furthermore, low pH emulsions showed poor stability compared to emulsions with higher pH [17]. Increasing of pH could be related to volatile aldehyde oxidation to carboxylic acids or lipid enzymatic hydrolysis that release free fatty acids contains in N. sativa oil [18].

Particle size measurement

Particle size of emulsions increased with an increment of N. sativa oil concentration (Figure 4). This may be due to increase fatty acid from N. sativa oil. Particle sizes of freshly prepared emulsions were ranging from 800 to 1296 nm. In a well-formulated emulsion, the droplet size would be between 1 to 5 micro-meters. At 8°C, particle size of the emulsions became smaller may be due to the attractive forces acting between droplets decreased while inversely, at 25°C and 50°C, the size of particles increased. Sometimes particle size does not affect the stability of the emulsions. Some emulsions with large particles, which were greater than 10 micro-meters showed good long-term stability [19]. But most of the time, attractive forces acting between droplets decrease with smaller particle size and will give better stability against droplet flocculation and coalescence. In addition, the minimum particle size can be achieved by many factors. Previous studies have shown that using a high energy approach (such as homogenizer type, speed, temperature and time), sample composition (such as oil type, surfactant type and relative concentration) and physical properties of component phases (interfacial tension and viscosity) [20]. Thus, homogenizer can be used to achieve minimum particle size so that the stability, appearance, texture and bioavailability of good emulsions can be produced [21,22].

Zeta-potential analysis

The zeta-potential of all emulsions were lower than -30mV and became more negative as the N. sativa oil increased (Figure 5). The negative charged emulsion was contributed by negative charged surfactants, which are also known as anionic surfactants. The surfactants used were Tween^®20 and Span^®20 which were categorised as soap surfactants [19]. Additionally, emulsifiers and surfactants can be classified as cationic (positively charged), anionic (negatively charged), amphoteric or zwitter ionic (both positively and negatively charged) and non-ionic (no-charged). Most of emulsifiers and surfactants were amphiphilic molecules which consist of hydrophobic and hydrophilic parts. Polar group of charged substances attached to hydrocarbon chain and exhibit both hydrophobic and hydrophilic characteristics [23]. The influence of the surfactants of the emulsion characteristics was demonstrated that the surface charge might affect physical and chemical stability [24,25]. Thus, it could be considered that all emulsions prepared had good stability and repulsive forces between droplets were larger in the emulsions containing oil concentrations.

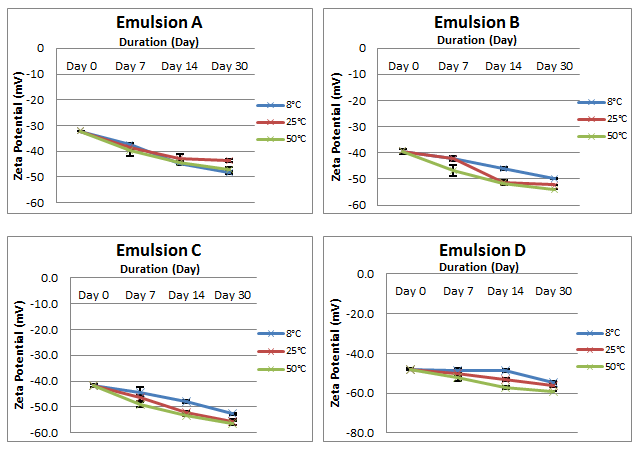

Fig. 5: Measurement of zeta-potential of gentamicin-N. sativa emulsions (Emulsion A, B, C and D) stored at different storage conditions, measured at day 0, 7, 14 and 30 (n=3).

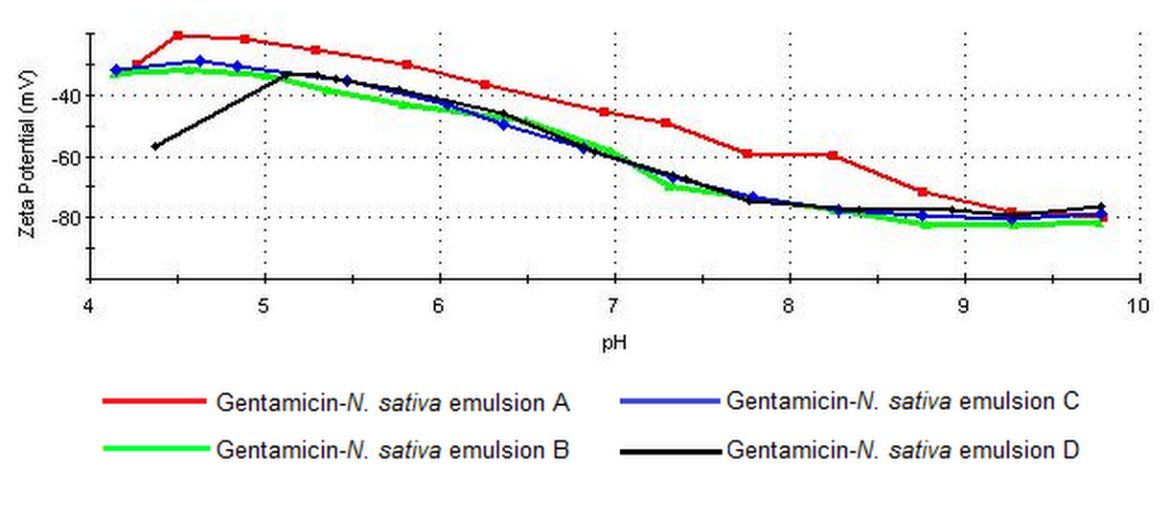

Fig. 6: pH titration range and zeta-potential (mV) of freshly prepared gentamicin-N. sativa emulsions (Emulsion A, B, C and D) (n=3).

pH titration analysis

pH titration of freshly prepared emulsions (Figure 6) showed that the emulsion stability was affected by acidic conditions but not by alkaline conditions. Unstable emulsion can be identified by demulsification process, which can be occurred when emulsion prepared at high temperature then decreased progressively. The particles become protonated when adsorb at oil-water interface and detached from the interface in-situ. Thus, the degree of ionisation of emulsion particles was taken into consideration in controlling the coalescence stability of emulsions [26].

CONCLUSION

Although the tools for characterising emulsions are advanced and mechanisms of emulsification understood, it is still difficult to predict the actual results of an emulsification process, because many parameters involved. The emulsions showed that storage temperature does affect the stability of emulsions. Extreme temperature must be avoided during storage of emulsion to maintain the stability. Thus, understanding the role of each parameter can aid in designing the stable gentamicin-N. sativa emulsions.

ACKNOWLEDGEMENT

This project was supported by a Fundamental Research Grant Scheme (FRGS) funding, Ministry of Higher Education (MOHE), Malaysia through Grant No.: FRGS 13-042-0283.

CONFLICT OF INTERESTS

Declared None

REFERENCES

Tsourvakas S. Local antibiotic therapy in the treatment of bone and soft tissue infections. In: Danilla S, editor. Selected Topics in Plastic Reconstructive Surgery. Croatia: InTech; 2012. p. 18-34.
Nandi SK, Munkeherjee P, Ray S, Kundu B, De DK, Basu D. Local antibiotic delivery systems for the treatment of osteomyelitis–A review. Mater Sci Eng 2009;29(8):2478-85.
Ali BH, Blunden G. Pharmacological and toxicological properties of Nigella sativa. Phytother Res 2003;17:299-305.
Kapoor S. Emerging clinical and therapeutic applications of Nigella sativa in gastroenterology. World J Gastroenterol 2009;15(17):2170-71.
Shomar B. Major and trace elements in Nigella sativaprovide a potential mechanism for its healing effects. J Med Plants Res 2012;6(34):4836-43.
Ansari R, Batra NG. Effects of Nigella sativaagainst osteoporosis. Int J Pure Appl Biosci 2013;1(2):6-14.
Abu-Zinadah OA. Using Nigella sativa oil to treat and heal chemical induced wounds of rabbit skin. J King Abdulaziz Univer-Sci 2009;21(2):335-46.
Al-Mutheffer EA. The effect of local application black seed (Nigella Sativa) oil on wound healing in rabbits. Al-Anbar J Vet Sci 2003;3(1):91-7.
Kara MI, Erciyas K, Altan AB, Ozkut M, Ay S, Inan S. Thymoquinone accelerates new bone formation in the rapid maxillary expansion procedure. Arch Oral Biol 2012;57:357-63.
Valizadeh N, Zakeri HR, Amin AG, Shafiee A, Sarkhail P, Heshmat R, et al. Impact of black seed (Nigella sativa) extract on bone turnover markers in postmenopausal women with osteoporosis. DARU J Pharm Sci 2009;17(l):20-5.
Maggio D, Barabani M, Pierandrei M, Polidori MC, Catani M, Mecocci P, et al. Marked decrease in plasma antioxidants in aged osteoporotic women: results of a cross-sectional study. J Clin Endocrinol Metab 2003;88(4):1523–7.
Isaac VLB, Cefali LC, Chiari BG, Oliveira CCLG, Salgado HRN, Correa MA. Protocolo para ensaiosfisico-quimicos de estabilidade de fitocosmeticos. J Pharm Sci Basic Appl 2008;29(1):81-96.
Guia de controle de qualidade de produtoscosmeticos. In: Gerência Geral de cosmeticos. Brasilia: Agencia Nacional de Vigilancia Sanitaria (ANVISA); 2004.
Friedrich M, Primo FT, Funck JAB, Laporta LV, Alves MP, Bittencourt CF, et al. Avaliacao da estabilidadefísico-química de cremenaoianicoinscritonoformulárionacional. Lat Am J Pharm 2007;26(4):558-62.
Komatsu H, Okada S, Handa T. Suppressive effects of salts on droplet coalescence in a commercially available fat emulsion during freezing for storage. J Pharm Sci 1997;86(4):497–502.
Saito H, Kawagishi A, Tanaka M, Tanimoto T, Okad S, Komatsu H, Handa T. Coalescence of lipid emulsions in floating and freeze-thawing processes: Examination of the coalescence transition state theory. J Colloid Interface Sci 1999;219(1):129–34.
Pichot R, Watson RL, Norton IT. Phospholipids at the interface: current trends and challenges. Int J Mol Sci 2013;14:11767-94.
Wajda P, Walczyk D. Coffee Chemistry. In: Clarke RJ, Macrae R, editors. Volume 1. London: Elsevier Apllied Science Publishers; 1985. p. 271.
Klein K. Liquid crystals and emulsions: A wonderful marriage. In: Skin barrier: Chemistry of delivery system. Chapter 26. New Jersey: Cosmetech Laboratories; 2002. p. 265-8.
Qian C, McClements DJ. Formation of nanoemulsions stabilized by model food-grade emulsifiers using high-pressure homogenization: Factors affecting particle size. Food Hydrocolloids 2011;25(5):1000-8.
Acosta E. Bioavailability of nanoparticles in nutrient and nutraceutical delivery. Curr Opin Colloid Interface Sci 2009;14(1):3-15.
McClements DJ, Decker EA, Weiss J. Emulsion-based delivery systems for lipophilic bioactive components. J Food Sci 2007;72(8):109-24.
Holmberg K. Surface chemistry in the petroleum industry. In: Handbook of applied surface and colloid chemistry. Chapter 11. New Jersey: John Wiley and Sons; 2002. p. 251-67.
Grit M, Crommelin DJ. The effect of surface charge on the hydrolysis kinetics of partially hydrogenated egg phosphatidylcholine and egg phosphatidylglycerol in aqueous liposome dispersions. Biochim Biophysica Acta 1993;1167:49–55.
Zuidam NJ, Crommelin DJ. Chemical hydrolysis of phospholipids. J Pharm Sci 1995;84:1113–19.
Binks BP, Murakami R, Armes SP, Fujii S. Effects of pH and salt concentration on oil-in-water emulsions stabilized solely by nanocomposite microgel particles. Langmuir 2006;22(5):2050-7.
