Int J Pharm Pharm Sci, Vol 6, Issue 11, 181-185Original Article

STUDY OF IN VITRO GLUCOSE UPTAKE ACTIVITY OF ISOLATED COMPOUNDS FROM HYDRO ALCOHOLIC LEAF EXTRACT OF CARDIOSPERMUM HALICACABUM LINN

R. RAJESWARIa, M. SRIIDEVIb *

aDepartment of Biochemistry, Vinayaka Missions Medical College, Vinayaka Missions University, Ariyanoor 636301, Tamilnadu, India, bDepartment of Biotechnology, Faculty of Engineering, Vinayaka Missions Engineering College, Vinayaka Missions University, Ariyanoor 636301, Tamilnadu, India.
Email: drsridevimuruhan@gmail.com

Received: 11 Sep 2014 Revised and Accepted: 10 Oct 2014

ABSTRACT

Objective: Herbal medicines have long been used effectively in the treatment of Diabetes Mellitus. Cardiospermum halicacabum(C. halicacabum) has been used for several centuries for the treatment of various ailments. The present work was undertaken to study the effect of isolated bioactive compounds from leaf of C. halicacabum on glucose uptake in L-6 cell lines.

Methods: The hydro alcoholic leaf extract of C. halicacabum was subjected to preliminary phytochemical screening and isolated eleven compounds were tested for cytotoxicity by MTT assay. Compound 1 and 8 were selected for further glucose uptake assay based on cytotoxicity concentration CTC50 value. Structure of compound 1 and 8 was identified by NMR technique.

Results: Phytochemical analysis showed the presence of alkaloids, flavonoids, tannins and terpenoids. Compound 1 showed moderate cytotoxic activity to L6 cell line when compared to compound 8. Compounds 1 and 8 were identified as Kaempferol-3-o-α-l-rhamnoside and Apigenin-7-o-β-d-glucuronide. In in vitro glucose uptake assay Kaempferol-3-o-α-l-rhamnoside showed increase in glucose uptake by 11.38 ± 2.04% and Apigenin-7-o-β-d-glucuronide by 15.97 ± 2.16% over control.

Conclusion: Kaempferol-3-o-α-l-rhamnoside and Apigenin-7-o-β-d-glucuronide isolated from C. halicacabum leaf extract enhance the glucose uptake significantly. They exhibit hypoglycemic activity and stimulate glucose uptake in L-6 skeletal muscle cells. This study can bring a promising role for this plant in the management of Diabetes mellitus.

Keywords: Apigenin-7-o-β-d-glucuronide, Cardiospermum halicacabum, Diabetes Mellitus, Glucose uptake Assay, Kaempferol-3-o-α-l-rhamnoside, MTT Assay, L-6 skeletal muscle cell.

INTRODUCTION

Diabetes mellitus is a group of metabolic diseases in which a person has high blood sugar, either because the pancreas does not produce enough insulin, or because cells do not respond to the insulin that is produced [1]. Chronic hyperglycemia of diabetes is associated with long term damage, dysfunction and eventually failure of organs, especially the kidney, nerves, heart, eyes and blood vessels [2]. India has the highest number of diabetics of any one country in the entire world. Over 30 million have now been diagnosed with diabetes in India. The Crude prevalence rate in the urban areas of India is thought to be 9 per cent. In rural areas, the prevalence is approximately 3 per cent of the total population. There is more number of drugs used in the treatment of diabetes. They have many side effects with their long term usage [3,4]. Herbal drugs may prefer as alternatives because of their safety and efficacy. In India herbal drugs have long been used in the treatment of diabetes. Many plants have been tested on experimental animals and reported useful for the treatment of diabetes mellitus [5]. Drugs isolated from medicinal plants showed effective antidiabetic activity than oral hypoglyceimic drugs [6]. The active compounds of medicinal plants play an important role in the management of the disease.

Skeletal muscle is a major tissue for blood glucose utilization and a primary target tissue for insulin action and it is responsible for the whole body glucose homeostasis. Postprandial hyperglycemia plays an important role in the etiology of diabetes-related complications and the therapeutic approach for the treatment of diabetes is mainly focused on decreasing postprandial hyperglycemia. Insulin increases glucose uptake in skeletal muscle by increasing functional glucose transport molecules in the plasma membrane [7].

Cardiospermum halicacabum (C. halicacabum) is an herbaceous climber distributed in tropical and subtropical area of Asia. It is commonly known as balloon wine belong to family sapindaceae. In India C. halicacabum has been used for several centuries in the treatment of rheumatism, sjpgness of limbs and snake bite. Roots alone are used for the treatment of nervous diseases. It has analgesic, vasodepressive, anti hyperglycaemic, and also anxiolytic properties [8-10] and its antiparasitic, antimalarial and antifilarial [11-13] activities have been proved. Although the hypoglycaemic effect of C. halicacabum has been reported, still there is no report of isolated compounds from C. halicacabumon for the same and the exact mechanism also has yet to be elucidated. Hence we under took this study to evaluate the effect of isolated compounds from C. halicacabum leaf extract on glucose uptake through glucose transports in skeletal muscle cell (L-6 cell line).

MATERIALS AND METHODS

Extraction of plant material

Fresh leaves of C. halicacabum were collected from the tropical areas of MallurTaluk, Salem district, Tamil Nadu, India. The leaves were thoroughly washed in water, dried at room temperature, and powdered. The dry fine powder was suspended in different solvents of increasing polarity for cold maceration for 4 days. Petroleum ether, chloroform, acetone and Hydroalcoholic solvent (80% methanol + 20% distilled water). The extracts were filtered by using a muslin cloth and concentrated at 40 ± 5°C.

The sole purpose of such maceration procedures for crude drugs is to obtain the therapeutically desirable portion and eliminate the inert material by treatment with a selective solvent.

Chemicals

3-(4,5–dimethyl thiazol–2–yl)–5–diphenyltetrazolium bromide (MTT), Fetal Bovine serum (FBS), Phosphate Buffered Saline (PBS), Dulbecco’s Modified Eagle’s Medium (DMEM) and Trypsin were obtained from Sigma Aldrich Co, St Louis, USA. EDTA, Glucose and antibiotics from Hi-Media Laboratories Ltd., Mumbai. Dimethyl Sulfoxide (DMSO) and Propanol from E. Merck Ltd., Mumbai, India.

Qualitative phytochemical evaluation

All the leaf-extracts of C. halicacabum were subjected to phytochemical tests for its active constituents according to the Harborne method [14]. Hydro alcoholic extract of C. halicacabum leaf showed maximum number of phytochemicals in phytochemical screening assay. So further isolation of active principles was carried out with the same extract.

Bioactive compounds from C. halicacabum Leaf

The hydro alcoholic leaf extract of C. halicacabum then subjected to column chromatography to isolate the active compound using hexane as a solvent. Preparative Thin Layer chromatography [15-19] was performed in order to select the mobile phase. Different solvent systems were tried as mobile phase, and finally tried with chloroform: methanol (9:1). Six major fractions (A1-F1) were collected. The TLC plates were used to observe the separation of individual compounds as a single spot. Totally eleven compounds were obtained.

Cell Lines and Culture Medium

L-6 cell cultures were procured from National Centre for Cell Sciences (NCCS), Pune, India. Stock cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM). Medium was supplemented with 10% inactivated Fetal Bovine Serum (FBS). Penicillin (100 IU/ml), streptomycin (100 µg/ml) and amphotericin B (5 µg/ml) in an humidified atmosphere of 5% CO2 at 37°C until confluent. The cells were dissociated with TPVG solution (0.2% trypsin, 0.02% EDTA, 0.05% glucose in PBS). The stock cultures were grown in 25 cm2 culture flasks and all experiments were carried out in 96 microtitre plates (Tarsons India Pvt. Ltd., Kolkata, India).

Preparation of Test Solutions

For cytotoxicity studies, each weighed test drugs were separately dissolved in distilled DMSO and volume was made up with DMEM supplemented with 2% inactivated FBS to obtain a stock solution of 1 mg/ml concentration and sterilized by filtration. Serially two fold dilutions were prepared from this for carrying out cytotoxic studies.

Determination of Cell Viability by MTT Assays

The monolayer cell culture was trypsinized and the cell count was adjusted to 1.0 x 105 cells/ml using medium containing 10% FBS and was used for the determination of cell viability by MTT assays as described by Francis and Rita [20] respectively. The absorbance was measured using a microplate reader at a wavelength of 540 nm. The percentage growth inhibition was calculated using the following formula and concentration of test drug needed to inhibit cell growth by 50% (CTC50) values is generated from the dose-response curves for each cell line.

% Growth inhibition =

Based on CTC50 Value Compound 1 and 8 were selected for structural elucidation. Compound 1 was identified as Kaempferol-3-o-α-l-rhamnoside and compound 8 as Apigenin-7-o-β-d-glucuronide. Three independent experimental values in duplicates were taken to determine CTC50 value.

In vitro Glucose Uptake Activity [21] of Kaempferol-3-o-α-l-rhamnoside and Apigenin-7-o-β-d-glucuronide

Cells were cultured on 6 well plates and incubated for 48 hrs at 37°C in CO2 incubator. When semi confluent monolayer was formed the culture were renewed with serum free DMEM containing 0.2 % BSA and incubated for 18 hrs at 37°C in CO2 incubator. After 18 hrs the media was discarded and cells were washed with KRP buffer once. The cells are treated with Insulin. Standard drug and plant extract and added glucose (1M) and incubated for half an hour. The supernatant was collected for glucose estimation and glucose uptake was terminated by washing the cells three times with 1 ml ice-cold KRP buffer. Cells were subsequently lysed by freezing and thawing three times. Cell lysate was collected for glucose estimation. Glucose uptake was calculated as the difference between the initial and final glucose content in the incubated medium by GOD-POD method [22]. Three independent experimental values in duplicates were taken to determine the percentage enhancement of glucose uptake over controls.

CALCULATION

Glucose concentration in the sample can be calculated using the following formula: Glucose = Absorbance of Sample/ Absorbance of Standard X Conc. of Std.

RESULTS

Table 1 shows the qualitative phytochemical analysis of petroleum ether, chloroform, acetone, ethanol and hydroalcoholic extract. Hydro alcoholic leaf extract of C. halicacabum showed the presence majority of bioactive compounds including alkaloids, tannins, flavonoids and terpenoids.

Based on CTC50 value Compound 1 and 8 were selected for further in vitro glucose uptake assay. Figure 1 and 2 shows the structure of compounds, Kaempferol-3-o-α-l-rhamnoside (compound 1) and Apigenin-7-o-β-d-glucuronide (compound 8).

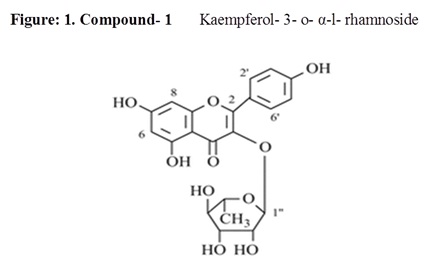

Fig. 1: Compound-1 Kaempferol-3-o-α-1-Rhamnoside

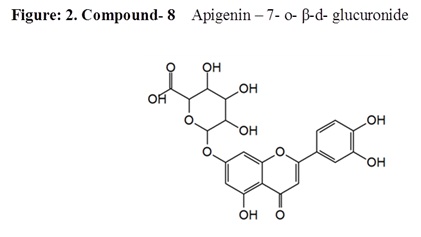

Fig. 2: Compound-8 Apigenin-7—o-β-d-glucuronide

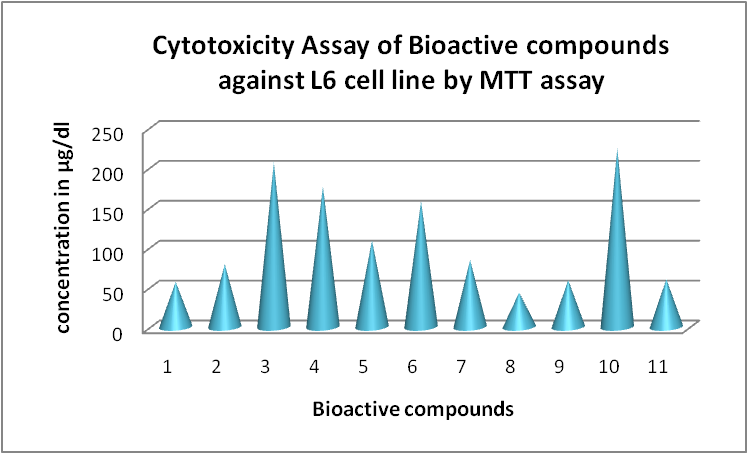

Graph 1: Graphical representation of CTC50 value of isolated compounds

Graph 2 and Table 3 shows the in vitro glucose uptake assay. The results were compared with insulin and metformin, which were used as the standard antidiabetic drugs. Kaempferol-3-o-α-l-rhamnoside and Apigenin-7-o-β-d-glucuronide were also tested with insulin.

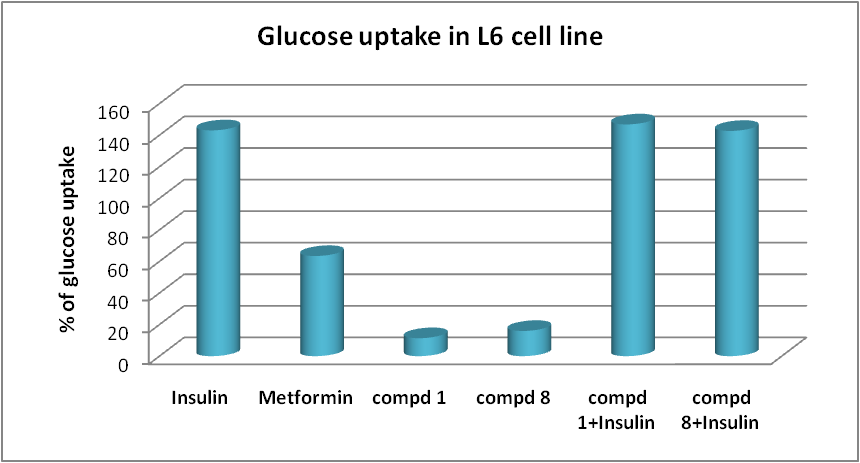

Graph 2: Graphical representation of in vitro glucose uptake assay

DISCUSSION

Insulin is the major regulator of blood glucose levels in the fed state when skeletal muscle becomes the primary consumer of glucose [23]. The determinant of glucose utilization by muscle is its uptake mediated by glucose transporters [24]. Insulin stimulates glucose uptake in skeletal muscle cells and fat cells by promoting the rapid translocation of GLUT4 glucose transporters to the plasma membrane. It regulates the release of GLUT4 from sequestered intracellular storage pools, and also has effects on docking and fusion of GLUT4 vesicles with plasma membrane [25]. Regulation of GLUT4 activity by insulin will enhance the muscle cell glucose uptake. Medicinal plants enhance the glucose uptake by GLUT4 translocation and were proven by in vitro glucose uptake model [26-29]. The L-6 cell line is the best characterized cellular model origin to study glucose uptake and GLUT4 translocation [30,31]. Hence in this study we have used L-6 muscle cells to determine the glucose uptake activity of C. halicacabum leaf extract. Eleven compounds were isolated from the hydro alcoholic leaf extract of C. halicacabum.

The isolated compounds were evaluated for its cytotoxic activity by MTT assay and the results were shown in Table 2. The ability of the cells to survive a toxic insult has been the basis of most assays. The assay depends both on the number of cells present and on the mitochondrial activity per cell. As the compound 1 and 8 showed minimum values, it was selected for antidiabetic work.

From the NMR spectrum the compounds were identified as Kaempferol-3-o-α-l-rhamnoside (compound 1) and Apigenin-7-o-β-d-glucuronide (compound 8). The in vitro glucose uptake assay of the compounds showed the enhancement in glucose uptake by 11.38 ± 2.04% and 15.97 ± 2.16% over control. Insulin (1IU/ml) and metformin (100 μg/ml) enhance the glucose uptake by 143.07±2.17 % and 63.45±2.69% over control. Kaempferol-3-o-α-l-rhamnoside+ insulin enhance the glucose uptake in L-6 cells by 146.83 ± 1.30% and Apigenin-7-o-β-d-glucuronide+insulin enhance by 142.70 ± 1.86% over control when used in combination. In the above results compound 8 was found to be prominent over compound 1. Skeletal muscle is the most abundant tissue in the whole body, and thus, proper function of skeletal tissue is important to maintain normal blood glucose level. Defects in insulin stimulated skeletal muscle glucose uptake are common pathological states in non-insulin-dependent diabetes mellitus [32]. Present study showed that the isolated bioactive compounds enhance the glucose uptake which may be due to its effect on the receptors on the cell membrane in L-6cell lines.

Table 1: Phytochemical analysis of different extracts of C. halicacabum leaf

Phytochemicals Petroleum Ether Chloroform Acetone Ethanol Hydro alcohol

(80% methanol + 20% distilled water)
Alkaloids - - + + +
Phytosterols + + + + +
Carbohydrates - - + + +
Phenols - + + + +
Protein - - + + +
Diterpenoids - - + + +
Glycosides - - - - +
Cardiac glycosides - - - + +
Saponins - - + + +
Free amino acids - - - - +

In bioassay guided isolation eleven compounds were isolated and the cytotoxicity of all the compounds was evaluated by MTT assay (graph 1). Table 2 shows the CTC50 values of all the eleven compounds in L-6 cell lines. Compound 8 showed higher cytotoxicity against L6 cell line, whereas compound 1 showed moderate cytotoxic activity to L6 cell line when compared to compound 8.

Table 2: The result of in vitro cytotoxic concentration of C. halicacabum leaf

Compound Concentration in µg/ml % cytotoxicity (µg/ml) CTC50 (µg/ml)
Compound 1 500 90.14±8.02 56.4±4.98µg/ml
250 72.58±6.05
125 68.73±5.28
62.5 51.49±5.12
Compound 2 500 93.07±7.06 78.6±6.24 µg/ml
250 84.19±6.04
125 67.09±5.22
62.5 43.6±3.31
Compound 3 500 84.19±7.15 206±19.35 µg/ml
250 63.08±6.01
125 32.72±2.11
62.5 5.49±4.30
Compound 4 500 84.03±7.22 176±15.58 µg/ml
250 63.97±5.01
125 21.42±2.36
62.5 8.12±8.04
Compound 5 500 92.13±8.89 108.4±9.12 µg/ml
250 74.05±7.21
125 52.16±4.74
62.5 32.56±3.00
Compound 6 500 90.16±8.12 157.5±14.02 µg/ml
250 70.48±6.12
125 43.95±3.03
62.5 24.17±2.02
Compound 7 500 85.47±7.01 83.9±6.98 µg/ml
250 63.18±6.03
125 58.29±4.03
62.5 43.15±4.24
Compound 8 500 89.06±7.98 43±3.33 µg/ml
250 74.18±6.01
125 64.38±5.33
62.5 57.90±4.11
Compound 9 500 91.42±8.16 58.6±5.54 µg/ml
250 88.19±7.99
125 76.26±6.03
62.5 52.14±4.85
Compound 10 500 69.87±6.08 224.1±20.58 µg/ml
250 55.49±5.96
125 43.92±3.67
62.5 12.40±9.36
Compound 11 500 87.43±7.21 59.8±5.68 µg/ml
250 79.93±7.03
125 61.84±6.16
62.5 52.47±5.22

Table 3: The results of In vitro glucose uptake activity of hydro alcoholic extract of C. halicacabum leaf

S. No. Incubation medium Test Conc. % Glucose uptake over control
1 Insulin 1 IU/ ml 143.07 ± 2.17
2 Metformin 100 µg/ml 63.45 ± 2.69
3 Comp 1 56.4 µg/ml 11.38 ± 2.04
4 Comp 8 43 µg/ml 15.97 ± 2.16
5 Comp 1+ Insulin 56.4 µg/ml + 1 IU/ ml 146.83 ± 1.30
6 Comp 8+ Insulin 43 µg/ml + 1 IU/ ml 142.70 ± 1.86

CONCLUSION

The results obtained in the present study clearly demonstrate that the isolated compounds Kaempferol-3-o-α-l-rhamnoside and Apigenin-7-o-β-d-glucuronidefrom hydro alcoholic extract of C. halicacabum enhances glucose uptake under in vitro conditions. This may be due to its effect on the number of receptors located in the skeletal muscle cell line. Since herbal drugs are used for the treatment of diabetes for a long time because of its high potency and negligible side effects, this study will definitely help in the field of herbal medicine. Further in vivo anti diabetic effects of compound 1 and 8 is in progress which will support the present study.

AKNOWLEDGEMENT

The authors are grateful to Ms. V. K. Evanjeline and Mr. Ganesh, M. D, Alpha Omega Hi-tech Laboratory for providing laboratory facilities.

CONFLICT OF INTERESTS

Declared None

REFERENCES

  1. Shoback, David G Gardner, Dolores. In: Greenspan's basic & clinical endocrinology. McGraw-Hill Medical. 9thed. New York; 2011. p. 17.
  2. Maritim AC, Sanders RA, Watkins JB. Diabetes, oxidative stress, and antioxidants: a review. J Biochem Mol Toxicol 2003;17(1):24-38.
  3. Ramachandran S, Sri Divya P. Antidiabetic activity of polyherbal extract on alloxan induced diabetic rats. Eur J Biol Sci 2013;5(2):64-7.
  4. Ghanshyam Y, Vipin Kumar G, NishiT, Pragati K. Locomotor activity of methanolic extract ofSaracaindica bark. Adv Bio Res 2013;7(1):01-03.
  5. Grover JK, Yadav S, Vats V. Medicinal plants of India with antidiabetic potential. J Ethanopharmacol 2002;81:81-100.
  6. Mohammed B, Abderrahim Z, Hassane M, Abdelkhaleq L. Medicinal plants with potential antidiabetic activity: a review of ten years of herbal medicine research. Int J Diabetes 2006;14:1-25.
  7. Gopalakrishnan C, Dhananjayan R, Kameswaran L. Studies on the pharmacological actions of Cardiospermumhalicacabum. Indian J Physiol Pharmacol 1976;20:203-6.
  8. Klip A, Ishiki M. Recent development in the regulation of glucose transporter–4 traffic. In: New signals, locations and partners. Endocrinology; 2005. p. 5071-8.
  9. Veeramani C, Pushpavalli G, Pugalendi KV. Antihyperglycaemic effect of Cardiospermumhalicacanum Linn. Leaf extract on STZ induced diabetic rats. J Appl Biomed 2008;6:19-26.
  10. Chisholmm J, Hopkins CY. Fatty acids of the seed oil of Cardiospermum halicacabum. Can J Chem 1985;36:1537-40.
  11. Boonmars T, Khunkitti W, Sirthithaworn P, Fujimake Y. In vitro anti parasitic activity of extract of Cardiospermum halicacabum against third-stage larvae of strongyloidesstercoralis. Parasitol Res 2005;97(5):417-9.
  12. Wakko PJ, Gumede B, Smith P, Folb PI. The in vitro and in vivo antimalarial activity of Cardiospermumhalicacabum L. J Ethanoparmacol 2005;99:137-43.
  13. Khunkitti W, Fujimaki Y, Aoki Y. In vitro anti filarial activity of extract of the medicinal plant Cardiospermum halicacabum against brugiapahangi. J Helminthol 2000;73(3):241-6.
  14. Harborne JB. Phytochemical Methods. In: a guide to modern techniques of plant analysis. Chapman and Hall. 3rd ed. New York; 1998. p. 1-150.
  15. Tomer K, Singh V, Sethiya NK, Singh HP, Kumar M, Chandra D. Isolation and characterization of New Lanosteroid from ethanolic extracts of Eclipta alba Linn. J Pharm Res 2009;2(10):1635-7.
  16. Mueen Ahmed KK. Introduction to isolation, identification and estimation of lead compounds from natural products. In: Textbook of industrial pharmacy. Hiremath SR. Chennai, India, Orient Longman Private Ltd; 2008. p. 345-79.
  17. Hota D. Evalution of plant extracts. In: Bioactive medicinal plants. Gene-Tech Books. New Delhi; 2010. p. 86-7.
  18. Patra JK, Gouda S, Sahoo SK, Thatoi HN. Chromatography separation, 1H NMR analysis and bioautography screening of methanol extract of Excoecaria agallocha L. from Bhitarkanika, Orissa, India. Asian Pac J Trop Biomed 2012;50-6.
  19. Ly TN, Shimoyamada M, Kato K, Yamauchi R. Isolation and characterization of some antioxidative compounds from the rhizomes of smaller Galangal (Alpinia officinarum Hance). J Agric Food Chem 2003;51:4924-9.
  20. Francis D, Rita L. Rapid colorometric assay for cell growth and survival modifications to the tetrazolium dye procedure giving improved sensitivity and reliability. JIM 1986;89:271-7.
  21. Gupta RN, Pareek A, Rathore GS, Suthar M. Study of glucose uptake activity of Helicteres isora Linn. fruits in L-6 cell lines. Int J Diabetes Dev Ctries 2009;29:170-3.
  22. Trinder P. Determination of blood glucose using an oxidase-peroxidase system with a non-carcinogenic chromogen. J Clin Pathol 1969;22(2):158-61.
  23. Baron AD, Brechtel G, Wallace P, Edelman SV. In: Skeletal muscle. Am J Physiol 1988. p. 769–74.
  24. Shulman GI. Cellular response of insulin resistance. J Clin Invest 2000;106(2):171–6.
  25. Sophie E, Jeremy M. The molecular basis of insulin-stimulated glucose uptake: signaling, trafficking and potential drug targets. J Endocrinol 2009;203:1–18.
  26. Sudharshan Reddy D, Srinivasa Rao A, Pradeep Hulikere A. In vitro antioxidant and glucose uptake effect of Trichodesmaindicum in L-6 cell lines. Int J Pharm Bio Sci 2012;3(4):810–9.
  27. Yarasu N, Smana P, Pavankumar R, Nareshchandra RNBS, Vinil Kumar V. In vitro glucose uptake assay of hydro methanolic leaves extract of Syzygium jambos (L) alston in rat skeletal muscle (L6) cell lines. Indo Am J Pharm Res 2013. p. 7336-41.
  28. Anitha Mary M, Sujith K, Santosh P, Christina AJM. Study of glucose uptake activity of solanum xantohocarpum in L-6 Cell Lines. Euro J Biol Sci 2013;5(3):77-81.
  29. Premkumar N, Soumya K, Dharsana JN, Seena K, Anjana AK. Comparing the effect of antidiabetic activity of Andrographis paniculata, Salacia reticulate and Ocimum sanctum by in vitro screening. Asian J Pharm Clin Res 2012;5(4):146-9.
  30. Gupta RN, Pareek A, Rathore GS, Suthar M. Study of glucose uptake activity of Helicteresisora Linn. fruits in L-6 cell lines. Int J Diabetes Dev Ctries 2009;29:170-3.
  31. Patel MB, Mishra SH. Cell lines in diabetes. Phcog Res 2008;2:188-205.
  32. Defronzo RA, Jacot E, Jequier E, Maeder E, Wahren J, Felber JP. The effect of insulin on the disposal of intravenous glucose: results from indirect calorimetry and hepatic and femoral venous characterization. Diabetes 1981;30:1000-7.
