ISOLATION AND CHARACTERISATION OF RAPAMYCIN, TEMSIROLIMUS REGIO ISOMER (MONOESTER) AND TEMSIROLIMUS DIESTER IN TEMSIROLIMUS DRUG

GORLA S. REDDY, CHAVA V. N. RAO*

NRI Institute of Technology, Pothavarappadu, Agiripalli Mandal, Krishna District, A. P., India, 521212
Email: chavavnrao@gmail.com

Received: 06 Oct 2018 Revised and Accepted: 05 Jan 2019

ABSTRACT

Objective: Separation and identification of the process impurities in the manufacture of temsirolimus drug viz., rapamycin, temsirolimus regioisomer (monoester) (TS monoester), and temsirolimus diester (TS diester).

Methods: During the process development of temsirolimus (TS), three process impurities-rapamycin, temsirolimus regioisomer (monoester) and temsirolimus diester-were detected by high-performance liquid chromatography (HPLC). Impurities were isolated by medium pressure liquid Chromatography (MPLC) and characterized by ESI-MS/MS, 1H NMR, FT-IR spectral data.

Results: These impurities are characterised with the help of ESI MS/MS, 1H NMR, and FT-IR data. The impurities are identified and characterised as the process impurities. One of them is the starting material i.e. rapamycin and the other two are formed during the manufacture of the drug. This method offers advantages over using photodiode-array UV detection (LC-PDA) for the determination of peak purity, viz. components with similar UV spectra can be distinguished.

Conclusion: The structures of these impurities were characterized as rapamycin, TS Monoester, and TS Diester. Out of these process impurities, rapamycin has been previously identified while the other two are previously unreported.

Keywords: Temsirolimus, Rapamycin, Temsirolimus regioisomer (monoester), Temsirolimus diester, Process impurities, Characterisation

© 2019 The Authors.Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2019v11i2.30169

INTRODUCTION

The most common malignancy of the kidney and accounts for 2%-3% of all adult cancers is renal cell carcinoma (RCC) [1]. Though surgical resection can be curative in localized disease, prognosis of advanced renal cell carcinoma is poor with a 5-years survival rate of 5%-10%. Immunotherapy with interferon-α (IFN) has produced modest survival benefice in clinical trials [2-7] but high dose interleukin-2, though active in highly selected patients, is associated with toxicity [8, 9]. Since 2007 Phase III studies have emphasized the importance of targeting angiogenesis through vascular endothelial growth factor receptor (VEGFR) tyrosine kinase inhibition with sunitinib [10] and sorafenib [11] or direct VEGF inhibition with bevacizumab in combination with IFN [12, 13]. The mammalian target of rapamycin (mTOR), a member of the phosphatidylinositol 3 kinase family, is a multifunctional serine-threonine kinase that acts as a central regulator of cell growth, proliferation, and apoptosis [14, 15]. It modulates the expression and stability of hypoxia-inducible factor (HIF)-1α, which regulates expression of VEGF. Temsirolimus (cci-779) is a potent and selective inhibitor of mTOR. It has demonstrated its efficacy as first-line immunotherapy in poor prognosis metastatic RCC in comparison with IFN [16]. Temsirolimus (sirolimus-42-[2,2-bis-(hydroxymethyl)]-propionate) is an ester analog of rapamycin, a natural macrolide antibiotic with antifungal, antitumor, and immunosuppressive activities. Temsirolimus has demonstrated significant inhibition of tumour growth both in vitro and in vivo. Temsirolimus is currently in phase III clinical development for the treatment of renal cancer.

The method development of a drug is very important [17] to the pharmaceutical industry as the development of a method is essential for the discovery, development, and evaluation of medicines in the pharmaceutical formulation. The method development and validation of temsirolimus is carried out by the same authors [18, 19].

The present study describes the identification and determination of three impurities rapamycin, temsirolimus regioisomer (monoester) (TS monoester) and temsirolimus diester (TS diester) in crude temsirolimus drug [20-22]. All the impurities were isolated using MPLC, characterized by mass spectral data and NMR, FT-IR as additional evidence. The impurities TS monoester and TS diester with hydroxyl ester moiety in the side chain appear to be novel and previously not reported. Impurities in active pharmaceutical ingredient (API) are highly undesirable and in some cases can prove to be harmful to the patient. The ICHQ7 and ICHQ3A are a guide for API manufacturers, mentions that impurities are to be maintained below the set limits. Thus, it is pertinent to identify and char­acterize the impurities in API to develop suitable process wherein their levels can be kept within permissible limits. The impurity profile study should be carried out for any bulk drug to identify and characterize all the unknown impurities that are present at a level of above 0.1%. A comprehensive study has been undertaken to isolate and characterize these impurities by chromatographic, mass spectral studies and NMR spectroscopic techniques. This article describes the separation, identification, isolation, and characterization of three process impurities that are present in the range of 0.08%-0.12% of peak area of the bulk drug of temsirolimus. The monitoring of these impurities is important for pharmaceutical drug development and quality control of drug substance.

Molecular formula of temsirolimus is C56H87NO16 and molar mass is 1030.28. Systematic (IUPAC) name is (1R,2R,4S)-4-{(2R)-2-(3S,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,34aS)-9,27-dihydr-oxy-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-1,5,11,28,29-pentaoxo-1,4,5,6,9,10,11,12,13,14,21,22, 23,24, 25,26,27,28,29,31, 32,33, 34,34a-tetracosa-hydro-3H-23,27-epoxypyrido[2,1-c][1,4] oxazacyclo-hentri-acontin-3-yl] propyl}-2-methoxy cyclohexyl 3-hydroxy-2-(hydroxymethyl)-2-methyl propanoate. The molecular structure of temsirolimus is given in table 1.

MATERIALS AND METHODS

Reagents and chemicals

The water used in preparing the solutions had been purified by a Milli-Q system (Millipore). n-hexane (HPLC grade), methanol (HPLC grade) and acetonitrile (HPLC grade) were purchased from Rankem (Ranbaxy India). Trifluoro acetic acid (HPLC grade), acetic acid (HPLC grade), ethanol (HPLC grade) and ammonia (HPLC grade) were purchased from Sigma-Aldrich (Sigma-Aldrich Ltd). Crude temsirolimus drug sample was obtained from Hetero Drugs Limited Hyderabad, India as gift samples.

High-performance liquid chromatography (analytical)

A Waters HPLC system equipped with Alliances 2695 series low pressure quaternary gradient pump along with photodiode array detector and autosampler has been used for the analysis of samples. The data was collected and processed using Waters Empower 3 software. The YMC PACK SIL (250 X 4.6 mm, 5 μm, YMC, America, Inc) column was employed for the separation of impurities from temsirolimus. The column eluent was monitored at 280 nm. A simple isocratic Normal-Phase HPLC method was optimized for the separation of impurities from temsirolimus active pharmaceutical ingredient where the mobile phase ratio was a mixture of n-hexane, ethanol and trifluoroacetic acid in a ratio of 90:10:0.01, v/v. Chromatogra­phy was performed at column oven temperature 35°C with a flow rate of 1.5 ml min-1, auto-sampler temperature 5 °C and injection volume 10 μl. The chromatographic run time was 60 min.

Mass spectrometry (LC-MS/MS)

The LC-MS analysis was carried out on AB Sciex Instruments 4000 Q Linear Ion Trap Quadrupole LC/MS/MS Mass Spectrometer connected with a Waters HPLC system equipped with Alliances 2695 series with PDA detector. The YMC PACK SIL (250 X 4.6 mm, 5 μm, YMC, America, Inc) column was used for the separation. A simple isocratic reverse-phase HPLC method was optimized for the separation of impurities from temsirolimus active pharmaceutical ingredient where the mobile phase ratio was a mixture of water, methanol, acetonitrile, and trifluoroacetic acid in a ratio of 15:70:15:0.01, v/v. Chromatogra­phy was performed at column oven temperature 35˚C at a flow rate of 1.5 ml min-1, auto-sampler temperature 5 °C and injection volume 10 μl. The chromatographic run time was 60 min. After chromatographic separation, the mobile phase was directly introduced into the mass spectrometer via electrospray ionization (ESI) source operating in the positive and negative mode. Identification was performed using Q1 MS (Q1) and production (MS2) scan types to optimize all the mass parameters. The curtain gas reached 20 psi. The ion spray voltage was set at 4500 V and temperature at 475 °C. The nebulizer gas (GS1) and turbo gas (GS2) were 45 and 55 psi. The declustering potential (DP) and entrance potential (EP) were 25 and 10 V. Data acquisition was carried out by analyst 1.4.2 software on a dell computer.

Isolation of impurities by MPLC

Crude temsirolimus was dissolved in n-hexane and adsorbed over silica gel (mesh 230–400). This adsorbed compound was applied to MPLC (Buchi R688, column: 70 cm×460 cm, Fraction Collector Buchi 684) using silica gel (mesh 230–400) as adsorbent and eluted with n-hexane-ethanol. The elution solvents were classified as (A) n-hexane and (B) ethanol. The impurities were eluted according to the gradient by changing the % of (B) at the different time, T (min)/%B = 0/0, 15/1, 20/2.0, 30/2.5, 45/3.0, 90/4.0 at a flow rate of 50 ml/min. Fractions of 100 ml were collected, and those exhibiting similar TLC profiles combined. The enriched and purified samples of individual impurities were provided by Hetero Drugs.

NMR spectroscopy

The NMR experiments were performed on Bruker spectrometers operating at 400 MHz in CDCl3. 1H chemical shift values were reported on the δ scale in ppm, relative to TMS (δ = 0.00) as an internal standard.

FT-IR spectroscopy

Samples were measured as neat by using ATR on Bruker FTIR Spectrometer Alpha (Bruker Corporation, Germany) in the range of 600–4000 cm−1 with 20 scans and 2 cm−1 resolution. OPUS software version 6.5.

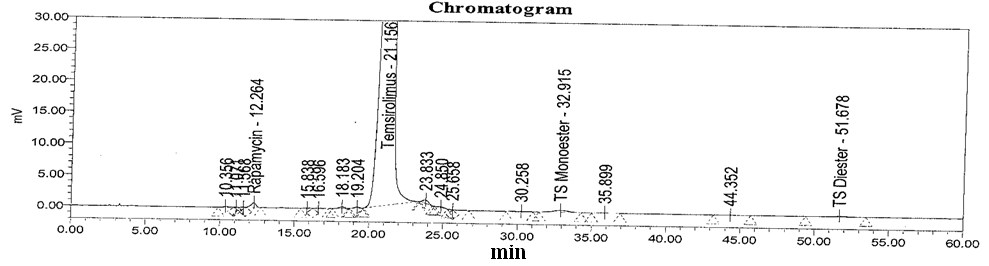

Fig. 1: Crude temsirolimus HPLC chromatogram

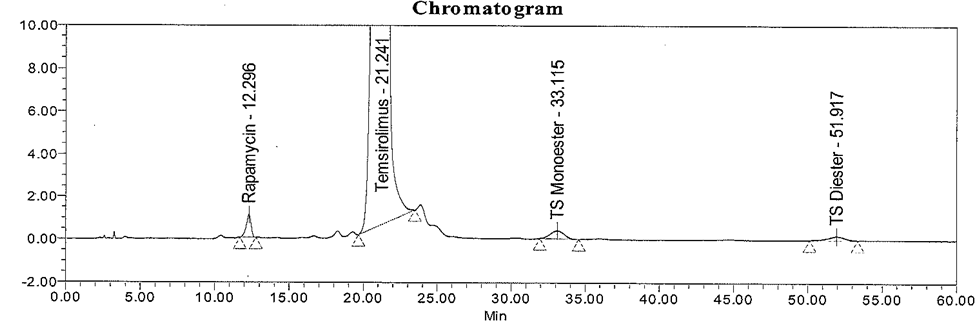

Fig. 2: Temsirolimus impurity spiked HPLC chromatogram

RESULTS AND DISCUSSION

The HPLC chromatograms of crude temsirolimus and process impurity spiked sample is shown in fig. 1 and 2. The LC/MS data gave the molecular ions of the impurities. HPLC retention time (RT) and the tentative structures deduced from the MS data are shown in table 1. Impurities were isolated using MPLC and characterized by NMR and FTIR spectroscopy. The structures of impurities, rapamycin, TS monoester and TS diester were confirmed by the spectral data. The NMR data and IR & Mass data were compared with those of temsirolimus (table 2, 3).

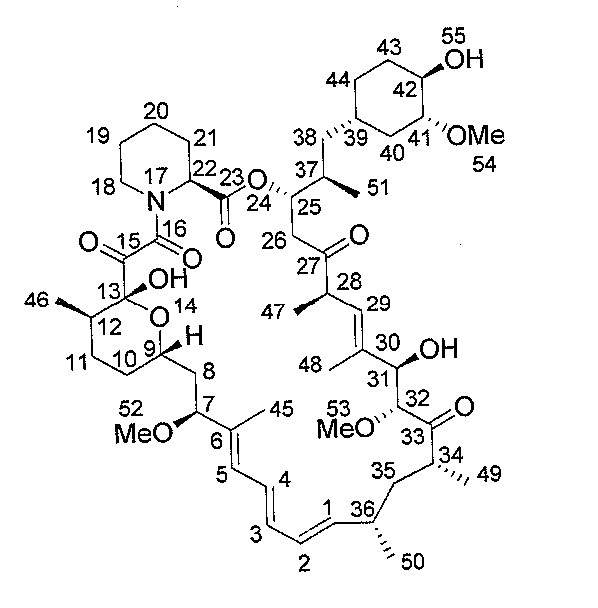

Structure elucidation of rapamycin

Rapamycin was formed in temsirolimus drug in the manufacturing process as an impurity and identified as a 31-membered macrocycle of 15 stereo-centers and multiple functional groups, namely trans-rotamer of 10-hemiketal. It is a starting material for temsirolimus. The mass spectrum of rapamycin showed an ammonium adduct [M+NH4]+at m/z 931.5, a protonated molecular ion [M+H]+at m/z 914.4 and a deprotonated molecular ion [M-H]-at m/z 912.4, indicating that the rapamycin has a molecular mass less than that of temsirolimus by 116.7 Da. The deprotonated molecular ion [M-H]+(m/z 912.4) gave m/z at 590, 437 and 261 Da on further fragmentation [23, 24]. These ions formation agree with the fragmentation pathway of the proposed structure of rapamycin. Further confirmation came from HPLC retention time, FT-IR (table 3) and the 1H NMR spectrum (table 2) and comparing rapamycin with temsirolimus standard substance. IR spectrum displayed characteristic absorption at 3414.3, 1719.1 and 1644.8 cm−1 corresponding to broad peak OH, non-conjugated C=O and conjugated and non-conjugated C=C stretching confirming all the major functional groups in rapamycin. In the 1HNMR spectrum of rapamycin, the chemical shift values of ester side chain signals were found to be absent. The 1HNMR spectrum of rapamycin (table 2) showed a significant change in the chemical shifts value of the proton in the C60 position. The C60 methyl proton signal was found to be absent in rapamycin while in temsirolimus, the C60 methyl proton signal is observed at 1.09 ppm. Another significant difference is observed in the 1H NMR spectrum at the C58 and C59 position. C58 and C59 hydroxyl proton signal was found to be absent in rapamycin while in temsirolimus, the C58andC59 hydroxyl proton signal is observed at 2.91-3.01 ppm. The 1HNMR spectrum of rapamycin (table 2) showed a significant change in the chemical shifts value of the proton at the C42 position. The C42 hydroxyl proton signal was found to be present in rapamycin while absent in temsirolimus and hydroxyl proton signal is observed at 3.59 ppm. 1H NMR spectrum of rapamycin confirms the positions of hydrogen atoms and their environment in the molecule. Based on spectral data, rapamycin was confirmed as a single isomeric form, namely trans-rotamer of 10-hemiketal. The molecular formula of rapamycin is C51H79NO13 and molar mass is 913.43. Systematic (IUPAC) name is (1R, 9S, 12S, 15R, 16E, 18R, 19R, 21R, 23S, 24E, 26E, 28E, 30S, 32S, 35R)-1, 18-Dihydroxy-12 {(1R)-2-[(1S, 3R, 4R)-4-hydroxy-3-methoxycyclohexyl]-1-methylethyl}-19, 30-dimethoxy-15, 17, 21, 23, 29, 35-hexamethyl-11, 36-dioxa-4-azatricyclo [30.3.1.04, 9] hexatriaconta16, 24, 26, 28-tetraen 2,3,10, 14,20 penton.

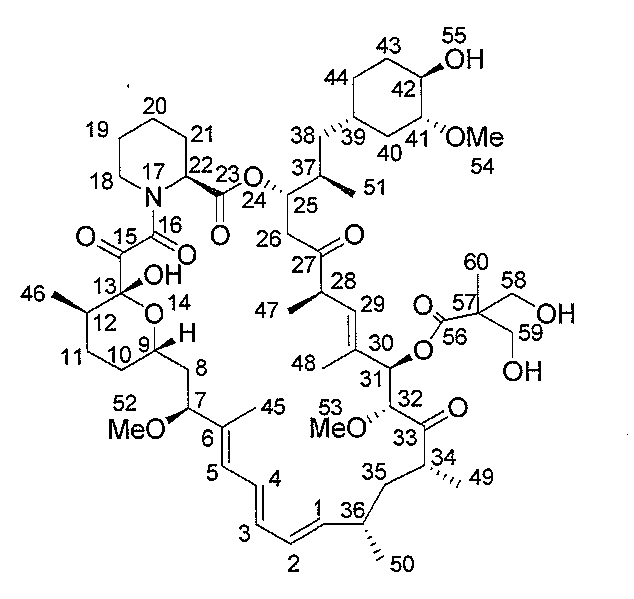

Table 1: Name of the compound, retention time (RT), structure and molecular weight of the impurities

Name RT(HPLC) (min) Structure m/z
Rapamycin 12.29 913
Temsirolimus 21.24 1030
TS Regio isomer (Monoester) 33.11 1030
TS Diester 51.91 1146

Table 2: 1H NMR data of temsirolimus and temsirolimus process impurities

Temsirolimus Rapamycin Ts Monoester Ts diester
δ (ppm) Position of proton δ (ppm) Position of proton δ (ppm) Position of proton δ (ppm) Position of proton
0.88-0.90 47 0.92 47 0.92 47 0.92 47
0.92-0.94 46 0.95 46 0.95 46 0.95 46
0.96-0.98 51 0.99 51 0.99 51 0.99 51
1.02-1.04 49 1.05 49 1.05 49 1.05 49
1.07-1.08 50 1.08 50 1.08 50 1.08 50
1.09 60 - - 1.12 60 1.23 60,65
1.12-1.26 19,20,21 1.2-1.3 19,20,21 1.2-1.3 19,20,21 1.2-1.3 19,20,21
1.45-1.46 43,10,11 1.4-1.54 43,11,10 1.4-1.54 43,11,10 1.4-1.54 43,11,10
1.57-1.60 35,48 1.58-1.65 35,48 1.58-1.65 35,48 1.58-1.65 35,48
1.63 44,38 1.60-1.87 44,38 1.60-1.87 44,38 1.60-1.87 44,38
1.73 45 1.76 45 1.76 45 1.76 45
2.03-2.06 26,8,12 1.95-2.09 8,12 1.95-2.09 8,12 1.95-2.09 8,12
2.13-2.15 31-OH 2.81-2.89 31-OH - - - -
2.30-2.34 34,36 2.10-2.59 26,34,36 2.10-2.59 26,34,36 2.10-2.59 26,34,36
2.58-2.59 39,37 2.39,2.70 37,39 2.39,2.70 37,39 2.39,2.70 37,39
2.67-2.73 40 2.79 40 2.79 40 2.79 40
2.91-3.01 58,59-OH - - 2.91-3.05 58,59-OH 2.91-3.05 63,64,58,59-OH
3.12 53 3.14 53 3.14 53 3.14 53
3.28-3.37 39,28,18 3.17-3.47 18,28 3.17-3.47 18,28 3.17-3.47 18,28
3.31 54 3.33 54 3.33 54 3.33 54
3.34 52 3.35 52 3.35 52 3.35 52
- - 3.59 55-OH 3.93 55-OH - -
3.57-3.85 58,59,41,32,7,9 3.55-3.88 41,7,32,9 3.55-3.88 58,59,41,7,32, 9 3.55-3.88 63,64,58,59,41,7,3, 2,9
4.16-4.19 25 4.18 25 4.18 25 4.18 25
4.68-4.74 42 4.71 42 4.71 42 4.71 42
4.78 13-OH 4.78 13-OH 4.78 13-OH 4.78 13-OH
5.14-5.17 22 5.11 22 5.11 22 5.11 22
5.38-5.41 31 5.27 31 5.27 31 5.27 31
5.46-5.55 29,1 5.40-5.56 29,1 5.40-5.56 29,1 5.40-5.56 29,1
5.93-5.96 5 5.69-5.99 5 5.69-5.99 5 5.69-5.99 5
6.09-6.15 2 6.11-6.13 2 6.11-6.13 2 6.11-6.13 2
6.18-6.40 3,4 6.29-6.39 3,4 6.29-6.39 3,4 6.29-6.39 3,4

Table 3: FT-IR and mass spectral data of temsirolimus and impurities (rapamycin, TS monoester and TS diester)

S. No. Compound IR MS
1 Rapamycin 3414(OH stretching), 2966(aliphatic C-H stretching), 1719(C=O stretching), 1644(C=C aromatic stretching), 1449(N-H bending), 1383(aliphatic C-H stretching), 1280, 1103(C-O stretching), 1199(C-N stretching) and 756 (aromatic C-H bending). +ve ES-MS: 914 (M+H)+, 931 (M+NH4)+, 936 (M+Na)+, 952 (M+K)+;-ve ES-MS: 912 (M-H)-, 947 (M+Cl)-.
2 TS monoester 3376(OH stretching), 2961(aliphatic C-H stretching), 1718(C=O stretching), 1641(C=C aromatic stretching), 1459(N-H bending), 1378(aliphatic C-H stretching), 1262, 1101(C-O stretching), 1198(C-N stretching) and 809 (aromatic C-H bending). +ve ES-MS: 1031(M+H)+, 1048 (M+NH4)+, 1053 (M+Na)+, 1069 (M+K)+;-ve ES-MS: 1029 (M-H)-, 1064 (M+Cl)-.
3 TS diester 3456(OH stretching), 2935(aliphatic C-H stretching), 1726(C=O stretching), 1640(C=C aromatic stretching), 1456(N-H bending), 1392(aliphatic C-H stretching), 1291, 1108(C-O stretching), 1198(C-N stretching) and 716 (aromatic C-H bending).

+ve ES-MS: 1148 (M+H)+, 1165 (M+NH4)+, 1170 (M+Na)+, 1186 (M+K)+;

-ve ES-MS: 1146 (M)-, 1145 (M-H)-, 1181(M+Cl)-.
4 Temsirolimus 3454(OH stretching), 2965(aliphatic C-H stretching), 1721(C=O stretching), 1644(C=C aromatic stretching), 1453(N-H bending), 1392(aliphatic C-H stretching), 1288, 1103(C-O stretching), 1193(C-N stretching) and 740 (aromatic C-H bending). +ve ES-MS: 1031(M+H)+, 1048(M+NH4)+, 1053(M+Na)+, 1069(M+K)+;-ve ES-MS: 1029 (M-H)-, 1064(M+Cl)-.

Structure elucidation of TS monoester

This impurity TS Monoester was formed in temsirolimus drug during the manufacturing process and identified as 31-membered macrocycle of 15 stereo-centers and multiple functional groups, namely temsirolimus regioisomer. This is a hydroxyl ester at the 31 positions of rapamycin. The ESI mass spectrum of TS monoester showed an ammonium adduct [M+NH4]+at m/z 1047.6 and sodium adduct [M+Na]+at m/z 1052.6, a protonated molecular ion [M+H]+at m/z 1031.4 and a deprotonated molecular ion [M-H]+at m/z 1029.37, which is like temsirolimus. TS monoester gave two fragment ions at m/z 590 (A) and m/z 437 (B) in the MS/MS experiment [23, 24]. These two ions resulted from the cleavage of the C31/C32 bond and the O24/C25 ester bond. These characteristic cleavages are also observed in rapamycin and temsirolimus with the loss of neutral species, such as H2O, MeOH, and/or CO2. B ion further generated the fragment ions of m/z 407, m/z 389 and m/z 371 and ion A produced the fragment ions of m/z 546, m/z 528, m/z 514, and m/z 496. Further cleavage of A ion at C8/C9 and C35/C36 (allylic cleavage) followed by loss of methanol gave fragment ions at m/z 261, m/z 229 and m/z 147. β-Cleavage of C33 ketone produced the fragment ion of m/z 101 [23, 24]. The ion at m/z 252 was formed by C8/C9 cleavage followed by CO2 loss (cleavage at C22/C23) in the left region of the A ion. The ion m/z 234 resulted from a further loss of H2O. Additional fragment ions at m/z 168 and m/z 128 arose from cleavages occurring at C13/C15 and C23/O24 and cleavage of the amide bond (C16/N17) respectively. These ions (m/z 252, m/z 234, m/z 168, and m/z 128) from the left region of the A ion. This fragmentation pattern is also found to be same as temsirolimus fragmentation [23, 24]. A significant difference is observed in the 1H NMR spectrum (table 2) and HPLC retention time of TS monoester with respect to temsirolimus. This shows that the TS monoester could be an isomer of temsirolimus. These fragment ions agree with the fragmentation pathway of the proposed structure of TS monoester. Further confirmation came from HPLC retention time, FT-IR spectrum (table 3) and 1H NMR spectrum (table 2) and comparing TS monoester with temsirolimus standard substance spectral data. IR spectrum displayed characteristic absorption at 3375.9, 1718.5 and 1641.42 cm−1 corresponding to broad peak OH, non-conjugated C=O and conjugated and non-conjugated C=C stretching. Therefore, infrared spectrum of the compound confirms all the major functional groups presented in the TS monoester. 1H NMR spectrum of TS monoester (table 2) showed a significant change in the chemical shift value of the proton at the C31 position. C31 hydroxyl proton signal was found to be absent in TS Monoester while in temsirolimus, the C31 hydroxyl proton signal is observed at 2.13-2.15 ppm. Another significant difference is observed in the chemical shift value of the proton at the C42 position. The C42 hydroxyl proton signal was found to be present in TS monoester while absent in temsirolimus, the C42 hydroxyl proton signal is observed at 3.93 ppm. 1HNMR spectrum of TS monoester confirms the positions of hydrogen atoms and their environment in the molecule. Based on spectral data, TS monoester is confirmed as regio isomeric form of temsirolimus. Molecular formula of TS monoester is C56H87NO16 and molar mass is 1030.29. Systematic (IUPAC) name is (3S, 6R, 7E, 9R, 10R, 12R, 14S, 15E, 17E, 19E, 21S, 23S, 26R, 27R, 34aS)-27-hydroxy-3{(2R)-1-[(1S, 3R, 4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10, 21-dimethoxy 6, 8, 12, 14, 20, 26-hexamethyl-1,5,11,28,29-pentaoxo 1, 4, 5, 6, 9, 10, 11, 12, 13, 14, 21, 22, 23, 24, 25, 26, 27, 28, 29, 31, 32, 33, 34, 34a-tetracosahydro-3H-23,27-epoxypyrido-[2,1-c][1,4]oxazacyclo-hen-triacontin-9-yl-3-hydroxy-2-(hydroxymethyl)-2-methyl propanoate.

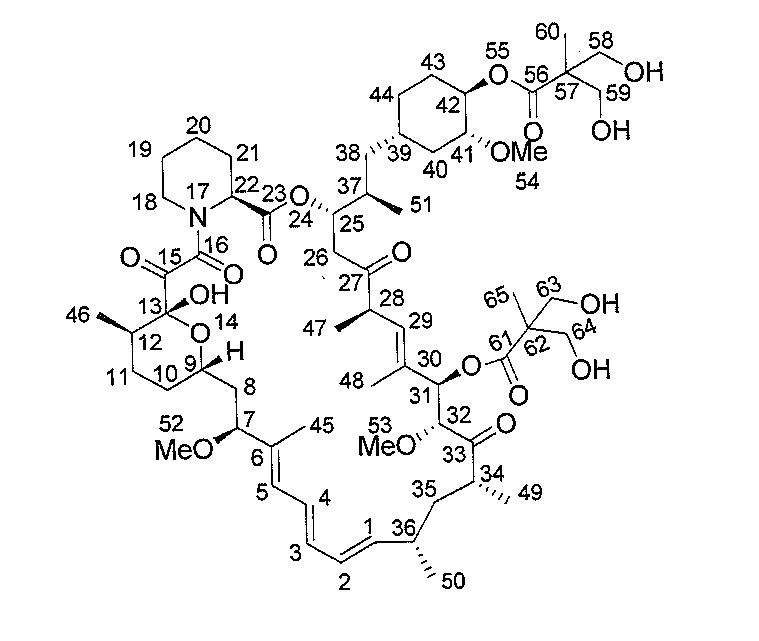

Structure elucidation of TS diester

TS diester is yet another impurity formed during the manufacture of temsirolimus drug and it is identified as 31-membered macrocycle of 15 stereo-centers and multiple functional groups with a hydroxyl ester process impurity for temsirolimus for the 31 position. The mass spectrum of TS diester showed an ammonium adduct [M+NH4]+m/z 1164.7, a protonated molecular ion [M+H]+m/z 1148.1 and a deprotonated molecular ion [M-H]-at m/z 1145.5 in ES negative mode, indicating that the TS Diester has molecular mass more than that of temsirolimus by 116.5 Da. Hence the TS diester is an ester of temsirolimus. TS diester exhibited a molecular ion at m/z 1146.5 in the negative ESI MS spectrum. TS diester on fragmentation gave two important ions at m/z 590 (A) and m/z 437 (B) in the MS/MS experiment. These characteristic cleavages were also observed in rapamycin, TS monoester and temsirolimus with the loss of neutral species, such as H2O, MeOH, and/or CO2 [23,24]. B ion on fragmentation generated ions of m/z 407, m/z 389, and m/z 371. The A ion produced fragment ions of m/z 546, m/z 528, m/z 514, and m/z 496. This same fragmentation pattern was found in temsirolimus [23,24] also. This indicates that TS diester could be an ester of temsirolimus. A significant difference is observed in the 1H NMR spectrum (table 2) of TS diester with respect to temsirolimus. Further confirmation was given by the HPLC retention time, FT-IR (table 3) and 1H NMR spectrum (table 2) and comparing TS monoester with temsirolimus standard substance. IR spectrum displayed characteristic absorption at 3453.6, 2965.6, 2934.7 1721.0 and 1644.4 cm−1 corresponding to broad peak O-H stretching, aliphatic C-H stretching, non-conjugated C=O and conjugated and non-conjugated C=C stretching. These infrared spectral values confirm the major functional groups presented in the TS diester. 1H NMR spectrum of TS monoester (table 2) showed a 1H chemical shifts value of the proton at the C31 position. This C31 hydroxyl proton signal was absent in TS diester. In temsirolimus, the C31 hydroxyl proton signal is observed at 2.13-2.15 ppm. Another significant difference is observed in the 1H chemical shifts value of the proton at the C65 position. The C65 methyl proton signal was found to be present in TS diester while absent in temsirolimus. C65 methyl proton signal is observed at 1.23 ppm. One more significant difference is observed in the 1H chemical shifts value of the proton at the C63 and C64 position. The C63 andC64 hydroxyl proton signal was found to be present in TS diester which is absent in temsirolimus. C63andC64 hydroxyl protons signal are observed at 2.91-3.05 ppm. Another difference is observed in the chemical shifts value of the proton at the C42 position also. The C42 hydroxyl proton signal is found to be absent in TS diester while in TS monoester the C42 hydroxyl proton signal is observed at 3.93 ppm. One another significant difference is observed in the 1H chemical shifts value of the proton at the C63 and C64 position. The C63 andC64 methyl proton signal was found to be present in TS diester while absent in TS. In TS diester C63andC64 methyl proton signal is observed at 3.55-3.88 ppm. 1H NMR spectrum of TS diester confirms the remaining hydrogen atoms and their environment in the molecule. Based on spectral data, TS diester is confirmed as hydroxyl ester of temsirolimus. A molecular formula of TS diester is C61H95NO19 and molar mass is 1146.40. Systematic (IUPAC) name is (1R, 2R, 4S)-4-{(2R)-2-[(3S, 6R, 7E, 9R, 10R, 12R, 14S, 15E, 17E, 19E, 21S, 23S, 26R, 27R, 34aS)-27-hydroxy-9-{[3-hydroxy-2-(hydroxymethyl)-2-methylpropanoyl] oxy}-10, 21-dimethoxy-6, 8, 12, 14, 20, 26-hexamethyl-15, 11, 28, 29-pentaoxo-1, 4, 5, 6, 9, 10, 11, 12, 13, 14, 21, 22,23, 24, 25, 26, 27, 28, 29, 31, 32, 33, 34, 34a-tetracosahydro-3H-23, 27-epoxypyrido[2, 1-c][1,4] oxazacyclo-hentriacontin-3-yl]propyl}-2-methoxycyclohexyl 3-hydroxy-2-(hydroxymethyl)-2-methyl propanoate.

CONCLUSION

Temsirolimus (sirolimus-42-[2,2-bis-(hydroxymethyl)]-propionate) is an ester analog of rapamycin, a natural macrolide antibiotic with antifungal, antitumor, and immunosuppressive activities. The present research work describes a HPLC method for detection, separation of three process related impurities from temsirolimus and MPLC method for isolation of these impurities from the temsirolimus bulk drug. All the three impurities detected, were characterized with the help of LC-MS/MS, FT-IR and NMR experimental data but mainly depends on their retention times in chromatography. Of these three process impurities, one impurity rapamycin was previously known, while other two process impurities were found to be novel and were characterized as temsirolimus regioisomer (monoester) and temsirolimus diester in this study.

AUTHORS CONTRIBUTIONS

Gorla S Reddy contributed much in the collection and analysis of data. He also interpreted the experimental work in our laboratories. Design and critical revision of the work and in the drafting of the article has been done by Chava V N Rao. DR. Chava V N Rao is the supervisor of this present work.

CONFLICT OF INTERESTS

The authors declare that they have no conflict of interest. This work and this article do not contain any studies with animals or human participants performed by any of the authors.
