DEVELOPMENT OF A SENSOR BY ELECTRO-POLYMERIZATION OF ERICHROME BLACK-T ON GLASSY CARBON ELECTRODE AND DETERMINATION OF AN ANTI-INFLAMMATORY DRUG DICLOFENAC

ROHINI M. HANABARATTI1, JAYANT I. GOWDA2, SURESH M. TUWAR1*

1Department of Chemistry, Karnatak Science College, Dharwad 580001, Karnataka, India, 2P. G. Department of Chemistry, P. C. Jabin Science College, Hubballi 580031, Karnataka, India
Email: sm.tuwar@gmail.com

Received: 04 Nov 2018 Revised and Accepted: 31 Dec 2018

ABSTRACT

Objective: The aim of this study was to develop a simple, reliable voltammetric method and its validation for determination of nonsteroidal anti-inflammatory drug diclofenac (DFC).

Methods: The proposed method was based on electro-oxidation of DFC at poly (erichrome black T) modified glassy carbon electrode (PEBT/GCE) in 0.2 M phosphate buffer solution of pH 7.0. Cyclic voltammetry and differential pulse voltammetric techniques were employed to study electro-oxidation behavior. Under the optimal conditions, variations of EBT concentration, effect of pH, scan rate on the oxidation of DFC was studied.

Results: A well-defined oxidation peak at about +0.59 V vs. standard calomel electrode was observed for voltammetric detection of DFC. pH effect shows the participation of an equal number of protons and electrons in the mechanism. The relation between a logarithm of peak current with the logarithm of scan rate indicated adsorption controlled behavior of electrode process. Concentration variations show a good linear response in the range 0.05 µM to 40 µM with the detection limit of 5.25 × 10-8 M.

Conclusion: The prepared sensor exhibited good selectivity, sensitivity, and stability for the detection of DFC in the pharmaceutical dosage form and real samples. The developed method could possibly be adopted for pharmacokinetic studies and also in clinical and quality control laboratories where time and economy were important.

Keywords: Diclofenac, Modified electrode, Detection limit, Calibration plot

© 2019 The Authors.Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2019v11i2.30648

INTRODUCTION

Diclofenac (2-(2-(2,6-dichlorophenylamino)phenyl)acetic acid), as shown in (fig. 1) is a non-steroidal anti-inflammatory drug. It is widely used as an analgesic, anti-rheumatic, anti-inflammatory, anti-thermal and for the treatment of arthritis and degenerative joint disease [1, 2]. These drugs are applied both for acute and long-term chronic cases [3]. Clinically, the sodium salt of diclofenac is the most generally used painkiller [4]. Patients are frequently given special formulations of DFC or a co-treatment agent as a therapeutic strategy to attenuate the gastrointestinal tract complications that limit the use of DFC and other NSAIDs [5-7].

Fig. 1: Chemical structure of DFC

Drug analysis is an important branch of analytical chemistry and plays an important role in drug quality control. Electro-analytical techniques have been used for the determination of a wide range of drug compounds. Numerous analytical methods have been reported for the determination of DFC [8-24]. Compared to voltammetric methods, most of the methods reported in the literature are costly, need complex pre-concentration as well as derivatization. Many methods require expensive instruments, long analysis time, a highly skilled technician and laborious sample pretreatment, which make them unsuitable for routine analysis. Taking the above-mentioned lacune, electrochemical methods are characterized by portability, simplicity, minimal cost, and reasonably short analysis time.

DFC shows the low current response at the bare electrodes. This problem can be solved through modification of electrodes. Chemical modification such as nanoparticle composite electrodes and polymer modified electrodes have attracted great attention as they have good stability and reproducibility for sensitive determination of pharmaceutical drugs [25-26]. Electro-polymerization is a good approach to immobilize polymers because adjusting the electrochemical parameters can control film thickness, permeation and charge transport characteristics [27-33]. Poly (eriochrome black T) modified glassy carbon electrode [34-37] have attracted more attention because of their novel electrode material which exhibits several excellent electrochemical properties and high electrochemical stability.

To the best of our knowledge, very little work has been reported on the electrochemical determination of DFC. In this work, the electrocatalytic activity of a PEBT/GCE was investigated for the electrochemical oxidation of DFC in buffer solution using cyclic voltammetry. The objective of the current work was to develop a simple and sensitive method for the determination of DFC, based on the excellent electrochemical properties and high electrochemical stability of EBT.

MATERIALS AND METHODS

Experimental

Apparatus

Electrochemical experiments were carried out on Model CHI1112C (Version 9.03) USA with a traditional three electrode compartment. A calomel electrode, a platinum wire, and a PEBT/GCE were used as the reference, auxiliary and working electrodes, respectively. Elico pH meter was used for pH measurements.

Preparation of the poly (EBT)-modified electrode

Prior to the modification, for good reproducible results and to improve sensitivity and resolution of voltammetric peaks, GCE was polished with 1 μm, 0.3 μm and 0.05 μm α-alumina powder, and then washed successively with doubly distilled water in an ultrasonic bath, and allowed to dry at room temperature. Later, the PEBT/GCE was prepared by electropolymerization of GCE in 0.5 M H2SO4 containing different concentrations of EBT. Best results were obtained for 1.0 mmol EBT within the potential series of -0.4 V to 1.5 V for 20 cycles with the scan rate of 0.025 Vs-1. The surface area of the modified electrode was evaluated and compared with the bare electrode.

Analytical procedure

The PEBT/GCE was first stabilized in 10 ml 0.2 M phosphate buffer solution (pH 7.0) by 3 cyclic voltammetric (DPV) sweeps between 0.0 V to 1.4 V. Then, the electrode was transferred into another glass conventional cell containing an adequate amount of 0.2 M phosphate buffer solution (pH 7.0), and aliquots of the stock solution of DFC were added.

The DFC determinations in pharmaceutical and urine samples were carried out by differential pulse voltammetry. A systematic study of DPV parameters was conducted, and the best chemical conditions were initially evaluated. After optimization of the parameters, the DPV voltammograms were obtained in a potential range from +0.3 V to +0.8 V vs. Ag/AgCl (3.0 mol L-1 KCl) with an accumulation time of 60 s. The analytical curve was constructed using the DPV voltammograms obtained after the successive addition of aliquots of the DFC stock solution into the electrochemical cell containing an appropriate amount of 0.2 M phosphate buffer solution (pH 7.0). Each concentration was a measurement in triplicate.

Pharmaceutical sample preparation

Commercial samples (50 mg DFC tablets) were obtained from a local market. Ten DFC tablets were weighed and ground to a homogeneous powder in a mortar and then placed into a 250 ml of conical flask. Little warm water was added into the flask and the sample was sonicated for 30 min to dissolve completely and left to cool. The sample solution was filtered through a filter paper (Whatman No. 42) into 100 ml volumetric flask and made up to the volume with 0.2 M phosphate buffer pH 7.0.

Urine sample preparation

The fresh human urine samples were collected in dark glass containers, filtered through Whatman 42 filter paper, stored in a refrigerator and analyzed within 8 h after collection. Without any pre-treatment, samples were diluted with the buffer solution of pH 7.0 to the working range of the determination of DFC, and then it was used for analysis. The standard addition method was used for the determination of an analyte in real samples.

RESULTS AND DISCUSSION

Electrocatalytic oxidation of DFC at poly (eriochrome black T) modified GCE

The electrochemical behavior of DFC was studied by cyclic voltammetry in a 0.2 mol L-1 phosphate buffer solution (pH 7.0). The cyclic voltammogram obtained for a 1.0 × 10-4 mol L-1 DFC solution using the PEBT/GCE was compared with the cyclic voltammograms of GCE (fig. 2). In the bare GCE, a low oxidation peak was observed at +0.62 V. Under identical experimental conditions, a higher anodic peak current density was observed for PEBT/GCE at +0.59 V. This result is clear evidence of catalytic behavior of developed electrode towards DFC. The cyclic voltammograms presented an anodic peak due to the oxidation of DFC and no peak in the reverse direction was observed, indicating that the oxidation of DFC on the electrodes is an irreversible process.

Effect of supporting electrolyte and solution pH

The voltammetric behavior of DFC was investigated by cyclic voltammetry in many supporting electrolytes, such as sulfuric acid, phosphate buffer, acetate buffer, Britton-Robinson buffer, and KCl solutions. The best anodic peak with regard to the definition and smaller potential work for DFC oxidation was obtained in phosphate buffer solution. After this study, the effect of solution pH on the oxidation of DFC at the PEBT/GCE was investigated in a 0.2 mol L-1 phosphate buffer solution over the pH range from 3.0 to 9.2. Cyclic voltammograms of 1.0 × 10-4 mol L-1 DFC (scan rate 50 mV s-1) were recorded (fig. 3A). It has been noticed that the anodic peak potentials shifted to less positive potentials when the pH increases as shown in fig. 3B with regression equation Epa=-0.0539 mV/pH+0.8346, R2=0.9813. In addition, the analytical signal gradually increased from pH 3.0 to 7.0 and the highest value was observed at pH 7.0 (fig. 3C). Thus, a pH 7.0 (0.2 mol L-1 phosphate buffer solution) was selected as supporting electrolyte for further study.

Fig. 2: Cyclic voltammograms of 0.1 mmol DFC at poly (EBT) modified glassy carbon electrode in 0.2 M phosphate buffer solution of pH 7.0 with scan rate 0.05 V/s. a) PEBT/GCE b) bare GCE

Fig. 3A: The effect of phosphate buffer pH on the peak current of 0.1 mmol DFC at pH: 3.0-9.2. Scan rate 50 mV s−1

Fig. 3B: The relationship between the peak potential and pH at 50 mVs−1 using PEBT/GCE

Fig. 3C: Relationship between the oxidation peak current and the pH

Effect of accumulation potential and adsorption time

The effect of accumulation potential on the oxidation of 1.0 ×10-4 M DFC was investigated on the PEBT/GCE. The range of potential evaluated was from 0.0 to 1.4V, and the obtained peak current density was constant in this potential range, suggesting that the accumulation potential had no effect on the oxidation peak current density. Thus, an open-circuit accumulation of analyte was adopted. The influence of the accumulation time on the oxidation peak current density of DFC was also studied (fig. 4). The anodic peak increases with the accumulation time from 0 to 60 s. After this time, it remained practically constant due to saturation of the electrode surface. Therefore, an accumulation time of 60 s was selected for further work.

Fig. 4: Effect of accumulation time on peak current of 0.1 mmol DFC

The effect of scan rate

The electrochemical response of 0.1 mmol DFC at PEBT/GCE was investigated at different scan rates from 50-250 mVs-1. The PEBT/GCE showed an increase in the peak currents with the increase in the scan rates with a small shift in the oxidation peak potential towards more positive potential. This result is in accordance with Randles-Sevick’s equation, confirming the kinetic limitation of the electrochemical process. The plot of anodic peak current (Ip) versus scan rate (υ) gives almost straight line (fig. 5A) with linear regression equation of Ip(µA)=0.915 ν (mVs-1) +1.9089; R2= 0.9926. The plot of log peak current vs log scan rate shows a linear relationship with the slope value of 0.784, which is nearly equal to 1.0, indicates that the electrode process was controlled predominantly by adsorption process rather than diffusion process in the investigated scan rates [38]. With an increase of ν, the peak potential (Epa) shifts positively and there is a linear relationship between them, the regression equation is: Epa = 0.038 log ν + 0.523; (Epa in V, ν in Vs-1, R2 = 0.980, fig. 5B). For irreversible electrode process, Leviron equation was used to calculate the number of electrons transferred and heterogeneous rate constant [39]:

Value of α was calculated by the following equation as given by Bard and Faulkner [40],

Here EP/2 is the potential when the current is at half the peak value. From this, the value of α was calculated to be 0.7014. The αn is calculated to be 1.556 hence n is equal to 2.21. Other symbols are having their usual meanings. Further, the heterogeneous rate constant k° was calculated from the intercept of the log scan rate vs. Epa if the value of E°’ is known. The value of E°’ in above can be obtained from the intercept of Epa vs. ν curve by extrapolating to the vertical axis at ν = 0[41]. In our system the intercept for Epa vs. log ν plot was 0.523 and E°’ was obtained to be 0.514 and the k° was calculated to be 104. 84 s-1.

Fig. 5A: Dependence of peak current on scan rate for 0.1 mmol DFC

Fig. 5B: Plot of variation of peak potential (EP/V) with logarithm of scan rate (log υ/mVs-1)

Mechanism

Oxidation of DFC takes place at the positive potential, which depends on pH and the type of the electrode used. pH effects show oxidation potential is pH dependent with a slope of -0.0539 mV/pH which was equal to the expected Nernst value for a two-electron, two-proton electrochemical reaction. The number of electrons calculated was 2.0. Based on the experimental observations and earlier reported results [15, 42-44], electro-oxidation of diclofenac leads to 5-OH diclofenac as shown in scheme 1.

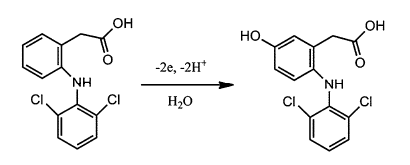

Scheme 1: Electro-oxidation of DFC at PEBT/GCE

Fig. 6A: Differential pulse voltammograms with increasing concentration of DFC (1-9: 0.05-40 µM)

The effect of concentration on PEBT/GCE

The effect of varying concentration of DFC was studied at PEBT/GCE in 0.2 M PBS H 7.0 at a scan rate of 50 mVs-1 as shown in the fig. 6A. It is clearly observed that anodic peak current of DFC was increased as the concentration of DFC increases in the range 0.05 × 10-6 to 40 × 10-6 M. The plot of Ip versus concentration of DFC shows linearity in the graph (fig 6B). The linear equation was Ip(µA)= 0.24029 (DFC×10-6 M/l) +1.087. The limit of detection and limit of quantification was calculated by using equation (1) and (2).

LOD=3S/M …. (1)

LOQ=10S/M …. (2)

Where S is the standard deviation and M is the slope of calibration plot. The limit of detection and limit of quantification for DFC was found to be 5.25 × 10-8 mol L-1and 1.71×10-7 mol L-1respectively. The characteristics of the calibration plot are as given in table 1. The linear range and detection limit of proposed sensor was compared with some of the earlier reported sensors as shown in table 2.

Fig. 6B: Calibration plot showing a linear variation of peak current

Table 1: Regression data of the calibration lines for quantitative determination of diclofenac

Parameters DPV

Measured potential (V)

Linearity (µM)

Slope

Intercept

R2

LOD (μM)

LOQ (μM)

Repeatability of peak current (RSD%)

Repeatability of peak potential (RSD%)

Reproducibility of peak current (RSD%)

Reproducibility of peak potential (RSD%)

0.3-0.8

0.05-40

0.2356

1.08

0.999

0.0525

0.175

1.78

1.61

4.31

4.91

Table 2: Comparison of the analytical parameters of several modified electrodes for diclofenac determination

Electrode Linear range LOD Reference
Tyrosine modified carbon paste electrode 10 μM–140 μM 3.28 μM 18
Ionic liquid multiwall carbon nanotubes paste electrode 0.3μM–750 μM 0.09 μM 44

Ionic liquid-modified carbon nanotubes paste electrode

 0.5μM–300 μM 0.2 μM 21
Multi-Walled Carbon Nanotube-Ionic Liquid Composite Modified Carbon Ceramic Electrode 50 nM–20 µM 27 nM 20

Cu‐Doped Zeolite‐Expanded Graphite‐Epoxy Electrode

 0.2μM-30 μM 5×10−8 M 45
Carbon Nanotube-Graphite Mixture 0.15μM-6.7 μM 5.06 ×10−8 M 23
Silica Nanoparticles Modified Carbon Paste Electrode 0.1 μM-500.0 μM 0.046 μM 46
Immobilized copper ions on MWCNTS-Chitosan modified GCE 0.3 mmol-200 mmol 0.021 mmol 47
Poly(EBT) modified GCE 0.05 μM–40μM 5.25×10−8 M Present method

Reproducibility and stability

The prepared sensor should exhibit regeneration and reproducibility to get more accurate results. These two properties are important for the prepared sensor. The reproducibility of the sensor was monitored by four parallel electrochemical measurements for 1.0 × 10-6 mol L-1 DFC and the results showed that a relative standard deviation (RSD) of 5.2 % (n=4) was estimated, exhibiting a high reproducibility of the constructed sensor. To evaluate the stability of the PEBT/GCE, electropolymerized GCE was kept undisturbed in an elevated condition for one week. No obvious changes were found in the current response to the same sample concentration.

Therefore, the stability of the proposed electrode was good enough for the electrochemical application.

Selectivity

Selectivity of the method was tested by adding an excess of interfering substances into the detecting system, containing a fixed concentration of the analyte. No remarkable change in the potential was observed by the addition of 100 fold excess of ascorbic acid, dextrose, lactose, urea, lactose, oxalic acid, fructose indicates the good selectivity of the prepared sensor. The results are tabulated in table 3.

Table 3: Influence of potential excipients on the oxidation potential of DFC

Excipients(1.0 mmol)+ drug (1.0 × 10-6) Potential observed (V) Signal change (%)

Only DFC

Glucose

Gum Acacia

Sucrose

Citric acid

Dextrose

Lactose

Tartaric acid

Starch

0.596

0.574

0.621

0.576

0.605

0.582

0.598

0.584

0.582

-

-3.69

4.19

-3.35

1.51

-2.34

0.33

-2.01

-2.43

Analytical application

Determination of DFC in pharmaceutical dosages

DPV technique was employed to the direct determination of DFC in tablet dosage forms, using the related calibration curve after adequate dilutions. The results show that the proposed methods were successfully applied for the assay of DFC in its pharmaceutical dosage forms (table 4).

Determination of DFC in spiked urine samples

The measurement of DFC in urine sample was performed as discussed in the experimental section. The applicability of the proposed methods to the human urine sample, the calibration graph was used. Analysis of drugs from biological samples usually requires extensive time-consuming sample preparation, use of expensive organic solvents and in sometimes, use of other chemicals. In this study, the urine samples were collected in a dark container, and diluted with the supporting electrolyte and directly analyzed. It has been found that using the proposed technique, no sample pre-treatment was required, other than dilution step. No oxidation compounds and no extra noise peaks present in biological material peak occurred in the potential range where the analytical peak appeared. The recovery results are as shown in table 5.

Table 4: Recovery of DFC in pharmaceutical preparations

Diclofenac DPV

Labeled claim (mg)

Amount found (mg)a

R. SD (%)

Added (mg)a

Found (mg)

Recovered (%)

R. SD of recovery (%)

50

48.48

2.67

2.0

1.92

96.37

1.49

Table 5: Recovery of DFC in spiked human urine samples

Sample Added (× 106 M) Found (mean±SDa) (×106 M) Recovery (%) RSDb (%)

1

2

3

4

5

2

4

6

8

10

2.03±0.044

3.99±0.061

5.87±0.160

8.02±0.063

10.15±0.145

101.56

99.87

97.82

100.23

101.46

2.14

1.55

2.72

0.79

1.43

SDa: Standard deviation of five replicate determinations, RSD: Relative standard deviation, bAverage of five replicate determinations

CONCLUSION

The present work illustrates the oxidation behavior of DFC on the poly (erichrome black T) modified glassy carbon electrode. When the potential was made to move, DFC produced one anodic peak at ∼0.59 V in 0.2 mol L-1 phosphate buffer solution (pH 7.0). The oxidation process was irreversible and adsorption controlled. This method could be used successfully to determine DFC in the pharmaceutical samples. The proposed method offers the advantages of accuracy, as well as the simplicity of reagents and apparatus. In addition, the analysis of DFC present in spiked urine samples demonstrated the applicability of the method for real sample analysis. Furthermore, the present method could possibly be adopted for pharmacokinetic as well as clinical and quality-control laboratories.
