Int J Pharm Pharm Sci, Vol 12, Issue 1, 43-47Original Article

EVALUATION OF [11C]MPC-6827 AS A MICROTUBULE TARGETING PET RADIOTRACER IN CANCER CELL LINES

J. S. DILEEP KUMAR1*, JAYA PRABHAKARAN1,2, NARESH DAMUKA3 JUSTIN W. HINES3, STEVEN J. KRIDEL4, J. JOHN MANN1,2,5, AKIVA MINTZ5, KIRAN KUMAR SOLINGAPURAM SAI3*

1Molecular Imaging and Neuropathology Division, New York State Psychiatric Institute, New York, 1051 Riverside Drive, New York, NY 10032, USA, 2Department of Psychiatry, Columbia University Medical Center, 1051 Riverside Drive, New York, NY 10032, USA, 3Department of Radiology, Wake Forest School of Medicine, One Medical Center Boulevard, Winston-Salem, NC 27157-1088, USA, 4Department of Cancer Biology, Wake Forest School of Medicine, One Medical Center Boulevard, Winston-Salem, NC 27157-1088, USA, 5Department of Radiology, Columbia University Medical Center, 622 West 168th Street, PB-1-301, New York, NY 10032, USA
Email: dileep.kumar@nyspi.columbia.edu, ksolinga@wakehealth.edu

Received: 11 Sep 2019, Revised and Accepted: 19 Nov 2019

ABSTRACT

Objective: The objective of this study was to evaluate the uptake and specificity of [11C]MPC-6827, a MT targeted PET ligand in prostate, glioblastoma and breast cancer cells.

Methods: [11C]MPC-6827 was synthesized by reacting corresponding desmethyl precursors with [11C]CH3I in a GE-FX2MeI/FX2M radiochemistry module. In vitro binding of [11C]MPC-6827 was performed in breast cancer MDA-MB-231, glioblastoma (GBM) patient-derived tumor (GBM-PDX), GBM U251 and prostate cancer 3 (PC3) cell lines at 37 °C in quadruplicate at 5, 15, 30, 60, and 90 minute incubation time. The nonspecific bindings were determined by incubation with unlabeled microtubule targeting agents MPC-6827, HD-800, colchicine, paclitaxel and docetaxel (5.0 µM).

Results: [11C]MPC-6827 provided the highest binding in the breast cancer cell, MDA-MB-231, among all the cells studied, with 90% specific binding. [11C]MPC-6827 binds to glioblastoma PDX and U251 cells with ~50% and 40% specific binding, whereas, prostate cancer cell line, PC3 cells showed 40% specific binding. [11C]MPC-6827 also exhibits binding to the taxane and colchicine binding sites of MTs, in MDA-MB-231 cells.

Conclusion: These data indicate that [11C]MPC-6827 can be a promising PET radiotracer for preclinical imaging of the brain and peripheral cancers.

Keywords: PET, Microtubule, Radiotracer, Cancer, Cytoskeleton

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2020v12i1.35657. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps

INTRODUCTION

Microtubules (MTs) are one of the major components of cytoskeletal polymers, which are found in all eukaryotic cell. They are comprised of repeating, non-covalently bound α, and β-tubulin heterodimers [1-4]. MTs serve as cellular conveyer belts that ferry vesicles, granules, and organelles like mitochondria, and chromosomes throughout the cell. Biochemical activities of MTs are regulated by free tubulin dimers, microtubule-stabilizing proteins (MSP), microtubule destabilizing or depolymerizing proteins, microtubule-associated proteins (MAP), and post-translational modification (PTM) of tubulin [5-8]. MTs also interact with intracellular transport proteins (e. g., kinesins and dyneins) and regulate tumor suppressor protein p53, and prosurvival proteins, such as Bcl-2 and survivin [9-11]. Correct alignment of the MT and mitotic spindle during cell division is crucial for cell fate determination, tissue organization, and normal development. Mutations associated with spindle disorientation through an increase in MT dynamics lead to an imbalance causing reduced or excessive cell proliferation that can result in cancer, birth disorders and brain diseases [12-17]. Altered tubulin isotype expression is the most widely characterized MT alteration reported in cancer [17]. Among these, β-isoform overexpression is a prognostic biomarker for poor overall survival in the majority of cancers and tumors, which is also correlated with drug resistance [18-22].

MTs have been among the most successful targets in anticancer therapy and therefore, a large number of microtubule targeting agents (MTAs) are in various stages of clinical development. Three classes of ligands (vinca alkaloids, paclitaxel derivatives and colchicine) are in market for the treatment of several malignancies and other disorders [23-26]. The application of these drugs has shown several limitations, however, such as neurological and bone marrow toxicity, and emergence of drug-resistant tumor cells due to the overproduction of multi-drug resistance-1 (MDR1), affinity to P-glycoprotein (p-GP) and breast cancer resistance protein (BCRP), and overexpression of different β-tubulins or tubulin mutations. To overcome these hurdles, several strategies are being developed to identify new MTAs as potential cancer therapeutics [27-32].

The successful radiotracers reported for MTs to date are [11C] paclitaxel, [18F] fluoropaclitaxel and [11C]docetaxel [33]. Among this docetaxel and paclitaxel are well-characterized substrates of efflux transporters (p-GP, MDR1, BCRP), and therefore, the radiotracers do not show much uptake in the brain [33]. In this context, a screen of MTAs as positron emission tomography (PET) imaging agents found that [11C]MPC-6827 is the first successful brain penetrant PET tracer that exhibits high specific binding to MT in rodents [34]. Herein, we report the in vitro evaluation of [11C]MPC-6827 in triple-negative breast cancer MDA-MB-231, glioblastoma (GBM) patient-derived tumor (GBM-PDX), GBM U251 and prostate cancer-3 (PC3) cell lines.

MATERIALS AND METHODS

Materials

The commercial chemicals and solvents used in the synthesis were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO), Fisher Scientific Inc. (Springfield, NJ), or Lancaster (Windham, NH) and were used without further purification. MPC-6827, desmethyl-MPC-6827 and [11C]MPC-6827 were synthesized as reported previously [34]. [11C]CO2 was produced from GE PET trace cyclotron. All the cancer cell lines were obtained from ATCC (VA, USA).

Cell uptake experiments

All the cell lines were cultured at 1x105 cells per 6 well (Corning, NY, USA) for 48 h in 5% CO2 in 10% phosphate buffer culture medium (Gibco, Fishersci, VA). Three days before the uptake assays, aliquots of 2.5x104 cells suspended in culture media were added to each well of Costar 6-well plates to achieve the log growth phase with approximately 70% confluency at the time of the uptake assay. Additionally, the cells were incubated for an additional 24 h prior to the day of performing the cell assay. The blocking solution of MPC-6827 [34], HD-800 [35], docetaxel, paclitaxel, and colchicine (Sigma Aldrich, MO) at a concentration of 5.0 µM in the same culture media was freshly prepared on the same day of cell assay. All assays were performed in triplicate at pH 7.4. To demonstrate the blocking efficacy, all the blocker solutions were added to the corresponding blocking wells 30 min prior to the addition of the radiotracer. The assay buffer was formulated with radiotracer by adding 20 µl/ml of [11C]MPC-6827, at a concentration of 74 kBq/ml to each block and non-block condition. Three incubation times of 5, 15, 60 min were selected to demonstrate the baseline uptake and blocking for PC3, GBM-U251 and GBM-PDX cells, whereas, an additional 90-minute incubation was performed for MDA-MB-231 cells. The cell uptake assays were initiated by rinsing the cells with 2 × 2 ml of the phosphate buffer at room temperature [36-38]. Uptake was allowed to proceed for selected time periods and then rinsed with 1 ml of the ice-cold buffer solution. Residual fluid was removed by pipette, and 200 µl of 0.1% aqueous sodium dodecyl sulfate lysis buffer solution was added to each well. The plate was then agitated at room temperature and 1 ml of the lysate was taken from each well for counting. Radioactivity was counted using the Wallac 1480 Wizard gamma counter (Perkin Elmer, Turku, Finland) [38]. Additional 20 µl aliquots were taken in triplicate from each well for protein concentration determination using the Pierce bicinchoninic acid protein assay kit method (Rockford, IL). The uptake data in each sample from each well and the standard counts for each condition were expressed as counts per minute (cpm) of activity and was decay corrected for elapsed time. The cpm values of each well were normalized to the amount of radioactivity added to each well and the protein concentration in the well and expressed as percent uptake relative to the control condition [36-38]. The data were expressed as %ID/mg of protein present in each well with p values ≤.05 considered statistically significant.

RESULT AND DISCUSSION

[11C]MPC-6827 was obtained in 40+5% yield at the end of synthesis (EOS) with a molar activity of 75+9.25 GBq/µmol and radiochemical purity>99% (fig. 1) [34].

Fig. 1: Chemical structure of [11C] MPC-6827

The uptake of [11C]MPC-6827 was first determined in prostate cancer PC3 cells [39]. The radioligand showed equilibrium binding after 60-minute incubation and the highest uptake was found at 30-minute incubation time with approximately 40% specific binding using 5 µmol of unlabeled MPC-6827 as a blocking agent to test non-specific binding (fig. 2).

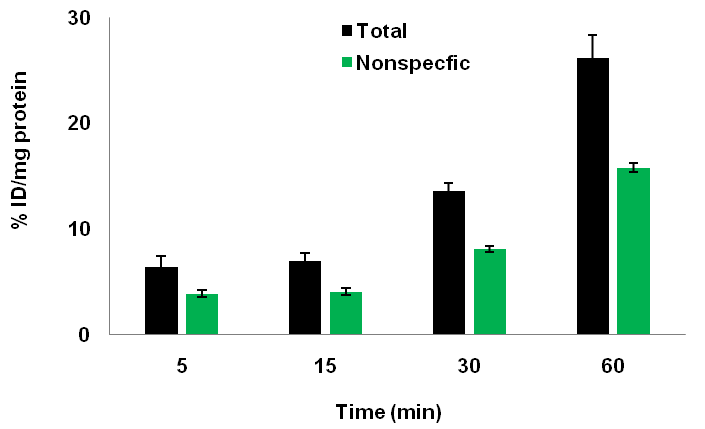

Fig. 2: Binding of [11C]MPC-6827 in PC3 cells, values are reported as the mean±SD from three independent experiments

Subsequently, the binding of [11C]MPC-6827 was determined in GBM U251 and GBM-PDX cell lines. The radioligand showed uptake in both cells, however, the binding was lower than PC3 cells up to 30 min incubation time. However, the tracer exhibit higher uptake at the 60 min incubation time point than in PC3 cells. The uptake of [11C]MPC-6827 was partially blocked (40% for GBM-U251 and 50% for GBM-PDX) with unlabeled MPC-6827 (fig. 3 and 4).

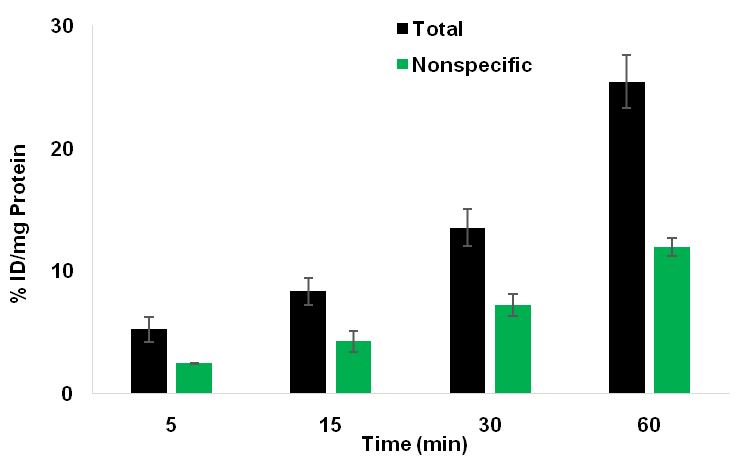

Fig. 3: Binding of [11C]MPC-6827 in GBM-U251 cancer cells, values are reported as the mean±SD from three independent experiments

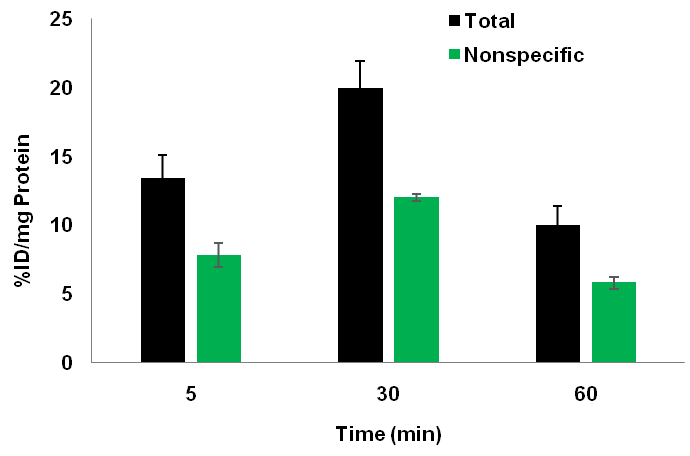

Fig. 4: Binding of [11C]MPC-6827 in GBM-PDX cancer cells, values are reported as the mean±SD from three independent experiments

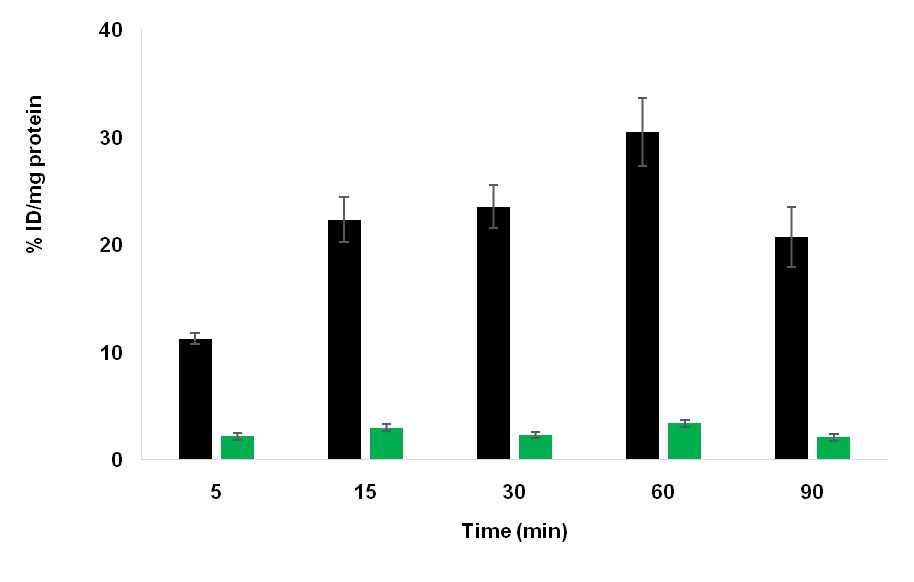

Fig. 5: Binding of [11C]MPC-6827 in MDA-MB-231 cancer cells, values are reported as the mean±SD from three independent experiments

Next, the binding of [11C]MPC-6827 was determined in MDA-MB-231 cells [40]. The radiotracer showed equilibrium binding at a 60-minute incubation time point (fig. 5). Blocking with unlabeled ligand resulted in 90% specific binding. The radiotracer uptake and specific binding were highest in MDA-MB-231 cells compared to other tested cells. The differences in binding of radiotracer in these cells may be due to its variable expression of tubulin. After optimizing the equilibrium tracer uptake at 60 min, we performed detailed blocking experiments with a series of MT ligands to determine the binding site of [11C]MPC-6827 in MDA-MB-231 cells. As is evident from these experiments, [11C]MPC-6827 showed 88%, 78%, 65%, 95%, and 95% specific binding with 5 µmol each of docetaxel, paclitaxel, colchicine, MPC-6827 and structurally distinct MTA HD-800 [35], respectively. These results are consistent with the previous reports of photoaffinity and radioligand displacement studies showing MPC-6827 compete with paclitaxel and colchicine [41]. MPC-6827 and HD-800 show comparable specific binding in MDA-MB-231 cells. This effect was similar to our previous in vivo brain PET imaging experiments in mice with MPC-6827 and HD-800 indicating similar binding sites for these ligands with MTs [34, 35]. Although MPC-6827 and HD-800 are known to bind the colchicine site of MTs [34, 35, 41], colchicine blocks the least tubulin binding sites of [11C]MPC-6827, perhaps due to its low affinity to MT polymerization (IC50 = 3.2 µM) [42]. Among the taxanes, docetaxel showed higher blocking than paclitaxel.

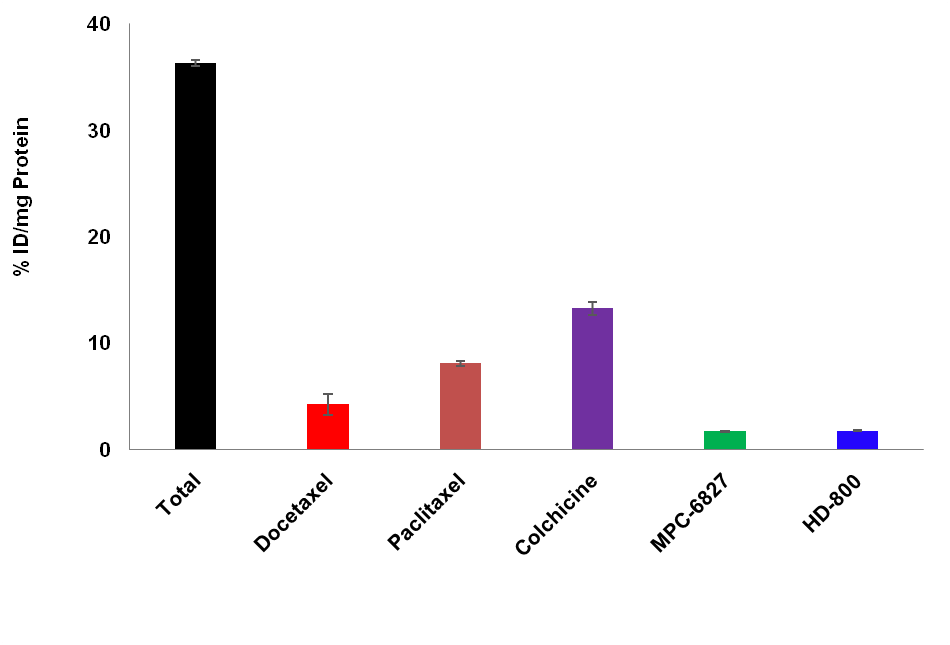

Fig. 6: Binding site determination of [11C]MPC-6827 in MDA-MB-231 cancer cells. Values are reported as the mean±SD from three independent experiments



CONCLUSSION

In summary, we have examined the cell uptake of [11C]MPC-6827 in prosteate, GBM and breast cancer cell lines. We found that [11C]MPC-6827 showed moderate specific binding in PC3, GBM-U251, and GBM-PDX cancer cells, whereas, robust specific binding was observed in breast cancer MDA-MB-231 cells with excellent specific binding. Moreover, cell uptake studies with MDA-MB-231 cells showed [11C]MPC-6827 binds to the taxane and colchicine binding sites of MTs. These results suggest that [11C]MPC-6827 can be a radiotracer for preclinical PET imaging of central and peripheral cancers.

ACKNOWLEDGEMENT

This work was supported by CTSA WFSM TIP (UL1TR001420), P30 ADRC grant (5P30AG049638-03) and Diane Goldberg Foundation (NYSPI/CUMC).

FUNDING

Nil

AUTHORS CONTRIBUTIONS

JSDK and KKSS conceived the idea, prepared manuscript. JP, ND, JWH, SK, JJM, AM helped in analyzing the data, providing feedback on the manuscript.

CONFLICT OF INTERESTS

J John Mann receives royalties for commercial use of the C-SSRS from the Research Foundation of Mental Hygiene. All other authors delcare that no conflict of interest.
