Int J Pharm Pharm Sci, Vol 12, Issue 1, 11-20Original Article

ZINC OXIDE NANOPARTICLES AMELIORATE ALUMINUM CHLORIDE-INDUCED HEPATO-RENAL OXIDATIVE STRESS AND INFLAMMATION IN RATS

SAHAR M. MAHMOUD1*, RAMI B. KASSAB2, AHMED E. ABDEL MONEIM3

1Assistant Professor of Physiology at Department of Zoology, Faculty of Science, Cairo University, Cairo, Egypt, 2Assistant Professor of Physiology at Department of Zoology and Entomology, Faculty of Science, Helwan University, Cairo, Egypt, 3Professor of Physiology at Department of Zoology and Entomology, Faculty of Science, Helwan University, Cairo, Egypt
Email: sahar@sci.cu.edu.eg

Received: 22 Aug 2019, Revised and Accepted: 18 Nov 2019

ABSTRACT

Objective: The present study was designed to evaluate the effect of zinc oxide nanoparticles (ZnO NPs) on Aluminum chloride (AlCl3)-induced hepato-renal injury.

Methods: Animals were divided into, I-control group; rats received saline, II-AlCl3 group; animals received 100 mg AlCl3/kg body weight, III-ZnO NPs group; rats received 10 mg ZnO NPs/kg body weight, and IV group ZnO NPs+AlCl3. All rats were administered their respective doses daily for 6 w. Hepatorenal function parameters in sera; aminotransferases, bilirubin, urea, and creatinine were estimated. Lipid peroxide level and nitrite\nitrate ratio, glutathione content, glutathione peroxidase, glutathione reductase, catalase, superoxide dismutase activities and interleukin-1β, tumor necrosis factor-α levels were determined in both tissues. The histopathological and the immunohistochemical investigations of nuclear factor-kB expression were carried out.

Results: ZnO NPs treatment to AlCl3-intoxicated rats significantly reduced Al accumulation (at p<0.05) in the hepatorenal tissue and increased zinc accumulation (at p<0.05) in liver and kidney, respectively, with respect to AlCl3-group, thus inhibiting oxidative stress and inflammation parameters represented by lipid peroxidation and nitric oxide levels (at p<0.05) compared to AlCl3 group and elevated antioxidant parameters (at p<0.05), compared to AlCl3 treated group, while suppressed interleukin-1β, tumor necrosis factor-α levels (at p<0.05) and the nuclear factor-kB activation in liver and kidney, especially in the kidney if compared to AlCl3-treated group. Hepatorenal function indices indicated significant decreases compared to AlCl3 group (at p<0.05).

Conclusion: Results indicated the ameliorative effect of ZnO NPs on aluminum-induced hepato-renal damage.

Keywords: Zinc nanoparticles, Aluminum, Inflammation, Oxidative stress, Liver, Kidney

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2020v12i1.35956. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps

INTRODUCTION

Aluminum (Al) represents about 8% of the total mineral constituents of the earth’s crust and classified among the most harmful toxicants in the environment [1]. Humans are exposed mainly to Al through drinking water, food additives, and packaging, cooking utensils, deodorants and medicines [2]. Al accumulates in different organs causing neurological, respiratory, immunological, skeletal and hematopoietic problems [3]. Reports indicated bile duct hyperplasia, liver fatty degeneration and a disturbance in transaminases and alkaline phosphatase activities following Al-intoxication [4, 5]. Chronic administration of Al-induced changes in the morphological structure of glomeruli and proximal tubular cells and affected the levels of kidney function parameters [6]. Oxidative stress is an important mechanism involved in Al-induced hepato-renal toxicity, through enhanced lipid peroxidation, nitric oxide formation and depressed cellular glutathione [5, 7].

Metal oxide nanoparticles received attention in medicine, for the prevention and treatment of diseases characterized by free radicals production [8]. Zinc oxide nanoparticles (ZnO NPs) have been used in different industrial products including textiles, paints, toothpaste, cosmetics, and bio-imaging probes. They were also used in gene-delivery drugs and as a food additive due to their antibacterial and antifungal properties [9-11]. ZnO NPs were used for their antioxidant activities [12] but could also induce cytotoxic effects [13].

As Al is detoxified in the liver and excreted mainly by the kidneys, the present study was designed to evaluate the role of ZnO NPs against Al-induced hepato-renal toxicity in rats, through estimation of Zinc and Al accumulation in liver and kidney, measurement of both organs function, oxidative stress and inflammatory status and histopathological investigation of hepato-renal tissue and immunohistochemical examination of nuclear factor-kappa B (NF-κB) protein expression in both tissues.

MATERIALS AND METHODS

Chemicals

Aluminum chloride (AlCl3) anhydrous (CAS number, 7446-70-0) and zinc oxide nanoparticles (ZnO NPs), ˂100 nm particle size (TEM), ≤40 nm average particle size (CAS number, 1314-13-2) were obtained and purchased from Sigma-Aldrich (St. Louis, MO, USA). Chemicals and reagents used throughout the experiment were of analytical grade.

Animals and experimental design

Male Wistar rats of ten w old (200–220 g) were obtained from the Holding Company for Biological Products and Vaccines (VACSERA) Cairo, Egypt. Animals were housed in wire polypropylene cages in a room under standard laboratory conditions (12h light-dark cycle; 25±2 °C) and were provided with water and animal standard diet ad libitum, as described [14], and allowed to acclimatize for seven d before experiment practices. Rats were divided into four groups (n=7 rats in each): I-control group (CNT); animals were received oral saline daily, II-AlCl3 treated group; rats were received daily oral AlCl3 100 mg/kg body weight, III-ZnO NPs treated group; rats have received ZnO NPs 10 mg/kg body weight, orally, once, and in ZnO NPs+AlCl3 treated group, rats were administered 10 mg/kg of ZnO NPs one h prior to 100 mg/kg of AlCl3. All rats have received their respective doses daily for 6 w. The present study was approved by the Animal Ethical Committee of Helwan University (Cairo, Egypt; approval no. HU2017/Z/09), and was conducted by the NIH Guidelines for the Care and Use of Laboratory Animals [15, 16].

Handling of tissues

Animals of all groups were sacrificed after 24 h of the last administration, and blood was collected in sterilized centrifuged tubes, and then centrifuged at 3000 rpm for 10 min to separate serum for biochemical assays. Liver and kidney from rats of all groups were quickly dissected and washed with ice-cold phosphate buffer (0.05 M, pH 7.4) then subsequently, small pieces from each tissue (100 mg) were homogenized in cold phosphate buffer (0.05 M, pH 7.4), and centrifuged at 3000 rpm for 10 min at 4  °C. The resulting supernatant of all tissue samples from all groups was used for the determination of biochemical parameters.

Measurement of Al and Zn concentration in the liver and kidney of rat

The concentration of Al and Zn in the liver and kidney tissues was assessed using the standardized procedure [17]. In brief, liver and kidney tissue samples were weighed and dried in an oven at 100 °C for 24 h. The dried samples were digested with 2 M nitric acid and 2 M hydrochloric acid at 150 °C for 6 h. The samples were diluted with deionized H2O to a final volume of 50 ml. Aluminum and zinc concentrations were assayed by graphite furnace atomic absorption spectrophotometry (GFAAS; Perkin-Elmer 3100) at 309.3 and 213.9 nm, respectively. Al and Zn concentrations were expressed as µg/g of wet tissue. All analyses were run in three replicates.

Biochemical parameters

Liver and kidney functions assays

Estimation of Liver and kidney function parameters in blood sera of rats from all groups were undertaken. The enzymatic activity of alanine amino-transaminases (ALT) and aspartate aminotransferase (AST) were determined according to the method of [18], bilirubin (Bil) was evaluated according to [19], while urea and creatinine were assayed according to [20] and [21], respectively, using commercially available diagnostic kits (Biodiagnostics-Egypt) as per manufacturer’s instructions.

Determination of malondialdehyde and nitric oxide levels

Hepatic and renal level of malondialdehyde (MDA; the end product of lipid peroxidation) was determined using thiobarbituric acid according to the principle procedure [22]. While the level of nitrite/nitrate (nitric oxide, NO) was assayed according to [23].

Determination of non-enzymatic and enzymatic antioxidants

Hepatic and renal tissues homogenates were used to determine glutathione (GSH) content according to the method of [24], superoxide dismutase (SOD) and catalase (CAT) activities per the procedures described [25] and [26], respectively. Whereas, glutathione peroxidase (GPx) and glutathione reductase (GR) activities were assayed according to the methods described [27] and [28], respectively.

Determination of pro-inflammatory markers

The levels of pro-inflammatory cytokines namely; tumor necrosis factor-alpha (TNF-α) and interleukin-1 beta (IL-1β) in hepatic and renal tissues, were determined using enzyme-linked immunosorbent assay (ELISA) methods using rat ELISA kits (CUSABIO Life Sciences, China) according to the test procedure provided by the manufacturer. All samples were run in two replicates.

Histopathological examination

Liver and kidney tissue samples from all groups were fixed for 24 h in 10% neutral formalin. Following the fixation, tissue samples were passed through routine procedures and embedded in paraffin blocks and sectioned (4-5 μm). After paraffin was removed, specimens were stained consistently with hematoxylin and eosin for microscopic examination according to the method described [29]. Images were taken with 400× magnification using an Eclipse E200-LED (Nikon, Tokyo, Japan).

Immunohistochemical analysis

To investigate nuclear factor-Kappa B (NF-κB) expression in the hepato-renal tissue, sections were embedded in paraffin (4-μm thickness) and treated with 3% hydrogen peroxide-containing methanol for 10 min to block the endogenous peroxidase. Then, samples were incubated with the primary antibody at 4 °C overnight. Thereafter, all sections were washed with phosphate-buffered saline (PBS) and incubated with biotinylated secondary antibody labeled with horseradish peroxidase (HRP). The reactions were developed via an HRP-catalyzed reaction with diaminobenzidine (DAB), followed by counterstaining with hematoxylin. Photographs were taken with 400× magnification using an Eclipse E200-LED (Nikon, Tokyo, Japan).

Statistical analysis

All data were calculated as the mean±standard deviation (SD). Differences between the groups were analyzed using a one-way analysis of variance (ANOVA) followed by Tukey’s post hoc test; p values<0.05 were being regarded as statistically significant.

RESULTS

Accumulation of AlCl3 and ZnO NPs in the hepato-renal tissue

Daily oral administration of AlCl3 at dose 100 mg/kg for 6 w resulted in a significant increase in its accumulation at (p<0.05) in the hepatic and renal tissues concerning the control group. Meanwhile, in the ZnO NPs+AlCl3 group, rats pretreated with ZnO NPs (10 mg/kg) for the same period showed a marked decrease in Al accumulation as compared with AlCl3-exposed animals as illustrated in fig. 1.

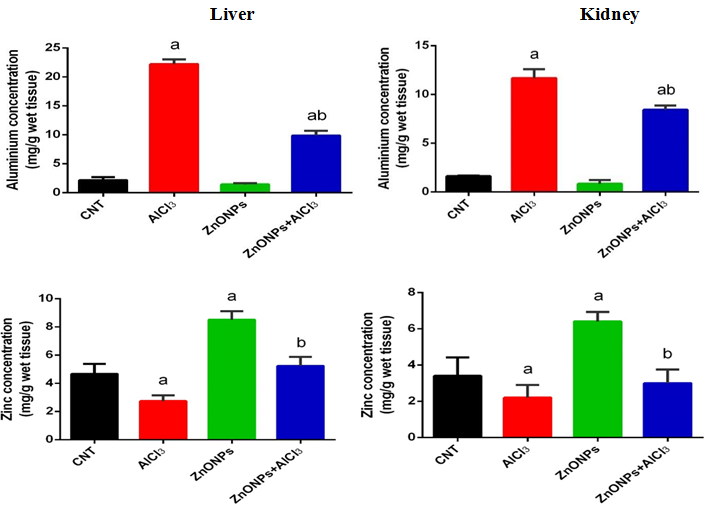

Fig. 1: Accumulation of aluminum and zinc in liver and kidney tissue after daily treatment with zinc oxide nanoparticles (ZnO NPs) and aluminum chloride, (AlCl3) for 6 w. Data are expressed as the mean±SD (n = 7). ap<0.05 vs, the Control Group; bp<0.05 vs. the AlCl3-treated rats using Tukey post hoc test

Effect of ZnO NPs and/or AlCl3 treatment on hepato-renal function indices

To analyze the potential protective role of ZnO NPs against AlCl3-induced hepato-renal toxicity, levels of liver and kidney function parameters were assessed. ALT, AST, bilirubin, urea, and creatinine levels were found to elevate with a significant change at (p<0.05) following AlCl3-intoxication as compared to the control group. Whereas, the levels of these physiological parameters were modulated significantly in ZnO NPs pretreated rats when compared to AlCl3-treated group as represented in table 1.

Table 1: Effect of zinc oxide nanoparticles (ZnO NPs) and/or aluminum chloride (AlCl3) after daily treated for 6 w, on liver and kidney function parameters alanine aminotransferase (ALT) aspartate aminotransferase (AST), bilirubin (Bil); urea and creatinine in sera of adult male rats

Experimental Groups

 Parameter
ALT(U/l) AST (U/l) Bil (mg/dl) Urea(mg/dl) Creatinine (mg/dl)
Control 57.3±8.62 82.7±10.69 0.52±0.07 5.60±1.15 0.92±0.22
AlCl3 143.7±19.60a 192.3±16.26a 1.63±0.25a 15.10±2.66a 2.11±0.46a
ZnO NPs 59.3±10.41 87.3±14.57 0.54±0.06 6.00±0.93 0.71±0.16
ZnO NPs+AlCl3 107.3±9.51ab 154.3±13.51ab 0.83±0.09ab 8.50±0.70ab 1.37±0.20ab

Data are expressed as the mean±SD (n = 7), a: Significant at p ˂ 0.05 with Respect to the Control Group, b: Significant at p ˂ 0.05 with Respect to the AlCl3 Group

Effect of ZnO NPs and/or AlCl3 treatment on oxidant/antioxidant parameters

To study the oxidative reactions following AlCl3-intoxication and the potential antioxidant activity of ZnO NPs, the present results determined the levels of oxidants and antioxidants in the liver and kidney homogenates. As depicted in fig. 2, AlCl3 treatment caused a significant (p<0.05) elevation in lipid peroxidation in terms of MDA and also, nitrate/nitrite levels while GSH content was depleted as compared with the corresponding control values. In contrast, ZnO NPs administration suppressed significantly elevated oxidants and increased GSH levels when compared against the AlCl3-treated group. Moreover, AlCl3 exposure inhibited significantly (p<0.05) the cellular antioxidant defense enzymes, including SOD, CAT, GPx, and GR, when compared versus the control values. However, the activity of these antioxidant enzymes was significantly restored toward the control value in ZnO NPs-pretreated rats (fig. 3); which reflects its antioxidant capacity against AlCl3-induced oxidative damage in the hepato-renal tissue.

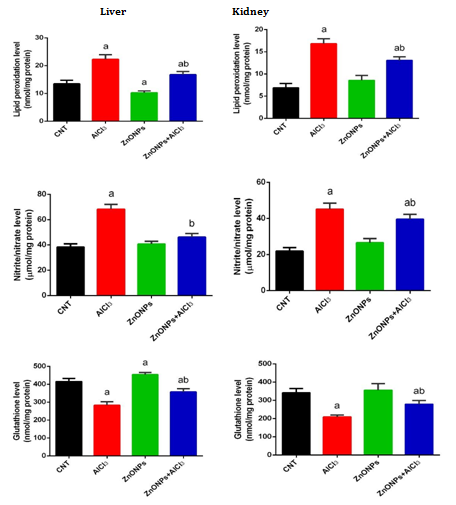

Fig. 2: Effect of zinc oxide nanoparticles (ZnO NPs) and/or aluminum chloride (AlCl3) after daily treatment for 6 w, on lipid peroxidation (LPO), nitric oxide (NO) and glutathione (GSH) levels in liver and kidney of adult male rats. Data are expressed as the mean ±SD (n= 7). a p<0.05 vs. the control group; b p<0.05 vs the AlCl3-treated rats using Tukey post hoc test

Liver Kidney

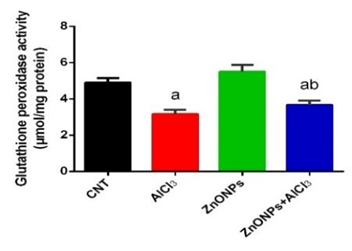

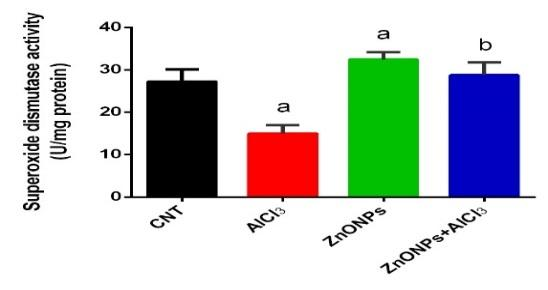

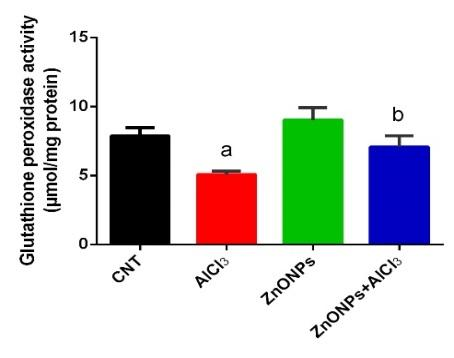

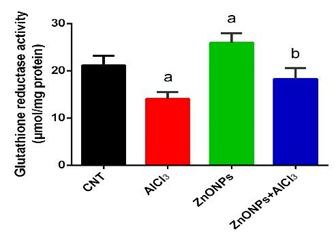

Fig. 3: Effect of zinc oxide nanoparticles (ZnO NPs) and/or aluminum chloride (AlCl3) after daily treatment for 6 w, on antioxidant enzymes activity in liver and kidney of adult male rats. Data are expressed as the mean±SD (n = 7). a p<0.05 vs. the control group; b p<0.05 vs. the AlCl3-treated rats using Tukey post hoc test.

Effect of ZnO NPs and/or AlCl3 treatment on inflammatory response

The present results showed that the accumulation of Al in the liver and kidney was found to be associated with the progression of an inflammatory response. AlCl3-treated rats exhibited a significant increase (at p<0.05) in the production of the pro-inflammatory cytokines namely; TNF-α and IL-1β concerning their control rats. Interestingly, the levels of these inflammatory cytokines were recovered towards normal values in the ZnO NPs and AlCl3 co-administered group (fig. 4).

Effect of ZnO NPs and/or AlCl3 treatment on liver histopathology

As shown in fig. 5, the control group exhibited normal hepatocytes architecture showing well-defined central nucleus and abundant cytoplasm, while the hepatic tissue of the AlCl3-intoxicated animals indicated as previously recorded [5] by alterations in hepatic histo-architecture after 6 w of treatment evidenced by disrupted central vein and disarrangement of hepatic cords at most of the places and, also, vacuolated hepatocytes, leukocytes infiltration and many Kupffer cells and hepatocytes with dense and pyknotic nuclei were observed. ZnO NPs administration to animals for 6 w also showed vacuolization and disrupted hepatic cords.

While ZnO NPs+AlCl3 treated group indicated revealed that pre-administration of ZnO NPs preserved, to some extent, the hepatic tissue from these pathological alterations caused by AlCl3 exposure.

Liver Kidney

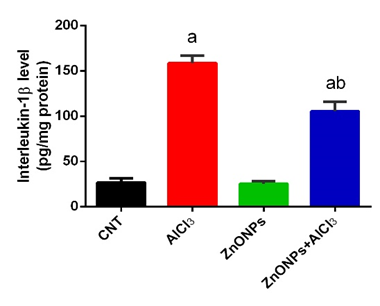

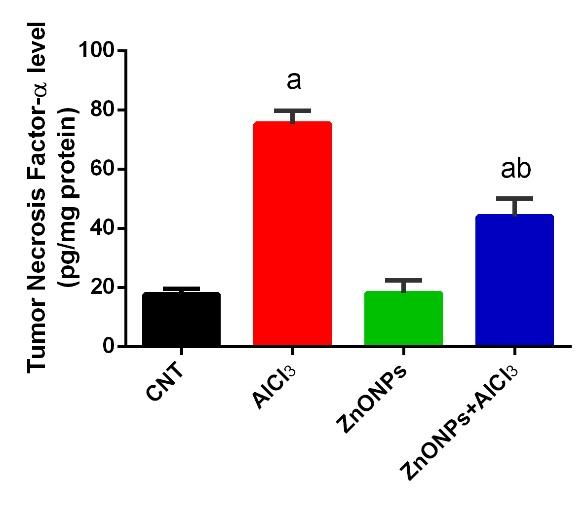

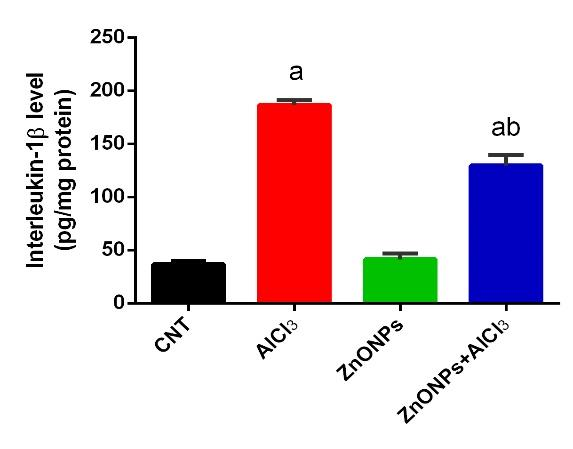

Fig. 4: Effect of zinc oxide nanoparticles (ZnO NPs) and/or aluminum chloride (AlCl3) after daily treatment for 6 w, on interleukin-1β (IL-1β) tumor necrosis factor-α (TNF-α) and levels in liver and kidney of adult male rats. Data are expressed as the mean±SD (n = 7). a p<0.05 vs. the control group; b p<0.05 vs. the AlCl3-treated rats using Tukey post hoc test

Fig. 5: Photomicrographs of liver tissue. Where A) represents control, B) aluminum chloride (AlCl3), C) zinc oxide nanoparticles (ZnO NPs) and D) aluminum chlorid (AlCl3)+zinc oxide nanoparticles (ZnO NPs)

Effect of ZnO NPs and/or AlCl3 treatment on kidney histopathology

As shown in fig. 6, the renal tissue of the control and ZnO NPs-treated animals showed an identical kidney structure with normal renal tubules and glomeruli. AlCl3 intoxication for 42 d resulted in swelling of epithelial cells, edema of the inter-tubular spaces, focal hemorrhage, inflammatory cell infiltration, vacuolation, and development of intraluminal casts as observed previously [5]. Pre-administration of ZnO NPs minimized the pathological alterations induced by AlCl3 exposure in kidney tissue.

Fig. 6: Photomicrographs of kidney tissue. Where A) represents control, B) aluminum chloride AlCl3), C) zinc oxide nanoparticles (ZnO NPs) and D) aluminum chloride (AlCl3)+zinc oxide nanoparticles (ZnO NPs)

I) Liver II-Kidney

Fig. 7: Examination of the expression of nuclear factor Kappa B (NF-kB) in liver I, and kidney tissue II, using immunohistochemical staining following the administration of zinc oxide nanoparticles (ZnO NPs) and/or aluminum chloride (AlCl3) for 6 w (magnification 400 ×). A) control, B) aluminum chloride, C) zinc oxide nanoparticles and D) aluminum chloride+zinc Oxide nanoparticles

Effect of ZnO NPs and/or AlCl3 treatment on NF-κB expression

The immuno-reactivity of NF-κB was estimated in the hepato-renal tissue to follow the molecular mechanism of the anti-inflammatory effect of ZnO NPs. Rats intoxicated with AlCl3 showed overexpression of NF-κB, as compared to the control group. On the contrary, expression of NF-κB was down-regulated markedly in ZnO NPs and ZnO NPs+AlCl3-treated rats, when compared against AlCl3-treated rats. These findings indicate the anti-inflammatory activity of ZnO NPs used dose (fig. 7).

DISCUSSION

The liver plays a major role in the detoxification process; hepatocytes were considered as a massive detoxification center protecting the body from the deleterious effects [30]. Studies indicated that nanoparticles have superior physicochemical, mechanical, thermal and biological properties and also, better catalytic activities as compared to bulk materials, therefore zinc nanoparticles were reported to have various biological and pharmacological activities; such as antimicrobial, antioxidant, anti-inflammatory, anti-tumor, hepato-renal protective and immunomodulatory activity [11, 12, 31-36].

Data availability concerning the accumulation of ZnO NPs in rat liver and kidney following AlCl3 intoxication was limited. The present results indicated that ZnO NPs decreased Al accumulation in hepato-renal tissue, while increased Zn content in both tissues when assayed in ZnO NPs+AlCl3-treated rats group. The accumulation of NPs in the liver and kidney of mice after intravenous administration was documented [37]. Likely, an increase in the nano-zinc level in different tissues of mice was also reported [38]. Authors showed that ZnO NPs may be absorbed into circulation within 30 min, after i. p. injection, and remained in serum for 72 h and ZnO NPs were bio-distributed into the liver, spleen, and kidney thereby, spreading to the heart, lung, and testes [38].

The hepato-renal tissues were considered as target organs for ZnO NPs accumulation and toxicity in rats [39]. The observed increase in Zn concentration in the hepato-renal tissue, in the present study, could be attributed to their preferential passage through the lymphatic system, owing to permeability differences [40] and their high surface reactivity, small size, and shape, which easily cross cell membranes to interact with biomolecules leading to disruption of trace elements homeostasis [41, 42]. Also, to the first-pass effects, as a previous study [43] showed fast dissolution of zinc NPs in the stomach was found to increase zinc level, in the systemic circulation of CdCl2-hepatorenal injured mice treated with ZnO NPs and followed by zinc ions redistribution from the liver to other organs. Another reason for Zn accumulation was the induction of tissues metallothionein (cytosolic cysteine-rich proteins, powerful scavenger of free radicals) [44] for controlling metal homeostasis to maintain cell survival in response to various stimuli [39], and also to the role of Zn in the synthesis, storage, and secretion of insulin [45].

Liver enzymes and kidney functions (ALT, AST, Bil, urea, and creatinine) in serum were considered as important serum parameters for investigating animal health [46]. Biochemical analysis of liver and kidney function parameters of AlCl3-treated rats indicated their marked elevation, and these results were supported by histopathological examination of the hepato-renal tissue of rats treated with AlCl3, which indicated altered hepatic histo-architecture after 6 w of treatment appearing as vacuolated hepatocytes and leukocytes infiltration. Examined kidney sections showed swelling of epithelial cells, edema of the inter-tubular spaces, focal hemorrhage, inflammatory cell infiltration, and vacuolization. Observations of the present study were following previous studies [47, 5]. These changes were attributed to the altered hepatic cell membrane permeability, increased MDA and NO levels, as reported also in the present study, as AlCl3 intoxication produces an excess of oxygen-free radicals and alters physiological function which plays an important role in cellular membrane damage through free radical chain reaction mechanism [47, 5]. Data from ZnO NPs+AlCl3-treated rats group, concerning liver and kidney functions (AST, ALT, Bil, urea, and creatinine) and evaluation of the antioxidant enzymes activity in rat hepatic and renal tissues, indicated the potential ameliorative effect of ZnO NPs administration (10 mg/kg body weight) with their particular size, on the hepato-renal tissues of AlCl3-intoxicated rats, reflecting their role in protecting the hepato-renal tissue function against Al-intoxication.

The decreased GSH content and antioxidant enzyme activities (SOD, CAT, GPx and GR) found in the hepato-renal tissues of AlCl3-treated rats agreed with previous studies [48, 5]. Meanwhile, the antioxidant enzymes activities of SOD, CAT, GR, and GPx in liver of ZnO NPs-treated rats group showed their tendency to elevate, suggesting that administration of ZnO NPs alone may potentiate the antioxidant status in rats either in the liver or kidney of ZnO NPs-treated group as ZnO NPs may induce highly reactive oxygen species, which cause oxidative damage to animal cells [49]. Histopathological examination of ZnO NPs-treated rats supported the biochemical analysis, indicating disruption of hepatic cords and vacuolization. Moreover, ZnO NPs toxic effect of on liver enzymes was reported [50], as ALT and AST are located primarily in the cytosol of hepatocytes [49]. These results reveal that ZnO NPs may interrupt the functions of liver cells, due to excess zinc inside cells leading to apoptosis [51] taking into consideration using ZnO NPs with different morphological properties. Zinc also was reported to maintain the activity of tumor suppressor gene p53 thus regulating apoptosis activity, and helping inactivation of the caspase-6 enzyme responsible for apoptosis [52].

The histopathological changes in the hepato-renal tissue of the ZnO NPs+AlCl3-treated rats group, in the present work, were found to decrease and this could be attributed to decreased lipid peroxidation, enhanced antioxidant enzymes (CAT and SOD) and preserved GSH content in both tissues. As zinc was reported to play a vital role in cellular GSH regulation and cellular antioxidant defense [53], controlling free radicals and oxidative stress for SOD activity which was documented to have Zn2+ and Cu2+ in its active site thus playing a crucial role in the defense against oxidative stress. The increased SOD activity in the hepato-renal tissue of ZnO NPs+AlCl3 of the present work enhanced the break-down of superoxide into oxygen and hydrogen peroxide thus conserving the superoxide radicals concentration at low levels and this could be attributed to the availability of ZnO NPs [54, 55, 43], thereby increasing the mRNA expression of SOD, CAT, GPx, and GR leading to enhanced activity thus ameliorating oxidative stress [56].

Both SOD and CAT were considered as a defense against oxidative cell injury, as CAT decomposes hydrogen peroxide to water and oxygen. CAT and SOD activities in hepatic and renal tissues were mostly recovered in the co-administered group, while GPx and GR activities were partially ameliorated in both tissues. They were documented for their role in sulfhydryl group’s protection against oxidation [57], preservation of intracellular levels of reduced GSH and the reduced production of LPO products [58]. GSH is considered as a substrate for GST and GPx activities, therefore its shortage might cause a diminution in their activities. GST constituted a family of phase II detoxification enzymes specialized for detoxification of xenobiotics and in the signaling cascades [59], while, GPx was involved in converting H2O2 and organic hydro-peroxides to less reactive products [60]. A decrease in the GST activity might result in xenobiotic accretion; whereas the decrease in the GPx activity might accompany H2O2 accumulation leading to further inactivation in its activity. SOD, CAT, and GPx constitute a supportive team of enzymes providing defense against ROS [61].

After induction of oxidative stress, many released pro-inflammatory cytokines and chemokines through the inflammatory process were considered as a key event in hepatic stellate cells activation [62, 63], as ROS play a critical role in the activation of cells as messengers in the signal transduction pathways leading to gene expression [64]. Zinc supplementation was reported to inhibit hepatic stellate cells activation after ethanol and acetaldehyde administration, therefore acting as an antioxidant and inhibiting several markers of hepatic stellate cells activation [65]. Besides the role of Zinc in decreasing hepatic lipid peroxidation [66], zinc was documented to reduce transforming growth factor-β and to induce epithelial differentiation and fibroblast activation thus protecting the liver against fibrosis [67]. Zinc is a potent inducer of metallothioneins, plays a key role in cellular defense against metal toxicity [68], and involved in phagocytosis, antigen presentation by macrophages, and inflammatory responses [32].

Results of the present study, indicated that ZnO NPs treatment to AlCl3 treated rats decreased IL-1β and TNF-α levels which could be attributed to the anti-inflammatory activity of ZnO NPs that suppress mRNA expression of both cytokines and also to the suppression of inducible nitric synthase, cyclooxygenase-2 and interleukin-6 levels [12]. Moreover, reports revealed decreased levels and activity of myeloperoxidase (found in neutrophils; catalyzes the formation of ROS) which affect cytokines production [69, 35]. Furthermore, ZnO NPs were found to enhance T cells functionality, having an adjuvant effect toward T helper-2 response, thus increasing production and activation of cytokines [32]. Furthermore, ZnO NPs were found to act as an immuno-modulator by increasing antigen-specific immune reactions in mice, and enhancing antigen-specific antibodies production in serum, especially; immunoglobulin E and G [32, 70].

The observed ameliorative effect of ZnO NPs on the histopathological changes of the hepato-renal tissue, in ZnO NPs+Al treated rats group could be attributed to decreased lipid peroxidation, enhanced antioxidant enzymes activities (CAT and SOD) and preserved GSH content in hepato-renal tissue. Zinc was found to ameliorate oxidative stress and glutathione depletion and involved in all processes concerned with cell protection through activation of DNA repair, thus preventing apoptosis and cell proliferation [71]. ZnO NPs act as an effective adjuvant treatment to chemotherapeutic drugs that may cause male reproductive dysfunction [31] and as a hepatic cytoprotective agent against Aflatoxin B1 exposure, when used in low doses, by improving the antioxidant activity, and decreasing the free radicals level [72]. Studies also showed suppressed MDA content by ZnO NPs treatment in a dose-dependent manner, thus reducing oxidative stress [69, 35], therefore, protecting cell membrane integrity against oxidative stress damage, and increasing antioxidant enzyme levels [73].

The immunohistochemical analysis of the hepato-renal tissue from the Al-treated group indicated overexpression of NF-kB, while sections from the ZnO NPs+AlCl3-treated rats group showed decreased expression, evidenced in the present study by decreased NO, Il-β and TNF-α levels of the same group. Balanced cell survival and cell death were reported to be created through Zinc channels via controlling free and intracellular zinc movements [74]. Due to their unique properties, ZnO NPs being bioavailable, biocompatible with high solubility and may localize in many tissues for cellular cycle regulation and cellular homeostasis maintenance, as they were supposed to mimic biomolecules' activity [75]. Moreover, ZnO NPs exposure suppressed NF-κB activity and translocation of nuclear ion of NF-kB and p65 in LPS-induced RAW macrophages, together with decreased transcription of cellular proteins leading to inhibition of NF-κB, thereby suppressing IL-1β and TNF-α production [76]. Furthermore, ZnO NPs may exert an immune-regulatory role by blocking the caspase-1 enzyme in activated mast cells leading to the release of different inflammatory mediators and NF-κB as well [36].

CONCLUSION

Zinc Oxide nanoparticles ameliorated AlCl3-induced hepato-renal toxicity via increasing Zinc accumulation in the hepato-renal tissue and decreasing aluminum disposition. Also, decreasing lipid peroxidation, nitric oxide production, and pro-inflammatory cytokines level (IL-1β and TNF-α), increasing antioxidant molecule and antioxidant enzymes activity and decreasing nuclear factor-KB expression, markedly.

ETHICS

This study was reviewed and approved by the Animal Ethics Committee of Helwan University with registration number HU2017/Z/09. All the data are restricted to the principal investigators and solely used for research purposes. The study was conducted in compliance with the ethical principles outlined in the Declaration of Helsinki.

FUNDING

This research received no specific grant from any funding agency in the public, commercial or not-for-profit sectors.

AUTHORS CONTRIBUTIONS

All 3 authors participated in the practical work and writing of the manuscript. All authors have complete access to the study data that support the publication.

CONFLICT OF INTERESTS

The authors declare that they have no conflict of interest
