Int J Pharm Pharm Sci, Vol 12, Issue 5, 73-79Original Article

IN-VITRO ANTIMICROBIAL ACTIVITY OF BIOLOGICAL SYNTHESIZED SILVER NANOPARTICLES USING STENOTROPHOMONAS MALTOPHILIA STRAIN NS-24 FROM NON-RHIZOSPHERE SOIL

SREENIVASA NAYAKA, BIDHAYAK CHAKRABORTY, DATTATREYA AIRODGI, MEGHASHYAMA P. BHAT, SHASHIRAJ K. NAGARAJA, PALLAVI S. SWAMY, MUTHURAJ R., HALASWAMY HIREMATH, DHANYAKUMARA S. BASAVARAJAPPA, MARIA REGO

P. G. Department of Studies in Botany, Karnatak University, Dharwad, Karnataka, India 580003
Email: sreenivasanayaka06@gmail.com

Received: 24 Feb 2020, Revised and Accepted: 02 Apr 2020

ABSTRACT

Objective: The present goals of our study were biological synthesis, characterizations of silver nanoparticles, and evaluation of its antimicrobial activity against microbial pathogens like Escherichia coli, Enterococcus faecalis, Streptococcus pneumoniae and Staphylococcus aureus.

Methods: The bacterial Strain NS-24 was isolated on nutrient agar medium and was selected for the synthesis of silver nanoparticles based on its gram-negative characteristics. The characterizations of silver nanoparticles were done by UV-Visible spectroscopy, Atomic Force Microscopy (AFM), High Resolution-Transmission Electron Microscopy (HR-TEM), Scanning Electron Microscopy (SEM) with Energy Dispersive Spectroscopy (EDX), X-ray Diffraction (XRD) and Fourier Transform Infrared Spectroscopy (FTIR). Later, the molecular characterization of the Strain NS-24 was done by DNA extraction and 16S rRNA gene sequencing.

Results: The UV-visible spectrophotometric observation of the Strain NS-24 supernatant and AgNO3 solution showed maximum absorbance at 423 nm. The AFM data confirmed that the particles were polydispersed and spherical in shape. Additionally, the FTIR analysis revealed the IR spectral band patterning and TEM analyzes showed the size of biological AgNPs was in the range of 12.56 nm to 27.32 nm, with an average of 18.06 nm in size. Further, the 16S rRNA gene sequencing revealed the identity of Strain NS-24 as Stenotrophomonas maltophilia. The antimicrobial activity of AgNPs was studied on different gram-negative and gram-positive bacterial strains like Escherichia coli (MTCC 40), Enterococcus faecalis (MTCC 6845), Streptococcus pneumoniae (MTCC 8874) and Staphylococcus aureus (MTCC 2825), which showed good inhibition of their growth at varying concentrations of AgNPs against all the pathogens.

Conclusion: Our findings showed that the synthesized AgNPs from the isolated bacterium was small in size and had profound antibacterial activity against pathogenic micro-organisms.

Keywords: Stenotrophomonas maltophilia, AgNPs, XRD, HR-TEM, AFM, Antimicrobial

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2020v12i5.37257. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps

INTRODUCTION

Nanotechnology is an experimental field of applied science and technology. The prefix ‘nano’ means dwarf or extremely small. Nanoscience and nanotechnology are the recent revolutionary development in science and engineering that are evolving at a very faster rate [1]. Nanotechnology is the study of controlling the matter on an atom and molecular scale. It deals with structures between 1 to 100 nm in at least one dimension and it involves in modifying or developing materials within that size. Soil, a dynamic living matrix, is an essential and important part of the ecosystem, i.e. terrestrial ecosystem. Concerning plant growth and development; soil can be distinguished into two types, namely, rhizosphere soil and non-rhizosphere soil. The rhizosphere is the narrow region of soil immediately surrounding the plant roots. Our main focus was on the non-rhizosphere soil. The non-rhizosphere soil is also called as bulk soil, which is free from plant roots and is not a part of rhizosphere soil [2]. Microorganisms are universally present in air, soil, and water and play an important role in restoring the physical, chemical and biological properties of soil. Their role in agriculture is vital for nitrogen fixation, phosphate solubilisation, and mobilization of nutrients. Such beneficial microbes are called bio-fertilizers, which include both free-living and symbiotic forms [3].

Silver nanoparticles (AgNPs) have attracted increasing interest due to chemical stability, catalytic activity, and high conductivity. Based on their good antimicrobial function and toxicity; the AgNPs have been used as an effective typical application for improving wound healing. Wang and co-workers in 2016 studied the influence of AgNPs in an animal model of wound healing by using silver sulfadiazine as a control [4]. The biosynthesized nanoparticles have used in a variety of applications, including drug carriers for targeted delivery, cancer treatment, gene therapy, DNA analysis, antibacterial agents, biosensors, enhancing reaction rates, separation science, and magnetic resonance imaging, etc. AgNPs show effective antimicrobial activity against gram-positive bacteria including highly multidrug-resistant strains such as methicillin-resistant Staphylococcus aureus [5]. Recently, scientists have made efforts to make use of microorganisms as possible eco-friendly nano factories for the synthesis of AgNPs because various microbes are known to reduce the Ag+ ion to form AgNPs [6].

Synthesis of AgNPs by microbes is due to their defense mechanism and this is how the nanoparticles produced are useful to us. Studies have found that many microorganisms can produce inorganic nanoparticles either through intercellular or extracellular routes. The resistance caused by the bacterial cell for silver ions in the environment is responsible for its nanoparticle synthesis [7]. The silver ions (Ag+) in nature are highly toxic for bacterial cells; therefore, their cellular machinery helps in the conversion of reactive silver ions into stable silver atoms (Ag °). Also, the temperature and pH play an important role in their production. At room temperature; the size of nanoparticles is 50 nm, at a higher temperature (i.e. 60 ℃) the size of nanoparticles reduces to 15 nm. This indicates that with the increase in temperature; size decreases [8]. Under alkaline conditions, nanoparticles synthesized by the microbes are more as compared to acidic conditions. Most antibiotics that are very potentially active against free microbes are less effective against the same species when present as a biofilm. This is a particular concern because microbial biofilms play a vital role in many infections, and biofilm-related traits may confer high-level antibiotic resistance in microbial communities [9].

The present work was undertaken to isolate a potent bacteria from a diverse source of soil samples from Tiwac fields, Dharwad. To elucidate their biological activities like antibacterial activity against various pathogenic bacteria and various characterizations like UV-Visible spectroscopy, AFM, TEM, SEM with EDX, X-ray Diffraction, FTIR, and HR-TEM. The molecular characterization of the Strain NS-24 was done by 16S rRNA gene sequencing.

MATERIALS AND METHODS

Soil samples, chemicals, and microbial cultures collection

The soil samples were collected from Tiwac, Dharwad, Karnataka, India. The chemicals such as Silver nitrate (AgNO3, Sigma Aldrich) and Nutrient agar (NA) medium were procured from Hi-media laboratories. Bacterial cultures such as Enterococcus faecalis (MTCC 6845), Escherichia coli (MTCC 40), Streptococcus pneumoniae (MTCC 8874) and Staphylococcus aureus (MTCC 2825) were procured from IMTECH Chandigarh, India.

Isolation of bacteria

To isolate the bacteria, the normal form of the serial dilution plate culture method was used. Soil samples were air-dried for 2 to 3 d before isolation. The soil suspension method described previously was followed [10] and 100 μl of soil suspension was spread on NA poured Petri plates. Later, the plates were incubated at 37 °C for 1 to 2 d [11]. Twenty four bacterial isolates were obtained and among these isolated bacteria, only one bacterium was found gram-negative. The gram-negative bacterium was designated as Strain NS-24 and was taken for further analysis.

Synthesis of AgNPs

For the synthesis of AgNPs, the Strain NS-24 was grown in 500 ml conical flasks containing 250 ml of Nutrient broth and the culture was grown with continuous shaking on a rotary shaker (120 rpm) at 30 °C for 3 d. After 3 d of incubation, the bacterial mass was separated by centrifugation at 12000 rpm for 20 min and the collected cell-free supernatant was interacted with an equal volume of 1 mmol/l aqueous AgNO3 solution at pH 8.0. The interacted solution was kept on a rotary shaker at 30 °C (120 rpm) and maintained in the dark for 4 d [12].

Characterizations of AgNPs synthesized from Strain NS-24

UV-visible Spectroscopy

The UV-visible absorption of biologically synthesized AgNPs was measured by a sampling of the mixture and absorption maxima at 200 nm to 700 nm by UV-visible spectrophotometer (METASH UV-9000) at USIC, Karnatak University, Dharwad. A spectrum of AgNPs was plotted with a wavelength on X-axis against absorbance on Y-axis [13].

Atomic Force Microscopy (AFM)

Atomic force microscopy work was carried out to study morphology, size, and distribution of AgNPs. Purified suspension mixture was freeze-dried to obtain a dry powder. A very thin film of the nanoparticles was prepared on a glass slide and it was allowed to dry for 2 h. Further, the slides were scanned with the AFM instrument (Nano surf Flex AFM) at USIC, Karnatak University, Dharwad [14].

Scanning Electron Microscopy (SEM) with EDX

Scanning Electron Microscopy (SEM) work was carried out to study morphology, shape, size, and nature of distribution whereas, the elemental analysis of AgNPs was done using Energy Dispersive Spectroscopy (EDS) coupled with SEM. Purified suspension mixture of AgNPs was freeze-dried to obtain a dry powder. A very thin film of the AgNPs sample was prepared on the SEM stab and kept it for gold coating. Later, the sample was scanned with the SEM instrument (JSM-IT 500LA) for studies on morphology and elemental mapping of AgNPs [15].

X-ray Diffraction (XRD)

The identification of the crystalline structure of the AgNPs was performed by Rigaku Miniflex 600, X-ray Diffractometry (XRD) analysis. The AgNPs powder was placed into the sample holder and a smooth surface was made through pressing. The XRD spectra were recorded between 30 ° and 80 ° by X-ray diffractometer equipped with CuKα filter (λ= 0.15418 nm), 2ϴ/ϴ scanning mode. The obtained diffractogram was compared to the standard JCPDS card No. 04-0783. The size of AgNPs was estimated using Scherr’s formula, d=0.89λ/βcosθ [16].

Fourier Transform Infrared (FTIR) Spectroscopy

The FTIR spectroscopy work was carried out to study of possible biological functional groups involved in the synthesis and stabilization of biological AgNPs. The FTIR spectra were recorded in the range of 400 cm-1 to 4000 cm-1 using a Nicolet 6700 FTIR spectrophotometer. The various modes of vibrations were analyzed to determine the different biological functional groups present in the AgNPs [14].

HR-TEM

The High Resolution-Transmission electron microscopy (HR-TEM) analysis was used to visualize and calculate the morphology and size of AgNPs. The powder of AgNPs was diluted with sterile distilled water and applied onto a carbon-coated copper TEM grid. This was allowed to dry at room temperature for 15 min under infrared light and was further photographed at a magnification of 60000 X to 80000 X and a size scale range of 50 to 200 nm [13].

Molecular characterization of Strain NS-24

The genomic DNA was extracted from the fresh culture of the Strain NS-24. The 16S rRNA genes were amplified using primers. The following conditions were programmed for the amplification of genomic DNA using PCR. The chain reaction was scheduled as initial denaturation of 25 cycles at 96 °C for 5 min, denaturation at 96 °C for 30 s, hybridization at 50 °C for 30 s and final extension 60 °C for 1:30 min. The obtained PCR products were electrophoresed on 1% agarose gel, where 500 base pairs DNA ladder was used for size reference. The electrophoresed amplicons were purified and later, sequenced using a Sanger Sequencing 3500 Series, Genetic Analyzer. The obtained gene sequence was interrogated in the NCBI database via the BLAST web portal. The DNA sequences were aligned and a phylogenetic tree was constructed by the Neighbour-joining method using the software MEGA7.0 [17].

Biological activity of AgNPs

Antibacterial activity by agar well diffusion method

The synthesized AgNPs were tested to check the potentiality against 4 human pathogenic bacteria through a well diffusion method. The pathogenic bacteria such as gram-negative Escherichia coli and gram-positive Staphylococcus aureus, Streptococcus pneumoniae and Enterococcus faecalis were collected from the microbial type culture collection (MTCC), Pune. For antibacterial activity, 1 mg of AgNPs was mixed with 1 ml of distilled water and used as a working solution. Each culture plates containing Muller-Hinton agar medium were swabbed with 100 µl of overnight grown pathogenic bacteria. The wells were made using a 6 mm cork borer and each well was loaded with different concentrations of AgNPs suspension; such as 25 µl, 50 µl, 75 µl, and 100 µl. All the plates were incubated at 37 ℃ for 18 h and then examined for the appearance of a clear area around the well. The zone of inhibition was measured in millimeters (mm) [18].

RESULTS AND DISCUSSION

Totally eight soil samples were collected from the fields of Tiwac, Dharwad, Karnataka, India and were used for the isolation of Bacteria. The collected samples were air-dried for 2 to 3 d before isolation to make it free from moisture and these samples were preserved to obtain better qualitative isolates of Bacteria. A total of twenty-four aerobic bacterial strains were isolated on NA medium at 37 ℃. The bacterial Strain NS-24 was chosen based on its gram-negative nature. The gram-negative bacteria have a thick peptidoglycan layer in the cell wall and establish a resistance to a big range of antibiotics. Therefore, the gram-negative isolate NS-24 was chosen for the synthesis of AgNPs.

Characterization of synthesized AgNPs from Strain NS-24

UV-visible spectrophotometric analysis

The UV spectral data of the biological synthesized AgNPs were analyzed by mixing colorless supernatant of the Strain NS-24 (fig. 1A) and an equal volume of aqueous AgNO3 solution. After 4 d of incubation, the mixture turned dark brown in color at pH 8.0 (fig. 1B). The change of color indicated the formation of AgNPs, which might be due to the excitation of surface plasmon vibrations with the biological AgNPs. A similar result was reported in the literature, where Carica papaya leaf extract color was changed from light yellow to yellowish-brown while adding AgNO3 solution. [20]. The synthesis of AgNPs was further confirmed by measuring the wavelength using a UV-Vis. Spectrophotometer at a range of 200 nm to 700 nm. The synthesized AgNPs exhibited a maximum UV absorption at 423 nm at pH 8.0 (fig. 2). This was confirmed with the results of Hina et al., (2018) [21], where Pseudomonas sp. synthesized AgNPs attained an absorption peak at 412 nm.

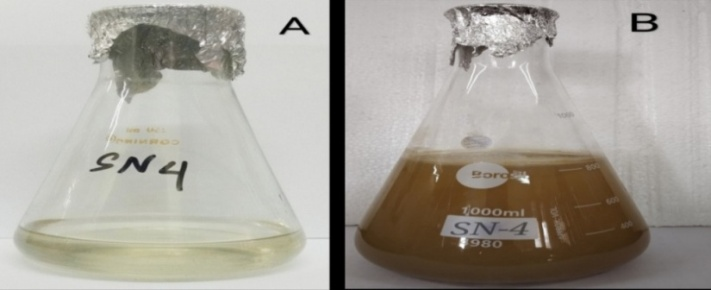

Fig. 1: Synthesis of silver nanoparticles from Strain NS-24: (A) Strain NS-24 supernatant before the addition of AgNO3, (Colorless), (B) Strain NS-24 supernatant after addition of AgNO3, (Brown)

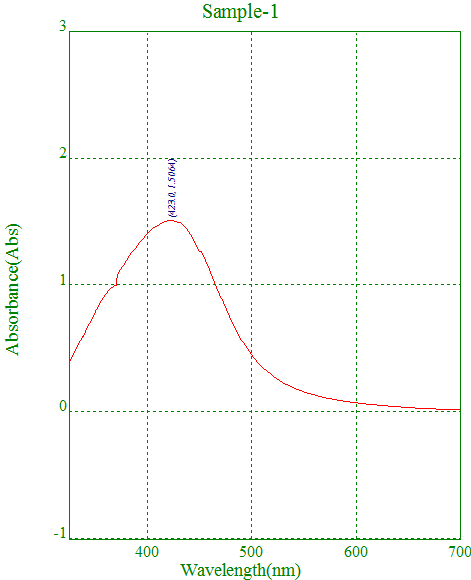

Fig. 2: UV-spectrum of synthesized AgNPs from Strain NS-24

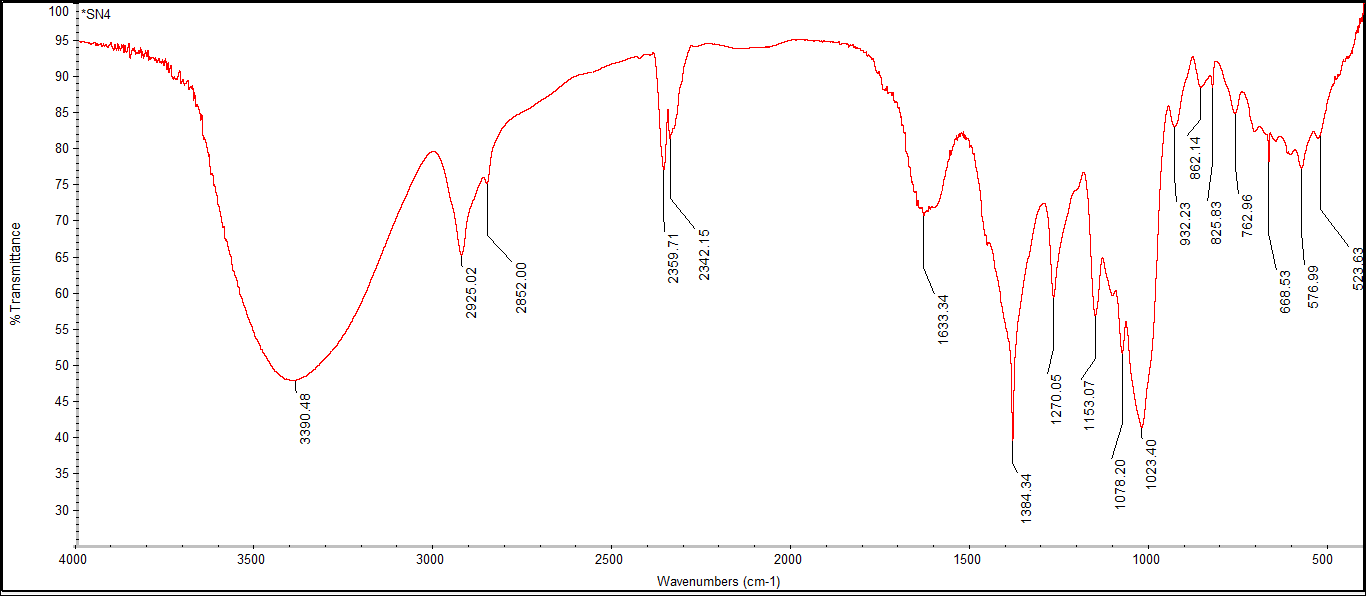

Fig. 3: FTIR spectrum of synthesized AgNPs from Strain NS-24

FTIR analysis of AgNPs

The FTIR spectrum of the Strain NS-24 synthesized AgNPs were used to determine the functional groups by active components based on the peak values in the region of infrared radiation, as shown in fig. 3 and table 1. This result was compared with the similar results of Fatima et al., (2017) [11]. Till today; the proper mechanism for synthesis of AgNPs is not perceived totally. However, it is well understood that AgNPs are synthesized through a reduction pathway with the help of enzymes. The enzymes present in the reaction mixture reduce the silver ions (Ag+) to metallic silver (Ag °). Hypothetically, it is assumed that; the bio-chemicals such as alkaloids, proteins, tannins, flavonoids, terpenoids, sterols, etc., present in the reaction mixture act as reducing agent and capping agents, thereby synthesize the AgNPs.

Table 1: FTIR absorption peaks and their associated functional groups present in Strain NS-24 synthesized AgNPs

Absorption peak (cm-1) Functional groups
3390 Dimer O-H Stretch
2852 -CHO
2359 P-H Phosphine Stretching
2025 -N=C=S Stretching (Isothiocyanate)
1633 C=N Stretching (imine/oxime)
1384 S=O (sulfate) stretching
1270 C-H Wag (alkyl halide)
1163 C-N Stretch (Amines)
1078 P-H bending (Misc.)
1023 C-O Stretch(Carboxylic acid)/C-O Stretch(Esters)
923 RCOOH O-H Bending (Carboxylic acid)
862 C-H Stretch (1,2,4,5,Tri-substituted aromatics)
826 C-H Stretch (Para-di-substituted aromatics)
762 C-H Stretch (Tri-sub. Aromatics)
668 C-Br Stretch Alkyl halides
523 S-S Disulphide Asymmetric Stretch

AFM analysis of AgNPs

The morphology and size of nanoparticles were ascertained from the AFM images. AFM data revealed that the size ranged from 12 nm to 79 nm (fig. 4A) in two and three-dimensional structures of the nanoparticles with a height of 14.4 nm (fig. 4B). The distance from each other was 51.17 nm (fig. 4C). A two or three-dimensional horizontal cross-section of the AgNPs indicated that the biological AgNPs were well defined, polydispersed and spherical in shapes and between 12 nm to 79 nm in size. This result was compared with the finding of Bramhaiah and Neena (2013) [22].

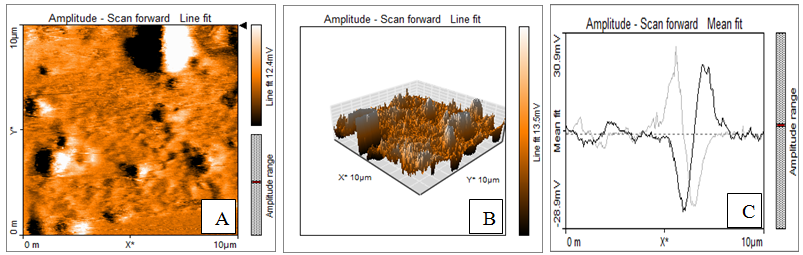

Fig. 4: AFM analysis of synthesized AgNPs (A) Two-dimensional structure of AgNPs, (B) Three-dimensional structure of AgNPs, and (C) Particle size distribution

HR-TEM analysis AgNPs

The bio-reduced AgNPs were elucidated with the help of HR-TEM to determine the shape and size of AgNPs. TEM images of AgNPs derived from the Strain NS-24 shown in fig. 5. The TEM images of AgNPs at various magnifications confirmed as non-agglomerated and spherical in shape (fig. 5A). Formed nanoparticles were in the range of 12.56 to 27.32 nm in size (fig. 5B) and were polydispersed in nature (at 20 µm magnification). A similar result was observed by Ederley et al., (2018) [23], where the scientists synthesized AgNPs from Aloe vera plant extract. The HR-TEM analysis measured the particle size in the range of 2 to 14 nm for ethanolic and aqueous extracts. In another report, HR-TEM analysis of Acalypha indica mediated green synthesized AgNPs were found polydispersed with a particle size in the range of 20 to 40 nm [24].

Fig. 5: TEM analysis of AgNPs (A) Spherical shaped AgNPs (B) The size of an AgNP (20.32 nm) (Magnification is 20 µm)

SEM with EDX for AgNPs

SEM images showed that most of the AgNPs were predominately spherical, having a smooth surface and well dispersed with the close compact arrangement. The average particle size found to be around 17.49 nm. The dispersive energy spectrum of the synthesized nanoparticles suggested the presence of silver as the ingredient element (fig. 6A). AgNPs generally showed a typically strong signal peak at 3 keV due to surface plasmon resonance and it showed the quantitative information of biosynthesized AgNPs. Finally, all the microscopic studies revealed the biologically synthesized AgNPs were spherical in shapes, having the polydispersed and no agglomerations were found between the particles. The existence of elements such as Ag, O, C, K, Cl, Ca and Na were shown in fig. 6B. The same sample was analyzed with the help of the EDX instrument showed 37.46 % presence of carbon in the sample along with 26.72 % of oxygen, 1.25 % of sodium, 0.68 % of aluminum, 2.61 % of chlorine and 31.28 % of silver. Similar work was reported by Gitishree et al., (2019) [25], where the SEM analysis of Ananas comosus synthesized AgNPs revealed spherical structured nanoparticles and EDX spectra reported the 37.32% of silver of its total composition.

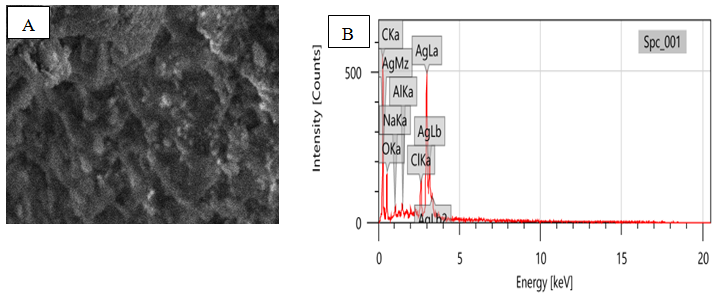

Fig. 6: SEM with EDX for AgNPs: (A) Morphology of AgNPs of the Strain NS-24 studied by SEM, (B) EDX element composition graph

X-ray diffraction (XRD) spectroscopy analysis of AgNPs

The phase purity and composition of AgNPs were examined by XRD in (fig. 7). The XRD spectrum showed five distinct diffraction peaks at 32.17°, 46.17°, 56.39°, 66.30° and 76.66° corresponding lattice plane value was indexed at (111), (200), (220) and (311) planes of the face-centered cubic (FCC) silver, which were compared with the standard powder diffraction card of a joint committee on the powder diffraction standard (JCPDS). The average size of silver nanoparticles was found to be 18.57 nm. A similar report was published by Khan et al., (2017) [26], where average 29 nm-sized AgNPs were obtained through the XRD spectra of Ocimum sanctum leaf broth.

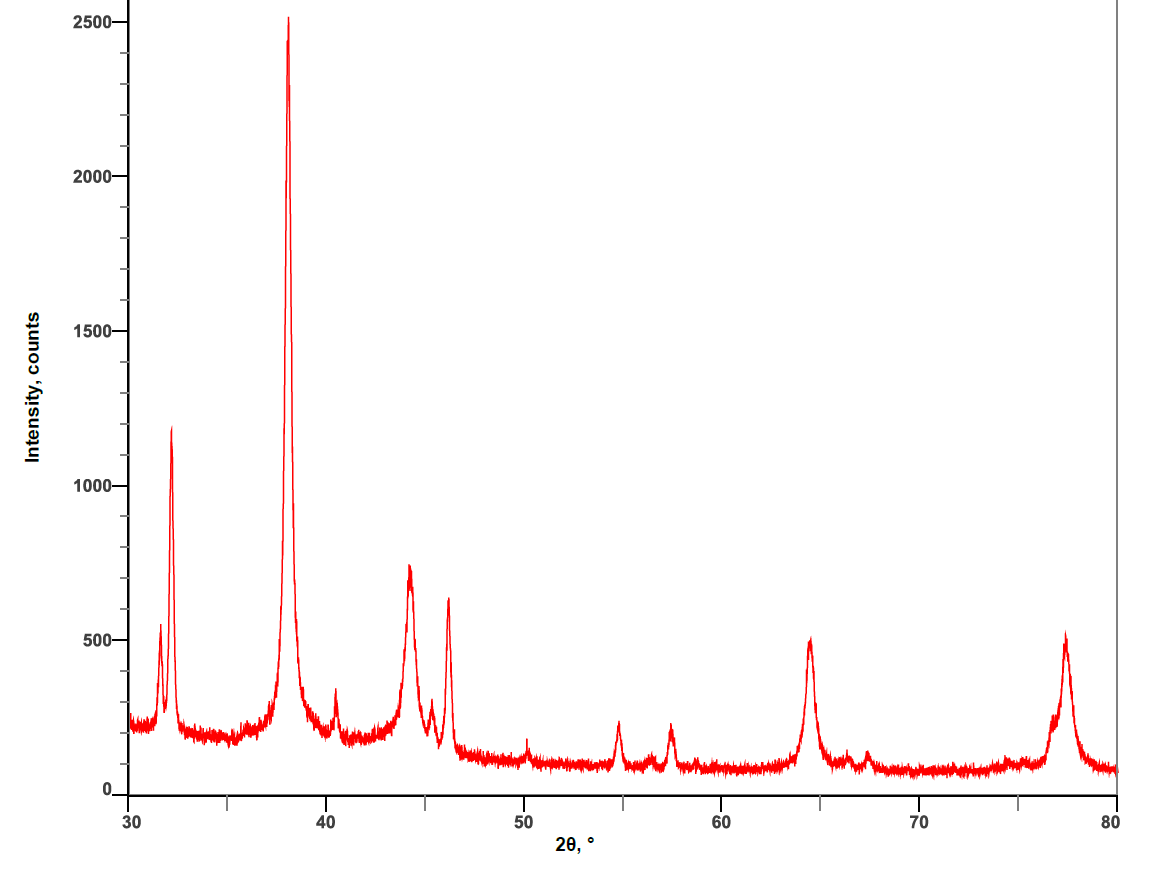

Fig. 7: XRD spectrum of synthesis of AgNPs synthesized from Strain NS-24

Fig. 8: Phylogenetic relationships of the Strain NS-24 based on 16S rRNA gene sequencing

Molecular characterization of Strain NS-24

The molecular taxonomical identification of the Strain NS-24 was done by 16S rRNA gene sequencing. The genomic DNA was extracted and purified. The region of 16S rRNA was amplified using PCR and two forward and reverse primers. The sequenced data obtained was 1533 base pair in length and was deposited in Gene Bank with accession number MN508609. The gene sequence was later compiled and matched with the Gene bank database using the Basic Local Alignment Search Tool (BLAST) on the NCBI website. The alignment of DNA sequence was done and a phylogenetic tree was constructed by the neighbor-joining method using MEGA7.0 software (fig. 8). The analysis of the phylogenetic tree the Strain NS-24 revealed a 98% sequence similarity to the Stenotrophomonas maltophilia strain A32 (MN372320). This can be compared with the results, where the 16S rRNA gene sequencing of strain B5 revealed 99% sequence similarity with Bacillus amyloliquefaciens (KM384034) [27].

Biological activity of AgNPs

Antibacterial activity

The antibacterial activity of biologically synthesized AgNPs was studied on four different gram-positive and gram-negative pathogenic bacteria like Escherichia coli, Enterococcus faecalis, Streptococcus pneumoniae and Staphylococcus aureus. The zone of inhibition formed at different concentrations of AgNPs against different microorganisms was measured (table 2). The zone of inhibition caused by AgNPs of various concentrations like 25 µl, 50 µl, 75 µl, and 100 µl was measured. The synthesized AgNPs showed good antibacterial activity against the selected pathogenic bacteria. Among the bacterial pathogens, E. faecalis and S. pneumoniae were found to be more sensitive to the AgNPs synthesized from the Strain NS-24 and E. coli was the least sensitive. The inhibition zones formed by the AgNPs against the bacterial pathogens at different concentrations were shown in (fig. 9). It has been observed that the biogenic AgNPs exhibited relatively high antibacterial activity against gram-positive and gram-negative bacteria as compared to that of controls (Strain NS-24 supernatant and AgNO3 solution). The primary screening was used to select the antimicrobial isolates and determine the range of microorganisms that were inhibited to Strain NS-24 synthesized AgNPs. Depending on the result of antimicrobial activity by well diffusion method; the Strain NS-24 synthesized AgNPs showed good inhibition zone against four pathogenic organisms during the assessment of biological activity. Our results were in confirmative with the reports described by Remya et al., (2018) [28].

Table 2: Zone of inhibition formed at different concentrations of Strain NS-24 synthesized AgNPs against four different microorganisms (values were mentioned in mean±standard deviation, n=3)

Microorganisms Zone of inhibition (mm) formed by AgNPs (1 mg/ml) AgNO3 (100 µl) (mm) (± SD)

Strain NS-24

supernatant

(100 µl)

(mm)

(±

SD)
25 µl

(±

SD)

 50 µl

(±

SD)

 75 µl
E. coli (MTCC 40) 14.35 ±1.0 16.6 ±0.57 17.8
E. faecalis (MTCC 6845) 17.23 ±1.16 20.6 ±0.5 21.26
S. pneumoniae
(MTCC 8874)		 21.5 ±0.5 22.4 ±0.80 24.06
S. aureus (MTCC 2825) 15.33 ±0.57 17.5 ±0.5 19.53

Fig. 9: Antibacterial activity result of biological AgNPs: (A) Escherichia coli (MTCC 40), (B) Enterococcus faecalis (MTCC 6845), (C) Streptococcus pneumoniae (MTCC 8874), (D) Staphylococcus aureus (MTCC 2825)

CONCLUSION

In this study, biological synthesis of AgNPs was successfully performed by bacterial supernatant. The AgNPs were synthesized from a gram-negative Strain NS-24 supernatant and characterized by various methods, like UV-visible spectra, AFM, TEM, SEM, EDX, X-ray diffraction, FTIR, and HR-TEM. The molecular characterization of the Strain NS-24 was done by DNA extraction, 16S rRNA gene sequencing. The UV-visible spectrophotometric observation of AgNPs suspension showed maximum absorbance at 423 nm. The AFM data confirmed that the particles were polydispersed and spherical in shapes. The FTIR analysis revealed the IR spectral band patterning and TEM analysis showed that the size of biological AgNPs was in the range of 12.56 nm to 27.32 nm, with an average of 18.06 nm in size. The antimicrobial activity of AgNPs was studied on four different gram-negative and gram-positive bacterial strains like Escherichia coli, Enterococcus faecalis, Streptococcus pneumoniae, and Staphylococcus aureus for inhibition of their growth at varying concentrations of AgNPs. The biologically synthesized AgNPs showed broad-spectrum antimicrobial susceptibility against bacterial pathogens. Therefore, it is an eco-friendly, green, non-toxic, economical and rapid method for the synthesis of AgNPs and could be used as alternative sources of antibiotics for the management of pathogenic and multi-drug resistant microorganisms.

ACKNOWLEDGMENT

The authors were obliged to the UGC-SAP-DSA-I, India, Department of Studies in Botany, Karnatak University, Dharwad for providing financial support and the authors were also thankful to the University Science and Instrumentation Centre (USIC), Karnatak University, Dharwad for providing excellent infrastructure research facilities.

AUTHORS CONTRIBUTIONS

SN planned the research work and acquired the finance. PSS, MPB, and MR played out the sample collection and isolation of soil bacteria. BC, DA, played out the synthesis and characterizations of AgNPs and SKN and HH carried out the molecular characterization of NS-24. BC composed the manuscript. MR and DSB helped in the interpretation of results. All the writers read and endorsed the original copy.

CONFLICTS OF INTERESTS

Authors declare that there are no conflicts of interest between them.
