Int J Pharm Pharm Sci, Vol 12, Issue 11, 94-99Original Article
DEVELOPMENT AND VALIDATION OF STABILITY INDICATING RP-UPLC METHOD FOR THE QUANTIFICATION OF BALOXAVIR MARBOXIL IN TABLET FORMULATION
T. VENKATA RAVEENDRANATH1*, R. T. SARAVANAKUMAR1, C. H. K. V. L. S. N. ANJANA2
1Department of Pharmacy, Annamalai University, Tamilnadu, India 608002, 2Department of Pharmaceutical Chemistry and Phytochemistry, Nirmala College of Pharmacy, Guntur, Andhra Pradesh 522503
Email: ravi.6030@gmail.com
Received: 22 May 2020, Revised and Accepted: 03 Sep 2020
ABSTRACT
Objective: Aim of the present work is to develop a simple, accurate and precise stability-indicating method for the quantification of baloxavir marboxil (BLMX) in tablet dosage form by UPLC.
Methods: Chromatographic elution was processed through a HSS C18 (100 x 2.1 mm, 1.8 mm) reverse phase column and the mobile phase composition of buffer 0.1% orthophosphoric acid and acetonitrile in the ratio of 50:50 was processed through a column at a flow rate of 0.3 ml/min. Column oven temperature was maintained at 30 °C and the detection wavelength was processed at 240 nm.
Results: Retention time of BLMX was found to be 0.87 min. Repeatability of the method was determined in the form of %RSD and the value was 0.2. The percentage mean recovery of the method was found to be 99.47%. LOD, LOQ values obtained from the regression equation of BLMX were 0.69 and 2.10 µg/ml, respectively. Regression equation and correlation coefficient values of BLMX were y = 16994x+7179.2 and 0.9996. Drug was subjected for acid, peroxide, photolytic, alkali, neutral and thermal degradation studies and the results shown that the percentage of degradation was found between 5.96% and 9.55%.
Conclusion: Retention time and total run time of the drug was decreased and the developed method was simple and economical. So, the developed method can be adopted in industries as a regular quality control test for the quantification of BLMX.
Keywords: Baloxavir marboxil, UPLC, Specificity, Validation, Stability studies
© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijpps.2020v12i11.38416. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps.
INTRODUCTION
BLMX, sold under the brand name Xofluza, is an antiviral medication for the treatment of influenza A and influenza B flu [1]. Baloxavir marboxil was developed as a prodrug strategy, with its metabolism releasing the active agent, baloxavir acid (BXA). BXA then functions as enzyme inhibitor, targeting the influenza virus’ cap-dependent endonuclease activity, one of the activities of the virus polymerase complex [2]. In particular, it inhibits a process known as cap snatching, by which the virus derives short, capped primers from host cell RNA transcripts, which it then uses for the polymerase-catalyzed synthesis of its needed viral mRNAs [3]. A polymerase subunit binds to the host pre-mRNAs at their 5′-caps, then the polymerase's endonuclease activity catalyzes its cleavage "after 10–13 nucleotides". As such, its mechanism is distinct from neuraminidase inhibitors such as oseltamivir and zanamivir.
BLMX chemically designated as ({(12aR)-12-[(11S)-7, 8-Difluoro-6, 11–dihydrodibenzo [b, e] thiepin-11-yl]-6, 8-dioxo-3,4,6,8,12,12a-hexahydro-1H-[1,4]oxazino[3,4-c]pyrido[2,1-f][1,2,4]triazin-7-yl}oxy)methyl methyl carbonate with molecular weight and formula of 571.55 g/mole and C27H23F2N3O7S respectively (fig. 1) [1-4]. The literature review unveils that no single method was reported for the quantification of BLMX. Based on the literature, there is a need to develop a stability-indicating RP-UPLC method for the quantification of BLMX in bulk and dosage forms.
Fig. 1: Chemical structure of baloxavir marboxil
MATERIALS AND METHODS
Chemicals and reagents
API of BLMX was obtained from spectrum Pharma Research Solutions, Hyderabad. HPLC-grade methanol and acetonitrile were procured from Merck chemical division, Mumbai, India, Potassium dihydrogen orthophosphate, orthophosphoric acid, sodium dihyrogen orthophosphate and HPLC-grade water were bought from Rankem, avantor performance material India limited. Xofluza 40 mg tablets were obtained from local pharmacy.
Chromatographic system
Liquid chromatographic UPLC system of Waters equipped with PDA (photodiode array detector), auto-sampling unit and HSS C18 (100 x 2.1 mm, 1.8µ) reverse phase column. The mobile phase composition of buffer 0.1% orthophosphoric acid and acetonitrile in the ratio of 50:50 was pumped through a column at a flow rate of 0.3 ml/min. Column oven temperature was maintained at 30 °C and the detection wavelength was processed at 240 nm. Integration of output signals was monitored and processed by waters Empower software-2.0.
Diluent
Depending up on the solubility of the drugs, diluent was optimized. Initially dissolved in methanol and diluted with acetonitrile and water (50:50).
Preparation of standard stock solutions
Exactly weighed 20 mg of ECRB and 9 mg of BLMX poured in to a 50 ml volumetric flask and 3/4th volume of diluent was added and vortexed for 20 min. Flasks were made up with water and acetinitrile (50:50) and marked as standard stock solution 1 (400 µg/ml BLMX). 1 ml from the resulting stock solution was pipetted out and taken into a 10 ml volumetric flask and made up with diluent to get 40 µg/ml BLMX.
Preparation of sample stock solutions
5 tablets were weighed and the average weight of each tablet was calculated. The weight equivalent to 1 tablet was transferred into a 100 ml volumetric flask and 25 ml of diluent was added and sonicated for 25 min. Further the volume was made up with diluent and filtered through 0.45 µ filter (400 µg/ml BLMX). 1 ml of the resultant solution was poured in to a 10 ml volumetric flask and made up with diluent (40 µg/ml BLMX).
Preparation of buffer
0.1% orthophosphoric acid buffer was prepared by diluting 1 ml of concentrated orthophosphoric acid with water up to 1000 ml.
Method validation
The developed method for BLMX was subjected for validation for the parameters like system suitability, linearity, robustness, limit of detection (LOD), limit of quantification (LOQ), precision and accuracy as per the guidelines of ICH [5-9].
RESULTS AND DISCUSSION
Method development and optimization
We tried with different mobile phase combinations with methanol, water, acetonitrile and buffer. At all the combinations, the resulting chromatograms got poor resolution, theoretical plates and peak shape [10]. Finally, excellent chromatographic efficiency parameters were obtained with the mobile phase composition of buffer 0.1% orthophosphoric acid and acetonitrile in the ratio of 50:50 %v/v pumped through an HSS C18 (100 x 2.1 mm, 1.8µ) reverse phase column, at a flow rate of 0.3 ml/min. Column oven temperature was maintained at 30 °C and the detection wavelength was processed at 240 nm. Based on the solubility, all the dilutions were made with acetonitrile and water in the ratio of 50:50%v/v. Retention time of BLMX was found to be 0.87 min. An injection volume of 10 µl was infused through an UPLC system to get the better performance.
Method validation
System suitability
The system suitability variables were estimated by preparing standard solution of BLMX and the same were injected 6 times in to the chromatographic system. The variables like peak tailing, and USP plate count were estimated [11]. The results were shown in fig. 2 and table 1.
Specificity
Method specificity was determined by infusing the blank, placebo, standard and sample solutions in to a chromatographic system and the resulting chromatograms were evaluated for interference with the excipients, degradants and other components that may be expected to be present. Blank, standard, formulation and placebo chromatograms were represented in fig. 3.

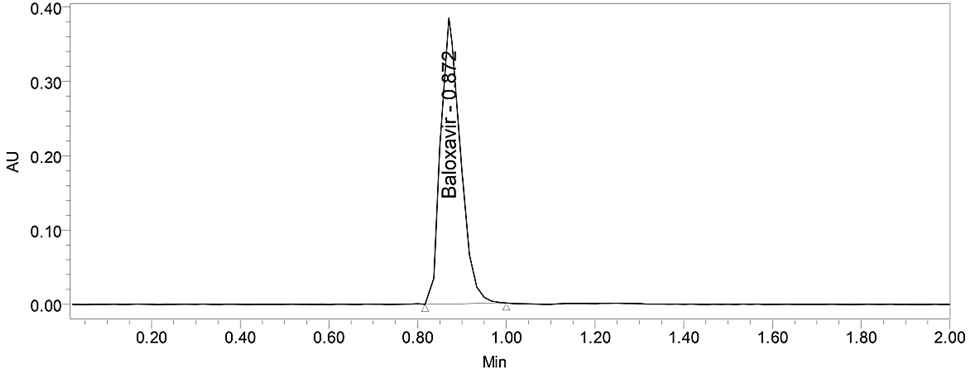

Fig. 2: System suitability chromatogram of BLMX

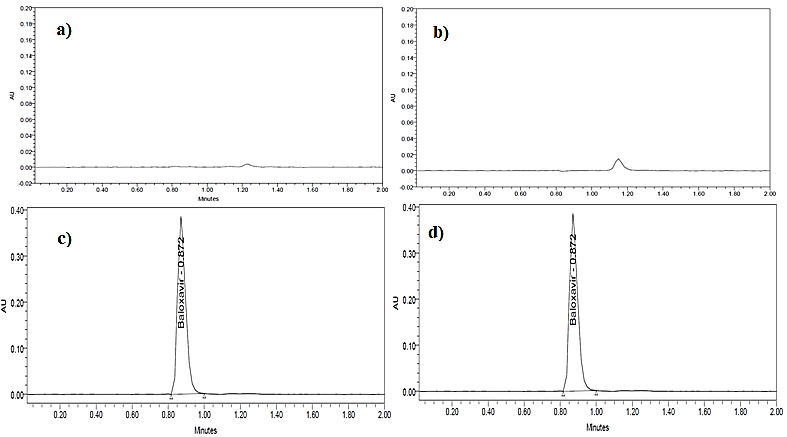

Fig. 3: Chromatograms of a) blank, b) placebo, c) standard and d) sample
Table 1: System suitability parameters for BLMX
| S. No. | BLMX | ||
| RT(min) | USP plate count | Tailing | |
| 1 | 0.872 | 3701 | 1.18 |
| 2 | 0.872 | 3587 | 1.19 |
| 3 | 0.873 | 3658 | 1.16 |
| 4 | 0.871 | 3808 | 1.20 |
| 5 | 0.873 | 3659 | 1.24 |
| 6 | 0.872 | 3842 | 1.18 |
Precision
Precision of the method was evaluated in terms of method precision and intermediate precision. The method precision (repeatability) was estimated by infusing 6 standard solutions and 6 sample solutions. Intermediate precision was evaluated by infusing 6 standard solutions and 6 sample solutions on different days by different employees on different chromatographic systems [11, 12]. The peak responses of all the chromatograms were taken and standard deviation, % RSD (relative standard deviation) and percentage assay of sample solutions were calculated. The findings were represented in tables 2.
Table 2: Repeatability and intermediate precision results of BLMX
| S. No. | Area of BLMX | |
| Day-1 | Day-2 | |
| 1. | 623135 | 615464 |
| 2. | 625323 | 610345 |
| 3. | 622733 | 613197 |
| 4. | 625083 | 616754 |
| 5. | 622016 | 611930 |
| 6. | 625527 | 612846 |
| Mean | 623970 | 613423 |
| SD | 1519.2 | 2338.7 |
| %RSD | 0.2 | 0.4 |
SD: standard deviation; RSD: relative standard deviation
Accuracy
Method accuracy was estimated at three variable concentrations of 50%, 100%, and 150% level by spiking the known amount of the analyte [13]. The % recovery at each level was calculated and the findings were represented in table 3.
Linearity
Linearity of the developed method was evaluated by processing 6 different concentration levels of BLMX over the concentration of 10 to 60 µg/ml. Each concentration level was processed in triplicates [14, 15]. The linearity plot was acquired by plotting peak response (on X-axis) versus concentration (on Y-axis). The results of the linearity were represented in fig. 4 and table 4.
LOD and LOQ
LOD is lowest quantity of drug in a sample that can be identified but cannot be quantified exactly. LOQ is the lowest quantity of a drug in an analyte, which can be quantitatively estimated with suitable accuracy and precision [16]. The LOD and LOQ values were calculated from the linearity data by utilizing standard deviation and slope of the curve and the values were 0.69 and 2.10 µg/ml, respectively.
Robustness
The method robustness was processed by introducing small variation in the optimized LC conditions such as organic phase in mobile phase (±5%), flow rate (-0.1 and+0.1 ml/min) and column temperature (±5 °C). The findings were shown in the table 5.
Table 3: Accuracy results of BLMX
| % Level | Amount spiked (μg/ml) | Amount recovered (μg/ml) | % Recovery | Mean % recovery |
| 50% | 20 | 19.8932 | 99.47 | 99.47% |
| 20 | 19.81135 | 99.06 | ||
| 20 | 19.93662 | 99.68 | ||
| 100% | 40 | 39.84106 | 99.60 | |
| 40 | 39.98523 | 99.96 | ||
| 40 | 39.91915 | 99.80 | ||
| 150% | 60 | 59.57467 | 99.29 | |
| 60 | 59.5439 | 99.24 | ||
| 60 | 59.46752 | 99.11 |
Table 4: Linearity results of BLMX
| S. No. | Concentration (μg/ml) | Peak area |
| 1 | 0 | 0 |
| 2 | 10 | 180652 |
| 3 | 20 | 351425 |
| 4 | 30 | 526977 |
| 5 | 40 | 677785 |
| 6 | 50 | 853069 |
| 7 | 60 | 1029005 |

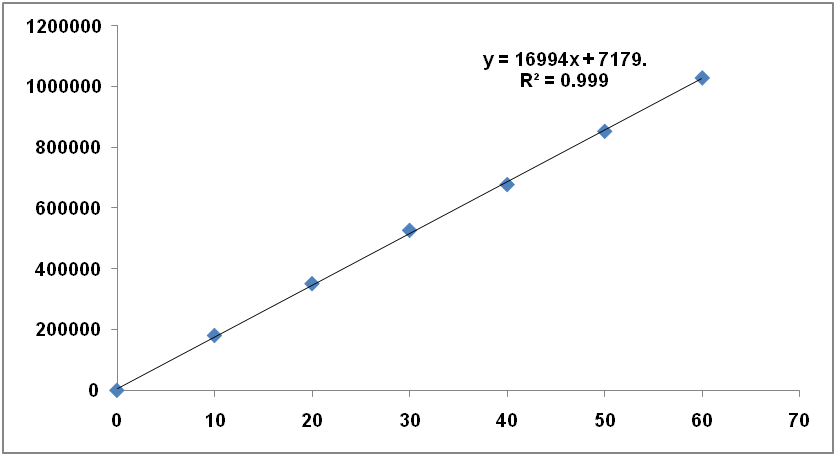

Fig. 4: Calibration curve of BLMX
Table 5: Robustness data for BLMX
| S. No. | Variation in LC conditions | BLMX % RSD |
| 1 | Flow rate-0.1 ml/min | 0.9 |
| 2 | Flow rate+0.1 ml/min | 0.6 |
| 3 | Organic phase-5% | 0.8 |
| 4 | Organic phase+5% | 1.0 |
| 5 | Temperature at 25 °C | 0.5 |
| 6 | Temperature at 35 °C | 0.9 |
Degradation studies
Alkali degradation studies
To 1 ml of stock solution of BLMX, 1 ml of 2N NaOH was added in to a 10 ml volumetric flask and kept at 60 °C for 30 min. Further, the resulting solution was made up to the mark to get 40 µg/ml BLMX. From that 10 µl of the solution was infused in to an UPLC system and the resultant chromatograms were analysed for the stability of analyte [17, 18]. The findings were represented in table 6 and fig. 5.
Fig. 5: Representative chromatograms of a) acid degradation, b) alkali degradation, c) peroxide degradation, d) thermal degradation, e) UV-degradation, and f) neutral degradation
Table 6: Degradation data of BLMX
| Type of degradation | BLMX | ||
| Area | % Recovered | % Degraded | |
| Acid | 573001 | 91.40 | 8.60 |
| Alkali | 567048 | 90.45 | 9.55 |
| Peroxide | 587048 | 93.64 | 6.36 |
| Thermal | 565739 | 90.24 | 9.76 |
| UV light | 589577 | 94.04 | 5.96 |
| Neutral | 577263 | 92.08 | 7.92 |
Photolytic stability study
For the photolytic stability study, BLMX 400 µg/ml solution was exposed to UV-light by placing the solutions in UV cabinet for 7 d or 200 Watt hours/m2 in photostability chamber. The resulting solution was transferred in to a 10 ml volumetric flask and made up to the mark with diluent to get 40 µg/ml BLMX. From that 10 µl of solution was infused in to an UPLC system and the resultant chromatograms were analysed for the stability of analyte. The findings were represented in table 6 and fig. 5.
Acid degradation studies
To 1 ml of stock solution of BLMX, 1 ml of 2N Hydrochloric acid was added in to a 10 ml volumetric flask and refluxed at 60 °C for 30 min. Further, the resulting solution was made up to the mark to get 40 µg/ml BLMX. From that 10 µl of the solution was infused in to an UPLC system and the resultant chromatograms were analysed for the stability of analyte. The findings were represented in table 6 and fig. 5.
Neutral degradation studies
To 1 ml of stock solution of BLMX, 5 ml of water was added in to a 10 ml volumetric flask and kept for refluxing at 60 °C for 1 h. Further, the resulting solution was made up to the mark to get 40 µg/ml BLMX. From that 10 µl of solution was infused in to an UPLC system and the resultant chromatograms were analysed for the stability of analyte. The findings were represented in table 6 and fig. 5.
Oxidation
To 1 ml of stock solution of BLMX, 1 ml of 20% hydrogen peroxide (H2O2) were added into a 10 ml volumetric flask and kept at 60 °C for 30 min. Further, the resulting solution was made up to the mark to get 40 µg/ml BLMX. From that 10 µl of solution was infused in to an UPLC system and the resultant chromatograms were analysed for the stability of analyte. The findings were represented in table 6 and fig. 5.
Dry heat degradation studies
Standard stock solution of BLMX was monitored at 105 °C for 6 h in a hot air oven to perform the dry heat stability study. Further, the resulting solution was subjected for dilution to get 40 µg/ml BLMX. From that 10 µl of the solution was infused in to an UPLC system and the resultant chromatograms were analysed for the stability of analyte. The findings were represented in table 6 and fig. 5.
CONCLUSION
A simple, accurate and precise method was developed for the estimation of BLMX in Tablet dosage form by RP-UPLC technique. Retention time of BLMX was found to be 0.87 min and chromatographic elution was processed through a HSS C18 (100 x 2.1 mm, 1.8µ) reverse phase column and the mobile phase composition of buffer 0.1% orthophosphoric acid and acetonitrile in the ratio of 50:50 was pumped through a column at a flow rate of 0.3 ml/min. Repeatability of the method was determined in the form of %RSD and the value was 0.2. The percentage mean recovery of the method was found to be 99.47%. Drug was subjected for acid, peroxide, photolytic, alkali, neutral and thermal degradation studies and the results shown that the percentage of degradation was found between 5.96% and 9.55%. Retention time and total run time of the drug were decreased and the developed method was simple and economical. So, the developed method can be adopted in industries as a regular quality control test for the quantification of ECRB and BMTB.
FUNDING
Nil
AUTHORS CONTRIBUTIONS
Venkata Raveendranath performed experiments, analysed data and co-wrote the paper. Anjana performed experiments. Saravanakumar designed and drafted the article.
CONFLICTS OF INTERESTS
The authors declare that there are no conflicts of interest regarding the publication of the paper.
