Int J Pharm Pharm Sci, Vol 7, Issue 6, 120-123Original Article

SYNTHESIS OF TRIAZOLOTHIADIAZINE DERIVATIVES AS ANTIOXIDANT AGENTS

NIRANJAN KAUSHIK*^1,2, NITIN KUMAR³, ANOOP KUMAR⁴

¹School of Pharmaceutical Sciences, IFTM University, Moradabad 244102, Uttar Pradesh, India, ²School of Medical and Allied Sciences, Department of Pharmacy, Galgotias University, greater Noida 203201, Uttar Pradesh, India, ³Oxford College of Pharmacy, Ghaziabad 201001, Uttar Pradesh, India, ⁴Department of Pharmaceutical Technology, Meerut Institute of Engineering & Technology, Meerut 250005, Uttar Pradesh, India
Email: niranjankaushik79@gmail.com

Received: 06 Nov 2014 Revised and Accepted: 10 Dec 2014

---

ABSTRACT

Objectives: The objective of the present study is to synthesize 3-substituted phenyl-6-phenyl-7H-[1, 2, 4] triazolo [3, 4-b][1,3,4] thiadiazine. The structures of all the synthesized compounds were characterized by IR, ¹H NMR and mass spectral studies.

Methods: The titled compounds were synthesized by the reaction of substituted benzoic acid with thiocarbohydrazide followed by refluxing with 2-bromoacetophenone in ethanol. These compounds were evaluated for in-vitro antioxidant activity by 2, 2-diphenyl-1-picrylhydrazyl (DPPH) free radical scavenging method.

Results: Compounds 2e and 2i exhibited good antioxidant activity as compared with standard, ascorbic acid.

Conclusion: In summary, 3-substituted phenyl-6-phenyl-7H-[1, 2, 4] triazolo [3, 4-b] [1, 3, 4] thiadiazine derivatives have been synthesized and characterized. In-vitro antioxidant activity of the compounds was screened by DPPH free radical scavenging method. Among the synthesized compounds, the compounds 2e and 2i have been shown the most prominent antioxidant activity using ascorbic acid as standard. The future perspective of in-vivo antioxidant evaluation of these compounds can be the potential lead.

Keywords: Thiocarbohydrazide, Thiadiazine, Antioxidant activity, Triazole.

---

INTRODUCTION

Antioxidants are the reducing agents which used to stabilize some free radicals which produced as a result of cellular metabolism. Some of these free radicals or Reactive Oxygen Species (ROS) are destructive to cell and stabilization of these radicals is necessary to the proper functioning or protection for the cell. The antioxidants can be promising prophylactic agents in pathogenesis [1]. Some food items, vegetables, and fruits act as antioxidants [2-6].

Antioxidants are extensively studies for their capacity to protect organisms and cells from damage induced by oxidative stress. Scientists in various disciplines have become more interested in the new compounds, either synthesized or obtained from natural sources that could provide an active component to prevent or reduce the impact of oxidative stress on cell [7]. Exogenous chemicals and endogenous metabolic process in human body might produce highly reactive free radicals, especially oxygen derived radicals, which are capable of oxidizing biomolecules, resulting in cell death and tissue damage. Oxidative damage plays a significant pathological role in human disease, for example; cancer, emphysema, cirrhosis, atherosclerosis and arthritis have all been correlated with oxidative damage. Furthermore, excessive generation of ROS (reactive oxygen species) induced by various stimuli and which exceeds the antioxidant capacity of the organism leads to a variety of pathophysiological processes such as inflammation, diabetes, genotoxicity and cancer [8].

To protect the cells and organ systems within the body against reactive oxygen species, humans have evolved a highly sophisticated and complex antioxidant protection system. It involves a variety of components, both endogenous and exogenous in origin, that function interactively and synergistically to neutralize free radicals [9].

Triazolothiadiazine derivatives are known to exhibit antimicrobial [10, 11], anticancer [12, 13], anti-HIV [13], anti-inflammatory and analgesic [14], anthelmintic [15], antioxidant [16] and antiviral properties [17]. This potential activity profile of triazolothiadiazine derivatives motivated us to synthesize some new triazolothiadiazine derivatives and screen them for antioxidant activity to find some new compounds having potential activity. In this view, some triazolothiadiazine derivatives have been synthesized, characterized by different spectral studies and screened for their in-vitro antioxidant potential.

MATERIALS AND METHODS

All the reagents were purchased from commercial sources and were used after being purified by standard procedures. Melting point was determined by open capillary method and is uncorrected. All the reactions were monitored by TLC on silica gel thin layer plates. IR spectra were recorded by using KBr disk on Shimadzu FTIR-8400S. ¹H NMR spectra were recorded on a JEOL AL300 FTNMR 300 MHz spectrophotometer by using tetramethylsilane as internal standard. The values of chemical shift (δ) are given in ppm. Mass spectra were carried out using Waters Micro mass Q-Tof Micro. Mass spectrometer equipped with electrospray ionization (ESI).

General procedure for the synthesis of 4-amino-3-(substituted phenyl)-5-mercapto-1, 2, 4-trizole (1a-k)

A mixture of substituted benzoic acid (0.01 mol.) and thio carbohydrazide (0.015 mol.) were heated until the contents were melted. The mixture was maintained at this temperature for 15-20 minutes, the product obtained on cooling was treated with sodium bicarbonate solution to dissolve unreacted carboxylic acid if any. The product then washed with water, filtered and recrystallized with ethanol.

Synthesis of 4-amino-3-(phenyl)-5-mercapto-1, 2, 4-trizole (1a)

Brown black solid; Yield: 86%; m. p.: 148-150 °C; IR (KBr, v_max, cm^-1): 3406 (NH₂), 3093 (Ar-CH), 1635 (C=N), 1595 (C=C), 1384 (C-N), 1070 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.54-7.24 (m, 5H, Ar H), 3.45 (s, 1H, SH), 2.27 (s, 2H, NH₂).

Synthesis of 4-amino-3-(2-amino-4-chlorophenyl)-5-mercapto-1, 2, 4-trizole (1b)

Brown solid; Yield: 82%; m. p.: 162-164 °C; IR (KBr, v_max, cm^-1): 3468 (NH₂), 3097 (Ar-CH), 1639 (C=N), 1598 (C=C), 1323 (C-N), 1070 (C-S), 761 (C-Cl); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.36 (d, 1H, Ar H), 6.84 (d, 1H, Ar H), 6.67 (s, 1H, Ar H), 4.26 (s, 2H, NH₂, benzene ring), 3.38 (s, 1H, SH), 2.21 (s, 2H, NH₂).

Synthesis of 4-amino-3-(4-fluoro-3-nitrophenyl)-5-mercapto-1, 2, 4-trizole (1c)

Yellow brown solid; Yield: 74%; m. p.: 168-170 °C; IR (KBr, v_max, cm^-1): 3409 (NH₂), 3012 (Ar-CH), 1629 (C=N), 1593 (C=C), 1544 (NO₂), 1384, (C-N), 1114 (C-F), 1070 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 8.02 (s, 1H, Ar H), 7.67 (d, 1H, Ar H), 7.44 (d, 1H, Ar H), 3.16 (s, 1H, SH), 2.38 (s, 2H, NH₂).

Synthesis of 4-amino-3-(2, 5-dimethoxyphenyl)-5-mercapto-1, 2, 4-trizole (1d)

Brown solid; Yield: 68%; m. p.: 146-148 °C; IR (KBr, v_max, cm^-1): 3484 (NH₂), 3070 (Ar-CH), 1643 (C=N), 1593 (C=C), 1334, (C-N), 1217 (OCH₃), 1070 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.06 (s, 1H, Ar H), 6.88 (d, 1H, Ar H), 6.64 (d, 1H, Ar H), 3.74 (s, 6H, OCH₃), 3.29 (s, 1H, SH), 2.17 (s, 2H, NH₂).

Synthesis of 4-amino-3-(4-aminomethylphenyl)-5-mercapto-1, 2, 4-trizole (1e)

Black solid; Yield: 65%; m. p.: 136-138 °C; IR (KBr, v_max, cm^-1): 3472 (NH₂), 3064 (Ar-CH), 2773 (CH₂), 1643 (C=N), 1564 (C=C), 1330, (C-N), 1087 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.57 (d, 2H, Ar H), 7.31 (d, 2H, Ar H), 3.72 (s, 2H, CH₂), 3.25 (s, 1H, SH), 2.38 (s, 4H, NH₂).

Synthesis of 4-amino-3-(3-hydroxy-4-nitrophenyl)-5-mercapto-1, 2, 4-trizole (1f)

Brownish black solid, Yield: 72%; m. p.: 129-131 °C; IR (KBr, v_max, cm^-1): 3583 (OH), 3478 (NH₂), 3020 (Ar-CH), 1647 (C=N), 1593 (NO₂), 1500 (C=C), 1330, (C-N), 1065 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.87 (d, 1H, Ar H), 7.54 (d, 1H, Ar H), 7.12 (s, 1H, Ar H), 4.87 (s, 1H, OH), 3.22 (s, 1H, SH), 2.16 (s, 2H, NH₂).

Synthesis of 4-amino-3-(2-amino-5-iodophenyl)-5-mercapto-1, 2, 4-trizole (1g)

Brown solid, Yield: 66%; m. p.: 183-185 °C; IR (KBr, v_max, cm^-1): 3415 (NH₂), 3020 (Ar-CH), 1598 (C=N), 1500 (C=C), 1382, (C-N), 1070 (C-S), 526 (C-I); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.83 (s, 1H, Ar H), 7.18 (d, 1H, Ar H), 6.74 (d, 1H, Ar H), 4.23 (s, 2H, NH₂, benzene ring), 3.27 (s, 1H, SH), 2.19 (s, 2H, NH₂).

Synthesis of 4-amino-3-(2-iodophenyl)-5-mercapto-1, 2, 4-trizole (1h)

Brown solid; Yield: 65%; m. p.: 173-175 °C; IR (KBr, v_max, cm^-1): 3432 (NH₂), 3087 (Ar-CH), 1645 (C=N), 1568 (C=C), 1330, (C-N), 1087 (C-S), 466 (C-I); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.87-7.02 (m, 4H, Ar H), 3.34 (s, 1H, SH), 2.12 (s, 2H, NH₂).

Synthesis of 4-amino-3-(benzoylphenyl)-5-mercapto-1, 2, 4-trizole (1i)

Yellowish white solid; Yield: 70%; m. p.: 163-165 °C; IR (KBr, v_max, cm^-1): 3371 (NH₂), 3087 (Ar-CH), 1647 (C=O), 1627 (C=N), 1596 (C=C), 1384, (C-N), 1070 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.82-7.18 (m, 9H, Ar H), 3.34 (s, 1H, SH), 2.29 (s, 2H, NH₂).

Synthesis of 4-amino-3-(3-fluoro-4-methoxyphenyl)-5-mercapto-1, 2, 4-trizole (1j)

Yellow solid; Yield: 73%; m. p.: 180-182 °C; IR (KBr, v_max, cm^-1): 3454 (NH₂), 3068 (Ar-CH), 1643 (C=N), 1566 (C=C), 1380, (C-N), 1155 (OCH₃), 1087 (C-F), 1072 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.25 (d, 1H, Ar H), 7.15 (s, 1H, Ar H), 7.08 (d, 1H, Ar H), 3.87 (s, 3H, OCH₃), 3.42 (s, 1H, SH), 2.36 (s, 2H, NH₂).

Synthesis of 4-amino-3-(3-chloro-4-fluorophenyl)-5-mercapto-1, 2, 4-trizole (1k)

Yellow solid; Yield: 66%; m. p.: 158-160 °C; IR (KBr, v_max, cm^-1): 3440 (NH₂), 3076 (Ar-CH), 1643 (C=N), 1596 (C=C), 1334, (C-N), 1116 (C-F), 1087 (C-S), 751 (C-Cl); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.34 (s, 1H, Ar H), 7.18 (s, 1H, Ar H), 7.04 (s, 1H, Ar H), 3.18 (s, 1H, SH), 2.07 (s, 2H, NH₂).

General procedure for the synthesis of 3-substituted phenyl-6-phenyl-7H-[1, 2, 4] triazolo [3, 4-b][1,3,4] thiadiazine (2a-k)

A mixture of 4-amino-3-(substituted phenyl)-5-mercapto-1, 2, 4-trizole 1a-k (0.01 mol) and 2-bromoacetophenone (0.01 mol) in ethanol (25 ml) was kept under reflux for about 6 hrs. The reaction mixture was cool, solid precipitate was filtered, washed with water and dried. The resulted compounds were purified by column chromatography using ethanol: dioxan (4:1) as mobile phase.

3, 6-diphenyl-7H-[1,2,4] triazolo [3, 4-b][1,3,4] thiadiazine (2a)

Brown solid; Yield: 34%; m. p.: 110-112 °C; IR (KBr, v_max, cm^-1): 3048 (Ar-CH), 2832 (CH₂), 2365 (N-N=), 1622 (C=N), 1588 (C=C), 1367(C-N), 1054 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.82-7.16 (m, 10H, Ar H), 3.37 (s, 2H, CH₂, thiadiazine); MS (m/z): 292 (M)⁺; Anal. Calcd. for C₁₆H₁₂N₄S: C, 65.73; H, 4.14; N, 19.16; S, 10.97.

5-chloro-2-(6-phenyl-7H-[1,2,4] triazolo [3, 4-b][1,3,4] thiadiazin-3-yl) benzamine (2b)

Yellow solid; Yield: 35%; m. p.: 118-120 °C; IR (KBr, v_max, cm^-1): 3517 (NH₂), 3022 (Ar-CH), 2881 (CH₂), 2360 (N-N=), 1629 (C=N), 1592 (C=C), 1380, (C-N), 1089 (C-S), 760 (C-Cl); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.56-7.22 (m, 5H, Ar H), 7.03 (d, 1H, Ar H), 6.98 (d, 1H, Ar H), 6.87 (s, 1H, Ar H), 4.17 (s, 2H, NH₂), 3.32 (s, 2H, CH₂, thiadiazine); MS (m/z) 341 (M)⁺; Anal. Calcd. for C₁₆H₁₂ClN₅S: C, 56.22; H, 3.54; Cl, 10.37; N, 20.49; S, 9.38.

3-(4-fluoro-3-nitropheny)-6-phenyl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazine (2c)

Black solid; Yield: 41%; m. p.: 130-132 °C; IR (KBr, v_max, cm^-1): 2956 (Ar-CH), 2852 (CH₂), 2381 (N-N=), 1612 (C=N), 1598 (C=C), 1542 (NO₂), 1384, (C-N), 1070 (C-S), 991 (C-F); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.81 (d, 1H, Ar H), 7.68-7.37 (m, 5H, Ar H), 7.31 (s, 1H, Ar H), 7.28 (d, 1H, Ar H), 3.28 (s, 2H, CH₂, thiadiazine); MS (m/z) 354 (M)⁺; Anal. Calcd. for C₁₆H₁₀FN₅O₂S: C, 54.08; H, 2.84; F, 5.35; N, 19.17; O, 9.00; S, 9.02.

3-(2,5-dimethoxypheny)-6-phenyl-7H-[1,2,4]triazolo[3,4-b] [1,3,4] thiadiazine (2d)

Yellowish white solid; Yield: 36%; m. p.: 122-124 °C; IR (KBr, v_max, cm^-1): 3076 (Ar-CH), 2881 (CH₂), 2360 (N-N=), 1631 (C=N), 1529 (C=C), 1384 (C-N), 1107 (OCH₃), 1070 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.69-7.25 (m, 5H, Ar H),6.92 (s, 1H, Ar H), 6.78 (d, 2H, Ar H), 3.78 (s, 6H, OCH₃), 3.31 (s, 2H, CH₂, thiadiazine); MS (m/z) 352 (M)⁺; Anal. Calcd. for C₁₈H₁₆N₄O₂S: C, 61.35; H, 4.58; N, 15.19; O, 9.08; S, 9.10.

(4-(6-phenyl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazin-3-yl)phenyl) methanamine (2e)

Yellowish brown solid; Yield: 34%; m. p.: 139-141 °C; IR (KBr, v_max, cm^-1): 3585 (NH₂), 3055 (Ar-CH), 2881 (CH₂), 2360 (N-N=), 1631 (C=N), 1596 (C=C), 1074 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.64-7.35 (m, 5H, Ar H), 7.27 (d, 2H, Ar H), 7.16 (d, 2H, Ar H), 4.18 (s, 2H, CH₂), 3.38 (s, 2H, CH₂, thiadiazine), 2.31 (s, 2H, NH₂); MS (m/z) 321 (M)⁺; Anal. Calcd. for C₁₇H₁₅N₅S: C, 63.53; H, 4.70; N, 21.79; S, 9.98.

2-nitro-5-(6-phenyl-7H-[1,2,4] triazolo [3, 4-b][1,3,4] thiadiazin-3-yl)phenol (2f)

Yellow solid; Yield: 28%; m. p.: 187-189 °C; IR (KBr, v_max, cm^-1): 3540 (OH), 3032 (Ar-CH), 2883 (CH₂), 2340 (N-N=), 1625 (C=N), 1530 (C=C), 1024 (C-S), 1597 (NO₂); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.95 (d, 1H, Ar H), 7.58-7.33 (m, 5H, Ar H), 7.27 (s, 1H, Ar H), 7.22 (d, 1H, Ar H), 4.76 (s, 1H, OH), 3.27 (s, 2H, CH₂, thiadiazine); MS (m/z) 353 (M)⁺; Anal. Calcd. for C₁₇H₁₃N₅O₄S: C, 53.26; H, 3.42; N, 18.27; O, 16.69; S, 8.36.

4-iodo-2-(6-phenyl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazin-3-yl)benzenamine (2g)

Reddish brown solid; Yield: 31%; m. p.: 172-174 °C; IR (KBr, v_max, cm^-1): 3510 (NH₂), 3058 (Ar-CH), 2854 (CH₂), 2345 (N-N=), 1625 (C=N), 1596 (C=C), 1056 (C-S), 472 (C-I); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.66 (s, 1H, Ar H), 7.55-7.36 (m, 5H, Ar H), 7.22 (d, 1H, Ar H), 6.87 (d, 1H, Ar H), 4.37 (s, 2H, NH₂), 3.32 (s, 2H, CH₂, thiadiazine); MS (m/z) 432 (M)⁺; Anal. Calcd. for C₁₆H₁₂IN₅S: C, 44.35; H, 2.79; I, 29.29; N, 16.16; S, 7.40.

3-(2-iodophenyl)-6-phenyl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazine (2h)

Brown solid; Yield: 37%; m. p.: 169-171 °C; IR (KBr, v_max, cm^-1): 3062 (Ar-CH), 2815 (CH₂), 2354 (N-N=), 1602 (C=N), 1510 (C=C), 1068 (C-S), 480 (C-I); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.75-7.22 (m, 9H, Ar H), 3.26 (s, 2H, CH₂, thiadiazine); MS (m/z) 417 (M)⁺; Anal. Calcd. for C₁₆H₁₁IN₄S: C, 45.95; H, 2.65; I, 30.34; N, 13.40; S, 7.67.

[

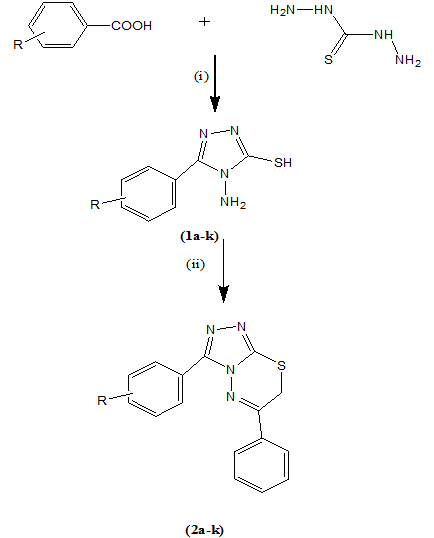

Reagents and conditions: (i) Heat until melt, NaHCO₃ (ii) 2-bromoacetophenon, C₂H₅OH, reflux

Scheme 1: Sunthetic pathway for the compound 2a-k

Phenyl (2-(6-phenyl)-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazin-3-yl)phenyl) methanone (2i)

Brown solid; Yield: 27%; m. p.: 183-185 °C; IR (KBr, v_max, cm^-1): 3055 (Ar-CH), 2852 (CH₂), 2349 (N-N=), 1674 (C=O), 1629 (C=N), 1529 (C=C), 1070 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.78-7.33 (m, 14H, Ar H), 3.18 (s, 2H, CH₂, thiadiazine); MS (m/z) 397 (M)⁺; Anal. Calcd. for C₂₃H₁₆N₄OS: C, 69.68; H, 4.07; N, 14.13; O, 4.04; S, 8.09.

3-(3-fluoro-4-methoxyphenyl)-6-phenyl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazine (2j)

Reddish brown solid; Yield: 34%; m. p.: 176-178 °C; IR (KBr, v_max, cm^-1): 3060 (Ar-CH), 2852 (CH₂), 2336 (N-N=), 1604 (C=N), 1544 (C=C), 1118 (OCH₃), 1072 (C-F), 1066 (C-S); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.53-7.32 (m, 5H, Ar H), 7.21 (d, 1H, Ar H), 7.14 (s, 1H, Ar H), 6.98 (d, 1H, Ar H), 3.64 (s, 3H, OCH₃), 3.18 (s, 2H, CH₂, thiadiazine); MS (m/z) 341 (M)⁺; Anal. Calcd. for C₁₇H₁₃FN₄OS: C, 59.99; H, 3.65; F, 5.58; N, 16.46; O, 4.70; S, 9.42.

3-(3-chloro-5-fluorophenyl)-6-phenyl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazine (2k)

Brick red solid; Yield: 32%; m. p.: 187-189 °C; IR (KBr, v_max, cm^-1): 3035 (Ar-CH), 2848 (CH₂), 2347 (N-N=), 1615 (C=N), 1531 (C=C), 1022 (C-F), 1070 (C-S), 609 (C-Cl); ¹H NMR (DMSO-d₆, 300 MHz) δ: 7.67-7.25 (m, 5H, Ar H), 7.17 (s, 1H, Ar H), 7.05 (s, 1H, Ar H), 6.86 (s, 1H, Ar H), 3.16 (s, 2H, CH₂, thiadiazine); MS (m/z) 344 (M)⁺; Anal. Calcd. for C₁₆H₁₀ClFN₄S: C, 55.74; H, 2.92; Cl, 10.28; F, 5.51; N, 16.25; S, 9.30.

DPPH free radical scavenging activity

All the synthesized compounds were screened for their in-vitro antioxidant activity by scavenging of DPPH (2, 2-diphenyl-1-picrylhydrazyl) free radical. A stock solution of 100 μg/ml was prepared for all the test compounds as well as of standard. Different concentrations were made of 10, 20, 30, 40 and 50 μg/ml from stock solutions using methanol. 0.1 mM solution of DPPH in methanol was prepared in a volumetric flask which was completely kept away from light. 1.0 ml of all concentration of test and standards was mixed with 1.0 ml of DPPH solution. This solution was kept for 30 minutes in the dark place. Methanol with DPPH was used as control. Absorbance of all the samples was taken on UV-spectrophotometer at a λ_max of 517 nm [18]. The free-radical scavenging was expressed as the percentage inhibition and was calculated using the formula:

Percent inhibition % = [(Ao-A)/Ao) x100]

Where: Ao = Absorbance of control.

A = Absorbance of test or standard.

The percent inhibition was plotted against the sample or the standard concentration to obtain the amount of antioxidants necessary to decrease the initial concentration of DPPH to 50% (IC₅₀). IC₅₀ values were calculated from the calibration curve. IC₅₀ value is defined as the concentration of test compound required to achieve half maximal inhibition and lower IC₅₀ value indicates greater antioxidant activity.

Table 1: Data of antioxidant activity of synthesized compounds by DPPH scavenging assay

Compounds			Concentration µg/ml				IC50 value µg/ml
	10	20	30	40	50
	*Abs	% inhibition	*Abs	% inhibition	*Abs	% inhibition	*Abs
Std.	0.166	46.79	0.144	53.84	0.121	61.85	0.103
2a	0.266	14.74	0.238	23.71	0.193	38.14	0.18
2b	0.203	34.93	0.179	42.62	0.164	47.43	0.154
2c	0.188	39.74	0.174	44.23	0.153	50.96	0.136
2d	0.179	42.62	0.161	48.39	0.146	53.2	0.122
2e	0.176	43.58	0.149	52.24	0.119	61.89	0.107
2f	0.229	26.6	0.214	31.41	0.176	43.58	0.152
2g	0.235	24.67	0.217	30.44	0.188	39.74	0.177
2h	0.289	7.37	0.274	12.17	0.247	21.47	0.235
2i	0.169	45.83	0.155	50.32	0.126	59.45	0.11
2j	0.199	36.21	0.174	44.23	0.148	52.56	0.131
2k	0.241	22.75	0.224	28.2	0.194	37.82	0.184

*Abs is Absorbance.

RESULTS AND DISCUSSION

Chemistry

In the present work, a mixture of substituted benzoic acid and thiocarbohydrazide were heated until the contents were melted and the mixture was maintained at this temperature for 15-20 minutes to obtained 4-amino-3-(substituted phenyl)-5-mercapto-1, 2, 4-trizole (1a-k). The synthesized intermediates (1a-k) were refluxed with 2-bromoacetophenone in ethanol to yield 3-substituted phenyl-6-phenyl-7H-[1, 2, 4] triazolo [3, 4-b][1,3,4] thiadiazine (2a-k).

Further the synthesized compounds were purified by column chromatography using ethanol: dioxan (4:1) as mobile phase. Structure of all the newly synthesized compounds was confirmed by their spectral data interpretation.

Antioxidant activity

In-vitro antioxidant activity of the synthesized compounds was determined by DPPH free radical scavenging method. Results obtained from in-vitro antioxidant activity are summarized in Table1. Investigation of antioxidant screening revealed that compounds 2e and 2i had shown more promising antioxidant activity as compared to standard. A possible explanation for this result is that the biological activity of compounds may depend on the basic skeleton of the molecule as well as on the nature of substituents. The results indicate that triazolothiadiazine derivatives containing amino methyl phenyl substituents and benzoylphenyl substituents at 3-position of the triazole ring have a great potential for antioxidant activity.

CONCLUSION

In summary, 3-substituted phenyl-6-phenyl-7H-[1, 2, 4] triazolo [3, 4-b][1,3,4] thiadiazine derivatives have been synthesized and characterized. In-vitro antioxidant activity of the compounds was screened by DPPH free radical scavenging method. Among the synthesized compounds, the compounds 2e and 2i have been shown the most prominent antioxidant activity using ascorbic acid as standard. The future perspective of in-vivo antioxidant evaluation of these compounds can be the potential lead.

ACKNOWLEDGEMENT

Authors are thankful to Director, Department of Pharmaceutical Technology, Meerut Institute of Engineering & Technology, Meerut for providing laboratory facilities. Authors are also grateful to IIT New Delhi for providing spectral data.

CONFLICT OF INTERESTS

The authors declare that they have no conflict of interest.

REFERENCES

1. Ratnam DV, Ankola DD, Bhardwaj V, Sahana DK, Ravi Kumar MNV. Role of antioxidants in prophylaxis and therapy: A pharmaceutical perspective. J Controlled Release 2006;113:189–207.
2. Hamid AA, Aiyelaagbe OO, Usman LA, Ameen OM, Lawal A. Antioxidants: Its medicinal and pharmacological applications. Afr J Pure Appl Chem 2010;8:142-51.
3. Singh N, Singh G. Antioxidants from natural sources: Ray of hope for oxidative damage. J Pharm Sci Innovation 2012;1:14-7.
4. McCarty MF. Scavenging of peroxynitrite-derived radicals by flavonoids may support endothelial NO synthase activity, contributing to the vascular protection associated with high fruit and vegetable intakes. Med Hypotheses 2008;70:170–81.
5. Almeida MC, Barreira CM, Oliveira MB, Ferreira FR. Dietary antioxidant supplements: Benefits of their combined use. Food Chem Toxicol 2011;49:3232–7.
6. Marathe SA, Rajalakshmi V, Jamdar SN, Sharma A. Comparative study on antioxidant activity of different varieties of commonly consumed legumes in India. Food Chem Toxicol 2011;49:2005–12.
7. Husain HH, Babic G, Durst T. Development of novel antioxidants: design, synthesis, and reactivity. J Org Chem 2003;68:7023-32.
8. McClements DJ, Decker EA. Lipid oxidation in oil-in-water emulsions: Impact of molecular environment on chemical reactions in heterogeneous food systems. J Food Sci 2000;65:1270-82.
9. Jacob RA. The integrated antioxidant system. Nutr Res 1995;15:755-66.
10. Mithun A, Holla BS. Convenient synthesis of some triazolothiadiazoles and triazolothiadiazines carrying 4-methylthiobenzyl moiety as possible antimicrobial agents. J Pharm Toxicol 2007;4:256-63.
11. Prasad DJ, Ashok M, Karegoudar P, Poojary B, Holla BS, Kumari NS, et al. Synthesis and antimicrobial activities of some new triazolothiadiazoles bearing 4-methylthiobenzyl moiety. Eur J Med Chem 2009;44;511-7.
12. Holla BS, Poojary KN, Rao BS, Shivananda MK. New bis-aminomercaptotriazoles and bis-triazolothiadiazoles as possible anticancer agents. Eur J Med Chem 2002;37:511-7.
13. Al-Soud Y, Al-Masoudi AN, Loddo R, Colla PL. In-vitro anti-HIV and antitumor activity of New 3,6-disubstituted [1,2,4]triazolo[3,4-b][1,3,4]thiadiazoles and thiadiazine analogues. Arch Der Pharm 2008;6:365-9.
14. Hussein MA, Shaker RM, Ameen MA, Mohammed MF. Synthesis, anti-inflammatory, analgesic, and antibacterial activities of some triazole, triazolothiadiazole, and triazolothiadiazine derivatives. Arch Pharmcol Res 2011;34:1239-50.
15. Nadkarni BA, Kamat VR, Khadse BG. Synthesis and anthelmintic activity of 3,6-disubstituted-7H-s-triazolo(3,4-b)(1,3,4) thiadiazines. Arzneimittelforschung 2001;51:569-73.
16. Patrao P, Khader AMA, Kalluraya B, Vinayachandra. Ring transformation of 1,3,4-oxadiazoles into novel [1,2,4]triazolo[3,4b][1,3,4]thiadiazines and their antimicrobial and antioxidant properties. J Chem Pharm Res 2013;4:326-34.
17. Holla BS, Akberali PM, Shivananda MK. Studies on nitrophenylfuran derivatives part Xii. synthesis, characterization, antibacterial and antiviral activities of some nitrophenylfurfurylidene-1,2,4-triazolo[3,4-b]-1,3,4-thiadiazines. Farmaco 2001;56:919-27.
18. Rashmi P, Nargund LG, Hazara K. Thienopyrimidines as novel anti-inflammatory agents and antioxidants. Der Chem Sin 2011;2:165-71.
