Int J Pharm Pharm Sci, Vol 7, Issue 4, 209-213Original Article


VALIDATED RP-HPLC METHOD FOR SIMULTANEOUS DETERMINATION OF ROSUVASTATIN CALCIUM AND EZETIMIBE IN PHARMACEUTICAL DOSAGE FORM

SWATHI SRI D, HEMANT KUMAR T*, VARA PRASADA RAO K, SRINIVASA RAO Y

Department of Pharmaceutical Analysis and Quality Assurance Vignan Institute of Pharmaceutical Technology, Visakhapatnam, Andhra Pradesh, India
Email: hemkar_pharma@yahoo.co.in

Received: 16 Nov 2014 Revised and Accepted: 12 Dec 2014

ABSTRACT

Objective: To develop and validate a rapid, sensitive and specific reverse phase high performance liquid chromatography (RP-HPLC) method for simultaneous determination of Rosuvastatin Calcium and Ezetimibe in a combined dosage form.

Methods: The chromatographic separation of the two drugs were achieved using Enable C18G (5 μm, 250 mm x 4.6 mm i.d. column). The drugs were separated in isocratic elution mode with a mobile phase consists of Acetonitrile-Water (75:25, v/v) at a flow rate of 0.6 ml/min and a detection wavelength of 252 nm using a UV detector.

Results: The linearity and range for both Rosuvastatin Calcium and Ezetimibe were 5-40 µg/ml (R2= 0.9995) and 5-40 µg/ml (R2= 0.9992), respectively. Accuracy of the method was determined through recovery studies by adding known quantities of standard drug to the preanalyzed test solution and was found to be 99.6-100.3 % and 99.5-99.9% for Rosuvastatin Calcium and Ezetimibe respectively. The % RSD values for both interday and intraday precision were found to be<2%.

Conclusion: A rapid, sensitive and specific RP-HPLC method was developed and validated for simultaneous determination of Rosuvastatin Calcium and Ezetimibe in a combined dosage form and hence, it can be used in the quality control analysis of an active pharmaceutical ingredient and pharmaceutical dosage form.

Keywords: Rosuvastatin Calcium, Ezetimibe, Method development, Validation.

INTRODUCTION

Rosuvastatin calcium, a new member of a class of cholesterol lowering drugs commonly referred to as “statins”, was approved for the treatment of dys lipidemia [1-3]. Rosuvastatin calcium (ROS) is chemically bis [(E)-7-[4-(4-fluorophenyl)-6-isopropyl-2-[methyl-(methylsulfonyl) amino] pyrimidin-5-yl] (3R, 5S)-3, 5-dihydroxy hept-6-enoicacid] calcium salt (fig.1). It is a synthetic lipid lowering agent, selective and competitive inhibitor of 3-hydroxy-3-methylglutaryl coenzyme A (HMG CoA) reductase, the key rate-limiting enzyme of cholesterol biosynthesis in liver. ROS is used to reduce the amounts of LDL cholesterol, total cholesterol, triglycerides and lipoprotein B in the blood. ROS also modestly increases the level of HDL cholesterol in the blood. These actions are important in reducing the risk of atherosclerosis, which in turn can lead to several cardiovascular complications such as heart attack, stroke and peripheral vascular disease. ROS peak plasma concentrations were reached by 3–5 hrs following oral administration in humans [4].

Ezetimibe [5-6] (EZE) (3R, 4S)-1-(4-flourophenyl)-3-[(3S)-3-(4-flourophenyl)-3-hydoxypropyl]-4-(4-hydroxypenyl) azetidine-2-one(fig. 2), is an anti-hyperlipidemic medication, acts by decreasing cholesterol absorption in the intestine. Both drugs are used in combination to treat Hyperlipidemia, Hypercholesterolemia and to prevent cardiovascular disease including atherosclerosis. Numbers of reported method were already available for the individual determination of both drugs. Rosuvastatin Calcium alone has been determined by Spectrophotometric methods [7-9], Stability indicating method [10], HPTLC [11] and RP-HPLC [12-14]. Ezetimibe was also estimated using UV method [15-17], Derivative Spectroscopy [18-19] and LC-MS/MS [20]. As per literature survey only three HPLC methods [21-23] has been developed for the simultaneous determination of both the drugs in tablets. The present research work describes the simple, rapid, accurate, sensitive and reproducible RP-HPLC method for simultaneous estimation of Rosuvastatin Calcium and Ezetimibe from the tablet formulation.

Fig. 1: structure of Rosuvastatin calcium

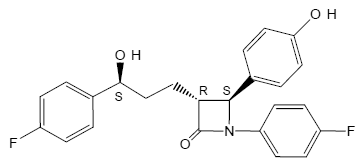

Fig. 2: structure of Ezetimibe

MATERIALS AND METHODS

Instrumentation

Shimadzu HPLC comprising of LC-20AD binary gradient pump, a variable wavelength programmable SPD-20A detector and an SCL 20A system controller. A Rheodyne injector fitted with a 20 μL loop was used and data were recorded and evaluated by use of LC solutions software.

Chemicals and reagents

ROS and EZE pure samples were procured as gift samples. “ROZAVEL-EZ” tablets (Sun Pharmaceuticals Ltd) were procured from the local market. Label claim of Rozavel EZ tablet for ROS and EZE was 10 mg and 10 mg respectively. Acetonitrile HPLC grade was purchased from Merck, India. Milli-Q (Qualigens) water HPLC grade was used throughout the experiment.

Chromatographic conditions

Chromatographic analysis was performed on a Enable C18G (250 x 4.6 mm i.d., 5µ) column. The mobile phase consisted of acetonitrile: water (75: 25 % v/v). The mobile phase was degassed and filtered through 0.2 μm membrane filter before pumping into HPLC system.

Preparation of standard stock solution

10 mg each of ROS and EZE was accurately weighed and transferred in 100 ml volumetric flasks separately and dissolved in 25 ml of Acetonitrile. After the immediate dissolution, the volume was made up to the mark with same solvent. These standard stock solutions were diluted with mobile phase to get 100 μg/ml of ROS and EZE respectively.

Preparation of sample solution

Twenty tablets were taken and their average weight was determined and crushed to fine powder. Powder equivalent to 10 mg of ROS and 10 mg EZE was taken in 100 ml volumetric flask and dissolved in 75 ml of acetonitrile with shaking for 5-10 minutes and then centrifuged. The supernatant liquid was sonicated for 10 min and filtered through 0.2 µm membrane filter. The filtrate was transferred to 100 ml volumetric flask and volume were made up with acetonitrile. From this 10 ml of the above solution was diluted up to 100 ml with mobile phase.

Method validation [24]

The developed chromatographic method was validated for system suitability, linearity & range, specificity, accuracy, precision, ruggedness and robustness as per ICH guidelines.

RESULTS AND DISCUSSION

Method development and optimization

To optimize the HPLC parameters, several mobile phase compositions were tried. A satisfactory separation of ROS and EZE with good peak symmetry and steady baseline was obtained with mobile phase acetonitrile: water (75: 25 % v/v) at a flow rate of 0.6 ml/min. The iso-absorptive point of the combined spectrum of both drugs at 252 nm was chosen for the detection drugs. Complete resolution of the peaks with clear baseline separation was obtained. Under these conditions ROS and EZE were eluted at 2.931 min and 6.631 min respectively with a run time of 5 min. A chromatogram of ROS and EZE was shown in fig. 3.

Method validation

System suitability

System suitability is used to verify, whether the resolution and reproducibility of the chromatographic system are adequate for analysis to be done. The tests were performed by collecting data from six replicate injections of standards solutions of both ROS and EZE. The parameters like retention time, number of theoretical plates, tailing factor, HETP were investigated and the results are given in table 1. From the results it was observed that all the values are present within the limits indicating good performance of the system.

Fig. 3: Chromatogram of ROS and EZE


Table 1: System suitability parameters of ROS and EZE

Parameters Rosuvastatin calcium Ezetimibe
Retention time 2.931 (mins) 6.531 (mins)
Theoretical plates 3366 4465
Tailing factor 1.3 1.2
HETP 44.56 33.59
Resolution 12.1

Specificity

Specificity was checked for the interference of excipients in the analysis of injecting sample solution under optimized chromatographic conditions to demonstrate separation of both ROS and EZE from excipients. Peak purity values were good for the both drugs, which show that the analyte peaks were pure and there were no interferences from excipients in the analyte peaks. Therefore, it could be said that the developed method was highly specific.

Linearity and range

Various concentrations from standard solutions of ROS & EZE were prepared and the calibration graph was plotted by the values of the peak area versus concentration (µg/ml) which were found to be linear over the concentration ranges of 5-40 µg/ml. Calibration curves of ROS and EZE were shown in fig. 4 & 5. The linearity results were shown in table 2.

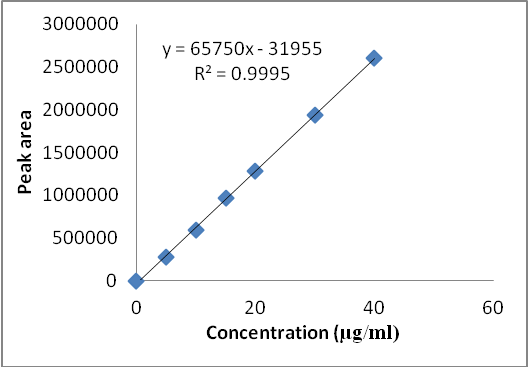

Fig. 4: Calibration curve of Rosuvastatin Calcium

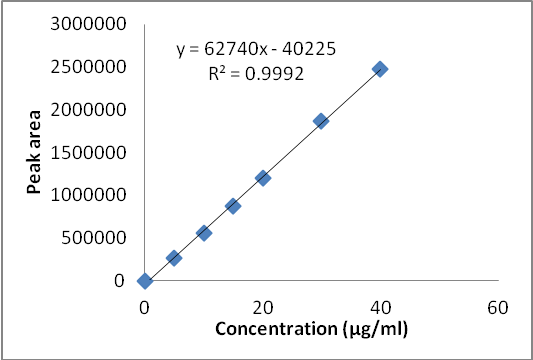

Fig. 5: Calibration curve of Ezetimibe

Precision

The precision of the developed method was studied by method precision, interday precision and intraday precision. The precision of the method was checked by repeatedly injecting six times the mixed standard solution of Rosuvastatin and Ezetimibe. The results were shown in table 3. Intra-day precision was estimated by assaying the quality control sample of the tablet formulation containing 20 μg/ml of ROS and 20 μg/ml of EZE, six times (results averaged for statistical evaluation) in the same analytical run. The statistical validation data for intraday precision is summarized in table 4. Inter-day precision was evaluated by analyzing a set of quality control samples of the tablet formulation containing 20 μg/ml of ROS and 20 μg/ml of EZE, six levels analyzed on three consecutive days in the same analytical runs. The statistical validation data results averaged for statistical evaluation) for inter day precision is summarized in table 5. The % RSD value of <2 % indicates the high precision of the developed method.

Table 2: Calibration curve data of ROS and EZE

S. No.

Concentration (µg/ml)

Peak area

Rosuvastatin calcium

Ezetimibe

1

5

282595

268538

2

10

591671

557966

3

15

965607

876362

4

20

1282481

1204391

5

30

1936825

1867657

6

40

2607083

2472329

Table 3: Precision data of ROS and EZE

S. No. Concentration (μg/ml) Rosuvastatin calcium Ezetimibe
1 20 1282481 1203983
2 20 1287925 1204706
3 20 1286725 1200468
4 20 1283221 1203589
5 20 1282913 1205614
6 20 1280535 1204191
Mean 1283967 1203759
S. D 2790.218 1756.941
%RSD 0.21 0.14

Table 4: Intraday precision

Drug interpolated concentration(µg/ml)±SD* %RSD
ROS(20 µg/ml) 19.65±0.090 0.46
EZE(20 µg/ml) 19.88±0.101 0.51

*six determinations

Accuracy

The accuracy of the method was established using recovery technique i.e. external standard addition method. The known amount of standard was added at three different levels to preanalysed sample. Each determination was performed in triplicate. The % recovery for Rosuvastatin Calcium and Ezetimibe was found to be 99.6-100.3 % and 99.5-99.9% respectively. The results of recovery study were presented in table 6.

Robustness

Robustness of the method was determined by making slight changes in the chromatographic conditions, such as change in wavelength, composition of mobile phase and flow rate. It was observed that there were no marked changes in the chromatograms, which demonstrated that the RP-HPLC method developed is robust. The % RSD values for all the three changed conditions were<2%. The results were shown in table 7.

Table 5: Interday precision

Drug interpolated concentration(µg/ml)±SD* %RSD
ROS(20 µg/ml) 19.45±0.147 0.76
EZE(20 µg/ml) 19.68±0.179 0.91

*six determinations

Table 6: Recovery studies of ROS and EZE

Drug Spiked level (%) Amount taken (µg/ml) Amount found (µg/ml) Percent recovery (% w/w)±%RSD
ROS 80 8 7.97 99.6±0.76
100 10 10.03 100.3±0.8
120 12 11.96 99.6±0.98
EZE 80 8 7.96 99.5±0.45
100 10 9.99 99.9±0.87
120 12 12.06 100.6±0.92

Table 7: Robustness studies of ROS and EZE

Condition

Modification

Peak area

mean % RSD

ROS

EZE

ROS

EZE

Mobile phase composition

80: 20

281495

264838

0.27

0.11

Flow rate (ml/min)

0.5

289215

265412

0.28

0.21

Wavelength (nm)

257

283261

264738

0.15

0.15

Sensitivity

The limit of detection (LOD) is defined as the lowest concentration of an analyte that an analytical process can reliably differentiate from background levels. The limit of quantification (LOQ) is defined as the lowest concentration of the standard curve that can be measured with acceptable accuracy, precision and variability. The LOD and LOQ were calculated from the linear curve using formulae

LOD= 3.3 * σ / S

LOQ= 10 * σ / S

(Where σ = the standard deviation of the response and S = Slope of calibration curve).

The results were shown in table 8.

Table 8: LOD and LOQ data for ROS and EZE

Drug LOD (µg/ml) LOQ (µg/ml)
ROS 0.76 2.3
EZE 0.91 2.7

Application of method to dosage form

The developed method was used for the quantitative estimation of ROS and EZE in commercial dosage form ROZAVEL-EZ tablets. Each sample was analyzed in triplicate after extracting the drugs. None of the tablet ingredients was interfered with the analyte peak. Results are shown in table 9.

Table 9: Assay results of tablet formulation (ROZAVEL-EZ)

Drug Label claim (mg) Assay (% label claim) %RSD
ROS 10 99.98 0.26
EZE 10 99.87 0.15

CONCLUSION

The proposed method has the advantage of simplicity and convenience for the separation and quantitation of ROS and EZE in the combination and can be used for the assay of their dosage form. Also, low solvent consumption and short analytical run time lead to environmentally friendly chromatographic procedure. The method is accurate, precise, rapid and specific for simultaneous estimation of Rosuvastatin calcium and Ezetimibe in tablet dosage form. Hence it can be applied in routine analysis of Rosuvastatin Calcium and Ezetimibe in formulation.

ACKNOWLEDGEMENT

The authors are grateful to Dr. L. Rathaiah, Chairman of Lavu educational society for providing necessary facilities to carry out the above research work.

CONFLICT OF INTERESTS

Declared None

REFERENCES

  1. Indian Pharmacopoeia. Ghaziabad: The Indian Pharmacopoeia Commission; 2007;3:1676-8.
  2. Olsson AG, McTaggart F, Raza A. Rosuvastatin: a highly effective new HMG-CoA reductase inhibitor-Review. Cardiovascular. Drug Rev 2002;20:303–28.
  3. Jones PH, Davidson MH, Stein EA, Bays HE, McKinney JM, Miller, et al. Comparison of the efficacy and safety of Rosuvastatin versus Atorvastatin, Simvastatin, and Pravastatin across doses. Am J Cardiol 2003;92:152–60.
  4. Martin PD, Mitchell PD, Schneck DW. Pharmacodynamic effects and Pharmacokinetics of a new HMG-CoA reductase inhibitor, rosuvastatin, after morning or evening administration in healthy volunteers. Br J Clin Pharmacol 2002;54:472–7.
  5. The Merck Index. An encyclopedia of chemical drugs and biological. 14th edition. USA. Merck research laboratories; 2006. p. 578, 670.
  6. http//:www.Rxlist.com.
  7. Dannana GS, Marothu VK. Extractive Spectrophotometric methods for the determination of Rosuvastatin calcium in pure form and in pharmaceutical formulations by using safranin O and methylene blue. E J Chem 2007;4(1):46-9.
  8. Gupta A, Mishra P, Shah K. Simple UV Spectrophotometric determination of Rosuvastatin calcium in pure form and in pharmaceutical formulations. E J Chem 2009;6(1):89-92.
  9. Singh RM, Ansari TA, Jamil S, Kumar Y, Mathur SC, Singh GN. Spectrophotometric estimation of Rosuvastatin calcium in tablet formulation. Indian Drugs 2005;42(4):244-5.
  10. Hasumati AR, Rajput SJ, Dave JB, Patel CN. Development and validation of two chromatographic stability-indicating methods for determination of Rosuvastatin in pure form and pharmaceutical preparation. Int J Chem Tech Res 2009;1(3):677-89.
  11. Singh RM, Jami S, Ansari TA, Mathur SC, Nivoria CS, Pandey MK. Determination of Rosuvastatin calcium in pharmaceutical dosage form by RP-HPLC method. Indian Drugs 2005;42(2):98-101.
  12. Singh SS, Sharma K, Patel H, Jain M, Shah H, Gupta S. Estimation of Rosuvastatin in Human plasma by HPLC Tandem Mass Spectroscopic method and its application to Bioequivalence study. J Braz Chem Soc 2005;16(5):944-50.
  13. Thammera RK, Shitut NR, Pasikanti KK, Menon VCA, Venkata VPK, Mullangi R. Determination of Rosuvastatin in rat plasma by HPLC and its application to pharmacokinetic studies. Biomed Chromatogr 2006;20(9):881-7.
  14. Mishra Pradeep, Gupta Alka, Shah Kamal. Spectrophotometric determination of Ezetimibe in pharmaceutical formulations. J Indian Chem Soc 2007;84(9):945-7.
  15. Jain Nilesh, Jain Ruchi, Swami Hemant, Pandey Sharad, Jain DK. Spectrophotometric method for simultaneous estimation of Simavastatin and Ezetimibe in bulk drug and its combined dosage form. Int J Pharm Pharm Sci 2009;(1):171-5.
  16. Godse VP, Deodhar MN, Bhosle AV, Sonewane RA, Sakpal PS, Borkar DD. Simultaneous spectrophotometric estimation of Ezetimibe and Atrovastatin in pharmaceutical dosage form. J Res Chem 2009;2(1):86-9.
  17. Samir Mohamed El-Mogahazy, Mohamad Abid El-Azem Mohamed, Marwa Fadel Mohamed, Nadia Fayek Yousef. Development and validation of HPLC, TLC and derivative specrophotometric methods for the analysis of Ezetimibe in the presence of alkaline induced degradation products. J Chin Chem Soc 2009;56:360-7.
  18. Rajput SJ, Raj HA. Simultaneous estimation of Ezetimibe and Losavastatin by derivative spectroscopy. Pharm Tech 2009;1(3):894-9.
  19. Mahadik MV, Dhaneshwar SR. Application of a stability indicating HPTLC method for the quantitative determination of Ezetimibe in pharmaceutical dosage forms. Asian J Pharm Sci 2007;2(5):182-90.
  20. Akmar SK, Kothapalli L, Thomas A, Jangam S, Deashpande AD. Reverse phase high performance liquid chromatography method for estimation of Ezetimibe in bulk and pharmaceutical formulations. Ind J Pharm Sci 2007;69(5):695-7.
  21. Dixit PR, Chandrasekhar R, Nagashekar SM. Stability indicating HPLC method for Simultaneous determination of Ezetimibe and Simavastatin. Asian J Pharm Sci 2007;2(5):182-90.
  22. Anuradha K Gajjar, Vishal D Shah. Development and validation of stability indicating RP-HPLC method for simultaneous estimation of rosuvastatin calcium and ezetimibe from their combination dosage forms. Eurasian J Anal Chem 2010;5(3):265-83.
  23. Smita Sharma, Sharma MC, Kohli DV, Chaturvedi SC. Optoelectronics and advanced materials. Rapid Commun 2010;4(2):238–41.
  24. ICH (Q2A). Note for guidance on validation of analytical methods: definition and terminology. International Conference on Harmonisation, IFPMA, Geneva; 1994.
