Int J Pharm Pharm Sci, Vol 13, Issue 2, 14-23Original Article

EFFICIENCY OF CURCUMIN AND CHITOSAN NANOPARTICLES AGAINST TOXICITY OF POTASSIUM DICHROMATE IN MALE MICE

NOURA RADY MOHAMEDa*, THANAA MOSTAFA BADRa, MOHAMED R. ELNAGARb

aDepartment of Zoology, Women’s Collage, Ain Shams University, Cairo, Egypt, bDepartment of Pharmacology and Toxicology, Faculty of Pharmacy, Al-Azhar University, Cairo, Egypt
*Email: noura_rady@yahoo.com

Received: 11 Nov 2020, Revised and Accepted: 23 Dec 2020

ABSTRACT

Objective: The purpose of this work is to examine the protective effect of nanocurcumin and nanochitosan supplementation against potassium dichromate toxicity in male mice.

Methods: Male albino mice weighing 25-30 gm were divided into six groups; the first group received saline. Second and third groups were given oral dose of nanocurcumin and nanochitosan respectively for 5 d. Fourth group was injected subcutaneously with a single dose of potassium dichromate for 24 h. Group five and six were administrated nanocurcumin and nanochitosan, respectively prior to potassium dichromate. Animals were anesthetized by ether anesthesia then bone marrow was harvested for chromosomal examination and epididymal sperms were collected for sperm morphology, while Kidneys and testes were collected for western blot and biochemical analysis.

Results: Potassium dichromate induced significant (P≤0.05) increase in chromosome and sperm abnormalities as well as testicular and renal MDA, renal MPO, renal contents of IL-18 and IGF-1, testicular contents of caspase 3 and cytosolic cytochrome c, a reduction in testosterone level, and GPx of renal and testicular tissues compared to control group. Pretreatment with both types of nanoparticles showed significant (P≤0.05) mitigation against most alterations induced by potassium dichromate; moreover, nanochitosan gave more significant (P≤0.05) improvement against chromosome and sperm abnormalities than nanocurcumin.

Conclusion: The present study revealed that the selected nanoparticles have antioxidant as well as antigenotoxic properties against toxicity of potassium dichromate.

Keywords: Potassium dichromate genotoxicity, Nanochitosan, Nanocurcumin, Nephrotoxicity, Testicular damage

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijpps.2021v13i2.40224. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps.

INTRODUCTION

Widespread pollution by heavy metals has critical consequences on the global public health associated with the quality of the environment and able to induce toxicity even at low level of exposure [1-4]. Among those toxic heavy metals, chromium is an inorganic environmental pollutant which still widely used in many modern industries. It commonly enters the environment through the release from these industries into soil and water, causing environmental pollutions [5-7].

Hexavalent chromium compounds, such as potassium dichromate (PDC), is very highly poisonous substance and can induce multiple organ toxicity, like nephrotoxicity [8, 9], testicular toxicity [10, 11] with negative effects on fertilization [12], aberrations in bone marrow and spermatocytes [13], as well as reduced motility of live sperm, and sperm death [14]. It can also produce injuries in other organs, including liver [15], brain [16], and heart [17]. Many studies have been conducted to explore the mechanisms of PDC toxicity on multiple aspects, including increased production of reactive oxygen species (ROS) [15, 18, 19], inflammation [20], oxidative DNA damage/ apoptotic changes [16, 21, 22], genotoxicity/mutagenicity [23, 24], and eventually inducing cell damage and death [19].

Recently, it has been focused on the beneficial role and protective effect of phytochemicals on oxidative Stress-mediated testicular toxicity and kidney injury [25, 26]. Curcumin (CUR) is main active compound in the plant Curcuma longa with several biological activities [27, 28]. It has a protective action against several organs’ toxicities [29-31]. The pharmacological effects of CUR could attribute to anti-inflammatory [30, 32], antioxidant [33, 34], anticancer [35] activities. Despite numerous therapeutic effects, the bioavailability of CUR is relatively low with poor intestinal absorption and aqueous solubility, rapid metabolism in the liver and systemic elimination [36-38]. Therefore, the nanoformulations of CUR is the most effective tool to enhance the water solubility, thereby improving its dispersibility, absorption and bioavailability [39, 40].

Chitosan (CHI) is a modified natural carbohydrate polymer prepared by partial N-deacetylation of chitin and popularly used for drug delivery formulations. CHI nanoparticles-dependent formulations have gained widespread interest as nanoparticles in pharmaceutical drug delivery [41, 42], it provides a simple method of preparation and for their use in nutritional supplements and nanomedicine applications [41, 43] with better stability, low toxicity profile, and the reliability to be used as a food ingredient [44]. CHI has an enormous economic and medicinal values because of its biological properties. The benefit of CHI with respect to its intrinsic antioxidant [45, 46], antimutagenicity [47], anti-inflammatory [48] properties have been reported. However, as in CUR, the nanoparticle of CHI is more have attracted the attention of researchers from different research areas [46, 49].

In view of the oxidative stress has been associated with PDC-induced pathogenesis in numerous organs, the pharmacological use of antioxidant supplements as adjuvant therapy could slow or inhibit the oxidation by toxic molecules and can be important for cell homeostasis. With nanotechnology importance in the improvement of the drug physicochemical properties and bioavailability, the main aim of the present study was to investigate the protective effect of nano CHI and nano CUR particles against the PDC induced toxicity in the adult male mice.

MATERIALS AND METHODS

Chemicals

Potassium dichromate was purchased from Sigma chemical company (St. Louis, MO). Curcumin and chitosan nanoparticles were both prepared by NanoTech Egypt Company for Photo-Electronics (Giza, Egypt), and both were characterized by TEM technique (fig. 1).

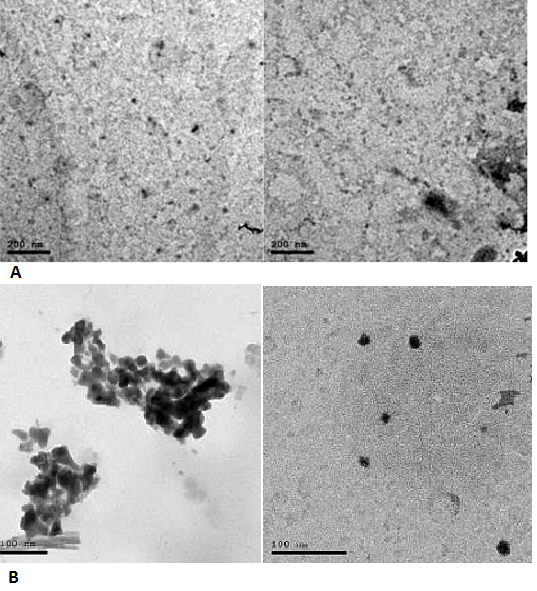

Fig. 1: TEM characterization of nanoparticles. (A) Shows size and shape of curcumin (30±5 nm), and (B) Shows size and shape of chitosan (20±5 nm)

Animals

Experiments were performed on thirty six adult male mice (Mus musculus), weighing 25-30 gm, were obtained from the Animal House Colony of the National Research Centre, Cairo, Egypt and housed in polypropylene cages in a temperature-controlled room (25±1˚C) under a 12:12 hour light-dark cycle, a relative humidity of 60±5% and free access to tap water and standard rodent chow with the approval of the Ethics Committee of the National Research Centre (FWA 00014747) that follows the recommendations of the National Institutes of Health Guide for Care and Use of Laboratory Animals (publication No. 85-23, revised in 1985). After 2 w of acclimation, animals were divided into six groups of six mice each.

Experimental design

Group I (control) mice received saline only, while mice in group II (CUR) and III (CHI) were treated with 60 mg/Kg, oral dose of nanocurcumin and nanochitosan alone, respectively, for 5 consecutive days [50]. Group IV (PDC) mice were given subcutaneous (s. c) injection of potassium dichromate as a single dose (15 mg/kg/bw) for 24 h [51]. In group V (CUR+PDC) mice were given nanocurcumin first before injected with potassium dichromate. Mice in group VI (CHI+PDC) were given nanochitosan first before injected with potassium dichromate. At the end of the experiment, animals were sacrificed under anesthesia by diethyl ether and bone marrow, sperms as well as kidneys and testes were separated for the following analysis.

Chromosomal aberration (CA) assay

Metaphase chromosomal analysis were performed according to Preston et al. [52]. In brief, each mouse 90 min before sacrifice was injected intraperitoneally with colchicine (0.04%, 0.1 ml/20g b.w.). Bone marrow cells were extracted from femur bones and incubated for 20 min at 37 °C in 0.56% KCl hypotonic solution. After centrifugation at 1000 rpm for 10 min, cells were collected and fixed three times in a freshly prepared solution of methanol: glacial acetic acid (3:1, v/v). The cells were dropped on cold slides then stained with Giemsa stain for 10 min after it dried. A total of 300 well-spread metaphase plates were scored for CA per each group using light microscope at a magnification of 1000×.

Sperm morphology

The sperm morphology was evaluated by analysis of sperm smears made from cauda epididymis. The prepared slides were fixed in absolute methyl alcohol for 15 min then stained with Giemsa stain for 10 min. A thousand sperm cells per mouse were assessed for morphological abnormalities under oil immersion at 1000×, and were classified into three general categories: head, tail, as well as head and tail abnormalities [53].

Preparation of tissue homogenates and protein quantification

Specimens from kidney and testis were divided into three parts. The individual piece was separately weighted and homogenized gently with a Potter-Elvenhjem tissue grinder. One part was lysed in [50 mmol phosphate buffer saline (PBS); pH 7.4] for estimation of protein content, testosterone level and MPO activity. The second piece was homogenized in [10 mmol potassium phosphate buffer; pH 7.4] for estimation of MDA levels and GPx activity, and the third part was used for the Western blotting analysis. The crude kidney and testicular homogenates were centrifuged at 10,000 rpm for 10 min at 4 °C, and the resultant supernatant was used for the specific assay. Protein content in tissue homogenate was measured according to the method Bradford [54], with bovine serum albumin (BSA) solution as standard.

Testosterone levels

Testosterone levels in the testis of mice [55], with specimens, standards, and controls (in triplicates) were prepared to manufacturer's instructions by the testosterone HRP-dependent immunoassay kit (BioVision Research Products, USA). The absorbance was measured at 405 nm on Multiskan® EX microplate reader (Thermo Scientific, USA).

Oxidative stress status

Malondialdehyde (MDA) assay

The tissue lipid peroxidation (LPO) products were evaluated by thiobarbituric acid (TBA) reactive substances (TBARS) in the kidney and testis tissues, with the 1,1′,3,3′-tetramethoxypropane was used as a standard in constructing the calibration curve [56]. In short, the samples were diluted and proceeded for the acidic reaction while heating. After incubation, 2 ml of n-butanol was added to extract the resultant pink color. The concentrations of TBA–MDA adducts in samples was measured at 535 and 520 nm using spectrophotometer (Jenway 6305 UV/VIS, UK).

Glutathione peroxidase (GPx) activity

The kidney and testicular GPx activities were measured in the tissue homogenates prepared in phosphate buffer using the commercially available GPx kit (Biodiagnostic, Egypt) according to the manufacturer’s instructions [57]. The changes in absorbance per min were measured at 340 nm using spectrophotometer (Jenway 6305 UV/VIS, UK) against the deionized water as a blank, and the GPx activity was expressed at U/mg protein.

Myeloperoxidase (MPO) activity

The MPO activity in kidney was assessed using a procedure like that recorded previously [58]. In short, homogenized samples [in 50 mmol phosphate buffer saline, PBS; pH 7.4] were centrifuged for 10 min at 15000 rpm, and the pellets were then suspended in 50 mmol PBS containing 0.5% hexadecyl trimethyl ammonium bromide (HETAB). The samples were then mixed, sonicated, and centrifuged at 15000 rpm for 10 min before adding to the reaction mixture containing 50 mmol PBS, 20 mmol H2O2, and o-dianisidine. The activity of MPO was expressed as U/mg protein, where one unit of MPO activity was defined as the amount of the enzyme in samples that produced a change in absorbance measured at 460 nm for 3 min.

Western blot

The Western analysis was performed according to previous methods [59, 60]. The tissues from kidney and testis were homogenized with lysis solution [10 mmol Tris base, 25 mmol ethylene glycol-bis(β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid (EGTA), 25 mmol ethylenediaminetetraacetic acid (EDTA), 100 mmol NaCl, 1.5% (v/v) Nonidet P-40 (NP-40), and 1.5% (v/v) Triton X-100; pH 7.4] supplemented with 1:500 protease inhibitors, and phosphatase inhibitors cocktails (Sigma). Aliquots of the kidney and testicular homogenates containing 40 µg proteins were mixed and boiled for 5 min with 4x sample Loading buffer [12% Sodium Dodecyl Sulphate (SDS), 700 mmol Tris-HCl, 600 mmol dithiothreitol (DTT), 60% glycerol, and 0.02 % Bromophenol blue; pH 6.8], and allowed to cool on ice for 5 min before subjected to 12% SDS-PAGE. The separated proteins were transferred electrophoretically from the gels onto polyvinylidene fluoride (PVDF) membranes using the Trans-Blot® SD semi-dry transfer cell (Biorad, USA). Then, the membranes were blocked at RT in TBS buffer [50 mmol Tris-Cl, and 150 mmol NaCl; pH 7.4] containing 5% nonfat dry milk (Biorad) for 2 h and immediately probed for IL-18 (1:1000 dilution), IGF-1 (1:400 dilution), cytochrome c (1:300 dilution), caspase-3 (1:250 dilution), or β-Actin (1:2000 dilution) at 23-25 °C for 16-18 h. After that, the membranes were washed in TBS-T [50 mmol Tris-Cl, and 150 mmol NaCl, 0.15% Tween-20; pH 7.4] for 3x10 min and incubated with their corresponding HRP-conjugated secondary antibody for 2 h at RT. Then, the membranes were washed 3X10 min in TBST and exposed to the chemiluminescence Western Lightning ECL (Perkin Elmer, Waltham, MA) for 1 min. Blots were visualized in Chemi-Doc imager (Biorad), and the bands intensities were then measured with normalization the β-Actin, as an internal reference control.

Statistical analysis

All data in this study are presented as mean±SD values. GraphPad Prism version 7 for Windows (GraphPad Software, San Diego, CA, USA) was used for performing statistical analysis. Data were analyzed using one-way analysis of variance (ANOVA) with Tukey's multiple comparisons test. The difference between groups was considered statistically significant when P ≤ 0.05.

RESULTS

Chromosomal aberration assay

Potassium dichromate (PDC) induced high significant level of chromosomal aberrations after one day of induction and the frequency of total chromosomal abnormalities was 47% compared to control 11.7% (table 1).

Table 1: Number and percentage of structural and numerical chromosomal aberrations in mice bone marrow cells of treated groups. Fifty metaphases were examined in each mouse; totally 300 metaphases examined per group

mean±SE Total SCA and NCA Total NCA (no and %) Total SCA (no and %) Numerical chromosomal aberration (NCA) Structural chromosomal aberration (SCA) Groups
Poly Hyper Hypo dic Pulv Cf Dir. Iso C. S R Del G Br
5.83±1.17 3511.7 62 299.7 0 0 6 1 0 6 2 1 8 0 6 3 2 Control
6±1.41 3612 40.67 3210.67 0 0 4 2 0 4 4 2 6 1 7 2 4 CUR
4.83±1.94 299.7 40.67 258.33 0 1 3 0 0 5 3 0 7 1 5 1 3 CHI
23.5±1.87* 14147 4013.33 10133.67 3 8 29 8 12 11 9 5 10 6 20 9 11 PDC
14.5±1.52*#$ 8729 144.67 7324.33 0 4 10 5 7 10 8 4 7 4 15 6 7 CUR+PDC
10.5±2.59*#$ 6321 113.67 5217.33 1 2 8 4 4 5 7 3 7 3 11 3 5 CHI+PDC

Data are expressed as mean±SD Statistical analysis was performed for statistical changes between the selected groups: *P ≤ 0.05 indicates statistical difference from the vehicle-treated (control) group, #P ≤ 0.05 indicates statistical difference from the PDC-treated group, and $P ≤ 0.05 indicates statistical difference between CHI+PDC and CUR+PDC groups in one-way ANOVA test with Tukey's multiple comparisons test. Abbreviations: br=break, g=gap, del=deletion, r=ring, cs=centric separation, iso= isochromatid-gap, dir=diradial, Cf=centric fusion, Pulv=pulverization, dic=dicentric, Hypo=hypoploidy, Hyper=hyperploidy, Poly=polyploidy.

The different detected types of structural chromosomal aberrations were deletion, pulverization, break, centric-fusion, centric-separation, gap, diradial, dicentric, ring and iso-gap. Moreover, the most numerical chromosomal aberrations were in the form of hypoploidy (fig. 2A). Curcumin (CUR) or chitosan (CHI) nanoparticles does not induced significant difference as compared to control group. Pre-treatments with nano CUR or nano CHI before PDC injection showed significant reduction in the percentage of total chromosomal aberrations. It was noticed that pre-treatment with nano CHI gave best results and reduced the chromosomal aberrations (21%) significantly compared to nano CUR (29%), fig. 2B.

Sperm morphology assay

Examination of sperms prepared from the control group revealed 5701 sperm are normal and the remaining sperms (299) were deformed. Among these deformed forms are sperms with hook deformation, amorphous, big head and abnormal tail, was more prevalent. Other types of abnormalities were recorded in rather low frequency (table 2).

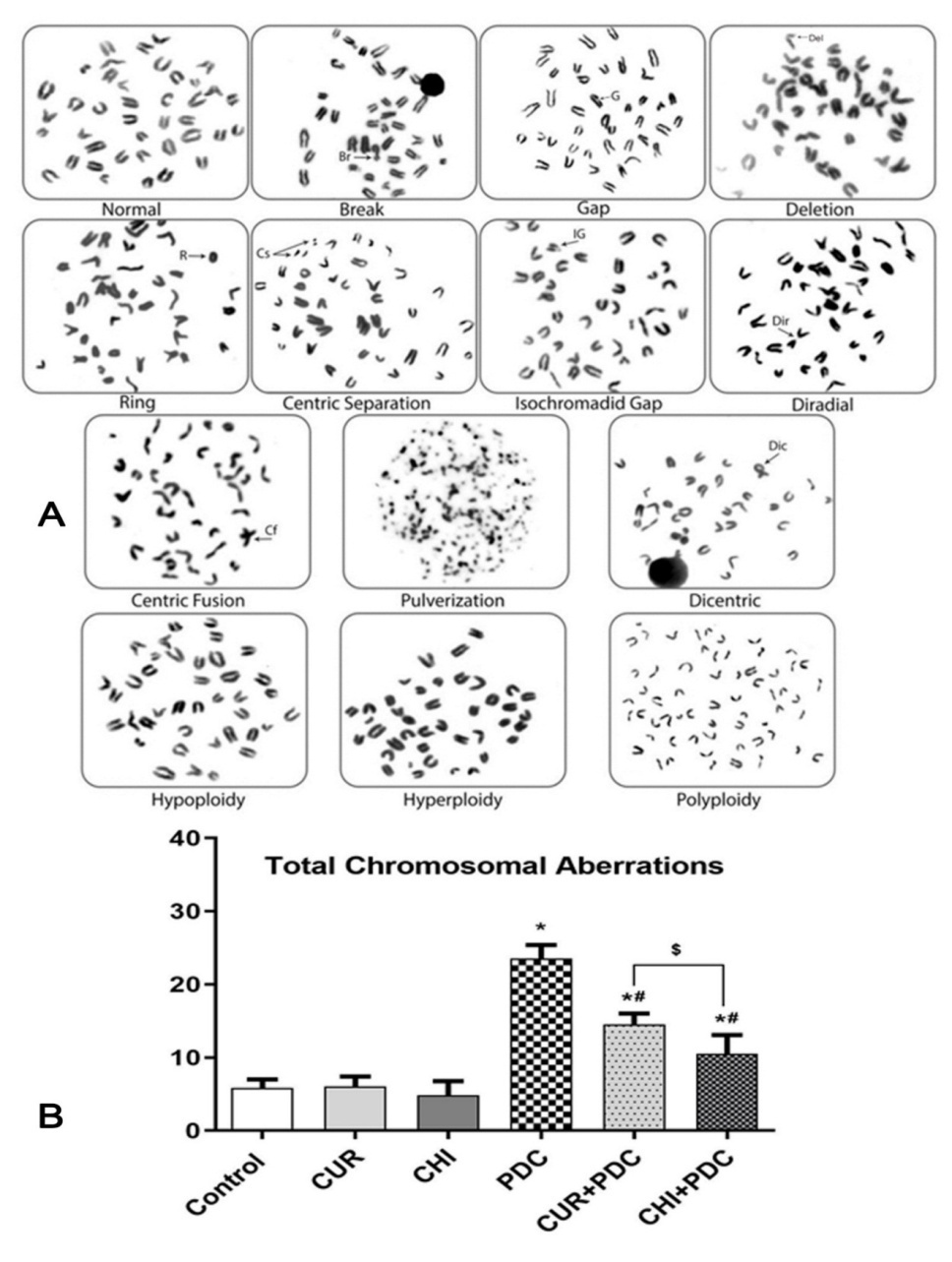

Fig. 2: Chromosomal aberration test. (A) Normal metaphase and different structural and numerical chromosomal aberrations in mice bone marrow from metaphases of treated groups. (B) Number of total chromosomal aberrations in the control and treated groups (n=6). Data are expressed as mean±SD Statistical analysis was performed for statistical changes between the selected groups: *P ≤ 0.05 indicates statistical difference from the vehicle-treated (control) group, #P ≤ 0.05 indicates statistical difference from the PDC-treated group, and $P ≤ 0.05 indicates statistical difference between CHI+PDC and CUR+PDC groups in one-way ANOVA test with Tukey's multiple comparisons test. Abbreviations: CUR, rats treated with nanocurcumin; CHI, rats treated with nanochitosan; PDC, rats treated with potassium dichromate; CUR-PDC, rats treated nanocurcumin before potassium dichromate and; CHI-PDC, rats treated with nanochitosan before potassium dichromate

Table 2: Number and percentage of sperm morphology abnormalities in of treated groups, one thousand sperm was examined in each animal, totally six thousand sperm examined per group

Groups Normal sperms Head abnormalities Total head abnor. Tail abnor.

Headand Tail

abnor.

 Total abnormalities
hd amr bh sh tri 2h col Total abnor.

Mean

±SD

 %
Control 5701 82 47 33 20 15 12 7 216 66 17 299

49.83±

7.25

 4.98
CUR 5645 119 65 39 30 27 13 6 299 52 4 355

59.17±

2.86*

 5.92
CHI 5694 109 77 40 27 19 10 9 291 14 1 306 51±2.61 5.1
PDC 4208 694 179 78 52 40 35 11 1089 620 83 1792

298.67±

7.26*

 29.87
CUR+PDC 5070 367 155 81 50 65 29 12 759 138 33 930 155±3.74*#$ 15.5
CHI+PDC 5292 283 129 66 39 46 27 8 598 96 14 708 118±4.52*#$ 11.8

Data are expressed as mean±SD Statistical analysis was performed for statistical changes between the selected groups: *P ≤ 0.05 indicates statistical difference from the vehicle-treated (control) group, #P ≤ 0.05 indicates statistical difference from the PDC-treated group, and $P ≤ 0.05 indicates statistical difference between CHI+PDC and CUR+PDC groups in one-way ANOVA test with Tukey's multiple comparisons test. Abbreviations: hd= hook deformation, amr= amorphous, bh= big head, sh= small head, tri= triangular, 2h= two heads, col= collapsed, abnor= abnormalities.

There was no significant difference between CHI group and control group; meanwhile, a significant difference was observed in CUR group compared to the control group. Treatment with PDC resulted in significant increase in the incidence of sperm shape abnormalities. Data revealed that 1792 of the examined spermatozoa were damaged. Hook deformation was the most frequent type of head abnormalities which involved three types: acute curvature (the anterior tip of the sperm was acutely curved); deformed orientation (the anterior tip of the sperm was abnormally straight and showing less curvature); hookless (the lack of the anterior tip), fig. 3A.

The remaining types of head abnormalities could be arranged in descending manner as follows: Amorphous head (irregular outline head that does not fit with any particular shape). Bighead (normal outline head with markedly bigger size than normal). Small head (normal outline head with a markedly smaller size than normal). Triangle head (head has three sides without hook). Two heads and collapsed head (curved down) were found to be less frequent. In normal conditions, the tail is long attached to the head at the base and extends with a continuous decreased in diameter. Meanwhile, after administration of PDC many deformities were seen in the form of forked tail, thin tail, and coiled tail. On the other hand, oral administration of nanoparticles of CUR or CHI before PDC significantly decreased the frequency of total sperm abnormalities (15.5% and 11.8%, respectively) compared with the PDC group (29.87%). The pre-treatment with CHI nanoparticles decreased total sperm abnormalities significantly compared to CUR nanoparticles (fig. 3B).

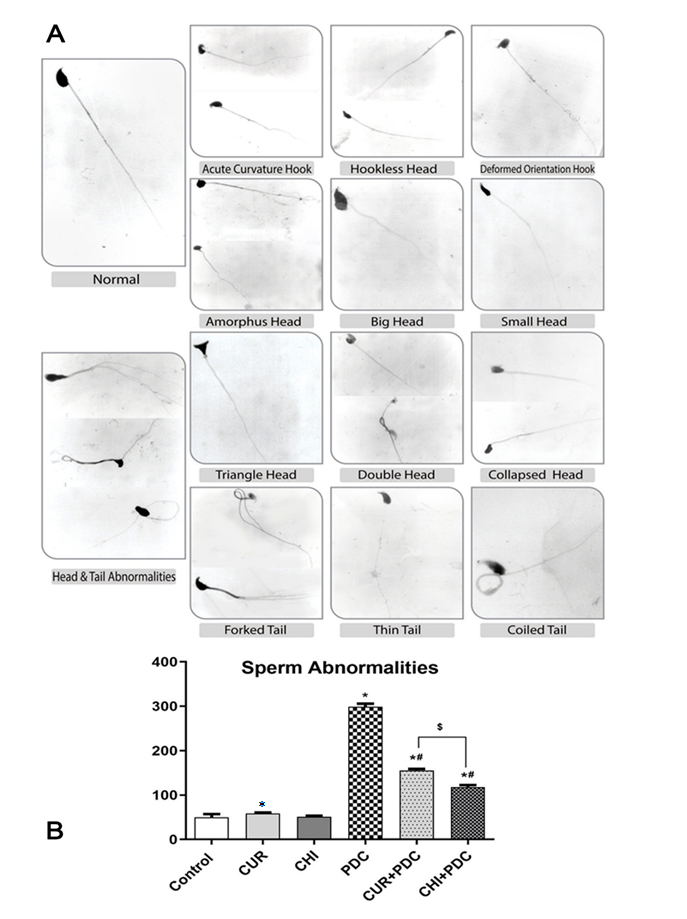

Fig. 3: Sperm morphology (A) Normal spermatozoa and different abnormalities in head, tail, or head and tail from treated groups. (B) Number of total abnormalities in the control and treated groups (n=6). Data are expressed as mean±SD Statistical analysis was performed for statistical changes between the selected groups: *P ≤ 0.05 indicates statistical difference from the vehicle-treated (control) group, #P ≤ 0.05 indicates the statistical difference from the PDC-treated group, and $P ≤ 0.05 indicates statistical difference between CHI+PDC and CUR+PDC groups in one-way ANOVA test with Tukey's multiple comparisons test

Oxidative stress markers

Normal levels of oxidative stress biomarkers were observed in the control group and in groups treated with CHI as well as CUR nanoparticles. On the other hand, renal and testicular GPx content was significantly reduced (61.4% and 50.7%, respectively) following PDC-administration, and a significant elevation of MDA content was detected in the kidney (47.7%) and testicular (75.4%) tissues. Also, PDC induced a significant elevation in renal MPO (327%). Treatment of animals with CHI or CUR nanoparticles, for 5 d prior to PDC injection significantly retrieved the altered levels of all oxidative stress biomarkers (fig. 4).

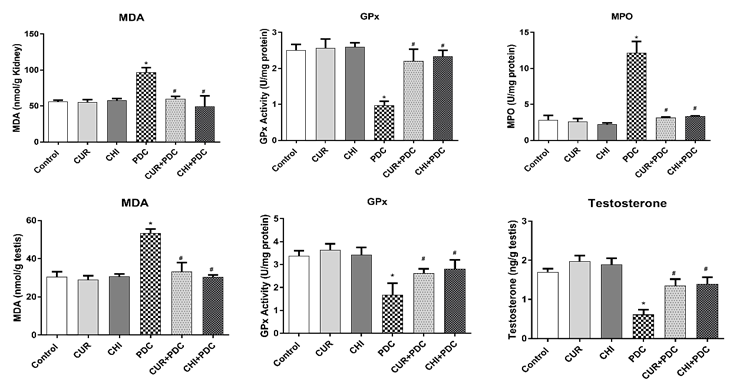

Fig. 4: Effects of nano CUR or nano CHI either alone or combined with PDC on the measured oxidative stress parameters [MDA level, GPx activity, and MPO activity] in the kidney of mice (upper raw), and the mice testicular MDA content, GPx activity, and testosterone level (lower raw). Data are expressed as mean±SD based on data from independent experiments performed in triplicate. *P ≤ 0.05 indicates statistical difference from the vehicle-treated (control) group, and #P ≤ 0.05 indicates the statistical difference from the PDC-treated group in one-way ANOVA test with Tukey's multiple comparisons test

Testicular testosterone

Treatment with PDC significantly decreased testicular testosterone level by 64%, while both the CHI and CUR nanoparticles individually did not show any significant change as compared to the control. Pretreatment with either CUR nanoparticles (Group V) or CHI nanoparticles (Group VI) ameliorated the testicular testosterone level significantly as compared to the PDC-treated group (fig. 4).

Western blot analysis of IL-18, IGF-1, caspase 3, and cytochrome c proteins

Administration of CUR or CHI nanoparticles showed no effect on the normal expression levels of the measured proteins in the renal and testicular tissues of mice. Induction of renal injury in mice with PDC increased the normal kidney contents of IL-18 (115%), and IGF-1 (288%) significantly. Also, the PDC significantly increased the normal testis contents of caspase 3 (190%) and cytosolic cytochrome c (95%). Pretreatment of mice with CUR or CHI nanoparticles significantly decreased PDC-induced elevation renal contents of IL-18 and IGF-1 and testicular contents of caspase 3, with no significant difference between the effects of both doses of CUR and CHI nanoparticles. There was also a decrease in cytosolic cytochrome c of pretreated (CUR+PDC and CHI+PDC) groups compared to the PDC-treated group but was not significant (fig. 5).

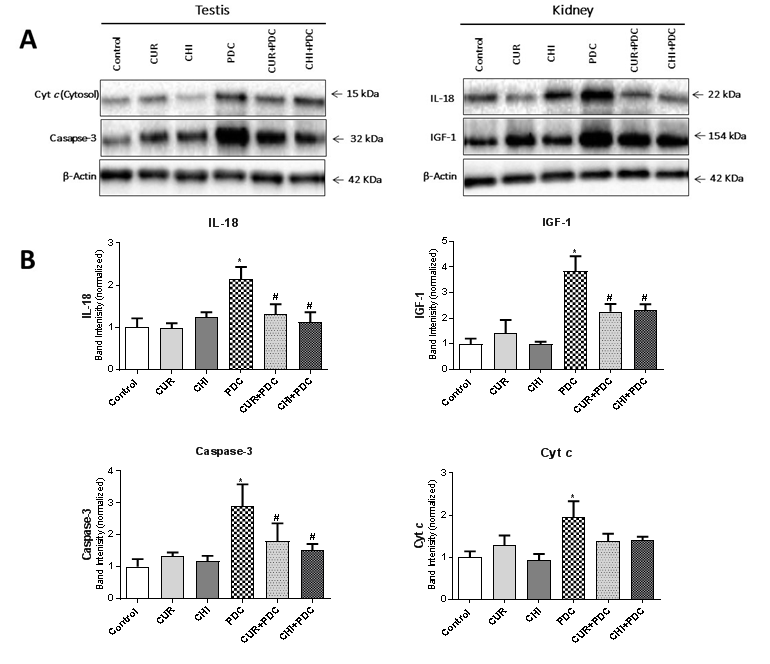

Fig. 5: Effects of nano CUR or nano CHI either alone or before PDC on testicular cytosolic cytochrome c (Cyt c) and caspase 3, and the renal interleukin-18 (IL-18) and insulin-like growth factor 1 (IGF-1) proteins. (A) Representative examples of a western blot images illustrating the cytosolic Cyt c and caspase 3 in the testicular homogenate of mice (left), and IL-18 and IGF-1 protein levels in total lysates samples from the kidney of mice (right). (B) Quantification of Cyt c and caspase 3 protein contents in the mice testis (upper), and IL-18 and IGF-1 protein levels in mice kidney (lower), with each normalized to the corresponding β-Actin bands. The specific protein of the control group is set to 1.0, and all band intensities are shown as mean±SD based on data from independent experiments performed in triplicate. *P ≤ 0.05 indicates statistical difference from the vehicle-treated (control) group and #P ≤ 0.05 indicates statistical difference from the PDC-treated group in one-way ANOVA test with Tukey's multiple comparisons test

DISCUSSION

In recent years, enormous researches have focused on using nanoparticles as carrier molecules to allow nano-drugs to reach the chosen targets with the most efficacy and minimum toxic effects. These particles due to its smaller size, can be transported easily to different body organs via blood circulation [61, 62]. It was found that curcumin (CUR) nanoparticles possess more effectiveness than native CUR due to its particle size reduction [63]. Nano CUR has larger surface area so it may have a higher intracellular absorption capacity and higher systemic bioavailability in tissues compared to normal CUR [64]. Due to hydrophobic nature, CUR forming aggregates because of its low solubility in water; thus, CUR present inside the cytoplasm is very low while nano form dissolves completely in aqueous media, forming no aggregates due to the presence of zeta potential [65].

Chitosan (CHI) is affirmed as a nontoxic, biodegradable, and biocompatible compound according to FDA (Food and Drug Association) [66, 67]. Nano CHI have higher antimicrobial activities, antiviral, antifungal, antioxidant, and anti-inflammatory properties than CHI. Hence, nano CHI has the potential of becoming a powerful and safe natural promising candidate for therapeutic applications [68, 69]. In the present study, administration of potassium dichromate (PDC) caused a significant decrease in the important antioxidant enzyme GPx in mouse kidney tissues, which function to protect cells from oxidative damage and overproduction of ROS [70]. The PDC toxicity induced also a significant increase of oxidative stress MDA, which indicates that the antioxidant defense system failed to inhibit the formation of free radicals and the enhancement of lipid peroxidation, which lead to kidney injury.

In addition, PDC induced a significant elevation in renal myeloperoxidase (MPO). Macrophages (neutrophils and monocytes) contain MPO, an enzyme that can cause tissue damage through formation of toxic reactive intermediates, such as hypochlorous acid (HOCl) out of hydrogen peroxide H2O2 when released extracellularly [71]. MPO is associated in the pathogenesis of kidney diseases because both MPO and its products (HOCl, tyrosyl radical, and reactive nitrogen intermediates) have been demonstrated in renal tissue diseases [72, 73]. Meanwhile, intracellularly, MPO plays a major role in killing microbes but is released extracellularly at inflammatory sites after phagocyte activation and causes damage to host tissues [71, 74].

On the other hand, pretreatment with nano CUR and nano CHI before PDC administration induced significant improvement in all biochemical parameters of the kidney. The results of Abd El-Rahman and Al-Jameel [50] declared that nano CUR is effective to protect against oxidative renal damage in male rats induced by cisplatin. Also, Ansar et al. [75] suggested that CUR nanoparticles exerted amelioration in the oxidative damage of renal tissue induced by lead in rats. The therapeutic effects of nano CUR are mediated through its antioxidant and anti-inflammatory properties. The study of Abdel-Wahhab et al. [76] suggested that CHI nanoparticles singly or plus quercetin suppress the oxidative stress and renal genotoxicity of rats fed ochratoxin A-contaminated diet.

Our results also showed that PDC induced a statistically significant increase in the percentage of total chromosomal aberrations in the bone marrow. Chromosome aberrations assay from bone marrow cells is a sensitive cytogenetic technique for testing of the mutagenic and carcinogenic effects of environmental contaminants [77]. Cr (VI), once penetrate cells, produces free radicals during reduction to the chromium metabolites Cr (V), Cr (IV) and Cr (III), which can subsequently attack DNA leading to several forms of genotoxicity such as strand breakage, gene mutation, DNA fragmentation, chromosomal aberration, and micronuclei formation [78-80]. This indicates that free radicals-induced oxidative damage to DNA, could be a factor in mediating the cytogenetic changes in bone marrow cells [81]. This conclusion is in agreement with Dana Devi et al.; Patlolla et al.; Patlolla et al. and Cengiz et al. [82-85], which showed a pronounced DNA damage of PDC with the comet assay.

Animals pretreated with nano CUR before PDC administration induced a significant improvement in chromosomal aberrations. The improving effect of nano CUR against PDC-induced cytogenetic toxicity may be attributed to its antioxidant activity, where CUR nanoparticles can lower ROS production, lipid peroxidation and augment the glutathione production [86, 87]. It also causes the production of O6-methylguanine-DNA methyltransferase, which is a protein required for cellular genome protection [88, 89]. Our results are in consent with those of Sankar et al. and Yadav et al. [81, 61]. Sankar et al. explored that nanoformulation of CUR have better protective effect than free CUR against arsenic-induced genotoxicity in bone marrow cells of rats including chromosomal aberrations, micronuclei formation and comet DNA damage. While Yadav et al. investigated the preventive potency of nano CUR in mitigating effects of arsenic and fluoride, which resulted in lowering of ROS and restoration of blood glutathione level altered by arsenic and fluoride.

The results also detected that mice pretreated with nano CHI exhibits significant protection against PDC induced chromosomal aberrations, likely through its free-radical scavenging activity, preventing oxidative stress and the DNA from damage. These findings are in agree with the previous results of Abdel-Wahhab et al. [76, 90]. They found that CHI nanoparticles modulate GPx gene expression and prevent the genotoxicity of aflatoxin B1 in rat liver through decreasing liver genomic DNA fragmentation as well as MDA level. In addition, they revealed that CHI nanoparticles protect against the nephrotoxicity of ochratoxin and succeeded to mitigation these toxic effects through free radical scavenging properties, enhancement of the antioxidant capacity of quercetin, improvement in DNA fragmentation and improvement in GPx mRNA expression.

The present findings also demonstrated that the administration of PDC to mice resulted in a significant decline in the testicular testosterone levels and a decline in testicular antioxidant marker GPx, as well as a significant increase in the abnormal sperm morphology and a significant increase in testicular oxidative stress MDA which indicates that PDC is a male reproductive toxicant. These results were supported by the Oliveira et al. [91] who evaluated the effects of PDC on mouse sperm cells after short-term exposure. Their results showed an increase in the percentage of multiple abnormalities, a decrease in the percentage of normal spermatozoa, a decrease in spermatozoa motility, and a decrease in acrosome integrity. Furthermore, Bashandy et al. [92] found that PDC induced testicular lesions and alteration in testosterone level, which may lead to a spermatogenic arrest as appeared from reducing epididymal sperm number and increase of sperm abnormalities. The mechanism of reproductive deterioration by PDC might be associated with oxidative stress and disruption of the hypothalamic-pituitary-testicular feedback. Male germ cells and spermatozoa, because their membranes contain a high percentage of fatty acids, are more susceptible to oxidative stress than somatic cells. Oxidative stress considered a main agent in infertility, lead to sperm damage and deformity [93, 94].

On the other hand, our study showed that in the groups that pretreated with CUR or CHI nanoparticles before PDC, there was a significant reduction in the sperm abnormality and the testicular testosterone concentration was significantly raised and restored to its normal levels. The pretreatment with the two nanoparticles also significantly decreased MDA levels and increased the activity of GPx levels, owing to their potent antioxidant activity and free radical scavenger potential, which can decrease the lipid peroxidation (MDA level). The decrease in lipid peroxidation can increase the antioxidant defense system such as GPx, which protect against free radical attack and thus protect PDC-induced testis damage. In agreement to our results, Ahmed-Farid et al. [95] showed that administration of CUR nano-encapsulation as a daily supplement improved the spermatogenesis defects induced by malnutrition-treated rats. Also, Sudjarwo et al. [96] found that CHI nanoparticle could protects rat testis from oxidative damage and apoptosis caused by lead acetate, through increasing antioxidants and inhibiting caspase 3 expression.

Induction of renal injury in mice by PDC in the present study resulted in a significant elevation in the expression of Interleukin-18 (IL-18) and insulin-like growth factor-1 (IGF-1) contents of the kidney. IL-18 is a pro-inflammatory cytokine that play an important role in renal injury and a potential mediator of tubular damage [97, 98]. Also, the elevation of renal content of IGF-1 might contribute to the progression of PDC-induced chronic renal injury [99]. These results are in agree with those of Hegazy et al. [51], which revealed that PDC-induced acute nephrotoxicity and the involvement of IL-18 in the renal tissue damage and tubular injury induced by PDC. Moreover, IGF-1 also play an important role in the pathogenic renal tissue hypertrophy in PDC-acute nephrotoxicity. Pretreatment with CUR and CHI nanoparticles before PDC markedly decreased the renal contents of IL-18 and IGF-1 compared to the PDC-treated group. These observations documented that nanoparticles showed anti-inflammatory activity. That agrees with the previous findings that have confirmed that nanoparticles of CHI and CUR alone or in combination with hydroxyapatite nanoparticles significantly minimized the levels of inflammatory cytokines: TNF-α and IL-6 in kidney tissues of male rats [100].

The PDC administration also significantly upregulated the testicular caspase-3 and cytosolic cytochrome c expressions at protein levels, compared to control animals which is indicative of spermatogenic cell apoptosis. The caspase-3 activates cytoplasmic endonucleases that degrade the nuclear materials and proteins as well as cytoskeletal proteins [101, 102], which adversely impact spermatogenesis process. The mitochondrial dysfunction (increased the permeability of mitochondrial membrane) induced by oxidative stress can lead to the release of cytochrome c from mitochondria to the cytosol and then caspase activation, which results in apoptotic cell death [103].

On the other hand, CUR and CHI nanoparticles prior to PDC significantly decreased the upregulation of the testicular caspase‐3 induced by PDC. They also decreased the upregulation of the testicular cytochrome c but it was non-significant when compared to the PDC‐treated group. This supports the anti‐apoptotic action of nanoparticles in PDC‐stimulated germ cell apoptosis. The anti‐apoptotic action may involve regulation of pro-and anti‐apoptotic proteins, the release of mitochondrial cytochrome c and activation of caspase‐dependent cell death pathways. Taba et al. [104] showed that CUR administration causes a reduction in tunnel positive apoptotic cells as well as an alleviation in biochemical markers and sperm parameters in the testicular tissue of the aging mouse model. Furthermore, the investigation of Zalok et al. [105] showed that co-administration of CHI nanoparticles with cimetidine resulted in the weak immune response against caspase 3 in the seminiferous tubules of mouse testicular tissues.

CONCLUSION

Potassium dichromate resulted significantly in cytotoxic and cytogenetic effects as indicated by changes in the biochemical parameters, protein expression of kidney and testis, structure and number of chromosomes and sperm morphology in mice. Protection with nanoparticles of curcumin and chitosan are significantly able to alleviate these toxic effects through by enhancement of antioxidant capacity, reduction of oxidative stress, chromosomal aberrations and sperm abnormalities as well as regulation of expression of inflammatory cytokines and apoptotic proteins. Moreover, chitosan nanoparticles were found significantly more effective than curcumin nanoparticles in reducing chromosomal aberrations and sperm abnormalities induced by potassium dichromate.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All authors have contributed equally.

CONFLICTS OF INTERESTS

All authors have none to declare.
