Int J Pharm Pharm Sci, Vol 13, Issue 5, 45-57Original Article



1Hemchandracharya North Gujarat University, Patan, 2Nootan Pharmacy College, SPCE Campus, Visnagar, Gujarat 384315
Email: [email protected]

Received: 17 Feb 2021, Revised and Accepted: 25 Mar 2021


Objective: The goal of the current study was to investigate the possible use of solid lipid nanosuspension (SLNs) as a drug delivery method to boost doxorubicin (DOX) brain-targeting performance after intranasal (i. n.) administration.

Methods: 33 factorial design was applied for optimization by using lipid concentration, surfactant concentration, and High-speed homogenizer (HSH) stirring time as dependent variables, and their effect was observed on particles size, Polydispersity index (PDI), and entrapment efficiency.

Results: With the composition of Compritol® 888 ATO (4.6 % w/v), tween 80 (1.9 % w/v), and HSH stirring time, the optimized formula DOX-SLNs prepared (10 min). Particle size, PDI, zeta potential, entrapment efficiency, percent in vitro release were found to be 167.47±6.09 nm, 0.23±0.02, 24.1 mV, 75.3±2.79, and 89.35±3.27 percent in 24 h, respectively, for optimized formulation (V-O). No major changes in particle size, zeta potential, and entrapping efficiency were found in the stability studies at 4±2 °C (refrigerator) and 25±2 °C/60±5% RH up to 3 mo

Conclusion: Following the non-invasive nose-to-brain drug delivery, which is a promising therapeutic strategy, the positive findings confirmed the current optimized DOX-loaded SLNs formulation.

Keywords: Solid lipid Nanosuspension, Homogenization and Ultrasonication, Characterization, Factorial design, Nose to brain delivery


Currently, the most widely used cancer treatment is through chemotherapy administered either by the intravenous or oral route, which harms the normal cells more than just the cancerous cells in the body and causes many unwanted side effects [1].

Doxorubicin hydrochloride (DOX) is a broad spectrum anthracycline anticancer drug administrated intravenously, including the US Food and Drug Administration (USFDA) approved pegylated liposomal doxorubicin marketed as Doxil® for treatment of numerous human cancers [2-4]. No significant improvement in efficiency has been found through studies despite the use of Doxil® due to sluggish and passive release of the drug [5].

Treating brain diseases using hydrophilic drugs like DOX is yet more difficult as Blood-Brain Barrier (BBB) restricts the entry of drug and prevent their uptake in the brain. Due to BBB, no large molecule can reach the brain and less than 2% of small molecules find an entry in the brain, creating a huddle in the treatment of many life-threatening brain diseases, including brain cancer [5].

Intranasal administration is a non-invasive way that can deliver drugs directly into the brain, bypassing BBB through the trigeminal or olfactory pathway. It has been exploited by researchers, followed by the advantages of self-medication, ease delivery, avert first-pass metabolism, rapid onset, reduction in dose amount when compared to oral route [6].

Nanoparticulate-based drug delivery may improve the drug delivery to the brain via nasal route. These systems protect the drug from P-glycoprotein (P-gp) efflux, enzyme, and/or chemical degradation with an increase in bioavailability and specific biodistribution [7].

Nanotechnology carriers include polymeric-based nanoparticles, magnetic-based nanoparticles, ligand-based nanoparticles, lipid-based nanoparticles, etc.

Solid Lipid Nanoparticles (SLN) is a submicron lipidic carrier entrapping the drug in the lipid core and stabilized with the aid of surfactant, co-surfactant, and/or stabilizer.

The objectives of the current study were to apply an experimental design approach in the development of DOX-loaded SLN delivery administered via nasal route. The experimental design was applied to optimize the independent variables (Concentration of Compritol 888 ATO, Concentration of tween 80, and High-Speed Homogenizer time) to achieve low particle size, low polydispersity index (PDI), and high entrapment efficiency (EE). DOX SLN were formulated, optimize, and were characterized for physicochemical, morphological, in vitro release, and kinetic mechanisms [8, 9].



DOX was collected from Amneal Pharmaceuticals Ltd (Ahmedabad, India) as a gift sample. Apifil, Compritol 888 ATO, Compritol HD5 ATO, Capryol 90, and Precirol ATO 5 (PA) were collected as gift samples from Gattefosse Pvt. Ltd. (Mumbai, India). Stearic acid, Tween 80, and Poloxamer-407 (Pol-407) were procured from Sigma-Aldrich (Bangalore, India). Hydrogenated soybean phosphatidylcholine (HSPC) 50 was collected from the Sun Pharma Advanced Research Centre (SPARC, Vadodara) as a gift sample.

Selection of lipid using Solubility study of DOX in different lipids

Lipid selection is one of the most significant factors in Solid Lipid Nanosuspension in deciding the drug's encapsulation performance in the lipid. The DOX solubility analysis has been investigated in five different lipids viz. Compritol 888 ATO, Compritol HD 5 ATO, Precirol ATO 5, Apifil, Stearic acid for determining their potential to solubilize DOX. The solubility could not be assessed by the equilibrium technique since most of the lipids used were in solid condition. Hence, an alternative approach was used, where DOX (20 mg) was placed in five separate vials. The lipids were separately heated above their melting point and gradually added to the vials until a clear solution of lipids is formed. The experiment was performed in triplicate [10].

Formulation of DOX loaded SLN

SLN was formulated using the process of homogenization and ultrasonication. The procedure was consist of taking lipid and drug in one part while an aqueous solution of surfactant and stabilizer in another part. Drug and lipid mixture was melted above the melting point of lipid. An aqueous portion was heated at the same temperature. When both the parts attain an equilibrium, an aqueous portion was added incorporated into the lipid phase, followed by emulsification by a high-speed homogenizer. The temperature of the mixture was maintained constant until complete emulsification takes place. After obtaining primary emulsion, the mixture was ultrasonicated using an Ultrasonic homogenizer (Probe sonicator) (orchid scientific and innovative India Pvt ltd, Ambad, Nashikto obtain Solid lipid-based Nanosuspension (SLNS).

Optimization of variables by applying factorial design

33 experimental design was used for the optimization and evaluation of the relationship between the independent variables [critical process parameters (CPP)] viz., X1= lipid concentration, X2= surfactant concentration, and X3= High-Speed Homogenizer (HSH) time and dependent variables (responses) [Critical Quality Attribute (CQA)] such as Y1= Particle size, Y2= Polydispersibility index (PDI) and Y3= % Entrapment efficiency (EE) (table 1). Here, Compritol 888 ATO, Tween 80, and poloxamer 407 were selected as lipid, surfactant, and stabilizers, respectively. Drug concentration (2 mg/ml), HSH speed (10000 rpm) and Poloxamer-407 concentration (1% iw/w), sonication amplitude (20%) were set as fix levels.

Using Design Expert software (Version 12.0, Stat-ease. Inc., US), the factorial design was evaluated and a polynomial equation was obtained. In the polynomial equation, the magnitude of the coefficients has positive signs showing a consistent output or a negative sign indicating a contrasting effect. The most appropriate test model (equilibrium, a combination of two, quadratic and cubic model) was determined based on the comparison of statistical parameters such as the coefficient of variation (CV), the coefficient of multiplication (R2), the multiple coefficients of correction adjusted (R2 adjusted), the square residual sum predicted and the 3D response surface plot given by Design-Expert software graphically. The level of significance was considered at a p-value <0.05.

Table 1: Selection of variable and their level

Factor (Independent variable) Levels
Low(-1) Middle (0) High (+1)
X1= Compritol ATO 888 (as a lipid) concentration (%w/w) 3 4 5
X2 = Tween 80 (as a Surfactant) concentration (%w/w) 1.5 2 2.5
X3=HSH Time (min) 5 10 15
Response (Dependent variable) Goals
Y1= Particle size Minimize
Y2= PDI Minimize
Y3= % iEE Maximize

Data optimization and model validation

To create a design space to ensure the quality of the product you want, the impact of each independent CPP on CQA was analyzed. 33 factorial design is used in the design space proposal to examine process parameters, the answer to the quality attributes of DOX SLNs is used. The optimization is carried out using an overlay plot (graphical) and desirability (numerical) parameters based on finding the particle size, PDI, and higher EE percentage.

Characterization of optimized DOX-SLNs

For characterization, optimized DOX-SLNs were formulated and they were characterized for physicochemical, morphological, in vitro drug release, and kinetic studies as shown below:

Compatibility study of lipid and drug

The compatibility study between the selected lipid and drug was performed by using a Fourier transform-infrared spectro-photometer (FTIR) and Differential scanning calorimetry (DSC).

Fourier transform-infrared spectrophotometer (FTIR)

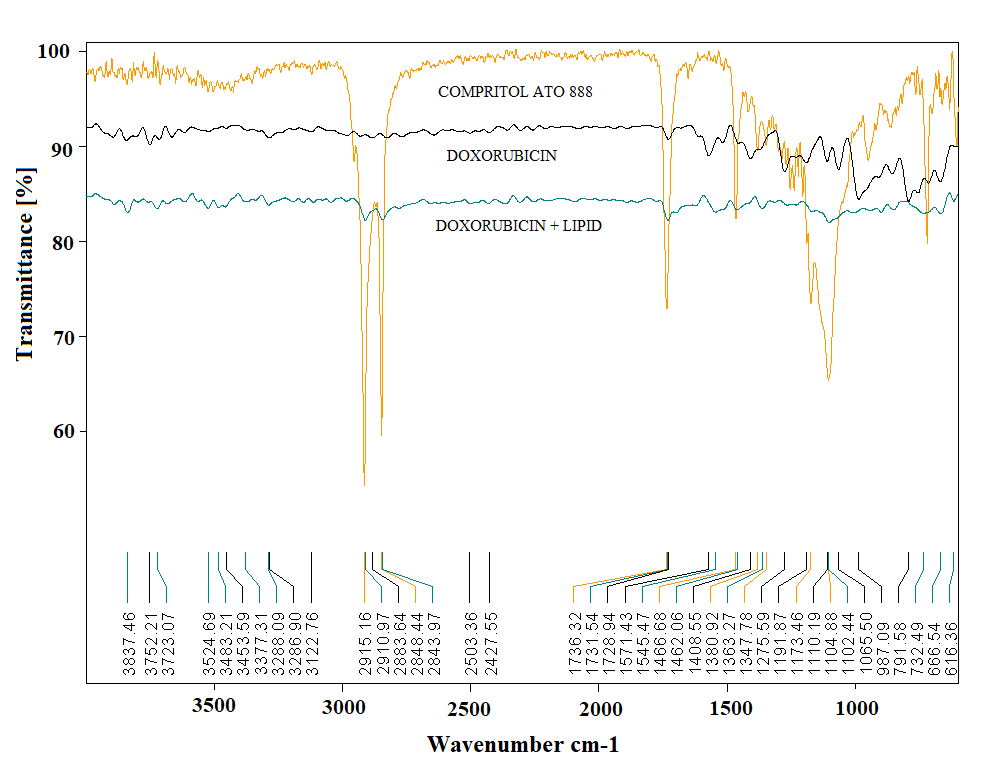

FTIR spectroscopy of Doxorubicin hydrochloride, pure lipid excipients, and physical mixture (DOX+lipid) was performed using the Fourier transform-infrared spectrophotometer (Alpha-model Bruker ATR FTIR spectrophotometer). Spectra were scanned at a resolution of 4 cm-1 over a wavelength region of 4000 to 400 cm-1. The process consisted of dispersing KBr samples and compressing them into discs by applying a hydraulic press pressure of 5 tons for 5 min (KBr pellet method). In the light direction, the pellet was positioned and the spectrum was collected.

Differential scanning calorimetry (DSC)

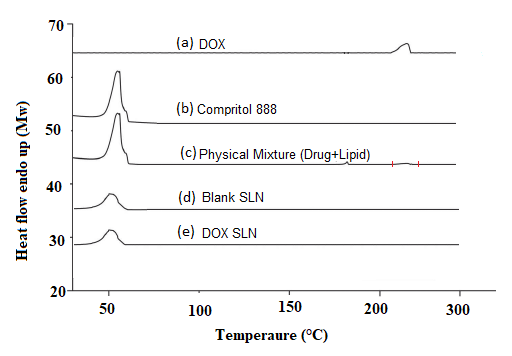

DSC measurement of Pure Drug Doxorubicin(DOX), Pure Lipid excipients and Physical mixture (DOX+Lipid), blank (placebo) SLNs, and DOX loaded SLNs formulation was performed with an instrument (Perkin-Elmer Diamond DSC) for measurement of the thermotropic transition of lipids. Empty aluminum pans were used as reference and samples were carefully placed in another aluminum pan. The measurement was done in an inert atmosphere within the temperature range of 30 °C to 200 °C, at 5 °C per min.

X-ray diffraction (XRD)

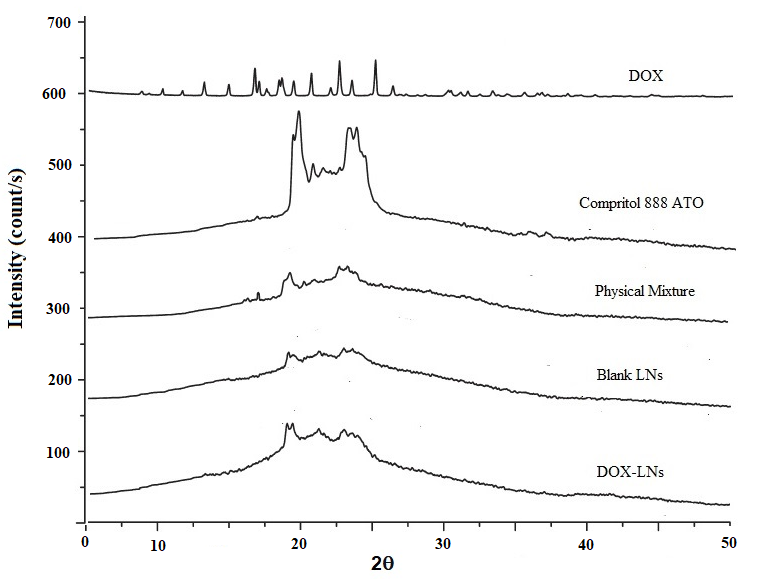

The crystallographic structure of DOX, Compritol 888 ATO, the physical mixture (drug+lipid), blank SLNs, and DOX-SLNs were characterized by X-ray diffraction (XRD) (D8Advance; Bruker Optik GmbH, Ettlingen, Germany). Samples were exposed to Cu-Ka radiation (40 kV; 40 mA) at a scan rate of 0.02 °/second over the 2θ/minute range of 5°–50°.

Particle size and polydispersity index (PDI) and zeta potential

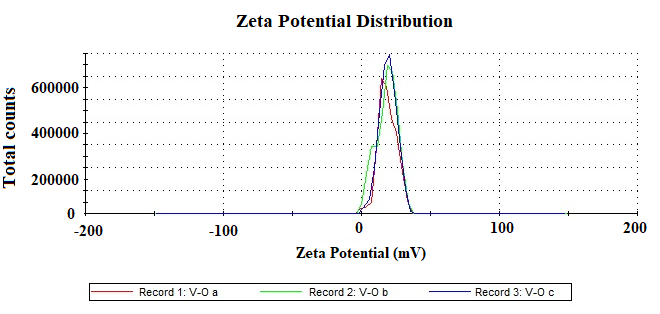

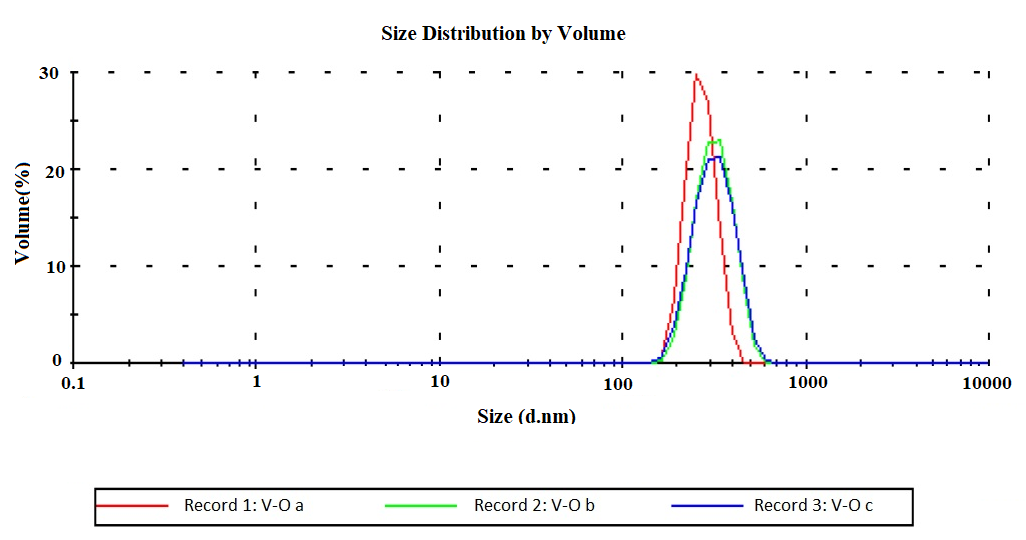

Photon correlation spectroscopy (PCS; Zetasizer, HAS 3000; Malvern Instruments, Malvern, UK)) was performed to determine particle size and Polydispersity Index (PDI). DOX SLNs are diluted 10 times with double distilled water before measuring the size and PDI. Measurements of particle size and PDI were carried out by taking 1 ml of the diluted formulation into polystyrene cuvettes and disposable folded capillary cells at 25 °C, respectively, for zeta potential. At a wavelength of 633 nm, dynamic light scattering measurements were taken using the helium-neon laser as a light source at a scattering angle of 90o, where particle diffusion is transformed into particle size due to Brownian motion. In the case of zeta potential, particles travel with a velocity related to their zeta potential due to the application of an electric field, which is determined using a technique called phase analysis light scattering and converted to the zeta potential by inbuilt software.

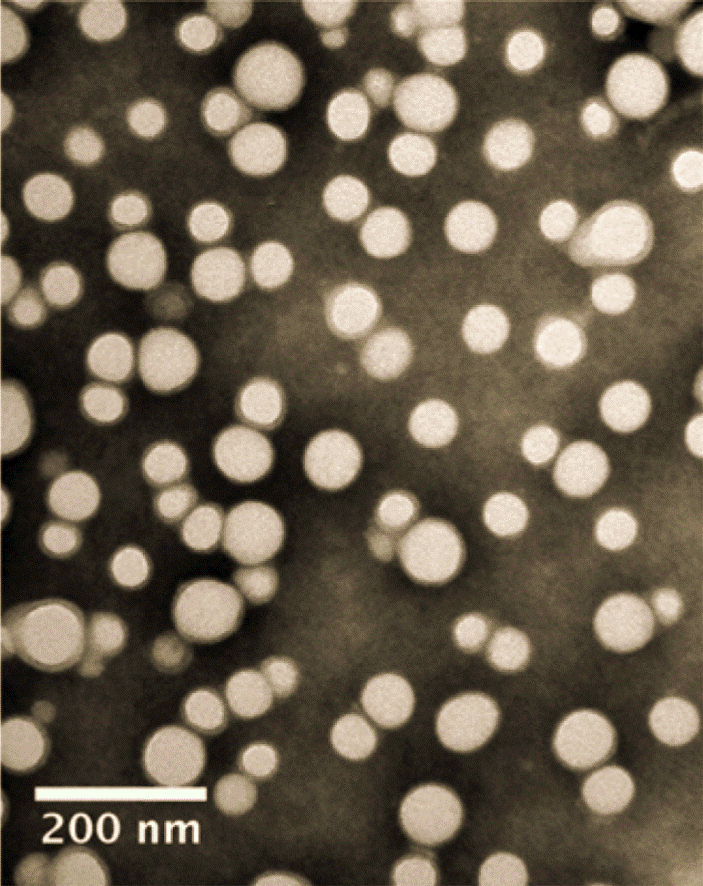

Morphological characterization of optimized DOX SLNs

Transmission electron microscopy (TEM) (JEM-1200, JEOL Co. Ltd., Tokyo, Japan) was used to visualize the surface morphology of the formulated nanosuspension. A drop of the nanoparticles dispersion was finely spread on a copper grid coated carbon with films and negatively stained with 2% (w/v) phosphotungstic acid for viewing [11].

A pH of optimized DOX SLNs

By taking 10 ml of formulation in a beaker, the pH of the DOX-loaded SLN was determined. At room temperature, pH was measured using a calibrated digital pH meter (Eutech Instruments, pH tutor, Singapore)

The viscosity of optimized DOX SLNs

To study the Rheological behavior of the SLNs formulation was determined using Brookfield viscometer (Expert L series, Fungilab Brookfield viscometer). Viscosity determinations were performed at 50 rpm using spindle TL6 at 25±2 °C.

Entrapment efficiency (%EE) of DOX SLNs formulated batches

The percent EE of formulated DOX SLNs was calculated using the method of centrifugation. To obtain lipid nanoparticles, samples were collected in centrifuge tubes and centrifuged at 10000 rpm for 20 min at room temperature. The supernatant was obtained, diluted with methanol appropriately, and analyzed by UV spectroscopy for free drug material. %EE was calculated by following equation (1): [12]

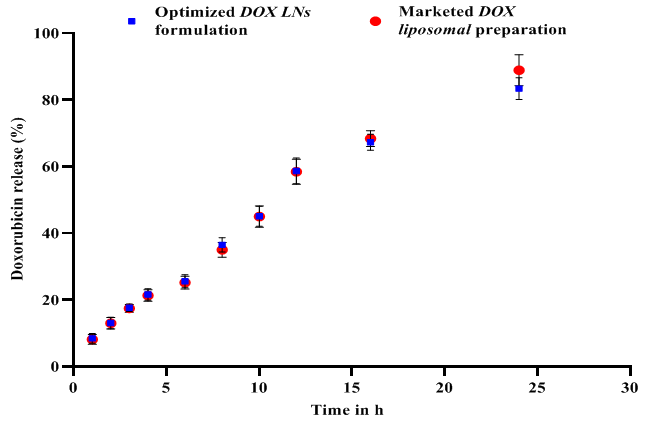

In vitro drug release of optimized DOX SLNs and release kinetics mechanism

Using a dialysis bag diffusion technique, in vitro drug release was assessed. A total of 5 ml of the sample was taken into a dialysis bag and submerged in a beaker containing 200 ml of phosphate-buffered saline (pH 7.4) [42] at 37±1 °C for 12 h with continuous stirring using a shaking incubator at a speed of 100 rpm (REMI Instruments Ltd). An aliquot of 1 ml of dissolving medium was removed at a fixed interval and the same volume of fresh medium was applied. Then the absorption of withdrawn samples was measured at 480 nm against a blank reagent using the UV spectrophotometer (Agilent Cary 60 UV-Vis spectrophotometer). Throughout the experiment, sink conditions were preserved.

All the experiments were performed in triplicate. The data obtained from the in vitro drug release analysis were adapted to various kinetic models viz., zero-order (cumulative drug release percentage versus time), first-order (cumulative drug release log remaining versus time), Higuchi model (cumulative drug release percentage versus square root of time) Hixon Crowell model (cumulative drug root remaining versus time) and Korsmeyer-Peppas model (Log percent CDR versus log time) [13].

Stability studies

The stability analysis aimed to determine the effect of the presence of formulation additives on the stability of the drug and also to determine the physical stability of the formulation prepared under storage and relative humidity conditions. Stability tests at 4±2 °C (refrigerator), 25±2 °C/60±5 percent RH and 40±2 °C/75±5 percent RH in the stability chamber (Oswald Scientific Equipments Pvt. Ltd, Mumbai India) were carried out on optimized DOX-SLNs. After 0, 1, 3, and 6 mo, the sample was extracted and the effects on particle size, shape, PDI, zeta potential, and entrapment efficiency were determined.


The solubility of DOX in lipids

A limiting factor in the formulation of SLNs is the amount of solid lipid needed to solubilize the drug. In Solid lipid nanosuspension formulation, the amount of lipid required to solubilize the drug is a crucial factor as it has a significant impact on the % entrapment efficiency. As per the details shown in fig. 1, to conduct the solubility analysis, five distinct solid lipids were taken. DOX solubility in Compritol 888 ATO required a lower quantity, suggesting higher drug solubility. As it has been successfully used in various pharmaceutical dosage types, Compritol 888 ATO has attracted particular interest. The applicability of Compritol 888 ATO in the preparation of aqueous colloidal dispersions such as solid lipid microparticles (SLMs), solid lipid nanoparticles (SLNs) and nanostructured lipid carriers (NLCs) to capture lipophilic drugs has been highlighted in various research studies [14-20].

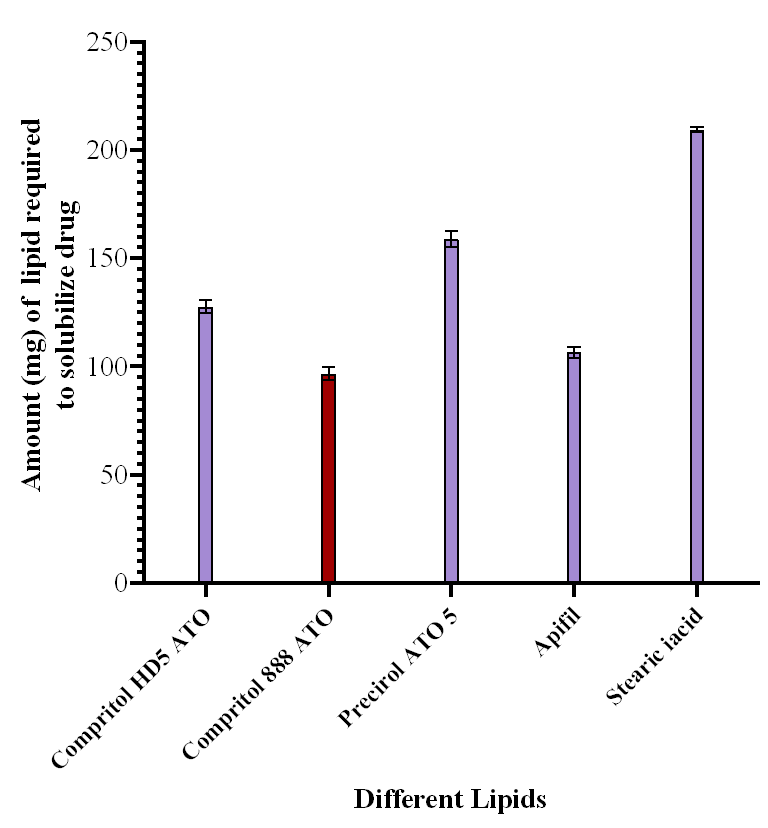

Fig. 1: Comparison of the amount of lipid required to solubilized DOX

33 factorial design

A significant and critical problem in the production of pharmaceutical dosage forms is the investigation of an ideal formula for the design of medication of the desired quality through minimum trials within a short period. In the literature on the development of different pharmaceutical dosage types, optimization through computer-aided statistical experimental design methodologies has been successfully applied [21]. The technique of statistical optimization involves designing a series of experiments that will calculate the response variables accurately, fitting the data with mathematical models, performing sufficient statistical tests to choose the best possible model, and producing an optimal response; the values of independent formulation variables are calculated. A factorial design is one of the common experimental designs used in the optimization of formulations between different statistical designs [22].

Selection of factors, levels, and Responses of experimental design

33 factorial was developed to analyze the main effect, the interaction effect, and the quadratic effect of three independent variables (CPP) on the three responses (CQA). In this case, 30 experiments run were performed, and the results were shown in table 2.

Table 2: Observed response for size, PDI, and % EE of factorial runs

Run X1 X2 X3 Y1 Y2 Y3
VS1 3 1.5 5 252.5±5.29 0.32±0.074 52.1±2.13
VS2 4 1.5 5 239.1±4.87 0.291±0.022 58.5±1.89
VS 3 5 1.5 5 279.7±3.43 0.327±0.03 62±1.11
VS 4 3 2 5 218.9±6.55 0.306±0.051 54.6±2.56
VS 5 4 2 5 200.6±4.11 0.257±0.029 64±2.44
VS 6 5 2 5 239.2±5.01 0.325±0.04 71.7±1.21
VS 7 3 2.5 5 279.2±3.72 0.361±0.036 47.1±1.35
VS 8 4 2.5 5 285.3±4.36 0.35±0.064 51.2±2.47
VS 9 5 2.5 5 306.8±5.63 0.393±0.02 61.6±3.12
VS 10 3 1.5 10 188.2±3.08 0.235±0.05 57.4±2.40
VS 11 4 1.5 10 165.3±3.51 0.211±0.047 67.2±1.39
VS 12 5 1.5 10 228.5±4.13 0.27±0.059 73.1±2.78
VS 13 3 2 10 174.4±5.29 0.25±0.067 65.2±3.29
VS 14 4 2 10 142.5±2.05 0.201±0.018 74.2±2.87
VS 15 5 2 10 199.4±1.33 0.278±0.083 79±1.55
VS 16 3 2.5 10 208.2±2.58 0.307±0.077 52.7±2.31
VS 17 4 2.5 10 222.1±4.77 0.318±0.045 58.7±3.33
VS 18 5 2.5 10 239.6±6.63 0.299±0.089 67.5±3.59
VS 19 3 1.5 15 196.1±5.97 0.423±0.049 43.1±3.54
VS 20 4 1.5 15 183.9±6.28 0.401±0.09 49.4±2.65
VS 21 5 1.5 15 246.7±8.39 0.451±0.057 59.8±2.48
VS 22 3 2 15 191.2±3.99 0.385±0.03 45.2±1.66
VS 23 4 2 15 171.4±9.25 0.36±0.063 53.5±2.09
VS 24 5 2 15 225±4.58 0.40±0.087 62±2.98
VS 25 3 2.5 15 248.7±6.89 0.441±0.091 39.8±3.23
VS 26 4 2.5 15 261.2±7.15 0.465±0.05 47.2±2.29
VS 27 5 2.5 15 251.1±4.92 0.446±0.028 55.4±1.73
VS 28 4 2 10 137.3±7.50 0.187±0.07 77.2±1.19
VS 29 4 2 10 148±6.25 0.20±0.062 73.6±1.47
VS30 4 2 10 143.2±4.10 0.208±0.07 71.7±1.56

Data represent mean±SD, n=3

A quadratic model was fitted into the data of experimental results by the use of Design-Expert® Software Version 12.

The following main criteria are fitted according to the best model:

  1. High F-value,

  2. Low P-value (<0.05),

  3. Insignificant lack of fit,

  4. High R2 (>0.90),

  5. Low standard deviation,

  6. A randomly scatter plot of residuals, and

  7. Whether it can predict well the validation set.

Data have shown in table 3 indicated that the p-value for all three CQA was>0.05 for cubic and quadratic models.

Table 3: Model fit summary of responses

Response Source Sequential p-value Lack of fit p-value Adjusted R² Predicted R² Remarks
Size Linear 0.0513 0.0014 0.1568 0.0301
2FI 0.9424 0.0012 0.0699 -0.3776
Quadratic <0.0001 0.0644 0.9833 0.9339 Suggested
Cubic 0.3157 0.0255 0.8950 0.7147 Aliased
PDI Linear 0.0371 0.0019 0.1779 0.0484
2FI 0.9056 0.0016 0.0992 -0.3201
Quadratic <0.0001 0.0704 0.9323 0.9095 Suggested
Cubic 0.3165 0.0740 0.9391 0.8376 Aliased
% EE Linear 0.0024 0.0215 0.3329 0.2442
2FI 0.9602 0.0182 0.2616 -0.0022
Quadratic <0.0001 0.4174 0.9324 0.9035 Suggested
Cubic 0.8028 0.3255 0.9190 0.7444 Aliased

Warning: The Cubic model is aliased. Quadratic models were found to be best fit models for all dependent variables viz., size, PDI, and %EE, and the R2values for the quadratic model were found to be 0.9339, 0.9095, and 0.9035 whereas for the cubic model R2 values were 0.7147, 0.8376 and 0.7444 respectively. These models were evaluated statistically by applying one-way ANOVA (p<0.05). The result of the ANOVA is shown in table 4

Effect of the independent variable on particle size

The particle size of factorial runs varied between 137.3 to 306.8 nm as shown in the counterplot and 3D response plot in fig. 2 and 3.

The polynomial equations for size

Size =+145.46+13.90A+16.97B-18.57C-6.96AB 0.1444AC+0.6196BC+28.53A²+39.95B²+45.73C²-----------equation-2

Where A, B, C, AB, AC, BC, A2, B2, C2 in Equation (2) were significant model terms.

As shown in equation 2, Positive coefficients of factor A, B, AC, BC, A2, B2, C2 denotes synergistic effect on particle size, while negative coefficients of C, AB denotes antagonistic effect on particle size. The Predicted R2of 0.9339 was in reasonable agreement with the adjusted R2 of 0.9833, indicating the adequacy of the model to predict the response of particle size.

Effect of lipid concentration on particle size

It was observed that Conc. of Compritol 888 ATO (lipid concentration) had a positive effect on particle size (Y1). It was also observed that as lipid concentration increased, the dispersed phase viscosity also increased, resulting in higher-size particle agglomeration and reduced homogenization ability.

Effect of surfactant concentration on particle size

As per results shown in table 2 for various experimental runs, as the concentration of tween 80 (Surfactant concentration) increased from 1.5% to 2.5% w/w, the size was decreasing and then with 2.5, it is increased. With increasing concentration of tween 80 from 1.5 % to 2.5 % w/w, it showed reduced interfacial tension between lipid and aqueous phase, which may control the aggregation of lipid particle by facilitating the particle partition thereby resulting in lower size [23]. Higher surfactant concentrations, as recorded in previous studies, effectively stabilize the lipid matrix by forming a steric barrier on its surface, thereby preventing aggregation [24]. When 2.5 % w/w tween 80 was used, the size was constantly increasing, it was observed. This was because the alkyl chain of the surfactant molecule covers the lipid particle surface through hydrophobic interaction to form a stable lipid matrix during the homogenization process. Once this stable matrix has been formed, an excess surfactant can cause surfactant particles to accumulate on the surface of the stable lipid matrix, causing an increase in size in our case [25].

Effect of HSH time on particle size

Homogenization was performed at 10000 RPM for three different time intervals viz., 5, 10, and 15 min. with an increase in HT from 5 to 10 min, the size was gradually decreasing, while at 15 min size was increasing. One of the important techniques for applying kinetic energy to achieve a lower size is the speed and time of homogenization for which it is used. Applying high kinetic energy for longer periods can lead to instability of the lipid structures produced, resulting in larger particles being aggregated and formed. In contrast to 10 min of HT, the size was higher at 5 min due to inadequate homogenization. An optimum homogenization time would therefore contribute to the creation of stable particles with a uniform distribution of size.

Table 4: Anova response size, PDI, and EE

Response 1: size (nm) SS df MS F-value p-value Remarks
Model 58875.49 9 6541.72 27.06 <0.0001 significant
A-Conc. of Compritol 888 ATO 3564.37 1 3564.37 14.74 0.0009
B-Conc. of Tween 80 5731.70 1 5731.70 23.71 <0.0001
C-HSH Time 6361.58 1 6361.58 26.32 <0.0001
AB 601.33 1 601.33 2.49 0.1290
AC 0.2522 1 0.2522 0.0010 0.9745
BC 4.76 1 4.76 0.0197 0.8897
5746.86 1 5746.86 23.77 <0.0001
11596.89 1 11596.89 47.97 <0.0001
14764.97 1 14764.97 61.08 <0.0001
Residual 5318.17 22 241.73
Lack of Fit 5260.64 19 276.88 14.44 0.0644 not significant
Pure Error 57.53 3 19.18
Cor Total 64193.66 31
Response: 2 PDI SS df MS F-value p value Remarks
Model 0.1996 9 0.0222 48.46 <0.0001 significant
A-Conc. of Compritol 888 ATO 0.0012 1 0.0012 2.72 0.1134
B-Conc. of Tween 80 0.0106 1 0.0106 23.07 <0.0001
C-HSH Time 0.0391 1 0.0391 85.44 <0.0001
AB 0.0005 1 0.0005 1.10 0.3064
AC 0.0001 1 0.0001 0.1959 0.6623
BC 0.0013 1 0.0013 2.91 0.1022
0.0080 1 0.0080 17.50 0.0004
0.0132 1 0.0132 28.93 <0.0001
0.0926 1 0.0926 202.33 <0.0001
Residual 0.0101 22 0.0005
Lack of Fit 0.0098 19 0.0005 6.75 0.0704 not significant
Pure Error 0.0002 3 0.0001
Cor total 0.2096 31
Response: 3 EE % SS df MS F-value p value Remarks
Model 3248.97 9 361.00 48.49 <0.0001 significant
A-Conc. of Compritol 888 ATO 1066.48 1 1066.48 143.25 <0.0001
B-Conc. of Tween 80 85.95 1 85.95 11.55 0.0026
C-HSH Time 243.47 1 243.47 32.70 <0.0001
AB 4.33 1 4.33 0.5810 0.4540
AC 8.14 1 8.14 1.09 0.3071
BC 4.57 1 4.57 0.6142 0.4416
6.61 1 6.61 0.8876 0.3564
401.08 1 401.08 53.87 <0.0001
1159.94 1 1159.94 155.81 <0.0001
Residual 163.79 22 7.44
Lack of Fit 148.18 19 7.80 1.50 0.4174 not significant
Pure Error 15.61 3 5.20
Cor Total 3412.75 31

SS= Sum of squares; df= degree of freedom; MS= Mean square, The probability value (p-value) by the regression analysis is shown in table 3 and the F test value is shown in table 4 for the three CQAs with a confidence level of 95%. The large p-value for lack of fit (>0.05) indicates that the lack of fit test is insignificant, implying that a significant model correlation existed between the CPP and CQA.

Table 5: Lack of Fit Tests particle size, PDI, and %EE

Response Source Sum of squares df Mean square F-value p-value Remarks
size Linear 48832.15 25 1953.29 101.86 0.0014
2FI 48090.42 22 2185.93 113.99 0.0012
Quadratic 5260.64 19 276.88 14.44 0.0644 Suggested
Cubic 2986.52 11 271.50 14.16 0.0255 Aliased
Pure Error 57.53 3 19.18
PDI Linear 0.1554 25 0.0062 81.10 0.0019
2FI 0.1521 22 0.0069 90.15 0.0016
Quadratic 0.0098 19 0.0005 6.75 0.0704 Suggested
Cubic 0.0055 11 0.0005 6.56 0.0740 Aliased
Pure Error 0.0002 3 0.0001
%EE Linear 2040.60 25 81.62 15.69 0.0215
2FI 2016.59 22 91.66 17.62 0.0182
Quadratic 148.18 19 7.80 1.50 0.4174 Suggested
Cubic 109.17 11 9.92 1.91 0.3255 Aliased
Pure Error 15.61 3 5.20

*The selected model should have an insignificant lack-of-fit.

Effect of the independent variable on PDI

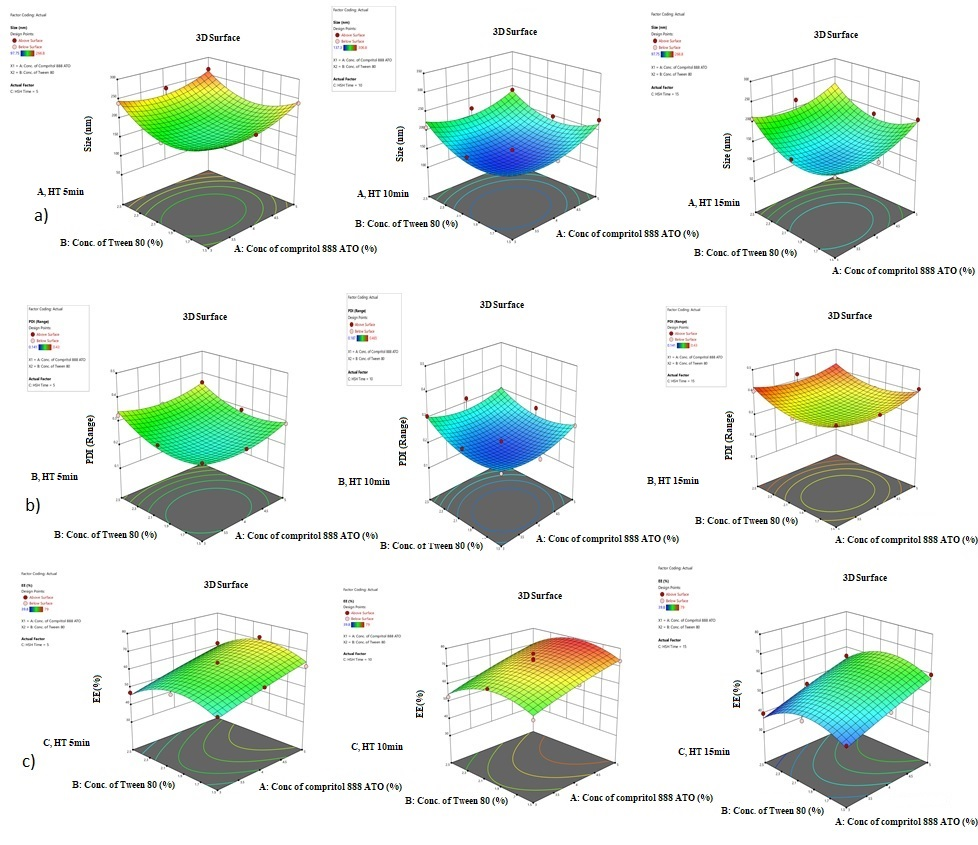

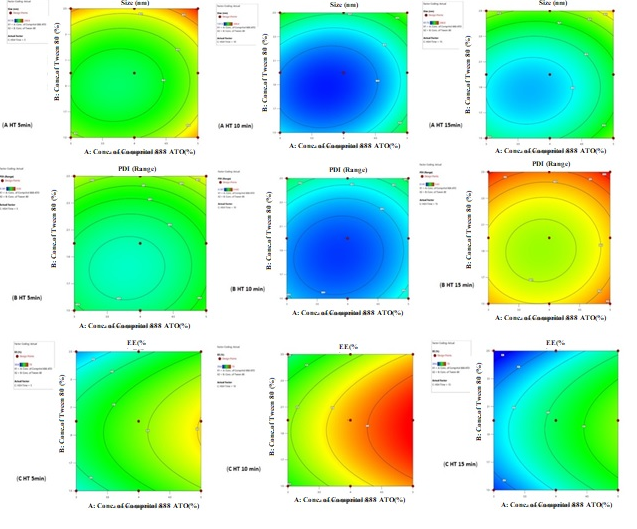

As shown in the counterplot and 3D response plot in fig. 2 and 3, the PDI of factorial runs ranged from 0.187 to 0.465.

The polynomial equations for PDI were as per following;


Where A, B, C, AB, AC, BC, A2, B2, C2 in Equation (3) were significant model terms.

Positive coefficients of factors A, B, C, A2, B2, C2 denote synergistic effect on PDI as shown in equation 3, whereas negative coefficients of factor AB, BC, AC denote antagonistic effect on PDI. The predicted R2 0.9095 was in good agreement with the modified R2 0.9323, indicating the adequacy of the model for predicting PDI.

In terms of actual variables, the equation can be used to make predictions of the answer for each factor at given levels. Here, for each factor, levels should be defined in the original units.

To calculate the relative impact of each factor, this equation should not be used because the coefficients are scaled to fit the units of each factor and the intercept is not at the center of the design space.

Effect of lipid concentration on PDI

It was observed that Conc. of Compritol 888 ATO (lipid concentration) had a positive effect on PDI (Y2). It was also observed that as lipid concentration increased, the dispersed phase viscosity also increased, resulting in greater PDI due to particle agglomeration and reduced homogenization ability.

Effect of surfactant concentration on PDI

As per the results shown in table 2 for different experimental runs, PDI decreased as the concentration of tween 80 (surfactant concentration) increased from 1.5 % to 2.5 % w/w. With an increased concentration of tween 80 from 1.5 to 2.5 % w/w, decreased interfacial tension between lipid and aqueous phase was shown to regulate lipid particle aggregation by facilitating particle partition, resulting in lower PDI [23]. It was observed that PDI increased continuously when 2.5 % w/w tween 80 was used,

Effect of HSH time on PDI

For three separate time intervals, viz., 5, 10, and 15 min, homogenization was performed at 10000 RPM. PDI decreased gradually with an increase in HT from 5 to 10 min, while PDI increased gradually at 15 min.

Effect of the independent variable on % entrapment efficiency (EE %)

As shown in the counterplot and 3D response plot in fig. 2 and 3, the % EE of factorial runs ranged from 39.8 to 79.

The polynomial equations for %EE were as per following;

% Entrapment Efficiency (EE %)=+72.88+7.61A-2.08B-3.63C+ 0.5906AB+0.8203AC+0.6073BC-0.9674A2-7.43B2-12.82C2--------equation 4

Where A, B, C, AB, AC, BC, A2, B2, C2 in Equation (4) were significant model terms.

As shown in equation 4, the positive factor A, AB, BC, AC coefficients denote a synergistic effect on percent EE, while the negative factor B, C, A2, B2, C2 coefficients denote an antagonistic effect on percent EE. The predicted R2 0.9035 was in good agreement with the modified R2 0.9324 suggested the adequacy of the model for forecasting the % EE response.

Effect of lipid concentration on % EE

It was observed that Conc. of Compritol 888 ATO (lipid concentration) had a positive effect on % EE (Y3). It was also observed that as lipid concentration increased, the viscosity of the dispersed phase also increased, resulting in decreased homogenization efficiency of particle agglomeration. The higher % EE may be due to the presence of higher lipid concentrations, which provide additional space for the drug molecule to be imgded, thus reducing the overall surface area. As the viscosity of the lipid phase is higher and thus shows higher %EE [26, 27], this can lead to a reduction in the diffusion rate of the solute molecule. From the outcome shown in table 4, it was observed that 3% lipid concentration showed weak % EE of 39.8±3.23 compared to 5% lipid concentration showing more than 55 % EE in all experimental runs because lipid quantity was higher.

Effect of surfactant concentration on % EE

As shown in table 2 for different experimental runs, as the concentration of tween 80 (surfactant concentration) increased from 1.5% to 2.0% w/w, EE percent increased. It was found that the percent EE was reduced when 2.5 percent w/w tween 80 was used. The reduction in EE percent could be due to a higher solubilization effect produced by a higher DOX surfactant concentration. DOX solubility in the external phase can increase at higher surfactant concentrations due to the diffusion of the drug from the lipid core into the aqueous phase, resulting in a decreased % EE. The findings were consistent with the results of another group describing a lower EE percentage, which may be attributed to the solubilization effect of the emulsifier on the aqueous phase drug molecule [27].

Effect of HSH time on % EE

The % EE was found to be lower in 15 min than in 10 min. This was attributable to the removal from the lipid surface of surfactant particles, which induced lipid disruption and the escape of the trapped drug into the aqueous process.

Fig. 2: Counter plot with the effect of formulation and process variable on A) Particle size B) PDI C) %EE

Fig. 3: 3D response surface plot with the effect of formulation and process variable on A) Particle size B) PDI C) %EE

Optimization of data and validation of response surface methodology

To create new formulations with the desired response (optimum quality), a numerical optimization method using the desirability approach was used. The desired ranges of in dependable variables (factors) were limited to 3≤A≤5 % 1.5 ≤B≤ 2.5 %, and 5 ≤C≤ 15 min, while the desired response ranges were limited to 200≤Y1≤100 nm, 0.15≤Y2≤0.3, and 70≤Y3≤ 80 %. The optimum response values were obtained by numerical analysis using the Design-Expert 12 software and one of them was chosen based on the desirability criterion.

Optimized DOX loaded Solid Lipid-based Nanosuspension (SLNs) optimized process variable settings proposed by design were prepared using the homogenization and ultrasonication to evaluate the optimization capability of the mathematical models produced according to the results of the complete 33 factorial design.

By formulating and characterizing nanoparticles at the checkpoint batch suggested by the software, experimental validation of DoE trials for formulation variables was carried out. The overlay plot showing the design space and configured parameters as a checkpoint proposed by DoE software to obtain the desired responses is shown in fig. 4.

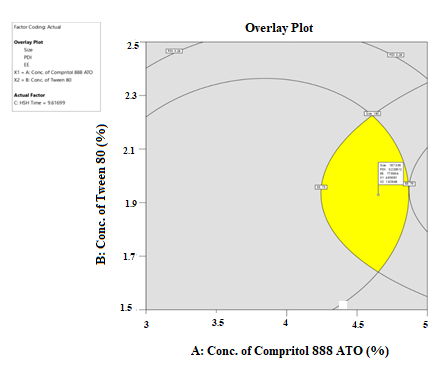

Fig. 4: The overlay plot indicating the region of optimal process variable settings

Table 6: Result of an experiment for confirming optimization capability

Code Factor
Conc. of compritol 888 ATO A (%) Conc. of tween 80 B (%) HSH time C (Min)
V-O 4.6 1.9 10
Responses Predicted value aObserved Value bResidual
Y1= Particle size (nm) 167.339 167.47±6.09 -0.12
Y2= PDI 0.220616 0.23±0.02 0.01
Y3= Entrapment efficiency (%) 77.6838 75.3±2.79 2.38

aObserved response values: mean±SD (n = 3)., bResidual= [difference between predicted value and actual value], The chosen optimal process variable setting used for the optimized formulation was Conc. Compritol 888 ATO (A)= 4.6%, Conc. Tween 80(B)= 1.9% and time (C) of HSH = 10 min. Optimized DOX-Loaded lipid-based Nano suspension (V-0) formulation was evaluated for response Y1: Particle size (nm), Y2: PDI, and Y3: Entrapment efficiency (%).

Table 7: Point prediction confirmation table

Solution 1 of 1 response Predicted mean Predicted median Observed Std Dev n SE pred 95% PI low Data mean 95% PI high
Size 167.339 167.339 167.47 15.5478 3.00 10.69 145.153 167.47 189.525
PDI 0.220616 0.220616 0.23 0.0214 3.00 0.0147 0.190091 0.23 0.25114
EE 77.6838 77.6838 75.3 2.72851 3.00 1.877 73.7904 75.3 81.5773

*Interval: Two-sided, Confidence = 95%, alpha= 0.05, The observed values (particle size167.47±6.09 nm, PDI 0.23±0.02, and EE 75.3±2.79%) were comparable to the expected values (particle size 167.33. nm, PDI 0.22, and EE 77.68%) to assess the optimization procedure's reliability.

Characterization of optimized DOX-SLNs formulation

Fourier transform infrared (FTIR) spectroscopy

The FTIR spectra over the range of 400–4000 cm-1 for DOX, Compritol 888 ATO, and physical mixture of DOX and Compritol 888 ATO are shown in fig. 5.

Important peaks at 3453.59 cm-1 and 3286.90 cm-1 appeared the characteristic peak of NH3+Stretching, O-H stretching, H-Bonding, at 2883.64 cm-1 alkane CH group stretch, at 1736.32 cm-1and 1728.94 cm-1 carboxylic acid C=O stretch, at 1173.46 cm-1 and 1104.88 cm-1 C-O stretches. In the FTIR spectrum of physical mixtures of DOX and Compritol 888 ATO, these characteristic peaks of DOX were also observed without any distinct changes. This reality confirmed that no chemical reaction had taken place between the drug and the polymer. Compritol 888 ATO was selected as the lipid for preparing solid lipid nanosuspension based on a drug lipid solubility and drug lipid compatibility analysis.

Differential scanning calorimetry (DSC)

Compatibility studies of drug polymers are very essential before formulation design DSC helps to provide useful information about crystallite and amorphism of the prepared sample. Perkin-Elmer Diamond DSC was used to investigate the melting and recrystallization behavior of the SLNs. DSC thermograms of doxorubicin, doxorubicin-loaded SLNs, Blank (Placebo) SLNs, physical mixture (DOX and lipid), Compritol 888 ATO, are presented in fig. 6.

Doxorubicin exhibited an endotherm corresponding to its MP at ∼235 °C. The thermal curve of the Compritol 888 ATO exhibited an endothermic peak at ∼69 °C. Whereas, physical mixture (DOX and lipid) exhibited a sharp endothermic peak at ∼68 °C and a very small peak was found at about 234 °C, which was present in DOX. The melting endotherm of Compritol 888 ATO in blank SLNs and DOX SLN formulation was observed at 68.03 °C and 66.06 °C, respectively. DSC thermograms of a physical mixture of DOX+Lipid and bulk lipid exhibited a melting endotherm corresponding to the melting of DOX at ∼65 °C, which was present in DOX-SLNs. However, the DOX peak was lost in DOX SLNs [fig. 6. (a) and i(e)]. It could be deduced that DOX in SLNs was in an amorphous state [28].

X-ray diffraction (XRD)

XRD patterns of DOX, Compritol 888 ATO, the physical mixture (drug+lipid), blank SLNs, and DOX-SLNs are shown in fig. 7.

Fig. 5: IR spectra of DOX, compritol 888 ATO 88, and physical mixtures of DOX and compritol 888 ATO

Fig. 6: DSC Thermogram (a) doxorubicin (DOX) (b) Compritol 888 (c) Physical mixture (DOX+Lipid) (d) Blank SLNs (e) DOX SLNs

Fig. 7: X-ray diffraction patterns DOX, Compritol 888 ATO, the physical mixture (drug+lipid), blank SLNs, and DOX-SLNs

At scattered angles, DOX's XRD patterns displayed sharp peaks, ranging from 15° to 25°, suggesting their crystalline existence. Light diffraction peaks of DOX were observed in the physical mixture at around 16 °, showing incomplete dissolution and the presence of a crystalline state of both drugs in bulk lipid. The blank SLN and DOX-SLNs XRD patterns were wider and much weaker than the bulk lipid. There were no characteristic peaks in DOX-SLNs for DOX, however, indicating the amorphous state of DOX. The XRD result of these DOX-SLNs was following that of the DSC.

Particle size, PDI, and zeta potential

Particle size distribution and zeta potential curve of optimized formulation (V-O) were shown in fig. 8 (a,b), respectively

  1. Plot for the size distribution vs number for batch V-O (n=3)

(b) Plot of zeta potential distribution for the batch V-O (n=3)

Fig. 8: (a) Particle size distribution curve, (b) zeta potential curve of optimized formulation

The average particle size of the optimized formulation was 167.47±6.09 nm, which was found to be sufficient for nasal pathway brain targeting. In essence, PDI is the ratio of the standard deviation to the mean size of particles. A PDI value of 0.3 or less suggests particle size uniformity. In this case, the PDI value of the formed SLNs was found to be 0.23±0.02, suggesting uniformity in particle size. In the dispersion of SLNs, the zeta potential shows the degree of charge present on suspended particles. A suitably high zeta potential value (30mV to-30 mV) confers stability since aggregation is resisted by particles. The zeta potential (24.1 mV) value of the optimized formulation of SLNs showed good stability [29].

Morphological study

Morphological inspection of DOX SLNs using TEM analysis showed that SLNs were spherical (fig. 9) and were in the size range of 150-200 nm, which was based on the dynamic light scattering theory, in further agreement with the size distribution performed using Zetasizer. From fig. 9 It was noted that the particles of the SLNs had a uniform distribution of size, confirmed by Zetasizer, showing a PDI value below 0.25, suggesting no aggregation.

Fig. 9: TEM image of optimized DOX-SLNs formulation

Entrapment efficiency (%)

The entrapment efficiency of optimized DOX SLNs formulation was found to be 75.3±2.79.


The optimized formulation of DOX SLNs showed a pH value of 5.86±0.35, which was within the standard pH range of 5-6.5 for human nasal mucosa and thus does not cause nasal inflammation when administered intranasally [30].


The viscosity values for the optimized formulation of DOX-loaded SLNs were 39.5±0.93 cP, which was lower than 50 cP, thus ensuring strong intranasal administration tolerance. Formulation with a higher viscosity value often results in increased residence time but faces administration difficulties and may display decreased absorption due to reduced drug diffusion from the formulation, whereas systems with lower viscosity can be easily administered but have to face faster MCC, thus reducing the contact time of the mucosa formulation applied [31].

In vitro drug release study

A comparative in vitro release analysis was conducted between the commercialized liposomal preparation of DOX and the optimized formulation of DOX-SLNs (V-O). In figure.10. the comparative dissolution profile was shown. The DOX-SLNs dissolution profile showed an initial burst release, followed by a gradual release. The initial burst release may be attributed to the presence of free drugs on the surface of particles in the external phase and adsorbed drugs, whereas the slow release may be due to the encapsulated drug inside the lipid matrix [32].

The optimized DOX SLNs showed an initial release of 8.43±1.49 percent, compared to 8.13±1.52 percent after 1 h for commercially available DOX liposomal preparation. Optimized DOX SLNs subsequently showed sustained drug release with a cumulative drug release of 89.35±3.27 percent over 24 h, while Marketed DOX Liposomal preparation showed 94.9±4.64 percent over 24 h. An f2 parameter is widely used to determine the similarity of two dissolution profiles. To show the similarity between two dissolution profiles, a public norm of f2 value between 50-100 is used. In our case, the similarity factor f2=98.33 indicates that the similarity between the optimized DOX-SLNs formulation dissolution profile and the marked Dox liposomal preparation is identical.

Analysis of kinetics and mechanism of drug release for optimized DOX SLNs

Optimized doxorubicin-loaded lipid nanosuspension (DOX SLNs) formulations were fitted into various kinetic models. The correlation coefficient (R2) and exponent values of various kinetic models are shown in table 8.

Fig. 10: Comparison of % in vitro drug release profile of optimized DOX-LNs with marketed DOX liposomal preparation

The results showed that the kinetic models that could be used to characterize the release characteristics of doxorubicin-loaded lipid nanosuspension (DOX-SLNs) formulations were better suited to the zero-order model. The zero-order kinetics model had the highest correlation coefficients (R2= 0.982) compared to other kinetic models. Diffusion of the drug from the lipid matrix has therefore been proposed to be the possible mechanism of action. The value of release exponent "n" was found to be 0.4597 in the Korsmeyer-Peppas model, which seems to suggest the process of release regulated by diffusion, so-called Fickian diffusion. Similar results have been observed in Shazly [33], who prepared ciprofloxacin-loaded SLNs.

Table 8: Release kinetic models for the optimized DOX-SLNs formulation



Zero-order First-order Higuchi model Hixon Crowell model Korsmeyer–peppas
R2 K0 (h–1) R2 K0 (h–1) R2 K0 (h–1) R2 K0 (h–1) R2 n value
V-O 0.982 3.64 0.956 0.03 0.973 21.43 0.98 0.09 0.8561 0.4597

Stability studies

Table 9: Characteristics of DOX-SLNs after 3-month stability studies at different conditions

Temp ( °C)/

RH (%)

Time (month) Characteristics parameter
Particle size (nm)a PDI Zeta potential (mV)a Entrapment efficiency (%)a
4±2 0 167.47±6.09 0.23±0.02 24.1±1.7 75.3±2.79
1 169.94±5.82 0.272±0.03 23.3±1.2 75.54±1.20
3 171.65±2.54 0.284±0.05 22.6±1.5 75.23±1.94
25±2/60±5 0 167.47±6.09 0.23±0.02 24.1±1.7 75.3±2.79
1 167.21±3.71 0.226±0.02 23.2±1.2 75.65±1.24
3 174.76±5.57 0.287±0.03 22.5±1.3 74.78±1.98
40±2/75±5 0 167.47±6.09 0.23±0.02 24.1±1.7 75.3±2.79
1 174.45±2.81 0.285±0.04 20.2±1.9 75.39±2.85
3 355.35±3.98 0.422±0.03 16.6±2.3 74.53±1.27

aData was expressed as mean±SD, n=3; P<0.05 (measurements obtained at each point in time (1 and 3 mo) at the same storage condition were compared with measurements obtained at that storage condition at zero months. There has also been a comparison of various parameters between different temperatures), No substantial difference in particle size was observed when stored at 4±2 °C (refrigerator) and 25±2 °C/60±5 percent RH, but when stored at 40±2 1C/75±5 percent RH due to aggregation, the particle size increased (P<0.05, table 9). There was a substantial shift between 4±2 °C (refrigerator) and 25±2 °C/60±5 percent RH, but the zeta potential fell to 40±2 1C/75±5 percent RH (P<0.05). Zeta potential plays an important role in physical stability [35]. This may be due to lipid coating dissolution that contributes to particle aggregation.


A lipid nanoparticulate drug delivery system (SLNs) of doxorubicin was proposed for brain targeting through intranasal delivery in the present research work. SLNs were prepared by the homogenization and ultra-sonication process and evaluated for particle size, particle size distribution (PDI), zeta potential, entrapment efficiency, in vitro release, and stability studies. It was noticed that all measurements were in an acceptable range. To prepare solid lipid nanoparticles of reproducible sizes in the range of 137.3 to 306.8 nm by addressing the effects of processing parameters, high-speed homogenization followed by ultrasonication technique was used. The 33factorial design application proved to be a useful method for optimizing DOX-loaded SLNs. Using a factorial design, the required formulation composition can be selected to obtain DOX-loaded SLNs smaller than 200 nm, depending on the application of the brain targeting system through intranasal delivery. The use of 33 full-factor designs allowed the production of an appropriate formulation using the minimum amount of raw materials and a minimum of time. In vitro drug release over 24 h was found to be 89.35±3.27 percent, suggesting a controlled and sustained DOX-SLN release profile. No major changes in particle size, zeta potential, and entrapping efficiency were observed in the stability studies at 4±2 °C (refrigerator) and 25±2 °C/60±5 percent RH for up to 3 mo. This study, therefore, demonstrated the usefulness of SLNs for the delivery of doxorubicin via the intranasal (i. n) route to the brain.


The Valuable assistance from Amneal Pharmaceuticals Ltd. (India, Ahmedabad) and Gattefosse Pvt. Ltd. (Mumbai, India) is gratefully remembered for supplying the drug and lipid-based excipients, respectively. Dr. Girish K. Jani, former principal of the SSR College of Pharmacy, Silvassa, DNH, India, is very grateful to the authors for their assistance and helpful suggestions.




Virag A. Shah has performed experiments and prepared manuscript draft, Dr. Jayvadan K. Patel guided and supervised the research work.


The author declared that there is no conflict of interest regarding the publication of the paper


  1. Zubareva A, Shcherbinina T, Varlamov VP, Svirshchevskaya E. Biodistribution of doxorubicin-loaded succinyl chitosan nanoparticles in mice injected via intravenous or intranasal routes. PCACD 2014;19:145-54.

  2. Mussi V, Silva C. New approach to improve encapsulation and antitumor activity of doxorubicin-loaded in solid lipid nanoparticles. Eur J Pharm Sci 2013;48:282-90.

  3. Oliveira S, Mussi V. α-Tocopherol succinate improves encapsulation and anticancer activity of doxorubicin-loaded in solid lipid nanoparticles. Colloids Surf B 2016;140:246-53.

  4. Lala RR, Shinde AS, Nandvikar NY. Solid lipid nanoparticles: a promising approach for combinational drug therapy in cancer. Int J Appl Pharm 2018;10:17-22.

  5. Xiong P, Ding A, Su Z, Shen G, Chen Y, Zhang S. The efficacy and hyperthermic release of doxorubicin from liposomal doxorubicin hydrochloride in rabbits VX2 tumors. Int J Hyperthermia 2015;31:900-8.

  6. Khatak S, Dureja H. Structural composition of solid lipid nanoparticles for invasive and non-invasive drug delivery. Curr Nanomaterials 2017;2:129-53.

  7. Patel S, Chavhan S. Brain targeting of risperidone-loaded solid lipid nanoparticles by the intranasal route. J Drug Target 2011;19:468-74.

  8. Shah M, Pathak K. Development and statistical optimization of solid lipid nanoparticles of simvastatin by using 23 full-factorial design. AAPS PharmSciTech 2010;11:489-96.

  9. Gambhire S, Bhalekar R, Gambhire M. Statistical optimization of dithranol-loaded solid lipid nanoparticles using factorial design. Braz J Pharm Sci 2011;47:503-11.

  10. Yasir M, Sara S. Solid lipid nanoparticles for a nose to brain delivery of haloperidol: in vitro drug release and pharmacokinetics evaluation. Acta Pharm Sin B 2014;4:454-63.

  11. Bilati U, Allemann E, Doelker E. Development of a nanoprecipitation method intended for the entrapment of hydrophilic drugs into nanoparticles. Eur J Pharm Sci 2005;25:67-75.

  12. Dong Y, Ng W, Shen S, Kim S, Tan K. Solid lipid nanoparticles: continuous and potential large-scale nanoprecipitation production in static mixers. Colloids Surf B 2012;94:68-72.

  13. Costa P, Lobo S. Modeling and comparison of dissolution profiles. Eur J Pharm Sci 2001;13:123-33.

  14. Gan L, Gao YP, Zhu CL. Novel pH-sensitive lipid-polymer composite microspheres of 10-hydroxycamptothecin exhibiting colon-specific biodistribution and reduced systemic absorption. J Pharm Sci 2013;102:1752-9.

  15. Blasi P, Giovagnoli S, Schoubben A. Lipid nanoparticles for brain targeting formulation optimization. Int J Pharm 2011;419:287-95.

  16. Bose S, Du Y, Takhistov P, Michniak Kohn B. Formulation optimization and topical delivery of quercetin from solid lipid-based nanosystems. Int J Pharm 2013;441:56-66.

  17. Rajkumar M, Bhise B. Carbamazepine-loaded porous microspheres for short-term sustained drug delivery. J Young Pharm 2010;2:7-14.

  18. Rahman Z, Zidan S, Khan A. Non-destructive methods of characterization of risperidone solid lipid nanoparticles. Eur J Pharm Biopharm 2010;76:127-37.

  19. Borgia L, Regehly M, Sivaramakrishnan R. Lipid nanoparticles for skin penetration enhancement-correlation to drug localization within the particle-matrix as determined by fluorescence and parelectric spectroscopy. J Controlled Release 2005;110:151-63.

  20. Cai S, Yang Q, Bagby R, Forrest L. Lymphatic drug delivery using engineered liposomes and solid lipid nanoparticles. Adv Drug Delivery Rev 2011;10:901-8.

  21. Sarkar T, Ahmed B. Development and in vitro characterization of chitosan loaded paclitaxel nanoparticle. Asian J Pharm Clin Res 2016;9:145-8.

  22. Hooda A, Nanda M, Jain V, Kumar P, Rathee. Optimization and evaluation of gastroretentive ranitidine HCl microspheres by using design expert software. Int J Biol Macromol 2012;51:691–700.

  23. Mahajan A, Kaur S. Design, formulation, and characterization of stearic acid-based solid lipid nanoparticles of candesartan cilexetil to augment its oral bioavailability. Asian J Pharm Clin Res 2018;11:344-50.

  24. Malakar J, Nayak K, Pal D. Development of cloxacillin loaded multiple-unit alginate-based floating system by an emulsion-gelation method. Int J Biol Macromol 2012;50:138–47.

  25. Reddy H, Murthy R. Etoposide-loaded nanoparticles made from glyceride lipids: formulation, characterization, in vitro drug release, and stability evaluation. AAPS PharmSciTech 2005;6:158-66.

  26. Thakkar P, Desai L, Parmar P. Application of Box-Behnken design for optimization of formulation parameters for nanostructured lipid carriers of candesartan cilexetil. Asian J Pharm 2014;8:81-9.

  27. Shah M, Pathak K. Development and statistical optimization of solid lipid nanoparticles of simvastatin by using 23 full-factorial design. AAPS PharmSciTech 2010;11:489-96.

  28. Subedi K, Kang W, Choi K. Preparation and characterization of solid lipid nanoparticles loaded with doxorubicin. Eur J Pharm Sci 2009;37:508-13.

  29. Zhuang Y, Li N, Wang M. Preparation and characterization of vinpocetine loaded nanostructured lipid carriers (NLC) for improved oral bioavailability. Int J Pharm 2010;394:179–85.

  30. Abdelbary G, Fahmy H. Diazepam-loaded solid lipid nanoparticles: design and characterization. AAPS PharmSciTech 2009;10:211-9.

  31. Arora P, Sharma S, Garg S. Permeability issues in nasal drug delivery. Drug Discovery Today 2002;7:967-75.

  32. Furubayashi T, Inoue D, Kamaguchi A, Higashi Y, Sakane T. Influence of formulation viscosity on drug absorption following nasal application in rats. Drug Metab Pharmacokinet 2007;22:206-11.

  33. Joshi S, Patel S, Belgamwar S. Solid lipid nanoparticles of ondansetron HCl for intranasal delivery: development, optimization, and evaluation. J Mater Sci Mater Med 2012;23:2163–75.

  34. Shazly A. Ciprofloxacin controlled-solid lipid nanoparticles: characterization, in vitro release, and antibacterial activity assessment. BioMed Res Int 2017;2017:1-9.

  35. Aher S, Malsane T, Saudagar R. Nanosuspension: an overview. Int J Curr Pharm Res 2017;9:19-23.
