Int J Pharm Pharm Sci, Vol 7, Issue 2, 309-313Original Article

SYNTHESIS AND ASSESSMENT OF HEPATOPROTECITVE ACTIVITY OF SOME NEW 2-ARYL TETRAHYDROQUINOLINE AND SPIROOXYINDOLYL TETRAHYDROQUINOLINE DERIVATIVES

MAHESH ANAND GOUDAR¹*, JAYADEVAPPA H² MAHADEVAN K. M³, SHASTRY R. A⁴, HABBU P. V⁴, SAYESWARA H. A⁵

¹DVS College of Arts and Science, Department of Chemistry, Kuvempu University, Shivamogga-577202, Karnataka, India, ²Sahyadri Arts and Commerce College, Kuvempu University, Shivamogga-577202, Karnataka, India, ³Department of Postgraduate studies and Research in Pharmaceutical chemistry, Kuvempu University P. G. Center, Kadur-577550, Karnataka, India, ⁴Department of Pharmacognosy, Postgraduate studies and Research center, SETS College of Pharmacy, Dharwad-580002, Karnataka, India, ⁵Department of Zoology, Sahyadri Science College (Autonomous), Kuvempu University, Shivamogga-577202, Karnataka, India.
Email: dvs.mahesh@gmail.com

Received: 27 Nov 2014 Revised and Accepted: 25 Dec 2014

---

ABSTRACT

Objective: To evaluate the hepatoprotecitve potential of some newly synthesized tetrahydroquinoline derivatives against carbon tetrachloride induced hepatic damage in wister rats.

Methods: A series of 2-aryl, 4-N vinyl pyrrolido/caprolacto and spirooxy indolyl tetrahydroquinolines were synthesized by imino Diels-Alder reaction using Antimony (III) sulfate as catalyst. The titled compounds were characterized by IR, ¹HNMR spectroscopy and screened for hepatoprotecitve activity. Hepatopotoxicity was induced in male Wister rats by intrperitoneal injection of CCl₄. Wister rats weighing 150-200g were randomly assigned in to various groups of six animals each. Group I – Normal control received only 1% Tween in distilled water, Group II – Served as negative control received CCl₄ in liquid paraffin 1 ml/kg p. o. at every 72 h for 10 days. Group III – X were intoxicated with CCl₄ 1 ml/kg p. o. before the administration of Silymarin 100 mg/kg p. o. and suspension of synthetic derivatives in polyethylene glycol-400 at the dose of 25 mg/kg p. o. for 10 days. Different hepatic biochemical parameters viz. SGOT, SGPT, SALP, Total and direct bilirubin were evaluated before and after treatment to investigate the hepatoprotecitve activity.

Results: It was observed that in CCl₄ intoxicated group; total and direct bilirubin, SGOT, SGPT, SALP levels were significantly increased as compared to control group. Administration of synthesized tetrahydroquinoline derivatives at the dose of 25 mg/kg p. o. reduced these pathological damages caused by CCl₄ intoxication compared to normal and Silymarin treated groups.

Conclusion: The present study revealed that synthesized tetrahydroquinoline derivatives, showed hepatoprotecitve potential against CCl₄ induced hepatotoxicity in wister rats, thus offering a novel synthetic formulation as a hepatoprotecitve drug.

Keywords: Tetrahydroquinolines, Imino diels-Alder reaction, Antimony (III) sulfate, Hepatoprotecitve, Silymarin, Liver, Carbon tetrachloride.

---

INTRODUCTION

Liver plays a major role in metabolism, secretion, storage, detoxification and excretion of many endogenous and exogenous compounds. Liver cell injury caused by systemic drugs, foods, preservatives, agrochemicals, microbial agents and excessive alcohol consumption, leads to many disorders ranging from elevation of liver enzymes to liver failure [1]. Administration of CCl₄ causes liver and kidney damage through free radical mediated process. Also CCl₄ increases the serum level of marker enzymes SGOT, SGPT, SALP and bilirubin marking the induction of hepatotoxicity. Though the modern medical system as advanced phenomenally there are no potential drugs which can completely cure all liver disorders [2]. Silymarin has been proved to possess hepatoprotecitve potential by prevention of absorption of toxins in to hepatocytes by occupying binding sites as well as inhibiting many transport proteins at the membrane. These actions along with aniperoxidative property make Silymarin suitable for the treatment of toxic liver disease [3].

In an attempt to expand the spectrum of hepatoprotecitve agents, the present study was carried out to synthesize some new tetrahydroquinoline and spirooxyindolyl tetrahydroquinoline derivatives and evaluate their hepatoprotecitve potential against CCl₄ induced toxicity in wister rats. Biological importance of tetrahydroquinolines has been demonstrated by recent studies as hundreds of them bearing various simple or complex substituents have shown interesting biochemical and pharmaceutical activity [4-8]. Further the presence of spirooxy indole core in number of natural products has evolved significant interest in synthesis of spirooxy indole derivatives [9]. In the present work, a series of 2-aryl, 4-N vinyl pyrrolido/caprolacto and spirooxy indolyl tetrahydroquinolines were synthesized by imino Diels-Alder reaction in the presence of Antimony (III) sulfate as catalyst and were screened for hepatoprotecitve activity against CCl₄ induced hepatotoxicity in wister rats.

MATERIALS AND METHODS

Synthesis and characterization of compounds (1-7)

All melting points were recorded in open capillaries and were uncorrected. The purity of the compounds was monitored by TLC and they were purified by column chromatography. ¹H NMR spectra were recorded on a Bruker-300 Hz spectrometer using TMS as an internal standard. IR spectra were obtained using a FTS-135 spectrometer. The identity of compounds (1-7) was established by means of IR, ¹HNMR, mass spectral study and elemental analysis.

Procedure for synthesis of compounds

(1) and (2): Antimony (III) sulfate (0.2m. mol) was added to a mixture of 1.0 m. mol N-benzylidene and 2.3 dihydrofuran in 5 cm³ acetonitrile. The reaction mixture was stirred at 50^oC for 4 hrs. After completion of the reaction (as indicated by TLC) the mixture was quenched with saturated NaHCO₃, extracted with ethyl acetate, dried over (anhydrous Na₂SO₄) and purified by column chromatography on SiO₂ with an ethyl acetate and petroleum ether as elutent (Scheme -1).

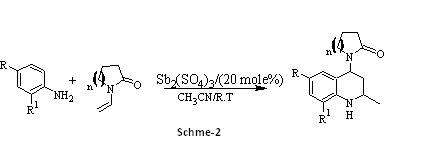

(3) and (4): A mixture of aromatic amine (1m. mol) and N-vinyl pyrrolidine and N-vinyl caprolactum and Antimony (III) sulfate (0.28 m. mol) in 10 cm³ acetonitrile was stirred at room temperature. After completion of reaction (as indicated by TLC), the reaction mixture was quenched in water, extracted with ethylether, dried, concentrated, and separated by column chromatography (Scheme-2).

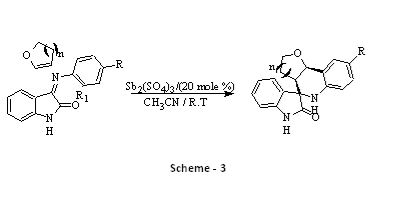

(5) and (6):Isatin amine was made to react with 2.3 dihydrofuran/3,4 dihydro 2H-pyran in presence of Antimony (III) sulfate (20 mol%) in acetonitrile, mixed for 2 hours at room temperature to give corresponding Spirooxy indolyl tetrahydro quinolines (Scheme-3).

(7): Isatin Schiff base was made to react with N-vinyl pyrrolidine in presence of Antimony (III) sulfate catalyst (20 mol %) in acetonitrile, mixed for 1 hour at room temperature to get the target Spirooxy indolyl tetrahydroquinolines (Scheme-4).

Physical and analytical data of newly synthesized compounds were reported in table 1.

Table 1: Physical and analytical data of synthesized components

Compound	Structure	MP(OC)	Yield	Molecular formula	Mol. Wt
1		92-94oC	40	C18H19O	265
2		94-96oC	40	C18H19O2	281
3		105-152oC	93	C14H17C1N2O	265
4		138-140oC	93	C16H21FN2O	277
5		150oC	90	C19H18N2O3	321
6		120oC	91	C20H18N2O3	333
7		290-294oC	91	C21H20N3O3	364

Spectral data

(1): Colorless crystalline solid, IR (KBr): = 3401 cm^-1; ¹H NMR (CDCl₃): δ = 7.26-7.46 (6H, m), 6.99 (d, J = 7.4 Hz, 1H), 6.72 (t, J = 7.5 Hz, 1H), 4.55 (d, J = 4.9 Hz, 1H), 4.00-4.08 (m, 2H), 3.75-3.84 (m, 2H), 2.40-2.47 (m, 1H), 2.08 (s, 3H,), 1.88-1.95 (m, 1H), 1.62-1.69 (m, 1H) ppm.

(2): Colorless crystalline solid, IR (KBr): = 3298 cm^-1; ¹H NMR (CDCl₃): δ = 7.39-7.46 (m, 5H), 6.99 (d, J = 2.8 Hz, 1H), 6.80 (dd, J = 8.1, 2.8 Hz, 1H), 6.61 (d, J = 8.1 Hz, 1H), 4.63 (d, J = 5.3 Hz, 1H,), 4.06 (m, 1H), 3.78 (s, 3H), 3.73-3.87 (2H, m), 2.49 (1H, br), 1.98-2.04 (m, 1H), 1.68-1.73 (m, 1H), 1.18-1.24 (1H, m) ppm.

(3): Colourless crystalline solid, IR (KBr): = 3395 cm^-1; 1H NMR (400 MHz, CDCl₃): δ = 1.24 (d, 3H, J = 6.2 Hz), 1.75 (ddd, 1H, J = 12.3, 5.5, 2.2 Hz), 1.95 (ddd, 1H, J = 11.6, 5.9, 2.4 Hz), 1.99-2.15 (m, 2H), 2.42-2.59 (m, 2H), 3.11-3.30 (m, 2H), 3.47-3.61 (m, 1H), 4.5 (brs, 1H, NH), 5.5 (dd, 1H, J = 11.9, 5.9 Hz), 6.48 (d, 1H, J = 8.5 Hz), 6.78 (s, 1H), 6.96 (dd, 1H, J = 8.6 Hz, 2.0 Hz) ppm.

(4): White crystalline solid; mp.138-140 ⁰C; 1H NMR (400 MHz, DMSO-d₆): δ = 1.13 (d, J = 6.2 Hz, 3H), 1.23-1.29 (m, 1H), 1.40-1.51 (m, 3H), 1.77-1.82 (m, 4H), 2.37-2.43 (m, 1H), 2.72 (t, J = 12.4 Hz, 1H), 2.83-2.88 (m, 1H), 3.14-3.20 (m, 1H), 3.37-3.41 (m, 1H), 5.61 (s, 1H), 5.74 (dd, J = 11.6, 5.0 Hz, 1H), 6.47 (m, 2H), 6.72-6.77 (m, 1H) ppm.

(5 and 6): crystalline yellow solid; ¹H NMR (400 MHz Dd₆): 10.4 (br, s), 7.2 (t, J=5.4 Hz, 1H), 6.7 (d, J=2.3 Hz, 1H), 6.6 (t, J= 3.7 Hz, 1H), 6.5 (d, J=13.1Hz, 1H), 5.01 (s, NH), 3.6 (t, J=4.5 Hz, 1H), 2.4 (t, J=6 Hz, 1H), 2.2 (d, J=4.2 Hz, 1H), 1.9 (t, J=9 Hz, 1H), 1.8 (d, J=5.8 Hz, 1H).

(7): Crystalline yellow solid; ¹H NMR (400 MHz DMSO-d₆): 10.2 (br, s, NH), 7.3 (d, J=5.49 Hz, 1H), 7.2 (t, J=7.64 Hz, 1H), 7.0 (t, J=7.44 Hz, 1H), 6.8 (d, J=7.72 Hz, 1H), 6.6 (d, J=2.36 Hz, 1H), 6.5 (d, J=8.64, 1H), 6.2 (s, 1H), 6.1 (s, 1H), 3.6 (s, 3H), 3.3 (t, J=7.16 Hz, 1H), 3.1 (d, J=5.6 Hz, 1H), 2.3 (m, 3H), 1.9 (q, J=4.68, 2H), 1.6 (s, 1H).

Hepatoprotecitve activity

Chemicals

All the solvents and chemicals used were of analytical grade. Standard kits for SGOT, SGPT and Bilirubin (Teco Diagnostic, USA), Standard drug Silymarin (Micro laboratory, India), were used in the present study.

Animals

Adult mice (25-30g) and wister rats (180-200g) were used in the present study. The animals were procured from disease free animal house, National Institute of Pharmacy, Shivamogga, Karnataka, India. All the animals were kept in quarantine for 10 days under standard husbandry conditions with temperature (25-27 ^oC), 12-h light/12-h dark cycle and relative air humidity 40-60% and were given standard food (Hindustan lever Ltd. Mumbai) and water adlibitum. The experimental protocol was approved by an Institutional Animal Ethics Committee (IAEC) and care of laboratory animals was taken as per CPCSEA guidelines.

Experimental procedure

Acute toxicity was conducted on Swiss albino mice weighing between 20-25g using stair case/up and down method. The newly synthesized derivatives were orally administered to different groups of mice at a dose of 10-50 mg/kg p. o. Convulsion, sedation, body temperature, mortality and behavioral changes if any were observed [10]. Synthetic derivatives did not produce any toxicity up to dose level of 50 mg/Kg. Hence 25 mg/kg p. o was selected to screen for hepatoprotecitve activity.

Assessment of Hepatoprotecitve activity

In the experiment wister rats weighing 150-200 g were used. The rats were divided into ten groups of six animals in each group. Group I: Served as normal control and received 1% Tween 80 in distilled water. Group II: Served as negative control and received CCl₄ in liquid paraffin (1:1), 1 ml/kg, i. p. Intraperitoneally on 3^rd, 6^th and 10^th day. Group III: Treated with Standard drug Silymarin at the dose of 100 mg/kg p. o for ten days. The Group IV, V, VI, VII, VIII, IX and X received suspensions of synthetic derivatives (1-7) in polyethylene glycol-400 at the dose of 25 mg/kg p. o. for 10 days [11]. Groups III – X were intoxicated with CCl₄ 1h before the administration of Silymarin or synthetic compounds for ten days.

On the eleventh day after administration of last dose of synthetic derivatives, the rats were anesthetized by light ether anesthesia and blood was collected from the retro-orbital plexus. It was allowed to coagulate for 30 minutes and serum was separated by cold centrifugation at 3000 rpm. The centrifugate was used to estimate the serum glutamate pyruvate transminase (SGPT), Serum glutamate oxaloacetate (SGOT) [12]and serum alkaline phosphatase (SALP) [13]. Total and direct bilirubin levels [14] were also determined.

Statistical analysis

The data obtained from this study were expressed as mean value ± SEM (n=6) for each parameter. The data was analyzed using one-way ANOVA followed by Dunnet’s multiple comparison tests. A probability level of less than 5% (p<0.05) was considered statistically significant [15]_.

RESULTS

Synthetic derivatives (1-7) did not show any toxicity and behavioral changes in mice up to dose level of 50mg/kg. Hence, the doses selected were 25 mg/kg. p. o.

Hepatoprotecitve activity

Rats treated with CCl₄ (1.0 ml/kg in liquid paraffin, 1:1, i. p.) suffered from hepatotoxicity. The serum levels of SGOT, SGPT, SALP, bilirubin (Total and direct) levels were significantly elevated. Newly synthesized compounds (2-7) (25 mg/kg/p. o.) exhibited significant hepatoprotecitve activity (p<0.01) by decreasing the elevated enzyme levels when compared with compound 1 against CCl₄ induced hepatotoxicity (Table-2 and Figs. 1-2). The higher activity of 2-7 may be due to presence of Methoxy, Chloro and Fluoro groups as substituents in the synthetic derivatives.

Table 2: Effect of some tetrahydroquinoline derivatives on CCl₄ induced hepatotoxicity

Groups	SGOT (IU/L)	SGPT (IU/L)	SALP (IU/L)	Total bilirubin (mg/dl)	Direct bilirubin (mg/dl)
Normal	140.53 ± 2.33	65.16 ± 1.78	142.74 ± 6.21	1.01± 0.20	0.18 ± 0.01
CC14 (1m1/kg p. o)	435.46 ± 7.31a	296.27 ± 8.20a	442.61 ± 8.21a	3.66 ± 0.38a	1.60 ± 0.30a
Silymarin+CC14 (100mg/kg p. o)	159.22 ± 3.10 c	79.34 ±2.00 c	167.81 ± 4.28 c	0.96 ±0.05c	0.24 ± 0.02c
(1)+ CC14 (25mg/kg p. o)	309.46 ± 4.12a	238.28 ± 4.62a	402.32 ±5.42a	2.62 ± 0.29	1.28 ± 0.29
(2)+ CC14 (25 mg/ kg p. o)	256.34 ± 3.22b	228 ± 4.85b	355.54 ± 4.30b	0.88 ± 0.34a	0.98 ± 0.08a
(3)+CC14(25mg /kg p. o)	265.3 ± 3.42b	250.35 ± 4.6b	365.34 ± 5.45b	2.86 ± 0.58a	1.29 ± 0.47b
(4)+CC14(25mg/kg p. o)	259.46 ± 3.26b	238.21 ± 4.89 b	379.28 ± 4.32b	2.68 ± 0.26b	1.58 ± 0.56b
(5)+ CC14(25 mg /kg p. o)	265.38 ± 3.29b	245.18 ± 4.92b	370.31 ± 4.35b	2.65 ± 0.25b	1.56 ± 0.54b
(6)+ CC14(25 mg /kg p. o)	260.12 ± 3.32b	225.28 ± 4.6b	362.41 ± 4.25b	2.56 ± 0.32b	1.26 ± 0.20b
(7)+ CC14(25 mg /kg p. o)	265.42 ± 3.42b	235.16 ± 4.58b	365.45 ± 4.18b	2.58 ± 0.32b	1.25 ± 0.30b

a p<0.05 as compared to normal group, b p<0.01 as compared to normal and CCl₄ group, c p<0.001 as compared to normal and CCl₄ group

Fig. 1: Effect of synthetic derivatives on SGOT, SGPT and SALP in CCl₄ induced hepatotoxicity

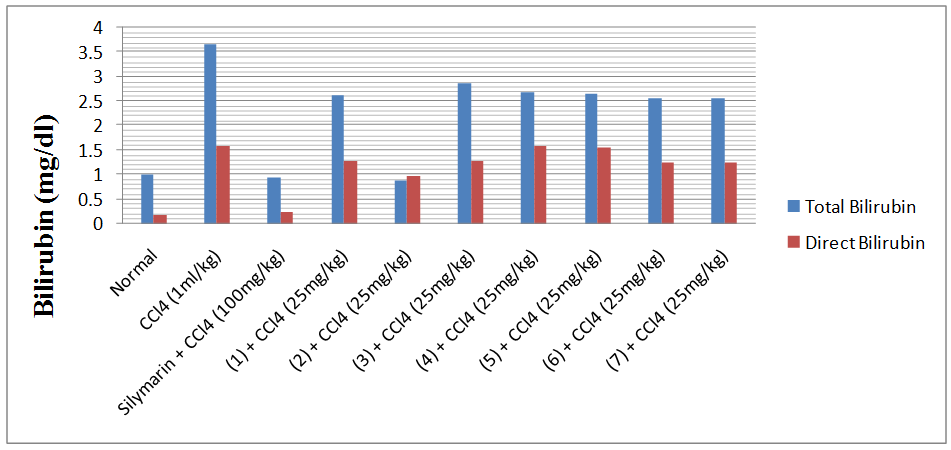

Fig. 2: Effect of synthetic derivatives on total and direct bilirubin in CCl₄ induced hepatotoxicity

DISCUSSION

Carbon tetrachloride has been used as a tool to induce hepatotoxicity in experimental rats. The hepatotoxic effects of CCl₄ is due to its hepatic conversion, catalyzed by cytochrome P-450 enzyme system, in to highly reactive trichloromethyl radical (CCl₃^o) which gives trichloromethyl peroxide radical (Cl₃COO^o) by reaction with oxygen. These activated radicals bond covalently with sulfohydroxyl group of several membrane molecules like glutathione, which is considered as the initial step in the chain of events leading to lipid peroxidation and hepatic tissue destruction [16-19]. The degree of hepatotoxicity developed by CCl₄, can be observed by elevated levels of biochemical parameters SGOT, SGPT, SALP and bilirubin which are attributed to the generation of trichloromethyl free radical during metabolism by hepatic microsomes which in turn cause peroxidation of lipids of cellular membrane [20]. Hepatocellular necrosis lead to the very high level of SGOT, SGPT released from liver in the blood. Among the two, SGPT is a better index of liver injury, as liver SGPT activity represents 90% of total enzyme present n the body [21]. SALP activities on the other hand are related to the functioning of the hepatocytes. Increase in SALP level is due to increased synthesis in presence of increased biliary pressure [22]. Reduction in levels of SGOT and SGPT towards the respective normal value in synthetic compounds treated groups of rats was an indication of stabilization of plasma membrane as well as repair of hepatic tissue damages caused by carbon tetra chloride. The serum levels of transminase return to normal with healing of hepatic parenchyma and regeneration of hepatocytes. Suppression of increased SALP activity with concurrent depletion of raised bilirubin level suggests the stability of the biliary dysfunction in rat liver during chronic hepatic injury with CCl₄ [23].

CONCLUSION

The results suggest that synthetic compounds (2-7) treated groups exhibited significant hepatoprotecitve activity when compared with the compound (1) treated groups. The possible hepatoprotecitve mechanism of synthetic tetrahydroquinolines may be through inhibition of the cytochrome P-450 activity which prevents the process of lipid peroxidation leading to stabilization of hepatocelluar membrane. The higher liver protective effect of synthetic derivatives (2-7) may be due to the presence of methoxy, fluoro and Chloro groups as substituents. The present study leads to conclude that synthetic derivatives (2-7) may be employed in the management of hepatic disorders.

ACKNOWLEDGEMENT

Authors are thankful to the President and Principal, National College of Pharmacy, Shivamogga for providing necessary facilities to carry out the experimental work.

Ethical clearance

The research work was approved by Institutional Animal Ethics Committee (NCP/IAEC/CLEAR/25/02/2009-10, dated 09/03/2010)

CONFLICT OF INTERESTS

Declared None

REFERENCES

1. Girish C, Koner BC, Jayanthi S, Rao KR, Rajesh B, Pradhan SC. Migrating motor complex in biological sciences-Characterization in animal models. Indian J Exp Biol 2009;47:257-63.
2. Lee KJ, Woo ER, Choi CY, Shin DW, Lee DG, Youth HG. Protective effect of acetoside on carbon tetrachloride induced hepatotoxicity. J Life Sci 2004;74:1015-64.
3. Pradhan SC, Girish C. Hepatoprotecitve herbal drugs silymarin from experimental pharmacology to clinical medicine. Indian J Med Res 2006;124:491-504.
4. Dorey G, Lokkhart B, Lastage P, Casara P. In vitro antiamoebic activities. Biorg Med Chem Lett 2000;10(9):935-42.
5. Roach SL, Hignchi RI, Adams ME, Lice Y, Karanewsky DS, Marchke KB, et al. Non steroidal glucortic acid receptor legends bond on 6-indole. Biorg Med Chem Lett 2008;18(12):3504-8.
6. Hartmann RW, Erotschar M, Arch P. Treatment of 99 with 10% NaOH leads to the formation of intermediate. Arch Pharm 1999;322(10):358.
7. Uchida M, Chihiro M, Morita S, Kanbe T, Yamashita H, Yamasaki K, et al. Inhibitors 8 (5 fluoro 2 benzimidazolyl-5,6,7,8 tetrahydroquinolines showed-). Chem Pharm Bull 1989;37(8):2109.
8. Caroll FI, Blackwell JJ, Philip A, Twine CE. Reduced 8-aminoquinoline analogue as a potential antimalarial agent. J Med chem 1976;10(9):1111-9.
9. Pradhan R. Synthesis and crystal structure of two novel drugs. Tetrahedron 2006;62:779.
10. Reed IJ, Munch H. Toxicity studies on experimental animals. Am J Hygne 1938;27:493-8.
11. Shukla DS, Ravishankar VJ, Bhavsar GC. Preliminary study on hepatoprotecitve activity. Fitoterapia 1996;67:106.
12. Rietman. A coloric method for the determination of SGOT, SGPT. Am J Clin Path 1957;28:56.
13. King EJ. A method for the determination of tartarate-labile prostatic acid in serum. Am J Clin Path 1959;12:85-7.
14. Jendrassik FL, Grof P. Manual of medical lab techniques. Biochem 1938;81:297-301.
15. Dunnet CW. A new table for multiple comparisons with a control. Biometrics 1964;20:482.
16. Brattin WJ, Glende EA, Recknagel RO. An approach to free radicals in medicine and biology. Bio Med 1985;1:27.
17. Ahmad S, Raharah A, Alam A, Saleem M, Sultan S. Activity of bark. J Ethano Pharmacol 2000;69:157-61.
18. Kyung Jin Le, Eun-Rhan Woo, Chul Yung Choi, Ho Jinyou. Threat to public health owing to its life threating complications-on CCl₄ induced hepatotoxicity. Life Sci 2004;74:105-64.
19. Be-Jen Wang, Chu-ting Liu, Chin Yia tsung, Chein Ping Wu. Trace metal concentration-food sources for fish and birds in-absorbed and adsorbed metals. Food Chem Toxicol 2004;42:609-13.
20. Recknagel RO, Glende EA, Dolak JA, Aller RL. Mechanism of CCl4 toxicity. Pharmacol Ther 1989;43:139-43.
21. Achliya GS, Kotgale SG, Wadodkar AK, Dorie AK. Hepatoprotecitve activity of Panchgavya ghrita against CCL₄ induced hepatotoxicity in rats. Indian J Pharmacol 2003;35:311-4.
22. Moss DW, Butterworth PS. Protection of rats by extract of some common Nigerian trees against-In: ’Ethanol and Med. Pitman Medica’, London; 1974;2:139-43.
23. Mukerjee PK. Quality control and herbal drugs, I^st edn. Business horizons pharmaceutical publications, New Delhi; 2001. p. 531-5.
