Int J Pharm Pharm Sci, Vol 14, Issue 2, 52-61Original Article
DEVELOPMENT OF NANOPARTICLES SUSPENSION FOR PAEDIATRIC DRUG ADMINISTRATION
K. K. RAJULA1*, JISHA MOHANAN1
1College of Pharmaceutical Sciences, Govt. Medical College, Calicut 673008, India
*Email: julirajula@gmail.com
Received: 05 Nov 2021, Revised and Accepted: 16 Dec 2021
ABSTRACT
Objective: Enalapril maleate (EM) is an angiotensin-converting enzyme (ACE) inhibitor. It is generally prescribed for the treatment of hypertension, heart failure and chronic kidney diseases in adults and children. EM 2.5 mg, 5 mg, 10 mg and 20 mg tablets and EM injection 1.25 mg/ml are currently available in the market. But a liquid paediatric formulation of this medicine is not currently available. Also, it is a BCS class III drug, having a bioavailability of approximately 60%. The present study proposes a new strategy for improvement of drug bioavailability and taste masking: EM nanoencapsulation within polymeric nanoparticles suspensions prepared with Eudragit RS100 (ERS100) as polymer and Tween 80 as a stabilizer, aiming at obtaining a liquid dosage form suitable for paediatric administration.
Methods: Nanoprecipitation method used for the preparation of nanoparticles suspension. The preparations were evaluated for drug content, entrapment efficiency, particle size, zeta potential, polydispersity index, pH, viscosity and in vitro drug release. Based on the entrapment efficiency, viscosity and in vitro drug release the optimized formulation was selected. Optimized formulation evaluated for taste, ex vivo intestinal permeation, differential scanning calorimetry, scanning electron microscopy and release kinetic studies.
Results: The optimized nanoparticle formulation F8 having drug to polymer ratio of 1:100 showed satisfactory drug content (95.1%), entrapment efficiency (77.71%), particle size (198.47 nm), pH (6.36), viscosity (2.9 xPa·s) and 81.2% drug release after 12 h. The formulation has taste-masking properties and shows 84.6% drug permeation through the goat intestine within 12 h.
Conclusion: The prepared nanoparticles suspension of Enalapril maleate was found to be an effective liquid pharmaceutical dosage form for paediatric administration with taste-masking properties.
Keywords: Enalapril maleate, Nanoparticles suspension, Paediatric formulation, Taste masking, Eudragit RS 100, Tween 80
© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijpps.2022v14i2.43529. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps.
INTRODUCTION
The pharmaceutical formulation of paediatric medicines is one of the most challenging and critical areas in drug development. The drug formulations used in paediatric pharmacotherapy should be suited to their age, size, physiologic condition, and treatment requirements. Such paediatric medicines are important to achieve safe and accurate dose administration, reducing the risk of medication errors, enhancing compliance, and improving therapeutic outcomes in children [1].
Enalapril maleate (EM) is an angiotensin-converting enzyme (ACE) inhibitor. It is an ethyl ester prodrug, and pharmacological effects are mediated by the active metabolite, enalaprilat. The main effect of enalaprilat is the inhibition of ACE, a key component in the renin-angiotensin-aldosterone system. It is generally prescribed for the treatment of hypertension, heart failure and chronic kidney diseases in adults and children. EM 2.5 mg, 5 mg, 10 mg and 20 mg tablets and EM injection 1.25 mg/ml are currently available in the market. But a liquid paediatric formulation of this medicine is not currently available. So, in our medical colleges, there is a dilution unit where the tablets were powdered and diluted with lactose to produce an extemporaneous powder formulation to scale down its dose which is given to the paediatric patients. It is necessary to develop paediatric friendly formulations to achieve the right therapeutic concentration, avoid side effects, improve palatability and enhance patient compliance [2, 3].
Children, as a specific group of patients, have additional requirements for oral administration. EM is a bitter-tasting drug; therefore, a taste-masking approach is to make the formulation suitable for paediatric administration. Also, it is a BCS class III drug, so it has high solubility and low permeability and has a bioavailability of approximately 60 % [4, 5].
Nanoparticles suspension have been introduced as a technique for the improvement of the bioavailability of drugs [6, 7]. Nanoparticles are colloidal particles ranging from 10 to 1000 nm, in which the active principles (drug or biologically active material) are dissolved, entrapped. With the development of nanotechnology, it is now possible to produce drug nanoparticles that can be utilized in a variety of innovative ways [8,9,10]. The Nanoprecipitation technique (or solvent displacement method) was used for the preparation of nanoparticles suspension [7, 11]. It is a straightforward technique, rapid and easy to perform. Thus, the study aimed to develop EM-loaded nanoparticles suspension for paediatric administration with taste-masking properties.
MATERIALS AND METHODS
Enalapril maleate was purchased from Yarrow Chem Labs, Mumbai, Eudragit RS100 (Sigma Aldrich, Bangalore), Tween 80 (Sigma Aldrich, Bangalore). All the reagents used in this study were of analytical grade.
Preparation of enalapril maleate loaded nanoparticles suspension
Enalapril maleate loaded nanoparticles suspensions were prepared by the nanoprecipitation method. Accurately weighed the required quantities of EM and ERS100 as per table 1, and dissolved in acetone (organic phase). The aqueous phase was prepared by dissolving the required quantity of Tween80 in water. The organic phase was magnetically stirred at 40˚C for 10 min. Then organic phase was injected into the aqueous phase under magnetic stirring. The stirring continued for 1 hour at 1200 rpm, 40˚C. Organic solvent and part of water evaporated. Then sweetening (glycerol) and flavoring (strawberry) agents were added to get the finished product [6, 7, 12].
Table 1: Composition of nanoparticles suspension
| Formulation code | EM: ERS100 | EM (mg) | ERS100 (mg) | Tween 80 (%) | Glycerol (%) | Strawberry flavor |
| F1 | 1:50 | 5 | 250 | 0.4 | 3 | q. s |
| F2 | 1:50 | 5 | 250 | 0.8 | 3 | q. s |
| F3 | 1:50 | 5 | 250 | 1.2 | 3 | q. s |
| F4 | 1:75 | 5 | 375 | 0.4 | 3 | q. s |
| F5 | 1:75 | 5 | 375 | 0.8 | 3 | q. s |
| F6 | 1:75 | 5 | 375 | 1.2 | 3 | q. s |
| F7 | 1:100 | 5 | 500 | 0.4 | 3 | q. s |
| F8 | 1:100 | 5 | 500 | 0.8 | 3 | q. s |
| F9 | 1:100 | 5 | 500 | 1.2 | 3 | q. s |
Evaluation of enalapril maleate loaded nanoparticles suspension
Drug content
Accurately measured 1 ml of nanoparticles suspension and taken in a 10 ml volumetric flask and made up to the volume with phosphate buffer pH 6.8. The amount of the drug was determined spectrophotometrically at 211 nm after suitable dilutions with phosphate buffer pH 6.8 [13, 14].
Entrapment efficiency
The freshly prepared nanoparticles suspension (1 ml) was centrifuged at 5000 rpm for 20 min. The supernatant was collected. The amount of unentrapped drug was determined by taking the absorbance of the ultrafiltrate UV spectrophotometrically at 211 nm after suitable dilutions with phosphate buffer pH 6.8 [7].
% Entrapment efficiency was determined by using the formula:
Particle size, polydispersity index, and zeta potential
Particle size, Polydispersity index and Zeta potential were measured by dynamic laser scattering or photon correlation spectroscopy using a Malvern Zeta sizer Nano ZS (Malvern Instruments, Malvern, UK). 2 ml of the nanoparticles suspension vortexed and/or sonicated for a few minutes at 25 ° C and a scattering angle of 90 °. To determine the zeta potential, nanoparticles suspension was taken in disposable zeta cells and measured by Malvern Zeta sizer. Each sample was measured in triplicate [15].
Determination of pH
The pH of formulations was determined by using a digital pH meter. 5 ml of the formulation was taken, then the electrode was dipped and constant reading was noted. The measurement of pH was carried out in triplicate.
Determination of viscosity
The viscosity of different formulations was determined by repeated trial and error method using a Brookfield viscometer (LV DV Prime-I) with spindle number 21. The viscosity values were measured at room temperature (25 ˚C).
In vitro drug release study
The in vitro drug release studies of Enalapril maleate loaded nanoparticles suspension were carried out using the dialysis membrane diffusion technique.
The dialysis membrane was hydrated with distilled water for 12 h before the study. 5 ml nanoparticles suspension was filled in the dialysis bag bound to a diffusion tube and it was immersed in a beaker containing 50 ml of release medium (0.1N HCl pH 1.2 buffer for first 1 hour and then phosphate buffer pH 6.8 up to 12 h). The temperature of the diffusion medium was thermostatically controlled at 37 °C and was kept under continuous magnetic stirring at 100 rpm. Then at predetermined time intervals (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 and 12 h) 5 ml of sample was withdrawn and replaced by a fresh medium. The samples were analyzed for drug content by UV visible spectrophotometer at 211 nm [6].
Optimization of formulations
The entrapment efficiency, viscosity and in vitro drug release data of all the formulations were compared. The formulation with favourable properties was selected to proceed with further evaluations.
Evaluation of optimized formulation
Taste evaluation
The taste of the selected formulation was evaluated by the spectrophotometric method. In this method, the release of the drug into phosphate buffer pH 6.8 was determined to predict the release of the drug into the salivary fluid in humans [4, 16].
2 ml of the nanoparticles suspension was placed in 10 ml phosphate buffer pH 6.8 and stirred at 37±0.5 °C at 100 rpm on an electromagnetic stirrer for 60s. The supernatant was isolated via filtration and the absorption was measured spectrophotometrically at 211 nm. The concentration of the sample was compared with the threshold bitterness concentration of pure Enalapril maleate (0.107 mmol/l or 28μg/ml) [17]. If the concentration is below the threshold concentration, it may be concluded that the bitter taste would be masked in vivo.
Ex vivo permeation study
Ex vivo permeation study was carried out by non-everted intestinal sac method using freshly excised goat intestine. 6-7 cm long small intestine of the goat was separated and washed with pH 6.8 phosphate buffer to remove any mucous and lumen contents. The segment was tied at one end with a cotton thread and 5 ml of nanoparticles suspension filled in the sac. Then another end of the intestine was tied. The intestinal sac was placed in a beaker containing 100 ml phosphate buffer pH 6.8 (as the serosal solution) maintained at 37±0.5 °C, kept under continuous magnetic stirring at 100 rpm and constantly aerated with oxygen (30-50 bubbles/min) using a laboratory aerator. Then at predetermined time intervals (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 and 12 h) 5 ml of sample was withdrawn from outside the sac (serosal solution) and replaced by fresh medium. The serosal concentration of the Enalapril maleate was analyzed spectrophotometrically at 211 nm [18-20].
Differential scanning calorimetry (DSC)
The physical state of the drug entrapped in the nanoparticles was characterized by differential scanning calorimetry (DSC) using model Q200 equipped with an automated computer-controlled refrigerated cooling system. A sample of drug and nanoparticle formulation was placed in a standard aluminium pan with a lid. The heating rate was set to 10 °C/min between 30-300 °C and the curves were plotted.
Scanning electron microscopy (SEM)
The morphology of Enalapril maleate loaded nanoparticles suspension was characterized by using a scanning electron microscope. For liquid samples, a piece of aluminium foil was spread over a glass plate and a drop of the sample was placed on to the centre of the foil, which was then air-dried overnight. The sample was coated with gold and examined under the electron microscope.
In vitro drug release kinetic study
To examine the drug release kinetics and to evaluate the release mechanism of the drug, the results of in vitro drug release profiles obtained for the optimized formulation were fitted into zero-order, first-order, Higuchi and Korsmeyer-Peppas model. The model with the highest regression coefficient (R2) was considered to be the best fit model [21, 22].
RESULTS AND DISCUSSION
Preparation of Enalapril maleate loaded nanoparticles suspension
Enalapril maleate loaded nanoparticles suspension were successfully prepared by the Nanoprecipitation technique. The method was simple, reproducible, fast, economic and one of the easiest procedures for the preparation of nanoparticles. The nanoparticles suspensions were spontaneously formed when the organic phase (acetone) containing Eudragit RS100 and Enalapril maleate was injected into stirred aqueous surfactant solution (Tween 80), resulting in a colloidal suspension. Instantaneous formation of a colloidal suspension occurred as a result of the polymer deposition on the interface between the organic phase and water when partially water-miscible organic solvent (acetone) diffused out quickly into the aqueous phase from each transient particle intermediate.
Various formulations of EM (F1-F9) were prepared using ERS100 at different ratios (1:50,1:75 and1:100) and stabilizer (Tween 80) at different concentrations (0.4%, 0.8% and 1.2%).
Evaluation of enalapril maleate loaded nanoparticles suspension
Drug content
The drug content of all the formulations was found to be in the range of 92.0% to 96.2 % (table 2).
Entrapment efficiency
The entrapment efficiency of all the formulations was found to be in the range of 39.53%-79.84% (table 2). The entrapment efficiency of EM-loaded nanoparticles showed a positive relationship with polymer concentration. This is because, increase in polymer concentration in the organic phase increases drug entrapment due to an increase in organic phase viscosity, which increases the diffusional resistance to drug molecules from the organic phase to the aqueous phase, thereby entrapping more drugs in the polymeric nanoparticles [23, 24].
There is also a slight decrease in the entrapment efficiency with an increase in stabilizer concentration (Tween 80). That was probably caused by the decrease in particle size. Moreover, with the increase of Tween 80 concentration in the aqueous phase, more molecules of drugs may partition out rapidly from the organic phase into the aqueous phase during the emulsification procedure and fewer drug molecules remained in emulsion droplets to interact with polymer molecules, hence decreasing the entrapment efficiencies [24].
Table 2: Drug content and entrapment efficiency of nanoparticles suspensions
| Formulation code | % Drug content* | % Entrapment efficiency* |
| F1 | 93.9±0.08 | 45.73±0.21 |
| F2 | 92.0±0.03 | 42.30±0.05 |
| F3 | 96.2±0.12 | 39.53±0.08 |
| F4 | 95.2±0.03 | 66.53±0.15 |
| F5 | 94.4±0.13 | 63.35±0.23 |
| F6 | 92.5±0.25 | 59.13±0.04 |
| F7 | 95.3±0.06 | 79.84±0.08 |
| F8 | 95.1±0.02 | 77.71±0.16 |
| F9 | 93.0±0.14 | 73.12±0.03 |
*(n =3, mean±standard deviation (SD))
Particle size, polydispersity index and zeta potential
The particle size, zeta potential and polydispersity index (PDI) of Enalapril maleate loaded nanoparticles suspensions were listed in table 3.
The particle size of nanoparticles in the suspension ranged between 124.48-211.81 nm (fig. 1). The particle size of the polymeric nanoparticles increased with increasing polymer concentration in the organic phase. This is because increasing Eudragit RS100 concentration led to an increase in the viscosity of the organic phase. A more viscous organic phase provides a higher mass transfer resistance to the diffusion of the polymer-solvent phase into the external aqueous phase and larger nanoparticles are formed. A decrease in viscosity of the organic phase increases the distribution effect of the polymer-solvent phase into the external phase leading to the formation of smaller nanoparticles [15, 24].
There is a small reduction in the particle size with increasing concentration of stabilizer (Tween 80). This is because, at high concentration, more Tween 80 could be oriented at organic solvent/water interface to reduce efficiently the interfacial tension, which resulted in a significant increase in the net shear stress. So, reduction in particle size could be obtained by optimum interfacial stabilization by the hydrophilic surfactant Tween 80, which has a high HLB value of 15 [23, 25].
Table 3: Particle size, polydispersity index and zeta potential of nanoparticles suspensions
| Formulation | Mean particle size (nm)* | PDI | ZP (mV) |
| F1 | 124.48 | 0.186 | 21.65 |
| F4 | 162.82 | 0.201 | 28.43 |
| F7 | 211.81 | 0.218 | 40.58 |
| F8 | 198.47 | 0.191 | 34.12 |
| F9 | 191.57 | 0.214 | 32.37 |
*n=3
The zeta potential was positive for all formulations (fig. 2) due to the cationic nature of the polymer Eudragit RS100 due to the quaternary ammonium groups on the polymer surface. The increase in the concentration of Eudragit RS100 raised the zeta potential because less Tween 80 is covering the nanoparticle surface and shielding the charge of the polymer [9, 39]. So, there is a slight decrease in the zeta potential when the concentration of Tween 80 increases. This is because Tween 80 is covering the nanoparticle surface and shields the charge on the nanoparticle surface [15].
PDI is another factor that represents the dispersion homogeneity, the range for the PDI is from 0 to 1. The PDI for all formulations was greater than 0, which indicates a relative homogenous dispersion.

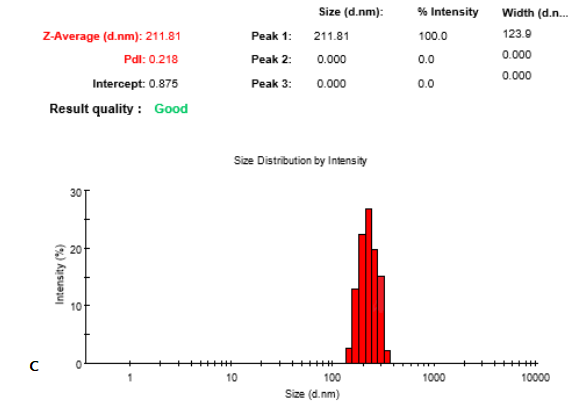

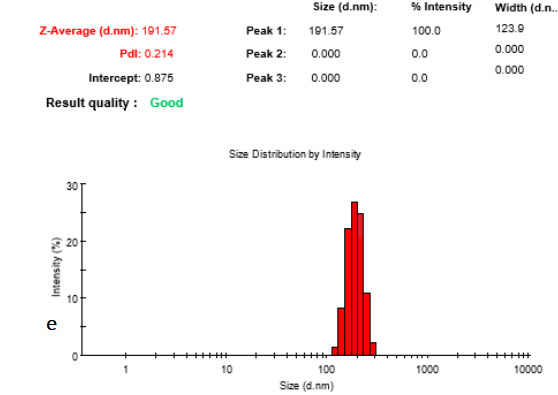

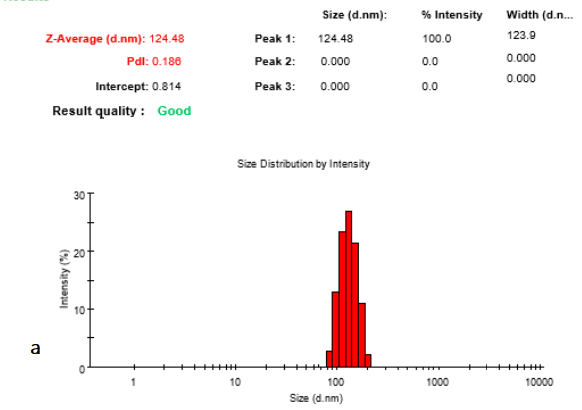

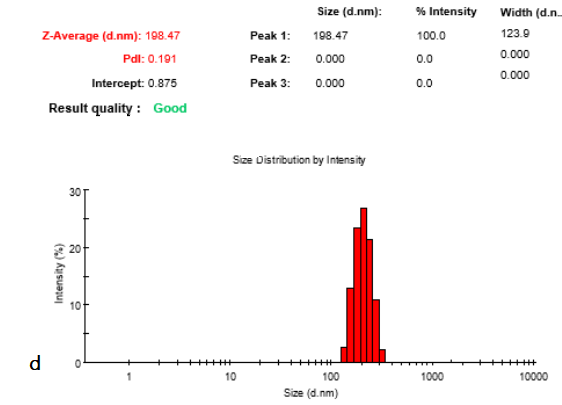

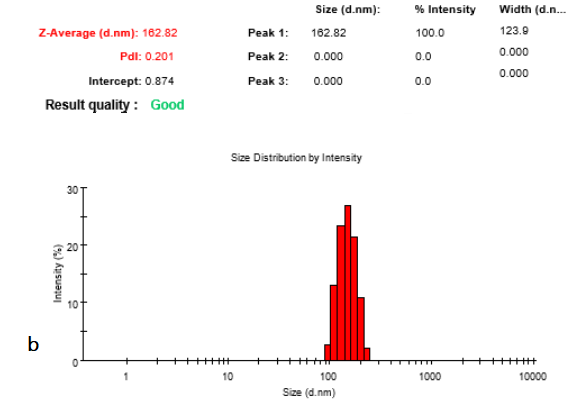

Fig. 1: Particle size and PDI of nanoparticles suspensions a) F1 b) F4 c) F7 d) F8 e) F9
Table 4: pH and viscosity of nanoparticles suspension
| Formulation | pH* | Viscosity* (x |
| F1 | 6.14±0.244 | 1.3±0.081 |
| F2 | 6.32±0.089 | 1.5±0.094 |
| F3 | 6.29±0.253 | 1.5±0.081 |
| F4 | 6.18±0.045 | 1.7±0.078 |
| F5 | 6.41±0.093 | 1.8±0.124 |
| F6 | 6.25±0.054 | 2.2±0.163 |
| F7 | 6.18±0.052 | 2.7±0.127 |
| F8 | 6.36±0.033 | 2.9±0.086 |
| F9 | 6.57±0.029 | 2.9±0.122 |
*(mean±SD) n = 3
Determination of pH
The pH of Enalapril maleate loaded nanoparticles suspensions were determined by using a digital pH meter and the results were shown in table 4. All formulations have pH close to neutral (values between 6.14 and 6.57).
Determination of viscosity
The viscosity measurements were done at room temperature using a Brookfield viscometer and the results were shown in table 4. There was an increase in the viscosity of formulations with an increase in polymer concentration.

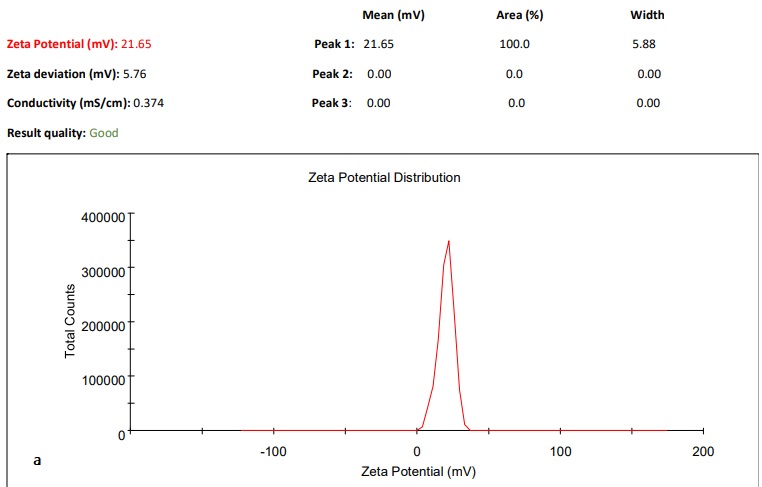

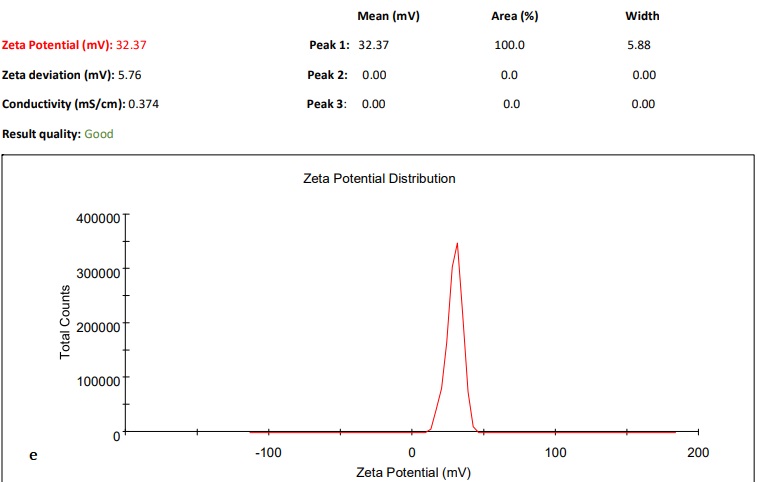

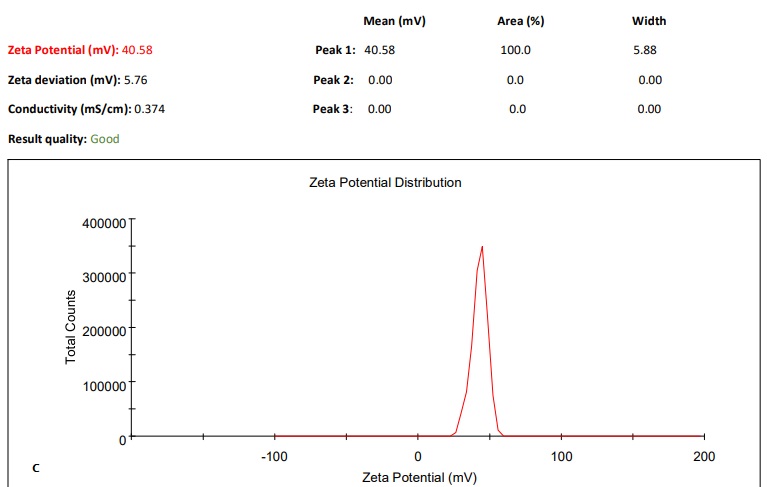

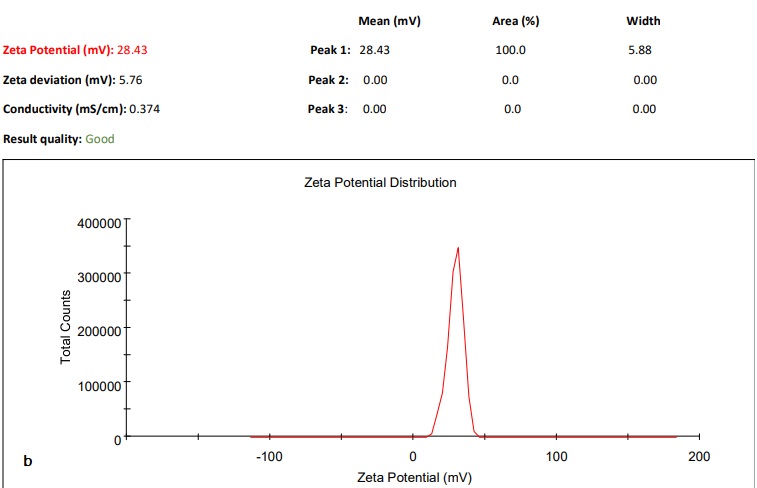

Fig. 2: Zeta potential of nanoparticles suspensions a) F1 b) F4 c) F7 d) F8 e) F9
In vitro drug release study
The in vitro drug release study was performed for all formulations in 0.1N HCl for the first 1 hour and in phosphate buffer pH 6.8 up to 12 h by dialysis membrane diffusion technique (fig. 3).
The first 3 formulations F1, F2 and F3 (drug: polymer ratio 1:50) showed approximately 5% drug release in the stomach (0.1N HCl) and release completed within 9 h. In the case of the remaining 6 formulations (F4-F9), there was no release of the drug in 0.1N HCl. This may be due to the increase in polymer concentration (ERS100).
The cumulative % drug release of F4, F5, F6, F7, F8 and F9 at 12 h were 90.1%, 95.4%, 98.2%, 75.3%, 81.2% and 83.4% respectively.
Among all the formulations, F7 shows a slow release of the drug, maybe due to greater entrapment (79.84%) of drug within the polymeric matrix and F3 shows comparatively faster drug release due to minimum entrapment (39.53%) of the drug. The slow release of drugs with higher entrapment efficiency could be explained based on free drug concentration on the surface of nanoparticles [24].

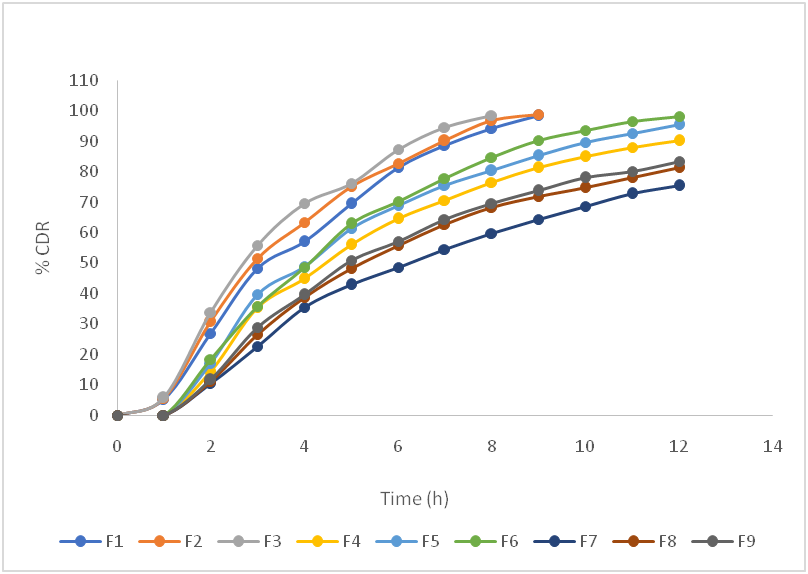

Fig. 3: % cumulative drug release of nanoparticles suspensions, data is given as mean, n=3
Optimization of formulations
The entrapment efficiency, viscosity and in vitro drug release data of all the formulations were compared.
Based on entrapment efficiency, viscosity and in vitro drug release, formulation F8 was selected as an optimized formulation. F8 has entrapment efficiency-77.71% and viscosity-2.9 x10^(-3)Pa·s. Also showed drug release of 81.2% within 12 h, comparatively faster release than formulation F7 (entrapment efficiency-79.84%). In the case of formulation F9, 83.4% drug was released within 12 h. But F9 has lower entrapment efficiency (73.12%) compared to F8. So, formulation F8 was selected for further evaluation.
Evaluation of optimized formulation
Taste evaluation
The in vitro evaluation of taste for optimized formulation (F8) was done by the spectrophotometric method. The result was shown in table 5. The threshold bitterness concentration of Enalapril maleate is 0.107 mmol/l or 28μg/ml. The result showed that F8 has not attained the threshold bitterness concentration in 60 seconds. Thus, it can be concluded that the formulation has taste-masking properties.
Table 5: In vitro evaluation of taste of nanoparticles suspension
| Time (second) | Amount of drug released (μg/ml) |
| 60 | 13.1 |
Ex vivo permeation study
Ex vivo intestinal permeation study of Enalapril maleate loaded nanoparticles suspension (F8) was performed by non-everted intestinal sac method using goat intestine (fig. 4 and 5).

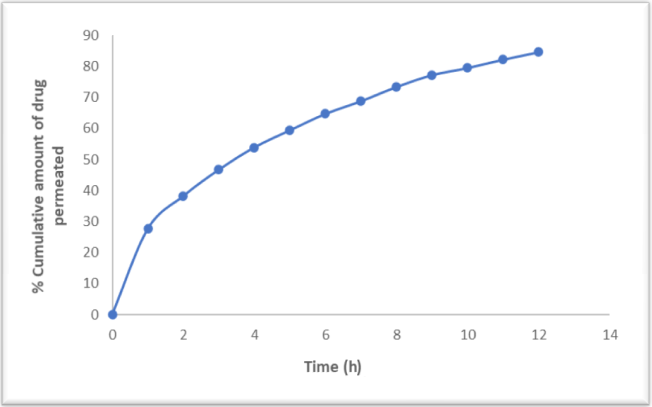

Fig. 4: Ex vivo intestinal permeation study
The formulation F8 showed 84.6 % permeation through the freshly obtained goat intestine within 12 h.
Differential scanning calorimetry (DSC)
The DSC thermograms of the drug and the nanoparticle formulation are shown in fig. 6 and fig. 7, respectively.
The DSC thermogram of the pure drug showed a sharp endothermic peak at 151.6 ℃, corresponding to its melting point. The DSC thermogram of the optimized formulation shows a sharp peak at 150℃. This suggests that the characteristics of the drug were not lost due to the formulation of nanoparticles. It also suggested the absence of any drug-polymer interactions, which might have resulted in the degradation of the drug.

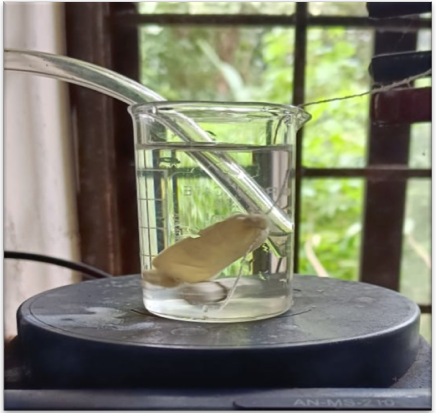

Fig. 5: Ex vivo intestinal permeation study through goat intestine

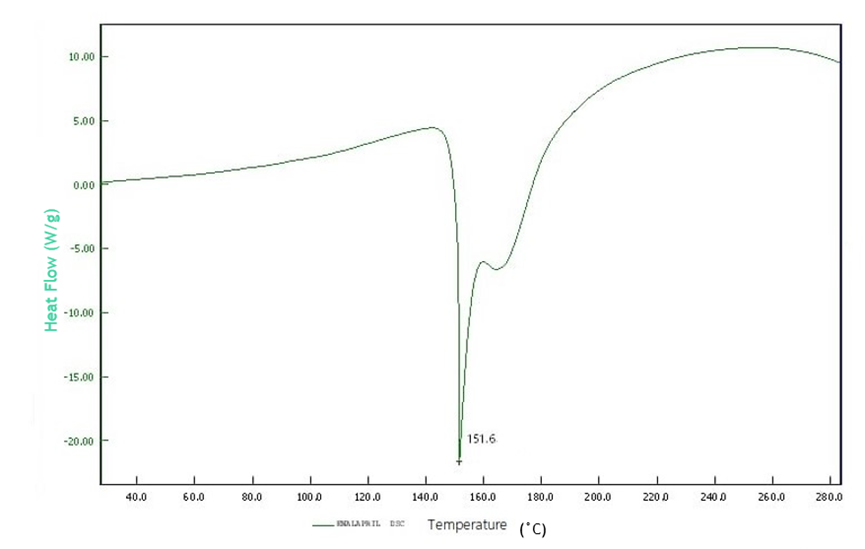

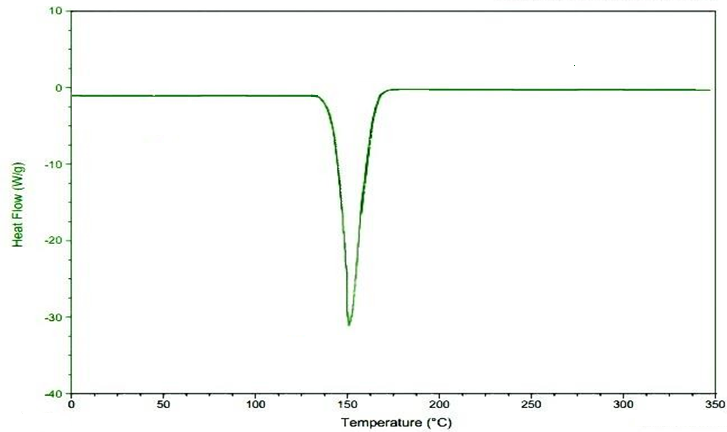

Fig. 6: DSC thermogram of EM
Fig. 7: DSC thermogram of EM loaded nanoparticles suspension
Scanning electron microscopy (SEM)
The shape and surface morphology of the optimized formulation F8 were studied by Scanning electron microscopy and is shown in fig. 8.
The result of scanning electron microscopy revealed that the nanoparticles suspension of Enalapril maleate (F8) were somewhat spherical and had a smooth surface with a particle size range of 200 nm.
In vitro drug release kinetic study
The in vitro drug release data of formulation F8 (table 6) was fitted to various kinetic models like zero-order, first-order, Higuchi model, and Korsmeyer-Peppas model. In vitro drug permeation data was subjected to the goodness of fit by linear regression analysis according to zero-order, first-order, Higuchi, Korsmeyer-Peppas (fig. 9) model to ascertain the mechanism of drug release. The results of linear regression data, including regression coefficient, are listed in table 7.
Fig. 8: SEM image of optimized nanoparticles suspension
Table 6: In vitro drug release kinetics
| S. No. | Time (h) | Log time | Square root of time | % CDR | Log % CDR | Log % CDR remaining |
| 1 | 0 | 0 | 0 | 2.0000 | ||
| 2 | 1 | 0 | 1 | 0 | 2.0000 | |
| 3 | 2 | 0.301 | 1.4142 | 11.2 | 1.0492 | 1.9484 |
| 4 | 3 | 0.477 | 1.7321 | 26.5 | 1.4232 | 1.8663 |
| 5 | 4 | 0.602 | 2.0000 | 38.8 | 1.5888 | 1.7868 |
| 6 | 5 | 0.699 | 2.2361 | 48.1 | 1.6821 | 1.7152 |
| 7 | 6 | 0.778 | 2.4495 | 55.6 | 1.7451 | 1.6474 |
| 8 | 7 | 0.845 | 2.6458 | 62.6 | 1.7966 | 1.5729 |
| 9 | 8 | 0.903 | 2.8284 | 68.3 | 1.8344 | 1.5011 |
| 10 | 9 | 0.954 | 3.0000 | 71.9 | 1.8567 | 1.4487 |
| 11 | 10 | 1.000 | 3.1623 | 74.7 | 1.8733 | 1.4031 |
| 12 | 11 | 1.041 | 3.3166 | 78.1 | 1.8927 | 1.3404 |
| 13 | 12 | 1.079 | 3.4641 | 81.2 | 1.9096 | 1.2742 |

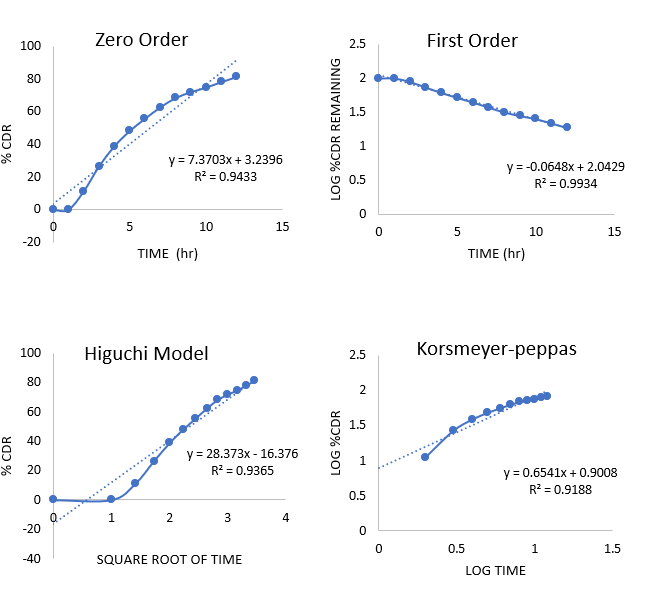

Fig. 9: Release kinetic studies
Table 7: Regression coefficients of various kinetics models
| Zero order | First order | Higuchi model | Korsmeyer peppas model |
| R2 | R2 | R2 | R2 |
| 0.9433 | 0.9934 | 0.9365 | 0.9188 |
The regression coefficient (R2) obtained for first-order kinetics and zero-order kinetics was 0.9934 and 0.9433, respectively. The results indicate that the drug release follows nearing first-order kinetics. The coefficients obtained from the Higuchi model was 0.9365, indicating diffusion played a predominant role in the drug release procedure. The slope obtained from the Korsmeyer-Peppas equation was the ‘n’ value and found to be 0.6541 indicated that release was by the non-fickian transport mechanism. Non-fickian transport occurs when the drug release is time-dependent and a combination of diffusion and swelling.
CONCLUSION
Enalapril maleate loaded nanoparticles suspension was successfully prepared by the nanoprecipitation technique. The prepared formulations were evaluated. Based on the parameters, entrapment efficiency, viscosity and in vitro drug release formulation F8 was selected as an optimized batch. Formulation F8 subjected to in vitro evaluation of taste, Differential Scanning Calorimetry, Scanning Electron Microscopy and ex vivo intestinal permeability study. The result of in vitro taste evaluation indicated that F8 had taste-masking properties. The DSC thermogram of formulation F8 suggests that the characteristics of the drug were not lost due to the formulation of nanoparticles. The SEM analysis revealed the spherical nature of nanoparticles. Ex vivo, intestinal permeability study, was carried out by non-everted intestinal sac method using goat intestine. The formulation showed 84.6% permeation through the freshly obtained goat intestine within 12 h. The optimized formulation showed the highest R2 value for the first-order kinetics and the ‘n’ value showed a non-fickian diffusion mechanism. Hence, it was concluded that nanoprecipitation was a useful method for the successful incorporation of Enalapril maleate with high entrapment efficiency. The prepared nanoparticles suspension of Enalapril maleate was found to be an effective liquid pharmaceutical dosage form for paediatric administration with taste-masking properties.
