Int J Pharm Pharm Sci, Vol 14, Issue 5, 1-6Review Article

BERBERINE: A POTENT ADJUVANT IN PSORIASIS NANOTECHNOLOGY

AMIT CHAUDHARY1, SWATI MITTAL1,2*

1School of Pharmacy, Abhilashi University, Mandi H. P., 2Department of Pharmaceutics, Sanskar College of Pharmacy and Research, NH-24 Ghaziabad
Email: swatim17@yahoo.co.in

Received: 23 Dec 2021, Revised and Accepted: 04 Mar 2022

ABSTRACT

Psoriasis is a multi-factorial disease represented by complex atomic scenes and cellular pathways that lead to abnormal cell development. The normal mixture has a clear target and limited cytotoxicity; in this sense, it can support the further development of new therapies for the treatment of this flexible disease. Berberine is an individual of the original berberine alkaloid family. It mainly exists in the roots, trunks and barks of various trees and has anti-psoriatic activity. In any case, according to the berberine organization, limited bioavailability and low assimilation rate are the two main obstacles, because only 0.5% of the ingested berberine is consumed in the small digestive tract, and this rate is when it enters the intestines. It is further reduced to 0.35%. Nano-based details are seen as the best way to increase the assimilation rate because substances accumulated at the nano-level can be quickly absorbed in the intestine. Useful methods based on nanotechnology have been developed to solve these problems to ultimately achieve greater sufficiency in the treatment of various diseases. The investigation introduced and essentially examined the anti-proliferative effects of berberine and nanotechnology-based repair technology for nano-scale transportation of berberine. Finally, we will thoroughly analyze and examine the current methods and promising viewpoints of the recent transportation of this alkaloid.

Keywords: Psoriasis, Berberine, Nanotechnology

© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijpps.2022v14i5.43966. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps.

INTRODUCTION

A hundred years of history Psoriasis is a complex disease that is arranged through the multiple cell cycle and palliative changes [1]. The restorative alternatives currently available for the treatment of psoriasis are considered a global health problem and are surprisingly fatal and will promote organ failure, thereby reducing the future, and the cost is very high. Conventional trace elements, such as phytochemicals, have become potential chemoprevention experts, preparing to reduce the risk of disease outbreaks, metastasis, infiltration, and disease transmission [2].

Strangely, more and more evidence shows that phytochemicals have a similar mode of action to conventional chemotherapies. Therefore, unlike traditional self-infection treatments, phytochemicals can be regarded as adjuvant and therapeutic options [3].

Daily use of natural products, vegetables, plants and homegrown products can reduce the risk of some persistent diseases, such as diabetes (DM), cardiovascular (CV) and metabolic diseases, And even psoriasis [4]. Since herbal products are rich in phytochemicals, they promote health and prevent disease [5].

Psoriasis is considered the deadliest infection in the world. Many anti-psoriatic drugs are being developed in clinical and pre-clinical preparations to overcome carcinogenic effects. Both normal (heterocyclic units) and manufactured products (Vinblastine and Vincristine) are also used to combat the expected psoriasis connections and can reduce the proliferation of contaminated cells, thereby increasing patient stability [6]. The nano enemy of psoriasis drugs has become the focus of the world academia because of its designated transport vehicle. Even in the early stages, nano prescriptions can treat psoriasis with minimal side effects. By understanding the specific mode of action of these drugs, these accidental effects can be eliminated [7]. It can be seen that the combination of curcumin ligand and ruthenium particles is less toxic to red blood cells than the currently used manufactured heterocyclic drugs. This metal complex next to the ligand is a potential enemy of psoriasis against HeLa, Hep G2, MDAMB231, and HT29 cell lines [8]. Imidazole is also described as the enemy of psoriasis experts. It is not only an alkaloid and aromatic diazole, but also because it is the human enemy of psoriasis treatment instrument, it is also the height of the psoriasis spectrum [9]. The enemy platinum compounds are also regarded as an important core element in the future treatment of psoriasis. Although these mixtures are considered to have certain limitations, platinum-based co-production can reduce these obstacles. The platinum analogs (lobaplatin, heptalotine) of the third age are more common than the second analogs (carboplatin, oxaliplatin, nedaplatin) [10] because they are more common for psoriasis exercise Good enemy. Certain drugs, such as salicin, naproxen, and diclofenac, can be used to reduce the irritation rate caused by psoriasis. Each of these enemies of psoriasis drugs can be determined by specific chromatographic techniques, such as conversion liquid chromatography (RP-HPLC) and micro-HPLC [11].

Berberise asiatica, belongs to the family Berberidiacae, is a well-known shrub of Garhwal Himalaya and regionally known as “Kingor”. In Ayurvedic medicinal system, it is named as ‘Daruharidra” or ‘Wood Turmeric’ due to its similar properties as of turmeric. The plant yields fairly large quantity of alkaloids in which isoquinoline type alkaloids like berberine, palmatine, jetrorrhizine, and columbamine are the most studied phytoconstituents. Berberine is an isoquinoline secondary alkaloid, usually obtained from the roots, stems, barks and rhizomes of Berberis Phellodendron, Coptis, and Coptiscanadensis [12, 13]. Berberine can also be isolated from seeds of Argemone mexicana, which grows as weeds on roadsides and cultivation fields in the temperate regions of India.

Search criteria

This review was made after reviewing approx 200 articles from 2001 to 2021, which were found on electronic database systems like PubMed, Science Direct, and Google Scholar by using keywords like Psoriasis, Berberine, Nanotechnology and their Applications, Pharmacology, and Side effects of berberine, different nanocarriers of berberine, Limitation of berberine etc. After analyzing all articles, few articles were found to be effective for the study about Berberine. Then, a comparative study is presented in this review to make it more informative and relevant.

Limitations of berberine usage

According to records, only 0.5% of berberine intake is in the small intestine Absorption, and when it enters the systemic circulation, this percentage will be further reduced. Various clinical studies noted that to use as an emulsifier enhancer to increase the absorption rate of berberine by the human body to maximize its clinical effects. Various FDA-approved food additives, including TPGS, Quillaja extract etc have been observed in clinical trials, but it is believed that nano-formulations make an ideal candidate to absorption [14].

Chemistry

Berberine, the most specific isoquinoline alkaloid Berberine (fig. 1) is a member of an alkaloid belonging to the proberberine family. The most common members of this family are leprosy root, Columbamin, Palmatin, berberine, Lambertin, Canadin, and others [15] of Berberine meters The main source of meters contains Barberry (Berberisspecies), MeadowRuta (Thaliceps Species), Celandine (Chelidonium species)), Turmeric (Coptis spp.), and Phellodendrongenus. Berberine is mainly separated by alcohol extraction is from after alcohol extraction, is 4 hydrogen chloride, 44 hydrogen chloride salt iodide berberine or dihydrodeoxy berberine [16].

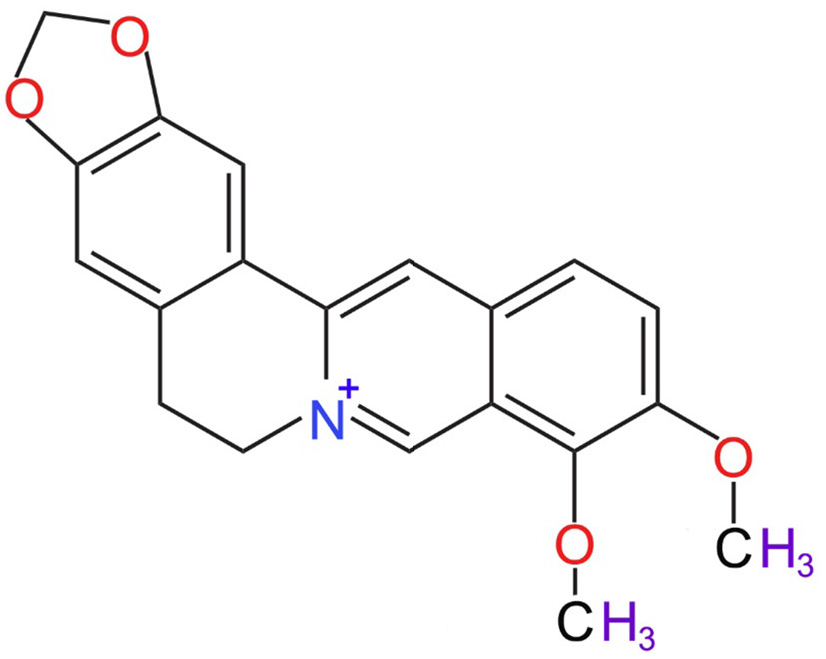

Fig. 1: Chemical structure of berberine [11]

Protoberberine alkaloids are widely recognized for their antibacterial, anti-inflammatory, and anti-oxidant effects [17]. Specifically, Berberis (Barberry) Plants of the genus are related to the traditional Japanese medicine used to treat cholera and diarrhea and also used in Indian folk medicine for the treatment of cholera, malaria and other gastric diseases [53]. Several other reports have also shown that barberry can prevent metrorrhagia, renal bleeding and lower blood pressure and is also widely used to treat stomach problems [18].

Pharmacology of berberine

Absorption

The oral bioavailability of berberine is extremely low. Berberine seems to be affected by PG-glycoprotein-mediated efflux from the intestine and liver. In the intestine, PG-glycoprotein is responsible for reducing the transport of berberine by 90%, which pushes berberine back into the intestine. However, when taken together with PG-glycoprotein inhibitors such as cyclosporin A and verapamil, absorption will be greatly increased [19].

Distribution

Animal studies have shown that berberine has a higher tissue distribution after oral administration. It is rapidly distributed to the liver, kidney, heart, brain, lung, muscle, pancreas, and fat and there are no human studies on the distribution of berberine [20].

Metabolism

The liver is the main place for the metabolism of berberine in rats and humans. CYP2D6 is the main human cytochrome P450 producing berberine metabolites, followed by CYP1A2, 3A4, 2E1 and CYP2C19. CYP2D6 plays an important role in berberine metabolism because it is responsible for 9% of the berberine metabolite berberine (M1) and 8% of Thalifendine (M2). The pharmacokinetics and drug interactions of CYP2D6 should be considered when using berberine. After demethylation in phase I, the berberine metabolites of M1 and M2 combine with glucuronic acid and sulfuric acid to form phase II metabolites. Both M1 and M2 can be glucuronated by UGT2B1 and UGT1A1. These glucuronic acid metabolites are polar and are easily excreted [20].

Excretion

There are no human studies on the excretion of berberine. In animal studies on rats, the overall recovery rate of berberine was 22.83% [20]. The main pathway of berberine metabolites is the active ingredient that represents the biological activity of berberine in the body [21]. Similar to the biological activity of berberine metabolites, berberine and its excretion from berberine are feces; the main metabolites of berberine, such as thalifendine (M1), berberine (M2) are mainly passed through bile and urine excretion.

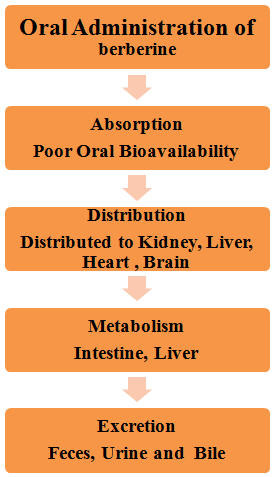

Fig. 2: Pharmacology of Berberine [19]

Berberine as anti-psoriatic drug

Berberine has become an effective antipsoriatic drug over the years [22, 23]. Berberine has a huge antioxidant effect and is suitable for the treatment of various diseases, such as diabetes, diarrhea, and hormone disorders [24]. However, the pro-apoptotic effect of this alkaloid is terrible. Berberine inhibits the proliferation and metastasis of a variety of psoriasis, such as leukemia, colorectal, prostate, lung, glioma and ovarian psoriasis [25-29], although there are certain obstacles that greatly affect the anti-infective properties of berberine. The main reason for this limited apoptotic effect is its poor absorption and limited biological activity. However, with the advancement of nanotechnology, these problems can be overcome [30].

Nanotechnology applied to berberine: an overview

Nanotechnology and nanomedicine have been widely accepted by the scientific community for berberine, which needs to biological ingredients and berberine to reach the formula get the most benefit from traditional therapies. The therapeutic effects of a molecule are directly proportional to the solubility of and are used in pharmaceutical industry. Solubility is one of the key factors that can affect the pharmacokinetics of drugs is approaching to solve the problem of, is "particle-size-reduction", of which drug will be released. The bottom-up and top-down methods has been widely used in the pharmaceutical industry. Nanomaterials are synthesized by physical, chemical, and biological methods or a combination of all methods [54].

Berberine loaded solid nanoparticles

Folic acid-modified chitosan nanoparticles loaded with berberine hydrochloride (BH/FACTS-NPs) are synthesized using ionic cross-linking technology. These nanocomposites have become new players in the treatment of psoriasis by regulating apoptosis and inhibiting the migration and proliferation of Cello saurus cell line 1 (CNE1) cells. Lyotropic liquid crystal nanoparticles (LCN) were used by researchers to infect area psoriasis progress and to increase the solubility of berberine. LCNs nanoparticles are synthesized by an ultra-hygienic method using monoolein, PEG, poloxamer and Transcutol. LCN has been described as a potential active ingredient [31].

Magnetic nanoparticles as berberine nanocarriers

Magnetic nanoparticles promise targeted and controlled drug delivery systems under the influence of a magnetic field. According to reports, iron oxide nanomaterials with different formulations can improve the effectiveness of drugs and control the progression of psoriasis cells in model organisms. Iron oxide nanoparticles are considered an ideal candidate site-specific active ingredient delivery system. By injecting iron oxide nanoparticles and berberine complex (Fe OBBR) into the hind legs of solid-infected mice, a joint study of the resolution of the infection was carried out. Oral Fe OBBR complex in different models, field orientation through magnetic, proof to become. The biological process of apoptosis, Histopathological studies has shown that these biocompatible nano-drug complexes have no effect on surrounding normal cells [32]. Drug-loaded magnetic nanoparticles produced by the co-precipitation method solve Prostatic psoriasis DU145 4 Cell 4 Anti-psoriatic drugs and magnetic particles found in Co-delivery of inhibit the proliferation of psoriasis cells. Gene expression analysis by comet assay and QRT-PCR established a molecular relationship consisting of changes in Baxand bcl expression levels and the triggering caspase activity that induces apoptosis [32, 33].

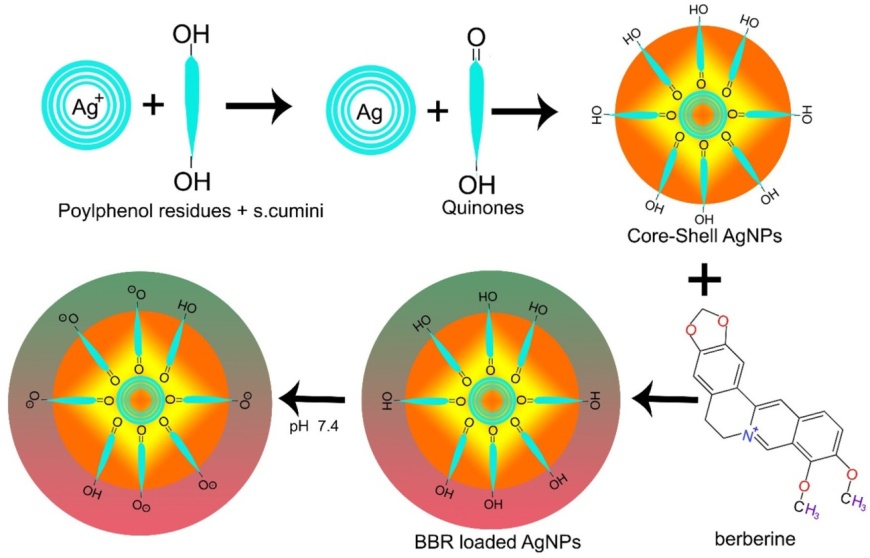

Fig. 3: Synthesis of berberine loaded silver nanoparticles [53]

Silver nanoparticles as berberine nanocarriers

Silver nanoparticles are also used as a transporter for berberine to its destination. Later data confirmed that the anti-psoriatic effect of berberine is more dangerous. It can down-regulate adenosine phosphate-activated protein kinase (AMPK) and hypoxia-inducible factor 1α (HIF1α), limit cell expansion, accept apoptosis, and detect angiogenesis and the development of confusion [34]. In addition, for the MCF 7 cell line, which is usually concentrated on cell lines, it is believed that they are more sensitive to berberine-stacked silver nanoparticles. Therefore, in a xenograft mouse model, berberine-stacked silver nanoparticles can reduce the size and weight of the disease by limiting the proliferation of MCF7 cells without reducing the bodyweight of the mouse model [35]. In addition, in a mouse model of psoriasis in a contaminated area, agNP stacked with berberine has the opportunity to effectively penetrate the cytoplasm of psoriasis cells in the contaminated area and break it down to transport its substances, namely nanoparticles and Berberine, which triggers corresponding cytotoxic effects and induces apoptosis, inhibits the expression of HIF1α by restricting the expression of PI3K/AKT and Ras/Raf/ERK proteins in the marker signaling pathway and ROS individual formation [36].

Chitosan-based nanoparticles as berberine nanocarriers

Chitosan-based nanoparticles are also used as transport carriers for berberine to attack diseased cells because they can further improve the bioavailability of berberine. It is believed that berberine hydrochloride stacked chitosan-based nanoparticles trigger apoptosis in nasopharyngeal carcinoma epithelioid cell line (CNE1) via the FR sinterceded endocytic pathway [33]. Doxorubicin is acutting-edge enemy psoriasis anti-infective agent with atomic DNA imgding capabilities recommended by the US Food and Drug Administration (FDA) for the multi-drug anti-psoriatic treatment under the PEG Liposomal plan (Doxil). In order to improve the viability and cell porosity of doxorubicin, doxstacked nanocarriers have been regarded as one of the most encouraging technologies to inhibit the movement of psoriasis cells [38]. Mitochondria focus on nano-drug transport; experts are said to attack the mitochondrial layer of psoriasis cells by exploiting the increased mitochondrial membrane capacity of psoriasis cells [38, 39]. Subsequent studies have shown that berberine interferes with the use and improvement of mitochondria, focusing on various in vitro, in vivo and in vitro nano-delivery frameworks for drug-safe psoriasis cells. Include doxorubicin to reduce uncontrolled cell growth. One of the illustrative models comes from studies that increase the uptake of doxorubicin; currently, such studies believe that alkylated berberine is the mitochondrial concentration of the ligand, but it is an appendage of alkylated berberine that occurs on C9Changed [39, 40].

DNA nano-bio sensors to determine the effect of berberine on psoriasis cells

Multi-faceted nano-membrane is increasingly recognized as an ideal way to control and target the arrival of antipsoriatic drugs. The programmable 3D DNA origami structure is planned using layered proof technology. They have a unique and practical nano-size surface technology and have been shown to have a significant impact on increasing drug delivery characteristics [41].

Nano biosensor has been used in early detection of different genetic, psoriasis, harmful disease. They are considered a fast, simple and cheap way to diagnose diseases. Different types of DNA-based nano-biosensors use to support effective deliver personalized medicine [42].

Recently, Quantum dots is based on DNA Nano sensor uses to detect DNA under concentration, fluorescence resonance energy transmission is based on quantum points are reports to behavior as concentrator time’s amplification target signals and are points detection using mutations [21].

In addition, Au DE/CYS/RGO/Au NP/ds DNA nano-bio sensors are used together with surface-enhanced Raman spectroscopy (SERS)/electrochemistry transduction to, an anti-psoriatic drug to DNA; the DNA nano-biosensor has the potential to screen drugs by monitoring DNA modification or DNA damage caused by specific antipsoriatic drugs.

Therefore, they have proven to be a useful method for developing anti-psoriatic therapies. In these nano-bio sensors, the imgding of anti-psoriatic active ingredients in DNA is identified by SERS signals, and electrochemical signals are used to evaluate the effectiveness of active ingredient doses [43].

The double-stranded DNA nano biosensor is composed of a mixture of multi-walled carbon nanotubes (MWNT), colloidal gold nanoparticles (GNP) and GNPMWNT, such as dimethylformamide, 44 sodium dodecyl sulfate and the buffer phosphate or was also used to study the effect of berberine on psoriasis cells through nanometer biosensor, observed berberine DNA triggered by inducing changes in DNA structure U937 breaks in psoriasis cells. Berberine has also been shown to be able to insert from psoriasis The DNA of the cell causes strand breaks, which then opens the DNA helical structure [44].

Extensive research was conducted to understand the possible molecular mechanism of berberine in the biological system to induce its anti-psoriatic effect. For example, an in vivo study of in rats with colonic psoriasis deciphered that berberine significantly inhibited cell proliferation. At the cellular level, berberine triggers cell death by inhibiting the mRNA expression of β-catenin in colon psoriasis cells connects with Wnt/β-catenin signaling cascade. According to reports, berberine can also induce autophagy and inhibit cell proliferation in human psoriasis HepG2 and MHCC97 cell lines. Molecule evidence indicates that berberine induces Bax–mediated cell apoptosis by stimulating the activity of caspase 3/9. Molecule berberine interaction is also reported to promote Atg5 apoptosis and autophagy gene. There is sufficient evidence of from the scientific research of that berberine is the up-regulation of Beclin1 gene and promotes the down-regulation of TOR gene. It is worth noting that the MAP Kinase signal cascade and the up-regulation of p53 gene are key molecular processes that promote autophagy in psoriasis cells [45-47].

The side effects of berberine

They are often overlooked due to the low toxicity of berberine. In general, berberine has shown very low toxicity and side effects in animal studies. However, there are definitely some side effects of berberine that need attention. Due to the risk of brain damage caused by bilirubin, jaundice, infants, pregnant women and lactating women should avoid berberine and berberine-containing plants [48]. It has been reported that allergic reactions can occur after intravenous berberine injection [49]. The main side effects are digestion, cramps, diarrhea, flatulence, constipation and stomach pain. Minor side effects include nausea, flatulence, diarrhea, and constipation [50]. High doses of berberine can cause arterial hypotension, dyspnea, flu-like symptoms, heart damage, and gastric disease [49].

Nutrition application formula and diagnosis now through the use of selective nanomaterials, for example, based on antioxidant potential and many other magnetic nanoparticles are used in MRI and FMIR diagnostic procedures with no or limited side effects. Optical and magnetic properties of nanocarriers coupled with active ingredients targeting unit’s suitable candidate toxicity significant problem. Hybrid nanostructure Expected nanomedicine will be more in-depth in the future applications of unique element hybrid nano materials, such as cerium with multiple oxidation state and pseudo infinite psoriasis recurrence and transfer [51].

CONCLUSION

Berberine has definite potential as a drug in a wide spectrum of already defined clinical applications. A mounting literature support the concept that berberine and its derivative could be promising drug carrier for psoriasis. It is review that there is various nanotechnology approaches apply to berberine molecule and it is effective against various diseases. The investigation also examined the anti-proliferative effects of berberine and nanotechnology-based repair technology for nano-scale transportation of berberine. Finally, we systematically analyze and examine the current methods and promising viewpoints of the latest hauling of this alkaloid.

ACKNOWLEDGEMENT

I am very grateful to Sanskar College of Pharmacy, NH-24, Ghaziabad and Abhilashi University, Mandi, Himachel Pradesh for providing Support, Guidance, and Necessities.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

This work was carried out in collaboration between all authors. All authors read and approved the final manuscript.

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Ahmad Farooqi AA, Fayyaz S, Silva AS, Sureda A, Nabavi SF, Mocan A, Nabavi SM, Bishayee A. Oleuropein and cancer chemoprevention: the link is hot. Molecules. 2017;22(5):705-20. doi: 10.3390/molecules22050705, PMID 28468276.

  2. Zhao Y, Hu X, Zuo X, Wang M. Chemopreventive effects of some popular phytochemicals on human colon cancer: a review. Food Funct. 2018;9(9):4548-68. doi: 10.1039/c8fo00850g, PMID 30118121.

  3. Tiloke C, Anand K, Gengan RM, Chuturgoon AA. Moringa oleifera and their phytonanoparticles: potential antiproliferative agents against cancer. Biomed Pharmacother. 2018;108:457-66. doi: 10.1016/j.biopha.2018.09.060. PMID 30241049.

  4. Hussain SS, Kumar AP, Ghosh R. Food-based natural products for cancer management: Is the whole greater than the sum of the parts? Semin Cancer Biol. 2016;40-41:233-46. doi: 10.1016/j.semcancer.2016.06.002. PMID 27397504.

  5. Manach C, Hubert J, Llorach R, Scalbert A. The complex links between dietary phytochemicals and human health deciphered by metabolomics. Mol Nutr Food Res. 2009;53(10):1303-15. doi: 10.1002/mnfr.200800516, PMID 19764066.

  6. Ali I, Lone MN, Al-Othman ZA, Al-Warthan A, Sanagi MM. Heterocyclic scaffolds: centrality in anticancer drug development. Curr Drug Targets. 2015;16(7):711-34. doi: 10.2174/1389450116666150309115922, PMID 25751009.

  7. Ali I. Nano anti-cancer drugs: pros and cons and future perspectives. Curr Cancer Drug Targets. 2011;11(2):131-4. doi: 10.2174/156800911794328457, PMID 21062238.

  8. Ali I, Lone MN, Aboul-Enein HY. Imidazoles as potential anticancer agents. Med Chem Comm. 2017;8(9):1742-73. doi: 10.1039/c7md00067g, PMID 30108886.

  9. Ali I, Wani WA, Saleem K, Haque A. Platinum compounds: a hope for future cancer chemotherapy. Anti Cancer Agents Med Chem. 2013;13(2):296-306. doi: 10.2174/ 1871520611313020016, PMID 22583420.

  10. Sultan M, Stecher G, Stoggl WM, Bakry R, Zaborski P, Huck CW, El Kousy NM, Bonn GK. Sample pretreatment and determination of non-steroidal anti-inflammatory drugs (NSAIDs) in pharmaceutical formulations and biological samples (blood, plasma, erythrocytes) by HPLC-UV-MS and micro-HPLC. Curr Med Chem. 2005;12(5):573-88. doi: 10.2174/0929867310504050573, PMID 15777213.

  11. Kong W, Wei J, Abidi P, Lin M, Inaba S, Li C, Wang Y, Wang Z, Si S, Pan H, Wang S, Wu J, Wang Y, Li Z, Liu J, Jiang JD. Berberine is a novel cholesterol-lowering drug working through a unique mechanism distinct from statins. Nat Med. 2004;10(12):1344-51. doi: 10.1038/nm1135, PMID 15531889.

  12. Lee B, Sur B, Shim I, Lee H, Hahm DH. Phellodendron amurense and Its major alkaloid compound, berberine ameliorates scopolamine-induced neuronal impairment and memory dysfunction in rats. Korean J Physiol Pharmacol. 2012;16(2):79-89. doi: 10.4196/kjpp.2012.16.2.79, PMID 22563252.

  13. Imenshahidi M, Hosseinzadeh H. Berberis vulgaris and berberine: an update review. Phytother Res. 2016;30(11):1745-64. doi: 10.1002/ptr.5693, PMID 27528198.

  14. Grycova L, Dostal J, Marek R. Quaternary protoberberine alkaloids. Phytochemistry. 2007;68(2):150-75. doi: 10.1016/j.phytochem.2006.10.004. PMID 17109902.

  15. Fata A, Rakhshandeh H, Berenji F, Jalalian FA. Treatment of cutaneous leishmaniasis in murine model by alcoholic extract of Berberis vulgaris. Iran J Parasitol. 2006;1(1):39-42.

  16. Marchese A, Orhan IE, Daglia M, Barbieri R, Di Lorenzo A, Nabavi SF, Gortzi O, Izadi M, Nabavi SM. Antibacterial and antifungal activities of thymol: A brief review of the literature. Food Chem. 2016;210:402-14. doi: 10.1016/ j.foodchem. 2016.04.111. PMID 27211664.

  17. Belwal T, Bisht A, Devkota HP, Ullah H, Khan H, Pandey A, Bhatt ID, Echeverria J. Phytopharmacology and clinical updates of Berberis species against diabetes and other metabolic diseases. Front Pharmacol. 2020;11:41. doi: 10.3389/fphar.2020.00041, PMID 32132921.

  18. Chae HW, Kim IW, Jin HE, Kim DD, Chung SJ, Shim CK. Effect of ion-pair formation with bile salts on the in vitro cellular transport of berberine. Arch Pharm Res. 2008;31(1):103-10. doi: 10.1007/s12272-008-1127-4, PMID 18277615.

  19. Imenshahidi M, Hosseinzadeh H. Berberine and barberry (Berberis vulgaris): A clinical review. Phytother Res. 2019;33(3):504-23. doi: 10.1002/ptr.6252, PMID 30637820.

  20. Liu D, Meng X, Wu D, Qiu Z, Luo H. A natural isoquinoline alkaloid with antitumor activity: studies of the biological activities of berberine. Front Pharmacol. 2019;10:9. doi: 10.3389/fphar.2019.00009, PMID 30837865.

  21. Sun Y, Xun K, Wang Y, Chen X. A systematic review of the anticancer properties of berberine, a natural product from Chinese herbs. Anticancer Drugs. 2009;20(9):757-69. doi: 10.1097/CAD.0b013e328330d95b, PMID 19704371.

  22. Tillhon M, Guamán Ortiz LM, Lombardi P, Scovassi AI. Berberine: new perspectives for old remedies. Biochem Pharmacol. 2012;84(10):1260-7. doi: 10.1016/ j.bcp.2012.07.018. PMID 22842630.

  23. Jantova S, Cipak L, Letasiova S. Berberine induces apoptosis through a mitochondrial/caspase pathway in human promonocytic U937 cells. Toxicol In Vitro. 2007;21(1):25-31. doi: 10.1016/j.tiv.2006.07.015. PMID 17011159.

  24. Chen Q, Qin R, Fang Y, Li H. Berberine sensitizes human ovarian cancer cells to cisplatin through miR-93/PTEN/Akt signaling pathway. Cell Physiol Biochem. 2015;36(3):956-65. doi: 10.1159/000430270, PMID 26087719.

  25. Ortiz LMG, Croce AL, Aredia F, Sapienza S, Fiorillo G, Syeda TM, Buzzetti F, Lombardi P, Scovassi AI. Effect of new berberine derivatives on colon cancer cells. Acta Biochim Biophys Sin. 2015;47(10):824-33. doi: 10.1093/abbs/gmv077, PMID: 26341980.

  26. Tian Y, Zhao L, Wang Y, Zhang H, Xu D, Zhao X, Li Y, Li J. Berberine inhibits androgen synthesis by interaction with aldo-keto reductase 1C3 in 22Rv1 prostate cancer cells. Asian J Androl. 2016;18(4):607-12. doi: 10.4103/1008-682X.169997, PMID 26698234.

  27. Wang J, Qi Q, Feng Z, Zhang X, Huang B, Chen A, Prestegarden L, Li X, Wang J. Berberine induces autophagy in glioblastoma by targeting the AMPK/mTOR/ULK1-pathway. Oncotarget. 2016;7(41):66944-58. doi: 10.18632/oncotarget.11396, PMID 27557493.

  28. Chen K, Li G, Geng F, Zhang Z, Li J, Yang M, Dong L, Gao F. Berberine reduces ischemia/reperfusion-induced myocardial apoptosis via activating AMPK and PI3K-Akt signaling in diabetic rats. Apoptosis. 2014;19(6):946-57. doi: 10.1007/s10495-014-0977-0, PMID 24664781.

  29. Li L, Wang X, Sharvan R, Gao J, Qu S. Berberine could inhibit thyroid carcinoma cells by inducing mitochondrial apoptosis, G0/G1 cell cycle arrest and suppressing migration via PI3K-AKT and MAPK signaling pathways. Biomed Pharmacother. 2017;95:1225-31. doi: 10.1016/j.biopha.2017.09.010. PMID 28931215.

  30. Loo YS, Madheswaran T, Rajendran R, Bose RJ. Encapsulation of berberine into liquid crystalline nanoparticles to enhance its solubility and anticancer activity in MCF7 human breast cancer cells. J Drug Deliv Sci Technol. 2020;57. doi: 10.1016/ j.jddst.2020.101756.

  31. Lee KJ, An JH, Chun JR, Chung KH, Park WY, Shin JS, Kim DH, Bahk YY. In vitro analysis of the anti-cancer activity of mitoxantrone loaded on magnetic nanoparticles. J Biomed Nanotechnol. 2013;9(6):1071-5. doi: 10.1166/jbn.2013.1530, PMID 23858972.

  32. Wang Z, Wang YS, Chang ZM, Li L, Zhang Y, Lu MM, Zheng X, Li M, Shao D, Li J, Chen L, Dong WF. Berberine-loaded Janus nanocarriers for magnetic field-enhanced therapy against hepatocellular carcinoma. Chem Biol Drug Des. 2017;89(3):464-9. doi: 10.1111/cbdd.12866, PMID 27618577.

  33. Bhanumathi R, Manivannan M, Thangaraj R, Kannan S. Drug-carrying capacity and anticancer effect of the folic acid- and berberine-loaded silver nanomaterial to regulate the AKT-ERK pathway in breast cancer. ACS Omega. 2018;3(7):8317-28. doi: 10.1021/acsomega.7b01347, PMID 30087941.

  34. Parhi P, Suklabaidya S, Kumar Sahoo S. Enhanced anti-metastatic and anti-tumorigenic efficacy of Berbamine loaded lipid nanoparticles in vivo. Sci Rep. 2017;7(1):5806. doi: 10.1038/s41598-017-05296-y. PMID 28724926.

  35. Schroeder A, Heller DA, Winslow MM, Dahlman JE, Pratt GW, Langer R, Jacks T, Anderson DG. Treating metastatic cancer with nanotechnology. Nat Rev Cancer. 2011;12(1):39-50. doi: 10.1038/nrc3180, PMID 22193407.

  36. Fu S, Xie Y, Tuo J, Wang Y, Zhu W, Wu S, Yan G, Hu H. Discovery of mitochondria-targeting berberine derivatives as the inhibitors of proliferation, invasion and migration against rat C6 and human U87 glioma cells. Chem Commun. 2015;6(1):164-73. doi: 10.1039/C4MD00264D.

  37. Tuo J, Xie Y, Song J, Chen Y, Guo Q, Liu X, Ni X, Xu D, Huang H, Yin S, Zhu W, Wu J, Hu H. Development of a novel berberine-mediated mitochondria-targeting nano-platform for drug-resistant cancer therapy. J Mater Chem B. 2016;4(42):6856-64. doi: 10.1039/C6TB01730D, PMID 32263579.

  38. Weissig V, Torchilin VP. Cationic bolasomes with delocalized charge centers as mitochondria-specific DNA delivery systems. Adv Drug Deliv Rev. 2001;49(1-2):127-49. doi: 10.1016/s0169-409x(01)00131-4, PMID 11377808.

  39. Pereira GC, Branco AF, Matos JAC, Pereira SL, Parke D, Perkins EL, Serafim TL, Sardao VA, Santos MS, Moreno AJM, Holy J, Oliveira PJ. Mitochondrially targeted effects of berberine [Natural Yellow 18, 5,6-dihydro-9,10-dimethoxybenzo(g)-1,3-benzodioxolo(5,6-a) quinolizinium] on K1735-M2 mouse melanoma cells: comparison with direct effects on isolated mitochondrial fractions. J Pharmacol Exp Ther. 2007;323(2):636-49. doi: 10.1124/jpet.107.128017, PMID 17704354.

  40. Abu-Salah KMA, Zourob MM, Mouffouk F, Alrokayan SA, Alaamery MA, Ansari AA. DNA-based nanobiosensors as an emerging platform for the detection of disease. Sensors (Basel). 2015;15(6):14539-68. doi: 10.3390/s150614539, PMID 26102488.

  41. Ilkhani H, Hughes T, Li J, Zhong CJ, Hepel M. Nanostructured SERS-electrochemical biosensors for testing of anticancer drug interactions with DNA. Biosens Bioelectron. 2016;80:257-64. doi: 10.1016/j.bios.2016.01.068. PMID 26851584.

  42. Ovadekova R, Jantova S, Letasiova S, Stepanek I, Labuda J. Nanostructured electrochemical DNA biosensors for detection of the effect of berberine on DNA from cancer cells. Anal Bioanal Chem. 2006;386(7-8):2055-62. doi: 10.1007/s00216-006-0830-6, PMID 17053918.

  43. Wang N, Feng Y, Zhu M, Tsang CM, Man K, Tong Y, Tsao SW. Berberine induces autophagic cell death and mitochondrial apoptosis in liver cancer cells: the cellular mechanism. J Cell Biochem. 2010;111(6):1426-36. doi: 10.1002/jcb.22869, PMID 20830746.

  44. Kim DY, Kim SH, Cheong HT, Ra CS, Rhee KJ, Jung BD. Berberine induces p53-dependent apoptosis through inhibition of DNA Methyltransferase3b in Hep3B cells. Korean J Clin Lab Sci. 2020;52(1):69-77. doi: 10.15324/kjcls.2020.52.1.69.

  45. Zhao Q, Peng C, Zheng C, He XH, Huang W, Han B. Recent advances in characterizing natural products that regulate autophagy. Anti Cancer Agents Med Chem. 2019;19(18):2177-96. doi: 10.2174/1871520619666191015104458, PMID 31749434.

  46. Dhall A, Self W. Cerium oxide nanoparticles: A brief review of their synthesis methods and biomedical applications. Antioxidants (Basel). 2018;7(8):97. doi: 10.3390/ antiox7080097, PMID 30042320.

  47. Bagade A, Tumbigeremutt V, Pallavi G. Cardiovascular effects of berberine: a review of the literature. J Restorat Med. 2017;6(1):37-45. doi: 10.14200/jrm.2017.6.0100.

  48. Yin J, Xing H, Ye J. Efficacy of berberine in patients with type 2 diabetes mellitus. Metabolism. 2008;57(5):712-7. doi: 10.1016/j.metabol.2008.01.013. PMID 18442638.

  49. Dong H, Wang N, Zhao L, Lu F. Berberine in the treatment of type 2 diabetes mellitus: a systemic review and meta-analysis. Evid Based Complement Alternat Med. 2012;2012:591654. doi: 10.1155/2012/591654, PMID 23118793.

  50. Xu Z, Xu Y, Basuthakur P, Patra CR, Ramakrishna S, Liu Y, Thomas V, Nanda HS. Fibro-porous PLLA/gelatin composite membrane doped with cerium oxide nanoparticles as bioactive scaffolds for future angiogenesis. J Mater Chem B. 2020;8:9110-20. doi: 10.1039/D0TB01715A, PMID 32929440.

  51. Zuo F, Nakamura N, Akao T, Hattori M. Pharmacokinetics of berberine and its main metabolites in conventional and pseudo-germ-free rats determined by liquid chromatography/ion trap mass spectrometry. Drug Metab Dispos. 2006;34(12):2064-72. doi: 10.1124/dmd.106.011361, PMID 16956957.

  52. Mullauer FB, van Bloois L, Daalhuisen JB, Ten Brink MS, Storm G, Medema JP, Schiffelers RM, Kessler JH. Betulinic acid delivered in liposomes reduces growth of human lung and colon cancers in mice without causing systemic toxicity. Anticancer Drugs. 2011;22(3):223-33. doi: 10.1097/ CAD.0b013e3283421035, PMID 21263311.

  53. Iqbal MJ, Quisp C, Javed Z, Sadia H, Qadri QR, Raza S, Salehi B, Cruz-Martins N7, Mohamed ZA, Jaafaru MS1, Razis AFA, Sharifi-Rad J. Nanotechnology-based strategies for berberine delivery system in cancer treatment: pulling strings to keep berberine. Front Mol Biosci. 2021;7:624494. doi: 10.3389/ fmolb.2020.624494.

  54. Maithani A, Parchai V, Kumar D. Quantitative estimation of berberine content of Berberis Asistica from a different altitude of garwal Himalaya. Asian J Pharm Clin Res. 2014;7(1):165-7.

  55. Chakraborty R, Lobo R, Prabhu MM, Umakanth S, Chowdhury G, Mukhopadhyay AK, Ramamurthy T, Ballal M. Berberine hydrochloride could prove to be a promising bullet against clostridium difficile infection: a preliminary study from South India. Asian J Pharm Clin Res. 2017;10(12):419-24. doi: 10.22159/ajpcr.2017.v10i12.21932.
