Int J Pharm Pharm Sci, Vol 14, Issue 8, 22-28Original Article

A COMPUTATIONAL STUDY OF CIPROFLOXACIN METABOLITES AND SOME NATURAL COMPOUNDS AGAINST RESISTANT METHICILLIN STAPHYLOCOCCUS AUREUS (MRSA)

THANAA MOURAD*, SHUAIBALAHMAD**

*Department of Pharmaceutical Chemistry, **Department of Pharmaceutical Chemistry and Quality Control, Faculty of Pharmacy, Al–Wataniya Private University, Hama, Syria
Email: thana.mourad@wpu.edu.sy

Received: 02 Mar 2022, Revised and Accepted: 16 Jun 2022

ABSTRACT

Objective: In this paper, a computational study, including molecular docking, was accomplished for ciprofloxacin metabolites and some natural compounds, then a practical study of that compounds alone and in combination was applied against resistant methicillin STAPHYLOCOCCUS AUREUS (MRSA) isolates.

Methods: A docking software was used for molecular docking of the enzyme isomerase (3UWZ from protein data bank PDB) with ciprofloxacin (CIP) and its metabolites like sulfo-ciprofloxacin (Sulfo-CIP), oxo-ciprofloxacin, desethylene-ciprofloxacin, acetyl-ciprofloxacin, and natural compounds such as flavonoids (rutin, quercetin, hesperidin), phenols (thymol, gallic acid), phenolic acids (salicylic acid), terpenoids (menthol, eucalyptol) and coumarins (7-hydroxy coumarin). An antibacterial application for the highest binding energy of metabolites and natural compounds alone and in combination by using well diffusion method applied to ten of (MRSA) isolates.

Results: Docking results revealed that rutin, CIP, and Sulfo-CIP were the highest binding energy values of-106.76,-104.64, and-102.23 K/cal, respectively. The diameter of the inhibition zone pointed to the antibacterial activity against MRSA isolates, and it showed a range from 16-18, 18-22, and 18-19 mm in order. But the inhibition zone diameter in the combination of rutin with Sulfo-CIP ranged from 28 to 35 mm.

Conclusion: Metabolite Sulfo-CIP showed up high antibacterial activity close to CIP theoretically and in vitro; also, the relationship with natural compound rutin showed a synergistic effect.

Keywords: Methicillin-resistant staphylococcus aureus (MRSA), Natural compounds, Ciprofloxacin (CIP), Rutin, Sulfociprofloxacin (Sulfo-CIP), 3UWZ

© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijpps.2022v14i8.44560. Journal homepage: https://innovareacademics.in/journals/index.php/ijpps.

INTRODUCTION

Computational studies include employing computer-aided software to carry out the protein-ligand simulations of drug molecules to a given target which means molecular docking that is widely used in drug discovery and drug design [1]. It can be used to suppose the predominant binding models of a ligand with a protein of known three-dimensional structure [2], perform virtual screening on large libraries of compounds, rank the results according to their binding affinities, and propose structural hypotheses of how the ligands inhibit the target [3].

Methicillin-resistant Staphylococcus aureus (MRSA) is a strain of positive gram bacteria that has developed or acquired multiple drug resistance to beta-lactam antibiotics, including methicillin [4]. They can cause various invasive infections, especially skin infections, pneumonia (lung infection), and other deeper diseases such as endocarditis, septic arthritis, osteomyelitis, and septicemia [5, 6]. As this bacteria is resistant to beta-lactam antibiotics, the glycopeptides and linezolid are recommended as first-line therapy for serious MRSA infections, then quinolones antibiotics like ciprofloxacin which have been proposed as a possible alternative to parenteral vancomycin therapy [7, 8].

Ciprofloxacin is a fluoroquinolone antibiotic that inhibits bacteria by affecting isomerase enzymes, especially DNAgyrase [9]. The use of fluoroquinolones is now limited only to those strains that show laboratory confirmation of their susceptibility [10]. Nowadays, many researchers demonstrated that the metabolism of a drug can have important consequences on its therapeutic effect or its toxicity [11]. Ciprofloxacin is partially metabolized in the liver by modification of the piperazinyl group to at least four metabolites which are N-acetyl ciprofloxacin, Oxo-ciprofloxacin, desethylene ciprofloxacin, and sulfo-ciprofloxacin [12]. Some of these metabolites had been revealed to have antibacterial activity [13].

Natural compounds are organic substances produced by living organisms and they have various chemical structures, including flavonoids, phenolics, alkaloids, glucosinolates, and organic acids [14]. They play a predominant role in the development of new therapeutic agents and possess pharmacological activity as an antiviral antioxidant and antibiotic effects [15]. At present, antibiotic combinations are widely studied as an alternative strategy to combat resistant microbes [16]. Most recent studies showed that natural compounds have explored a synergistic, additive, or antagonistic activity against bacteria when they were used in combination with antibiotics [17].

MATERIALS AND METHODS

In this work, molecular docking of 14 compounds was carried out into isomerase enzyme, then in vitro tests were applied to ten isolates of MRSA to compare in silico results.

Protein preparation

PDB is a fundamental repository site for 3D structure data of large molecules [18]. The isomerase enzyme required for the docking study related to MRSA has been retrieved from PDB with ID-3UWZ and had a resolution factor of 2.50 A° [19]. The enzyme was downloaded and then saved in PDB file format and the 3D of it was shown in (fig. 1). We defined the active site of (3UWZ) based on the x-ray complex structure of protein and binding ligand glycerol as shown in fig. 2 [20].

Ligands preparation

In this study, natural compounds were chosen depending on the antibacterial effect where the flavonoids like rutin, quercetin, and hesperidin were sorted as antibacterials, antioxidants, and antitumors [21]. While phenols, phenolic acids, and coumarins compounds like (gallic acid, thymol, eucalyptol, menthol, salicylic acid, and 7-hydroxy coumarin, respectively) had weak to mild antibacterial effects but they were studied here to compare their activity [22]. Oxo-ciprofloxacin, N-acetyl-ciprofloxacin, and deseythylene-ciprofloxacin were metabolites of ciprofloxacin and they were separated and studied for their antibacterial action [23]. Whereas sulfo-CIP has few studies for its antibacterial efficacy but not on MRSA. For molecular docking, all structures were downloaded from the ZINC database site with MOL2 form [24] and collected in table 1 with the source of supply.

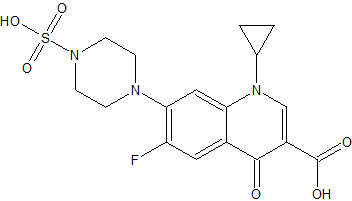

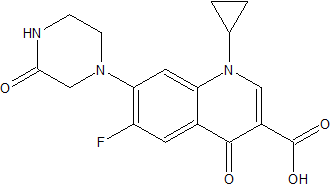

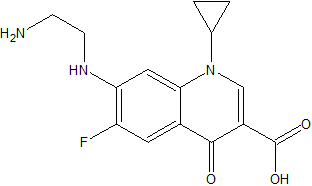

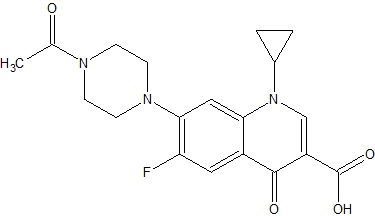

Table 1: Chemical group and source of studied CIP metabolites and natural compounds

S. No. Name Structure Source
1 Ciprofloxacin Himedia
2 Sulfo-ciprofloxacin Toronto research chemicals
3 Oxo-ciprofloxacin -
4 N acctyl-ciprofloxacin -
5 Desethylene-ciprofloxacin -
6 Rutin Aldrich
7 Quercetin Aldrich
8 Hesperidin Sigma-Aldrich
9 Eucalyptol Himedia
10 Salicylic acid Himedia
11 Menthol Himedia
12 Thymol Himedia
13 7-hydroxy coumarine Himedia
14 Gallic acid Himedia

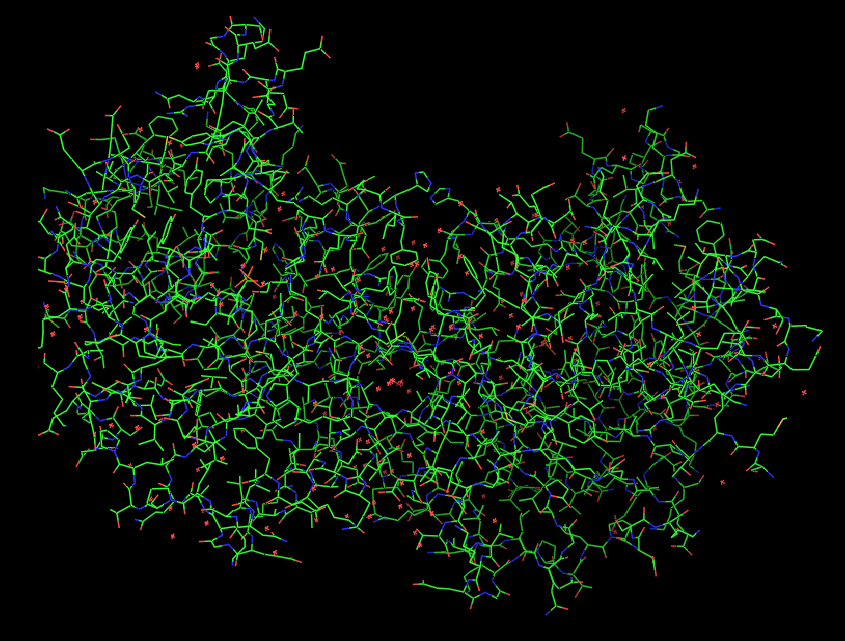

Fig. 1: The 3D of isomerase enzyme 3UWZ

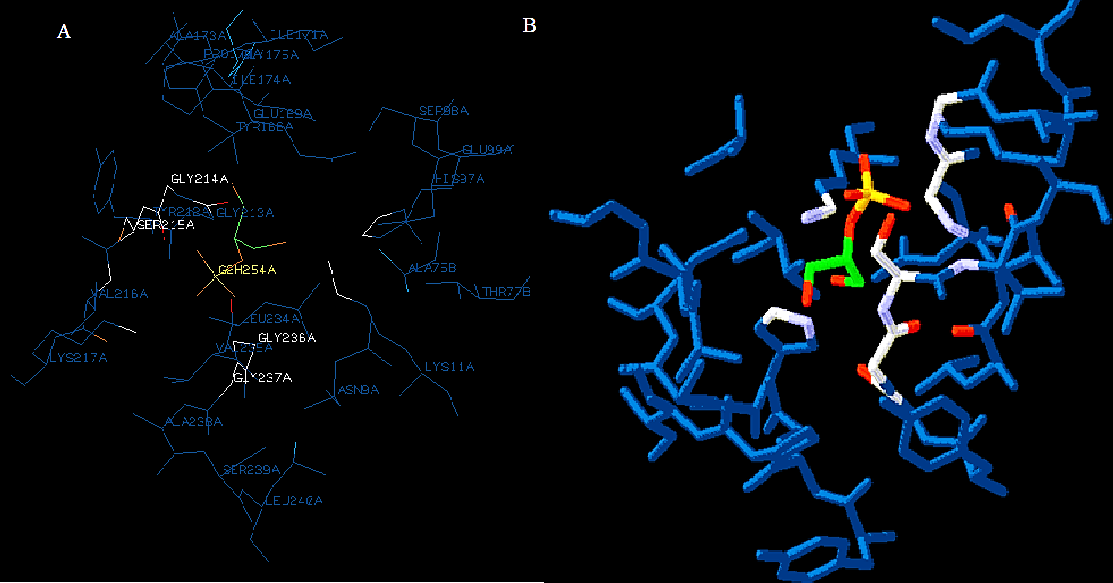

Fig. 2: The binding site of 3UWZ, A=wireframe mode of amino acids in the binding site, B= binding site in sticks mode, glycerol compound showed in green color

Protein-ligand docking

In this study, ciprofloxacin, its metabolites, and natural compounds were docked to the enzyme (3UWZ) by using iGemdock v2.1 software, which is available for free and was used in various previous research [25].

Docking software

This tool has been developed for virtual screening, preparations of the target protein and the compound library, docking, and post-screening analysis [26]. It generates protein-compound interaction profiles by providing interactive interfaces to prepare both the binding site of the target enzyme and the screening compounds library [27, 28]. The docking consisted of protocol "accurate docking" by setting a population size of 800 is set with 80 generations and 10 solutions. After the completion of the docking, the post-docking analysis was performed to find the docking pose and its energy values [29].

Practical study

MRSA isolates collection

About 10 clinical strains were collected from patients of Aleppo University Hospital. Bacterial culturing medias such as nutrient agar (NA; CM0003B), and Muller Hinton agar (MHA; CM0337B), were from Oxoid, UK. Mannitol salt agar (MSA; LAB007) was obtained from Lab M Limited, UK. Isolates identification was performed using Gram-staining, catalase test, coagulase test, and MSA differentiation. Isolated colonies of S. aureus from MSA plates were aseptically inoculated in sterile nutrient broth and incubated overnight at 37 °C [30]. Thereafter, the turbidity of the inoculum was adjusted to 0.5 McFarland using 0.9% (w/v) sterile normal saline and was used to prepare bacterial lawns on sterile MHA plates [31]. Methicillin discs were applied on seeded plates and incubated overnight at 37±1 °C. Following incubation, plates with zones of inhibitions were measured.

Antibacterial activity test

Antibacterial activity was determined by using a well diffusion method according to National Committee for Clinical Laboratory Standard [31]. Briefly, Petri plates containing approximately 25-30 ml of Mueller Hinton agar medium were inoculated using a cotton swab to cultivate a 4-6 h-old culture of bacterial isolates. Wells (6 mm diameter) were punched in the agar and filled with 5 µg/50 µl of sulfo-CIP and 500 µg/50 µl of each natural compound [32]. The sensitivity antibacterial tests were repeated three times and then the mean diameter of the inhibition zone (mm)±standard deviation (SD) was calculated by the SSPS software and the tested substance was considered to have antibacterial activity if the mean diameter of the inhibition zone was>10 mm, while the diameter ≤ 10 mm of inhibition zone was regarded as inactive [33].

Natural compounds and sulfo-cip sensitivity tests

Susceptibility tests of clinical strains to sulfo-CIP+natural compounds combinations were tested using the well diffusion method on MHA plates. Every well was injected with 500 µg/50 µl of every natural compound with 5 µg/50 µl of sulfo-CIP. Following overnight incubation at 37 °C, diameters of inhibition zones were recorded. The antibacterial activity was assessed by measuring the inhibition zone diameter (mm) around the well. The synergism effect was considered when combinations exhibited with enlargement of combined inhibition zone size by 5 mm [34].

RESULTS AND DISCUSSION

Molecular docking results

Computational study of molecular docking is the best approach to check the utility of any chemical compound as a drug before going through any in vitro or in vivo analysis to shorten the experiments and cost-cutting. In this work, about 14 compounds were docked against the isomerase 3UWZ to evaluate the theoretical antibacterial activity against MRSA. The objective of this current work is to estimate the antibacterial efficacy of metabolites of ciprofloxacin, especially the Sulfo-CIP; then a practical experience was done to examine the feasibility of the combination between natural compounds and chemicals as an effective antibacterial step in facing the resistance of MRSA.

Post-screening analysis

All the compounds in the post-screening analysis of PDB ID-3UWZ, in comparison to the CIP that is considered as the reference, were potential antibacterial drugs of MRSA with the target enzyme as the correlations had high values of energy [35]. The results displayed that the values of binding energy ranged between (-106.76) to (-44.79) Kal/mol as it showed in table (2) ranked from high to low value. The metabolite Sulfo-CIP exhibited a value of binding energy (-102.23) Kal/mol, which is very close to CIP (-104.64) Kal/mol. While the N-acetyl-CIP, desethylene-CIP, and Oxo-CIP had approximate binding energy values of (-86.25), (-78.21), and (-75.49) Kal/mol in order. So, All metabolites of CIP exhibit antibacterial effects theoretically as they had binding energies close to CIP value and some studies confirmed that in vitro by isolating them and studying the activity in which they exhibited efficacy very close to norfloxacin which is considered a derivative of CIP [36]. Sulfo-CIP was a very minor metabolite of CIP, and it was synthesized in 2006 by (Emami S and his colleagues) and evaluated as a new N-piperazinyl fluoroquinolone that had been investigated for many bacterial species but not on MRSA [37]. Otherwise, the natural compound rutin had a high value of binding energy (-106.76) Kal/mol but hesperidin and quercetin revealed values of (-84.93) and (-71.08) Kal/mol in order. These results of natural compounds are comparable with a lot of studies that took up flavonoids like quercetin and rutin, which had expressed influence in molecular docking and in vitro against bacteria [38].

Molecular docking with iGemdock interfered with the pharmacological interactions and clusters the screening compounds for the post-screening analysis based on profiles of electrostatic (E), hydrogen-bonding (H), and Van der Waal’s (V) interactions and compound structures [39], then ranks and visualizes the screening compounds by combining the pharmacological interactions and energy-based-scoring functions [40]. Table 2 showed these energies where Sulfo-CIP showed VW, H Bond, and Elec energies as the reference CIP and rutin showed a VW binding energy only. This association o that compounds in the binding site candidate them as effective antibacterial agents [41].

Table 2: The binding energies of CIP, CIP metabolites, and Natural compounds

Name of structure VW force (kcal/mol) H Bond (kcal/mol) Elec. energy (kcal/mol) Total binding energy (kcal/mol)
Rutin -106.76 0 0 -106.76
CIP -73.11 -29.49 -2.04 -104.64
Sulfo-CIP -71.06 -27.91 -3.26 -102.23
N-acetyl-CIP -82.75 -3.5 0 -86.25
Hesperidin -84.93 0 0 -84.93
Oxo-CIP -70.81 -7.41 0 -78.21
Desethylene-CIP -71.99 -3.5 0 -75.49
Quercetin -71.08 0 0 -71.08
Eucalyptol -65.69 0 0 -65.69
Salicylic acid -41.09 -19.87 0 -60.96
Menthol -57.91 0 0 -57.91
Thymol -57.65 0 0 -57.65
coumarin -47.96 0 0 -47.96
Gallic acid -40.43 -4.36 0 -44.79

VW= vander valce energy, H Bond= hydrogen bonding energy, Elec= electricity energy.

The previous energies are produced by the interactions of compounds and the amino acid residues in the protein binding pocket and the associated correlations shown in table 3 for Sulfo-CIP, rutin, and CIP, and fig. 3 illustrated the linkages and fitness scores of that compounds with protein pocket. These results could suppose the most potent isomerase inhibitors for the prevention and treatment of infections caused by MRSA.

Antibacterial results

All the studied compounds have binding energy and good affinity toward the active site; thus, they may be considered good antibacterial agents in the practical experience, but the in vitro study displayed that compounds possessed different activities against the MRSA strains. The means and SD of the diameters of the inhibition zones presented the antibacterial activity [42], as shown in table 4.

Table 3: Pharmacological interactions and residues involved in the binding site

PDB-ID Predicted pharmacologic interactions Rutin CIP Sulfo-CIP
3UWZ V-M GLU 169 -4.1 -0.8 0
V-M ILE 171 -3.4 -1.5 0
V-M ILE 174 -9.2 -0.7 -5
V-S ILE 174 -11.5 -7.1 -5.5
V-M GLY 213 -5.3 -1 -6.2
V-M GLY 214 -11.6 -8.4 -8.3
E-S HIS 97 0 0 -11.4
H-S SER 98 0 0 0
H-S GLU 169 0 0 -3.4
H-M ILE 174 0 -2.5 -1.5
H-S SER 215 0 0 0
H-M VAL 216 0 0 0
H-S LYS 217 0 0 0
H-M GLY 237 0 0 0
H-M ALA 238 0 0 0

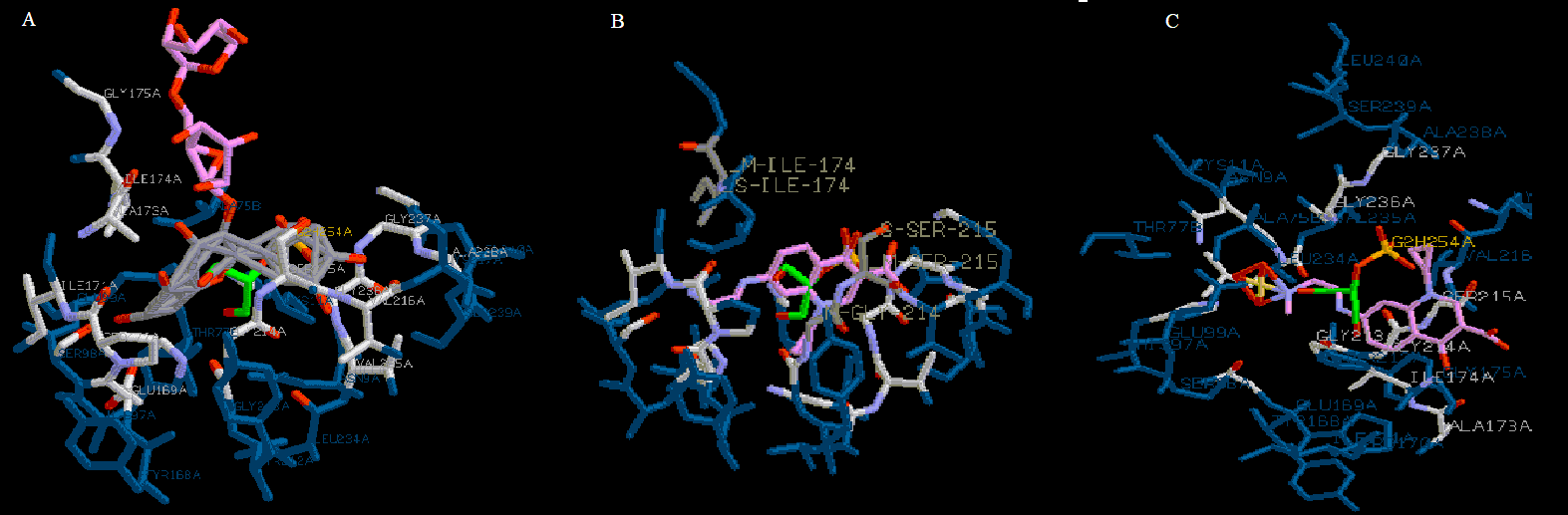

Fig. 3: The interactions of the amino acids with compounds in the binding site. Pink structures=docked compounds, A=rutin, B=CIP, C=Sulfo-CIP, Green structure =GLY

Table 4: Antibacterial activity of natural compounds and sulfo-cip

Diameters of inhibition zones (mm) mean±SD MRSA
Sulfo-CIP CIP G C T MEN SAl EU Q H R
19±0.9 22±1.1 N N N 10.7±1.7 N 9±1.5 17±1.7 13±0.1 17.3±0.5 1
19±0.9 20±1.1 N N N 15±0.4 N 9.5±0.7 14.3±1.7 12±0.1 16±0.1 2
18±0.5 21±0.9 N N N N N 9±1.5 N 14±0.3 18±0.6 3
18.3±0.4 20.5±0.7 N N N N 10±1.6 10±1.7 16±1.5 N 19±0.6 4
17.5±0.5 21±1.1 N N N N N N 16.5±0.5 12±0.2 17.8±0.5 5
17.8±0.6 18±0.9 N N N N N N 15.5±0.6 11±0.1 17.8±0.5 6
17.5±0.6 18.3±0.9 N N N 9±1.5 N 9±1.5 14.7±1.6 N 17±0.6 7
17.7±0.7 20±1.1 N N N N N 9.3±0.7 N N 16.5±0.1 8
17±0.9 20±1.1 N N N N 9±0.7 10±1.7 16.5±0.7 14±0.3 16±0.7 9
N 19±0.5 N N N N N N N N N 10

R=rutin, H=hesperidin, Q=quercetin, EU=eucalyptol, SAL=Salicylic, MEN=menthol, T=thymol, C=7-hydroxy coumarin, G=gallic acid, N=no antibacterial sensitivity. SD=standard deviation, Values are mean±SD, n=3, active value>10.

The flavonoids rutin, quercetin, and hesperidin were ranged from (16±0.7) to (18±0.6) mm, (14.3±1.7) to (17±1.7)mm, and (11±0.1) to (14±0.3) mm in order. While MRSA strains had different responses to the other natural compounds as the eucalyptol, salicylic acid, and menthol were active against some strains, thymol, gallic acid, and 7-hydroxy coumarin had no antibacterial activity. Many studies proved that natural components differ in response to bacteria where flavonoids rutin, quercetin, and hesperidin activity related to the structure and chemical groups [43]. Our results clarified that rutin and quercetin activities were approximate in vitro because of the similar chemical structures and that close to many numerous studies [44]. The compound hesperidin showed moderate activity in contrast to the in silico results, and some observations indicated its sensitivity related to the used concentrations [45]. Results of phenols, phenolic acids, and coumarins compounds like (gallic acid, thymol, eucalyptol, menthol, salicylic acid, and 7-hydroxy coumarin, respectively) demonstrated that they were practically inactive against bacterial strains as many studies showed that antibacterial activity likely depends on interactions between phenols and their derivatives and bacterial cells surface[46]. The inhibition zones of CIP and Sulfo-CIP were estimated from (18±0.9) to (22±1.1) mm and (17.5±0.5) to (19±0.9) mm respectively, and these values were compatible with CLSI standards of antibiotics inhibition zone diameter measurement [47]. These results reflect the corresponding binding energy values as the mechanism of CIP action is the correlation and inhibition of topoisomerase enzymes, especially DNAgyrase [48]. The metabolite Sulfo-CIP is produced from CIP by the addition of the sulfo group on the piperazine ring during the metabolism; then it execrates as a fecal metabolite [49]. Many studies covered the antibacterial activity of metabolites in plasma, serum, and urine which exhibited different antibacterial activity, while Sulfo-CIP as a minor product had not enough investigations [50]. In this research, Sulfo-CIP was active in silico and the experience exhibited inhibition zones similar to CIP, which suggests a mechanism of inhibition as CIP and the binding forces.

The growing and sustained resistance to antibiotics is becoming the most recent major health issue worldwide, and an emerging option to fight such pathogens is combination therapy, such as combinations of two antibiotics or antibiotics with adjuvants which is play a promising therapeutic approach [51]. In the investigation for the combination, an in vitro work had activated CIP and its metabolite Sulfo-CIP with natural compounds, especially rutin that had high binding energy. The combination showed antibacterial activity against MRSA isolates and the results were shown in table 5. The mean inhibition diameter of Sulfo-CIP with rutin was increased to (35±1.1)mm compared to the inhibition zone of each compound alone, and the combination of CIP and rutin were up to (29±0.6), while the inhibition zone of CIP with quercetin ranged to (28±0.6)mm which mentioned here to compare the results. Recently studies showed up that rutin enhances antibacterial activity in combination with other flavonoids, which suggests the increased inhibition zones [52]. A review study performed by Lindsay K. et al. pointed to synergism, antagonism, and additive activity of natural components and studied the standard of that effects where the synergism may occur if combined constituents are greater than the expected additive effect [53]. The combination results proved increased inhibition zones that may point to synergistic or additive effects, but in vivo investigation should applicate to confirm the effects. The present research was in vitro studies only because of the non-availability of animal model facilities, which remained the major limitation of this study.

Table 5: Antibacterial activity of rutin in combination with sulfo-CIP

10 9 8 7 6 5 4 3 2 1 MRSA

Diameters of inhibition Zones (mm)

mean±SD
N 30±1.4 28±0.9 35.7±1.1 30±1.5 33±0.9 32.7±0.9 30.7±1.5 35±1.1 30.3±1.5 R+Sulfo-CIP (500+5)µg
N 28±0.6 25±1 25.3±1.4 25.7±1.5 25±1 27±0.6 28±0.5 28±0.5 29±0.6 R+CIP (500+5)µg
N 25±1.1 24±1.1 20±1.4 24±1.1 28±0.6 25±1 20±1.5 23±1.1 25.7±0.6 Q+Sulfo-CIP (500+5)µg

R+CIP=rutin+ciprofloxacin. Q+sulfo, CIP=quercetin+sulfociprofloxacin. SD=standard deviation. N=no antibacterial sensitivity. Values are mean±SD, n=3, active value>10.

CONCLUSION

From the antibiotic sensitivity tests, it is evident that natural compounds rutin, CIP, and its metabolite Sulfo-CIP had a strong antibacterial effect and it was synergistic in case of combination. Therefore, the prescription of two compounds together should be taken into consideration to confront the advanced resistance of bacteria.

ACKNOWLEDGMENT

This work has been supported by Alwatania Private University, Syria. The authors are thankful to Microbiology Laboratory in Aleppo University Hospital, where necessary isolates were obtained.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Yu W, Alexander D, MacKerell Jr. Computer-aided drug design methods. Methods Mol Biol. 2018 Jan 1;1520:185-6.

  2. Warren GL, Andrews CW, Capelli AM, Clarke B, LaLonde J, Lambert MH. A critical assessment of docking programs and scoring functions. J Med Chem. 2006 Aug 13;49(20):5912-31. doi: 10.1021/jm050362n, PMID 17004707.

  3. Wang J, Dokholyan NV. MedusaDock 2.0: efficient and accurate protein-ligand docking with constraints. J Chem Inf Model. 2019 Apr 4;59(6):2509-15. doi: 10.1021/acs.jcim.8b00905, PMID 30946779.

  4. Lokesh R, Divya J, Suganya K, Venkatesh S, Jayarama R. Anti-methicillin resistant staphylococcus aureus potential of phytochemicals in Terminalia catappa and they’re proposed in silico mechanism of action. Asian J Pharm Clin. 2019 Aug 8;12(10):134-7.

  5. Tiwari HK, Das AK, Sapkota D, Sivrajan K, Pahwa VK. Methicillin resistant staphylococcus aureus: prevalence and antibiogram in a tertiary care hospital in western Nepal. J Infect Dev Ctries. 2009 Oct 22;3(9):681-4. doi: 10.3855/jidc.86, PMID 19858569.

  6. Nursanna IS, Muhammad H, Novi Y. Identification of chemical compounds and antibacterial activity of 96% ethanol extract from Moringa oleifera lam. leaves against MRSA (methicillin-resistant staphylococcus aureus). IJAP. 2021 Feb 10;13(2):111-4.

  7. Bhat GK, Kumari J, Shenoy SM, Hegde A, MC, KV. Vancomycin intermediate and vancomycin-resistant staphylococcus aureus– mechanisms, clinical significance and detection. Asian J Pharm Clin Res. 2017 Mar 28;10(6):32-7. doi: 10.22159/ajpcr.2017.v10i6.15993.

  8. Brown DF, Edwards DI, Hawkey PM, Morrison D, Ridgway GL, Towner KJ. Guidelines for the laboratory diagnosis and susceptibility testing of methicillin-resistant Staphylococcus aureus (MRSA). J Antimicrob Chemother. 2005 Dec 1;56(6):1000-18. doi: 10.1093/jac/dki372, PMID 16293678.

  9. Fisher LM, Lawrence JM, Josty IC, Hopewell R, Margerrison EEC, Cullen ME. Ciprofloxacin and the fluoroquinolones. Am J Med. 1989;87(5):S2-8. doi: 10.1016/0002-9343(89)90010-7.

  10. Neeta D, Mohiuddin S. Fluoroquinolone therapy in staphylococcus aureus infections: where do we stand? J Lab Phys. 2020 Apr 7;5(2):112-209.

  11. Issa NT, Wathieu H, Ojo A, Byers SW, Dakshanamurthy S. Drug metabolism in preclinical drug development: A survey of the discovery process, toxicology, and computational tools. Curr Drug Metab. 2017;18(6):556-65. doi: 10.2174/1389200218666170316093301, PMID 28302026.

  12. Al-Omar MA. Ciprofloxacin: drug metabolism and pharmacokinetic profile. Profiles Drug Subst Excip Relat Methodol. 2005;31:209-14. doi: 10.1016/S0099-5428(04)31006-3, PMID 22469042.

  13. Zeiler HJ, Petersen U, Gau W, Ploschke HJ. Antibacterial activity of the metabolites of ciprofloxacin and its significance in the bioassay. Arzneimittelforschung. 1987 Feb;37(2):131-4. PMID 3555512.

  14. Rios JL, Recio MC. Medicinal plants and antimicrobial activity. J Ethnopharmacol. 2005 Aug 22;100(1-2):80-4. doi: 10.1016/j.jep.2005.04.025, PMID 15964727.

  15. Koehn FE, Carter GT. The evolving role of natural products in drug discovery. Nat Rev Drug Discov. 2005 Mar;4(3):206-20. doi: 10.1038/nrd1657, PMID 15729362.

  16. Cushnie TP, Lamb AJ. Antimicrobial activity of flavonoids. Int J Antimicrob Agents. 2005 Nov;26(5):343-56. doi: 10.1016/j.ijantimicag.2005.09.002, PMID 16323269.

  17. Xueni S, Yintao ZH, Ying ZH, Xichen L, Lili Y, Ting P. NPCDR: natural product-based drug combination and its disease-specific molecular regulation. Nucleic Acids Res. 2022 Jan 7;50(1):1324-33.

  18. Berman HK, Henrick K, Nakamura H. Announcing the worldwide protein data bank. Nat Struct Biol. 2003;10(12):980. doi: 10.1038/nsb1203-980, PMID 14634627.

  19. Berman HM, Westbrook J, Feng Z, Gilliland G, Bhat TN, Weissig H. The protein data bank. Nucleic Acids Res. 2000 Jan 1;28(1):235-42. doi: 10.1093/nar/28.1.235, PMID 10592235.

  20. Mukherjee S, Roychowdhury A, Dutta D, Das AK. Crystal structures of triosephosphate isomerase from methicillin-resistant staphylococcus aureus MRSA252 provide structural insights into novel modes of ligand binding and unique conformations of catalytic loop. Biochimie. 2012 Dec;94(12):2532-44. doi: 10.1016/j.biochi.2012.07.001, PMID 22813930.

  21. Ahmad I, Aqil F. In vitro efficacy of bioactive extracts of 15 medicinal plants against ESbetaL-producing multidrug-resistant enteric bacteria. Microbiol Res. 2007;162(3):264-75. doi: 10.1016/j.micres.2006.06.010, PMID 16875811.

  22. Sanchez Maldonado AF, Schieber A, Gänzle MG. Structure-function relationships of the antibacterial activity of phenolic acids and their metabolism by lactic acid bacteria. J Appl Microbiol. 2011 Nov;111(5):1176-84. doi: 10.1111/j.1365-2672.2011.05141.x, PMID 21895894.

  23. Rusch M, Spielmeyer A, Zorn H, Hamscher G. Biotransformation of ciprofloxacin by Xylaria longipes: structure elucidation and residual antibacterial activity of metabolites. Appl Microbiol Biotechnol. 2018 Oct;102(19):8573-84. doi: 10.1007/s00253-018-9231-y, PMID 30030566.

  24. Irwin JJ, Shoichet BK. Zinc-a free database of commercially available compounds for virtual screening. J Chem Inf Model. 2005 Jan;45(1):177-82. doi: 10.1021/ci049714+, PMID 15667143.

  25. Hsu KC, Chen YF, Lin SR, Yang JM. iGEMDOCK: a graphical environment of enhancing GEMDOCK using pharmacological interactions and post-screening analysis. BMC Bioinf. 2011;12 Suppl 1:S33. doi: 10.1186/1471-2105-12-S1-S33, PMID 21342564.

  26. Hsu KC, Chen YF, Lin SR, Yang JM. iGEMDOCK: a graphical environment of enhancing GEMDOCK using pharmacological interactions and post-screening analysis. BMC Bioinformatics. 2011 Feb 15;12Suppl 1:S33. doi: 10.1186/1471-2105-12-S1-S33, PMID 21342564.

  27. Malik M, Adil M, Shubhra Ch, Saima W. Homology modeling and molecular docking analysis of human RAC-alpha serine/threonine-protein kinase. Int J Pharm Biol Sci. 2014;5(1):1033-42.

  28. Bitencourt Ferreira G, de Azevedo WF Jr. Docking with GemDock. Methods Mol Biol. 2019;2053:169-88. doi: 10.1007/978-1-4939-9752-7_11, PMID 31452105.

  29. Azad I, Khan T, Maurya AK, Irfan Azad M, Mishra N, Alanazi AM. Identification of severe acute respiratory syndrome coronavirus-2 inhibitors through in silico structure-based virtual screening and molecular interaction studies. J Mol Recognit. 2021 Oct;34(10):e2918. doi: 10.1002/jmr.2918, PMID 34132436.

  30. Engelkirk PG, Duben JL. Laboratory diagnosis of infectious diseases is essential of diagnostic microbiology in gram-positive cocci. 6th ed. Philadelphia: Lippincott Williams and Wilkins; 2008.

  31. Bradshaw LJ. Laboratory microbiology. 4th ed. Fort Worth: Saunders College Publishing; 1992.

  32. Balouiri M, Sadiki M, Ibnsouda SK. Methods for in vitro evaluating antimicrobial activity: a review. J Pharm Anal. 2016 Apr;6(2):71-9. doi: 10.1016/j.jpha.2015.11.005, PMID 29403965.

  33. Valgas C, Souza SMd, Smania EFA, Smania A. Screening methods to determine antibacterial activity of natural products. Braz J Microbiol. 2007;38(2):369-80. doi: 10.1590/S1517-83822007000200034.

  34. Fischbach MA. Combination therapies for combating antimicrobial resistance. Curr Opin Microbiol. 2011 Oct;14(5):519-23. doi: 10.1016/j.mib.2011.08.003, PMID 21900036.

  35. Ganotra GK, Wade RC. Prediction of drug-target binding kinetics by comparative binding energy analysis. ACS Med Chem Lett. 2018;9(11):1134-9. doi: 10.1021/ acsmedchemlett.8b00397, PMID 30429958.

  36. Zeiler HJ, Petersen U, Gau W, Ploschke HJ. Antibacterial activity of the metabolites of ciprofloxacin and its significance in the bioassay. Arzneimittelforschung. 1987 Feb;37(2):131-4. PMID 3555512.

  37. Emami S, Shafiee A, Foroumadi A. Structural features of new quinolones and relationship to antibacterial activity against gram-positive bacteria. Mini Rev Med Chem. 2006;6(4):375-86. doi: 10.2174/138955706776361493, PMID 16613574.

  38. Arima H, Ashida H, Danno G. Rutin-enhanced antibacterial activities of flavonoids against Bacillus cereus and Salmonella enteritidis. Biosci Biotechnol Biochem. 2002 May;66(5):1009-14. doi: 10.1271/bbb.66.1009, PMID 12092809.

  39. Meng XY, Zhang HX, Mezei M, Cui M. Molecular docking: a powerful approach for structure-based drug discovery. Curr Comput Aided Drug Des. 2011 Jun;7(2):146-57. doi: 10.2174/157340911795677602, PMID 21534921.

  40. Jain AN. Scoring functions for protein-ligand docking. Curr Protein Pept Sci. 2006 Oct;7(5):407-20. doi: 10.2174/ 138920306778559395, PMID 17073693.

  41. Huang SY, Grinter SZ, Zou X. Scoring functions and their evaluation methods for protein-ligand docking: recent advances and future directions. Phys Chem Chem Phys. 2010;12(40):12899-908. doi: 10.1039/c0cp00151a, PMID 20730182.

  42. Bauer AW, Kirby WM, Sherris JC, Turck M. Antibiotic susceptibility testing by a standardized single disk method. Am J Clin Pathol. 1966 Apr;45(4):493-6. doi: 10.1093/ ajcp/45.4_ts.493, PMID 5325707.

  43. Xie Y, Yang W, Tang F, Chen X, Ren L. Antibacterial activities of flavonoids: structure-activity relationship and mechanism. Curr Med Chem. 2015;22(1):132-49. doi: 10.2174/ 0929867321666140916113443, PMID 25245513.

  44. Barbieri R, Coppo E, Marchese A, Daglia M, Sobarzo Sanchez E, Nabavi SF. Phytochemicals for human disease: an update on plant-derived compounds antibacterial activity. Microbiol Res. 2017;196:44-68. doi: 10.1016/j.micres.2016.12.003, PMID 28164790.

  45. Chaisin T, Rudeekulthamrong P, Kaulpiboon J. Enzymatic synthesis, structural analysis, and evaluation of antibacterial activity and α-glucosidase inhibition of hesperidin glycosides. Catalysts. 2021;11(5):532-6. doi: 10.3390/ catal11050532.

  46. Bouarab Chibane L, Forquet V, Lanteri P, Clement Y, Leonard Akkari L, Oulahal N. Antibacterial properties of polyphenols: characterization and QSAR (quantitative structure-activity relationship) models. Front Microbiol. 2019 Apr 18;10:829. doi: 10.3389/fmicb.2019.00829, PMID 31057527.

  47. Vysakh PR, Jeya MP RV, MJ. A comparative analysis of community-acquired and hospital-acquired methicillin-resistant staphylococcus aureus. J Clin Diagn Res. 2013 Jul;7(7):1339-42. doi: 10.7860/JCDR/2013/5302.3139, PMID 23998061.

  48. LeBel M. Ciprofloxacin: chemistry, mechanism of action, resistance, antimicrobial spectrum, pharmacokinetics, clinical trials, and adverse reactions. Pharmacotherapy. 1988;8(1):3-33. doi: 10.1002/j.1875-9114.1988.tb04058.x, PMID 2836821.

  49. Drusano GL. An overview of the pharmacology of intravenously administered ciprofloxacin. The American Journal of Medicine. 1987 Apr 1;82(4A):339-45. PMID 3578325.

  50. Bergan T, Thorsteinsson SB, Rohwedder R, Scholl H. Elimination of ciprofloxacin and three major metabolites and consequences of reduced renal function. Chemotherapy. 1989;35(6):393-405. doi: 10.1159/000238702, PMID 2612228.

  51. Cottarel G, Wierzbowski J. Combination drugs, an emerging option for antibacterial therapy. Trends Biotechnol. 2007 Dec;25(12):547-55. doi: 10.1016/j.tibtech.2007.09.004, PMID 17997179.

  52. Arima H, Ashida H, Danno G. Rutin-enhanced antibacterial activities of flavonoids against Bacillus cereus and Salmonella enteritidis. Biosci Biotechnol Biochem. 2002 May;66(5):1009-14. doi: 10.1271/bbb.66.1009, PMID 12092809.

  53. Caesar LK, Cech NB. Synergy and antagonism in natural product extracts: when 1+1 does not equal 2. Nat Prod Rep. 2019 Jun 19;36(6):869-88. doi: 10.1039/c9np00011a, PMID 31187844.
