Int J Pharm Pharm Sci, Vol 16, Issue 12, 1-7Review Article

TECHNICAL AND PATENT PERSPECTIVE ON FILM FORMING TOPICAL SPRAYS

M. H. DEHGHAN*, SAILI P. RAJPUT

Department of Pharmaceutics, Maulana Azad Educational Trust’s Y. B. Chavan College of Pharmacy, Aurangabad-431003, Maharashtra, India
*Corresponding author: M. H. Dehghan; *Email: mhdehghan@hotmail.com

Received: 20 Jul 2024, Revised and Accepted: 25 Oct 2024

ABSTRACT

Film-forming systems were a viable option for topical and transdermal medication administration in the present study. Medication administered via the skin serves two purposes: topical treatment of skin disorders and transdermal drug absorption into the circulation. Apart from the ease of self-administration, the topical route provides a broad and diverse surface and functions as a substitute for oral and hypodermic injection drug delivery routes. Existing dosage forms, such as creams, patches, and ointments, have several drawbacks. In addition to being unsightly, patches can be painful to put on curved surfaces, create discomfort while peeling off, and most often cause skin irritation because of their occlusive qualities, which block sweat ducts and prevent perspiration from evaporating from the skin surface. This review encompasses the mechanism of polymers, such as ethyl cellulose and Eudragit types, plasticizers, and penetration enhancers utilized in film formation. Overall, polymeric film-forming sprays exhibit substantial potential for the convenient administration of antibiotics and antiseptics to treat bacterial, fungal, and viral skin infections. The application of topical medication is thought to result in both local and systemic effects. The physicochemical characteristics of the medication and patient adherence determine how well the topical treatment works. Poor permeability and poor adherence to the skin are some of the disadvantages of conventional pharmaceutical formulations for topical and dermatological administration. The development of medication delivery technologies intended for topical administration to the skin includes the use of topical film-forming systems.

Keywords: Anti-fungal agents, Film-forming agents, Film-forming systems, Patented Formulations, Skin infections, Sustained drug release, Topical drug delivery system, Transdermal sprays

© 2024 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijpps.2024v16i12.52109 Journal homepage: https://innovareacademics.in/journals/index.php/ijpps

INTRODUCTION

The skin's intricate structure and characteristics serve as the body's most effective barrier against environmental and external threats while also assisting in maintaining homeostasis. This purpose is primarily served by the stratum corneum, which is the outermost layer of the epidermis. The thickness of the epidermis outer layer, corneocyte size, and superficial lipid content affect the characteristics of the skin and can influence the development of several dermatological illnesses. Anatomical areas with thick epidermis are more resistant to external factors. The condition of the epidermal barrier depends on the amount of serum, hydration, and loss of water. The face, which has a very thin covering, is prone to damage from external sources, but also has a very fast rate of regeneration [1]. The corneocyte size within a layer determines the absorption of material from the skin's surface, and cell size has an inverse relationship with absorption. Skin is a visible organ that interacts with the environment. Additionally, the skin contributes to vitamin D synthesis by activating vitamin D in the body by converting 7-dehydrocholesterol through a 2 hydroxyl group.

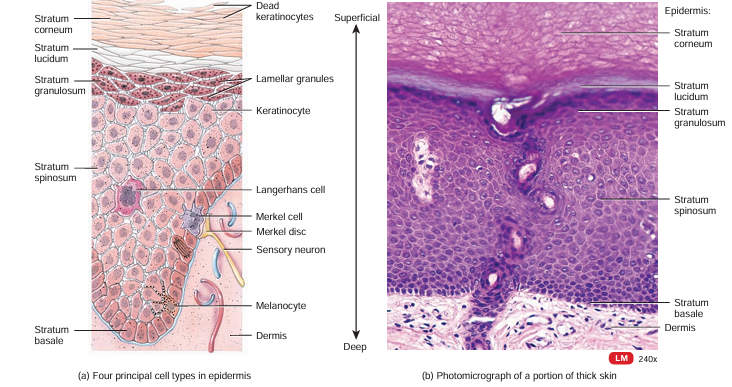

Fig. 1: Layers of epidermis [2]

Various skin infections

Microbes can infiltrate the skin and soft tissue underneath, causing infections of the skin and soft tissues. Their presentations, etiologies, and severities vary. Dermatological infections affect between 7 and 10 percent of hospitalized patients. Skin and tissue infections can produce various clinical symptoms, making the diagnosis challenging. The selection of antimicrobial therapy is based on an understanding of possible microorganisms, point of entry, severity of the disease, and clinical sequelae [3].

Introduction to fungal infections

The recent increase in fungal infections has necessitated immediate intervention. Fungal infections are seldom diagnosed in the initial stages, which can intensify the severity of infections and complicate treatment procedures. Fungal pathogens employ various mechanisms to evade the host immune system and to progress the severity of infections. Fungal infections pose a significant threat to public health. The severity of fungal infections can vary, and they can be superficial, cutaneous, subcutaneous, mucosal, or systemic. Organisms, such as Candida spp., are part of the human microbiota that can cause opportunistic infections in individuals and life-threatening infections (invasive candidiasis) in immunocompromised patients, such as human immunodeficiency virus (HIV) patients, cancer patients receiving chemotherapy, and patients receiving immunosuppressive drugs. The Centers for Disease Control and Prevention (CDC) declared September 20–24, 2021, as a fungal disease awareness week to educate and highlight the importance of early diagnosis of fungal infections to alleviate the debilitating effects (CDC website).

Various fungal infections

Film forming systems

FFS, a novel film-forming technique, is a viable alternative to the traditional transdermal and topical preparations. This dosage type is described as non-solid and creates a film "in situ," or after delivery, on the skin or any other body surface. Both a solid polymeric substance that serves as a matrix for the delayed release of the drug to the skin and the residual liquid film that is quickly taken up by the stratum corneum are potential results of the procedure. In these systems, the drug is mixed in the vehicle together with film-forming excipients that evaporate the solvent and leave a film behind the excipients and drug when they come into contact with the skin. The resulting film could be a solid polymeric substance that serves as a matrix for continuous drug release. Because they do not have penetration enhancers that might have a systemic impact, local FFSs are used to treat wounds and skin conditions. The ability of film-forming dosage forms to improve pharmacokinetics and provide prolonged release is advantageous for topical treatments. The topical system bypasses first-pass metabolism, and problems related to intravenous therapy, and avoids risks related to absorption, such as gastric emptying time, various enzymes, and pH changes [7].

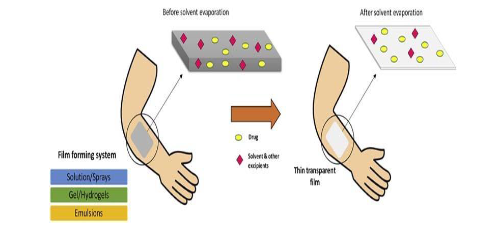

Fig. 2: Film forming system []

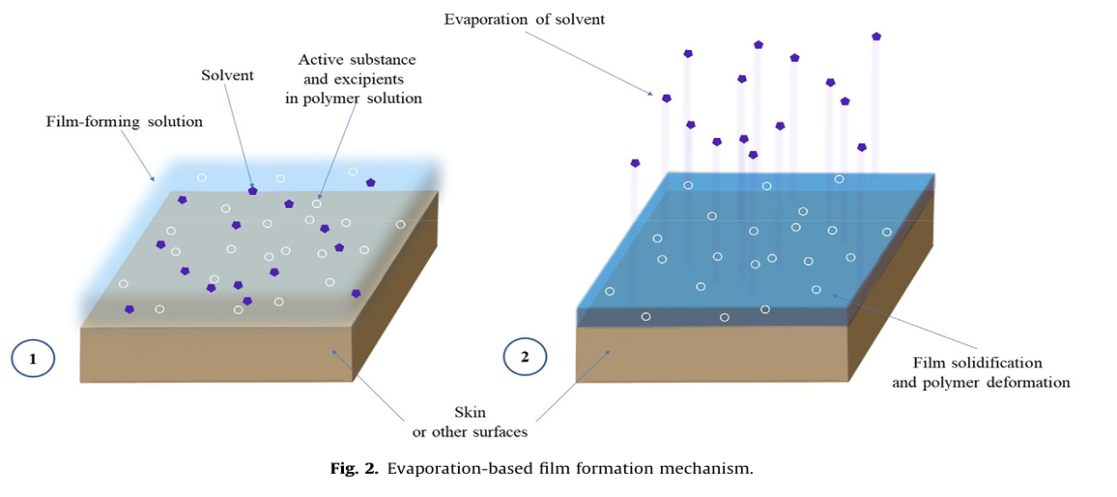

Fig. 3: Mechanism of film forming system [10]

Elements of film-forming sprays

Polymers

The main excipient that influences the characteristics of the film-forming system is the polymer. The viscosity of the formulation and the appearance of the produced film were both influenced by the polymer. In conjunction with a plasticizer, it establishes the pliability and skin adherence of the film. Moreover, the polymer affected the physical stability and solubility of the drug in the film. Ex. ethyl cellulose, chitosan, eudragit E100, carbapol 940, etc.

Crosslinkers

Cross-linkers can affect the glass transition, elasticity, solubility, polymer film stiffness, and viscosity. For example, sodium chloride

Penetration enhancer

Eutectic mixes are frequently used to improve medication absorption. One of the most powerful eutectic mixtures is the combination of menthol and camphor.

Solvents

Despite its rapid evaporation, the solvent is an essential component of the film-forming system and does not end up in the film. The ability of a drug to modify its distribution to the skin in a solvent is limited to solvents with strong solubilizing power. In addition to its indirect effect on penetration, the solvent may also have a direct effect on drug flow. Despite the short skin contact duration, drug transport can be enhanced to varying degrees based on the type of solvent and its ability to enhance skin penetration. Ex. Ethanol, Acetone, etc.

Propellants: Ex. dimethyl ether

Plasticizers

Plasticizers play a key role in facilitating film formation, and the final film is more flexible. Additionally, they can be used to regulate the film’s skin adherence to some extent. Plasticizers must have minimal skin permeability and work well with the polymers being utilized. Ex. PEG-200 (Polyethylene Glycol-200), PEG-400 (Polyethylene Glycol-400)

Surfactants: Ex. Tweens 80

Sprays film-forming sprays: an assessment and characterization

pH determination

A digital PH meter was used to calculate the pH.

Viscosity

If the viscosity or concentration is higher, the spreadability decreases. The viscosity of the solution was determined at 25 °C±1 °C using a Brookfield Viscometer.

Tonicity

The spray formed should be isotonic. If it’s non-isotonic, then it causes irritancy to the skin.

Bioadhesive strength

The bioadhesive strength was evaluated by attaching the film to mouse skin, and for five minutes, it was permitted to engage with the skin. The total force required to detach the film was then recorded.

Fb=

Tensile strength

The film can withstand the stress and applied pressure.

Surface morphology of film

Transmission electron microscopy (TEM) and scanning electron microscopy (SEM) were used to investigate the surface roughness and uniformity of the film.

Film formation time

The drying time of the film was measured when the formulation was sprayed onto the skin to determine how quickly it formed.

Drug content

The mixture was sprayed into a beaker containing 50 ml of methanol. After shaking for 10 min, 100 ml of methanol was added. After adding 10 ml of the solution, filtering it, and measuring the amount of dissolved medication, the concentration was ascertained using a UV spectrophotometer.

Washability

The dried film was used to evaluate its wetting. After cleaning with water, the film was rated on an ordinal scale (i. e., readily, somewhat, and cleaned). If the film-forming solutions come into contact with delicate body parts, such as the mouth and eyes, the convenience of misting them with water will be helpful.

Skin irritancy test

These studies were carried out to evaluate the irritant potential of the developed formulation in vivo on rat skin (rats: weight range: 250-300 gm) after its application. The hair on the dorsal side (3 cm × 3 cm) of male and female wistar rats was removed with an electric clipper in the direction of the tail to the head without damaging the skin. Three groups of one rat each were included. One group of rats was treated as a control, the second group received formalin solution, and the third group was treated with an optimized 1% w/w film-forming spray formulation; the formulation should be applied uniformly on the dorsal region. The animals were observed for signs of itching or any change in the skin, such as erythema and edema [11].

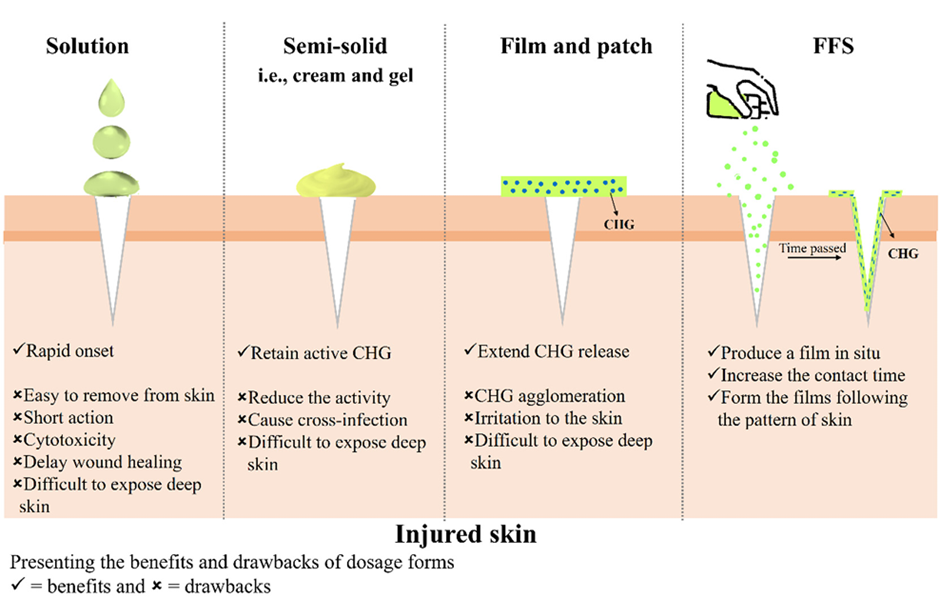

Fig. 4: Graphical comparison between topical dosage forms []

Table 1: Difference between various topical dosage forms

Characteristics Semisolid dosage form Transdermal patches Film forming spray
Visual appearance Visible Highly noticeable Nearly Invisible
Skin sensation Occasionally sticky and oily Non-sticky and greasy Non-sticky and greasy
Administration High Convenient Convenient
Dose adjustment High Low High
Dosing interval 1 or 2 d 1-7 d 1-2 days
Sustained release No Yes Yes
Occlusive Characteristics No Yes No
Wipe off resistance No Yes Yes
Residual presence Possible Possible No

Table 2: List of patented formulations for film-forming systems

S. No. Drug/Dosage form/Title Excipients Method of preparation/ Evaluation tests Reference
1. Glycopyrrolate Methyl Methacrylate, Eudragit S 100, Copolymer of Dimethylamine, Triethyl Citrate, Propylene Glycol, Acetone, Propane Solvent casting method [12]
2. Flurandrenolide

PVA (Polyvinyl Alcohol), PVP (Polyvinyl Pyrrolidone), Glycerine, Ethyl Alcohol, Benzyl Alcohol,

PEG(Polyethylene Glycol), Disodium EDTA, Citric acid

 Not Mentioned [13]
3. PVP-Iodine (Anti-microbial agent)

PVA (Polyvinyl alcohol), Glycerol

Sodium hydroxide, Tartrazine E102, Potassium iodate

 Not Mentioned [14]
4. Film Forming System

API (Active Pharmaceutical Ingredient), Plastoid B, Eudragit E100

Propylene Glycol, Sodium lauryl sulphate, Acetone, Propellant, Vitamin E, Trancutol

 Not Mentioned [15]
5. Topical Film Forming System to Treat Cows Teat Antimicrobial agent, Solvent, Pullulan/ derivative Not Mentioned [16]
6. Water-dispersible film for delivery of API to the epidermis API(Active Pharmaceutical Ingredient), Plasticizer, Humectant Viscosity test (5-500cp) [17]
7. Water Resistant Film forming composition incorporating Hydrophilic Activities

2-Ethyl Hexyl methacrylate

Ascorbic acid, tert-butyl peroxide, Methacrylic acid, Water, Methyl Methacrylate

 Not Mentioned [18]
8. Topical film delivery system API, Non-cellulosic Polymer, film-forming agent, Plasticizer, Antioxidant, Hydro alcoholic Solvent Tensile strength folding endurance thickness [19]
9. Minocycline film-forming gel Minocycline Hcl, Poloxamer 188, Absolute Alcohol, PVA(Polyvinyl Alcohol), Sod. Sulphite, Propyl Gallate, Triethyl citrate, Butyl hydroxyl toluene, Isopropyl myristate, Water Not Mentioned [17]
10. Itraconazole Itraconazole, Poloxamer 188, Absolute Alcohol, PVA (Polyvinyl Alcohol), Sod. Sulphite, Propyl Gallate, Triethyl citrate, Butyl hydroxyl, toluene, Isopropyl myristate, Water Not Mentioned [17]
11. Topical film-forming spray Bupivacaine Hcl, Plastoid B, Eudragit EPO, Propylene glycol , Transcutol, Ethanol 95%, Isopropyl Alcohol, Menthol

Solubility Stability

Particle size determination

 [20]
12. Picolinic Acid Polyacrylic acid polymer, Ethanol, Dimethyl phthalate, Benzyl Alcohol FTIR, SEM [21]
13. Film Forming System PVA(Polyvinyl alcohol), PVP(Polyvinyl Pyrrolidone), Benzyl alcohol, Alpha-tocopherol, Ethylene glycol Not Mentioned [17]
14. Topical Film Forming Spray Bupivacaine Hcl,Povidone K30, PEG 300, Ethanol 95%, Menthol, Oleyl Alcohol Solvent Evaporation [22]
15. Film-forming composition for spraying on skin A lipophilic active agent like retinoic acid, Betamethasone polydimethylsiloxane oil, Ethanol, isopropanol Not Mentioned [23]
16. Topical spray comprising a film-forming composition API, Plastoid B, Eudragit E100, PEG, SLS (Sodium Lauryl Sulphate), Acetone, Isopropyl alcohol, Vitamin E, Transcutol Not Mentioned [24]
17. Film Forming Compositions Avalure AC118, Avulure UK425, Sodium chloride, Glycerol, Water Not Mentioned [25]
18. Protective film-forming spray for skin surface PVP, PVA, DME (Dimethyl ether) Propellant, 1.3 Butylene glycol, 95% ethanol, Plascize L53D, Plascize L-53, SH556 FLUID, SH245 Not Mentioned [26]
19. Film forming composition for topical use and delivery of active ingredients

Polyurethane-1, HPMC (Hydroxypropyl methylcellulose)

Magnesium Aluminium silicate, Water, alcohol, Iso-paraffin

Glycol, Carbomer, AMC (amino methyl propanol), Titanium dioxide, mica pearl, Iron oxide, Dimethicone copolyol and cyclomethicone

 Not Mentioned [27]
20. Therapeutic film forming composition and treatment system therefor

Clobetasol propionate, Urea, Dibutyl phthalate, Eudragit RL-100

Ethanol, Water, Acetone

 Not Mentioned [28]
21. Topical application of enzyme using peelable film (cosmetic application) FFA (Film Forming agent) + Polyvinyl alcohol, Protease enzyme, Polyol 60-80%, Xanthan gum Not Mentioned [29]
22. Topical composition for covering a skin lesion PVA, Chitosan, PEG, Glycerol, Benzalkonium chloride, Aloe Vera, Lactic acid, water Tensile strength, film thickness [30]
23. Film Forming silicone acrylate hybrid composition

Ethyl acetate solvent, PSA-1, 2-ethyl hexyl acrylate, methyl methacrylate, Butyl acrylate

Methyl butyronitrile

 Glass transition temperature by DSC [31]
24. Improvement in Therapeutic composition for topical application Hydroxyethyl cellulose, 2-doxy prednisolone, 17-alpha propionate, Polidene 905 emulsion Not Mentioned [32]
25. Topical Analgesic Composition Menthol, camphor, HPC(Hydroxypropyl cellulose), Vinyl caprolactum, methacrylate copolymer, Polymide-1, Pentylene glycone, vanillyl butyl, ether, menthoxypropanediol, linseed oil, Vitamin E, Essential oil, ethanol, Isopulegol. Not Mentioned [33]
26. Topical forming composition and use thereof for treatment of mycoses Nitrocellulose, castor oil, ethanol, ethyl acetate, mixture of glycerol and caprylyl glycol, and glycolic acid. Not Mentioned [34]
27. Film-forming liquid composition Ethyl acetate, cellulose acetate butyrate, triacetin, benzocaine, menthol, camphor. Not Mentioned [35]
28. Topical pharmaceutical composition, transdermal pharmaceutical composition Lecithin, Estradiol, vinyl pyrrolidone/ vinyl acetate copolymer, alcohol, silicone, Hexamethyl disiloxane Not Mentioned [36]
29. Non-leaching surface-active film composition for microbial adhesion prevention

N-methyl pyrrolidone, PVP(Kollidon 90), Polyurethane aqueous dispersion

Quaternary ammonium compound

 Not Mentioned [37]
30. Composition for treatment of epistaxis Phenylephrine HCl, Tranexamic acid, Trimethylsiloxysilicate, Sodium lauryl sulphate, Water Not Mentioned [38]
31. Sprayable film forming preparation for hair N-Vinyl pyrrolidone, Vinyl monomer, Chloro fluro hydrocarbon Not Mentioned [39]
32. In-situ film-forming composition

Water, glycerine

Poly-ethoxyethylmetha acrylate

Ethyl acetate, Acetone

Ethanol isopropanol

Chlorhexidine-diglyconate

Stability

Microbiological

LC-MS

Transparent glass container test

 [40]
33. Testosterone Transdermal Spray with Film

Testosterone, Eudragit RS 100, PEG 400, Octisalate USP

Isopropyl alcohol, ethanol

 Wash ability crystallization in vitro permeation test viscosity [41]
34. pH-sensitive mucoadhesive film-forming gel and wax film for topical and mucosal delivery of molecule Glycerine, Eudragit l 100, Sodium hydroxide, Noveon and carbomer 971 Not Mentioned [42]
35. Pharmaceutical emulsion immobilized in a thin polymer matrix and method of making them

Labrasol, Span 80, Propylene glycol, Oleic acid

HPMC(Hydroxypropyl methylcellulose), Tween 80, Water

 Not Mentioned [43]
36. Film forming composition for topical use

Sucrose fatty acid , S1670, OWA1570 , Sodium carboxymethyl cellulose, Mono/diglyceride

p-hydroxybenzoic acid, ester and water

 Not Mentioned [44]
37. Topical film forming monophasic formulation Hydrofluroalkane, Polyvinylpyrrolidone, Beclomethasone dipropionate, Ethanol, water Not Mentioned [45]
38. Water-resistant film forming Anti-microbial skin preparation

Poly(N-Vinyl pyrrolidone), Iodine, 2-ethylexylacrylamide

Polyvinyl alcohol, Polyvinyl acetate

 Not Mentioned [46]
39. Sprayable film-forming composition for improving the performance of topical preparation

Acrylate/VA copolymer

Acrylate, Water

Carrageenan and hyaluronic acid, Tocophenyl acetate

 Not Mentioned [47]
40. Agent for forming a film on the skin

Dimethiconol, Hybrid dimethicone, Surface treated silica

Cyclopenta siloxane, 1,2-Hexanediol, Water

 Not Mentioned [48]

Table 3: Different medications formulated as film-forming sprays

S. No. Drug Film forming agents Application References
1. Bupivacaine Eudragit RS 100 To enhance the local anesthetic effect [49]
2. Clotrimazole Not Mentioned Improve drug transport to achieve antifungal efficacy [50]
3. Etodolac PVP and Ethyl Cellulose For sustain drug release [51]
4. Luliconazole Eudragit RS 100 and Propylene Glycol Not Mentioned [52]
5. Miconazole nitrate Eudragit L-100 and Ethyl Cellulose Not Mentioned [53]
6. Mupirocin spray Eudragit E 100 For bacterial skin infection as well as promote wound healing [54]
7. Oxybutynin Carbopol and Lutrol To lower the incidence of Anti-cholinergic adverse events [55]
8. Chlorhexidine gluconate Eudragit RS 100 Antiseptic Application [56]
9. Voriconazole Eudragit RS 100 Antifungal Application [57]
10. Fluconazole Eudragit RS100 and Ethyl cellulose Antifungal Application [58]
11. Ketorolac Not Mentioned For pain relief [59]
12. Silver Sulfadiazine HPMC E5LV Not Mentioned [60]
13. Ropivacaine Not Mentioned Topical efficacy in alleviating pain [61]
14. Ketoprofen Poloxamer Anti-inflammatory application [62]
15. Estradiol Eudragit RLPO Not Mentioned [63]
16. Itraconazole Eudragit RL 100 For treatment of dermatophytosis [64]
17. Metronidazole HPMC and Ethyl Cellulose Use to treat protozoal infection [65]
18. Dexketoprofen Eudragit RL, Kollidone PF12, PVP K30. Transdermal Drug delivery of Dexketoprofen [66]
19. Vitamin D3 Eudragit RS 100, PVP K30 Alternative to oral and Parenteral route of administration [67]

CONCLUSION

Film-forming sprays create an in-situ film on the skin for topical drug delivery after the solvent evaporates. FFS represents an innovative platform for localized and sustained topical therapies. Multiple drug formulations have been successfully developed and patented to deliver antibacterial, antifungal, analgesic, anti-inflammatory, and hormonal agents. They offer benefits, such as improved drug pharmacokinetics, prolonged release, and avoidance of systemic effects. Commonly used film-forming agents include ethyl cellulose, chitosan, and Eudragit types, and plasticizers such as polyethylene glycol (PEG) improve flexibility. Solvents, such as ethanol, aid in fast drying. Challenges still need attention, including controlling drug crystallization in the film, measurement of residual content, and comparing efficiency to other topical dosage forms. In summary, film-forming sprays show promise for the convenient treatment of skin conditions while avoiding systemic side effects. Further patents and products are expected as research continues to optimize and expand the applications of these convenient and effective dosage forms.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All authors have contributed equally

CONFLICTS OF INTERESTS

The authors declare no conflicts of interest. The authors alone are responsible for the content and writing of this manuscript.

REFERENCES

  1. Boer M, Duchnik E, Maleszka R, Marchlewicz M. Structural and biophysical characteristics of human skin in maintaining proper epidermal barrier functions. Postepy Dermatol Alergol. 2016;33(1):1-5. doi: 10.5114/pdia.2015.48037, PMID 26985171.

  2. Jenkins G, Tortora GJ. Anatomy and physiology. John Wiley & Sons; 2016 May 3.

  3. KI V, Rotstein C. Bacterial skin and soft tissue infections in adults: a review of their epidemiology pathogenesis diagnosis treatment and site of care. Can J Infect dis Med Microbiol. 2008 Mar;19(2):173-84. doi: 10.1155/2008/846453, PMID 19352449.

  4. Wisplinghoff H, Bischoff T, Tallent SM, Seifert H, Wenzel RP, Edmond MB. Nosocomial bloodstream infections in US hospitals: analysis of 24,179 cases from a prospective nationwide surveillance study. Clin Infect Dis. 2004;39(3):309-17. doi: 10.1086/421946, PMID 15306996.

  5. Pfaller MA, Diekema DJ, Turnidge JD, Castanheira M, Jones RN. Twenty years of the sentry antifungal surveillance program: results for candida species from 1997-2016. Open Forum Infect Dis. 2019;6 Suppl 1:S79-94. doi: 10.1093/ofid/ofy358, PMID 30895218.

  6. Gonzalez LM, Ruder WC, Mitchell AP, Messner WC, Leduc PR. Sudden motility reversal indicates sensing of magnetic field gradients in magneto spirillum magneticum AMB-1 strain. ISME J. 2015;9(6):1399-409. doi: 10.1038/ismej.2014.224, PMID 25478682.

  7. Vishwakarma G, Singh Panwar A. Emulgel emergent systems: at a glance for topical drug delivery. Asian J Pharm Clin Res. 2022;15(3):8-14. doi: 10.22159/ajpcr.2022.v15i3.43876.

  8. Kathe K, Kathpalia H. Film forming systems for topical and transdermal drug delivery. In: Asian Journal of Pharmaceutical Research; 2016. p. 4-5.

  9. Abd UK. Film forming spray for topical drug delivery article in drug design development and therapy; 2020. p. 4-5.

  10. Bakhrushina EO, Shumkova MM, Sergienko FS, Novozhilova EV, Demina NB. Spray film forming systems as promising topical in situ systems: a review. Saudi Pharm J. 2023 Jan;31(1):154-69. doi: 10.1016/j.jsps.2022.11.014, PMID 36685308, PMCID PMC9845128.

  11. Mori NM, Patel P, Sheth NR, Rathod LV, Ashara KC. Fabrication and characterization of film-forming voriconazole transdermal spray for the treatment of fungal infection. Bull Fac Pharm Cairo Univ. 2017;55(1):41-51. doi: 10.1016/j.bfopcu.2017.01.001.

  12. Manam M, Rao M Prasad. Top spray formulation glycopyrrolate US 20190099344 A1 Apr; 2019.

  13. Chavers TH. Flurandrenolide film formation. US4210633. A Jul; 1980.

  14. Tillmann K, Jonatham K. An aqueous antimicrobial film forming composition for teat treatment by spray application. WO2016/206729 A1, Dec; 2016.

  15. Amar L. Topical spray. Vol. WO00 (45795, August); 2000.

  16. Fahim AU. Barrier film forming composition and methods of use. US 8,778,369 B2, Jul; 2014.

  17. Mc Entire Edward Enns. Water dispersible films for delivery of active agents to the epidermis. US2007/0258935 A1 Nov; 2007.

  18. Saafir A, Hajduk D. Water resistant film forming composition incorporating hydrophilic activities. US2007/0238807 A1, Oct; 2007.

  19. Paul A, Sarkar A. Topical film delivery system. US 20170049789; 2017.

  20. Kottayeil S, Kumar A. Topical film-forming spray. US2022/0133642 A1; 2022.

  21. Edith M. Anti-acne topical films. US 20140271931; 2014.

  22. George K, Kumar A. Topical film-forming spray. EP 3. 2021;B1:80-380.

  23. Laurent P. Film forming composition for spraying on the skin. US 6,325,990 B1; 2001.

  24. Raut P, Malhotra G. Topical sprays comprising a film-forming composition. EP 1. 2003;B1:661:150.

  25. Hardy. C Film forming composition. US 9,782,514 B2; 2017.

  26. Suzuki H. Protective film-forming spray for skin surface. US 2021/0330509 A1; 2021.

  27. Halloran D, Yelena Z. Film forming composition for topical use and delivery of active ingredients. US 6,797,262 B2, Sep; 2004.

  28. Israel D. John kuleza therapeutic film forming composition and treatment system therefor US 20040071760, Vol A1 (Apr); 2004.

  29. Luppo Edens BN. Topical application of enzymes using a peelable film. US 20010006675; 2001.

  30. Celestino R. Topical composition for covering a skin lesion. EP 1. 2002;A1:352.

  31. Thomas X. Topical compositions WO 2012/09575 A2; 2022.

  32. John M, Neville J. Improvement in therapeutic composition for topical application 1213295; 1970.

  33. Das D, Vizzotli E. Topical analgesic composition US2020/0345696. Vol. A1; 2020.

  34. Claire B. Topical film forming composition and use thereof for treating Mycosis. US2014/0128468 A1; 2014.

  35. Kendel N. Film forming liquid composition. EP 1. 2003;A1:137-321.

  36. Amar M. Topical pharmaceutical composition WO 2009/101412. Vol. A1 (Aug); 2009.

  37. Karen C. Non-leaching surface-active film compositions for microbial adhesion prevention. 2007;A1(Jul):CA2636975.

  38. Lozinsky E. Composition for the treatment of epistaxis. WO2016/178053 A1; Nov 2016.

  39. Film-forming solutions of copolymers of N-vinyl pyrrolidone and N-vinyl ester. 1960;820:970.

  40. Troyano N. In situ film forming composition WO 2022/234081. Vol. A1; 2022.

  41. Dandiker Y, Panchal M. Testosterone transdermal spray with film. WO2019/140087 A1 Jul; 2019.

  42. Russell M, Jay M. Ph-sensitive mucoadhesive film-forming gels and wax film composites suitable for topical and mucosal delivery of molecules; 2002;WO02(051382):A2.

  43. Sapkal P, Davel L. Pharmaceutical microemulsion immobilized in a thin polymer matrix and method of making them. WO2015/107544 A2 Jul; 2015.

  44. Inorie E, Jmaes. Film forming composition for topical use. WO86/07255; Dec 1986.

  45. Barry Brown A. Topical film forming monophasic formulation. NZ567022 A; 2011.

  46. David K. Water resistant film forming antimicrobial skin preparation. 2001;B1(May):US6228354.

  47. Wilson L. Sprayable film forming composition for improving the performance of topical preparation. 2021;B1:US11129788.

  48. Kim B. Agent for forming film on skin US2021/0361556. Vol. A1; 2021.

  49. Cho CW, Kim DB, Shin SC. Development of bioadhesive transdermal bupivacaine gels for enhanced local anesthetic action. Iran J Pharm Res. 2012;11(2):423-31. PMID 24250466, PMCID PMC3832163.

  50. Paradkar M, Thakkar V, Soni T, Gandhi T, Gohel M. Formulation and evaluation of clotrimazole transdermal spray. Drug Dev Ind Pharm. 2015;41(10):1718-25. doi: 10.3109/03639045.2014.1002408, PMID 25579237.

  51. Etodolac topical spray films development characterization and in vitro evaluation. Int J Pharmacol Res. 2020.

  52. Dhimmar B, Pokale R, Rahamathulla M, Hani U, Alshahrani MY, Alshehri SM. Newfangled topical film forming solution for facilitated antifungal therapy: design development characterization and in vitro evaluation. Polymers. 2023;15(4):1. doi: 10.3390/polym15041003, PMID 36850286.

  53. Desai MN, Godbole AM, Somnache SN, Gajare PS, Pednekar AS, Manerikar S. Design development and characterization of film forming spray as novel antifungal topical formulation for superficial fungal infections. Ind J Pharm Edu Res. 2022;56(4s):s651-8. doi: 10.5530/ijper.56.4s.211.

  54. Sritharadol R, Nakpheng T, Wan Sia Heng P, Srichana T. Development of a topical mupirocin spray for antibacterial and wound healing applications. Drug Dev Ind Pharm. 2017;43(10):1715-28. doi: 10.1080/03639045.2017.1339077, PMID 28581830.

  55. Bakshi A, Bajaj AN, Malhotra G, Madan M, Amrutiya N. A novel metered dose transdermal spray formulation for oxybutynin. Indian J Pharm Sci. 2008;70(6):733-9. doi: 10.4103/0250-474X.49094, PMID 21369433.

  56. Chamsai B, Soodvilai S, Opanasopit P, Samprasit W. Topical film forming chlorhexidine gluconate sprays for antiseptic application. Pharmaceutics. 2022;14(6):1124. doi: 10.3390/pharmaceutics14061124, PMID 35745696.

  57. Abdullah N, Patil AB. Designing of novel topical in situ polymeric film forming solution spray formulation of antifungal agent: in vitro activity and in vivo characterization. Int J App Pharm. 2022:14(1):169-84. doi: 10.22159/ijap.2022v14i1.43581.

  58. Gohel MC, Nagori SA. Fabrication of modified transport fluconazole transdermal spray containing ethyl cellulose and Eudragit RS100 as film formers. AAPS Pharm Sci Tech. 2009;10(2):684-91. doi: 10.1208/s12249-009-9256-8, PMID 19462250.

  59. Ammar HO, Ghorab M, Mahmoud AA, Makram TS, Ghoneim AM. Rapid pain relief using transdermal film forming a polymeric solution of ketorolac. Pharm Dev Technol. 2013 Sep-Oct;18(5):1005-16. doi: 10.3109/10837450.2011.627867, PMID 22191998.

  60. Vasia GL, T, Chavan VP, Chanaky M, JM, H, Murthy. Development and characterization of novel film-forming polymeric solution of silver sulfadiazine for burn wound care. Pharm Sci Formulation. 2020. Available from: Available from: https://ssrn.com/abstract=3529068. [Last accessed on 31 Jan 2020].

  61. Ranade SC, Bajaj AN, Londhe VY, Babul N, Kao D. Fabrication of topical metered dose film forming sprays for pain management. Eur J Pharm Sci. 2017;100:132-41. doi: 10.1016/j.ejps.2017.01.004, PMID 28069427.

  62. Rajab Nawal A. Preparation and evaluation of ketoprofen as dermal spray film. Kerbala Journal of Pharmaceutical Sciences; 2013 Dec.

  63. Kathe K, Kathpalia H. Film forming systems for topical and transdermal drug delivery. Asian Journal of Pharmaceutical Research; 2016. p. 4-5.

  64. Karagianni A, Peltonen L. Production of itraconazole nanocrystal based polymeric film formulations for immediate drug release. Pharmaceutics. 2020 Oct 13;12(10):33065968. doi: 10.3390/pharmaceutics12100960, PMID 33065968, PMCID PMC7600483.

  65. Basu B, Garala KC, Tyagi M, Prabhushankar GL, Babu PR. Formulation and in vitro evaluation of periodontal films containing metronidazole. Res J Pharm Dosage Forms Technol. 2009;1:240-3.

  66. LU W, Luo H, Zhu Z, WU Y, Luo J, Wang H. Preparation and the biopharmaceutical evaluation for the metered dose transdermal spray of dexketoprofen. J Drug Deliv. 2014;2014:697434. doi: 10.1155/2014/697434, PMID 24660066.

  67. Kittaneh M, Qurt M, Malkieh N, Naseef HA, Muqedi RH. Preparation and evaluation of vitamin D3 supplementation as transdermal film-forming solution. Pharmaceutics. 2022;15(1):VD3. doi: 10.3390/pharmaceutics15010039, PMID 36678668.
