Int J Pharm Pharm Sci, Vol 7, Issue 5, 208-214Original Article
PREPARATION AND EVALUATION OF MARAVIROC MUCOADHESIVE MICROSPHERES FOR GASTRO RETENTIVE DRUG DELIVERY
SELLAPPAN VELMURUGANa, b*, MOHAMED ASHRAF ALIa
aDepartment of Pharmaceutics, Sunrise University, Alwar, Rajasthan, India, bDepartment of Pharmaceutics, KLR Pharmacy College, Paloncha, Telangana, India.
Email: willard_cbe@rediffmail.com
Received: 11 Feb 2015 Revised and Accepted: 05 Mar 2015
ABSTRACT
Objective: The objective of this research was to formulate and evaluate pectin and HPMC different grades mucoadhesive microspheres in combination with sodium alginate for controlled release of maraviroc.
Methods: The maraviroc mucoadhesive microspheres was successfully developed by Ionotropic gelation technique, using sodium alginate, pectin, HPMC K4, K15, and K100 as mucoadhesive polymer in various proportions in combination. Further, the prepared maraviroc mucoadhesive microspheres were characterized for particle size, morphology, micrometric studies, entrapment efficiency, mucoadhesion, in vitro drug release, release kinetics, compatibility studies (FTIR) and stability studies.
Results: The maraviroc Microspheres was discrete and free-flowing. The mean particle size ranged from 646.3±10.2 μm to 910.0±6.56 μm and the entrapment efficiency ranged from 50.80% to 91.43%. Entrapment efficiency of maraviroc microspheres was increased by increasing drug to mucoadhesive polymer ratio. Scanning electron microscopy revealed the rough surface morphology and no visible cracks of best formulation F16. The FTIR study confirmed the stable nature of maraviroc in the drug-loaded mucoadhesive microspheres. All the maraviroc microspheres showed good mucoadhesive property ranging from 04-73 % in the in-vitro wash off test after 8 hours. The Crystallinity of maraviroc was found to be reduced in prepared mucoadhesive microspheres, which were confirmed by XRD studies. The mechanism of maraviroc release from the mucoadhesive microsphere was found to be anomalous and super case-II transport type. Stability studies were carried out for the best formulation F16 indicates that there is no change in entrapment efficiency and percentage mucoadhesion of the formulation.
Conclusion: The results obtained in this research work clearly indicated a promising potential of control release maraviroc mucoadhesive microspheres containing HPMC K100 as a rate controlling polymer for the effective treatment of AIDS/HIV patients.
Keywords: Pectin, HPMC K4, HPMC K15M, HPMC K100, Maraviroc, Mucoadhesive microspheres.
INTRODUCTION
Oral controlled drug delivery systems continue to be the most accepted and popular one among all the drug delivery systems as it offers several advantages over the conventional drug delivery systems like; Improving patient’s compliance and convenience due to reduction of frequency of administration [1]. The problem commonly encountered with the controlled release delivery system is the inability to restrain and localize the dosage form at the gastrointestinal tract, due to the rapid gastrointestinal transit phenomenon [2]. In order to overcome this limitation, it has been proposed, to coupling the bioactives to microparticulate systems an important part of novel drug delivery [3]. However, the success of microparticulate carrier system is limited due to their limited residence time at the site of absorption [4]. It can be executed by coupling mucoadhesion characteristics to microparticulate by using mucoadhesive polymers and developing mucoadhesive microspheres [5]. Mucoadhesive microspheres have advantages like efficient absorption and improved bioavailability of the bioactives due to high surface to volume ratio, an intimate contact with the mucus membrane and drug targeting to the absorption site [6].
Maraviroc is a new class of anti HIV drug known as CCR5 antagonists and only oral entry inhibitor approved for the treatment of HIV 1infection [7]. Maraviroc poorly absorbed from lower gastrointestinal tract and the oral bioavailability after a single 300-mg oral dose is reported to be 33% with biological half life of 10.6±2.7 h. Administration of conventional dosage form suffers from certain drawbacks like first pass metabolism, variation of absorption and fluctuation in the plasma drug level [8].
In our previous investigation [9], sodium alginate mucoadhesive microspheres of maraviroc controlled the drug release for 8 hrs. To prolong the maraviroc release, improve mucoadhesion, bioavailability and to reduce dosing frequency, a suitable formulation was required with a controlled rate to treat anti HIV patients. In the present study, mucoadhesive microspheres were developed using a hydrophilic polymer, Hydroxypropyl methylcellulose (HPMC K4M, K15M and K100) and pectin in combination with sodium alginate.
MATERIALS AND METHODS
Materials
Maraviroc was a gift sample from Hetro Pharma Ltd, Hyderabad. Sodium alginate, HPMC different grades, pectin polymers were received as the gift sample from Cadila Pharma, Ahmedabad, India. All other ingredients used were of analytical grade.
Formulation of Maraviroc mucoadhesive microspheres
The Maraviroc mucoadhesive microspheres were prepared by Ionotropic external gelation technique [10, 11], the composition of various formulations was mentioned in Table1. Maraviroc and mucoadhesive polymers were individually passed through sieve number 60. The required quantities of mucoadhesive polymers were dissolved in purified water to form a homogenous polymer solution. Maraviroc was added to the polymer solution and mixed thoroughly with stirrer at 400 rpm to form a homogeneous dispersion. The resulting homogeneous dispersion was sonicated for 30 min to remove any air bubbles. For the formation of microspheres the dispersion was then extruded manually drop wise into aluminum sulphate solution (10%) using a polyethylene syringe (needle size 24 G). The extruded droplets were retained in the aluminium sulphate solution for 30 min to complete the curing reaction and to produce spherical rigid maraviroc microspheres [9]. The obtained microspheres were collected by decantation, washed repeatedly with distilled water to remove excess aluminum impurity and dried at 45 °C for12 h.
Table 1: Composition of Maraviroc mucoadhesive microspheres
| Formulation code | Drug: polymer ratio | Polymer ratio |
| F1 | 1:0.5 | 0.25:0.25 (Sodium alginate: Pectin) |
| F2 | 1:1 | 0.5:0.5 (Sodium alginate: Pectin) |
| F3 | 1:1.5 | 0.75:0.75 (Sodium alginate: Pectin) |
| F4 | 1:2 | 1:1 (Sodium alginate: Pectin) |
| F5 | 1:0.5 | 0.25:0.25 (Sodium alginate: HPMC K4) |
| F6 | 1:1 | 0.5:0.5 (Sodium alginate: HPMC K4) |
| F7 | 1:1.5 | 0.75:0.75 (Sodium alginate: HPMC K4) |
| F8 | 1:2 | 1:1 (Sodium alginate: HPMC K4) |
| F9 | 1:0.5 | 0.25:0.25 (Sodium alginate: HPMC K15) |
| F10 | 1:1 | 0.5:0.5 (Sodium alginate: HPMC K15) |
| F11 | 1:1.5 | 0.75:0.75 (Sodium alginate: HPMC K15) |
| F12 | 1:2 | 1:1 (Sodium alginate: HPMC K15) |
| F13 | 1:0.5 | 0.25:0.25 (Sodium alginate: HPMC K100) |
| F14 | 1:1 | 0.5:0.5 (Sodium alginate: HPMC K100) |
| F15 | 1:1.5 | 0.75:0.75 (Sodium alginate: HPMC K100) |
| F16 | 1:2 | 1:1 (Sodium alginate: HPMC K100) |
Percentage yield
The percentage yield of Mucoadhesive microsphere of various batches was calculated by using the weight of the final product after drying. The weight of dried maraviroc microspheres (W1) was divided by initial total weight of the drug and polymers (W2).
Micromeritic properties of Maraviroc microspheres
The flow properties of prepared maraviroc mucoadhesive microsphere were studied by determining various parameters like the tapped density, bulk density, Carr’s index, Hausner’s ratio and angle of repose.
Particle size
Particle size and size distribution of the maraviroc microspheres was measured by sieve analysis method [12]. The maraviroc microspheres were separated into different size fractions (% mass fraction) by sieving for 5 min using standard sieves having a nominal mesh opening of 1.0 mm, 0.85 mm, 0.71 mm, 0.60 mm and 0.50 mm and the mean particle size of the maraviroc microspheres was determined.
Morphology of microspheres
The surface morphology and shape of the Maraviroc microspheres were confirmed by scanning electron microscopy using the SEM Model (JSM 6390 India). The sample was mounted onto an aluminum stub and sputter-coated with platinum particles in an argon atmosphere [13].
Drug entrapment efficiency
Entrapment efficiency of prepared maraviroc microsphere was estimated by the method of extraction of the drug present in microsphere. The dried mucoadhesive microspheres (100 mg) were taken and extracted with 100 ml of 0.1N HCl for 24 h in the rotary shaker. The solution was filtered through a 0.45 μm filter and the concentration of maraviroc present in filtrate determined Spectro photometrically at 210 nm (LABINDIA UV-3092 PC) against 0.1 N HCl as a blank [14].
Mucoadhesive test
The mucoadhesive property of Maraviroc microspheres was evaluated by in vitro wash off test. The freshly excised piece of the goat intestinal mucosa was mounted on the glass slide using cyanoacrylate glue. About 100 microspheres were spread onto each wet rinsed tissue specimen and immediately thereafter the support was hang onto the arm of the USP disintegration machine. Now operating the disintegration test apparatus, the intestinal mucosa was given a slow, regular up and down movement in the test fluid (0.1N HCL buffer) at 37±0.5 °C. At predetermined time intervals up to 8 h the equipment was stopped and the number of Maraviroc mucoadhesive microspheres still sticking onto the intestinal mucosa was counted and percent mucoadhesion was calculated [15].
In vitro dissolution
The in vitro dissolution studies of prepared Maraviroc microspheres were carried out using USP type II (paddle) dissolution test apparatus. Microspheres containing equivalent to 100 mg of Maraviroc were introduced into 900 ml dissolution medium of 0.1N HCl for 12 hrs at 37±0.5 °C at a rotation speed of 50 rpm. 5 ml of the aliquots was withdrawn through a filter (0.45 μ) at the regular interval of every 1h and replaced with an equal volume of fresh 0.1N HCl buffer. The samples were analyzed at 210 nm for maraviroc content using a UV spectrophotometer. The maraviroc release experiments were carried out in three replicate [16].
Release kinetics and mechanism of maraviroc release
The rate and the mechanism of release of maraviroc from the prepared mucoadhesive microspheres were analyzed by fitting the dissolution data into various kinetic models like zero order; first order, korsemeyer peppas, Higuchi’s model and Coefficient of determination r2 values were calculated for the liner curves by regression analysis of the above plots [17].
FTIR studies
Compatibility study of Maraviroc with different mucoadhesive polymers was determined by Fourier transform infrared Spectroscopy (FTIR) using Shimadzu FT-IR spectrometer model. IR spectra for maraviroc and powdered maraviroc microspheres were recorded in an FTIR spectrophotometer with KBr pellets the scanning was done between wave numbers 4000 to 400 cm-1at 4 cm-1resolution [18, 19].
X-ray diffraction study (XRD)
The crystallinities of Maraviroc and Maraviroc loaded mucoadhesive microspheres were evaluated by XRD measurement using an X-ray diffractometer. XRD studies were performed on the prepared samples by exposing them to Cuk α1 radiation (40 KV, 30 MA) and the scanning rate was 5 °/min over a range of 4-90 ° and with an interval of 0.1 [20].
Stability study
Stability studies were carried out for maraviroc formulation as per ICH guidelines. The best mucoadhesive microspheres formulation (F16) was sealed in high density polyethylene bottles and stored at 4±1 °C/Ambient, 25±2 °C/60±5 % RH %, 40±2 °C/75±5 % RH for 90days. The samples were periodically evaluated for entrapment efficiency and percentage mucoadhesion [21, 22].
RESULTS AND DISCUSSION
Percentage yield and micromeritics studies
The prepared maraviroc microsphere by ionotropic gelation method was found to be spherical shape and free flowing in nature. The production yields of maraviroc microspheres formulations were found to be between 82 to 95% as shown in table 2. The prepared batches of maraviroc microspheres were evaluated for micromeritic study such as, bulk density, tapped density, Compressibility index, Hausner’s ratio and angle of repose (table 3). The bulk density of the formulations ranged from 0.305-0.525g/ml. The tapped density of the different formulations ranged from 0.362-0.578 g/ml. Compressibility index values of the different batches of maraviroc microspheres ranged from 09.033 % to 15.58 %. Hausner’s ratio varied from 1.10 to 1.185. The angle of repose of all the formulations ranged from19.67 to 32.37°. Based on the above micromeritic properties all the batches of maraviroc mucoadhesive microspheres revealed excellent flow and packaging properties.
Table 2: Physicochemical properties of maraviroc mucoadhesive microspheres
| Formulation code | Percentage yield a | Theoretical drug content (mg) | Practical drug content (mg) a | Entrapment efficiency (%) a | Particle size [μm] a |
| F1 | 90.96±3.56 | 66.60 | 33.84±0.14 | 50.81±0.22 | 652.02±5.35 |
| F2 | 91.93±2.79 | 50.00 | 27.97±0.06 | 55.95±0.12 | 676.29±2.31 |
| F3 | 94.56±2.31 | 40.00 | 25.44±0.08 | 63.60±0.20 | 711.88±2.25 |
| F4 | 97.83±2.01 | 33.00 | 22.99±0.08 | 69.66±0.25 | 748.75±3.13 |
| F5 | 86.50±3.87 | 66.60 | 42.80±1.20 | 64.26±1.80 | 712.29±4.77 |
| F6 | 89.43±3.02 | 50.00 | 35.92±0.91 | 71.84±1.81 | 737.92±1.57 |
| F7 | 93.11±2.61 | 40.00 | 31.75±0.02 | 79.37±0.06 | 764.38±3.13 |
| F8 | 95.15±2.09 | 33.00 | 27.91±0.09 | 84.57±0.28 | 809.73±2.61 |
| F9 | 89.40±3.73 | 66.60 | 46.13±1.01 | 69.27±1.51 | 758.13±3.13 |
| F10 | 93.33±3.07 | 50.00 | 38.19±0.53 | 76.37±1.06 | 790.39±2.93 |
| F11 | 94.18±2.64 | 40.00 | 33.83±0.02 | 84.57±0.06 | 827.13±3.63 |
| F12 | 95.91±2.39 | 33.00 | 29.45±0.16 | 89.25±0.49 | 858.54±5.54 |
| F13 | 91.64±3.93 | 66.60 | 48.93±0.61 | 73.47±0.92 | 790.39±2.93 |
| F14 | 93.92±3.20 | 50.00 | 41.07±0.61 | 82.13±1.22 | 824.71±5.54 |
| F15 | 92.51±2.75 | 40.00 | 35.43±0.06 | 88.57±0.15 | 870.63±3.63 |
| F16 | 93.63±2.69 | 33.00 | 30.17±0.06 | 91.43±0.19 | 910.50±7.25 |
amean±SD, n = 3.
Table 3: Micromeritic properties of Maraviroc mucoadhesive microspheres
| Formulation code | Bulk density a | Tapped density a | Compressibility index a | Hausner’s ratio a | Angle of repose a |
| F1 | 0.525±0.020 | 0.578±0.037 | 9.033±2.57 | 1.100±0.032 | 19.67±0.649 |
| F2 | 0.484±0.013 | 0.547±0.025 | 11.43±1.81 | 1.129±0.023 | 21.00±0.390 |
| F3 | 0.455±0.010 | 0.518±0.017 | 12.19±1.33 | 1.139±0.017 | 22.72±0.415 |
| F4 | 0.432±0.011 | 0.500±0.018 | 13.73±1.04 | 1.176±0.014 | 23.21±0.742 |
| F5 | 0.464±0.018 | 0.527±0.033 | 11.96±2.48 | 1.136±0.033 | 20.10±0.386 |
| F6 | 0.426±0.012 | 0.488±0.021 | 12.72±1.66 | 1.146±0.022 | 24.10±0.613 |
| F7 | 0.408±0.013 | 0.479±0.022 | 14.63±1.25 | 1.191±0.017 | 26.58±0.882 |
| F8 | 0.397±0.010 | 0.463±0.016 | 14.36±0.99 | 1.168±0.014 | 28.62±0.547 |
| F9 | 0.399±0.020 | 0.453±0.024 | 11.90±0.55 | 1.135±0.007 | 25.09±0.468 |
| F10 | 0.373±0.014 | 0.428±0.022 | 12.68±1.39 | 1.145±0.018 | 26.25±0.271 |
| F11 | 0.357±0.012 | 0.409±0.018 | 12.64±1.05 | 1.145±0.014 | 28.79±0.596 |
| F12 | 0.343±0.010 | 0.396±0.015 | 13.50±0.83 | 1.156±0.011 | 30.28±1.040 |
| F13 | 0.362±0.013 | 0.409±0.02 | 11.43±1.81 | 1.129±0.023 | 24.64±0.905 |
| F14 | 0.348±0.012 | 0.394±0.018 | 11.74±1.27 | 1.133±0.016 | 26.10±0.462 |
| F15 | 0.330±0.011 | 0.375±0.016 | 11.91±0.98 | 1.135±0.013 | 28.93±0.547 |
| F16 | 0.305±0.010 | 0.362±0.015 | 15.58±0.78 | 1.185±0.011 | 32.37±0.639 |
amean±SD, n = 3.
Fig. 1: Scanning electron photomicrographs of the Formulation F16, A): 80 X, B): 500 X, C): 7000X, D): 3000X
Particle size
The mean particle size of maraviroc mucoadhesive microspheres ranged from 646.3±10.2 to 910.0±6.56 μm. The results revealed that the mean particle size increase with increases in mucoadhesive polymer concentration. It would appear that increasing mucoadhesive polymer concentration produced a significant increase in viscosity of the dispersion, thus leading to an increase of droplet size and finally a higher microsphere size [23].
Morphology of microspheres
The SEM photographs revealed that obtained maraviroc microspheres were discrete and spherical shape with a rough surface morphology (fig.1) which could be due to the surface association of the Maraviroc with mucoadhesive polymer [24].
Entrapment efficiency
Maraviroc microspheres were characterized for percentage entrapment efficiency. The percentage entrapment efficiency ranged from 50.80 to 91.43%. (table 2). The entrapment efficiency of the microspheres prepared with HPMC K100 was higher than those of microspheres prepared with HPMC K4, K15 and pectin. From the result, it was observed that increase in the molecular weight of the mucoadhesive polymer increase the entrapment efficacy. This can be due to increase in the viscosity of the polymeric solution, which increases, the greater availability of aluminium binding sites in polymeric chains. As a result formation of the more intact matrix network, entrapping a higher amount of the maraviroc drug [25].
Mucoadhesive test
The results of the in-vitro mucoadhesion studies of all the formulations were shown in table 4. Percentage mucoadhesion of formulations increased with the increase in concentration of mucoadhesive polymers. The higher mucoadhesion of HPMC K100 based mucoadhesive microspheres may be attributed to higher molecular weight of HPMC K100 than HPMC K4, K15 and Pectin based microspheres. The in vitro wash-off was faster at simulated intestinal fluid (pH 7.4) than that at simulated gastric fluid (pH 1.2). Our result is supported by the report of Robinson et al. [26]. The solubility, hydration and mucoadhesiveness of the polymers depend on the pH of the in-vitro wash off medium. The rapid in-vitro wash-off observed at simulated intestinal fluid may be due to the ionization of the carboxyl acid group and other functional groups in the mucoadhesive polymers, which increase their solubility and reduce mucoadhesive strength. The results of the in-vitro wash-off test indicated that the maraviroc microspheres had fairly good mucoadhesive properties. The developed maraviroc mucoadhesive microspheres would adhere to the Gastro intestinal walls, thus resisting gastric emptying and prolong the residence time at the absorption site, thereby improve and enhance the bioavailability [27, 28].
Table 4: Results of in vitro wash off test
Hours |
In 0.1 M HCL (pH 1.2) a |
In phosphate buffer (pH 7.4) a |
||||||||
1 |
2 |
4 |
6 |
8 |
1 |
2 |
4 |
6 |
8 |
|
F1 |
83±1.53 |
46±3.06 |
19±3.21 |
03±2.31 |
- |
80±1.53 |
41±0.58 |
15±2.52 |
- |
- |
F2 |
90±3.06 |
62±2.65 |
39±2.52 |
17±2.52 |
- |
85±1.53 |
57±1.73 |
33±2.52 |
13±2.48 |
- |
F3 |
95±3.00 |
74±3.06 |
51±3.61 |
30±3.00 |
10±3.21 |
89±1.17 |
71±2.08 |
44±0.58 |
22±1.00 |
5±1.15 |
F4 |
97±0.58 |
78±2.52 |
57±2.00 |
36±2.08 |
20±3.06 |
93±1.53 |
74±1.73 |
54±1.15 |
31±2.31 |
14±1.73 |
F5 |
98±1.15 |
90±0.58 |
64±2.52 |
37±1.15 |
04±1.53 |
96±1.00 |
85±0.58 |
57±2.08 |
33±2.31 |
- |
F6 |
100 |
93±1.15 |
71±1.73 |
41±1.15 |
16±1.53 |
97±0.58 |
89±1.15 |
67±1.53 |
38±1.73 |
13±1.00 |
F7 |
100 |
98±1.53 |
73±1.53 |
50±1.15 |
28±2.08 |
98±1.15 |
92±1.53 |
70±1.00 |
46±1.73 |
23±1.15 |
F8 |
100 |
100±0.58 |
77±1.53 |
61±1.53 |
41±2.08 |
99±0.58 |
96±1.53 |
72±2.52 |
58±1.15 |
36±1.73 |
F9 |
100 |
92±1.53 |
76±1.15 |
52±1.73 |
31±0.58 |
98±1.15 |
88±0.58 |
71±1.53 |
48±1.73 |
27±0.58 |
F10 |
100 |
98±1.15 |
85±2.52 |
70±1.73 |
46±3.06 |
99±0.58 |
92±2.52 |
81±1.73 |
67±2.08 |
42±2.65 |
F11 |
100 |
98±0.58 |
85±2.08 |
72±1.53 |
57±1.53 |
100 |
94±1.53 |
82±1.73 |
69±1.53 |
53±2.08 |
F12 |
100 |
100 |
89±1.53 |
77±2.08 |
65±0.58 |
100 |
96±1.00 |
85±0.58 |
73±1.53 |
61±0.58 |
F13 |
100 |
98±1.53 |
84±2.52 |
68±1.15 |
47±1.53 |
98±0.58 |
93±1.15 |
81±2.31 |
62±1.53 |
43±2.00 |
F14 |
100 |
99±1.00 |
86±1.15 |
71±1.15 |
56±2.08 |
99±0.58 |
95±1.53 |
83±2.31 |
67±1.73 |
52±2.08 |
F15 |
100 |
99±1.15 |
88±2.08 |
74±2.00 |
62±1.00 |
100 |
97±1.53 |
85±1.53 |
71±2.31 |
56±1.15 |
F16 |
100 |
100 |
92±1.15 |
81±1.15 |
73±0.58 |
100 |
99±0.58 |
89±1.73 |
79±2.31 |
68±1.73 |
amean±SD, n = 3.

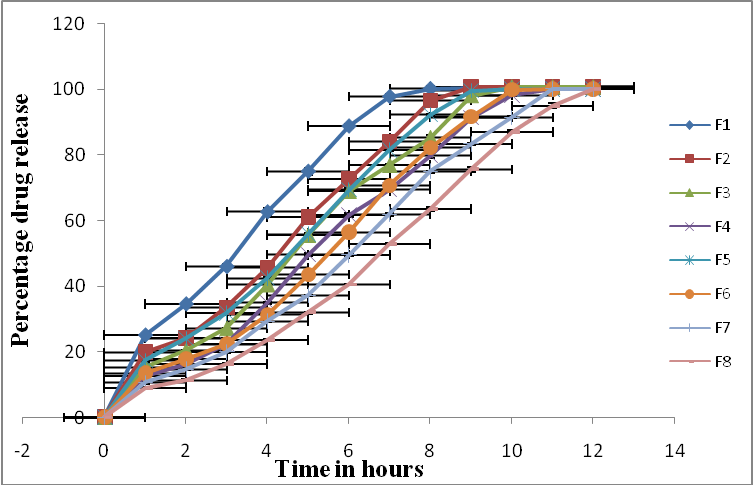

Fig. 2: Comparative in vitro drug release profile of formulation F1 to F8

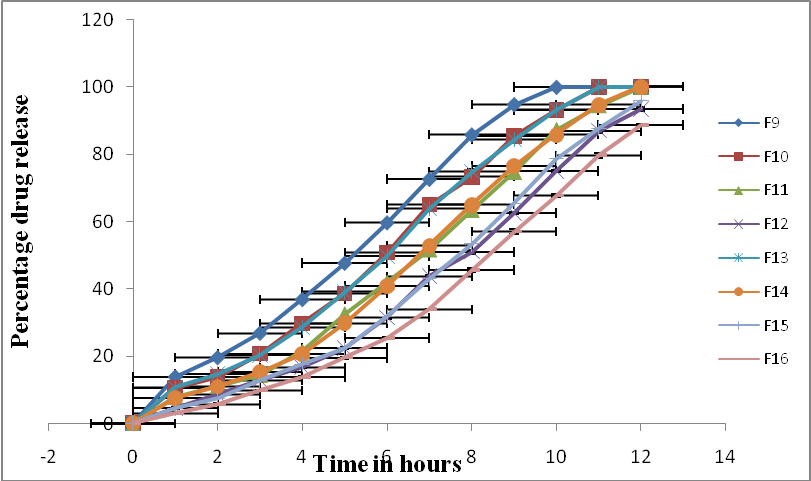

Fig. 3: Comparative in vitro drug release profile of formulation F9 to F16
In vitro dissolution studies
The in vitro Maraviroc release profiles for all batches was shown in fig. 2-3. The Maraviroc release behaviors depend upon the type and amount of mucoadhesive polymers in polymer matrix [29, 30]. Pectin-alginate microspheres (F1 and F4) were able to control the maraviroc release up to 8 h, whereas HPMC different grades microspheres were able to control the drug released up to 12 h. It has been observed that Pectin, HPMC K4, HPMC K15 based mucoadhesive micro spheres showed the comparatively rapid drug release as compared to HPMC K100 based formulations. It was found that there was decrease in drug release with increase in mucoadhesive polymer content. This could be attributed to the greater degree of swelling upon hydration with greater mucoadhesive polymer content in the microspheres which leads to increase in the diffusional path length that slows down drug release. The prolong drug release of maraviroc microspheres was shown by F16 formulation (88.71) in 12 hours and hence it is considered as the best formulation which seems to be a good candidate for controlled release.
Release kinetics and mechanism of maraviroc release
Drug release kinetic data for maraviroc microspheres were shown in table 5. All the formulations (F1 to F16) follow zero order release kinetics with regression values ranging from 0.894 to 0.984. Korsmeyer-Peppas plots, ‘n’ value ranges from 0.622 to 1.425 indicating that the maraviroc release mechanism followed the anomalous transport and super case-II transport mechanism.
Table 5: Release kinetic parameter of maraviroc from mucoadhesive microspheres
| Formulation code | Zero order | First order | Higuchi | Korsmeyer peppas | n-value | Hixson crowel |
| F1 | 0.894 | 0.840 | 0.917 | 0.952 | 0.622 | 0.851 |
| F2 | 0.922 | 0.903 | 0.951 | 0.959 | 0.773 | 0.801 |
| F3 | 0.951 | 0.880 | 0.964 | 0.968 | 0.878 | 0.761 |
| F4 | 0.971 | 0.871 | 0.967 | 0.967 | 0.967 | 0.685 |
| F5 | 0.937 | 0.838 | 0.957 | 0.971 | 0.811 | 0.634 |
| F6 | 0.966 | 0.750 | 0.95 | 0.958 | 0.947 | 0.547 |
| F7 | 0.984 | 0.800 | 0.951 | 0.97 | 1.021 | 0.577 |
| F8 | 0.983 | 0.763 | 0.929 | 0.96 | 1.094 | 0.473 |
| F9 | 0.964 | 0.686 | 0.961 | 0.976 | 0.907 | 0.533 |
| F10 | 0.984 | 0.637 | 0.956 | 0.971 | 1.033 | 0.452 |
| F11 | 0.984 | 0.572 | 0.93 | 0.961 | 1.147 | 0.352 |
| F12 | 0.971 | 0.817 | 0.901 | 0.978 | 1.278 | 0.763 |
| F13 | 0.983 | 0.636 | 0.953 | 0.971 | 1.024 | 0.452 |
| F14 | 0.982 | 0.766 | 0.928 | 0.964 | 1.159 | 0.472 |
| F15 | 0.972 | 0.794 | 0.903 | 0.98 | 1.33 | 0.717 |
| F16 | 0.959 | 0.828 | 0.881 | 0.982 | 1.425 | 0.789 |
FTIR studies
The infrared spectrum of pure maraviroc showed a broad absorption band at 2934 cm-1, assigned to the stretching vibration of the amide N-H group, a sharp band at 1663 cm-1 assigned to stretching vibrations of the carbonyl group, the 1530 cm-1band is due to the bending vibration of amide N-H group and a sharp band at 703 assigned to phenyl group. Overall, the results of spectrum analysis indicated that Maraviroc loaded Microspheres showed the characteristic peaks of the pure drug at 2934 cm-1 indicating that there was no interaction between the Maraviroc and mucoadhesive polymers.
X-ray Diffraction study (XRD)
The X-ray diffractograms of Maraviroc and formulation F16 are shown in fig. 5. Pure Maraviroc has shown characteristic intense peaks due to its crystalline nature. Whereas, in case of formulation F16 showed a less intense peak of low intensity, revealing amorphous dispersion of the drug after entrapment into mucoadhesive microspheres [31].

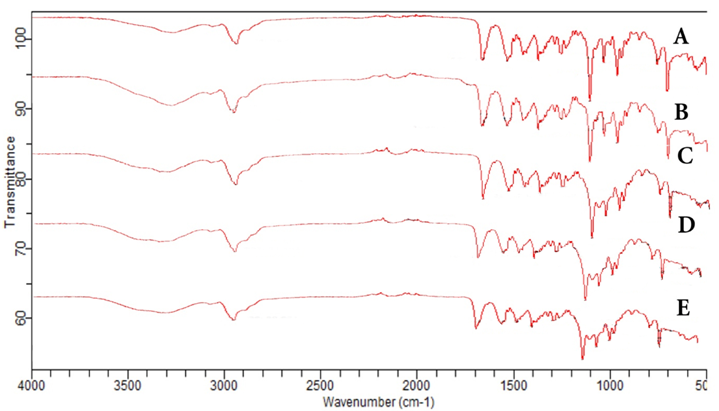

Fig. 4: FTIR spectra of, (A): Pure Maraviroc; (B): Formulation containing Pectin; (C): Formulation containing HPMC K4; (D): Formulation containing HPMC K15; (E): Formulation containing HPMC K100 (F16)

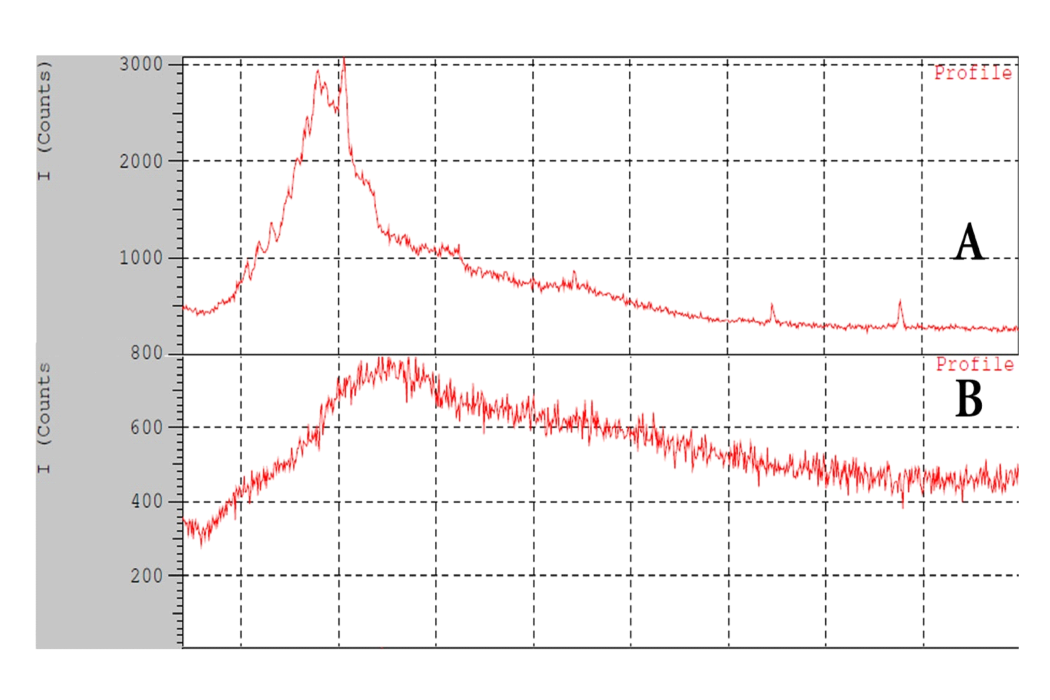

Fig. 5: XRD pattern of, (A): Pure Maraviroc; and (B): Best formulation F16
Table 6: Percentage entrapment efficiency and mucoadhesion of the F16 formulation
| Stability condition | Sampling day | Percentageentrapment efficiency a | Percentage | |
| Mucoadhesion a | ||||
| 4 °C/Ambient | 30 | 91.43±0.19 | 72.67±0.58 | |
| 60 | 91.07±0.07 | 70.33±1.15 | ||
| 90 | 90.67±0.12 | 69.67±1.53 | ||
| 25 °C/60 RH | 30 | 91.23±0.19 | 73.67±1.15 | |
| 60 | 91.15±0.12 | 70.00±1.73 | ||
| 90 | 91.07±0.28 | 68.67±1.53 | ||
| 40 °C/75RH | 30 | 91.39±0.12 | 73.33±0.58 | |
| 6090 | 91.11±0.2590.91±0.32 | 69.33±0.5865.67±1.53 |
amean±SD, n = 3.
Stability study
After 3 months, storage of F16 formulation at 4±1 °C/Ambient, 25±2 °C/60±5 % RH, 40±2 °C/75±5 % RH, percentage entrapment efficiency, percentage mucoadhesion were checked and found to be almost similar to the initial values. There was no substantial alteration in any value and also the physical appearance. So it can be said that maraviroc mucoadhesive microspheres prepared with HPMC K100 is stable.
CONCLUSION
The HPMC K100 mucoadhesive microspheres containing maraviroc can be successfully prepared by ionotropic gelation technique. The prepared Maraviroc mucoadhesive microspheres were spherical and free flowing. The entrapment efficiencies ranged from 50.80 to 91.43% and mean size was in the range of 646.3±10.2 μm to 910.0±6.56 μm. Concentration of mucoadhesive polymer ratio influences the entrapment efficiency and maraviroc release profile of microspheres. Thus the investigation clearly indicated a promising potential of control release maraviroc mucoadhesive microspheres containing HPMC K100 as rate controlling polymer for the effective treatment of AIDS/HIV patients.
CONFLICTS OF INTERESTS
All authors have none to declare
REFERENCES
- Nayak AK, Maji R, Das B. Gastroretentive drug delivery systems: a review. Asian J Pharm Clin Res 2010;3:1-10.
- Garg R, Gupta GD. Progress in controlled gastroretentive delivery systems. Trop J Pharm Res 2008;7:1055-66.
- K Ikeda, K Murata, M Kobayashi, K Noda. Enhancement of bioavailability of dopamine via nasal route in beagle dogs. Chem Pharm Bull (Tokyo) 1992;40:2155.
- Sellappan Velmurugan, Mohamed Ashraf Ali. Mucoadhesive microspheres-an overview. Int J Drug Dev 2013;5:229-33.
- Ponchel G, Irache Jaun M. Specific and non-specific bioadhesive particulate systems for oral delivery to gastrointestinal tract. Adv Drug Delivery Rev 1998;34:191-219.
- Patel JK, Bodar MS, Amin, Patel. Formulation and optimization of mucoadhesive microspheres of metoclopramide. Indian J Pharm Sci 2005;66:300-5.
- Vandekerckhove L, Verhofstede C, Vogelaers D. Maraviroc: integration of a new antiretro viral drug class into clinical practice. J Antimicrob Chemother 2008;61:1187-90.
- MacArthur RD, Novak RM. Reviews of anti-infective agents: Maraviroc: the first of a new class of antiretroviral agents. Clin Infect Dis 2008;47:236-41.
- Sellappan Velmurugan, Mohamed Ashraf Ali. Formulation and evaluation of maraviroc mucoadhesive microspheres by ionotropic gelation method. Int J Pharm Pharm Sci 2013;5:294-302.
- Singh C, Jain KA, Kumar C, Agarwal K. Design and in vitro evaluation of mucoadhesive microcapsules of pioglitazone. J Young Pharm 2009;1:195-8.
- Chowdary KPR, Srinivas Rao Y. Design and in-vitro and in-vivo evaluation of glipizide mucoadhesive microspheres for oral controlled release. AAPS Pharm Sci Tech 2003;4:87-92.
- Gohel MC, Amin AF. Formulation and optimization of controlled release diclofenac sodium microspheres using factorial design. J Control Release 1998;51:115-22.
- Das SK, Das NG. Preparation and in vitro dissolution profile of dual polymer (Eudragit RS 100 and RL 100) microparticles of diltiazem hydrochloride. J Microencapsul 1998;15:445-52.
- Vivek K, Reddy LH, Murthy RS. Comparative study of some biodegradable polymers on the entrapment efficiency and release behavior of etoposide from microspheres. Pharm Dev Technol 2007;12(1):79-88.
- Raj Kaur Malik, Prashant Malik, Neha Gulati, Upendra Nagaich. Fabrication and in vitro evaluation of mucoadhesive ondansetron hydrochloride beads for the management of emesis in chemotherapy. Int J Pharm Invest 2013;3(1):42–6.
- Singh B, Kaur T, Singh S. Correction of raw dissolution data for loss of drug and volume during sampling. Indian J Pharm Sci 1997;59:196-9.
- Korsmeyer RW, Gurny R, Doelker EM, Buri P, Peppas NA. Mechanism of solute release from porous hydrophilic polymers. Int J Pharm 1983;15:25-35.
- Yamada T, Onishi H, Machida Y. Sustained release ketoprofen microparticles with ethylcellulose and carboxymethylethyl cellulose. J Control Release 2001;75:271-82.
- HH Gangurde, NV Chavan, AS Mundada, DV Derle, S Tamizharasi. Biodegradable chitosan-based ambroxol hydrochloride microspheres: effect of cross-linking agents. J Young Pharm 2011;3(1):9–14.
- L Pachuau, S Sarkar, B Mazumder. Formulation and evaluation of matrix microspheres for simultaneous delivery of salbutamol sulphate and theophylline. Trop J Pharm Res 2008;7(2):995-1002.
- Nelson kenneth, Varadarajan parthasarathy, Chikkanna narendra, Prakasam kalyani. Development and evaluation of oral controlled release matrix tablets of lamivudine: optimization and in vitro-in vivo studies. Int J Pharm Pharm Sci 2015;7(1):95-101.
- Saraf S, Dashora K, Saraf S. Effect of processing variables on microparticulate system of aceclofenac. Pak J Pharm Sci 2006;19:1-6.
- Wong SM, Kellaway IW, Murdan S. Enhancement of the dissolution rate and oral absorption of a poorly water soluble drug by formation of surfactant-containing microparticles. Int J Pharm 2006;317:61–8.
- MK Das, PC Senapati. Furosemide-loaded alginate microspheres prepared by ionic cross-linking technique: morphology and release characteristics. Indian J Pharm Sci 2008;70(1):77–84.
- Belgamwar V, Shah V, Surana SJ. Formulation and evaluation of oral mucoadhesive multi particulate system containing metoprolol tartarate: an in vitro ex vivo characterization. Curr Drug Deliv 2009;6:113-21.
- Robinson JR, Kelly P, Park H, Ching HS. Bioadhesive polymers as platforms for oral controlled drug delivery II: synthesis and evaluation of some swelling water insoluble bioadhesive polymers. J Pharm Sci 1985;74:399-405.
- Zheng J, Liu C, Bao D, Zhao Y, Ma X. Preparation and evaluation of floating-bioadhesive microparticles containing clarithromycin for the eradication of Helicobacter pylori. J Appl Polym Sci 2006;102:2226–32.
- Umamaheswari R, Jain S, Tripathi P, Agrawal G, Jain N. Floating bioadhesive microspheres containing acetohydroxamic acid for clearance of Helicobacter pylori. Drug Deliv 2002;9:223–31.
- Xingna Zhao, Guofei Li, Lili Zhang. Preparation and evaluation of nicotinic acid sustained-release pellets combined with immediate release simvastatin. Int J Pharm 2010;400:42-8.
- Monica Rao, Yogesh Mandage. Dissolution improvement of simvastatin by surface solid dispersion technology. Dissolution Technol 2010;61:27-34.
- Xu H, Zhong H, Liu M, Xu C, Gao Y. Lappaconitine-loaded microspheres for parenteral sustained release: effects of formulation variables and in vitro characterization. Pharm 2011;66(9):654-61.
