Int J Pharm Pharm Sci, Vol 7, Issue 10, 352-356Original Article
A RAPID RP-HPLC METHOD DEVELOPMENT AND VALIDATION FOR THE QUANTITATIVE ESTIMATION OF DABIGATRAN ETEXILATE MESYLATE IN CAPSULES
D. VIJAY KUMAR, K. BALARAJU, A. ASHOK KUMAR*
Department of Pharmaceutical Analysis and Quality Assurance, Vijaya College of Pharmacy, Munaganur (village), Hayathnagar (Mandal), Hyderabad 501511, India
Email: ashok576@gmail.com
Received: 27 Feb 2015 Revised and Accepted: 02 Sep 2015
ABSTRACT
Objective: To develop a rapid, sensitive, accurate, precise and linear Reverse Phase High Performance Liquid Chromatographic (RP-HPLC) method and validate as per ICH guidelines for the quantitative estimation of Dabigatran etexilate mesylate in capsules.
Methods: The optimized method uses a reverse phase column, Waters Symmetry C18 (250 X 4.6 mm; 5μ), a mobile phase of tri ethylammonium phosphate buffer (pH 2.5):acetonitrile in the proportion of 40:60 v/v, flow rate of 1.0 ml/min and a detection wavelength of 313 nm using a UV detector.
Results: The developed method resulted in Dabigatran etexilate mesylate eluting at 2.44 min. It exhibited linearity in the range 15-45μg/ml. The precision is exemplified by relative standard deviation of 0.05%. Percentage mean recovery was found to be in the range of 98‐102, during accuracy studies. The limit of detection (LOD) and limit of quantitation (LOQ) was found to be 39.19μg/ml and 118.88μg/ml respectively.
Conclusion: A sensitive, rapid, accurate, precise and linear RP-HPLC method was developed and validated for the quantitative estimation of Dabigatran etexilate mesylate in capsules as per ICH guidelines and hence it can be used for the routine analysis in various pharmaceutical industries.
Keywords: RP‐HPLC, Dabigatran etexilate mesylate, Method development, Validation.
© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
INTRODUCTION
Dabigatran etexilate (DE) is the oral prodrug of the active moiety dabigatran. The dabigatran etexilate pro-drug was developed due to the limited oral availability of dabigatran, and it is converted into dabigatran (DAB) in vivo via esterases enzyme. The drug substance is the mesylate salt form of the prodrug, called dabigatran etexilate mesylate (DEM) (fig. 1). The chemical name (IUPAC) of dabigatran etexilate mesylate is ethyl-N-{[2-({[4-((E)-amino {[(hexyloxy) carbonyl] imino} methyl) phenyl] amino} methyl)-1-methyl-1H-benz imidazol-5-yl] carbonyl}-Npyridin-2-yl-β-alaninate methane-sulfonate [1] corresponding to the molecular formula C35H45N7O8S. Dabigatran is an oral anticoagulant drug that acts as a direct thrombin (factor IIa) inhibitor. It was developed by the pharmaceutical company Boehringer Ingelheim. It is an anticoagulant medicine used for the prevention of clots and emboli after orthopedic surgery (hip or knee replacement) and to prevent stroke and other systemic emboli in people with non-valvular atrial fibrillation (AF), a commonly occurring abnormal heart rhythm [2]. Few analytical methods are reported for the determination of Dabigatran etexilate by UV [3], LC/MS [4] and UPLC MS/MS [5] in bulk and/or plasma. While only two stability indicating assay methods are cited in the literature using HPLC in bulk [1,6] and only two methods in formulations [7, 8]. Literature reveals use of potassium dihydrogen orthophosphate as buffer (pH 4.5and pH 7.0) and triethyl ammonium phosphate buffer (pH 6.0) along with organic modifier as mobile phase for assay methods in formulations using RP-HPLC. As there is no literature reported on working at acidic pH using triethyl ammonium phosphate buffer (pH 2.5), we here report a new and a rapid RP-HPLC validated method for the quantitative estimation of Dabigatran etexialte in capsules using triethyl ammonium phosphate buffer (pH 2.5) along with acetonitrile as mobile phase.
MATERIALS AND METHODS
Chemicals and reagents
Analytically pure sample of Dabigatran etexilate mesylate with purity 95% was obtained as gift sample from Chandra labs, Hyderabad, India and tablet formulation [PRADAXA] capsules was procured from Apollo Pharmacy, Hyderabad, India with labelled amount of 110 mg of Dabigatran etexilate mesylate. Acetonitrile (HPLC grade), water (HPLC grade), Triethylamine (AR Grade) and ortho phosphoric acid (AR Grade) were obtained from SD Fine chemicals (Hyderabad, India), 0.45 and 0.22μm Nylon membrane filters were obtained from Spincotech Private Limited, Hyderabad, India.

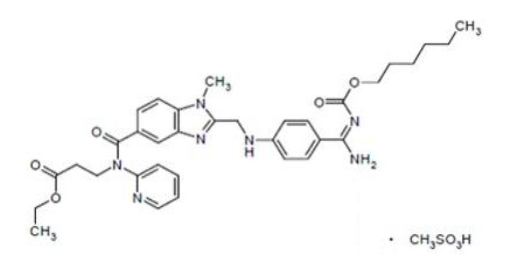

Fig. 1: Structure of dabigatran etexilate mesylate
Instrument
HPLC analysis was performed on Shimadzu LC-20AD Prominence Liquid Chromatography comprising a LC-20AD pump, Shimadzu SPD-20A Prominence UV-VISIBLE detector and a reverse phase C18 column, Waters Symmetry (250 X 4.6 mm; 5μ). A manually operating Rheodyne injector with 20 μL sample loop was equipped with the HPLC system. The HPLC system was controlled with “Lab solutions lite” software. A double beam UV-visible spectrophotometer (Shimadzu, model UV-1800) having two matched quartz cells with 1 cm light path and loaded with UV probe software (version 2.41) was used for recording of spectra and measuring absorbance. An electronic analytical weighing balance (0.1 mg sensitivity, Shimadzu AY 220), digital pH meter (DELUX model 101), a sonicator (sonica, model 2200 MH).
Methods
Selection of wavelength
Suitable wavelength for the HPLC analysis was determined by recording UV spectrum in the range of 200-400 nm for Dabigatran. Suitable wavelength selected was 313 nm (fig. 2).
Chromatographic conditions
The developed method uses a reverse phase C18 column, Waters Symmetry C18 (250 X 4.6 mm; 5μ), mobile phase of triethyl ammonium phosphate buffer (pH 2.5): acetonitrile in the proportion of 40:60 v/v. The mobile phase was set at a flow rate of 1.0 ml/min and the volume injected was 20μl for every injection. The detection wavelength was set at 313 nm.

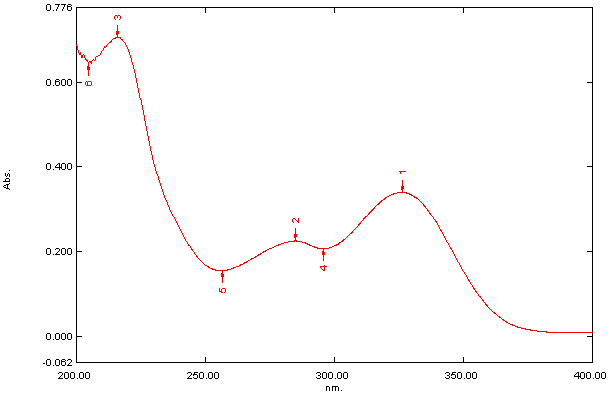

Fig. 2: UV spectrum of dabigatran etexilate mesylate
Buffer preparation
The buffer solution was prepared by adding 5 ml of triethylamine to 1000 ml of HPLC grade water and later pH was adjusted to 2.5 using 30% v/v of ortho phosphoric acid in water. The buffer was then filtered through 0.45 μm nylon membrane filter.
Mobile phase preparation
The mobile phase was prepared by mixing buffer and acetonitrile in the ratio of 40:60 v/v and later it was sonicated for 10 min for the removal of air bubbles.
Preparation of stock and working standard solution
10 mg of Dabigatran etexilate mesylate was accurately weighed and taken in 100 ml clean and dry volumetric flask containing 50 ml ofdiluent (same as mobile phase) and then sonicated for 2 min to dissolve. Later the solution was made up to the mark using the mobile phase. This is considered as stock standard solution (100µg/ml). From the stock solution, 3 ml was pipetted out and to 10 ml using the mobile phase to get a concentration of 30µg/ml, treated as 100% target concentration.
Preparation of stock and working sample solution
Not less than 20 capsules were taken, emptied and test stock solution of Dabigatran etexilate mesylate (275 μg/ml) was prepared by transferring weight equivalent to 27.5 mg of Dabigatran etexilate mesylate to 80 ml of mobile phase which is sonicated for 5 min and later made up to 100 ml with mobile phase. This solution was filtered using 0.22micron syringe filter. From the above stock solution 1.09 ml was pipetted out and made up to 10 ml to get working sample solution equivalent to a concentration of 30µg/ml for Dabigatran etexilate mesylate, concentration equal to 100% target concentration.
RESULTS AND DISCUSSION
Method development
A Reverse phase HPLC method was developed keeping in mind the system suitability parameters i.e. tailing factor (T), number of theoretical plates (N), runtime and the cost effectiveness. The optimized method developed resulted in the elution of Dabigatran etexilate mesylate at 2.44 min. Fig. 3 and 4 represent chromatograms of blank solution and standard solution (30µg/ml) respectively. The total run time is 5 min. System suitability tests are an integral part of method development and are used to ensure adequate performance of the chromatographic system. Retention time (RT), number of theoretical plates (N) and peak Tailing factor (T) were evaluated for injection of the standard at working concentration. The results are given in table 1.
Table 1: System suitability studies results
Parameters |
Dabigatran etexilate mesylate |
Retention time (min) |
2.44 |
Number Of Theoretical plates (N) |
3797 |
Tailing factor (T) |
1.739 |

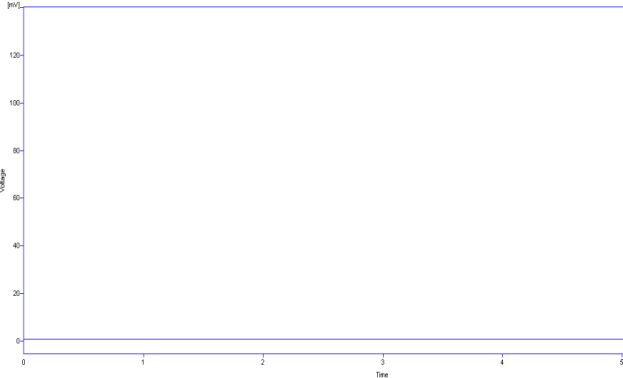

Fig. 3: Typical chromatogram of blank solution

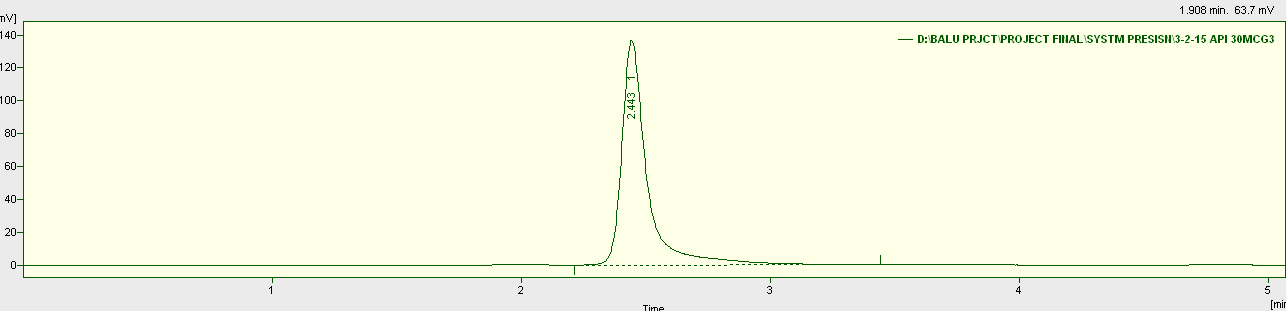

Fig. 4: Typical chromatogram of the standard solution
In order to test the applicability of the developed method to a commercial formulation, PRADAXA was chromato graphed at working concentration (30µg/ml) and it is shown in fig. 5. The sample peak was identified by comparing the retention time with the standard drug fig. 4. System suitability parameters were within the acceptance limits, ideal for the chromato graphed sample. Integration of separated peak area was done and drug concentration was determined by using the peak area concentration relationship obtained in the standardization step. The protocol affords reproducible assay of the drug in the sample ranging between 98 and 102%, which is the standard level in any pharmaceutical quality control.

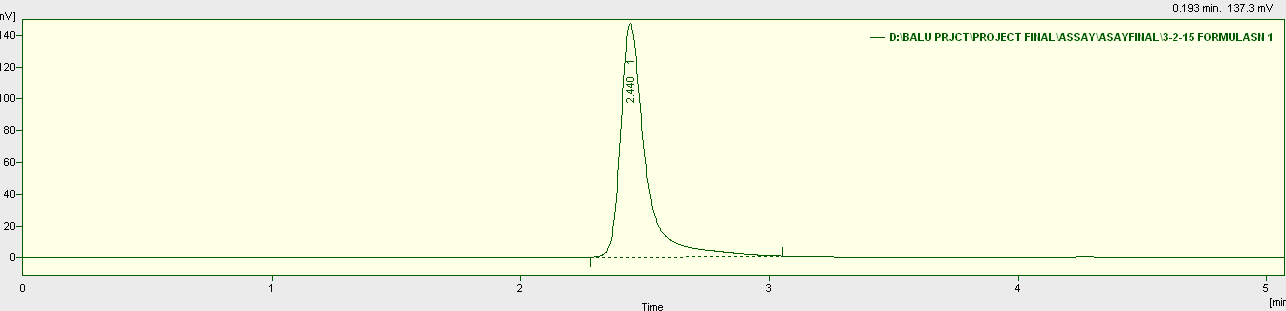

Fig. 5: Typical chromatogram for the tablet formulation
Method validation
Validation of the analytical method is the process that establishes by laboratory studies in which the performance characteristics of the method meet the requirements for the intended analytical application. RP-HPLC method developed was validated according to International Conference on Harmonization (ICH) guidelines [9] for validation of analytical procedures. The method was validated for the parameters like system suitability, specificity, linearity, accuracy, precision, and ruggedness, limit of detection (LOD) and limit of quantitation (LOQ).
Specificity
Fig. 3-5 for blank, standard drug solution and sample chromatogram reveal that the peaks obtained in the standard solution and sample solution at working concentrations are only because of the drug as blank has no peak at the retention time of Dabigatran etexilate mesylate. Accordingly it can be concluded that, the method developed is said to be specific.
Precision
System precision
Six replicate injections of the standard solution at working concentration showed % RSD(Relative Standard Deviation) less than 2 concerning peak area for the drug, which indicates the acceptable reproducibility and thereby the precision of the system. System precision results are tabulated in table 2.
Method precision
Method precision was determined by performing assay of sample under the tests of repeatability (Intraday precision) and intermediate precision at working concentration.
Repeatability (Intraday precision)
Six consecutive injections of the sample from the same homogeneous mixture at working concentration showed % RSDless than 2 concerning % assay for the drug which indicate that the method developed is method precise by the test of repeatability and hence can be understood that the method gives consistently reproducible results (table 3).
Table 2: System precision results of dabigatran etexilate mesylate
Injection no. (n) |
RT |
Peak area |
1 |
2.443 |
962.79 |
2 |
2.442 |
962.87 |
3 |
2.443 |
961.04 |
4 |
2.443 |
961.22 |
5 |
2.446 |
961.08 |
Average |
2.443 |
961.8 |
Standard Deviation |
0.001 |
0.943 |
%RSD |
0.061 |
0.098 |
Table 3: Intraday precision results of dabigatran etexilate mesylate
n |
RT |
Peak area |
% Assay |
1 |
2.441 |
1018.95 |
100.64 |
2 |
2.441 |
1019.16 |
100.66 |
3 |
2.401 |
1007.82 |
99.54 |
4 |
2.441 |
1019.16 |
100.66 |
5 |
2.441 |
1018.36 |
100.58 |
6 |
2.46 |
1007.82 |
99.54 |
Average |
2.437 |
1015.21 |
100.27 |
Standard deviation |
0.019 |
5.733 |
0.566 |
%RSD |
0.798 |
0.564 |
0.055 |
Intermediate precision
Intermediate precision was evaluated by performing assay of the formulations by different analyst on a different day by injecting six consecutive injections of the sample at working concentration from the same homogeneous mixture of tablets. This study showed % RSDless than 2 concerning % assay for both the drugs which indicate that the method developed is rugged and hence can be understood that the method gives reproducible results irrespective of analyst (table 4).
Table 4: Inter day precision results of dabigatran etexilate mesylate
n |
RT |
Peak area |
% Assay |
1 |
2.47 |
997.99 |
98.57 |
2 |
2.47 |
998.82 |
98.65 |
3 |
2.47 |
997.99 |
98.57 |
4 |
2.47 |
995.23 |
98.30 |
5 |
2.47 |
997.52 |
98.46 |
6 |
2.47 |
993.39 |
98.12 |
Average |
2.47 |
995.02 |
98.28 |
Standard deviation |
0 |
4.553 |
0.449 |
%RSD |
0 |
0.456 |
0.045 |
Linearity
Standard solutions of Dabigatran etexilate mesylate at different concentrations level (50%, 75%, 100%, 125% and 150%) were prepared. Calibration curve was constructed by plotting the concentration level of drug versus corresponding peak area.
The results show an excellent correlation between peak area and concentration level of drug within the concentration range (15-45µg/ml) for the drug and the results are given in table 5 and fig. 6.The correlation coefficient of Dabigatran etexilate mesylate is 0.996 and hence the method is said to be linear.
Table 5: Calibration data of dabigatran etexilate mesylate
% Level |
Concentration (mg/ml) |
Peak area |
50 |
15 |
495.09 |
75 |
22.5 |
695.8 |
100 |
30 |
973.48 |
125 |
37.5 |
1218.32 |
150 |
45 |
1509.63 |
Regression coefficient |
0.996 |
|
Regression equation |
y=34.021x-42.176 |
Table 6: Results of accuracy studies for dabigatran etexilate mesylate
% Level |
Peak area |
%Recovery |
% Mean recovery |
%RSD |
50 |
525.81 |
100.87 |
||
525.78 |
100.84 |
101.19 |
0.573 |
|
525.96 |
101.87 |
|||
100 |
1018.95 |
100.64 |
||
1019.16 |
100.66 |
100.63 |
0.242 |
|
1018.36 |
100.58 |
|||
150 |
1584.63 |
101.3 |
||
1585.38 |
101.2 |
100.56 |
1.173 |
|
1509.63 |
99.2 |

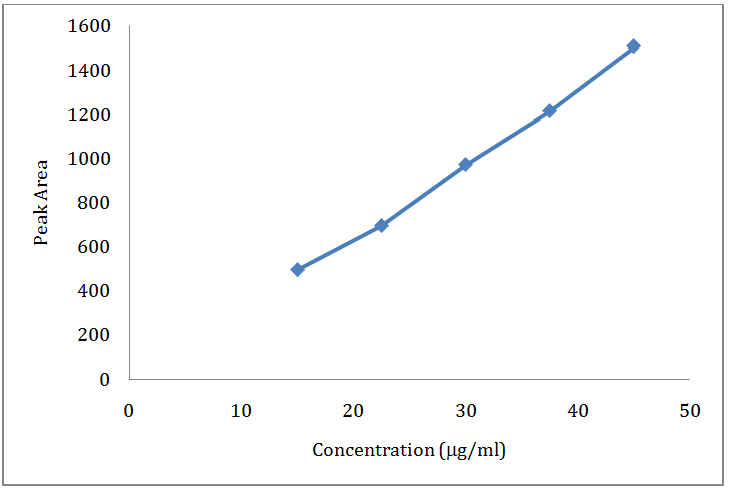

Fig. 6: Linearity graph of dabigatran etexilate mesylate
Accuracy
Accuracy was determined by means of recovery experiments, by the determination of % mean recovery of sample at three different levels (50-150%). At each level, three determinations were performed. Percent mean recovery was calculated as shown in table 6. The accepted limits of recovery are 98%-102% and all observed data are within the required range which indicates good recovery values and hence the accuracy of the method developed.
Sensitivity
The sensitivity of measurement of Dabigatran etexilate mesylate by use of the proposed method was estimated in terms of the limit of quantitation (LOQ) and the limit of detection (LOD). LOQ and LOD were calculated by the use of the equations LOD = 3.3s/S and LOQ = 10s/S where s is the standard deviation of response of calibration plot and S is the slope of the corresponding calibration plot. The limit of detection (LOD) and limit of quantitation (LOQ) was found to be 39.19μg/ml and 118.88μg/ml respectively.
CONCLUSION
A reverse phase HPLC isocratic method developed has been validated as per ICH guidelines in terms of specificity, accuracy, precision, and linearity, limit of detection and limit of quantitation, for the quantitative estimation of Dabigatran etexilate mesylate in tablets. The precision is exemplified by relative standard deviation of 0.05%. A good linear relationship was observed for the drug between concentration ranges of 15 and 45µg/ml. Accuracy studies revealed that mean recoveries were between 98 and 102%, an indicative of accurate method. The limit of detection (LOD) and limit of quantitation (LOQ) was found to be 39.19(μg/ml and 118.88μg/ml respectively. Accordingly it can be concluded that the developed reverse phase isocratic HPLC method is sensitive, accurate, precise and linear and therefore the method can be used for the routine analysis of Dabigatrn etexilate mesylate in capsules.
ACKNOWLEDGEMENT
The authors would like to thank the management of Vijaya college of pharmacy (VJYH), Hyderabad, for providing the necessary facilities to carry out of this research work. The authors are grateful to Chandra labs, Hyderabad for providing gift sample of Dabigatrn etexilate mesylate.
CONFLICT OF INTERESTS
Declared None
REFERENCES
- Pradeep GS, Chandewar AV. Validated stability indicating high performance liquid chromatographic assay method for the determination of Dabigatran etexilate mesylate. Res J Pharm Biol Chem Sci 2014;5:1637-44.
- Eerenberg ES, Kamphuisen PW, Sijpkens MK, Meijers JC, Buller HR, Levi M. Reversal of Rivaroxaban and Dabigatran by prothrombin complex concentrate: a randomized, placebo-controlled, crossover study in healthy subjects. Circulation2011;124:1573-9.
- Ankit P, Sharad K, Ashim KS, Aarti Z, Seth AK. Spectro-photometric method for estimation of Dabigatran etexilate in bulk and its pharmaceutical dosage form. Pharm Sci Mon 2014;5:31-9.
- Zhe-Yi Hu, Robert BP, Vanessa LH, Casey L. Conventional liquid chromatography/triple quadrupole mass spectrometry based metabolite identification and semi-quantitative estimation approach in the investigation of invitro Dabigatran etexilate metabolism. Anal Bioanal Chem 2013;405:1695-704.
- Xavier D, Julie M, Laporte S, Patrick M, Thierry B. UPLC MS/MS assay for routine quantification of Dabigatran-a direct thrombin inhibitor in human plasma. J Pharm Biomed Anal 2012;25:152-6.
- Mrinalini CD, Rupesh AB. Development and validation of stability-indicating RP-HPLC method for estimation of Dabigatran etexilate. J Adv Sci Res 2014;5:39-44.
- Bernardi RM, Froehlich PE, Bergold AM. Development and validation of a stability indicating liquid chromatography method for the determination of Dabigatran etexilate in capsules. J AOAC Int 2013;96:37-41.
- Sekhar reddy BRC, Vijaya bhaskar rao N. A stability indicating RP-HPLC method for estimation of Dabigatran in pure and pharmaceutical dosage forms. South Pacific J Pharma Bio Sci 2014;2:80-92.
- International Conference on Harmonization of Technical Requirements for Registration of Pharmaceuticals for Human use. Validation of Analytical Procedures: Text and Methodology ICH Q2 (R1); 2005.
