Int J Pharm Pharm Sci, Vol 7, Issue 7, 62-65Original Article


PHYTOCHEMICAL STUDIES AND ESTIMATION OF MAJOR STEVIOL GLYCOSIDES IN VARIED PARTS OF STEVIA REBAUDIANA

MADHUMITA KUMARI, SHEELA CHANDRA

Department of Bio-Engineering, Birla Institute of Technology, Mesra, Ranchi 835215, Jharkhand, India
Email: madhumita.bt@gmail.com

Received: 03 Mar 2015 Revised and Accepted: 08 May 2015

ABSTRACT

Objective: Determination of physicochemical parameters, comparativephytochemical screening of leaves, stem and root extract of S. rebaudiana and qualitative and quantitative analysis of secondary metabolites (Stevioside and Rebaudioside A) through HPLC (High Performance Liquid Chromatography).

Methods: Standards methods were followed for physicochemical and phytochemical analysis and HPLC was used for estimation of Stevioside and Reb A. Quantification of metabolites was done by plotting a standard curve for standards.

Results: Leaves, stem and root possesses different phytochemicals however, leaves showed all tests positive for phytochemicals. Leaves of S rebaudiana possess higher stevioside (1.13±0.02 mg/ml) than stem (0.88±0.008 mg/ml). Concentration of Reb A in the leaves (0.071±0.005 mg/ml) was also higher than stem (0.052±0.002 mg/ml).

Conclusion: Qualitative and quantitative estimation of various parts of S rebaudiana revealed that leaf showed the maximum type and amount of secondary metabolites which are of immense medicinal use of mankind.

Keywords: Stevia rebaudiana, Stevioside, Rebaudioside A.

INTRODUCTION

Stevia rebaudiana of Asteraceae family is a perennial herbaceous plant. It is a natural sweetener plant known as “Sweet Weed”, “Sweet Leaf”, “Sweet Herbs” and“Honey Leaf [1]. It is native of Eastern Paraguay and widely used in Latin America. It grows easily in tropical and subtropical areas. Reports of therapeutic effect in human body [2]favor its commercialization in several countries, including Latin America, Canada, China, Japan, Indonesia, and the USA, Paraguay, Brazil, Mexico, Australia, Norway, Russian Federation, New Zealand and Singapore. In these countries use of Stevia is approved by regulatory authorities. Although, In some other countries Stevia is available in different forms, but not verified by regulatory agencies, which includes Argentina, Chile, Colombia, Korea, Malaysia, Peru, Philippines, Saudi Arabia, Taiwan, Thailand, Turkey, United Arab Emirates, Uruguay, and Vietnam [3] In India, Stevia is now approved in the food industry [4] and being cultivated successfully in the states of Rajasthan, Maharashtra and Kerala.

The leaves of Stevia are the source of diterpene glycosides, viz. Stevioside and rebaudioside [5]. Stevioside content in leaf was found to vary from 3.17 to 9.94% and that in stem from 1.54 to 3.85%. In terms of weight fraction, the four major steviol glycosides found in Stevia plant tissues are 5–10% stevioside, 2–4% rebaudioside A, 1–2% rebaudioside C and 0.5–1% dulcoside A [6]. Stevioside are 110 to 270 times sweeter than sucrose, rebaudioside A are 150 to 320 times, rebaudioside C is 40 to 60 times and Dulcoside A is 30 times sweeter than sucrose [7]. Stevia leaves also contain numerous all-natural foods that help regulate blood sugar, including chromium, magnesium, manganese, potassium, selenium, zinc, and vitamin B3 (Niacin).

Diet conscious and diabetic persons with hyperglycemia can use steviosides as an alternative sweetener [8] as it regulates the blood glucose level by stimulating insulin secretion [9]. Stevioside can also be used as an antihyperglycaemic [10], antihypertensive [11], anti-tumor [12], vasodilator [13] drugs. Products can be added to tea and coffee, prepared or baked goods, processed foods and beverages, fruit juices, tobacco products, pastries, chewing gum and sherbets. In Japan alone, 50 tons of stevioside are used annually with sales valued in order of 220 million Canadian dollars [14]. Stevioside is established as a valuable natural sweetening agent due to its relatively good taste and chemical stability [15].

Studies on the absorption and metabolism of ent-kaurene glycosides in rats showed that stevioside is not readily absorbed from the upper small intestine owing to its high molecular weight. However, stevioside is degraded by bacteria of the colon, resulting in free steviol, part of which is absorbed by the colon and transported to the liver and part is excreted in feces. Steviol is then converted into its glucuronide derivative in the liver and excreted from the body through urine [6].

India has a suitable climate for Stevia cultivation. In spite of this, Stevia cultivation has not been taken up on a large scale. Studies have been done on its importance and metabolism and purification of stevioside from the leaves through HPLC. Some studies showed the presence of stevioside was very less or negligible in root but, Quantitative comparison of stevioside content in root and stem with leaf was not present. Thus,in the present study, preliminary phytochemical screening of leaves, stem and root was performed and secondary metabolite estimation was done using HPLC to test the presence of secondary metabolites in stem and root.

MATERIALS AND METHODS

Collection of plant material

Stevia rebaudiana plants were collected in the months of November from Birla Institute of Technology, Mesra, Ranchi, Jharkhand, India. Whole plants were washed thoroughly with water to get rid of dirt and clay and then root, stem and leaves were separated for further usage.

Drying and storage

Collected and washed plant materials were dried under shade for 3-4 days with frequent rotation and dried leaves were milled to make a coarse powder using mortar and pestle. Dried powder was packed tightly in an airtight PVC jar and stored.

Physicochemical analysis

Physicochemical parameters viz. Moisture content determination, Ash value determination, Water soluble ash value, Determination of acid insoluble ash and extractive value estimation was performed using standard protocols by Indian pharmacopeia [16].

Extraction of plant material

The powdered plant materials were extracted using water and methanol as solvent. Both the extracts were then treated with tri-carboxylic acid to lower the pH at 4. Subsequently CaCO3 was added to remove the acidity. The aqueous extract was neutralized with weak acids and sample mixture was filtered using filter paper (Whatman No. 1). The filtrate was further separated by using 250 ml separatory funnel with 25 ml of diethyl ether to remove the green color. Lower transparent layer was collected and extracted again with Butanol (25 ml). Finally the butanol extract (upper layer) was collected and left overnight for drying. The extraction method was optimized to form fine crystals

Preliminary phytochemical screening

Phytochemical screening of active plant extracts was done by following the established standard methods [17]. Preliminary screening included testing for the presence of alkaloids, glycosides, steroids, saponins, tannins, flavanoids and carbohydrates.

Estimation of secondary metabolites: Stevioside and rebaudioside a

Dried extracts of samples were dissolved in water and filtered through a 0.2 μm filter and steviol glycosides were separated using a Waters HPLC system (Waters Corporation, Milford, MA) in dC18 column (Waters Atlantis, 4.6 mm × 150 mm; 4 μm particle size). 20 μl of extracts were injected in an HPLC system. The solvents optimized for isocratic elution consisted of acetonitrile andMilliQ with 0.1% orthophosphoric acid in the ratio of 20:30 with a flow rate of 0.5 ml/min. The detector was set at 210 nm. The compounds from samples were identified by comparing the retention time with the corresponding retention time of standards. Quantification of compounds was performed using standard curves. All experiments were replicated at least three times. The results were presented as mg/ml of extracts.

RESULTS AND DISCUSSION

Secondary metabolites of S. rebaudiana were well recognized for their beneficial health effect. In the present investigation, evaluation of different physicochemical parameters with comparative estimation of secondary metabolite content in the leaves, stem and root was done. Moisture content may be ascertained as the quantity of water present in the plant parts showed in (table 1).

Ash content of a crude drug is the parameter to decide the quantity of minerals present in the specific drug. Different types of ash values are applied for detection of crude drugs like total ash, acid insoluble ash and water soluble ash. Total ash value is useful for detection of any siliceous contamination, chalk powder, lime or other earthy matter.

Table 1: Moisture content of S rebaudianaleaves, stems and root

Plant parts Moisture content value determined in % (w/w)
Leaves 7.17±0.15
Stem 6.28±0.08
Root 6.44±0.11

Acid insoluble ash is applied to detect excessive earthy materials, which have varying amounts of calcium oxalate crystals in the cells while water soluble ash is applied to discover the presence of water exhausted material. Total ash, acid insoluble ash and water soluble ash was shown in (table 2).

Table 2: Ash values of different parts of S rebaudiana

Plant parts Total ash % (w/w) Acid insoluble ash% (w/w) Water soluble ash% (w/w)
Leaves 9.27±0.08 1.92±0.01 4.81±0.01
Stem 9±0.05 1.22±0.04 4.93±0.01
Root 8.5±0.15 0.95±0.02 4.96±0.02

Secondary metabolites present in the plant material could be dissolved in the different solvent for extraction and their yield of extraction may vary according to the polarity of the solvent. Therefore, two solvents, water and alcohol were selected to determine their extractive values. Results of extractive values of alcohol and water in the leaves, stem and root was summarized in (table 3).

Table 3: Extractive values of plant parts in water and methanol

Plant parts Water soluble % (w/w) Alcohol soluble % (w/w)
Leaves 34.3±0.25 35.66±0.33
Stem 31.5±0.2 31.9±0.52
Root 26.6±0.6 30±0.33

Methanol extracts of leaves, stem and root of Stevia were subjected toa preliminary phytochemical screening. Phytochemical compounds such as alkaloids, glycosides, saponins, flavonoids, steroids, tannins and carbohydrates were found to be present in this plant. The results of phytochemical analysis of S. rebaudiana were summarized in (table 4). Leaves showed the entire test positive for the presence of phytochemicals.

Table 4: Preliminary phytochemical screening of S. rebaudiana leaves, stem and root.

S. No. Chemical test Leaves Stem Root
1.

Alkaloids

  1. Wagner’s reagent
  2. Dragendorff’s reagent
  3. Mayer’s reagent

+

+

+

+

-

-

+

-

-
2.

Glycoside

  1. Keller-killiani test
  2. Borntrager’s test
  3. Modified Borntrager’s test
  4. Legal’s test

+

+

+

+

+

+

+

+

-

-

-

-
3.

Steroids

  1. Liebermann-burchard test
  2. Salkowski test

+

+

+

-

+

-
4.

Saponins

Froth formation test

 + + +
5.

Flavonoids

  1. Alkaline reagent test
  2. Lead acetate test

+

+

+

+

+

+
6.

Carbohydrates

  1. Molisch’s reagent
  2. Fehling reagent

+

+

+

+

+

+
7 Tannins + - -

‘+’–Positive test, ‘-‘–Negative test

Different methods viz. Thin-layer chromatography, near-infrared spectrometry, VIS spectrometry and capillary electrophoresis can be applied to determine diterpene glycosides [18, 19] however, HPLC was one of the most usual methods used for quantification of stevioside from plant material and nutrient samples. Joint Expert Committee on Food Additives (JECFA), the FAO/WHO in the 73rd meeting recommended an HPLC method for determination of steviol glycosides in 2010 [20]. Aranda-González et al. (2014) discovered HPLC as a rapid method for quantitative determination of Rebaudioside D from leaves of S rebaudiana and showed the accuracy of method upto 99%. Jaitak et al. (2008) showed HPLC as a rapid and effective method for extraction and screening of Rebaudioside A and Stevioside. They extracted Stevia leaves using microwave. A simple reversed-phase high-performance liquid chromatography (RP-HPLC) method has been developed by Woelwer-Rieck et al. (2010) for the determination of the major steviol glycosides, the diterpene sweeteners derived from Stevia rebaudiana. The method is based on a water extraction step and a solid-phase extraction cleanup.

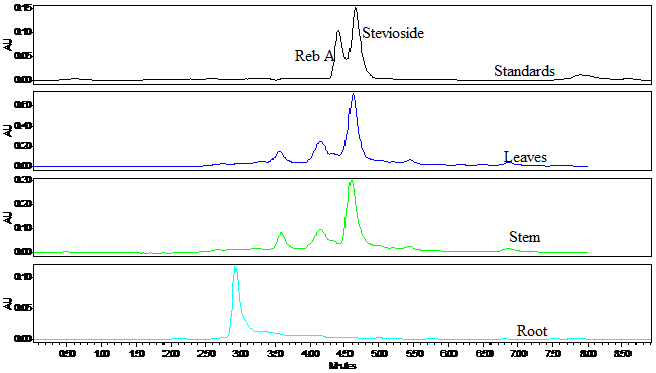

Fig. 1: HPLC profiles of standards with methanol extract of leaves stem and root sample

In the present study, two standard compounds viz. Stevioside and rebaudioside A (Reb A) procured from Sigma-Aldrich was used for qualitative and quantitative analysis of plant secondary metabolites. These two glycosides were selected for quantitative estimation on the basis of occurrence in the plant. Fig. 1 showed the qualitative estimation of Reb A and Stevioside where the presence of metabolites was inferred from the similar retention time of Standard compounds with samples. In stem and leaves extract of Stevia peaks of sample matches with the standard compounds, but root extract of S rebaudiana does not contain any of the metabolites as no peak matches with the standard compound.

Quantitative analysis (fig. 2) Showed that leaves of S rebaudiana possess highest stevioside (1.13±0.02 mg/ml) which was 1.2 fold higher than stem (0.88±0.008 mg/ml). Concentration of Reb A in the leaves (0.071±0.005 mg/ml) was also higher than stem (0.052±0.002 mg/ml). In most of the studies were focused on isolation of stevioside from leaves only and stem and roots remain unnoticed. Kour (2011) developed an HPLC method for determination of stevioside from the leafy parts of in vitro and in vivo regenerated plants of S. rebaudiana. The chromatographic separation achieved using mobile phase consisting of methanol: water with UV detection at 210 nm. On quantification, stevioside obtained was 0.0197 mg/ml for in vivo leaf which was still lower than our study.

In similar studies, acetonitrile/water (85:15) was optimized as the solvent system for HPLC analysis and quantification of stevioside and Rebaudioside A but the amount of stevioside was lower than our findings. Concentration of stevioside was 0.079 mg/ml and 39.6 mg/ml for rebaudioside A on a methanol extract of leaves [23]. They used the method based on a water extraction step and a solid-phase extraction (SPE) clean-up. Different SPE cartridges and two HPLC columns were tested in the separation of the main steviol glycosides stevioside and rebaudioside A. A good separation was performed on a Luna HILIC analytical column.

In most of the studies were focused on isolation of stevioside from leaves only and stem and roots remain unnoticed.Kour (2011) developed an HPLC method for determination of stevioside from the leafy parts of in vitro and in vivo regenerated plants of S. rebaudiana. The chromatographic separation achieved using mobile phase consisting of methanol: water with UV detection at 210 nm. On quantification, stevioside obtained was 0.0197 mg/ml for in vivo leaf which was still lower than our study. In similar studies, acetonitrile/water (85:15) was optimized as the solvent system for HPLC analysis and quantification of stevioside and Rebaudioside A but the amount of stevioside was lower than our findings. Concentration of stevioside was 0.079 mg/ml and 39.6 mg/ml for rebaudioside A on a methanol extract of leaves [23]. They used method based on a water extraction step and a solid-phase extraction (SPE) clean-up. Different SPE cartridges and two HPLC columns were tested in the separation of the main steviol glycosides stevioside and rebaudioside A. A good separation was performed on a Luna HILIC analytical column.

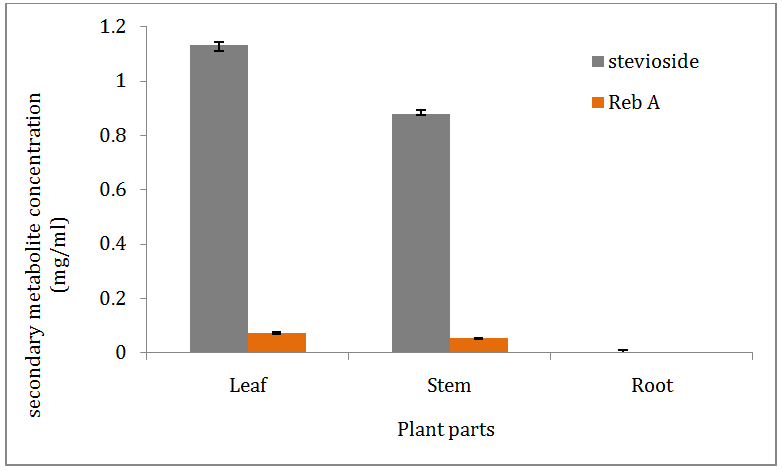

Fig. 2: Quantitative estimation of stevioside and Reb A in leaves and stem of Stevia

CONCLUSION

Current study reveals that different plant parts (leaves stem and root) possess phytochemicals which are responsible for plants therapeutic properties. Stevia leaf extract showed the presence of most of the phytoconstituents. These phytoconstituents possess different bioactivities which can be utilized further. Quantitative analysis through HPLC reveals that the leaves of Stevia contain both the secondary metabolites (Stevioside and Reb A) in higher amount when compared with stem extract. Leaf extract possesses 1.2 fold higher stevioside than stem extract. Further, isolated secondary metabolites can be purified and investigated for their bioactivities. Leaves of Stevia can be utilized for large scale production of stevioside and Reb A.

CONFLICT OF INTERESTS

Declared None

REFERENCES

  1. Chalapathi MV, Thimmegowda S. Natural non-calorie sweetener (Stevia rebaudiana Bertoni): A future crop of India. Crop Res Hisar 1997;14(2):347-50.
  2. Konoshima T, Takasaki M. Cancer-chemopreventive effects of natural sweeteners and related compounds. Pure Appl Chem 2002;74(7):1309–16.
  3. Kumari M, Chandra S. Stevia rebaudiana: Beyond sweetness. In: Handbook of Medicinal Plants and their Bioactive. Gupta N(Eds.). Research signpost, Trivandrum; 2014. p. 11-26.
  4. Agarwal s. EU Commission approves steviol glycoside to be used as a Sweetener in food ingredient. India Stevia Association, New Delhi; 2011.
  5. Yoshida S. Studies on the production of sweet substances in Stevia rebaudiana: I. Simple determination of sweet glucosides in Stevia rebaudiana (Bertoni) plant by thin layer chromato-scanner and their accumulation patterns with plant growth. Jap J Crop Sci 1986;55(2):189-95.
  6. Brahmachari G, Mandal LC, Roy R, Mondal S, Brahmachari AK. Stevioside and related compounds–molecules of pharmaceutical promise: a critical overview. Arch Pharm Chem Life Sci 2011;1:5–19.
  7. Tanaka O. Improvement of taste of natural sweeteners. Pure Appl Chem 1997;69(4):675-83.
  8. Uddin MS, Chowdhury MSH, Khan MMMH, Uddin MB, Ahmed R, Baten MA. In vitro propagation of Stevia rebaudiana Bert. in Bangladesh. Afr J Biotech 2006;5(13):1238-40.
  9. Chatsudthipong V, Muanprasat C. Stevioside and related compounds: therapeutic benefits beyond sweetness. Pharmacol Ther 2009;121(1):41-54.
  10. Gregersen S, Jeppesen Per B, Holst J J, Hermansen K. Antihyperglycemic effects of stevioside in type 2 diabetic subjects. Metabolism 2004;53(1):73-6.
  11. Ferri LA, W Alves-Do-Prado, Yamada SS, Gazola S, Batista MR, Bazotte RB. Investigation of the antihypertensive effect of oral crude stevioside in patients with mild essential hypertension. Phytother Res 2006;20(9):732-6.
  12. Yasukawa K, Kitanaka S, Seo S. Inhibitory effect of stevioside on tumor promotion by 12-O-tetradecanoylphorbol-13-acetate in two-stage carcinogenesis in mouse skin. Biol Pharm Bull 2002;25(11):1488–90.
  13. Bornia ECS, Amaral VD, Bazotte RB, Alves-do-prado W. The reduction of arterial tension produced by stevioside is dependent on nitric oxide synthase activity when the endothelium is intact. J Smooth Muscle Res 2008;44(1):1–8.
  14. Brandle JE, Rosa N. Heritability of yield, leaf-stem ratio and stevioside content estimated from a ladrace cultivar of Stevia rebaudiaana. Can J Plant Sci 1992;72(4):1263-6.
  15. Yamazaki T, Flores HE. Examination of steviol glucosides production by hairy root and shoot cultures of Stevia rebaudiana. J Nat Prod 1991;54(4):986-92.
  16. Indian Pharmacopoeia. Government of India, Ministry of Health and Welfare. 4th ed. New Delhi: Controller of Publications; 1996;2:A53-4.
  17. Harborne JB, Chapman. Phytochemical methods. In: Hall. A guide to modern techniques of plant analysis. London; 1973. p. 279.
  18. Mizukami H, Shiiba K, Ohashi H. Enzymatic determination of stevioside in Stevia rebaudiana. Phytochemistry 1982;21(8):1927-30.
  19. Liu J, Li SFY. Separation and determination of Stevia sweeteners by capillary electrophoresis and high performance liquid chromatography. J Liq Chromatogr 1995;18(9):1703-19.
  20. JECFA. Steviol Glycosides, FAO JECFA Monographs. FAO, Rome; 2010.
  21. Aranda-González I, Moguel-Ordoñez Y, Betancur-Ancona D. Rapid HPLC method for determination of rebaudioside D in leaves of stevia rebaudiana bertoni grown in the southeast of méxico. Am J Anal Chem 2014;5(13):813-9.
  22. Jaitak V, Bandana, Singh B, Kaul VK. An efficient microwave-assisted extraction process of stevioside and rebaudioside-afrom stevia rebaudiana (Bertoni). Phytochem Anal 2009;20:240–5.
  23. Woelwer-Rieck U, Lankes C, Wawrzun A, Wust M. 1st Improved HPLC method for the evaluation of the major steviol glycosides in leaves of Stevia rebaudiana. Eur Food Res Technol 2010;231:581–8.
  24. Kour H. Chromatographic determination of stevioside in leaf parts of in vitro and in vivo regenerated plants of Stevia rebaudiana. Int J Nat Prod Res 2011;1(4):44-8.
