Int J Pharm Pharm Sci, Vol 7, Issue 7, 289-294Original Article


BIOLOGICAL ACTIVITY OF BULGARIAN FOLIA BETULAE DRY EXTRACT

DIMITAR PENKOV1*, STELA DIMITROVA2, VELICHKA ANDONOVA1, EMILIA MILIEVA3, MARIANA MURDJEVA4, IRINA STANIMIROVA4, MARIAN DRAGANOV5, MARGARITA KASSAROVA1

1Department of Pharmaceutical Sciences, Faculty of Pharmacy, 2Department of Chemistry and Biochemistry, Faculty of Pharmacy, 3Department of Physics and Biophysics, Faculty of Pharmacy, 4Department of Microbiology and Immunology, Faculty of Pharmacy, 5Department of Biology, Faculty of Medicine, Medical University of Plovdiv, 4000 Plovdiv, Bulgaria
Email: dimitar_penkov@abv.bg

Received: 23 Apr 2015 Revised and Accepted: 21 May 2015

ABSTRACT

Objective: The aim of this study was to investigate the biological activity of dry Folia Betulae (FB) extract.

Methods: Extracts from birch leaves were obtained by different technological methods–maceration and percolation, extraction with different concentrations of ethanol, changes in temperature regimen. The influence of the technological factors on the content of the biologically active substances (BAS) was examined. A phytochemical characterization of the extracts and their standardization were made, according to important groups of BAS–flavonoids (rutin, quercetin) and terpenes (betulin and betulinic acid), by means of HPLC methods for detection and quantitative determination. A model extract, with optimal content of BAS was chosen for subsequent in vitro investigation of its biological activity. Antimicrobial activity was studied via in vitro tests using bacterial isolates–Staphylococcus aureus, Escherichia coli and Candida albicans. The physiological activity was investigated by using in vitro test with smooth muscle strips. The antiproliferative activity of FB extract on eukaryotic cells was examined on cell cultures in vitro. Two cell cultures were used: the mouse lymphoma cell line L5178Y and the serum-free McCoy-Plovdiv cells.

Results: The dry extract from FB has a dose–dependent antibacterial effect. The bactericidal effect on Staphylococcus aureus is stronger than the one on Escherichia coli. Results prove that adding the extract leads to stimulating effect on muscle contractility. It demonstrates biological activity, expressed as changes in cell morphology, proliferation and vitality as well as initiation of apoptosis.

Conclusion: The results obtained largely overlap with literature data and explain some of the applications of this plant in traditional medicine.

Keywords: Folia Betulae extract, HPLC identification, Biological activity.

INTRODUCTION

Humans use various plants in their daily life as a source of food, spices, cosmetics and medicines. It has been known for a long time that the leaves of birch (Betula pendula, Roth) (Folia Betulae, (FB) contain a wide range of biologically active substances–flavonoids, tannins, terpenes, glycosides and essential oils. Anti-allergic, anti-platelet, anti-inflammatory [1], antitumour [2-4], antioxidant [4] and antimicrobial [1, 5-7] activities were found for the flavonoids. Antibacterial [8], antiviral, antifungal [9, 10] and antioxidative [11] activities have been established for the terpenes. Studies were focused on the antitumour activity of dammarane triterpenoids (against Ehrich ascite carcinoma) [12, 13], isolated from birch leaves. An antiproliferative effect on different tumour cell cultures was found for the betulinic acid [14]. The dammarane triterpenoids show an antitumour effect, manifested in changing the permeability and the micro-viscosity of the tumour cell membranes [15].

The aim of this study was to investigate the biological activity of dry Folia Betulae (FB) extract. For the first time in Bulgaria the antimicrobial, antiproliferative and physiological activity of total dry extract from Birch leaves was examined.

MATERIALS AND METHODS

Plant material

Plant material (Betulae folium) was collected from an environmentally clean region in Bulgaria–Rhodope Mountains, in the most appropriate time between June and August. It meets the requirements of the European Pharmacopoeia 7. The leaves were grinded to a size of approximately 0.5 mm.

Plant extracts

Different liquid extracts were prepared, using the method of percolation (USP 24, 1151, Process P), maceration (USP 24, 1151, Process M) and maceration at increased temperature–50 °C. Thick extracts were obtained after removal of the solvent with rotary evaporator (Rotavapor R II, BUCHI). Dry extracts were prepared by the method of spray drying from two of the most promising thick extracts (respectively Dry 1–obtained from D60 and Dry 2–obtained from M96) by a Mini Spray Dryer B-290 BUCHI. The obtained extracts with their abbreviations, method and preparation conditions are shown in table 1.

Table 1: Folia Betulae extracts–technological procedure’s details

Indication of the extract Type of the extract Method of obtaining Used extractant Working temperature
1. P96 Thick Percolation Ethanol 96 % 25 °C
2. P60 Thick Percolation Ethanol 60 % 25 °C
3. М96 Thick Maceration Ethanol 96 % 25 °C
4. D60 Thick Maceration Ethanol 60 % Heating to 50 °C
5. Dry 1 Dry Spray dryer; Obtained from D60, thick.
6. Dry 2 Dry Spray dryer; Obtained from M96, thick.

HPLC quantitative determination of the biologically active substances: A phytochemical characterization (the presence of rutin, quercetin, betulinic acid and betulin) of the obtained model extracts was performed via HPLC method for simultaneously quantitative determination. It was developed and based on literature data [16-18] and adapted to the available equipment. HPLC system Varian Prostar with a column Microsorb-MV C18 (150 mm × 4.6 mm; 5 μm) and PDA detector were used. A mobile phase А (H2O, рН = 3): В (СН3СN) (Labscan) was used, in a gradient mode from 90(А):10(В) to 10(А):90(В) and a flow rate 1 ml/min. Rutin and quercetin were detected at 368 nm, betulinic acid and betulin–at 210 nm. Identification of the substances was performed by the times of retention compared to this of pure substances. The quantitative determination was made by the method of the external standard. Results are presented as mean±SD values, provided from 3 independent measurements.

Antimicrobial activity in vitro

The in vitro study of the antimicrobial activity was performed on bacterial isolates Staphylococcus aureus (S. aureus), Escherichia coli (E. coli) and Candida albicans (C. albicans). FB Dry 2 extracts, dissolved in 1 % DMSO (Fluka) and distilled water, was added to 24 hours 5 ml glucose broth cultures of S. aureus, E. coli and C. аlbicans (0.5 Mc Farland densities). The final concentrations of the extract in the media were 1, 2, 4, 10, 20, 24, 40, 50 and 100 mg/ml. The treated cultures were incubated for 24 and 48 hours. Untreated microbial cultures were used as controls. The effect of treatment was assessed by microbial count of the colony-forming units (CFU) in 5% blood agar (for E. coli and S. aureus) or in Candida Chromagar (for C. albicans). Results are presented as mean±SD values, provided from 3 independent measurements.

Antiproliferative activity in vitro

Two cell cultures were used: mouse lymphoma cell line L5178Y and serum-free McCoy-Plovdiv cells. FB Dry 2 extract was dissolved with 10% DMSO and sterilized by filtration. Final concentrations were as follows: 125, 250, 500, 750, 1000, 1500, 2000 µg/ml.

Results are presented as mean±SD values, provided from 3 independent measurements.

Physiological activity in vitro

Isometric force measurements were performed on the smooth muscle samples. The preparations were taken from a rat stomach, separated in a circulatory direction, without mucosa, and were placed in a modified Krebs solution (in mmol/l): 120 NaCl, 5.9 KCl, 15.4 NaHCO3, 1.2 NaH2PO4, 1.2 MgCl2, 2.5 CaCl2, 11.5 glucose. The solution was aerated (with 95 % О2 and 5% СО2) and temperature-controlled (36±1) °С to create optimal conditions for the manifestation of spontaneous contractile activity. One gram of preload was applied to the tissues; equilibrium period was 1 hour.

The evoked contractile activity was triggered with KCl in mmol/l: 5, 50 and 100 (approximately 5 %, 40 % and 80 % depolarization of the resting membrane potential). The initial transient state (Phase 1) and a subsequent sustained state (Phase 2) were investigated in the presence of 0.1 mg/ml and 0.3 mg/ml of the FB Dry 2 extract. Registration of the isometric tension was performed using strain-gauge-measuring bridge and multichannel polygraph Linseis. All data were expressed as a percentage of maximal 50 mmol/l KCl contractions. Results are presented as (mean±SEM) values of at least five independent measurements.

RESULTS AND DISCUSSION

Fig. 1 presents the chromatogram of a standard mixture of rutin, quercetin, betulin and betulinic acid (Fig.1a), and a chromatogram of one of the model extracts (D60 from table 1)–Fig.1b) as an illustration of the results presented on table 2.

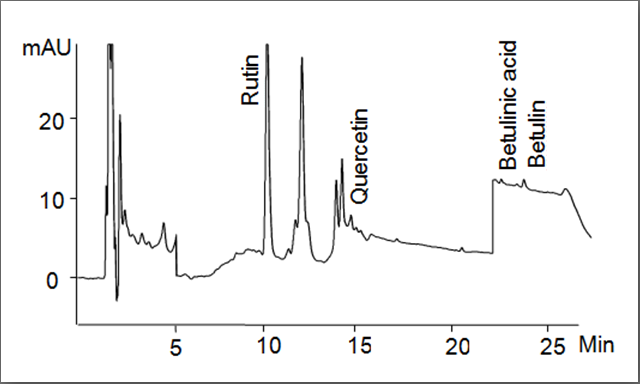

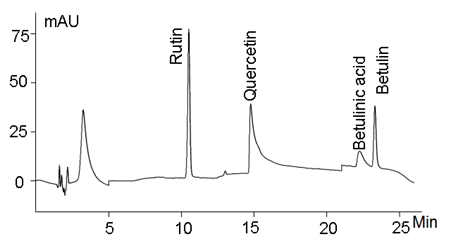

Fig. 1 a): HPLC chromatogram of a standard mixture of rutin, quercetin, betulinic acid and betulin


Fig. 1 b): HPLC chromatogram of D60


Table 2: Content of biologically active substances in the FB model extracts

Extract Rutin (µg/ml) Quercetin (µg/ml) Betulinic acid (µg/ml) Betulin (µg/ml)
1. P60 54.4±3.1 46.0±3.5 57.6±3.4 33.6±1.5
2. P96 59.1±3.0 33.4±5.5 91.2±5.3 74.3±3.4
3. M96 68.0±5.1 93.0±4.4 84.0±5.0 78.0±3.1
4. D60 79.6±5.4 45.6±2.6 70.6±3.2 61.4±2.2
5. Dry 1(from D60) 151.2±9.2 51.2±2.9 36.4±1.9 35.6±2.0
6. Dry 2(from M96) 148.8±8.9 64.0±4.9 75.6±3.9 39.2±2.2

Values are mean±SD (n=3)

Data from table 2 show that the application of different technological approaches and various extractants determines the difference in the concentration of biological active substances. For example, rutin is extracted to a greater extend at higher temperature and lower concentration of ethanol (D60), which could be possibly explained by its glycoside structure. The non-polar structure of betulin and betulinic acid is probably the reason for their better extraction with high-concentrated ethanol (M96).

M96 extracts, in the form of dry extract–Dry 2, was examined for its biological activity (antimicrobial, antiproliferative and physiological), due to its phytochemical characteristics.

In vitro study of antimicrobial activity of FB Dry 2 extract showed the bactericidal effect in S. аureus broth cultures, treated for 24 and 48 hours with 10, 20, 40 and 100 mg/ml extract. The concentration of 1 mg/ml FB Dry 2 extract caused the bacteriostatic effect on S. aureus (CFU 103–104) whereas untreated cultures showed CFU>105. FB extract at concentrations of 1, 10 and 20 mg/ml did not influence E. сoli growth (CFU>105 after incubation with the extract) but 40 и 100 mg/ml showed a bacteriostatic effect. The concentrations 1, 2, 4, 10, 24, 40, 50 mg/ml did not change culture growth of C. аlbicans in comparison with non-treated cultures (CFU 105). In summary, the Gram positive S. aureus is more susceptible to the bacteriostatic effect of FB Dry 2 extract used in lower concentrations in comparison with the Gram negative E. coli. However, the prokaryote fungus–C. albicans cannot be affected by all applied concentrations of the extract.

Other studies have demonstrated the antimicrobial activity of essential oils from FB on Legionella pneumophilla, Fusarium, Microsporum gypseum and Rhizopus spp. [19, 20]. Further investigations are necessary to elucidate the different susceptibility of Gram-positive, Gram-negative bacteria and fungi to the antimicrobial effect of FB extract.

In vitro study of antiproliferative activity of FB Dry 2 extract showed that the extract caused irreversible morphological changes in mouse lymphoma L5178Y cells several hours after the initial treatment (fig. 2a). Reduction of cell numbers was reported after 2, 4 and 24 hours exposure to the extract (fig. 2b). Concentration of 1000 μg/ml FB Dry 2 extract lead to single living cells for only 2 hours of exposure, while after 4 and 24 hours all cells were dead. Decrease of the extract concentrations increased the number of surviving cells. At a concentration of 125 μg/ml (for 4 and 24 hours of treatment) surviving cells were over 90 % and for 2 hours after treatment there were no dead cells.

Fig. 2a): Microphotography of L5178Y cells treated with FB Dry 2 extract for 6 hours with concentrations: 250, 500, 750, 1000, 1500 μg/ml (x 200)

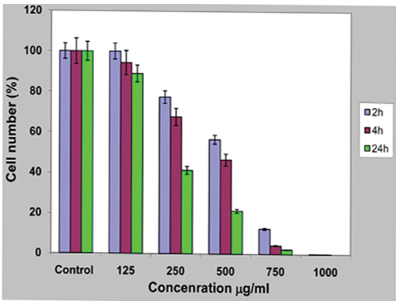

Fig. 2b): Cell numbers in cultures of mouse lymphoma cells treated with FB Dry 2 extract for 2, 4 and 24 hours with concentrations: 125, 250, 500, 750, 1000, μg/ml

Changes in cell monolayer cultures of McCoy-Plovdiv cells were observed at 250 μg/ml FB Dry 2 extract concentration. Cells acquired round shape, which was even more pronounced at concentrations of 500 and 750 μg/ml (fig. 3a).

Fig. 3 a): Microphotography of McCoy-Plovdiv cells treated with FB Dry 2 extract for 24 hours with concentrations: 250, 500, 750, 1000, 2000, 3000, 4000, 5000 μg/ml (x 200)

However, at concentrations higher than 1000 μg/ml, cells were not round. They remained firmly bound to the substrate, but with strongly altered morphology and vitality (fig. 3b).

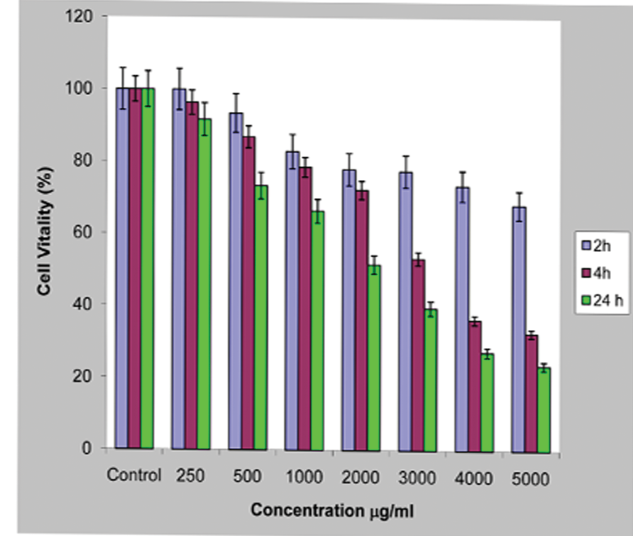

Fig. 3 b): Reduction of cell vitality in cultures of McCoy-Plovdiv cells after treatment with FB Dry 2 extract for 2, 4 and 24 hours with concentrations: 250, 500, 750, 1000, 2000, 3000, 4000 and 5000 μg/ml

It has been demonstrated that the cell damage was associated with apoptotic program that was triggered by FB extract components. In the mouse lymphoma cells, it was found that concentration of 2000 μg/ml FB Dry 2 extract led to accumulation of Annexin protein on the cell membrane even for 2 hours treatment.

Annexin binds to the phospholipid phosphatidylserine translocated outside of the cell membrane. This was an early indication of apoptosis occurred. That was also proved on human tumour cell lines–the hepatocellular carcinoma HEp G-2 cells and the adenocarcinoma PC3 cells (results not presented). There are many data in the literature showing that compounds such as betulin and betulin acid, inducing apoptosis and possessing antitumour and antiproliferative activity, have been isolated from the bark of birch and many other plants [8, 12, 19-21].

This gives us grounds to assume that apoptosis observed, was probably due to these compounds, thoroughly present in the extract. The results show higher sensitivity of tumour cells to extract exposure compared with McCoy-Plovdiv cells. These results are consistent with the literature [21].

In vitro, study of physiological activity of rat’s corpus stomach sample was illustrated on fig. 4. Spontaneous contractile activity was shown with: tonic (TT) and phasic (PhT) isomeric force tension as well as two phases of KCl-depolarisation solution.

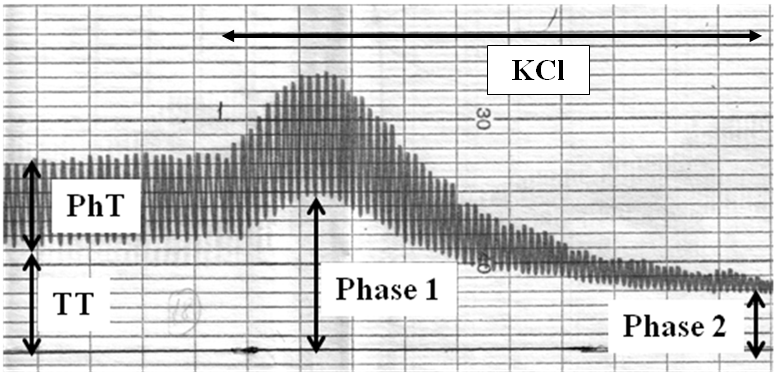

Fig. 4: Mechanogram of smooth muscle samples showing tonic tension (TT), phasic tension amplitude (PhT), an initial transient state–Phase 1 (Ph1) and a subsequent sustained state–Phase 2 (Ph2) of KCl-depolarisation solution (KCl-contracture)

Introduction of the FB Dry 2 extract into the smooth muscle bath (at concentration from 0.1 to 0.9 mg/ml) have a biphasic effect on the smooth muscle isometric tension. Following increase of the concentration, FB extract potentiates isometric force generation. At higher concentrations the extract inhibits the spontaneous muscle activity (fig. 5).

Fig. 5: Dose-response curve of FB Dry 2 extract. Average values of phasic (PhT) and tonic (TT) tension are presented as mean±SEM of 10 (PhT) and 5 (TT) separate samples

Stimulation effect of FB Dry 2 extract concentrations of 0.1 mg/ml and 0.3 mg/ml were investigated by evoked KCl-contracture. The initial transient state (Phase 1) and a subsequent sustained state (Phase 2) are illustrated in the presence of 0.1 mg/ml and 0.3 mg/ml of the extract (on fig. 6).

Adding FB extract into solution with smooth muscle strips leads to stimulating effect on the spontaneous contractility. The intensity of the effect is proportional to the concentration of the filtrate in doses up to 0.3 ÷ 0.5 mg/ml. The higher doses lead to reduction of the contractility. The biphasic profile of the dose–effect curve supports the assumption for the depolarizing effect and Са2+-influx through the voltage-operated calcium channels (VOCCs) at low concentrations of FB extract. At higher concentration, the increased quantity of intracellular Са2+probably activates the К+-efflux through the Са2+-dependent К+-channels, hyperpolarizes the membrane and leads to smooth muscle relaxation [22]. KCl-induced response is a standard tool-set as a calcium-sensitizing stimulus [23].

Applied after priorly treated with FB extract muscle strips, Phase 1 and Phase 2 are changed significantly at 100 mmol/l KCl-contracture (that corresponded to 80 % depolarization of the membrane).

This suggests that FB extract changes the complex Ca2+-signaling system than simply activation of VOCCs.

a)


b)

Fig. 6: Effect of 0.1 mg/ml and 0.3 mg/ml FB Dry 2 extract on the size of the KCl-contracture Phase 1 (a) and Phase 2 (b). Values are mean±SEM (4 rats; 8 strips)

In general, the total extract from FB demonstrates biological activity, which is expressed as changes in cell morphology, proliferation and vitality as well as in initiation of apoptosis in L5178Y cells and McCoy-Plovdiv cell lines. Dried FB extract possesses dose-dependent antibacterial activity in vitro on S. аureus and E. coli cultures, being more prominent in S. aureus. The in vitro treatment of C. аlbicans did not produce antimicrobial effect. A possible explanation for that may be associated with various mechanisms of maintaining Са2+-homeostasis (C. аlbicans) and the difference in intracellular Са2+-stores (E. coli). The physiological activity is probably due to the breach of the Ca2+homeostasis on the membrane transport level and ryanodine-and caffeine-sensitive intracellular stores.

CONCLUSION

Our study showed that the application of different technological approaches and extractant defines the difference in the concentration of biological active substances of Folia Betulae extracts. The results obtained largely overlap with literature data and explain some of the applications of this plant in traditional medicine. These promising results give grounds to continue with further investigation and clarification of the antitumour activity of the extract.

ACKNOWLEDGEMENT

This work was supported by Research Project НО–8/2009, funded by Medical University of Plovdiv, Bulgaria.

CONFLICT OF INTERESTS

Declared None
