Int J Pharm Pharm Sci, Vol 7, Issue 8, 97-100Original Article
PHARMACOGNOSTIC STUDIES AND HPTLC FINGERPRINTING OF BLUMEA ERIANTHA DC (ASTERACEAE) LEAVES
AVINASH T. GATADE1*, AZMINA A. K. MASURKAR1, RUPALI A. GATADE2, DHARA J GANDHI3
1G. N. Khalsa College, Guru Nanak Institute of Research and Development, Mumbai, Maharashtra, India, 2Mahatma Phule Arts, Science & Commerce College, Department of Chemistry, Panvel, Maharashtra, India, 3The Maharaja Sayajirao University of Baroda, Department of Botany, Vadodara, Gujrat, India
Email: avinash.gatade@gmail.com
Received: 04 May 2015 Revised and Accepted: 15 Jun 2015
ABSTRACT
Objective: To study the pharamacognostic, morphological, microscopical characters of leaves of Blumea eriantha DC also to carry out the chemical analysis of its leaf powder and establish the chromatographic fingerprint.
Methods: Anatomical investigations and fluorescence analysis were carried out as per the standard techniques. Various quantitative parameters like ash values, extractive values and moisture content can be used as quality control parameters for B. eriantha were determined. The air dried leaf powder was extracted with methanol and fingerprinting pattern was developed by using High Performance Thin Layer Chromatography (HPTLC) technique.
Results: The epidermal study of leaves revealed several stalked glandular trichomes and multicellular uniseriate trichomes on both the epidermis of the leaves. Fluorescence analysis of leaves powder of B. eriantha revealed a range of colours from dark green to brownish black under short Ultra Violet (UV) light. The HPTLC fingerprint of methanolic extract of B. eriantha leaves showed six well resolved components.
Conclusion: The pharamacognostic studies carried out for Blumea eriantha DC and presented here provide referential information for the identification of this crude drug and will also help in distinguishing it from its adulterants.
Keywords: Blumea eriantha, Phamacognostic studies, Fluorescence analysis, HPTLC, Trichome.
INTRODUCTION
After decades of serious obsession with the modern medicinal system, people have started looking at the ancient healing systems like Ayurveda & Siddha. Herbal drugs play an important role in health care programs especially in developing countries. Ancient Indian literature incorporates a remarkably broad definition of medicinal plants and considers ‘all’ plant parts to be potential sources of medicinal substances [1]. A large number of Indian medicinal plants have been screened by scientists of various disciplines viz., agriculture, botany, chemistry, pharmacology, toxicology and clinical sciences.
In the present study leaves of Blumea eriantha belonging to the family Asteraceae is selected for the pharmacogenetics study. It is commonly known as “Blumea camphor” and in Marathi it is known as “Nimurdi”.
It is a slender, perennial herb, widely distributed in different parts of India; commonly found occurring in the states of Karnataka, Maharashtra, Madhya Pradesh, Uttar Pradesh, Bihar and Orissa. It grows, up to 1 m in height often dichotomously branched, covered with white and silky hairs, Leaves 0.02-0.19 x 0.006-0.06 m, lower obovate, short-petioled, upper elliptic-ovate to oblanceolate, cordate-clasping; capitula axillary or terminal, with numerous yellow floret; achene brown, shining, with white pappus.
The leaves contain an essential oil which is minty with caraway type backnote, and is a source of camphor. The chief constituents of its oil are d-carvotanacetone, l-tetrahydrocarvone and an alcohol [2]. The essential oil shows insecticidal, antibacterial and antifungal properties and may be incorporated in dermatological medicaments. The juice of the herb is administered as a carminative.
According to the World Health Organization (WHO, 1998), the macroscopic and microscopic description of a medicinal plant is the first step towards establishing the identity and the degree of purity of such materials and should be carried out before any tests are undertaken [3].
Though this plant is widely used for its multiple properties, it has not been standardized pharma cognostically and chromatographically. Therefore, the objective of the present study is to evaluate various pharmacognostic standards like macroscopy, microscopy, ash values, extractive values, microscopical characters of powdered leaf and development of HPTLC fingerprinting pattern for B. eriantha leaves.
MATERIALS AND METHODS
The leaves of B. eriantha were collected from Sawale Village of Panvel district, Maharastra, India. The plant specimen was identified from Botanical Survey of India, Western Circle, Pune, India.
Microscopic analysis
For anatomical investigations, collected material was washed and fixed in Formalin–Acetic Acid–Ethyl alcohol (FAA) and standard microtome techniques were followed [4]. Transverse sections of 10 to 15 x 10-6 m thicknesses were carefully taken and stained with safranin-fast green series. Photographs were taken under a Leica DM 2000 microscopes connected to a digital camera.
For micromorphological investigation i.e. for leaf constants, fresh material as well as fixed material could be used and standard peel study was followed. Stomatal index, trichome index, palisade ratio, vein-islet and vein termination numbers were calculated by using standard methods [5].
For powder study, dried plant material was finely powdered and sieved through BSS mesh no.85. The fine powder obtained was stained using 1% Safranin in water. The stained powder was mounted on a slide and observed under a microscope to locate and identify the botanical characters. The characters observed were photographed under a Leica DM 2000 microscope connected to a digital camera.
Fluorescence analysis
This study was carried out as per the standard procedures [6]. In the present study, the plant powder was treated with 1N hydrochloric acid, 50% sulphuric acid, 40 % aqueous sodium hydroxide and 40 % ethanolic sodium hydroxide.
Proximate analysis
The various physiochemical parameters like ash values, extractive values and moisture content were determined by the standard methods [7, 8].
High performance thin layer chromatographic (HPTLC)
Accurately weighed 250 mg of leaves powder of B. eriantha was taken in test tube. To this 5 ml of methanol was added. The test tube was then kept on test tube shaker for 90 min. After extraction the extract was filtered through Whatman filter paper no. 41. The filtrate was then used for the development of HPTLC fingerprinting pattern. 10 µl of the sample was then accurately spotted on Silica gel 60 F254 pre-coated plate with a band length of 8 x 10-3m by Linomat 5 sample applicator. After sample application, plate was developed up to 0.08 m in Toluene: Ethyl acetate: Formic acid (6:3:1 v/v/v) mobile phase. The plate was then air dried and scanned using densitometer at 254 nm (Camag TLC Scanner-3).
RESULTS AND DISCUSSION
Transverse section of leaf
Transverse sections of leaves showing lamina and midrib were studied (fig. 1, A-D). The leaf was dorsiventral. Midrib region was slightly rectangular to oval in shape and it projected out towards the lower epidermis. In the midrib region the cell size of epidermal cells, was almost same in both adaxial (Upper epidermis, approx. 12x10-6m x 5x10-6m) and abaxial (Lower epidermis); but towards the lamina portion, the epidermal cells were larger at adaxial than at the abaxial surface. Epidermis was covered with the cuticle. Trichomes were present at both the epidermal layers. Glandular trichomes with stalk and multicellular trichomes, both were present.
The mesophyll (lamina portion) consists of 2 layers of elongated, compactly arranged palisade tissues (approx. 16x10-6m x 2.7x10-6m) which were present towards the upper epidermis and 3-4 layers of isodimetric loosely arranged spongy chlorenchyma tissues with air cavities are present towards the lower epidermis. The midrib consists of mainly vascular tissues/vascular bundles in the center.
The vascular bundle was surrounded by the parenchymatous tissue, which makes the ground tissue. There was a single layer of collenchyma present above the lower epidermis. Vascular bundle was made up of xylem and phloem tissues. Xylem vessels were arranged in rows. The big sized vessels known as metaxylem were present towards the lower epidermis and small vessels known as protoxylem were present towards the upper epidermis. Xylem was surrounded by phloem only at lower side of xylem tissue.
Fig. 1: Microscopic images of Transverse sections of leaves of Blumea eriantha
Key: A: T. S. of Leaf U. E.-Upper Epidermis; B: T. S. of Leaf showing midrib L. E.-Lower Epidermis; C: T. S. of Leaf showing vascular bundleL-Lamina of the Leaf; D: T. S. of Lamina (High Magnification) M-Midrib; E: Trichome at higher magnification P-Palisade tissue; F: Upper epidermis shows stomata S-Spongy tissue; V. B.-Vascular Bundle; G. T.-Glandular Trichome; Xy-Xylem; Ph-Phloem; S-Stomata
Determination of leaf constants
The leaf constants i.e. micro morphological study includes different parameters like type of stomata, stomatal frequency and different types of trichomes. Leaf constants such as stomatal index/mm2, trichome index/mm2, vein-islet number/mm2, vein termination number and palisade ratio were calculated and data is represented in the table 1. The stomatal type was decided on the basis of the arrangement of the subsidiary cells around the stomata. In B. eriantha, the subsidiary cells were indistinguishable from the guard cells of the stomata, based on this the stomatal type was identified to be anomocytic (fig. 2, C). The wall of subsidiary cells was undulating. The frequency of the stomata was more on the upper epidermis than the lower epidermis; this feature is not commonly found in plants. In B. eriantha, two structurally different types of trichomes were observed-glandular and non glandular trichomes (fig. 2, D).
Both types of trichomes were present on both epidermises. The frequency of glandular hairs was observed to be more than that of the non-glandular trichomes. Non-glandular trichomes were unicellular & multicellular, uniseriate type with stalk and the glandular trichomes present were stalked.
Table 1: Calculated values of leaf constants of Blumea eriantha DC
| Leaf constant | Blumea eriantha DC. |
| Stomatal index | Upper epidermis |
| 9.5±0.4 | |
| Trichome index | 26.6±1.4 |
| Palisade ratio | 5.4±1.01 |
| Vein iselet number | 11±0.8 |
| Vein termination number | 3-4 |
Note: Values in each column are the mean of three replicates±SD
Microscopy of powder
The powder of the leaves of B. eriantha showed interesting characters such as glandular and multicellular, uniseriate trichomes. This feature was abundantly found in the plant, and hence can be considered as an important botanical marker.
Presence of epidermal cells with undulating wall and long sized parenchymatous cells were also important characters. Other than these characters anomocytic stomata, palisade tissue, vessel with spiral thickening, pitted fibers and epidermal cells were observed. Besides these characters some calcium carbonate crystals were also found (fig. 2, F-M).
Fig. 2: Micromorphological studies and powder characteristics of the leaves of B. eriantha
Key: A: Peel of Upper epidermis St-Stomata; B: Peel of Lower epidermis Epi-Epidermal cell; C: Epidermis shows anomocytic stomata Ne-Neighbouring cell; D & E: Epidermis shows different types M. U. T.-Multicellular uniseriate trichome; of trichomes U. U. T.-Unicellular Uniseriate trichome; F-M: Shows different features of powder study G. T.-Glandular trichome; F: Upper epidermis shows stomata; G: Vessel member shows bordered pits; H: Vessel shoes spiral thickening; I: Vessel; J: Epidermal cells show undulating wall; K: Epidermis with stomata; L: Long parenchymatous cell; M: Unicellular uniseriate trichome
Proximate analysis
The ash values, extractive values and moisture content are given in the table 2.
Table 2: Proximate analysis of Blumea eriantha DC leaf powder
| S. No. | Parameters |
% Content |
| 1. | Total ash | 5.25 |
| 2. | Acid-insoluble ash | 0.21 |
| 3. | Water soluble ash | 4.90 |
| 4. | Ethanol soluble extractive | 11.05 |
| 5. | Water soluble extractive | 19.44 |
| 6. | Moisture content | 9.65 |
Fluorescence analysis
Different colour ranges were obtained for the leaf powder in different reagents (table 3).
High performance thin layer chromatographic (HPTLC)
The suitable mobile phase, number of compounds, their Rf values and percentage peak area were determined by HPTLC (table no. 4). The chromatographic fingerprint of methanolic extract of B. eriantha showed six well resolved components (fig. 3).
This HPTLC fingerprinting pattern can be considered as analytical parameter to check identity, purity and authenticity of B. eriantha.
Table 3: Fluorescence analysis of Blumea eriantha DC. leaf powder
| Ordinary Light | UV Long | UV Short | |
| Powder as such | Green | Green | Dark green |
| Powder+1 N HCl | Yellowish green | Greenish black | Dark green |
| Powder+50% Sulfuric acid | Yellowish green | Dark green | Brownish black |
| Powder+40 % NaOH | Greenish yellow | Dark green | Dark Green |
| Powder+40 % NaOH-ethanolic | Yellowish green | Yellowish brown | Yellowish green |
Table 4: HPTLC profile of methanolic extract of B. erinatha leaves
| Extract | Solvent system used | Number of peaks | Rf values | Percentage peak area |
| Methanolic | Toluene: Ethyl acetate: Formic acid (6:3:1 v/v/v) |
6 | 0.18, 0.30, 0.35, 0.44, 0.52, 0.65 | 2.78, 39.58, 13.17, 20.49, 20.15, 3.83 |

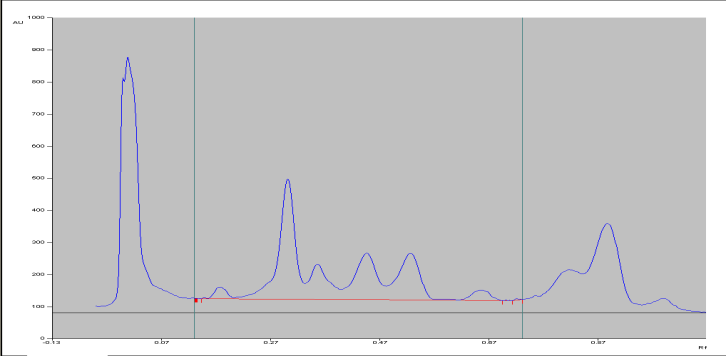

Fig. 3: This HPTLC fingerprinting pattern of methanolic extract of B. erinatha leaves
CONCLUSION
In the present study, we have evaluated some of the pharmacognostic standards for Blumea eriantha DC. Macroscopy studies for determination of leaf constants and micromorphological characteristics were performed. The ash values, extractive values, microscopical characters of powdered leaf were determined. The HPTLC fingerprinting pattern for the methanolic extracts of B. eriantha leaves were developed. Thus a successful attempt was made to pharmacognostically and chromatographically standardizes the leaves and extract of B. eriantha. The data obtained in this study can be suggested as reference information for the identification of this medicinally acclaimed crude drug and also help to discern it from its adulterants.
ACKNOWLEDGEMENT
The authors are thankful to the management of GN Khalsa College for their constant encouragement and support in carrying out this work in the Guru Nanak Institute of Research Development.
CONFLICT OF INTERESTS
Declared None
REFERENCES
- Shankar D, Ved DK. A balanced perspective for management of Indian medicinal plants. Indian For 2003;129:275-88.
- The Wealth of India. A dictionary of indian raw materials and industrial products. Vol. II (Revised). New Delhi: Publication and Informative Directorate, Council of Scientific and Industrial Research; 1988.
- World Health Organization. Quality control methods for medicinal plant materials. Geneva: WHO Library; 1998. p. 1-115.
- Khasim SM. Botanical Microtechnique: Principles and Practice. New Delhi: Capital Publishing Company; 2002.
- Kokate CK. Practical Pharmacognosy. 4th ed. New Delhi: Vallabh Prakashan; 2003. p. 122-6.
- Lala PK. Lab Manuals of Pharmacognosy. 5th ed. Kolkata: CSI Publishers and Distributors; 1993.
- African Pharmacopoeia. General Methods for Analysis. 1, 2 ed. (OAU/STRC) Lagos; 1986. p. 123.
