Int J Pharm Pharm Sci, Vol 7, Issue 10, 260-267Original Article
GC-MS PROFILE OF IN VIVO, IN VITRO AND FUNGAL ELICITED IN VITRO LEAVES OF HYBANTHUS ENNEASPERMUS (L.) F. MUELL
VELAYUTHAM P., KARTHI C.
Plant Tissue Culture Laboratory, PG and Research Department of Botany, Government Arts College (Autonomous), Karur 639005
Tamil Nadu, India
Email: vela_utham@yahoo.com
Received: 13 Jun 2015 Revised and Accepted: 20 Aug 2015
Abstract
Objectives: Investigation of the bioactive compounds from the methanol leaf extracts of in vivo, in vitro and fungal elicited in vitro plants of Hybanthus enneaspermus through GC-MS analysis.
Methods: The leaf explants were cultured on MS (Murashige and Skoog) medium supplemented with different concentrations of NAA (1-naphthalene acetic acid) for callus induction. The calli was treated with four different fungal elicitors, namely, Mucor prayagensis, Trichoderma viride, Fusarium moniliformis and Aspergillus niger on suspension culture containing the same growth regulators for two weeks. Regeneration of shoots was achieved from the fungal treated and untreated calli on MS medium fortified with different concentrations of cytokinins. Rooting was achieved from the isolated shoots on half strength MS medium containing different concentrations of auxins. The phytochemical composition was analyzed from the methanol extracts of in vivo, in vitro and fungal treated leaves of in vitro plants using gas chromatography and mass spectroscopy (GC-MS).
Results: Of the different concentrations and combinations of NAA, well developed green compact reproducible calli were obtained on MS medium supplemented with 10 µmol NAA+4 µmol BAP (6-benzylaminopurine). Shoots were regenerated from the fungal treated and untreated calli on MS medium containing 10 µmol BAP+6 µmol KIN (kinetin-6-furfurylaminopurine). Rooting was achieved on half strength MS medium supplemented with 9 µmol NAA. The GC-MS analysis revealed that the leaves of in vivo and in vitro plants contained 16 different phytochemicals, whereas, the fungal treated in vitro plants showed more number of phytochemicals, i.e., 22 (Mucor prayagensis), 26 (Trichoderma viride), 19 (Fusarium moniliformis) and 21 (Aspergillus niger)compounds.
Conclusion: Synthesis of more number of phytochemicals in the fungal treated leaves, in the present study, shows that the fungal species can be used for the process of elicitation and to enhance the secondary metabolites in medicinal plants.
Keywords: Hybanthus enneaspermus,Suspension culture, Tissue culture technique, Fungal elicitors, GC-MS.
© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
Introduction
Medicinal plants are the most important source for the discovery of new drugs and drug development. Most of the plant drugs are the secondary metabolites synthesized by various metabolic pathways. The secondary metabolites are economically important not only as drugs, but also used as flavour and fragrances, dye and pigments, pesticides, food additives, defense substances, etc. The utilization of plant cells for the production of natural or recombinant compounds of commercial interest has gained increasing attention over past decades [1].
Plant cell and tissue cultures hold great promise for controlled production of a great number of useful secondary metabolites on demand. Discovery of cell cultures, capable of producing specific medicinal compounds at a rate similar or superior to that of intact plants, has accelerated in the last few years [2]. Large-scale plant tissue culture is found to be an attractive and alternative approach to traditional methods of plantation as it offers controlled supply of biochemicals, independent of plant availability [3]. Plant tissue culture has proved as an important technique for improving the utility sources and naturally occurring active metabolites in medicinally important plant system. This is a highly appreciable and acceptable biotechnological concept that contributes largely in exploring and conserving the natural sources of herbal medicines to achieve high product recovery. In vitro production of secondary metabolites in plant cell suspension cultures has been reported from various medicinal plants [4-7]. Different strategies for metabolic engineering are worked out by the scientists for qualitative and quantitative improvement of biologically active compounds. These strategies include use of suitable conditioned bioreactor, chemical and biological elicitors, increasing the cell permeability and alterations in media composition [8-10]. Elicitors are compounds that stimulate plant cell secondary metabolism and are usually derived from components of fungal or plant cell walls. Feeding of elicitors has been proven to be an effective way to enhance secondary metabolites in plant cell cultures. In recent years, the enhancement of secondary metabolites or phyto chemicals has been achieved in several plants by using biotic and abiotic elicitors [11-16]. The biotic elicitors are generally derived from pathogenic or non-pathogenic microorganisms, plant cell wall components, as well as chemicals released by plants at point of pathogen or herbivore attack [17-19]. Fungal elicitation has been an effective technique for enhancement of secondary metabolites [20, 21] and as a tool for studying metabolism [22]. The fact that the strongly and rapidly accumulating secondary metabolites, stimulated by the fungal elicitors, have recently attracted considerable attention [9, 23].
Hybanthus enneaspermus (L.) F. Muell. (Ionidium suffruticosum Ging.), a member of Violaceae, is a small suffrutescent perennial herb distributed in the tropical and subtropical regions of the world. It is popularly known as Rathanapurush, Pursharathna (Sanskrit, Hindi) and Orithazhthamarai (Tamil). This herb is considered to be extremely beneficial to men. In folklore, the plant is used in the case of pregnant and parturient women, and in case of gonorrhoea and urinary infections. The plant is reported in ancient Ayurvedic literature to cure conditions of “kapha” and “pitta”, urinary calculi, strangury, painful dysentery, vomiting, burning sensation, wandering of the mind, urethral discharges, blood troubles, asthma, epilepsy, cough, and to give tone to the breasts. Traditionally the plant is used as an aphrodisiac, demulcent, tonic, diuretic, in urinary infections, diarrhea, leucorrhoea, dysuria and sterility [24, 25].
Several studies revealed that the plant has free radical scavenging activity [26-28], anti plasmodial [29], antiarthritic [30], antidiabetic [28], antimicrobial [31], antiinflammatory [32], anti-infertility [33] and nephro protective activities [34]. The root is diuretic and is used in urinary infections and bowel complaints in children.
Based on this lime light and our early study on regeneration of Hybanthus enneaspermus from stem explants [35], the present investigation is aimed to regenerate the plantlets from leaf explants through organogenesis and to analyze the photochemical components of the leaves of in vivo, in vitro and fungal treated in vitro plants using Gas Chromatography-Mass Spectrophotometer (GC-MS).
Materials and Methods
Plant material
In the present investigation, Hybanthus enneaspermus was selected for in vitro regeneration through callus culture from the leaf explants. The plant materials were collected from in and around the college campus. The leaf explants were washed thoroughly under running tap water for 20 min. Then they were rinsed with surfactant (Teepol) for 2 min. After that they were rinsed with distilled water for 4-5 times. The explants were disinfected with 70% alcohol (v/v) for 45 seconds followed by 0.1% mercuric chloride (w/v) for 3 min in the Laminar Air Flow Chamber. Finally, the explants were washed with sterile distilled water for 3-5 times to remove the traces of mercuric chloride.
Preparation of culture media
For the entire study MS medium [36] was used as the basal medium with 3% sucrose and respective growth regulators for callus culture, suspension culture and regeneration. The medium was solidified with 0.8% agar and the pH of the medium was adjusted to 5.8 using 0.1 N NaOH and 0.1 N HCl before autoclaving. The medium was autoclaved at 1.06 kg/cm2 at 121°C under 15 lbs/sq. ft. pressure for about 20 min.
Callus culture
The leaf explants were inoculated on MS medium fortified with different concentrations of NAA with low concentration of BAP for callus induction. The suitable concentration of growth regulator was optimized and further used for suspension culture.
Preparation of fungal elicitors
Fungal elicitors were prepared from cultures of Mucor prayagensis (Acc. No.3371), Trichoderma viride (Acc. No.793), Fusarium moniliformis (Acc. No.156) and Aspergillus niger (Acc. No.281) which were procured from the Microbial Type Culture Collection and Gene Bank (MTCC), Institute of Microbial Technology (IMTEC), Chantigarh, India. The fungal filaments were grown in 250 ml conical flasks containing 100 ml of SD broth (Sabouraud Dextrose Broth) at room temperature for 21 d under static condition. Fully grown mycelia with spores were homogenized and centrifuged at 4000 rpm after autoclaving for 20 min at 121ºC. The supernatants were collected and stored at 4 °C. These extracts were used as fungal elicitors [37, 38].
Suspension culture
The well developed green compact calli were transferred to 250 ml conical flasks containing 100 ml of MS liquid medium fortified with optimized concentration of NAA and different fungal elicitors (15 ml/l at 1.2 OD600). The cultures were maintained in an orbital shaker at 120 rpm/min for two weeks.
Regeneration of plantlets
After two weeks of incubation, the calli were transferred to MS solid medium fortified with optimized concentration of BAP with and without fungal elicitors for shoot regeneration. The regenerated shoots were transferred to half strength MS medium with different concentrations of NAA for rooting. The rooted plants were transferred to the field through hardening and acclimatization.
Extraction of leaf samples for GC-MS analysis
The leaf samples of in vivo, in vitro and fungal elicitated in vitro plants were collected, shade dried and ground to fine powder. The powders were extracted with methanol using soxhlet apparatus. The extracted materials were subjected to GC-MS analysis.
Gas chromatograph-Mass spectrometer (GC-MS) analysis
GC-MS analysis was carried out on a Thermo GC-Trace Ultra Ver.5.0 Thermo MS DSQ II System. The chromatography was performed by using the DB5-MS Capillary Standard Non-Polar Column. Helium gas was used as a carrier as well as eluent at a constant flow of 1 ml/min. About 1 µl methanol extract was injected using a micro syringe. Injection temperature was set at 260 °C. The oven temperature was programmed from 70 °C with an increase of 6 °C/min raised to 260 °C, 1 min isocratic and cooled to 70 °C, followed by the additional 5 min delay. The ion trace integration was done using the mass lab finds target method for the characteristic fragment of assigned peaks. Total GC running time was 34 min.
Identification of components
Interpretation of mass spectrum GC-MS was conducted using the data base of the National Institute Standard and Technology (NIST) and Wiley Spectra Libraries having more than 62,000 patterns. Spectra of the unknown components were compared with the spectra of known components stored in the NIST Library. The molecular weight, molecular formula and the number of hits used to identify the name of the compound from NIST and Wiley Spectra Libraries were recorded. Prediction of biological activities of each compound was based on Dr. Duke’s Phytochemical and Ethnobotanical Databases by Dr. Jim Duke of the Agricultural Research Service/USDA [39].
Results
In vitro plant regeneration and fungal elicitation
The leaf explants of Hybanthus enneaspermus was cultured on MS basal medium supplemented with different concentrations of auxins with low concentration of cytokinins for callus induction. Of the different concentrations of growth regulators, the best results were obtained from 10 µmol NAA+4 µmol BAP. Shoots were regenerated from the untreated and fungal elicitor treated calli. More number of shoots was regenerated on MS medium supplemented with 10 µmol BAP in combination with 6 µmol KIN. Rooting was achieved on half strength MS medium supplemented with 9 µmol NAA. (fig. 1).
Phytochemical analysis by GC-MS
The GC-MS analysis revealed that various bioactive compounds were identified in the in vivo, in vitro and four different fungal elicited in vitro leaves of Hybanthus enneaspermus (table 1; fig. 2A-F).
The mass spectrum of the leaves of in vivo and in vitro plants revealed the presence of 16 different phyto chemicals. Of these 16 compounds, 5 compounds were similar in both in vivo and in vitro plants. Other 11 compounds were different from each other (table 1; fig. 2a, b). Octadecanoic acid, phytol, vitamin E, Bis (2-ethylhexyl) phthalate, n-Hexadecanoic acid, Ethanone, Dodecanoic acid, oxirane, etc. were the major compounds present in the leaves of in vivo plants. The in vitro leaves showed 2, 3-dimethyl-benzofuran, 4-butoxy-1-butanol, Ethyl alpha-d-glucopyranoside, 3-methyl-1H-Indole, lactose, n-Hexadecnoic acid, Octadecatrienoic acid, etc. as major compounds.
The fungal treated leaves, however, contained the greater number of compounds than that of in vivo and in vitro untreated plants. The number of compounds varied from 19 to 26. Interestingly nearly 12 similar compounds were identified in the leaves of all the fungal treated plants (table 1; fig. 2C-F).
The leaves of in vitro plants treated with the extract of Mucor prayagensis showed 22 different compounds, of which 2,3-dihydro-3,5-dihydroxy-6-methyl-4H-Pyran-4-one, 2,3-dihydro-benzofuran, 4-butoxy-1-butanol, Ethyl alpha-d-glucopyranoside, 3-methyl-1H-indole, n-Hexadecanoic acid, Octadecatrienoic acid, vitamin E, etc. were the major compounds (table 1; fig. 2C).
The leaves of Trichoderma viride treated plants showed the maximum number of 26 different compounds. 2,4-dimethylfuran, 2,3-dihydro-3,5-dihydroxy-6-methyl-4H-Pyran-4-one, 2,3-dihydro-benzofuran, N,N’-dibutyl-N,N’-dimethyl-urea, 1-chlorododecane, Cyclotetradecane, 2,5-Difluorobenzoic acid, 4-dodecyl ester, Ethyl alpha-d-glucopyranoside, 1-Dodecanethiol, beta.-D-Glucopyranose, n-Hexadecanoic acid, 1-(1-Hydroxybutyl)-2,5-dimethoxybenzene, phytol, Octadecatrienoic acid, vitamin E, 7-hexadecanoic acid, 2-(2-benzothiazolylthio)-1-(3,5-dimethylpyrazolyl)-ethanone, etc. were the major compounds (table 1; fig. 2dD).
The in vitro plants treated with Fusarium moniliformis showed 19 different compounds, of which the major compounds were 2,4-dimethylfuran, 2,3-dihydro-3,5-dihydroxy-6-methyl-4H-Pyran-4-one, 2,3-dihydro-benzofuran, 2-methylphenol, N,N’-dibutyl-N,N’-dimethyl-urea, cyclododecane, 2,4-Difluorobenzoic acid, 4-dodecyl ester, Ethyl alpha-d-glucopyranoside, 3-methyl-1H-indole, 2,6,6-trimethyl-,(1. alpha.,2. beta.,5. alpha.)-bicyclo[3.1.1]heptane, n-Hexadecanoic acid, 1-(1-Hydroxybutyl)-2,5-dimethoxybenzene, Phytol, Octadecatrienoic acid, Vitamin E, 7-hexadecanoic acid, 2-(2-benzothiazolylthio)-1-(3,5-dimethylpyrazolyl)-ethanone, etc. (table 1; fig. 2E).
The leaves of in vitro plants elicitated by Aspergillus niger showed 21 different compounds. 2,4-dimethylfuran, 2,3-dihydro-3,5-dihydroxy-6-methyl-4H-Pyran-4-one, 2,3-dihydro-benzofuran, 6,8-Dioxa-3-thiabicyclo(3,2,1)octane 3,3-dioxide, cyclododecane, 2,4-Difluoro-benzoic acid, 4-dodecyl ester, Ethyl alpha-d-glucopyranoside, n-Hexadecanoic acid, phytol, Octadecatrienoic acid, vitamin E, 7-hexadecanoic acid, 2-(2-benzothiazolylthio)-1-(3,5-dimethyl-pyrazolyl)-ethanone, etc. were the major compounds (table 1; fig. 2F).
Fig. 1: Callus culture and regeneration of plantlets from the untreated and fungal treated callus of Hybanthus enneaspermus. A. control; B. treated with Mucor prayagensis;C. treated with Trichoderma viride;D. treated with Fusarium moniliformis;E. treated with Aspergillus niger;F. rooting and hardening of plantlets
Table 1: Comparative GC-MS analysis of Hybanthus enneaspermus-Compounds identified in the leaf extracts of in vivo, in vitro and in vitro plants treated with the extracts of different fungal species
S. No. |
RT |
Name of the compounds |
Percentage of Peak Area |
|||||
In vivo Plants |
In vitro Plants |
In vitro plants treated with |
||||||
Mucor prayagensis |
Trichoderma viride |
Fusarium moniliformis |
Aspergillus niger |
|||||
1 |
2.19 |
3-Amino-2-oxazolidinone |
-- |
-- |
0.37 |
-- |
-- |
-- |
2 |
2.46 |
Cyclopentene, 3-ethyl- |
-- |
-- |
-- |
0.60 |
0.69 |
0.92 |
3 |
2.48 |
1-Ethylcyclopentene |
-- |
-- |
0.86 |
-- |
-- |
-- |
4 |
2.81 |
1,3-Oxathiolane, 2,2-dimethyl- |
-- |
0.69 |
-- |
-- |
-- |
-- |
5 |
3.41 |
2,4-Dimethylfuran |
-- |
-- |
1.94 |
1.11 |
1.27 |
2.17 |
6 |
7.87 |
4H-Pyran-4-one, 2,3-dihydro-3,5-dihydroxy-6-methyl- |
-- |
-- |
3.05 |
1.33 |
2.66 |
2.64 |
7 |
9.19 |
Benzofuran, 2,3-dihydro- |
-- |
5.38 |
3.55 |
3.68 |
4.37 |
5.46 |
8 |
11.99 |
Bicyclo[2.1.0]pentane, 1,4-dimethyl- |
-- |
0.88 |
-- |
-- |
-- |
-- |
9 |
11.99 |
Phenol, 2-methyl- |
-- |
-- |
-- |
-- |
1.28 |
2.20 |
10 |
12.00 |
Pyrazole, 4-aminomethyl-3,5-dimethyl- |
-- |
-- |
0.87 |
-- |
-- |
-- |
11 |
12.01 |
1,2,5-Trimethylpyrrole |
-- |
-- |
-- |
0.87 |
-- |
-- |
12 |
12.36 |
6,8-Dioxa-3-thiabicyclo(3,2,1)octane 3,3-dioxide |
-- |
-- |
-- |
-- |
-- |
6.88 |
13 |
12.37 |
Urea, N,N’-dibutyl-N,N’-dimethyl- |
-- |
-- |
-- |
5.68 |
10.66 |
-- |
14 |
12.41 |
1-Butanol, 4-butoxy- |
-- |
19.06 |
6.91 |
-- |
-- |
-- |
15 |
12.52 |
Metformin |
-- |
-- |
-- |
-- |
-- |
1.20 |
16 |
12.53 |
Dodecane, 1-chloro- |
1.31 |
-- |
-- |
2.13 |
-- |
-- |
17 |
12.59 |
Chloroacetic acid, 2-tridecyl ester |
-- |
-- |
1.75 |
-- |
-- |
-- |
18 |
12.59 |
Cyclododecane |
-- |
-- |
-- |
-- |
2.18 |
2.36 |
19 |
12.60 |
Cyclotetradecane |
-- |
-- |
-- |
2.84 |
-- |
-- |
20 |
12.80 |
2,5-Difluorobenzoic acid, 4-dodecyl ester |
-- |
-- |
-- |
1.23 |
-- |
-- |
21 |
12.81 |
2,6-Difluorobenzoic acid, 4-tridecyl ester |
-- |
-- |
1.28 |
-- |
-- |
-- |
22 |
12.81 |
2,4-Difluorobenzoic acid, 6-dodecyl ester |
-- |
-- |
-- |
-- |
2.05 |
1.81 |
23 |
13.02 |
Arginine |
-- |
3.23 |
-- |
-- |
-- |
-- |
24 |
13.66 |
Dodecanoic acid |
5.3 |
-- |
-- |
-- |
-- |
-- |
25 |
14.62 |
Ethyl. alpha.-d-glucopyranoside |
-- |
21.68 |
30.58 |
35.50 |
6.80 |
23.89 |
26 |
14.77 |
1H-Indole, 3-methyl- |
-- |
10.84 |
25.24 |
-- |
14.70 |
-- |
27 |
15.00 |
Oxirane, [(dodecyloxy)methyl]- |
5.09 |
-- |
-- |
-- |
-- |
-- |
28 |
15.01 |
1-Dodecanethiol |
-- |
-- |
-- |
5.27 |
-- |
-- |
29 |
15.71 |
Cyclododecane |
1.79 |
-- |
-- |
-- |
-- |
-- |
30 |
15.93 |
Lactose |
-- |
4.12 |
-- |
1.80 |
-- |
-- |
31 |
15.94 |
Tetradecanoic acid |
2.04 |
-- |
0.97 |
-- |
-- |
-- |
32 |
16.04 |
. beta.-D-Glucopyranose |
-- |
-- |
-- |
3.37 |
-- |
-- |
33 |
16.04 |
D-Glucose, 6-O-. alpha.-D-galactopyranosyl- |
-- |
-- |
1.54 |
-- |
-- |
-- |
34 |
16.71 |
1,2-Dihexylcyclopropene |
2.15 |
-- |
-- |
-- |
-- |
-- |
35 |
16.71 |
(3-Fluorophenyl)(furan-2-yl)methanol |
-- |
-- |
-- |
0.32 |
-- |
-- |
36 |
16.71 |
Bicyclo[3.1.1]heptane, 2,6,6-trimethyl-, (1. alpha.,2. beta.,5. alpha.)- |
-- |
-- |
-- |
-- |
1.57 |
-- |
37 |
16.71 |
6-Octen-1-ol, 3,7-dimethyl-, propanoate |
-- |
-- |
-- |
-- |
-- |
0.49 |
38 |
18.02 |
n-Hexadecanoic acid |
20.02 |
8.52 |
5.49 |
5.96 |
9.08 |
9.01 |
39 |
18.43 |
1-(1-Hydroxybutyl)-2,5-dimethoxybenzene |
-- |
-- |
-- |
1.39 |
-- |
-- |
40 |
18.51 |
Oxirane, tetradecyl- |
2.98 |
-- |
-- |
-- |
-- |
-- |
41 |
19.31 |
9,12,15-Octadecatrienoic acid, methyl ester, (Z,Z,Z)- |
-- |
1.54 |
-- |
-- |
-- |
-- |
42 |
19.33 |
Methyl 8,11,14-heptadecatrienoate |
-- |
-- |
-- |
-- |
-- |
0.85 |
43 |
19.44 |
Phytol |
7.62 |
-- |
0.56 |
1.01 |
2.20 |
1.42 |
44 |
19.70 |
9,12,15-Octadecatrienoic acid, (Z,Z,Z)- |
24.36 |
14.76 |
6.68 |
9.74 |
14.82 |
12.68 |
45 |
19.91 |
2-Methyl-Z,Z-3,13-octadecadienol |
-- |
-- |
-- |
-- |
-- |
1.34 |
46 |
19.92 |
Octadecanoic acid |
2.7 |
-- |
0.89 |
0.86 |
-- |
-- |
47 |
19.92 |
9,17-Octadecadienal, (Z)- |
-- |
-- |
-- |
-- |
1.33 |
-- |
48 |
22.45 |
2-Nonadecanone |
-- |
-- |
-- |
0.25 |
-- |
-- |
49 |
22.54 |
L-Glutamic acid 5-ethyl ester |
-- |
-- |
-- |
0.59 |
-- |
-- |
50 |
22.55 |
Dodecahydropyrido[1,2-b]isoquinolin-6-one |
1.88 |
-- |
-- |
-- |
-- |
-- |
51 |
22.55 |
Piperidine, 1-[(2,3,4,5-tetramethylphenyl)sulfonyl]- |
-- |
1.14 |
-- |
-- |
-- |
-- |
52 |
23.01 |
Bis(2-ethylhexyl) phthalate |
5.81 |
-- |
-- |
-- |
-- |
-- |
53 |
23.01 |
Diisooctyl phthalate |
-- |
-- |
0.61 |
0.49 |
-- |
-- |
54 |
23.02 |
Adamantane, 1-isothiocyanato-3-methyl- |
-- |
-- |
-- |
-- |
-- |
1.07 |
55 |
27.46 |
Vitamin E |
6.81 |
2.96 |
3.75 |
7.02 |
1.47 |
7.58 |
56 |
27.47 |
dl-alpha. Tocopherol |
-- |
-- |
-- |
-- |
17.33 |
-- |
57 |
29.23 |
7-Hexadecenoic acid, methyl ester, (Z)- |
-- |
2.25 |
0.96 |
1.69 |
1.94 |
2.37 |
58 |
29.40 |
Ethanone, 2-(2-benzothiazolylthio)-1-(3,5-dimethylpyrazolyl)- |
10.12 |
1.76 |
1.37 |
2.79 |
3.21 |
4.60 |
59 |
29.90 |
9-Octadecenoic acid (Z)-, methyl ester |
0.04 |
1.19 |
0.80 |
2.39 |
3.32 |
3.54 |
Total number of compounds |
16 |
16 |
22 |
26 |
20 |
21 |
||
Discussion
Plant tissue culture technique is frequently used as an efficient renewable resource for producing a variety of phyto chemicals that are difficult to synthesize artificially or produced in extremely low concentration in field-grown plants. Many workers periodically reviewed the progress in this subject [40-43].
Though callus and cell suspension cultures are preferred for producing increased quantity and quality of phyto chemicals, in most cases the biosynthesis of these compounds has been found to be linked with higher level of cellular or tissue differentiation in the form of organized shoots or roots or both [43, 44].
This situation is more demanding when desired metabolites are synthesized or accumulated in specialized cells or tissues of the plants [45, 46]. In the present study, biotic elicitors derived from fungi, namely, Mucor prayagensis, Trichoderma viride, Fusarium moniliformis and Aspergillus niger, were tested to enhance phytochemical compounds in the in vitro plants of Hybanthus enneaspermus. The results showed that, all the fungal treated in vitro plants synthesized more number of compounds when compared to that of in vivo field grown plants and also in vitro plants without fungal elicitor treatment (table 1). Results of the present study confirmed the findings of the early studies that the elicitors not only enhanced the phytochemicals but also synthesized new medicinally important compounds that were not synthesized in the non treated plants (table 2).
Of the four fungal elicitors treated, maximum number of 26 chemical compounds was identified on the in vitro leaves treated with Trichoderma viride followed by Mucor prayagensis. The earlier findings show that the members of the genus Trichoderma are well known for their effect on plant growth promotion and are frequently used as bio-protectant [17, 47-50]. Studies dealing with the mechanism of interaction between Trichoderma and plants have indicated that culture filtrate of this fungus contains macromolecules and low molecular weight compounds that induce strong changes in cytosolic calcium ion level in plant cells and activate defense responses including the accumulation of plant secondary metabolites [51].

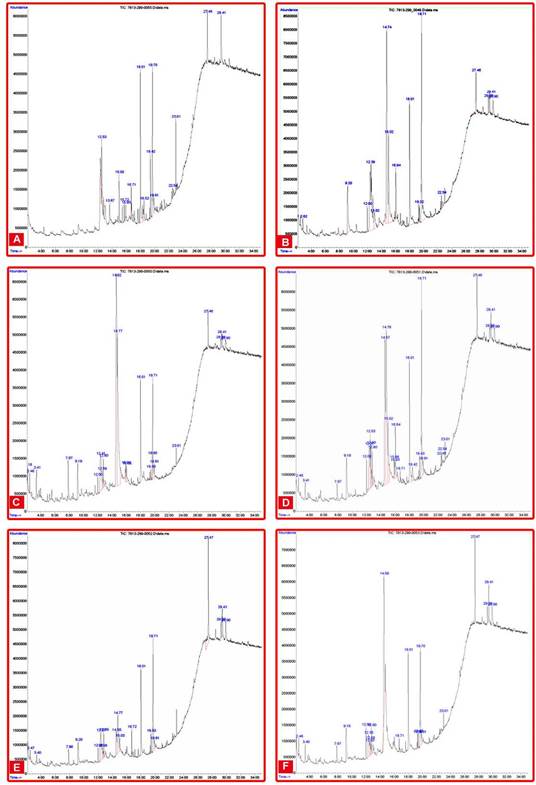

Fig. 2: GC-MS Spectra of in vivo, in vitro and fungal treated in vitro leaves of Hybanthus enneaspermus. A. spectrum of in vivo leaf; B. spectrum of in vitro leaf; C. spectrum of in vitro leaf treated with Mucor prayagensis;D. spectrum of in vitro leaf treated with Trichoderma viride;E. spectrum of in vitro leaf treated with Fusarium moniliformis;F. spectum of in vitro leaf treated with Aspergillus niger
Majority of the chemical compounds derived from all the sources, namely, in vivo, in vitro and fungal treated in vitro leaves were found to be bioactive and medicinally important. Various biological activities of these compounds were listed in table 2.
Table 2: Biological activities of the compounds derived from the leaf of in vivo, in vitro and fungal treated in vitro plants of Hybanthus enneaspermus
S. No. |
RT |
Name of compound |
Nature of compound |
Biological activities |
1 |
2.19 |
3-Amino-2-oxazolidinone |
Metabolite of Furazolidone and Nitrofuran |
Not intended for diagnostic or therapeutic use |
2 |
2.46 |
Cyclopentene, 3-ethyl- |
Cycloalkene |
Antiallergic, anti-inflammatory, anti-tumour |
3 |
2.48 |
1-Ethylcyclopentene |
Cycloalkene |
Antiallergic, anti-inflammatory, anti-tumour |
4 |
2.81 |
1,3-Oxathiolane, 2,2-dimethyl- |
--- |
Anticancer |
5 |
3.41 |
2,4-Dimethylfuran |
Furan derivative |
Biofuel |
6 |
7.87 |
4H-Pyran-4-one, 2,3-dihydro-3,5-dihydroxy-6-methyl- |
--- |
Antimicrobial, anti-inflammatory, Antiproliferative. |
7 |
9.19 |
Benzofuran, 2,3-dihydro- |
Coumaran |
Antilipidemic, Anti-inflammatory, anti-helminthics, antidiarrheal |
8 |
11.99 |
Bicyclo[2.1.0]pentane, 1,4-dimethyl- |
--- |
No activity reported |
9 |
11.99 |
Phenol, 2-methyl- |
Cresol (phenol derivative) |
Anaesthetic, Analgesics Antiseptic, antipruritic (itch reliever), Antidotic, Antioxidant |
10 |
12.00 |
Pyrazole, 4-aminomethyl-3,5-dimethyl- |
Analgesic, Antiinflammatory, Antipyretic |
|
11 |
12.01 |
1,2,5-Trimethylpyrrole |
Pyrrolizidine Alkaloid |
Hepatoprotective, Antitumour |
12 |
12.36 |
6,8-Dioxa-3-thiabicyclo(3,2,1)octane 3,3-dioxide |
--- |
No activity reported |
13 |
12.37 |
Urea, N,N’-dibutyl-N,N’-dimethyl- |
Urea derivative |
Not intended for diagnostic or therapeutic use |
14 |
12.41 |
1-Butanol, 4-butoxy- |
Alcohol |
Volatile Biomarker for gastric cancer |
15 |
12.52 |
Metformin |
--- |
Antidiabetic |
16 |
12.53 |
Dodecane, 1-chloro- |
Chloroalkane |
No activity reported |
17 |
12.59 |
Chloroacetic acid, 2-tridecyl ester |
Ester |
Herbicide |
18 |
12.59 |
Cyclododecane |
Cyclic alkane |
Non-toxic, No activity reported |
19 |
12.60 |
Cyclotetradecane |
Cyclic alkane |
No activity reported |
20 |
12.80 |
2,5-Difluorobenzoic acid, 4-dodecyl ester |
Ester |
Not intended for diagnostic or therapeutic use |
21 |
12.81 |
2,6-Difluorobenzoic acid, 4-tridecyl ester |
Ester |
Not intended for diagnostic or therapeutic use |
22 |
12.81 |
2,4-Difluorobenzoic acid, 6-dodecyl ester |
Ester |
Not intended for diagnostic or therapeutic use |
23 |
13.02 |
Arginine |
Amino acid |
Antihepatatic, Antiimpotence, Antiinfertility, Aphrodisiac, Diuretic, Spermigenic, Vasodilator |
24 |
13.66 |
Dodecanoic acid |
Fatty acid |
Antibacterial, Antioxidant, Antiviral, Candidcide |
25 |
14.62 |
Ethyl. alpha.-d-glucopyranoside |
Glucoside |
Antituberculous Activity, Antioxidant,alpha amylase inhibitory activity, Hypolipemic activity, Anticonvulsant |
26 |
14.77 |
1H-Indole, 3-methyl- |
Skatole |
Antituberculosis |
27 |
15.00 |
Oxirane, [(dodecyloxy)methyl]- |
Cyclic ether |
No activity reported |
28 |
15.01 |
1-Dodecanethiol |
Not intended for therapeutic use |
|
29 |
15.71 |
Cyclododecane |
Cyclic alkane |
Antidote, emergency treatment |
30 |
15.93 |
Lactose |
Sugar |
Anticephalopathic, Antihepatotic, Sweetener |
31 |
15.94 |
Tetradecanoic acid |
Fatty acid |
Antioxidant, Cancer preventive, Cosmetic, Hypercholesterolemic, Nematicide |
32 |
16.04 |
. beta.-D-Glucopyranose |
Sugar (cyclic glucose) |
Biofuel |
33 |
16.04 |
D-Glucose, 6-O-. alpha.-D-galactopyranosyl- |
Sugar moiety |
No activity reported |
34 |
16.71 |
1,2-Dihexylcyclopropene |
Unsaturated hydrocarbon |
No activity reported |
35 |
16.71 |
(3-Fluorophenyl)(furan-2-yl)methanol |
Alcohol |
Antiepileptic |
36 |
16.71 |
Bicyclo[3.1.1]heptane, 2,6,6-trimethyl-, (1. alpha.,2. beta.,5. alpha.)- |
--- |
Antimicrobial |
37 |
16.71 |
6-Octen-1-ol, 3,7-dimethyl-, propanoate |
Ester |
Fragrance, Flavour |
38 |
18.02 |
n-Hexadecanoic acid |
Fatty acid |
Antioxidant, Hypocholesterolemic Nematicide, Pesticide, Lubricant, Antiandrogenic, Flavor, Hemolytic |
39 |
18.43 |
1-(1-Hydroxybutyl)-2,5-dimethoxybenzene |
Benzene derivative |
No activity reported |
40 |
18.51 |
Oxirane, tetradecyl- |
Cyclic ether |
No activity reported |
41 |
19.31 |
9,12,15-Octadecatrienoic acid, methyl ester, (Z,Z,Z)- |
Ester |
Antiinflammatory, Hypocholesterolemic, Cancer preventive, Hepatoprotective, Nematicide, Insectifuge Antihistaminic, Antiarthritic, Anticoronary, Antieczemic Antiacne, Antiandrogenic |
42 |
19.33 |
Methyl 8,11,14-heptadecatrienoate |
Ester |
Antibiotic |
43 |
19.44 |
Phytol |
Diterpene |
Antimicrobial Anti-inflammatory Anti cancer Diuretic |
44 |
19.70 |
9,12,15-Octadecatrienoic acid, (Z,Z,Z)- |
Fatty acid |
Antiinflammatory, Insectifuge, Hypocholesterolemic, Cancer preventive, Nematicide, Hepatoprotective, Insectifuge, Antihistaminic, Antieczemic, Antiacne, Antiandrogenic, Antiarthritic, Anticoronary, |
45 |
19.91 |
2-Methyl-Z,Z-3,13-octadecadienol |
Terpenoid |
Pesticide, Herbicide, Insecticide, Pheromone |
46 |
19.92 |
Octadecanoic acid |
Fatty acid |
Hypocholesterolemic, Cosmetic, Flavour, Lubricant |
47 |
19.92 |
9,17-Octadecadienal, (Z)- |
--- |
No activity reported |
48 |
22.45 |
2-Nonadecanone |
Ketone |
Not intended for therapeutic use |
49 |
22.54 |
L-Glutamic acid 5-ethyl ester |
Ester |
Antiepileptic; Antiprostatitic; Antiretardation; Anxiolytic; Neurotoxic; |
50 |
22.55 |
Dodecahydropyrido[1,2-b]isoquinolin-6-one |
Ester |
No activity reported |
51 |
22.55 |
Piperidine, 1-[(2,3,4,5-tetramethylphenyl)sulfonyl]- |
Heterocyclic amine derivative |
Antienzymatic, Diaphoretic, Pesticide |
52 |
23.01 |
Bis(2-ethylhexyl) phthalate |
--- |
Plastisizer |
53 |
23.01 |
Diisooctyl phthalate |
Ester |
Antiandrogenic |
54 |
23.02 |
Adamantane, 1-isothiocyanato-3-methyl- |
Cycloalkane derivative |
Anticancer, Cocaine analogue |
55 |
27.46 |
Vitamin E/dl-alpha. Tocopherol |
Vitamin |
Antiageing, Analgesic, Antidiabatic, Antiinflammatory, Antioxidant, Antidermatitic, Antileukemic, Antitumor, Anticancer, Hepatoprotective, Hypocholesterolemic, Antiulcerogenic, Vasodilator, Antispasmodic, Antibronchitic, Anticoronary, Antiinfertility |
56 |
29.23 |
7-Hexadecenoic acid, methyl ester, (Z)- |
Ester |
Antioxidant, Flavor, Hypocholesterolemic Pesticide, Anti-inflammatory, hypocholesterolemic, nematicide, antiandrogenic |
57 |
29.40 |
Ethanone, 2-(2-benzothiazolylthio)-1-(3,5-dimethylpyrazolyl)- |
--- |
Antimicrobial |
58 |
29.90 |
9-Octadecenoic acid (Z)-, methyl ester |
Ester |
Allergenic, Anemiagenic, Antialopecic, Antiandrogenic, Antiinflammatory, Antileukotriene-D4 (Anti-platelet activating factor), Dermatitigenic Insectifuge Perfumery, Cancer- Preventive, Choleretic, Flavor, Hypocholesterolemic, Irritant |
Conclusion
Plant tissue culture can be used as an alternative technique not only for the mass production of plantlets in a short period but also for the enhancement of the phytochemical composition due the presence of ambience culture condition, growth regulators, elicitors, etc. Synthesis of more number of phytochemicals in the fungal treated leaves, in the present study, shows that the fungal species, especially Trichoderma spp., can be used for the process of elicitation and to enhance the secondary metabolites in medicinal plants.
Acknowledgment
The authors wish to thank the University Grants Commission, New Delhi for providing financial assistance to carry out Major Research Project on Hybanthus enneaspermus. (F. No.38-71/2009 (SR), University Grants Commission, New Delhi)
CONFLICT OF INTERESTS
The authors do not have any conflict of interest to declare
References
- Canter PH, Thomas H, Ernst E. Bringing medicinal plants into cultivation: opportunities and challenges for biotechnology. Trends Biotechnol 2005;23:180–5.
- Vijaya SN, Udayasri PV, Aswani KY, Ravi BB, Phani KY, Vijay VM. Advancements in the production of secondary metabolites. J Nat Prod 2010;3:112–23.
- Sajc LD, Grubisic G, Vunjak N. Bioreactors for plant engineering: an outlook for further research. Biochem Eng J 2000;4:89–99.
- Ataei-Azimi A, Delnavaz Hashemloian B, Ebrahimzadeh H, Majd A. High in vitro production of ant-canceric indole alkaloids from periwinkle (Catharanthus roseus) tissue culture. Afr J Biotechnol2008;7:2834-9.
- Deepika A, Vidya P, Uma K. In vitro propagation and quercetin quantification in callus cultures of Rasna (Pluchea lanceolata Oliver & Hiern). Indian J Biotechnol 2008;7:383-7.
- Kumar V, Chauhan RS, Sood H. In vitro production and efficient quantification of major phytopharmaceuticals in an endangered medicinal herb, Swertia chirata. Int J Biotechnol Bioeng Res2013;4:495-506.
- Chen, Chia-Chen, Hung-Chi Chang, Chao-Lin Kuo, Dinesh Chandra Agrawal, Chi-Rei Wu, et al. In vitro propagation and analysis of secondary metabolites in Glossogyne tenuifolia (Hsiang-Ju)-a medicinal plant native to Taiwan. Botanical Studies 2014;55:1-9.
- Brodelius P, Funk C, Haner A, Villegas M. A procedure for the determination of optimal chitosan concentrations for elicitation of cultured plant cells. Phytochemistry 1989;28:2651-4.
- Zhao J, Davis L, Verpoorte R. Elicitor signal transduction leading to production of plant secondary metabolites. Biotechnol Adv 2005;23:283–333.
- Namdeo AG. Plant cell elicitation for production of secondary metabolites: a review. Pharmacogn Rev 2007;1:69–79.
- Broeckling CD, Huhman DV, Farag MA, Smith JT, May GD, Pedro M, et al. Metabolic profiling of Medicago truncatula cell cultures reveals the effects of biotic and abiotic elicitors on metabolism. J Exp Bot2005;56:323-36.
- Hakkim FL, Kalyani S, Essa M, Girija S, Song H. Production of rosmarinic in Ocimum sanctum cell cultures by the influence of sucrose, phenylalanine, yeast extract, and methyl jasmonate.Int J Biol Med Res 2011;2:1070-4.
- Devi CS, Nandi I, Mohana VS, Sriramkalyan P. Enhanced production of gymnemic acid using HR bioelicitor extracted from Xanthomonas spp. Int Res J Pharm 2012;3:221-5.
- Ananthi P, Ranjithakumari BD. Gas chromatography-mass spectrometry analysis of methanolic seed and root extracts of Rorippa indica L. Int J ChemTech Res 2013;5:299-306.
- Mahalakshmi R, Eganathan P, Parida AK. Salicylic acid elicitation on production of secondary metabolite by cell cultures of Jatropha curcas L. Int J Pharm Pharm Sci 2013;5:655-9.
- Malini S, Eganathan P. GC-MS analysis of chemical composition of in vivo plant, in vitro and elicited roots of Bacopa monnieri (L.) Pennell. Anal Chem Lett 2013;3:380-8.
- Namdeo AG, Patil S, Fulzele DP. Influence of fungal elicitors on production of ajmalicine by cell cultures of Catharanthus roseus. Biotechnol Prog 2002;18:159-62.
- Ajungla L, Patil PP, Barmukh RB, Nikam TD. Influence of biotic and abiotic elicitors on accumulation of hyoscyamine and scopolamine in root cultures of Datura metel L. Indian J Biotechnol 2009;8:317–22.
- Wiktorowska E, Dlugosz M, Janiszowska W. Significant enhancement of oleanolic acid accumulation by biotic elicitors in cell suspension cultures of Calendula officinalis L. Enzyme Microb Technol 2010;46:14–20.
- Eilert U, Constabel F. Elicitation of sanguinarine accumulation in Papaver somniferum cells by fungal homogenates-An induction process. J Plant Physiol 1986;125:167-72.
- Gadzovska-Simic SO, Antevski TS, Atanasova-Pancevska N, Petreska J, Stefova M, Kungulovski D, et al. Secondary metabolite production in Hypericum perforatum L. Cell Suspension upon elicitation with fungal mycelia from Aspergillus flavus. Arch Biol Sci Belgrade2012;64:113-21.
- Srinivasan V, Ciddi V, Bringi V, Shuler ML. Metabolic inhibitors, elicitors and precursors as tools for probing yield limitation in taxane production by Taxus chinensis cell cultures. Biotechnol Prog 1996;12:457-65.
- Dixon RA, Achnine L, Kota P, Liu CJ, Reddy MKS, Wang L. The phenylpropanoid pathway and plant defence-a genomics perspective. Mol Plant Pathol 2002;3:371-90.
- The Wealth of India. A dictionary of Indian Raw Materials and Industrial Products. Raw Materials Series, Publications and Information Directorate, CSIR, New Delhi; 1959;5:139.
- Yoganarasimhan SN. In: Medicinal Plants of India-Tamilnadu, Cyber Media, Bangalore; 2000;2:276.
- Hemalatha S, Wahi AK, Singh PN, Chansouria JPN. Anticonvulsant and free radical scavenging activity of Hybanthus enneaspermus:A preliminary screening. Indian J Traditional Knowledge 2003;2:383-8.
- Thenmozhi TC, Premalakshmi V. Antioxidant effect of hydroethanolic extract of hybanthus enneaspermus on paracetamol induced oxidative stress in albino rats. Int J Res Pharm Biomed Sci 2011;2:1285-7.
- Patel DK, Kumar R, Prasad SK, Sairam K, Hemalatha S. Antidiabetic and in vitro antioxidant potential of Hybanthus enneaspermus (Linn) F. Muell in streptozotocin-induced diabetic rats. Asian Pac J Trop Biomed 2011;1:316–22.
- Weniger B, Lagnika L, Vonthron-Sénécheau C, Adjobimey T, Gbenou J, Moudachirou M, et al. Evaluation of ethnobotanically selected Benin medicinal plants for their in vitro antiplasmodial activity. J Ethnopharmacol 2004;90:279-84.
- Tripathy S, Sahoo SP, Pradhan D, Sahoo S, Satapathy DK. Evaluation of anti arthritic potential of Hybanthus enneaspermus. Afr J Pharm Pharacol 2009;3:611-4.
- Anand T, Gokulakrishnan K. GC–MS analysis and anti-microbial activity of bioactive components of Hybanthus enneaspermus.Int J Pharm Pharm Sci2012;4:646-50.
- Nandy S, Chakraborty B, Chatterjee P. Evaluation of anti-inflammatory activity of Hybanthus Enneaspermus Muell. leaves. Pharm Rev; 2012. p. 98-112.
- Nathiya S, Senthamilselvi R. Anti infertility effect of Hybanthus enneaspermus on endosulfan induced toxicity in male rats. Int J Med Biosci 2013;2:28-32.
- Setty MM, Narayanaswamy VB, Sreenivasan KK, Shirwaikar A. Free radical scavenging and nephroprotective activity of Hybanthus Enneaspermus (L) F. Muell. Pharmacologyonline2007;2:158-71.
- Velayutham P, Karthi C, Nalini P, Jahirhussain G. In vitro regeneration and mass propagation of Hybanthus enneaspermus (L.) F. Muell. from the stem explants through callus culture. J Agric Technol 2012;8:1119-28.
- Murashige T, Skoog F. A revised medium for rapid growth and bioassay with tobacco tissue cultures. Physiol Plant 1962;15:473–97.
- Staniszewska I, Krolicka A, Malinski E, Jojkowska E, Szafranek JZ. Elicitation of secondary metabolites in in vitro cultures of Ammi majus L., Enzy. Microbial Technol 2003;33:565-8.
- Kim HJ, Sung MK, Kim JS. Anti-inflammatory effects of glyceollins derived from soybean by elicitation with Aspergillus sojae. Inflamm Res 2011;60:909–17.
- Dr. Duke's Phytochemical and Ethnobotanical Databases. Available from: URL: http://www.ars-grin.gov/duke. [Last accessed on 10 May 2015]
- Collin HA. Secondary product formation in plant tissue cultures. Plant Growth Regul 2001;34:119–34.
- Mulabagal V, Tsay HS. Plant cell cultures-An alternative and efficient source for the production of biologically important secondary metabolites. Int J Appl Sci Eng 2004;2:29–48.
- Martin EK, Vishal G, Susan CR. Pharmaceutically active natural product synthesis via plant cell culture technology. Mol Pharm 2008;5:243–56.
- Karuppusamy S. A review on trends in production of secondary metabolites from higher plants by in vitro tissue, organ and cell cultures. J Med Plant Res 2009;3:1222–39.
- Shalaka DK, Sandhya P. Micropropagation and organogenesis in Adhatoda vasica for estimation of vasine. Pharmacogn Mag 2009;5:359–63.
- Facchini PJ, DeLuca VD. Opium poppy and madagascar periwinkle: model non-model systems to investigate alkaloid biosynthesis in plants. Plant J 2008;54:763–84.
- Verma P, Mathur AK, Srivastava A, Mathur A. Emerging trends in research on spatial and temporal organization of terpenoid indole alkaloid pathway in Catharanthus roseus. Protoplasma 2012;249:255–68.
- Harman GE, Howell CR, Viterbo A, Chet I, Lorito M. Trichoderma species—opportunistic, avirulent plant symbionts. Nat Rev Microbiol 2004;2:43–56.
- Cordo CA, Monaco CL, Segarra CI, Simon MR, Mansilla AY, Perello AE, et al. Trichoderma spp. as elicitors of wheat plant defence responses against Septoria tritici. Biocontrol Sci Technol 2007;17:687–98.
- Vinale F, Sivasithamparam K, Ghisalberti EL, Marra R, Barbetti MJ, Li H, et al. A novel role for Trichoderma secondary metabolites in the interactions with plants. Physiol Mol Plant Pathol 2008;72:80–6.
- Archana P, Archana M, Alok K, Gupta MM, Lal RK, Mathur AK. Fungal elicitor-mediated enhancement in growth and asiaticoside content of Centella asiatica L. shoot cultures. Plant Growth Regul 2013;69:265–73.
- Navazio L, Baldan B, Moscatiello R, Zuppini A, Woo SL, Mariani P, et al. Calcium-mediated perception and defense responses activated in plant cells by metabolite mixtures secreted by the biocontrol fungus Trichoderma atroviride. BMC Plant Biol 2007;7:41.
