Int J Pharm Pharm Sci, Vol 7, Issue 12, 64-68Original Article


2,4-CYCLOADDITION REACTIONS: PREPARATION AND CYTOTOXICITY OF NOVEL QUINOLINE AND PYRROLO [3,4-f] QUINOLINE DERIVATIVES

AHMED S. I. MOHAMEDE1*, MOHAMED A. A. ELNEAIRY2, SANAA M ELDINE3

1Chemistry of Natural Compounds Department, National Research Centre, Dokki, Giza 12311, Egypt, 2Chemistry Department, Faculty of Science, Cairo University, Giza 12613, Egypt, 3Chemistry of Pesticides Department, National Research Centre, Dokki, Giza 12311, Egypt
Email: mabosabt@yahoo.com

 Received: 06 Jul 2015 Revised and Accepted: 27 Oct 2015

ABSTRACT

Objective: the present work aimed tosynthesize novel quinoline and pyrroloquinoline derivatives and study their cytotoxic activity.

Methods: Diels–Alder reaction (4+2) was used for the synthesis of new quinolone and pyrrolo quinoline derivatives via the reactions of compound 1 with N-maleimide (4a-d) derivatives, ethyl acrylate (6) methylmethacrylate (8) and acetylene dicarboxylic acid (10). The synthesized compounds were characterized by NMR and Mass spectral data. Some of the synthesized compounds were screened for their antitumor activity against three different cell lines (MCF-7, HepG2 and HCT).

Results: The tested compounds exhibited antiproliferative activity against the three different cell lines, especially against MCF-7.

Conclusion: New quinoline and pyrroloquinoline derivatives were synthesized starting with 6-methyl-4-phenyl-2-thioxo-5-(4-methylphenylthio)-1,2-dihydropyridine-3-carbonitrile. Two new compounds 3 and 5a were tested for their in vitro antiproliferative activity against MCF-7, HepG2 and HCT cancer cell lines. The result showed that compound 3 exhibited more potent antiproliferative activity than compound 5a in case of MCF-7 and HCT cell lines.

Keywords: Quinolones, Pyrroloquinolines, Cycloaddition, Anti-tumor cytotoxicity.

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

INTRODUCTION

It is known that cancer is one of the most dangerous diseases, caused by uncontrolled growth and spread of abnormal cells, initiated by viruses, smoking, chemicals, or diet [1]. Cancer can lead to death if left untreated. Therefore, many of the research efforts aim to develop new anticancer drugs [2].

Quinoline and their derivatives are very important in medicinal chemistry because of their wide occurrence in natural products [3] and drugs[4], numerous quinolone derivatives [5-9] have been reported to have wide biological activities including the anticancer activity depending on various mechanisms like tubulin inhibition [10], free radical regulation and so on [11-13].

And also, some natural, semisynthetic and synthetic bioactive molecules based on a quinoline scaffold had been reported to possess MDR reversal activity when combined with the anticancer drug [14-18], For example, the molecules containing quinolone scaffold improved the cytotoxicity of doxorubicin in multi-drug resistant cancer cell lines at nontoxic concentration [14].

Recently, a growing attention focuses on the synthesis and study of the biological properties of compounds containing various combinations of pyrroloquinoline moieties as remarkable cytotoxic agents [19-21]. Moreover, one class of marine alkaloids containing a pyrrole [3, 2-d] quinoline skeleton has received increasing attention as a source of new anticancer drugs [22, 23].

On the other hand, maleimide is among the best candidates for conjugation chemistry since it undergoes [4+2] cyclo addition reaction with electron rich dienes. The use of dienophile from hetero aromatic N-maleimide, electron-deficient acetylenes and ethylene as 1,2-dipoles has received increasing interest in the synthesis of new condensed heterocyclic structures via 4+2 cyclo addition [24-26].

The aforementioned studies encouraged us to prepare new quinolone and pyrroloquinoline derivatives via one pot Diels-Alder reaction and examine their antiproliferative activity in vitro against three human cancer cell lines.

MATERIALS AND METHODS

General

All melting points were measured on a Gallenkamp melting point apparatus and are uncorrected. The IR spectra were recorded (KBr disk) on a Shimadzu FT IR-8201 PC instrument. 1H NMR spectra (300 MHz) spectra were recorded on a Varian spectrometer using DMSO-d6 or CDCl3 as solvent and TMS as an internal standard. Chemical shifts are 36 reported in ppm. Mass spectra were recorded on a Shimadzu GCMS-QP1000EX using inlet type at 70 ev. Elemental analyses were obtained from The Microanalytical Data Center at Cairo University, Egypt. The progress of the reactions was monitored by thin-layer chromatography (TLC) using aluminum sheets coated with silica gel F254 (Merck), viewing under a short-wavelength UV 41 lamp effected detection. All evaporations were carried out under reduced pressure at 40 oC. 6-Methyl-4-phenyl-2-thioxo-5-(4-methylphenylthio)-1,2-dihydropyridine-3-carbonitrile (1) was prepared according to the literature [27].

Synthesis

6-[2-(4-chlorophenyl) viny]-4-phenyl-5(4-methylphenylthio)-2-thioxo-1, 2-dihydro pyridine-3-carbonitrile (3)

A solution of compound 1 (0.01 mole, 3.48 gm) and 4-chlorobenzaldhyde (0.01 mole, 1.405 gm) in absolute ethanol (30 ml) was heated under reflux for 8 h, then cooled and the solid was collected by filtration and crystallized from dioxane.

Yellow crystals (70%); m. p. 230-2 oC; 1H NMR(DMSO-d6) δ=2.28 (s, 3H, tolyl-CH3), 4.14 (br, 1H, NH), 6.74-7.49 ppm (m, 15H, Ar-H and CH=CH); MS (70 eV): m/z = 471 (M++1, 8.55), 470(M+,100) 348 (17.8), 301 (9.6), 285 (8.28), 269 (12.8), 226 (67.29), 154 (57), 77 (64), 140 (52), 113 (56.6); Anal. Calcd. for C27H19ClN2S2 (470): C, 68.85; H, 4.07; N, 5.95; S, 13.61. Found: C, 68.87; H, 4.08; N, 5.94; S, 13.62 %.

Synthesis of compounds (5a-d, 7, 9 and 11)

General method

A solution of reactant A (0.01 mole, 4.7 gm) and each of reactant B (0.01 mole) in anisole (30 ml) was heated under reflux for 12 h, the excess solvent was evaporated in vacuum to the 1/3 of its original volume and cooled then petroleum ether(15 ml) was added. The solid product formed was collected by filtration, dried and crystallized from the proper solvent, see the following table:

4-(4-chlorophenyl)-1,3-dioxo-2,9-diphenyl-7-thioxo-9a-(4-methyl-phenylthio) 2, 3, 3a, 4, 6, 7, 9a, 9b-octaahydro-1H-pyrrolo [3,4-f] quinoline-8-carbnitrle (5a)

Crystallized from ethanol as yellowish crystals (70%); m. p. 233-5oC; 1H NMR (DMSO-d6) δ=2.22 (s, 3H, tolyl-CH3), 5.3 (d, 1H, CH= cyclohexene), 3.6 (br, 1H, NH), 3.5 (t, 1H, cyclo hexene), 3.23(d,1H, succinimide), 3.33(t, 1H, succinimide), 6.91-7.56 ppm (m, 18H, Ar-H); MS (70 eV): m/z = 643 (M+, 16.87), 639(26.8), 576(21.3), 520(38.5), 470(58), 379(100), 370(50.6), 345(70.56.7), 315(39.4), 209(17.95), 124(64.55), 89(91.73): Anal. Calcd. for C37H26ClN3O2S2 (643): C, 68.98; H, 4.07; N, 6.52; S, 9.95. Found: C, 68.99; H, 4.05; N, 6.55; S, 9.97 %.

4-(4-chlorophenyl)-2-(4-methoxyphenyl)-1,3-dioxo-9-phenyl-7-thioxo-9a-(4-methyl phenyl thio)-2,3,3a4,6,7,9a,9b-octahydro-1H-pyrrolo[3,4-f] quinoline-8-carbnitrle(5b)

Crystallized from methanol as brown crystals (50%); m. p. 222-4oC; 1H NMR (DMSO-d6) δ =2.22 (s, 3H, tolyl-CH3), 3.7(S,3H, OCH3), 5.3 (d, 1H, CH= cyclohexene), 3.6 (br, 1H, NH), 3.5 (t, 1H, cyclohexene), 3.25(d,1H, succinimide), 3.31(t, 1H, succinimide), 7.14-7.56 ppm (m, 17H, Ar-H); MS (70 eV): m/z = 674 (M++1, 7.4), 546(4.4), 470(73.5), 379(82.4), 289 (38.2), 235(22), 203(100), 133(61.8), 90(35.3), 51(75); Anal. Calcd. for C38H28ClN3O3S2 (673): C, 67.69; H, 3.71; N, 6.19; S, 9.45. Found: C, 67.70; H, 3.73; N, 6.21; S, 9.47 %.

Reactants A

 Reactants B

Products

3

4a (N-phenylmaleimide)

5a

3

4b (N-4-methoxyphenylmaleimide)

5b

3

4c (N-4-chlorophenylmaleimide)

5c

3

4d (2-chloro-5-nitrophenylmaleimide)

5d

3

6 (Ethyl acrylate)

7

3

8 (Methyl methacrylate)

9

3

10 (Acetylene dicarboxylic acid)

11

2,4-Bis-(4-chlorophenyl)-1,3-dioxo-9-phenyl-7-thioxo-9a-(4-methylphenythio)-2,3,3a,4,6,7,9a,9b-octahydro-1H-pyrrolo[3,4-f] quinoline-8-carbnitrle (5c)

Crystallized from petroleum ether and methanol as yellow crystals (60%); m. p. 122-5oC; 1H NMR (DMSO-d6) δ =2.23 (s, 3H, tolyl-CH3), 5.3 (d, 1H, CH= cyclohexane), 3.2 (br, 1H, NH), 3.46 (t, 1H, cyclohexane), 3.23(d,1H, succinimide), 3.33(t, 1H, succinimide), 7.00-7.63 ppm (m, 17H, Ar-H); MS (70 eV): m/z = 677 (M+, 29), 601(16), 522(16), 488(22.6), 379 (38.7), 289(80.6), 246(48), 163(32), 127 (67.7), 55(100): Anal. Calcd. for C37H25Cl2N3O2S2 (677): C, 65.48; H, 3.71; N, 6.19; S, 9.45. Found: C, 65.49; H, 3.73; N, 6.22; S, 9.46 %.

2-(2-chloro-4-nitrophenyl)-1,3-dioxo-9-phenyl-7-thioxo-9a-(4-methylpheny thio)-2,3,3a,4,6,7,9a,9b-octahydro-1H-pyrrolo [3, 4-f] quinoline-8-carbnitrle (5d)

Crystallized from petroleum ether and methanol as pale yellow crystals (55%); m. p. 162-4C; 1H NMR (DMSO-d6) δ =2.3 (s, 3H, tolyl-CH3), 5.3 (d, 1H, CH= cyclohexane), 3.7 (br, 1H, NH), 3.5 (t, 1H, cyclohexane), 3.29(d,1H, succinimide), 3.33(t, 1H, succinimide), 6.89-7.79 ppm (m, 16H, Ar-H); MS (70 eV): m/z = 723 (M++1, 0.02), 662(1.42), 601(1.76), 574(20.69), 568(9), 470(23.56), 379 (23.67), 347(100), 348(90), 314(39), 279(22), 156(38.45), 91(6.24): Anal. Calcd. for C37H22Cl2N4O4S2 (722): C, 61.41; H, 3.41; N, 7.74; S, 8.86. Found: C, 61.43; H, 3.44; N, 7.77; S, 8.88 %.

7-(4-chlorophenyl)-3-cyano-4-phenyl-2-thioxo-4a-(4-methyl-phenylthio)-1,2,4a,5,6,7-hexahydro quinoline-6-caboxylic acid ethyl ester (7)

Crystallized from benzene and methanol as yellow crystals (65%); m. p. 294-6oC; 1H NMR (DMSO-d6) δ =2.25 (s, 3H, tolyl-CH3), 5.6 (d, 1H, CH= cyclohexane), 12.7 (br, 1H, NH), 1.56-1.64 (t, 3H, OCH2CH3), 3.3(t,1H, cyclohexane), 2.67(q, 1H, cyclohexane), 2.34(d, 2H, cyclohexane) 4.16-4.25(q, 2H, OCH2CH3) 6.88-7.43 ppm (m, 13H, Ar-H); MS (70 eV): m/z = 571 (M++1, 8.32), 376(4.5), 339(29.29), 276(10.5), 259(7), 207(7.6), 177(17.77), 135(16.24), 124(16.93), 84(100), 78(55), 55(88.6): Anal. Calcd. for C32H27ClN2O2S2 (570): C, 67.29; H, 4.76; N, 4.90; S, 11.23. Found: C, 67.30; H, 4.77; N, 4.91; S, 11.25 %.

7-(4-chlorophenyl)-3-cyano-6-methyl-4-phenyl-2-thioxo-4a-(4-methylphenylthio)-1, 2, 4a, 5, 6, 7-hexahydro quinoline-6-caboxylic acid methyl ester (9)

Crystallized from petroleum ether and methanol as yellow crystals (50%); m. p. 172-4oC; 1H NMR (DMSO-d6) δ =2.25 (s, 3H, tolyl-CH3), 5.55 (d, 1H, CH= cyclohexene), 12.7 (br, 1H, NH), 2.33(s, 3H, ester-CH3), 1.3 (S, 3H, cyclohexene-CH3), 3.3(d,1H,cyclohexene), 2.34(d, 2H, cyclohexene) 6.91-7.44 ppm (m, 13H, Ar-H); MS (70 eV): m/z = 570 (M+, 0.01), 568(8.3), 540(62.5), 443(100), 348(62.5), 418(70), 251(87.5), 193 (41.7), 151(8.3), 91(79), 77(12.5); Anal. Calcd. for C32H27ClN2O2S2 (570): C, 67.29; H, 4.76; N, 4.90; S, 11.27. Found: C, 67.30; H, 4.74; N, 4.92; S, 11.27 %.

7-(4-chlorophenyl)-3-cyano-4-phenyl-2-thioxo-4a-(4-methyl-phenylthio)-1, 2, 4a, 7,-tetrahydro quinoline-5, 6-dicaboxylic acid (11)

Crystallized from petroleum ether and methanol as brown crystals (55%); m. p. 274-6oC; 1H NMR (DMSO-d6) δ =2.22 (s, 3H, tolyl-CH3), 5.7 (s, 1H, CH-cyclohexene), 12.7 (br, 1H, NH), 13.1 (S, 2H, acid), 6.93-7.50 ppm (m, 13H, Ar-H); MS (70 eV): m/z = 584 (M+, 0.4), 573(0.67), 417(1.12), 238(6.38), 227(20), 226(100), 210(22), 181 (22.37.7), 182(16.79), 140(23.74), 113(5.38), 77(13.26). Anal. Calcd. for C31H21ClN2O4S2 (584): C, 63.64; H, 3.62; N, 4.79; S, 10.96. Found: C, 63.65; H, 3.61; N, 4.80; S, 10.99 %.

Biological assays

Anti-tumor cytotoxicity bioassay in vitro

HepG2 (liver carcinoma cell line), MCF7 (breast carcinoma cell line) and HCT (colon carcinoma cell line) were obtained from the Pharmacology Unit, Cancer Biology Department, National Cancer Institute, Cairo University, Egypt. Cells were maintained in DMEM medium with 10% foetal calf serum, sodium pyruvate, 100 U/ml penicillin and 100 µg/ml streptomycin at 37 oC and 5% CO2. Potential cytotoxicity of 3and 5a were tested using the method of Skehan et al. [28]. Briefly, 104 cells/well were plated onto 96-well dishes overnight before the treatment with the tested compounds to allow the attachment of cells to the wall of the plate.

Different concentrations of each tested compound (0.1, 2.5, 5, 10 µg/ml) were added to the cell monolayer; triplicate wells were used for each individual dose. Monolayer cells were incubated with the tested agent(s) for 48h at 37 oC and 5% CO2. At the end of the incubation period, the cells were fixed and stained with sulforhodamine B dissolved in acetic acid. Unbound stain was removed by washing four times with 1% acetic acid and the protein-bound dye was extracted with tris-EDTA buffer. Absorbance was measured in an ELISA reader.

The relation between surviving fraction and compound concentration was plotted to get the survival curve of each tumor cell line and IC50. The concentration of an agent that causes a 50% growth inhibition for each tested agent using each cell line was obtained from the survival curve.

RESULTS AND DISCUSSION

Chemistry

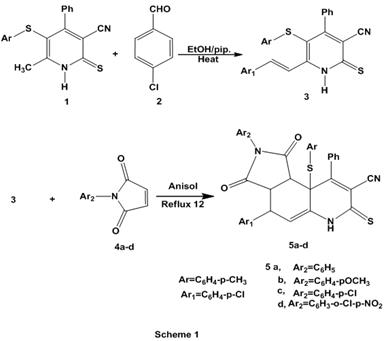

The activity of the methyl group attached to the pyridine ring in 6-methyl-4-phenyl-2-thioxo-5-(4-methylphenylthio)-1,2-dihydro-pyri-dine-3-carbonitrile (1), which was prepared according to the previously reported procedure [28] was tested via its reaction with 4-chlorobenzaldehyde in ethanol in presence of piperidine to give the corresponding ylidene derivative 6-[2-(4-chlorophenyl) viny]-4-phenyl-5(4-methylphenylthio)-2-thioxo-1,2-di hydro pyridine-3-carbonitrile (3). A solid evidence for the structure was achieved via study of the 1H NMR (DMSO-d6) δ=2.28 (s, 3H, tolyl-CH3), 4.14 (br, 1H, NH), 6.74-7.49 ppm (m, 15H, Ar-H and CH=CH) and MS (70 eV): m/z = 471 (M++1, 8.55), 470(M+, 100).

The new diene system found in compound 3 stimulated the interest to its involvement in a series of dipolar cycloaddition reaction leading to an additional number, otherwise difficult obtainable, new heterocyclic derivatives from quinolone and pyrrole quinoline which are required for biological activity studies.

A series of N-arylmaleimides 4a-dwasrefluxed in anisol with 3to yieldsome new adducts from pyrroloquinole bearing the biologically active moiety (-CONArCO-) in addition to other latent functional substituent which make then excellent candidates for both biological studies as well as further chemical transformation.

Thus, compound 3 reacted with N-phenyl maleimide (4a) to yield pyroloquinoline with molecular formula C37H22ClN3O2S2 which represent the total summation of molecular formula of both 3 and 4a. The mass spectrum gave m/z = 643 (M+, 16.87) which is exactly the mass required for the assigned formula and 1H NMR showed the following signals: δ=2.22 (s, 3H, tolyl-CH3), 5.3 (d, 1H, CH= cyclohexene), 3.6 (br, 1H, NH), 3.5 (t, 1H, cyclohexene), 3.23(d,1H, succinimide), 3.33(t, 1H, succinimide),. This compound could be formulated as 4-(4-chlorophenyl)-1,3-dioxo-2,9-diphenyl-7-thioxo-9a-(4-methyl phenyl thio)-2,3,3a,4,6,7,9a,9b-octaahydro-1H-pyrrolo [3,4-f]quinoline-8-carbnitrle (5a) (c. f. Experimental Part).

In the same manner, compound 3 reacted with N-4-methoxyphenylmaleimide (4b) to give the corresponding adduct 4-(4-chlorophenyl)-2-(4-methoxyphenyl)-1,3-dioxo-9-phenyl-7-thioxo -9a-(4-methylphenylthio)-2,3,3a4,6,7,9a,9b-octahydro-1H-pyrrolo [3,4-f] quinoline-8-carbnitrle (5b) with molecular formula C38H28ClN3O3S2. The structure was confirmed via 1H NMR that showed methoxy group at δ = 3.7 (S, 3H, OCH3), and mass spectrum m/z = 674 (M++1, 7.4). and also, compound 3 reacted with N-4-chlorophenylmaleimide (4c) to obtain 2,4-bis-(4-chlorophenyl)-1,3-dioxo-9-phenyl-7-thioxo-9a-(4-methylphenylthio)-2,3,3a, 4,6,7, 9a, 9b-octahydro-1H-pyrrolo [3,4-f] quinoline-8-carbnitrle (5c).

The structure of the compound was confirmed via mass spectrum m/z = 677 (M+, 29). Reaction of compound 3 with 2-chloro-5-nitro phenyl maleimide (4d) gave 2-(2-chloro-4-nitrophenyl)-1,3-dioxo-9-phenyl-7-thioxo-9a-(4-methyl-phenylthio)-2,3,3a,4,6,7,9a,9b- octa -hydro-1H-pyrrolo[3,4-f] quinoline-8 -carbnitrile (5d). The structure was established based on 1H NMR as follows: (DMSO-d6) δ =2.23 (s, 3H, tolyl-CH3), 5.3 (d, 1H, CH= cyclohexane), 3.7 (br, 1H, NH), 3.5 (t, 1H, cyclohexane), 3.29(d,1H, succinimide), 3.33(t, 1H, succinimide), 6.89-7.79 ppm (m, 16H, Ar-H); MS (70 eV): m/z = 723 (M++1, 0.02), 662(1.42), 601(1.76), 574(20.69). (See experimental part).

1

Compound 3 reacted with ethyl acrylate (6) in anisole to yield the corresponding 1:1 adduct 7-(4-chlorophenyl)-3-cyano-4-phenyl-2-thioxo-4a-(4-methylphenylthio)-1,2,4a,5,6,7-hexa hydroquinoline-6-caboxylic acid ethyl ester (7). The structure of this compound was confirmed by 1H NMR (DMSO-d6) δ =2.25 (s, 3H, tolyl-CH3), 5.6 (d, 1H, CH= cyclohexane), 12.7 (br, 1H, NH), 1.56-1.64 (t, 3H, OCH2CH3), 3.3(t,1H, cyclohexane), 2.67(q, 1H, cyclohexane), 2.34(d, 2H, cyclohexane) 4.16-4.25(q, 2H, OCH2CH3) ppm (m, 13H, Ar-H); in addition to MS (70 eV), m/z = 571 (M++1, 8.32), 376(4.5), 339(29.29),). Analogously, methyl methacrylate (8) reacted with compound 3 and gave 7-(4-chlorophenyl) 3-cyano-6-methyl-4-phenyl-2-thioxo-4a-(4-methylphenylthio)-1, 2, 4a, 5, 6, 7-hexahydro quin oline-6-caboxylic acid methyl ester (9) and structure was confirmed by 1H NMR which showed three methyl groups at δ =2.25 (s, 3H, tolyl-CH3), 2.33(s, 3H, ester-CH3), 1.3 (S, 3H, cyclohexene-CH3) and mass spectrum MS (70 eV): m/z = 570 (M+, 0.01). The reaction of compound 3 with acetylene dicarboxylic acid (10) afforded compound 7-(4-chloro phenyl)-3-cyano-4-phenyl-2-thioxo-4a-(4-methylphenylthio)-1, 2, 4a, 7-tetrahydro quinoline-5, 6-dicaboxylic acid (11). (c. f. Experimental Part). A solid evidence for the structure was achieved via 1H NMR 5.7 (s, 1H, CH-cyclohexene), 12.7 (br, 1H, NH), 13.1 (S, 2H, acid) and study of the mass spectrum of this reaction product which gave m/z = 584 (M+, 0.4). (c. f. Experimental Part).

2

Biological screening

Cytotoxicity activity

Two new compounds numerically labeled with 3 and 5a were preliminarily screened for their in vitro antiproliferative activity against human liver cancer (HepG2), human colon cancer (HCT) and human breast cancer (MCF-7) cell lines at different concentration. Doxorubicin, which is one of the most effective anticancer agents, was used as a reference drug (fig. 1-3). Results from the fig. indicated that these two compounds displayed moderate to good anticancer activity on the cell lines. Against MCF-7 cell line, two compounds showed good anticancer effect and compounds 3 with chalcone moiety on pyridine 2(1H) thione ring displayed better anticancer activity than compound 5a with pyrroloquinoline. and this agreement with the literature that presence of chalcone moiety in compound give broad spectrum biological activities including anticancer effect [29].

However, these compounds showed the poor anticancer effect on both HepG2 and cell lines. In the case of HCT compound 3 showed more potent activity than compound 5a may also be  due to present chalcones that exhibit cytotoxicity against a number of cell lines from a wide range of tumors,mainly colon cancer [30]. on contrast, in the case of HepG2 cell line, the results indicated that compounds 5ashowed more potent activity than compound 3 because of the presence of pyrroloquinoline moiety natural sources with a good effect on hepatocarcinoma [31, 32]

1

Fig. 1: Percentage viability of MCF-7, HepG2 and HCT cells after treatment with positive control (Doxorubicin) (0.1, 2.5, 5, 10 µg/ml) for 48 h prior to MTT assay to determine the potential anticancer effect. The calculated IC50 values of MCF-7, HepG2 and HCT were 2.97, 3.37 and 3.37 μg/ml, respectively

2

Fig. 2: Percentage viability of MCF-7, HepG2 and HCT cells after treatment with compound 3 (0.1, 2.5, 5, 10 µg/ml) for 48 h prior to MTT assay to determine potential anticancer effect. The calculated IC50 values of MCF-7, HepG2 and HCT were 9.8, 22.8 and 20.2 μg/ml, respectively

3

Fig. 3: Percentage viability of MCF-7, HepG2 and HCT cells after treatment with compound 5a (0.1, 2.5, 5, 10 µg/ml) for 48 h prior to MTT assay to determine potential anticancer effect. The calculated IC50 values of MCF-7, HepG2 and HCT were 11.2, 20.1 and 24.6 μg/ml, respectively

CONCLUSION

New quinoline and pyrroloquinoline derivatives were synthesized starting with 6-methyl-4-phenyl-2-thioxo-5-(4-methylphenylthio)-1,2-dihydropyridine-3-carbonitrile. Two new compounds 3 and 5a were tested for their in vitro antiproliferative activity against MCF-7, HepG2 and HCT cancer cell lines. The result showed that compound 3 exhibited more potent antiproliferative activity than compound 5a in the case of MCF-7 and HCT.

AKNOWLDGEMENT

The authors are grateful to micro-analytical centre, Cairo University for carrying out NMR and mass spectra. and also, We are grateful to all members of the department of Cancer Biology, National Cancer Institute, Cairo, Egypt, for carrying out the cytotoxicity testing.

CONFLICT OF INTERESTS

Declared None

REFERENCES

  1. Patrick G. An Introduction to medicinal chemistry. 4th edition. Oxford University Press: Oxford, UK; 2008.
  2. Dürüst Y, Karaku H, Yavuz M, Gepdiremen A. Synthesis of novel triazoles bearing 1,2,4-oxadiazole and phenyl sulfonyl groups by 1,3-dipolar cycloaddition of some organic azides and their biological activities. Turk J Chem 2014;38:739-55.
  3. Michael J. Quinoline, quinazoline and acridone alkaloids. Nat Prod Rep 2004;21:650–68.
  4. Wu D. Towards new anticancer drugs. a decade of advances in the synthesis of camptothecins and related alkaloids. Tetrahedron2003;59:8649–87.
  5. Ghorab MM, Ragab FA, Hamed MM. Design, synthesis and anticancer evaluation of novel tetrahydroquinoline derivatives containing sulfonamide moiety. Eur J Med Chem 2009;44:4211-17.
  6. Chilin A, Marzaro G, Marzano C, Dalla VL, Ferlin MG, Pastorini G, et al. Synthesis and antitumor activity of novel amsacrine analogs: the critical role of the acridine moiety in determining their biological activity. Bioorg Med Chem 2009;17:523-29.
  7. Chen YL, Chen IL, Wang TC, Han CH, Tzeng CC. Novel mutations in the helix termination motif of keratin 3 and keratin 12 in 2 taiwanese families with meesmann corneal dystrophy. Eur J Med Chem 2005;40:928-32.
  8. Chen YL, Zhao YL, Lu CM, Tzeng CC, Wang JP. Synthesis, cytotoxicity, and anti-inflammatory evaluation of 2-(furan-2-yl)-4-(phenoxy)quinoline derivatives. Part 4. Bioorg Med Chem 2006;14:4373-8.
  9. Tseng CH, Chen YL, Lu PJ, Yang CN, Tzeng CC. Synthesis and antiproliferative evaluation of certain indeno[1,2-c]quinoline derivatives. Bioorg Med Chem 2008;16:3153-62.
  10. Alqasoumi SI, Al-Taweel AM, Alafeefy AM, Hamed MM, Noaman E, Ghorab MM. Synthesis and biological evaluation of 2-amino-7,7-dimethyl4-substituted-5-oxo-1-(3,4,5-trimethoxy)-1,4,5,6,7,8-hexahydro-quinoline-3carbonitrile derivatives as potential cytotoxic agents. Bioorg Med Chem Lett 2009;19:6939-42.
  11. Rashad AE, El-Sayed WA, Mohamed AM, Ali MM. Synthesis of new Quinoline derivatives as an inhibitor of human tumor cells growth. Arch Pharm 2010;343:440-8.
  12. Ghorab MM, Ragab FA, Heiba HI, Arafa RK, El-Hossary EM. In vitro anticancer screening and radiosensitizing evaluation of some new quinolines and pyrimido[4,5-b]quinolines bearing a sulfonamide moiety. Eur J Med Chem2010;45:3677-84.
  13. Heiniger B, Gakhar G, Prasain K, Hua DH, Nguyen TA. Second-generation substituted quinolines as anticancer drugs for breast cancer. Antitumor Res 2010;30:3927-32.
  14. Vezmar M, Georges E. Reversal of MRP-mediated doxorubicin resistance with quinoline-based drugs. Biochem Pharmacol 2000;59:1245-52.
  15. Qiu H, Yashiro M, Zhang X, Miwa A, Hirakawa K. A FGFR2 inhibitor, Ki23057, enhances the chemosensitivity of drug-resistant gastric cancer cells. Cancer Lett 2011;307:47-52.
  16. Caceres G, Robey RW, Sokol L, McGraw KL, Clark J, Lawrence NJ, et al. HG-829 Is a potent noncompetitive inhibitor of the ATP-Binding cassette multidrug resistance transporter ABCB1. Cancer Res 2012;72:4204-14.
  17. Duan Z, Li X, Huang H, Yuan W, Zheng SL, Liu X, et al.Synthesis and evaluation of (2-(4-Methoxy phenyl)-4-quinolinyl)(2-piperidinyl)methanol (NSC23925) isomers to reverse multidrug resistance in cancer. J Med Chem 2012;55:3113-21.
  18. Andrews S, Burgess SJ, Skaalrud D, Kelly JX, Peyton DH.Reversal agent and linker variants of reversed chloroquine. Activities against plasmodium falciparum. J Med Chem 2010;53:916-10.
  19. Dalla VL, Gia O, Gasparotto V, Ferlin MG. Discovery of a new anilino-3H-pyrrolo[3,2-f]quinoline derivative as potential anti-cancer agent. Eur J Med Chem2008;43:429-34.
  20. Gasparotto E, Castagliuolo I, Chiarelotto G, Pezzi V, Montanaro D, Brun P, et al.Synthesis and biological activity of 7-Phenyl-6,9-dihydro-3H-pyrrolo[3,2-f]quinolin-9-ones: a new class of antimitotic agents devoid of aromatase activity. J Med Chem 2006;49:1910–5.
  21. Sui Z, Altom J, Nguyen VN, Fernandez J, Bernstein JI, Hiliard JJ, et al. Synthesis and inhibitory activity of novel Tri-and tetracyclic quinolines against topoisomerases. Bioorg Med Chem 1998;6:735-42.
  22. Legentil L, Benel L, Bertrand V, Lesur B, Delfourne E. Synthesis and antitumor characterization of pyrazolic analogues of the marine pyrroloquinoline alkaloids: wakayin and tsitsikammamines. J Med Chem 2006;49:2979–88.
  23. Legentil L, Lesur B, Delfourne E. Aza-analogues of the marine pyrroloquinoline alkaloids wakayin and tsitsikammamines: synthesis and topoisomerase inhibition. Bioorg Med Chem Lett2006;16:427–9.
  24. Hilt G, Danz M. Regioselective cobalt-catalyzed diels-alder reaction towards 1,3-Disubstituted and 1,2,3-Trisubstituted benzene derivatives. Synthesis 2008;14:2257-63.
  25. Ross A, Townsend S, Danishefsky S. Halocycloalkenones as diels-alder dienophiles. applications to generating useful structural patterns. J Org Chem2013;78:204-10.
  26. Sanyal A. Diels-Alder cycloaddition: cycloreversion A powerfull combo in materials designs. Macromol Chem Phys2010;211:1417–25.
  27. Elneairy MA, Eldine SM, Mohamed AS. Synthesis, Reactions and biological activity of pyridine 2-(1H)-Thione derivatives. Egypt J Appl Sci 2011;26:121-35.
  28. Skehan P, Storeng R, Scudiero D, Monks A, McMahon J, Vistica D, et al. New colorimetric cytotoxicity assay for anticancer-drug screening. J Natl Cancer Inst 1990;82:1107-12.
  29. Karthikeyan C, Narayana MN, Ramasamy S, Vanam U, Manivannan E, Karunagaran D, et al. Advances in chalcones with anticancer activities. Recent Pat Anti-Cancer Drug Discovery 2015;10:97-15.
  30. Kamal A, Ramakrishna G, Raju P, Viswanath A, Ramaiah MJ, Balakishan G, et al.Synthesis and anticancer activity of chalcone linked imidazolones. Bioorg Med Chem Lett 2010;20:4865-9.
  31. Yuanqing H, Ning C, Dengshun M. Biological effects of pyrroloquinoline quinone on liver damage in Bmi-1 knockout mice. Exp Ther Med 2015;10:451-8.
  32. Akanksha M, Subhadeep R, Siddhartha M, Rajnish KY, Amit KK, Sudipta S. Antiproliferative effect of flower extracts of spilanthes paniculata on hepatic carcinoma cells. Int J Pharm Pharm Sci 2015;7:130-4.
