COMPARISON STUDY OF THERAPEUTIC PROPERTIES OF PROTEINS AND SECONDARY METABOLITES FROM CARICA PAPAYA

ENG-SOON KHOR, NYET-KUI WONG^*

Biotechnology Programme, Faculty Science and Natural Resources, Universiti Malaysia Sabah, 88400 Kota Kinabalu, Sabah, Malaysia
Email: nkwong@ums.edu.my

Received: 21 Aug 2015 Revised and Accepted: 18 Feb 2016

---

ABSTRACT

Objective: The current study aims to compare the therapeutic potential of protein extracts and secondary metabolites extracts using methanol, ethyl acetate and hexane from both the fruits and seeds of Carica papaya.

Methods: All of the crude proteins and secondary metabolite fractions extracted from the fruits and seeds of Carica papaya were assessed and compared in DPPH free-radical scavenging assay for antioxidant activities and brine shrimp lethality assay for cytotoxic potentials. Protein content was quantified by Bradford assay while total phenolic and flavonoids contents were determined by Folin-Ciocalteu and aluminum chloride colorimetric methods accordingly. Bioactive protein molecules and secondary metabolite fractions were then characterized and analyzed in SDS-PAGE and silica thin layer chromatography respectively.

Results: Evidence demonstrated that the secondary metabolite extracts of ethyl acetate fraction of the seeds of Carica papaya have the highest antioxidant activity (IC₅₀ value of 25.97 µg/ml) as well as cytotoxicity activity (LC₅₀ value of 142.27 µg/ml) in comparison to other crude proteins, methanol or hexane extracts. Notably, crude protein from fruits possesses relatively high antioxidant (IC₅₀ value of 34.62 µg/ml) and cytotoxicity (LC₅₀ value of 222.52 µg/ml) activities. The presence of bioactive phenolic and flavonoid in crude secondary metabolite extracts and bioactive protein molecules in crude protein extracts confer the high antioxidant capacity and cytotoxic potential of Carica papaya.

Conclusion: This study proved that the crude protein from fruits and ethyl acetate fraction from seeds and fruits of Carica papaya have great potential to be further developed into therapeutic drugs in future.

Keywords: Carica papaya, Antioxidant, Cytotoxicity, Crude fruit protein, Phenolic, Flavonoid

---

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

INTRODUCTION

Plants contain highly valuable and readily available bioactive compounds. In fact, they can be broadly differentiated into primary and secondary metabolites. Primary metabolites such as carbohydrates, proteins and nucleotides are necessary for development and growth of plant [1]. Proteins are immediate gene products that are imperative nutrients for growth and play vital functions in essentially all biological processes [2, 3]. They are large molecules that composed of long chains of subunits named amino acids [4]. Meanwhile, secondary metabolites are usually biosynthesized via the joint action of many gene products and required for specific functions like protection against herbivores and pathogens. In general, they are classified into three main groups such as terpenes, nitrogen-containing compounds and phenolics compounds [2, 5].

Noteworthy, bioactive compounds purified from plants have been employed as therapeutics for many diseases. Recently, plant crude protein has drawn considerable attention worldwide as many researchers have claimed the therapeutics potential of plants bearing macromolecules [6, 7].

The previous study has shown that plant-derived proteins possess anticancer activity against human tumor cell lines. A protein fraction from Lactuca sativa exhibited a potent and selective anticancer activity against HepG2 (human hepatocellular liver carcinoma cell line) [8]. As reported by Hew et al. (2013), proteins extracted from Gynura procumbens can be a potential chemotherapeutic agent for breast cancer treatment as the active protein fraction was found to inhibit the growth of MDA-MB-231 (breast cancer cell line) [6]. Crude protein extracts of Helicteres isora dried fruit showed significant cytotoxicity activity against human lung cancer cells and antioxidant activity against ROS (reactive oxygen species) [9]. Besides, therapeutic properties of crude protein extract from seed extracts of Allium ascolinicum was illustrated with strong antibacterial activity against Proteus vulgaris, Escherichia coli and Staphylococcus aures [7]. Purified protein extracts from Calotropis procera possess therapeutic potency as it showed wound-healing property against bacterial infections [10].

Carica papaya is the only fruit tree among the other three genera in Caricaceae family [11]. It is widely cultivated in tropical and sub-tropical countries [12]. Numerous studies have reported the therapeutic properties on secondary metabolites from natural resources [15]. Bioactive compounds in this natural medicinal plant such as alkaloids, tannins, saponins, glycosides and phenols extracted by methanol showed significant antibacterial activity [13]. Quintal et al. (2011) reported that the presence of alkaloids, flavonoids, and terpenes in the leaf extracted by ethanol demonstrated antifungal activity [14]. Moreover, Khor et al. (2014) and Zhou et al. (2011) have reported that ethyl acetate fraction from Carica papaya exhibited high antioxidant and cytotoxicity activities [16, 17].

However, the research in protein is still in scarce. In this regard, the aim of this study is to compare the therapeutic properties of Carica papaya’s protein and secondary metabolite extracts.

MATERIALS AND METHODS

Preparation of plant material

Fruits of Carica papaya were bought from a market in Kota Kinabalu, Sabah. After washing with tap water, the peels were removed and cut into half before the wet seeds of Carica papaya were separated out. They were gently rinsed twice with tap water.

Crude protein extraction

50 g of fresh papaya fruit and dried papaya seed were blended with 500 ml of 0.02 M (20 mM) phosphate buffered saline (PBS) at pH 7.4 for about 2 min. After that, they were stirred with a magnetic stirrer for 3 h at room temperature before filtered through Whatman No.1 filter paper. The filtrate was centrifuged at 10,000 xg for 20 min at 4 °C. Next, the supernatant (crude extract) was saturated to 60% by adding solid ammonium sulfate under constant gentle stirring before incubated in the refrigerator for 6 h. Then, the precipitate was collected by centrifugation at 10,000 xg for 20 min and further dissolved in 50 ml pre-chilled distilled water and dialyzed against distilled water for 24 h at 4 °C. Lastly, the clear supernatant was obtained after centrifugation at 10,000 xg for 10 min before subjected to freeze drying [18].

Crude secondary metabolites extraction and liquid-liquid fractionation

100 g of pulverized papaya fruit and seed were macerated in 1 l of pure methanol at room temperature for 24 h with constant shaking. The filtrate that passed through Whatman No.1 filter paper was then concentrated using rotary evaporator at 40 °C and stored at 4 °C. The crude methanol extract was suspended in 20 ml of distilled water and liquid-liquid extracted using hexane and ethyl acetate in a ratio of 1:1 in a sequential manner. Extraction was terminated when each organic layer was observed as colorless [19].

Bradford protein quantification assay

This method is adopted from Jones et al. (1989) with minor modification [20]. A stock solution of 200 µg/ml bovine serum albumins (BSA) was prepared. Then, different concentration of (0-100 µg) of BSA was prepared in tube 1 to tube 7. These concentrations were equivalent to 0, 50, 100, 200, 300, 400 and 500 µl of the volume of BSA standard. At the same time, 500 µl of sample protein was prepared. To each tube, 5000 µl of Bradford reagent was added and gently mixed with a vortex mixer. Blank solution was prepared by mixing 500 µl of distilled water and 5000 µl of Bradford reagent. The absorbance was measured at 595 nm. The preparation of BSA standard and sample protein was shown in table 1.

Table 1: Preparations of BSA standard and sample proteins

Tubes	Volume of BSA/sample (μl)	Volume of distilled water (μl)	Volume of bradford reagent (μl)
Standard 1	0	500	5000
Standard 2	50	450	5000
Standard 3	100	400	5000
Standard 4	200	300	5000
Standard 5	300	200	5000
Standard 6	400	100	5000
Standard 7	500	0	5000
Sample	500	0	5000

Total phenolic content (TPC) assay

Samples were prepared in methanol at the concentration of 5 mg/ml. Next, 200 µl of sample was mixed with 1.5 ml of Folin-Ciocalteu reagent solution (10 folded with distilled water) and incubated at room temperature for 5 min. Then, 1.5 ml of sodium bicarbonate (60 g/l) was added to the mixture and again incubated at room temperature for 90 min. The samples were prepared in triplicate. The absorbance was measured at 725 nm [21].

Total flavonoid content (TFC) assay

Samples were prepared in methanol at the concentration of 5 mg/ml. Next, 500 µl of sample was mixed in a test tube containing 1.5 ml of methanol, 0.1 ml of 10% aluminum chloride, 0.1 ml of 1 M potassium acetate aqueous solution and 2.8 ml of distilled water. This mixture was incubated at room temperature for 30 min. The samples were prepared in triplicate. The absorbance was measured at 415 nm [22].

DPPH free-radical scavenging assay

This method was done based on the method reported by Ng et al. (2012). 0.2 mM of DPPH solution was prepared in methanol. Then, several concentrations (12.5–200 µg/ml) were prepared from the stock concentration of 1 mg/ml for each test sample. Next, 2 ml of each concentration of diluted sample solution was mixed with 0.5 ml of 0.2 mM DPPH solution and was shaken vigorously using vortex mixer prior to incubation in the dark at room temperature for 30 min. The samples were prepared in triplicate. The absorbance was measured at 517 nm.

The negative control contains water instead of test sample while positive control contains (12.5–200 µg/ml) ascorbic acid. A blank solution of crude protein sample contains 2.5 ml of methanol without DPPH while a blank solution of crude secondary metabolites sample contains 2 ml sample solution and 0.5 ml of methanol without DPPH [23].

Ac: the absorbance of the water, DPPH in methanol

Acb: the absorbance of the water, methanol without DPPH

As: the absorbance of the sample, DPPH in methanol

Asb: the absorbance of the sample, methanol without DPPH

Artemia salina (brine shrimp) lethality assay

This method was described by Sigaroodi et al. (2012) with minor modification. At first, 10 brine shrimps were transferred to a new plate and incubated with a total of 5 ml that contains the mixture of 4.5 ml new aerated seawater and 0.5 ml of sample extracts. Three different concentrations (10, 100 and 1000 µg/ml) of protein and secondary metabolites samples were prepared by dissolving in distilled water and 1% DMSO respectively. The samples were prepared in triplicate. 1% mercury chloride acts as positive control while 1% DMSO and distilled water act as a negative control.

In cases where the negative death occurred, the data was corrected using Abbott’s formula (% deaths = [(dead larvae in test–dead larvae in control)/survivors in control] x 100. The LC₅₀ values were determined from the 24 h counts. The extract or isolated compounds were considered bioactive when LC₅₀ value was lower than 30 µg/ml [24].

SDS-page

This method was based on Walker (2007) with minor changes. In gel preparation, 10% resolving gel was prepared by mixing the distilled water, 1.5 M Tris-HCl at pH 8.8, 10% (w/v) SDS, 30% acrylamide/bis solution, 10% (w/v) ammonium persulfate (APS) and TEMED. After resolving gel had polymerized, 4% stacking gel was prepared by mixing distilled water, 0.5 M Tris-HCl at pH 6.8, 10% (w/v) SDS, 30% acrylamide/bis solution, 10% (w/v) ammonium persulfate (APS) and TEMED. In sample preparation, 2X sample buffer was prepared by mixing 0.5 M Tris-HCl at pH 6.8, glycerol, 10% (w/v) SDS, 2-mercaptoethanol, and bromophenol blue and top up to 10 ml with distilled water. Meanwhile, 1X running buffer was prepared by mixing Tris, glycine and SDS into distilled water. 0.006 g of freeze-dried protein sample was reconstituted in 1 ml of 2X sample buffer prior to heating at 100 °C for 10 min. In gel electrophoresis, approximately 15 µl of 2X sample buffer containing protein sample was loaded into each well. 15 µl of protein molecular weight marker was used. Lastly, it was run at 100 V in stacking gel while 120 V in resolving gel [25].

Thin layer chromatography (TLC)

Ethyl acetate fraction of seeds from C. papaya which showed the maximum DPPH scavenging activity was dissolved in the extraction solvent before spotted on the silica coated aluminum TLC plate. Before that, TLC jar was closed for 5 to 15 min with TLC solvent containing hexane and ethyl acetate (1:1) and filter paper to aid equilibration. Then, the sample was spotted onto the TLC plate using a capillary tube with a diameter less than 1 mm. The TLC plate was placed in the beaker at one end of the slide immersed in the solvent prepared. It was eluted until the solvent migrates up to a few centimeters before reach the end of the plate. Lastly, the spot on the plate was visualized under short UV 254 nm [26].

Statistical analysis

All the experiments were conducted in three replicates. The results were expressed in mean±SD and data obtained was analyzed statistically by one-way ANOVA using SPSS software (SPSS 21, IBM). P values less than 0.05 were considered to be statistically significant.

RESULTS AND DISCUSSION

Extraction and collection of crude protein and secondary metabolite extracts

The percentage yield of crude protein extracts from either fruits or seeds is relatively lower as compared to crude secondary metabolite extracts. The yield of all extracts is shown in table 2. From the fruits of C. papaya, the yield of crude protein (0.11%) is much lower in comparison to crude methanol (25.60%), hexane fraction (24.61%) and ethyl acetate fraction (3.52%). Meanwhile, from the seeds of C. papaya, the yield of crude protein (0.23%) is about one fold higher than that from the fruits, yet it is still much lesser in yield as compared to crude methanol (5.2%), hexane fraction (3.85%) and ethyl acetate fraction (1.15%) (table 2). The percentage yield of both fruits and seeds of C. papaya are in the trend of crude methanol>hexane fraction>ethyl acetate>crude protein. Past finding showed that crude protein in papaya’s seed (25.1%) is higher as compared to papaya’s fruit (6.1%) [27]. As reported by Krishna et al. (2008) and Vij et al. (2014), protein yield derived from papaya fruit was approximately 0.6% [28, 29]. The observed variation might be due to extraction method. The present study adopted ammonium sulfate precipitation method to extract protein. In fact, Pavokovic et al. (2012) claimed that phenol extraction method gives higher protein yield [30].

In fact, more than 300 000 secondary metabolites derived from primary metabolites can be produced in plants [31]. An effective solvent such as 70% methanol, ethyl acetate, and hexane are those widely used solvents for secondary metabolite extractions. This resulted in a relatively higher yield of crude secondary metabolites extracts in comparison to crude protein extracts, as what was observed in the present study.

Table 2: Yield percentages of crude proteins and secondary metabolite extracts of Carica papaya

Sample	Extracts	Symbol	Initial dried weight (g)	Final dried weight (g)	Yield percentage (%)
Fruit	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	FCP FCM FHF FEAF	50 100 25.6 25.6	0.0525 25.6 6.3 0.9	0.11 25.6 24.61 3.52
Seed	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	SCP SCM SHF SEAF	50 100 5.2 5.2	0.11667 5.2 0.2 0.06	0.23 5.2 3.85 1.15

Quantitative determination of crude proteins and secondary metabolite extracts

Quantification of crude proteins and secondary metabolites is shown in table 3. From the Bradford assay, the crude protein concentration from seeds (188.81±4.80 µg/ml) is more than 10 fold as compared to crude protein concentration (17.11±2.14 µg/ml) from fruits of C. papaya. On the other hand, FEAF contains the highest total phenolic content (1979.67±126.93 µg/ml) whilst SHF showed to have the lowest total phenolic content (613.42±25.49 µg/ml). In a comparison of all secondary metabolite extracts, the total phenolic content was exhibited in a trend of FEAF>SEAF> FCM> SCM>FHF>SHF. The same goes for total flavonoid content; FEAF has demonstrated to contain the highest amount of flavonoid (1716.01±11.63 µg/ml) whilst SHF contains the lowest amount of flavonoid (412.35±5.57 µg/ml). The total flavonoid content was shown in a trend of FEAF>FCM>SEAF>FHF>SCM>SHF (table 3).

The observed discrepancy of crude protein concentration in seeds and fruits might be due to the physiological development phenomenon, in which the primary metabolites such as proteins act as the building block in plants will tend to concentrate in the seeds [32]. The result obtained from this present study was inconsistent with the literature.

Crude protein extracted from Prunus persica determined by Kjeldahi method demonstrated that the protein content in seed was higher than in fruit. The seed was reported to have a higher percentage of crude protein (2.7) as compared to fruit (0.6) when extracted from 0.25 to 0.50 g of samples [33]. On the other hand, Asha et al. (2013) have reported that the protein concentration in 0.5 mg of guava and lemon fruits was estimated to be 1.02 µg/ml and 0.20 µg/ml respectively, using Lowry method [34].

Antioxidant activity of DPPH free-radical scavenging assay

Throughout all the tested samples, crude protein extracts demonstrated relatively high antioxidant activity, as the IC₅₀ value was relatively low comparing to others. IC₅₀ value of FCP (34.62±2.72 µg/ml) shows that FCP is 2 fold stronger as an antioxidant in comparison to SCP with its IC₅₀ value of 70.13±7.71 µg/ml. It is very interesting that FCP showed higher antioxidant activity though its protein concentration is significantly lower than that of SCP.

For the secondary metabolites extracts, SEAF shows to have the lowest IC₅₀ value (25.97±0.30 µg/ml) followed by FEAF (30.61±0.27 µg/ml) and FCP (34.62±2.72 µg/ml). SHF was observed to have the highest IC₅₀ value (143.11±3.22 µg/ml).

However, one-way ANOVA showed that there is no significant difference (P>0.05) between SEAF, FEAF and FCP. It is worth noting that the antioxidant capability of SEAF, FEAF and FCP is comparable to the standard control ascorbic acid (IC₅₀ value 25.09±2.13 µg/ml), indicating a very strong antioxidant potential (table 4 & fig. 1). Comparison of all extracts, the IC₅₀ value was demonstrated in a trend of SEAF<FEAF<FCP<FCM<SCP<SCM<FHF<SHF. Overall, the fruits of C. papaya have stronger antioxidant activity than that of the seeds.

The previous study showed that protein extract of Leucas linifolia possesses good antioxidant activity with IC₅₀ value of 175 µg/ml [35]. Furthermore, a study from Boonmee et al. (2011) reported that crude protein extract from Curcuma comosa Roxb which is an Thai indigenous herb possesses antioxidant capacity [36]. The presence of antioxidant proteins such as ascorbic peroxidase, dehydro ascorbate reductase, and beta-carotene hydroxylase are responsible for the observed high antioxidant activity [37].

Table 3: Quantification of crude protein and secondary metabolite extracts of Carica papaya

Sample	Extracts	Symbol	Protein concentration (µg/ml)	Protein recovery (%)	Total phenolic content (mg GAE/100 g)	Total flavonoid content (mg QE/100 g)
Fruit	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	FCP FCM FHF FEAF	17.11±2.14 - - -	1.62±0.43 - - -	- 1255.64±103.06 815.97±20.52 1979.67±126.93	- 818.78±2.58 617.34±4.42 1716.01±11.63
Seed	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	SCP SCM SHF SEAF	188.81±4.80 - - -	8.09±0.24 - - -	- 980.45±30.26 613.42±25.49 1972.42±125.98	- 449.79±1.53 412.35±5.57 685.08±2.54

Values are means±SD of three replicates (n=3)

Table 4: IC₅₀ value (µg/ml) of crude protein and secondary metabolite extracts of Carica papaya as compared with ascorbic acid

Sample	Extracts	Symbol	IC50 value (µg/ml)
Fruit	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	FCP FCM FHF FEAF	34.62±2.72 65.62±1.33 78.51±0.83 30.61±0.27
Seed	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	SCP SCM SHF SEAF	70.13±7.71 78.42±0.88 143.11±3.22 25.97±0.30
Standard	Ascorbic acid	AA	25.09±2.13

Values are means±SD of three replicates (n=3)

Cytotoxicity activity of Artemia salina (brine shrimp) lethality assay

Table 5 shows the LC₅₀ value (µg/ml) of all sample extracts. LC₅₀ values that are lesser than 250 µg/ml resulted from crude extracts are indicative of significantly active as anticancer compounds and possess the potential for further investigation [38, 39, 40]. In the present study, three out of 8 samples were considered significantly active, they were SEAF (142.27±40.35 µg/ml), FEAF (163.96±76.77 µg/ml) and FCP (222.52±76.14 µg/ml) (table 5). One-way ANOVA showed that there was no significant difference (P>0.05) between the means of SEAF, FEAF and FCP, suggesting that these extracts are equally potent as cytotoxic compounds that are useful for anticancer. The trend of LC₅₀ values (µg/ml) of all sample extracts is SEAF<FEAF<FCP<SHF<SCM<SCP<FCM<FHF, and only SEAF, FEAF and FCP are considered active. Overall, fruits showed higher cytotoxic activities than that of the seeds from C. papaya.

Giordani et al. (1991) has demonstrated antifungal properties of latex protein from Carica papaya exemplified in inhibiting the growth of Candida albicans [41]. Moreover, recent study from Taiwan showed that N-acetyl-D-galactosamine-specific lectin isolated from the seeds of Carica papaya showed anticancer properties. This novel sugar-binding proteins, lectin has been reported to detect tumor-associated antigens of malignant cells [42].

Table 5: LC₅₀ value (µg/ml) of crude protein and secondary metabolite extracts of Carica papaya as compared with 1 % mercury chloride

Sample	Extracts	Symbol	LC50 value (µg/ml)
Fruit	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	FCP FCM FHF FEAF	222.52±76.14 415.76±51.48 441.11±3.80 163.96±76.77
Seed	Crude protein Crude methanol Hexane fraction Ethyl acetate fraction	SCP SCM SHF SEAF	385.71±44.27 374.86±42.38 357.26±47.56 142.27±40.35
Standard	1% Mercury chloride	MC	2.95±0.63

Values are means±SD of three replicates (n=3)

SDS-page analysis

Crude protein from the fruits and seeds of Carica papaya was determined and estimated in molecular weight by SDS-PAGE. It was achieved by protein lysate separation with 10% SDS gel followed by Coomassie blue staining. SCP has separated into 12 bands; 3 major and more intense bands with white, red and yellow bracketed and estimated with the molecular weight of 69.1 kDa, 50.3 kDa and 28.2 kDa respectively (fig. 1A & B). On the other hand, the only 1 band was observed in FCP and bracketed in black and estimated with the molecular weight of 15.1 kDa (fig. 1C & D).

Intriguingly, the present study showed that there was only one band was observed in FCP as compared to about 12 bands in SCP. The high protein content in the seeds of C. papaya corroborates with the recent study done by Nwofia et al. (2012) in which the protein in seeds was reported to be more than 2 times higher than that of in the fruits from C. papaya [43]. Interestingly, the only one band shared between papaya’s fruit and the seed was presumed as enzyme papain. The literature review showed that fruits and seeds of papaya contain the super enzyme papain with the molecular weight of 23.5 kDa [11, 44]. The variation in the molecular weight of the band observed in the present study and enzyme papain can be probably due to the procedure used in the preparation [45]. It explained that the incomplete unreduced disulfide bonds or disrupted secondary structure of a protein cannot unfold to its full length. Therefore, the protein would tend to migrate faster than expected in SDS gel [46]. As a result, it was presumed that the estimation in molecular weight of papain (15.1 kDa) in this study is less than 23.5 kDa was due to the fact that papain is incompletely reduced and resulting in a lower molecular weight observation in SDS-PAGE.

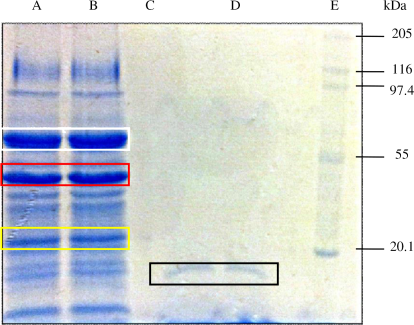

Fig. 1: SDS-PAGE separation of crude protein from the fruits and seeds of Carica papaya. Bands A&B: crude protein from seeds (SCP); Bands C&D: crude protein from fruits (FCP); Band E: Sigma protein wide range marker S8445

Thin Layer Chromatography (TLC) analysis

Therapeutic potential of bioactive compounds in SEAF was determined and estimated by thin layer chromatography. TLC plate was developed in a different ratio of solvent (hexane: ethyl acetate) of A)75: 25; B)50: 50; C)20: 80; D)16.7: 83.3; E)14.3: 85.7 and visualized at short UV-254 nm (fig. 2).

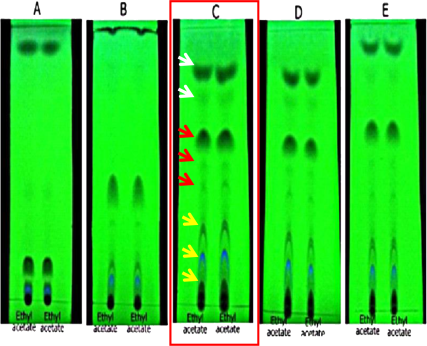

Fig. 2: TLC chromatograms of the ethyl acetate fraction of crude methanol extract from the seeds of Carica papaya in the ratio of solvent hexane: ethyl acetate; A) 75:25; B) 50:50; C) 20:80, D) 16.7:83.3; E) 14.3:85.7

The best separation was observed at solvent ratio hexane: ethyl acetate 20:80 (fig. 2C). The separation demonstrated that two non-polar compounds were eluted to the most upper part of TLC plate, three moderately polar compounds were moderately eluted to the middle part of the TLC plate, and three polar compounds were eluted the least which stay at the bottom of TLC plate (fig. 2C). These polar compounds, presumably most likely are phenolic compounds such as p-hydroxybenzoic acid and vanillic acid that were isolated from SEAF of papaya and possessed significant antioxidant activity [17]. As reported by Agostini-Costa et al. (2012), phenolic acids and flavonoids were eluted in the adopted solvent system of hexane: ethyl acetate = 1: 1 [40].

CONCLUSION

This study proved that crude proteins from fruits (FCP) and ethyl acetate fraction from seeds and fruits (SEAF and FEAF) of Carica papaya displayed very strong antioxidant and potential cytotoxicity activity as compared to other extracts, of which their antioxidant activity is in the equivalent capacity as standard ascorbic acid. Ethyl acetate has shown to be the best secondary metabolites extraction solvent for antioxidant and bioactive cytotoxic compounds from fruits and seeds of C. papaya. Remarkably, though SEAF, FEAF and FCP exhibited slight different in their IC₅₀ and LC₅₀ values, they are statistically no significant difference (p>0.05) in their strong antioxidant and cytotoxicity activity. In conclusion, both protein, and secondary metabolites extracts are therapeutically important.

CONFLICT OF INTERESTS

Declare none

REFERENCES

1. Behar N, Tiwari KL, Jadhav SK. Comparative phytochemical screening of bioactive compounds in Curcuma caesia Roxb and Curcuma longa. Res J Med Plant 2013;7:113-8.
2. Balandrin MF, Klocke JA, Wurtele ES, Bollinger WH. Natural plant chemicals: sources of industrial and medicinal materials. Science 1985;228:1154-60.
3. Berg JM, Tymoczko JL, Stryer L. Biochemistry. 5th ed. New York City [NY]: WH Freeman Publishers; 2002.
4. Thomas B, Deynze AV, Bradford KJ. The Production of Therapeutic Proteins in Plants. Oakland [CA]: Agricultural Biotechnology in California Series Publishers; 2002.
5. Bergeron C, Carrier DJ, Ramaswamy S. Biorefinery Co-products: phytochemicals, primary metabolites, and value-added biomass processing. New York City [USA]: John Wiley & Sons Publishers; 2008.
6. Hew CS, Khoo BY, Gam LH. The anti-cancer property of proteins extracted from Gynura procumbens (Lour.) Merr. PLoS One 2013;8:e68524. DOI: 10.1371/journal.pone.0068524. [Article in Press]
7. Akeel RA, Sheikh YA, Mateen A, Syed R, Janardhan K, Gupta VC. Evaluation of antibacterial activity of crude protein extracts from seeds of six different medical plants against standard bacterial strains. Saudi J Biol Sci 2013;21:147-51.
8. Abozaid SA, Baraka HN, Ibrahim AS, Gohar AA, Badria FA. Anticancer activity of plant-derived proteins against human tumor cell lines. J Drug Discovery Ther 2014;2:60-9.
9. Kumar TM, Christy AMV, Ramya RCS, Malaisamy M, Sivaraj C, Arjun P. Antioxidant and anticancer activity of Helicteres isora dried fruit solvent extracts. J Acad Ind Res 2012;1:148-52.
10. Samy RP, Chow VTK. Pilot study with regard to the wound healing activity of protein from Calotropis procera (Ait.) R. Br. J Evidence-Based Complementary Altern Med 2012. doi.org/10.1155/2012/294528. [Article in Press]
11. Aravind G, Bhowmik D, Duraivel S, Harish G. Traditional and medicinal uses of Carica papaya. J Medicinal Plants Studies 2013;1:7-15.
12. Otsuki N, Dang NH, Kumagai E, Kondo A, Iwata S, Morimoto C. Aqueous extract of Carica papaya leaves exhibits anti-tumor activity and immunomodulatory effects. J Ethnopharmacol 2009;127:760-7.
13. Krishnan Y, Wong NK. Cytotoxicity and antimicrobial properties of neem (AzadirachtaIndica) leaf extracts. Int J Pharm Pharm Sci 2015;7:179-82.
14. Doughari JH, Elmahmood AM, Manzara S. Studies on the antibacterial activity of root extracts of Carica papaya L. Afr J Microbiol Res 2007;1:37-41.
15. Quintal PC, Flores TG, Buenfil IR, Tintore SG. Antifungal activity in ethanolic extracts of Carica papaya L. cv. maradol leaves and seeds. Indian J Microbiol 2011;51:54-60.
16. Khor ES, Wong NK. Potential antioxidant and cytotoxic properties of secondary metabolite extract from Carica papaya fruits and seeds. Int J Pharm Pharm Sci 2014;6:220-4.
17. Zhou KB, Wang H, Mei WL, Li X, Luo Y, Dai HF. Antioxidant activity of papaya seed extracts. Molecules 2011;16:6179-92.
18. Talukdar G, Hossain I, Roy N, Sana NK, Kabir SR, Biswas KK, et al. Allergen protein from mango (Mangifera indica) flowers pollen. Asia-Pacific J Mol Biol Biotechnol 2012;20:11-8.
19. Khalaf NA, Shakya AK, Othman AA, Agbar ZE, Farah H. Antioxidant activity of some common plants. Turk J Biol 2007;32:51-5.
20. Jones CG, Daniel HJ, Compton SJ. Measuring plant protein with the bradford assay: 1. evaluation and standard method. J Chem Ecol 1989;15:979-92.
21. Asmah R, Fadzelly ABM, Abdah MA, Eliana AN, Hafzan Y. Antioxidant activity, total phenolic content and cytotoxic activity of various types of eggplants. J Trop Agric Food Sci 2007;35:91-7.
22. Demla M, Verma H. In vitro antioxidant activity, total phenolic and total flavonoid content of different extracts of Solanum Xanthocarpum berries. Int J Pharm Pharm Sci 2012;4:154-7.
23. Ng LY, Ang YK, Khoo HE, Yim HS. Influence of different extraction parameters on antioxidant properties of Carica papaya peel and seed. Res J Phytochem 2012;6:61-74.
24. Sigaroodi FK, Ahvazi M, Hadjiakhoondi A, Taghizadeh M, Yazdani D, et al. Cytotoxicity and antioxidant activity of 23 plant species of leguminosae family. Iran J Pharm Res 2012;11:295-302.
25. Walker JM. The Proteomics Protocols Handbook. Heidelberger [BL]: Springer Science and Business Media Publishers; 2007.
26. Juneius CER, Selvin J, Sabarathnam B, Asha D, Pandian V, Sathiyanarayanan G. Rhodobacter sphaeroides MSB 57-A natural source of 2-piperidinone, 1 (3,4,5,6-Tetrahydro-2-Pyridinyl): a novel inhibitor for reverse transcriptase of HIV. Cent Eur J Exp Biol 2012;1:36-44.
27. Maisarah AM, Asmah R, Fauziah O. Proximate analysis, antioxidant and antiproliferative activities of different parts of Carica Papaya. J Nutr Food Sci 2014;5:1-7.
28. Krishna KL, Paridhavi M, Patel JA. Review on nutritional, medicinal and pharmacological properties of papaya (Carica papaya Linn.). Nat Prod Radiance 2008;7:364-73.
29. Vij T, Prashar Y. A review on medicinal properties of Carica papaya Linn. Asian Pac J Trop Dis 2014;5:1-6.
30. Pavokovic D, Kriznik B, Rasol MK. Evaluation of protein extraction methods for proteomic analysis of non-model recalcitrant plant tissues. Croat Chem Acta 2012;85:177-83.
31. Zagrobelny M, Soren B, Moller BL. Cyanogenesis in plants and arthropods. Phytochemistry 2008;69:1457-68.
32. Balandrin MF, Klocke JA, Wurtele ES, Bollinger WH. Natural plant chemicals: sources of industrial and medicinal materials. Science 1985;228:1154-60.
33. Ashraf CM, Iqbal S, Ahmed D. Nutritional and physicochemical studies on fruit pulp, seed, and shell of indigenous Prunus persica. J Med Plants Res 2011;5:3917-21.
34. Asha S, Pawan S, Annu D. Determination of total phenolic content and total protein in guava (Psidium guajava) and Lemon (Citrus limon). Int J Biol Pharm Res 2013;4:827-34.
35. Ramakrishna H, Murthy SS, Divya R, Mamatharani DR, Panduranga MG. Hydroxy radical and DPPH scavenging activity of crude protein extract of Leucas linifolia:a folk medicinal plant. Asian J Plant Sci Res 2012;2:30-5.
36. Boonme A, Srisomsap C, Karnchanatat A, Sangvanich P. An antioxidant protein in curcuma comosa roxb rhizomes. Food Chem 2010:124:476-80.
37. Siddiq M, Ahmed J, Lobo MG, Ozadali F. Tropical and subtropical fruits: postharvest physiology, processing, and packaging. New York [USA]: John Wiley and Sons Publishers; 2012.
38. Rieser MJ, Gu ZM, Fang XP, Zeng L, Wood KV, McLaughlin JL. Five novel mono tetrahydrofuran ring acetogenins from the seeds of Annona muricata. J Nat Prod 1996;59:100-8.
39. Meyer BN, Ferrigni NR, Putnam JE, Jacobsen LB, Nichols DE, McLaughlin JL. Brine shrimp: a convenient general bioassay for active plant constituents. Planta Med 1982;45:31-4.
40. Agostini-Costa TA, Vieira RF, Bizzo HR, Silveira D, Gimenes MA. Secondary Metabolites. In: Dhanarasu S. editors. Chromatography and Its Applications. Croatia: InTech; 2012. p. 131-64.
41. Giordani R, Siepaio M, Moulin-Traffort J, Regli P. Antifungal action of Carica papaya latex: isolation of fungal cell wall hydrolysing enzymes. Mycoses 1991;34:469-77.
42. Wang TH, Kung YL, Lee MH, Su NW. N-Acetyl-D-Galactosamine specific lectin isolated from seeds of Carica papaya. J Agric Food Chem 2011;59:4217-24.
43. Nwofia GE, Ojimelukwe P, Eji C. Chemical composition of leaves, fruit pulp and seeds in some Carica papaya (L) morphotypes. Int J Med Aromatic Plants 2012;2:200-6.
44. Tietze HW. Papaya the medicine tree. 3rd ed. Bermagui [AU]: Harald Tietze Publishers; 2003.
45. Byrne JV. Tutorials in endovascular neurosurgery and interventional neuroradiology. Heidelberger [BL]: Springer Science and Business Media Publishers; 2012.
46. Hjelmeland LM, Chrambach A. Electrophoresis and electrofocusing in detergent containing media: a discussion of basic concepts. Electrophoresis 1981;2:1-11.
