Int J Pharm Pharm Sci, Vol 8, Issue 11, 33-37Original Article


PREDICTION OF LOG P AND SPECTRUM OF QUERCETINE, GLUCOSAMINE, AND ANDROGRAPHOLIDE AND ITS CORRELATION WITH LABORATORY ANALYSIS

SANDRA MEGANTARA*, MUTAKIN MUTAKIN, JUTTI LEVITA

Department of Pharmaceutical Analysis and Medicinal Chemistry, Faculty of Pharmacy, Universitas Padjadjaran
Email: smegantara@gmail.com

Received: 19 Sep 2015 Revised and Accepted: 09 Sep 2016

ABSTRACT

Objective: This study was aimed to confirm the result of computational prediction of log P and spectrum (ultraviolet-visible, 1H-NMR, 13C-NMR) of quercetin, glucosamine and andrographolide with laboratory analysis.

Methods: Quercetine, glucosamine and andrographolide, were downloaded from ChemSpider and were geometry optimised. Log P and spectrum were calculated and predicted and the data obtained were compared with laboratory results. The correlation was calculated by employing mean absolute deviation (MAD), mean square error (MSE), mean forecast error (MFE), and mean absolute percentage error (MAPE) parameters.

Results: The smallest energy value of geometry optimisation was provided by ab initio method. Log P prediction showed good accuracy, with r-value 0.995 and p-value 0.05 respectively. The error parameters were: MAD 0.19; MSE 0.06; MFE 0.16, and MAPE 8.62%, respectively. Prediction of λ maximum by ab initio, semiempirical, and molecular mechanics were respectively: MAD 2.67, 6.67, and 28.67; MSE 8.67, 45.33, and 830; MFE 2.67, 6.67, and 28.67; and MAPE 1.10%, 2.79%, and 11.99%; r-value 0.997, 0.997, and 0.979; and p-value 0.044, 0.043, and 0.129. 1H-NMR and 13C-NMR spectra prediction were: MAD 0.73 and 1.58; MSE 1.15 and 7.41; MFE 0.27 and 0.69; MAPE 18.35% and 2.68%; r-value 0.942 and 0.986; and p-value 0.001 and 0.001.

Conclusion: There is a positive correlation between computational ab initio calculation method with experimental results in predicting log P and spectrum of quercetine, glucosamine, and andrographolide.

Keywords: Ab initio, Lipophilicity, Molecular mechanics, Semiempirical, Ultraviolet-visible, 1H-NMR, 13C-NMR

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons. org/licenses/by/4. 0/)
DOI: http://dx.doi.org/10.22159/ijpps.2016v8i11.9101

INTRODUCTION

The rapid development of computational techniques finds its way to be very helpful for related sciences, e. g. for chemistry to predict physicochemical properties of compounds. According to quantum chemistry, a molecular system is described by a wavefunction which can be found by solving the Schrődinger equation:

Ĥ Ψ = Ε Ψ

In the end, this equation will describe the positions of the nuclei and electrons in the system. Quantum chemistry should be applied for ‘small system’, which can be treated at a very high level, when electronic properties are sought (electric moments, polarizabilities, shielding constants in NMR, etc) [1].

Energy is one of the most important parameters in science. All computational chemistry techniques define energy such that the system with the lowest energy is the most stable. In formulating a mathematical representation of molecules, it is necessary to define a reference system that is defined as having zero energy. This zero of energy for ab initio or density functional theory (DFT) corresponds to having all nuclei and electrons at an infinite distance from one another. Most empirical methods use a valence energy that corresponds to having the valence electrons removed and the resulting ions at an infinite distance. Most molecular mechanics methods use stainless molecule as zero energy [2].

In this work, we confirmed the accuracy of computational technique prediction on physicochemical properties (log P) and spectrum (ultraviolet-visible, 1H-NMR, 13C-NMR) of quercetin (fig. 1a), glucosamine (fig. 1b), and andrographolide (fig. 1c) by comparing it to laboratory analysis. Therefore, computational calculations could be used to simplify and shorten the long process of analytical works in the laboratory. These three compounds were selected to represent molecule with aromatic and carbonyl chromophores which have π π* and n π* electronic transitions (quercetine), a molecule which lacks of the chromophore (glucosamine), and molecule without aromatic chromophore (andrographolide). These three compounds have been proven to show anti-inflammatory activity in animals [3-8].

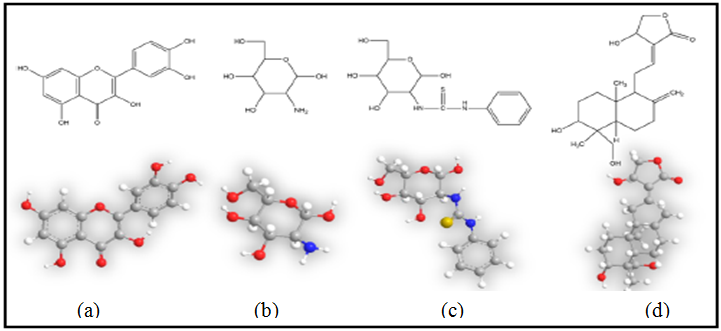

Fig. 1: Chemical structures of quercetine (a), glucosamine (b), PITC-glucosamine (c), and andrographolide (c)

MATERIALS AND METHODS

Methods

Hardware, programs, and instruments

A personal computer equipped with Intel® Core™ i5-450M (2.40 GHz, Cache 3 MB), Intel HM55, 4 GB DDR3 SODIMM PC-8500 of memory, ATI Mobility Radeon HD 5430 512MB, 500 GB Serial ATA 7200 RPM hard drive, was used for computational technique.

Programs used were: Hyper Chem, ChemBio Office®ultra 2010 (trial version) with pre-installed add-on Gamess Client® Pro for ab initio calculation, CS MOPAC®Pro for semiempirical calculation, Mechanics®Pro for molecular mechanics calculation.

Instruments used for physicochemical analysis were: ultraviolet-visible spectrophotometer (SPECORD200-Analytic Jena), 1H-NMR spectroscopy (Agilent 500 MHz), 13C-NMR spectroscopy (Agilent 125 MHz).

Chemicals

Standards used were: quercetine (Sigma-Aldrich), glucosamine (DongCheng Biochemical), and andrographolide (Sigma-Aldrich). Chemicals for solvents and reagents were: methanol (Merck), ethanol (Merck), n-octanol (Merck), ether (Merck), sodium acetate (Merck), phenylisothiocyanate (PITC) (Merck).

Data Preparations

Structures of quercetin (http://www.chemspider.com/4444051), glucosamine (http://www.chemspider.com/388352), and andro-grapholide (http://www.chemspider.com/Chemical-Structure. 16735664.html) were downloaded from Chem Spider.

Geometry optimisation for ab initio was performed using Hartree-Fock (HF) with central field approximation. The function of coordination used was a linear combination of Slater exp (-x) with STO-3G basis set.

Geometry optimisation for the semiempirical method was performed using neglect of diatomic differential overlap (NDDO) approach with AM1 parameter. Geometry optimisation for molecular mechanics method was performed using MM2 force field.

Log P and spectrum were calculated and predicted using Hyper Chem, ChemBio Office®ultra 2010. Data obtained were compared with laboratory results and calculated their accuracy by employing mean absolute deviation (MAD), mean square error (MSE), mean forecast error (MFE), and mean absolute percentage error (MAPE) parameters.

Laboratory section

Log P was determined by dissolving the compounds in a mixture of n-octanol and water and measuring the absorbance of the compounds in each solvent.

NMR spectra of the compounds were determined using 10 ppm of each compound in CDCl3.

RESULTS AND DISCUSSION

Geometry optimisation of quercetin, glucosamine, and andro-grapholide showed that the lowest energy value waste obtained by ab initio method. According to the theory, it could be concluded that in this state the molecules are at their most stable conformations.

Fig. 2: Potential energy against time during geometry optimisation

UV spectra of the compounds were determined using 10 ppm of each compound in n-octanol and water, and log P were determined by measuring the absorbance of the compounds in each solvent. According to Woodward-Fieser, λmax could be predicted by determining the base value of the compound and adding the contribution value of its substituents [9].

For quercetin (fig. 1a), the base structure is 6-membered ring enone (215 nm) with–OH at α-position as the substituent (35 nm), hence its theoretical maximum is 250 nm. fig. 3 shows UV spectra of quercetin in n-octanol λmax 255 nm and in water λmax 260 nm. The difference of the maxima is caused by the solvent.

Due to its lack of chromophores, glucosamine (fig. 1b) was reacted with phenylisothiocyanate, prior to be spectrophotometrically measured. The reaction produces a PITC-glucosamine (fig. 1c) which according to the work of Tekko and colleagues gave maximum at 245 nm [10], compared to our work which is 240 nm (fig. 4), whereas the analytical work of Shen for PITC-glucosamine was set at 254 nm [11].

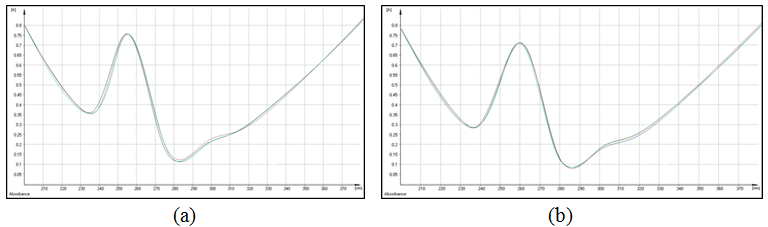

Fig. 3: UV spectra of quercetine in n-octanol (a) and in water (b)

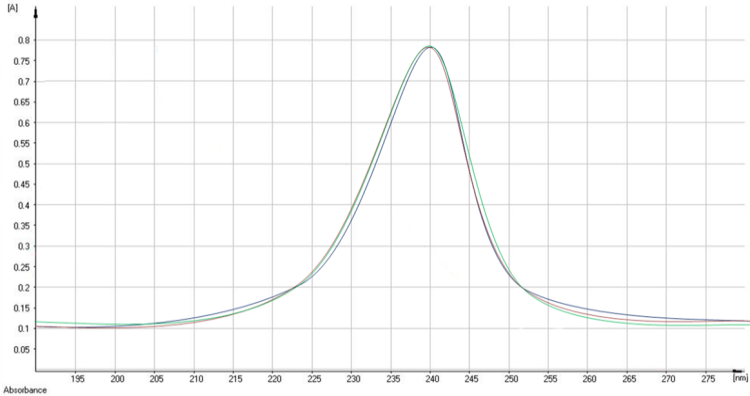

Fig. 4: UV spectrum of derivate of PITC-glucosamine

The base structure of andrographolide (fig. 1d) is 5-membered ring enone (202 nm), with a ring residue at α-position as the substituent (10 nm) and an alkyl substituent at β-position (12 nm), that add up to 230 nm, theoretically.

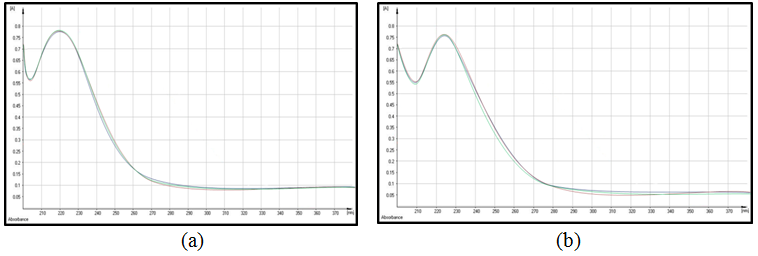

Fig. 5: UV spectra of andrographolide in n-octanol (a) and in water (b)

Fig. 5 shows UV spectra of andrographolide in n-octanol λmax 220 nm and in water λmax 224 nm. The difference of the maxima is caused by the solvent.

Table 1: Determination of Log P

Compounds

Experimental
result (At)

Prediction (Ft)

Error prediction test

Correlation test

Ia

IIb

IIIc

MAD

MSE

MFE

MAPE (%)

r-value

p-value

Quercetine

1.45

1.50

1.50

1.50

0.19

0.06

0.16

8.62





Glucosamine

-2.04

-2.18

-2.18

-2.18

0.995

0.05

Andrographolide

2.51

2.12

2.12

2.12





a: ab initiob: semiempirical: molecular mechanics

Where:


Determination of log P showed that there is no difference of log P value calculated by the three methods; furthermore, it was proven that there is a good accuracy and correlation between computational calculation and the experimental result (table 1).

Determination of λmax showed there is a good accuracy and correlation between computational calculation (ab initio and semiempirical) with experimental results (table 2). NMR spectra predicted, and experiments were showed in fig. 6-8 and table 3, 4.

Table 2: Determination of λmax

Method

Compound

Experimental result (nm)

Computational calculation (nm)

Error prediction test

Correlation test

MAD

MSE

MFE

MAPE (%)

r-value

p-value

Ab initio

Quercetine

256

253

2.67

8.67

2.67

1.10

0.997

0.044

Glucosamine

240

236

Andrographolide

222

221

Semi empirical

Quercetine

256

250

6.67

45.33

6.67

2.79

0.997

0.043

Glucosamine

240

232

Andrographolide

222

216

Molecular mechanics

Quercetine

256

224

28.67

830

28.67

11.99

0.979

0.129

Glucosamine

240

215

Andrographolide

222

193

Table 3: 1H-NMR spectra

Compound

Error prediction test

Correlation test

MADa

MSEb

MFEc

MAPEd

r-value

p-value

Quercetine

0.86

1.93

-0.35

10.15%

0.940

0.001

Glucosamine

0.79

1.09

0.66

26.71%

0.919

0.001

Andrographolide

0.55

0.43

0.50

18.20%

0.966

0.001

Table 4: 13C-NMR spectra

Compound

Error prediction test

Correlation test

MADa

MSEb

MFEc

MAPEd

r-value

p-value

Quercetine

0.63

0.60

0.02

0.48%

0.999

0.001

Glucosamine

3.20

19.32

-1.53

4.32%

0.961

0.002

Andrographolide

0.92

2.31

-0.57

3.23%

0.999

0.001

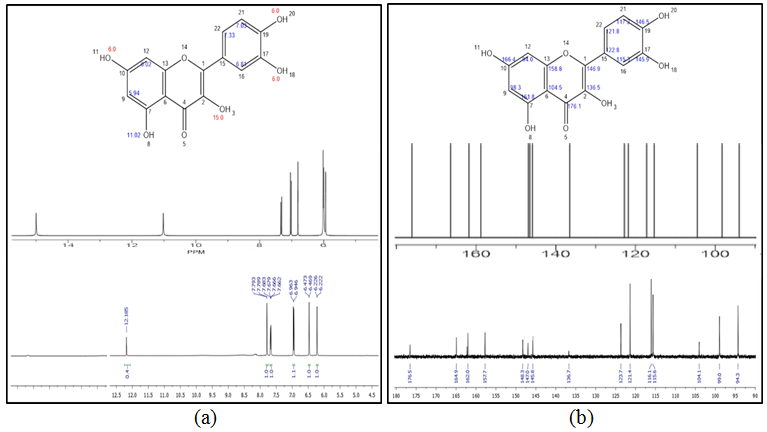

Fig. 6: 1H-NMR (a) and 13C-NMR (b) spectra of quercetin by computational prediction (upper) and laboratory experiment (lower)

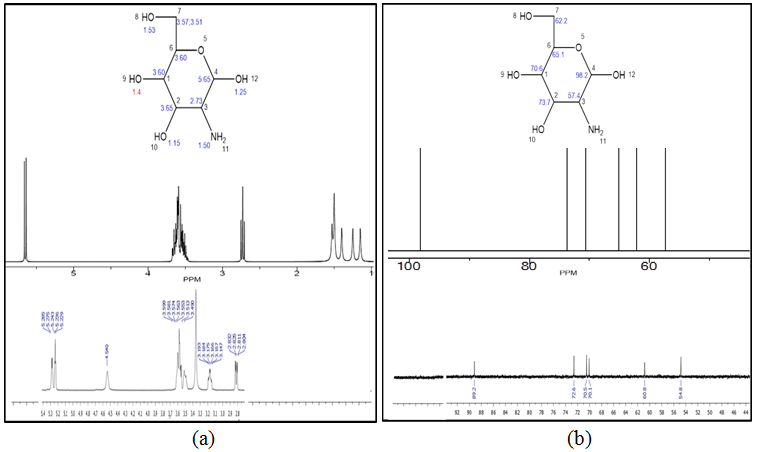

Fig. 7: 1H-NMR (a) and 13C-NMR (b) spectra of glucosamine by computational prediction (upper) and laboratory experiment (lower)

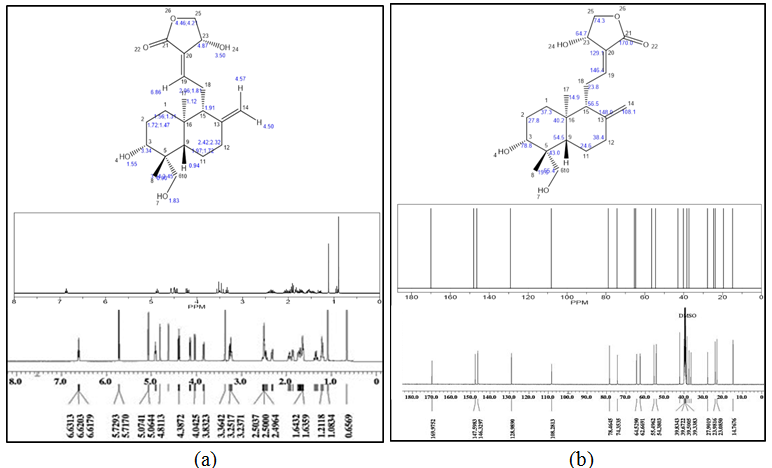

Fig. 8: 1H-NMR (a) and 13C-NMR (b) spectra of andrographolide by computational prediction (upper) and laboratory experiment (lower)

CONCLUSION

There is a positive correlation between computational ab initio calculation method with experimental results in predicting log P and spectrum of quercetin, glucosamine, and andrographolide. This approach can be adapted to a wider range of compounds.

CONFLICTS OF INTERESTS

Declared none
