PHYTOTHERAPEUTIC CONTROL OF FOODBORNE PATHOGENS BY JASMINUM SAMBAC L. FLOWERS

SENBAGAM D.1, SENTHILKUMAR B.2, 3*, AMUTHA R.1, ARUNT4, NAGARAJAN G.2, KALANDAR A.5

1Department of Microbiology,Vivekanandha College of Arts and Science for Women Tiruchengode 637205 Tamil Nadu, India,2Department of Biotechnology, Muthayammal College of Arts and Science, Rasipuram 637408,Tamil Nadu,India, 3Department of Medical Microbiology, School of Medicine, College of Health and Medical Sciences, Haramaya University, P. O. Box 235, Harar, Ethiopia, 4School of Chemical and Food Engineering, Bahir Dar Institute of Technology, Bahir Dar University,P.O.Box 26, Bahir Dar,Ethiopia, 5Department of Medical Biochemistry, School of Medicine, College of Health and Medical Sciences, Haramaya University, P. O. Box 235, Harar, Ethiopia
Email: nbenthilkumar@gmail.com

Received: 30 Oct 2015 Revised and Accepted: 25 Jan 2016


ABSTRACT

Objective: This study is aimed to determine the antibacterial effect of Jasminum sambac against foodborne pathogens.

Methods: Antibacterial activity of methanol and chloroform extract of J. sambac flowers against foodborne pathogens (Bacillus cereus, Listeria monocytogenes, Shigella flexeneri, Salmonella serovar enterica Typhi, Staphylococcus aureus and Escherichia coli) were performed using disc diffusion method and their minimal inhibitory concentration (MIC) was also determined. The preliminary phytochemical screening and gas chromatography-mass spectroscopic (GC-MS) analysis of methanol and chloroform extract of J. sambac was analyzed using GC Clarus 500 Perkin Elmer System and gas chromatograph interfaced with a mass spectrometer.

Results: Phytochemical and GC-MS studies revealed the presence of bioactive compounds and found to possess antibacterial activity against foodborne pathogens.

Conclusion: The present study supports the possible use of these phytotherapeutic agents in the clinical management of foodborne diseases.

Keywords: GC-MS analysis, Foodborne pathogens, Jasminum sambac L., Antibacterial activity


INTRODUCTION

Foodborne illness is caused by food or drinking beverages contaminated with pathogenic microorganisms. Foodborne illness can cause symptoms that range from a stomach upset to more serious symptoms, including diarrhea, fever, vomiting, abdominal cramps, and dehydration. The most common foodborne illness causing bacteria are Escherichia coli and Salmonella serovar enterica Typhi, and other species of Salmonella also have been implicated in a significant number of cases. The continuing research has been focused on new and novel antimicrobials and anti-pathogenic agents. The plants surviving in an environment with high bacterial density have been identified to possess protective means against infections [1]. The rapid spread of multi-drug resistance and the development of new antimicrobial or anti pathogenic agents that act upon new microbial targets has become a very pressing priority [2].

Jasminum sambac belonging to the family Oleac are an important group of flowers, and they are widely cultivated for their attractive, fragrant flowers. Traditionally, different parts of the plant such as the leaf, stem, bark, and roots are very useful medicine in India for a number of skin diseases [3]. The extracts of their flowers also contain Seco iridoids, [4-6] triterpenoid saponins and some other glycosides [7]. They have antiulcer and antioxidant properties [8] and contain enzyme inhibitors to convert angiotensin [9]. Their antimicrobial assay revealed that the extracts showed comparatively better activity and can be used as antibiotics [10]. Plants provide abundant resources of antimicrobial compounds and have been used for centuries to inhibit microbial growth. The present study focuses on antimicrobial compounds from J. sambac and its antibacterial efficacy on foodborne illness causing bacterial strains.

MATERIALS AND METHODS

Collection of plant materials

The fresh flowers of J. sambac were collected from Hosur, Krishnagiri District, Tamil Nadu, India. The collected plant was identified and authenticated by Dr. G. Prabakaran, Assistant Professor, Research Department of Botany, Government Arts College, Dharmapuri, Tamil Nadu, India. Fresh flowers were washed, shade-dried and then powdered using the blender and stored in airtight bottles.

Preparation of flower extracts

The flowers powder was loaded into the clean, dry Soxlet apparatus tightly using the soft metal rod. Then the apparatus was run to get flower extract with methanol and chloroform. The time was noted to get clear solvent in the side tube. Then, the methanol and chloroform extracts of this plant were evaporated using a rotary vacuum evaporator to remove the solvents. The appearance and amount of the extract of this plant were observed and measured using electronic balance. A loop full of this plant extract was streaked on sterile nutrient agar plates to check the sterility of the extract.

Preliminary phytochemical screening

The extracts were tested for the presence of active phytochemicals constituent viz. alkaloids, proteins, amino acids, anthraquinone, glycosides, flavonoids, tannin and phenolic compounds, carbohydrates, saponins and steroids [11].

Phytochemicals analysis by gas chromatography–mass spectrometry (GC-MS)

GC-MS analysis of methanol and chloroform extracts of J. sambac was performed using GC Clarus 500 Perkin Elmer system and gas chromatograph interfaced with a mass spectrometer equipped with Elite–5 MS (5% diphenyl/95% Dimethylpolysiloxane), 30 x 0.25 mm x 0.25 µm df. For GC/MS detection, an electron ionization system with ionization energy of 70 eV was used. Helium gas (99.99%) was used as the carrier gas at a constant flow rate of 1 ml/min and an injection volume of 2 µl was employed (Spilt ratio 10:1). The injector temperature was programmed at 250 °C; the ion source temperature was maintained at 200 °C. The oven temperature was programmed from 110 °C (isothermal for 2 min), with an increase of 10 °C/min, to 200 °C, then 5 °C/min to 280 °C, ending with a 9 min isothermal at 280 °C, Mass spectra were taken at eV; a scan interval of 0.5 sec and fragment from 45-450 Da. Total GC running time was 36 min. The relative percentage amount of each component was calculated by comparing its average peak area to total areas. Software adapted to handle mass spectra and chromatograms were Turbo Mass Ver 5.2.

Bacterial strains

Bacterial strains (Listeria monocytogenes MTCC-1143, Shigella flexeneri MTCC-1457, Staphylococcus aureus MTCC-3381, Escherichia coli MTCC-443, Salmonella serovar enterica Typhi MTCC-1251, Bacillus cereus MTCC-1305) were obtained from the Microbial Type Culture Collection (MTCC), Chandigargh, India.

Preparation of discs using flower extracts

The observing capacity of 5 mm, sterile discs (Hi-media, India) ranges from 10 µl to 40 µl was selected. For the preparation of the stock solution, 10 mg of each different crude extract was dissolved in 1 ml of DMSO (Dimethyl sulfoxide). From these stocks, 10 µl, 20 µl, 30 µl and 40 µl was added on the sterile discs to get 100 µg, 200 µg, 300 µg and 400 µg respectively of plant extracts. Then, these prepared discs were used for testing antibacterial activity against the bacterial strains.

Antibacterial activity of plant extracts

Antibacterial activity of plant extracts was determined by the agar disc diffusion method using Muller-Hinton agar (Hi-media, India) medium. The bacterial strains were inoculated separately into the culture plates and allowed to dry for 5 min. Then, the prepared discs with compounds were placed on the upper layer of the inoculated plates using sterile forceps. All the plates were incubated at 37 °C for 24 h. Then, the presence of a zone of inhibition was observed and measured on the plates [12]. All the experiments were done in triplicate.

Minimal inhibitory concentration (MIC)

The MIC of the methanol and chloroform extracts was determined using serial dilution technique according to the method of John et al. [13]. All the experiments were done in triplicate.

Statistical analysis

The significance of the antimicrobial activity was determined statistically using one-way analysis of the variance (Minitab version 15) via T-test. Significant differences were determined using the Duncan multiple range test at P= 0.05. The graphs were analyzed using Microcal Origin 6.0 (Microcal software, Inc.).

RESULTS AND DISCUSSION

Preliminary phytochemicals analysis

Preliminary phytochemical analysis of J. sambac methanol and chloroform extracts revealed the presence of alkaloids, flavonoids, saponins, tannins, proteins and amino acids, phytosterols, anthraquinone glycosides, phenolic compounds and absence of carbohydrates (table 1). Interpretation and correlation of spectral data of this plant J. sambac showed the presence of more compounds in methanol and chloroform extracts of the plant. Saponins have been reported to possess a wide range of activities. The toxicity of saponinsto insects, parasite worms, mollusks and fish, and their antifungal, antiviral, antibacterial activities have been well documented by Lacaille-Duois and Wagnor [14]. Flavonoids are known to synthesize by plants in response to microbial infection, and they have been found to be containing effective antimicrobial substances against a wide array of microorganisms [15].


Table 1: Preliminary phytochemical screening of methanol and chloroform extracts of J.sambac

Constituents/tests

J. sambac (Methanol)

J. sambac (Chloroform)

Alkaloids



Mayer’s test

++

++

Dragendorff’s test

++

++

Hangers test

++

++

Wagers test

++

++

Proteins and amino acids



Millon’s test

+

+

Ninhydrin test

+

+

Biuret test

+

+

Anthraquinone glycosides



Borntragerstest

+

+

Flavonoids



Shinoda’s test

++

++

Ferric chloride test

++

++

Tannins and Phenols



Ferric chloride test

++

++

Lead acetate test

++

++

Gelatin contains NaCl test

++

++

Carbohydrates



Molisch’s test

-

-

Barfoed’s test

-

-

Fehling test

-

-

Saponins



Frothing test

++

++

Steroids



Liebermann-Burchard test

++

++

(++) = moderately present; (+) = slightly present; (-) = absent


Determination of bioactive phytochemicals compounds by GC-MS

The GC-MS study of methanol and chloroform extracts of J. sambac was performed and their active compounds were identified with their retention time, molecular formula, molecular structure, molecular weight and concentration (%). The prevalent compounds in chloroform extract of J. sambac are 2-methyl-3-oxobutyro nitrile, propanimidamide, 2-chloro-N-(1,2-dichloro-1-propenyl), propanal, 2-methyl-, oxime N-chloro-2-methyl aziridine, 1,2-trans, 1,2, 4, 5-tetrazine, 3,6-diethyl, 2-propen-1-amine, 2-methyl-N-(2-propynyl)-N-ethylamine, cycloheptylamine, cyclo-octanamine, 2–propen–1-amine, N–2-propenyl-[diallyl-amine], E-2-octadecadecen-1-ol and 3-[3-[1-aziridinyl] propoxy]-2, 5-dimethylpyrazine. The major compounds in methanol extract of J. sambac are methoxy carbonyl isothiocyanate [carbon isothiocyanic acid, methyl ester], dibutyl phthalate [phthalic acid, dibutyl ester], 1,2-benzene dicarboxylic acid, diisooctyl ester [di isooctyl phthalate], cyclo butane carbonitrile, 3,3-dimethyl-[3,3-dimethylcyclobutanecarbonitrile], acetonitrile, hydroxy-[glycolo-nitrile], 1, 2–benzene dicarboxylic acid, butyl octyl ester [phthalic acid, butyl octyl ester], didodecyl phthalate, phthalic acid, 2-hexyl ester, 2-benzene dicarboxylic acid, monobutyl ester [phthalic acid, monobutyl ester], ethane peroxoic acid, 1–cyano–1-[2-(2-phenyl-1, 3–dioxolan–2-yl) ethyl] pentyl ester, 1, 2-benzene dicarboxylic acid and butyl 2-ethylhexyl ester [phthalic acid, butyl 2-ethylhexyl ester] (table 2 and 3).


Table2: Bioactive components identified in the J. sambac methanol extract by GC-MS analysis

RT

Compounds

Molecular formula

MW

Peak

Area %

Molecular structure

10.82

Methoxycarbonyl isothiocyanate [Carbonisothiocyanic acid, methyl ester]

C3H3NO2S

117

11.92

13.06

Dibutyl phthalate

[Phthalicacid, dibutyl ester]

C16H22O4

278

0.33

20.94

1,2-Benzene dicarboxylicacid, di isooctyl ester

[Di isooctyl phthalate]

C24H38O4

390

74.83

23.70

Cyclobutane carbonitrile, 3,3-dimethyl-[3,3-dimethyl cyclo butane carbonitrile]

C7H11N

109

0.99

24.17

Acetonitrile hydroxy-[Glycolonitrile]

C2H3NO

57

2.65

24.51

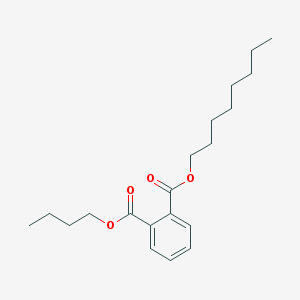

1,2-Benzenedicarboxylicacid,butyloctyl

ester

[Phthalicacid, butyloctylester]

C20H30O4

334

1.99

24.89

Di-dodecyl phthalate

C32H54O4

502

0.33

25.26

Phthalic acid, 2-hexyl ester

C14H18O4

250

2.65

25.37

1,2-Benzene dicarboxylic acid, mono butyl ester

[Phthalicacid, monobutyl ester]

C12H14O4

222

2.32

25.65

Ethane peroxoic acid, 1-cyano-1-[2-(2-phenyl-1, 3-dioxolan-2-l)ethyl] pentyl ester

C19H25NO5

347

1.66

26.04

1,2-Benzene dicarboxylic acid, butyl 2-ethyl hexylester

[Phthalic acid, butyl 2-ethyl hexyl ester]

C20H30O4

334

0.33


Table 3: Bioactive components identified in the J. sambac chloroform extract by GC-MS analysis

RT

Name of the compound

Molecular formula

MW

Peak area %

Molecular structure

11.62

2-Methyl-3-oxo butyronitrile

C5H7NO

97

0.09

14.95

Propanimidamide, 2-chloro-N-(1,2-dichloro-1-propenyl)

C6H9Cl3N2

214

0.09

21.73

Propanal, 2-methyl-, oxime

C4H9NO

87

0.23

23.11

1-Chloro-2-methyl aziridine

C3H6ClN

91

0.32

23.13

1,2,4,5-Tetrazine, 3,6-diethyl

C6H10N4

138

0.05

24.47

2-Propen-1-amine, 2-methyl

C4H9N

71

0.37

24.64

N-(2-Propynyl)-N-ethyl amine

C5H9N

83

0.78

25.80

Cyclo heptyl amine

C7H15N

113

0.69

27.12

Cyclo octanamine

C8H17N

127

0.73

28.52

2-Propen-1-amine, N-2-propenyl

[Diallyl amine]

C6H11N

97

3.62

28.93

E-2-Octa decadecen-1-ol

C18H36O

268

81.08

30.44

3-[3-[1-Aziridinyl] propoxy]-2,5-

dimethyl pyrazine

C11H17N3O

207

11.91


Antibacterial activity of flower extracts

The methanol and chloroform extracts of J. sambac showed maximum antibacterial activity against L. monocytogenes, S. flexeneri, S. aureus, E. coli, S. typhi and B. cereus. Both the extracts were able to inhibit the growth of all tested organisms (Fig.1 and 2). The significant number of studies has been used to obtain purified plant chemicals, and very few screening programs have been initiated on crude plant materials [16]. Heinrich and Simon [17] suggested that the extract of J. sambac was effective against the tested pathogens. The ethanol extracts of J. sambac was tested and proved their activity against an array of Gram-positive (S. aureus, B. subtilis and B. cereus) and Gram-negative bacteria (E. coli, K. pneumoniae, P. aeruginosa and S. typhimurium) [10, 18].

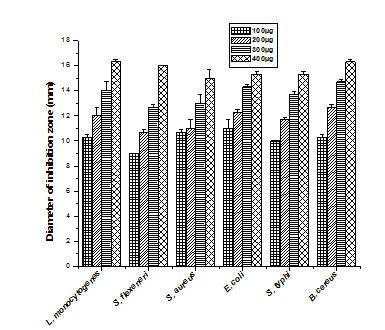

Fig.1: Antibacterial activity of methanol extract of J. sambac against foodborne pathogens

Minimal Inhibitory concentration (MIC) of flower extracts

The MIC values of J. sambac flower extracts were determined by the microdilution method and spread plate method. The dilution range was 1000 µg/ml to 7.25 µg/ml. The MIC value of methanol and chloroform extracts of J. sambac against L. monocytogenes, S. typhi and B. cereus were found to be 62.5µg/ml. The MIC values of both extracts against S. aureus and E. coli were 125µg/ml and for S. flexeneri was 250 µg/ml, respectively (table 4). This study is also consistent with the earlier reports on the minimal inhibitory concentration of Phyllanthusamarus [19] and Aervalanata [20] against all the tested bacterial strains.



Fig.2: Antibacterial activity of chloroform extract of J. sambac against foodborne pathogens


Table 4: Minimal inhibitory concentration (MIC) of J. sambac against foodborne pathogens

Flower extracts

Concentration (µg/ml)

7.25

13.65

31.25

62.5

125

250

500

1000

L. monocytogenes

Methanol extract

+

+

+

ß

-

-

-

-

Chloroform extract

+

+

+

ß

-

-

-

-

S. flexeneri

Methanol extract

+

+

+

+

+

?

-

-

Chloroform extract

+

+

+

+

+

?

-

-

S. aureus

Methanol extract

+

+

+

+

ß

-

-

-

Chloroform extract

+

+

+

+

ß

-

-

-

E. coli

Methanol extract

+

+

+

+

 ß

-

-

-

Chloroform extract

+

+

+

+

 ß

-

-

-

S. typhi

Methanol extract

+

+

+

ß

-

-

-

-

Chloroform extract

+

+

+

ß

-

-

-

-

B. cereus

Methanol extract

+

+

+

ß

-

-

-

-

Chloroform extract

+

+

+

ß

-

-

-

-

Note: (-)–No growth; (+)–Growth; ß–MIC value


CONCLUSION

The present study concludes that J. sambac extracts were found to have potential antibacterial activity against both Gram positive and Gram negative bacterial pathogens. These antibacterial principles can be used to overcome the antibiotic resistance, which poses a great problem with treating bacterial diseases.

ACKNOWLEDGEMENT

Authors wish to thank the Muthayammal College of Arts & Science, Rasipuram, Tamil Nadu, India, for providing the laboratory facilities and Department of Food Quality and Testing, Indian Institute of Crop Processing Technology (IICPT), Tanjore, Tamil Nadu, India for permitting to perform GC-MS studies. We also deeply acknowledge the guidance and cooperation rendered by Haramaya University, Ethiopia.

CONFLICT OF INTERESTS

We declare that we have no conflict of interest

REFERENCES

  1. Adonizio ALK, Bennett BC, Mathee K. Antiquorum sensing activity of medicinal plants in southern Florida. J Ethnopharmacol 2008;105:427-5.
  2. Al-Hussaini R, Mahasneh AM. Antimicrobial and anti quorum sensing activity of different parts of Laurusnobilis L. extracts. Jordan Med J 2009;43:54-63.
  3. Chaturvedi AP, Kumar M, Tripathi YB. Efficacy of Jasminum grandiflorum L. leaf extract on dermal wound healing in rats. Int Wound J 2013;1:11-5.
  4. Zhao GQ, Yin ZF, Dong JX. A new secoiridoid from the flowers of Jasminum officinale L. var. grandiflorum. Yao XueXue Bao 2008;43:513-7.
  5. Sadhu K, Khan MS, Ohtsuki T, Ishibashi M. Secoiridoid components from Jasminum grandiflorum. Phytochem 2007;68:1718-21.
  6. Zhao GQ, Dong JX. Triterpenoid saponins from flower bud of Jasminum officinale var. grandiflorum. Zhongguo Zhongyao Zazhi 2008;33:38-42.
  7. Zhao GQ, Xia JJ, Dong JX. Glycosides from flowers of Jasminum officinale L. var. grandiflorum. Yaoxue Xuebao 2007;42:1066-9.
  8. Umamaheswari M, Asokkumar K, Rathidevi R, Siva Shanmugam AT, Subhadra Devi V, Ravi TK. Antiulcer and in vitro antioxidant activities of Jasminum grandiflorum L. J Ethnopharmacol 2007;110:464-70.
  9. Somanadhan B, Smitt UW, George V, Pushpangadan P, Rajasekharan S, Duus JO. Angiotensin-converting enzyme (ACE) inhibitors from Jasminum azoricum and Jasminum grandiflorum. Planta Med 1998;64:246-50.
  10. Priya J, Raja DP. Anti-bacterial activity studies of Jasminum grandiflorum and Jasminum sambac. Ethanobot Leaflets 2008;12:481-3.
  11. Harborne JB. Phytochemistry, Academic Press: London; 1993. p. 89-131.
  12. Senthilkumar B, Zothansanga, Senbagam D, Senthilkumar N, Guru Subramaniam G. Practical Microbiology-A Laboratory Manual, Panima Publishing Corporation, New Delhi, India; 2014. Doi: 10.13140/2.1.2667.6163. [Article in Press]
  13. John DB, Herin Sheeba, Gracelin DS, Teena RS. Antibacterial activity of a few medicinal plants against Xanthomonas campestris and Aeromonas hydrophila. J Biopest 2011;4:57-60.
  14. Lacaille-Duois, Wagnor D. Antifungal, Antiviral, antibacterial activities of saponins. J Ethnopharmacol 1996;19:11-27.
  15. Dixon G, Stein GE, Thomason JL. Effective antimicrobial substances against a wide array of microorganisms. J Ethnopharmacol 1983;34:19-25.
  16. Veeramuthu A, Usman H, Abdul FI. Bioactive phyto components. J Ethnopharmacol 2008;10:68-75.
  17. Heinrich M, Simon G. Ethnopharmacology in development: discovery and analysis of its role and potential contribution. Pharm pharmocol 2001;53:425-2.
  18. Mittal Arun, Sardana Satish, Pandey Anima. Phyto pharmacological profile of Jasminum grandiflorum Linn. Chin J Integr Med 2015. Doi.10.1007./s11655-015-20. [Article in Press]
  19. Arun T, Senthilkumar B, Purushothaman K, Aarthy A. GC-MS determination of bioactive components of Phyllanthus amarus (L.) and its antibacterial activity. J Pharm Res 2012;5:4767-71.
  20. Arun T, Senthilkumar B, Aarthy A, Senbagam D, Sureshkumar M. Phytochemical screening, GC-MS analysis of phytochemical constituents and antibacterial activity of Aervalanata (L.) leaves. Afr J Pharm Pharmacol 2014;8:126-5.
